FDI000000012AirStation

Regulatory Compliance Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not pos- sible. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Federal Communication Commission (FCC) Radiation Exposure Statement: This EUT is compliance with SAR for general population/uncontrolled exposure limits in ANSI/IEEE C95.1-1999 and had been tested in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C. Industry Canada statement: Industrie Canada déclaration: CAN ICES-3(B)/NMB-3(B) This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-210 d’Industrie Canada applicable aux appareils radio exempts de licence. Son fonc- tionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indé- sirable. Caution: Prudence: For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not pos- sible. The device could automatically discontinue transmission in case of absence of information to transmit, or operational failure. Note that this is not intended to prohibit transmission of control or signaling information or the use of repetitive codes where required by the technology. Radiation Exposure Statement: Déclaration d’exposition aux radiations: The product comply with the Canada portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. Le produit est conforme aux limites d’exposition pour les appareils portables RF pour les Etats-Unis et le Canada établies pour un environnement non contrôlé. Le produit est sûr pour un fonctionnement tel que décrit dans ce manuel. La réduction aux expositions RF peut être augmentée si l’appareil peut être conservé aussi loin que possible du corps de l’utilisateur ou que le dispositif est réglé sur la puissance de sortie la plus faible si une telle fonction est disponible.

www.buffalotech.com User Manual AirStation WMR-300 - 1 - Contents Chapter 1 - Product Overview .........................................2 Package Contents ...................................................................2 Hardware Overview .................................................................3 Chapter 2 - Installation .....................................................5 Appendix A - Specifications .............................................6 Appendix B - Environmental Information .......................8 Appendix C - GPL Information ........................................9 - 2 - Chapter 1 - Product Overview Package Contents The following items are included in your AirStation package. If any of the items are missing, please contact your vender. • AirStation .......................................................................................................................................1 • Case ..................................................................................................................................................1 • Ethernet Cable .............................................................................................................................1 • Quick Setup Guide ......................................................................................................................1 • Warranty Statement ...................................................................................................................1 INTERNET INTERNET INTERNET RESET RESET RESET 1 2 3 5 4 6 7 Chapter 1 Product Overview - 3 - Hardware Overview 1 USB cableConnect to PC, or USB power adapter. 2 Internet LED (Green) On:The Internet port is connected. Blinking:The Internet port is not connected. Off: Router functionality is disabled. 3 Power/Diag LED (Green or Red) On (Green): Power is on, and WLAN is enabled. Blinking (Green):Booting 2 Blinks (Green):AirStation is waiting for an AOSS or WPS security key. Blinking slowly (Green): Power is on, and WLAN is disabled. Continuously blinking: (Red): AOSS/WPS error; failed to exchange security keys. - 4 - Chapter 1 Product Overview 2 blinks (Red) *2 : Flash ROM error. 3 blinks (Red) *2 : Wired Ethernet LAN error. 4 blinks (Red) *2 : Wireless LAN error. 5 blinks (Red) *3 : IP address setting error. 9 blinks (Red) *2 : System error. Continuously blinking *1 : Updating firmware, saving settings, or initializing settings. *1 Never unplug the USB cable while the Power/Diag LED is blinking continuously. *2 Turn off AirStation first, wait for a few seconds, then turn it back on. *3 Because the network addresses of both the Internet port (WAN port) and the LAN port are the same, it is not possible to establish communication. Change the LAN-side IP address of the AirStation. 4 AOSS buttonTo initiate AOSS, hold down this button until the Power/Diag LED flashes (about 1 second). Then, push or click the AOSS button on your wireless client device to complete the connection. Both devices must be powered on for this to work. 5 Reset buttonTo reset all settings, hold down this button until the Power/Diag LED turns red (about 3 seconds). The power must be on for this to work. 6 Internet Port10 Mbps and 100 Mbps connections are supported. Note: In bridge/AP mode (router off), the Internet port becomes a regular LAN port. 7 Factory Default Settings This sticker shows the AirStation’s SSID, default encryption key, and WPS PIN code. USB Port Ethernet Cable Ethernet Connector AirStation USB power adapter Ethernet Cable Ethernet Connector AirStation - 5 - Chapter 2 - Installation To configure your AirStation, follow the procedure below. 1 2 3 Launch a web browser. If the home screen is displayed, setup is complete. 4 - 6 - WAN Interface Standard ComplianceIEEE802.3u (100BASE-TX), IEEE802.3 (10BASE-T) Transmission Rate10 / 100 Mbps Transmission Encoding100BASE-TX 4B5B/MLT-3, 10BASE-T Manchester Coding Access MethodCSMA/CD Speed and Flow Control10 / 100 Mbps, Auto Sensing, Auto MDIX Number of LAN Ports1 LAN Port ConnectorRJ-45 Wireless LAN Interface Standard ComplianceIEEE802.11n/g/b Transmission MethodDirect Sequence Spread Spectrum (DSSS), OFDM, MIMO Frequency Range2412-2462 MHz (Channels 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11) Transmission Rate 802.11n/b/g 802.11n: 20 MHz BW (Long GI) 130, 117, 104, 78, 52, 39, 26, 13 Mbps (2 stream) 65, 58.5, 52, 39, 26, 19.5, 13, 6.5 Mbps (1 stream) 20 MHz BW (Short GI) 144.4, 130, 115.6, 86.7, 57.8, 43.3, 28.9, 14.4 Mbps (2 stream) 72.2, 65, 57.8, 43.3, 28.9, 21.7, 14.4, 7.2 Mbps (1 stream) 40 MHz BW (Long GI) 270, 243, 216, 162, 108, 81, 54, 27 Mbps (2 stream) 135, 121.5, 108, 81, 54, 40.5, 27, 13.5 Mbps (1 stream) 40 MHz BW (Short GI) 300, 270, 240, 180, 120, 90, 60, 30 Mbps (2 stream) 150, 135, 120, 90, 60, 45, 30, 15 Mbps (1 stream) 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11b: 11, 5.5, 2, 1 Mbps Access ModeInfrastructure Mode Security AOSS, WPA2-PSK (AES), WPA/WPA2 mixed PSK, WPA-PSK (AES), 64-bit or 128- bit WEP, Mac Address Filter Appendix A - Specifications Appendix A Specifications - 7 - Other Power SupplyExternal AC 100-240 V Universal, 50/60 Hz Power ConsumptionAbout 2.5 W (Max) DimensionsTBD WeightTBD Operating Environment0 - 40° C (32 - 104° F), 10 - 85% (non-condensing) - 8 - Appendix B - Environmental Information • The equipment that you have purchased has required the extraction and use of natural resources for its production. • The equipment may contain hazardous substances that could impact health and the environment. • In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural resources, we encourage you to use the appropriate take-back systems. • The take-back systems will reuse or recycle most of the materials of your end life equipment in a sound way. • The crossed-out wheeled bin symbol invites you to use those systems. • If you need more information on collection, reuse, and recycling systems, please contact yo…

Text truncated - open the document above for the full version.

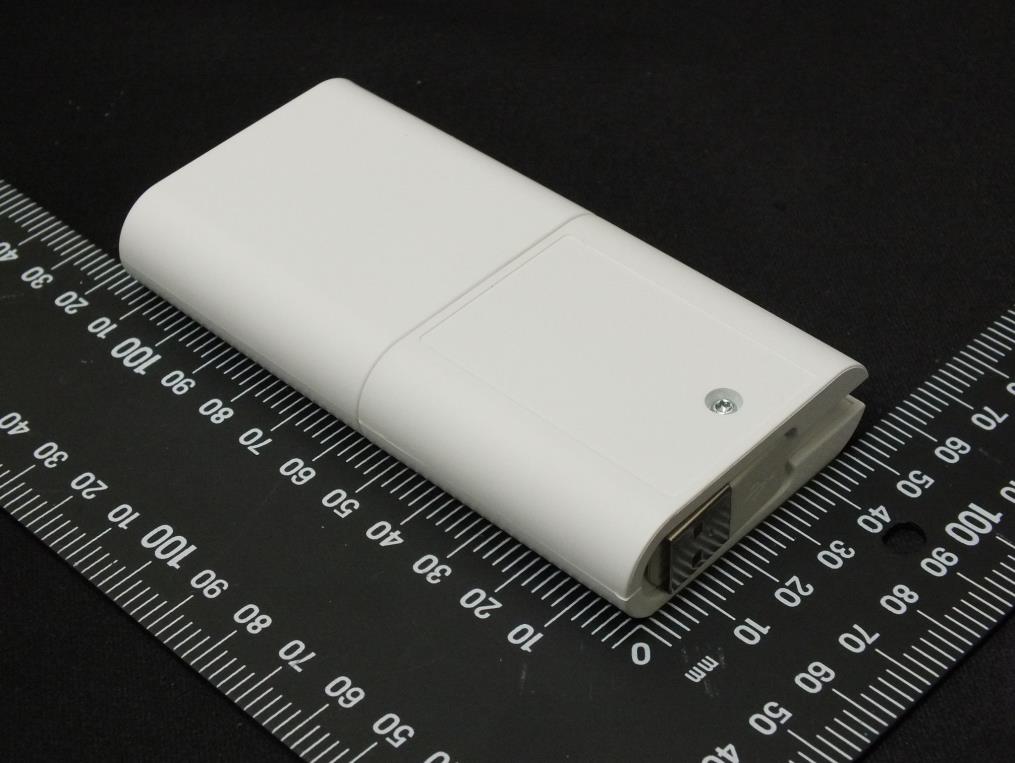

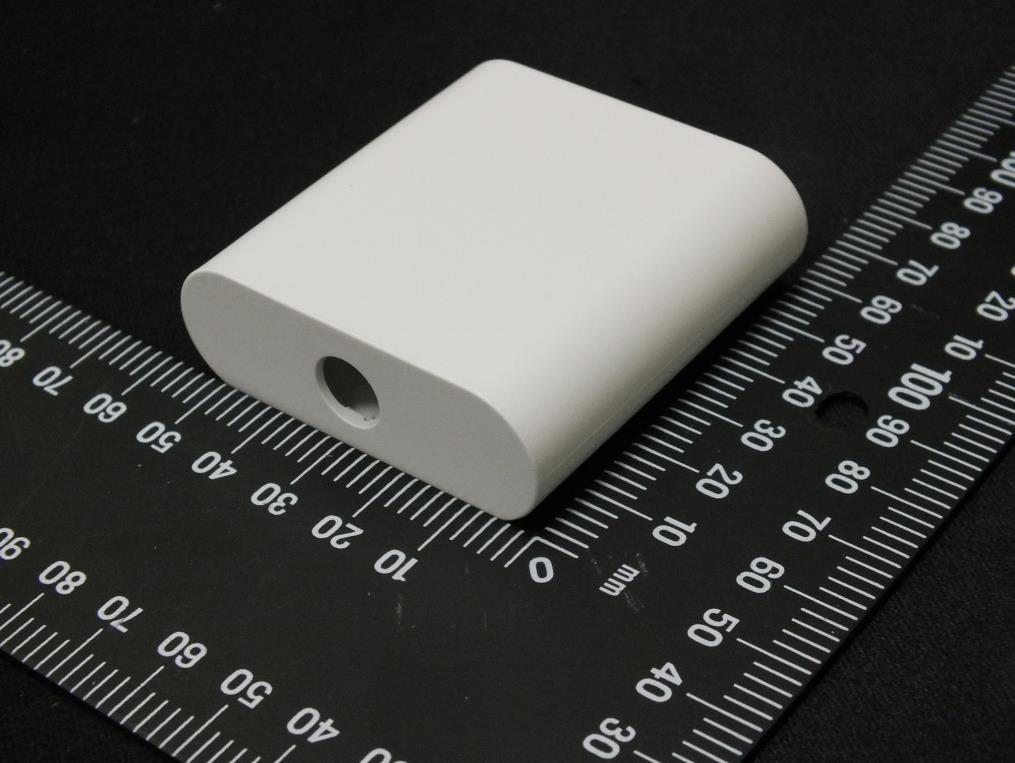

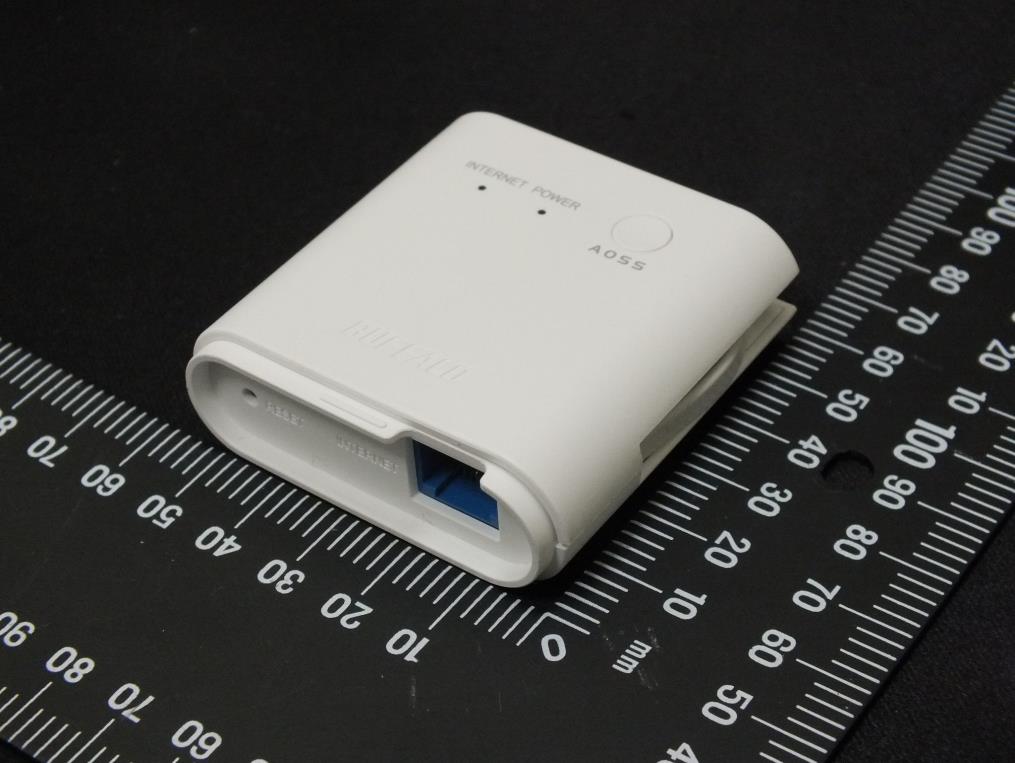

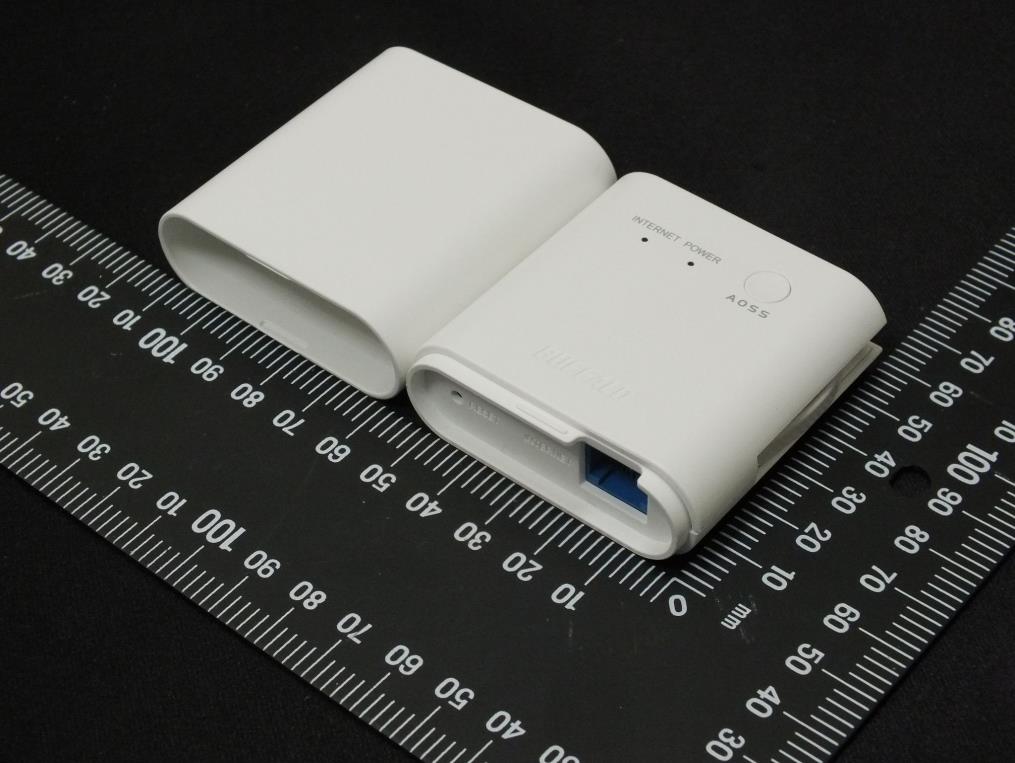

FCC Test Report Report No. : EP330515 SPORTON International Inc. Page No. : B1 of B20 TEL : 886-3-327-3456 Issued Date : Mar. 27, 2013 FAX : 886-3-327-0973 Appendix B. Photographs of EUT FCC Test Report Report No. : EP330515 SPORTON International Inc. Page No. : B2 of B20 TEL : 886-3-327-3456 Issued Date : Mar. 27, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330515 SPORTON International Inc. Page No. : B3 of B20 TEL : 886-3-327-3456 Issued Date : Mar. 27, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330515 SPORTON International Inc. Page No. : B4 of B20 TEL : 886-3-327-3456 Issued Date : Mar. 27, 2013 FAX : 886-3-327-0973

SSID Buffalo-G-XXXX Key XXXXXXXXXXXXX IP Address 192.168.11.1 Username admin Password password This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CAN ICES-3 (B)/NMB-3(B) IC: 6102A-048 FCC ID: FDI000000012 5VInput : WMR-300Model: S/N: XXXXXXXXXXXXXX PIN: XXXXXXXX MAC: XXXXXXXXXXXXB0 A0

Label Location

FCC Test Report Report No. : EP330515 SPORTON International Inc. Page No. : B5 of B20 TEL : 886-3-327-3456 Issued Date : Mar. 27, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330515 SPORTON International Inc. Page No. : B6 of B20 TEL : 886-3-327-3456 Issued Date : Mar. 27, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330515 SPORTON International Inc. Page No. : B7 of B20 TEL : 886-3-327-3456 Issued Date : Mar. 27, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330515 SPORTON International Inc. Page No. : B8 of B20 TEL : 886-3-327-3456 Issued Date : Mar. 27, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330515 SPORTON International Inc. Page No. : B9 of B20 TEL : 886-3-327-3456 Issued Date : Mar. 27, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330515 SPORTON International Inc. Page No. : B10 of B20 TEL : 886-3-327-3456 Issued Date : Mar. 27, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330515 SPORTON International Inc. Page No. : B11 of B20 TEL : 886-3-327-3456 Issued Date : Mar. 27, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330515 SPORTON International Inc. Page No. : B12 of B20 TEL : 886-3-327-3456 Issued Date : Mar. 27, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330515 SPORTON International Inc. Page No. : B13 of B20 TEL : 886-3-327-3456 Issued Date : Mar. 27, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330515 SPORTON International Inc. Page No. : B14 of B20 TEL : 886-3-327-3456 Issued Date : Mar. 27, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330515 SPORTON International Inc. Page No. : B15 of B20 TEL : 886-3-327-3456 Issued Date : Mar. 27, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330515 SPORTON International Inc. Page No. : B16 of B20 TEL : 886-3-327-3456 Issued Date : Mar. 27, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330515 SPORTON International Inc. Page No. : B17 of B20 TEL : 886-3-327-3456 Issued Date : Mar. 27, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330515 SPORTON International Inc. Page No. : B18 of B20 TEL : 886-3-327-3456 Issued Date : Mar. 27, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330515 SPORTON International Inc. Page No. : B19 of B20 TEL : 886-3-327-3456 Issued Date : Mar. 27, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP330515 SPORTON International Inc. Page No. : B20 of B20 TEL : 886-3-327-3456 Issued Date : Mar. 27, 2013 FAX : 886-3-327-0973

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/28 System Check_Body_2450MHz_130328 DUT: D2450V2-SN:736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130328 Medium parameters used: f = 2450 MHz; σ = 1.904 mho/m; ε r = 51.836; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.17, 4.17, 4.17); Calibrated: 2012/9/28; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 18.5 mW/g Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 93.954 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 27.629 mW/g SAR(1 g) = 13.1 mW/g; SAR(10 g) = 6.15 mW/g Maximum value of SAR (measured) = 17.2 mW/g 0 dB = 17.2 mW/g = 24.71 dB mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/28 #01_WLAN2.4G_802.11b_Front_0.5cm_Ch6 DUT: 330515 Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130328 Medium parameters used: f = 2437 MHz; σ = 1.887 mho/m; ε r = 51.868; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.17, 4.17, 4.17); Calibrated: 2012/9/28; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Configuration/Ch6/Area Scan (61x61x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 0.524 mW/g Configuration/Ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 15.409 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 0.667 mW/g SAR(1 g) = 0.354 mW/g; SAR(10 g) = 0.213 mW/g Maximum value of SAR (measured) = 0.428 mW/g 0 dB = 0.428 mW/g = -7.37 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/28 #02_WLAN2.4G_802.11b_Back_0.5cm_Ch6 DUT: 330515 Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130328 Medium parameters used: f = 2437 MHz; σ = 1.887 mho/m; ε r = 51.868; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.17, 4.17, 4.17); Calibrated: 2012/9/28; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Configuration/Ch6/Area Scan (61x61x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 0.269 mW/g Configuration/Ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 11.983 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 0.389 mW/g SAR(1 g) = 0.215 mW/g; SAR(10 g) = 0.121 mW/g Maximum value of SAR (measured) = 0.263 mW/g 0 dB = 0.263 mW/g = -11.60 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/28 #03_WLAN2.4G_802.11b_Left Side_0.5cm_Ch6 DUT: 330515 Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130328 Medium parameters used: f = 2437 MHz; σ = 1.887 mho/m; ε r = 51.868; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.17, 4.17, 4.17); Calibrated: 2012/9/28; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Configuration/Ch6/Area Scan (51x61x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 0.269 mW/g Configuration/Ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 11.613 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.420 mW/g SAR(1 g) = 0.213 mW/g; SAR(10 g) = 0.111 mW/g Maximum value of SAR (measured) = 0.270 mW/g 0 dB = 0.270 mW/g = -11.37 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/28 #04_WLAN2.4G_802.11b_Right Side_0.5cm_Ch6 DUT: 330515 Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130328 Medium parameters used: f = 2437 MHz; σ = 1.887 mho/m; ε r = 51.868; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.17, 4.17, 4.17); Calibrated: 2012/9/28; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Configuration/Ch6/Area Scan (51x61x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 0.0856 mW/g Configuration/Ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 6.661 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated) = 0.131 mW/g SAR(1 g) = 0.066 mW/g; SAR(10 g) = 0.039 mW/g Maximum value of SAR (measured) = 0.0808 mW/g 0 dB = 0.0808 mW/g = -21.85 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/28 #05_WLAN2.4G_802.11b_Top Side_0.5cm_Ch6 DUT: 330515 Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130328 Medium parameters used: f = 2437 MHz; σ = 1.887 mho/m; ε r = 51.868; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.17, 4.17, 4.17); Calibrated: 2012/9/28; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Configuration/Ch6/Area Scan (51x61x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 0.275 mW/g Configuration/Ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 11.752 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 0.435 mW/g SAR(1 g) = 0.203 mW/g; SAR(10 g) = 0.098 mW/g Maximum value of SAR (measured) = 0.258 mW/g 0 dB = 0.258 mW/g = -11.77 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/28 #06_WLAN2.4G_802.11b_Bottom Side_0.5cm_Ch6 DUT: 330515 Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130328 Medium parameters used: f = 2437 MHz; σ = 1.887 mho/m; ε r = 51.868; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.17, 4.17, 4.17); Calibrated: 2012/9/28; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Configuration/Ch6/Area Scan (51x61x1): Measurement grid:…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 D2450V2, serial no. 736 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification Procedure of Extended Dipole Calibration> 1. Setup a Network Analyzer (Agilent N5230A) and set the start frequency and stop frequency to Network Analyzer according to the dipole frequency, at least +/- 200MHz around the calibration point. 2. Using calibration kit to perform Network Analyzer Open, Short and Load calibration. 3. Connect the dipole with the calibrated Network Analyzer. 4. Place the dipole underneath the phantom which is filled with head-simulating or body-simulating liquid. 5. Set the Network Analyzer frequency by the dipole calibration frequency. Monitor the return-loss and impedance results with Log Magnitude format and Smith Chart, respectively. 6. Record the result and compare with the prior calibration. Please check the Appendix C for detail records. <Justification of the extended calibration> D2450V2 – serial no. 736 2450 Head 2450 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 7.25.2011 -27.042 54.398 1.4805 -30.696 50.812 2.8262 7.25.2012 -27.950 -3.365 52.541 1.857 0.77343 0.707 -31.781 -3.535 50.572 0.24 1.5953 1.2309 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 <Dipole Verification Data> - D2450 V2, serial no. 736 (Date of Measurement : 7.25.2012) 2450 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 2450 MHz – Body

SPORTON INTERNATIONAL INC. Page Number : 1 of 30 TEL : 886-3-327-3456 Report Issued Date : Apr. 16, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : FDI000000012 FCC SAR Test Report Report No. : FA330515 FCC SAR Test Report APPLICANT : BUFFALO INC. EQUIPMENT : AirStation BRAND NAME : BUFFALO INC. MODEL NAME : WMR-300 FCC ID : FDI000000012 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was completely tested on Mar. 28, 2013. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Eric Huang / Vice Manager Approved by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 30 TEL : 886-3-327-3456 Report Issued Date : Apr. 16, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : FDI000000012 FCC SAR Test Report Report No. : FA330515 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Equipment Under Test (EUT) .......................................................................................................... 6 3.2 Maximum RF output power among production units .............................................................................................. 6 3.3 Applied Standard .................................................................................................................................................... 7 3.4 Device Category and SAR Limits ........................................................................................................................... 7 3.5 Test Conditions ....................................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................... 8 4.1 Introduction ............................................................................................................................................................ 8 4.2 SAR Definition ........................................................................................................................................................ 8 5. SAR Measurement System ........................................................................................................................................... 9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) .......................................................................................................................10 5.3 Robot ....................................................................................................................................................................10 5.4 Measurement Server ............................................................................................................................................. 11 5.5 Phantom ................................................................................................................................................................ 11 5.6 Device Holder........................................................................................................................................................12 5.7 Data Storage and Evaluation ................................................................................................................................13 5.8 Test Equipment List ...............................................................................................................................................15 6. Tissue Simulating Liquids ...........................................................................................................................................16 7. SAR System Verification .............................................................................................................................................18 7.1 Purpose of System Performance check ................................................................................................................18 7.2 System Setup .................................................................…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR330515 SPORTON INTERNATIONAL INC. Page No. : 2 of 62 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Accessories and Support Equipment ..................................................................................................... 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty .......................…

Text truncated - open the document above for the full version.
