AirStation WZR-600DHP2 User Manual www.buffalotech.com 3501xxxx ver.01 1 Contents Chapter 1 - Product Overview ..........................................2 Package Contents .................................................................................2 Diagrams and Layout ...........................................................................2 Front Panel ......................................................................................................2 Back Panel .......................................................................................................4 Bottom .............................................................................................................5 Installation ............................................................................................6 Vertical Placement ..........................................................................................6 Chapter 2 - Installation ......................................................7 Initial Setup ..........................................................................................7 Appendix A - Supplemental Information ......................10 Technical Specifications ....................................................................10 Environmental Information ..............................................................12 GPL Information .................................................................................12 2 Chapter 1 - Product Overview Package Contents The following items are included in your AirStation package. If any of the items are missing, please contact your vender. AirStation.................................................1 AirStation Setup Card..........................1 AC adapter...............................................1 Stands........................................................1 Ethernet Cable........................................1 USB 3.0 Cable..........................................1 Quick Setup Guide................................1 Warranty Statement.............................1 Diagrams and Layout Front Panel 3 1 AOSS button To initiate AOSS, hold down this button until the wireless LED flashes (about 1 second). Then, push or click the AOSS button on your wireless client device to complete the connection. Both devices must be powered on for this to work. 2 Power / Diag LED (Green or Red) On (Green): Power is on. Blinking (Green): Booting. Off: Power is off. 2 blinks (Red)**: Flash ROM error. 3 blinks (Red)**: Wired Ethernet LAN error. 4 blinks (Red)**: Wireless LAN error. 5 blinks (Red)***: IP address setting error. Continuously blinking*: Updating firmware, saving settings, or initializing settings. * Never unplug the AC adapter while the LED is blinking continuously. ** Turn off AirStation first, wait for a few seconds, then turn it back on. *** Because the network addresses of both the Internet port (WAN port) and the LAN port are the same, it is not possible to establish communication. Change the LAN-side IP address of the AirStation. 3 Wireless LED (Green or Amber) On: Wireless LAN is enabled or transmitting. Double blinks: AirStation is waiting for an AOSS or WPS security key. Continuously blinking: AOSS/WPS error; failed to exchange security keys. Off: Wireless LAN is disabled. Note: The wireless LED will be green if security is enabled or amber if it is disabled. 4 Internet access LED (Green) On: The WAN port is connected. Off: No Internet access. 5 Router LED (Green or Amber) On (Green): Router functionality is enabled. Off: Router functionality is disabled. 4 Back Panel 1 Mode button This button switches between router mode and bridge mode. 2 Setup card slot This is the slot where the AirStation setup card is stored. The initial settings for the username, password, SSID, and encryption type are provided on the card for logging into Settings. 3 USB Eject button To dismount a USB hard drive, hold down this button about 3 seconds. The USB drive can then be unplugged safely. 4 USB LED (Green) On: A USB drive is connected. Fast blinking: The USB drive is transmitting data. Blinking: The USB drive has been dismounted and can safely be unplugged. Off: No USB drive is connected Note: Do not remove the USB drive or turn off the AirStation while data is being transmitted. 5 USB Port You can connect any USB drive. 5 Notes: • WZR-900DHP has an USB 3.0 port and WZR-600DHP2 has an USB 2.0 port. • USB 3.0 hubs are not supported. Use USB 2.0 hubs only. 6 LAN LED (Green) On: An Ethernet device is connected. Blinking: An Ethernet device is communicating. 7 LAN Port Connect your computer, hub, or other Ethernet devices to these ports. This switching hub supports 10 Mbps, 100 Mbps, and 1000 Mbps connections. 8 Internet LED (Green) On: The Internet port is connected. Blinking: The Internet port is transmitting data. 9 Internet Port 10 Mbps, 100 Mbps, and 1000 Mbps connections are supported. Note: In bridge/AP mode (router off), the Internet port becomes a regular LAN port, for a total of 5 usable LAN ports. 10 Power button This button turns the power on and off. 11 DC connector Connect the included AC adapter here. Bottom 1 Reset button To reset all settings, hold down this button until the Buffalo LED turns red (about 3 seconds). The power must be on for this to work. 6 Installation Vertical Placement Attach the stand as shown in the figure below. 7 Chapter 2 - Installation Initial Setup To configure your AirStation, follow the procedure below. 1 Verify that you can connect to the internet without the AirStation, then turn off your modem and computer. 2 Unplug the LAN cable which connects your computer and modem. 3 Plug one end of the LAN cable into your modem and the other end to the AirStation’s Internet (WAN) port. Turn on the modem. 8 4 Turn on the AirStation, then wait one minute. Note: If the power does not turn on even when the AC adapter is connected, press the power button on the rear of the AirStation. 5 If using a wired LAN, co…

Text truncated - open the document above for the full version.

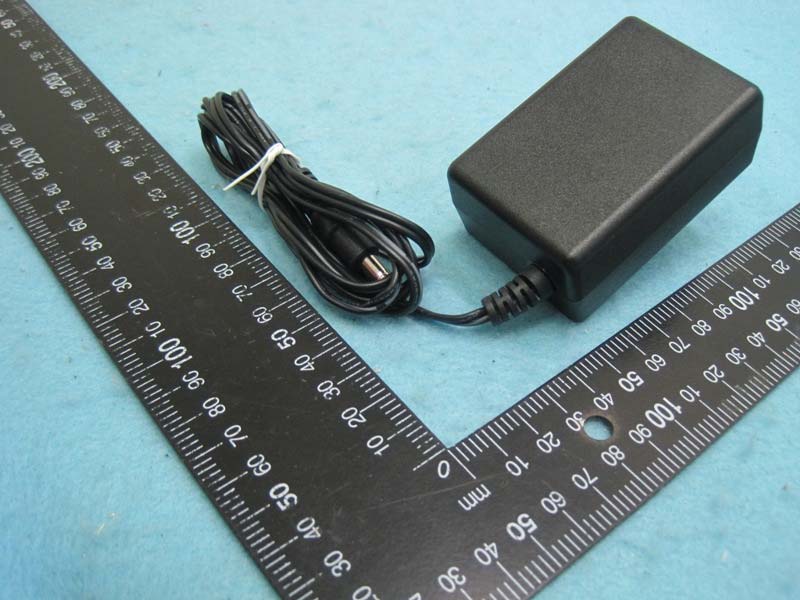

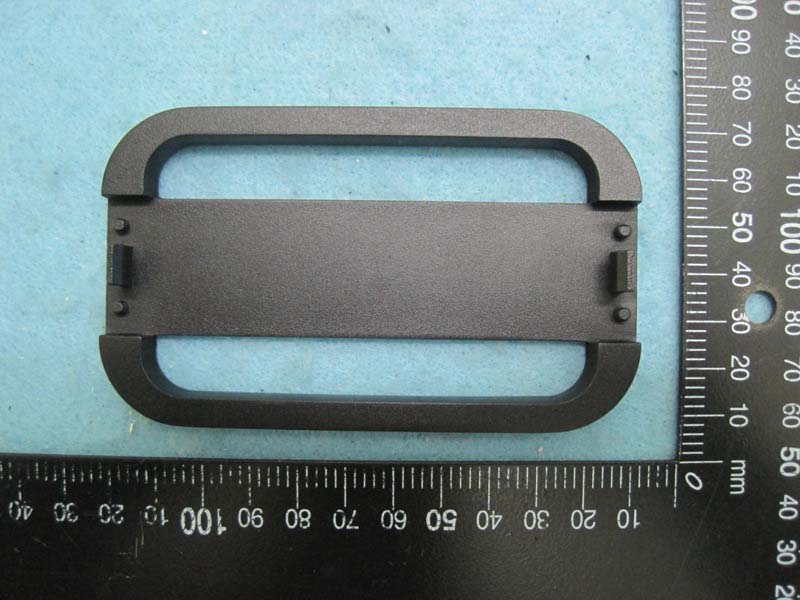

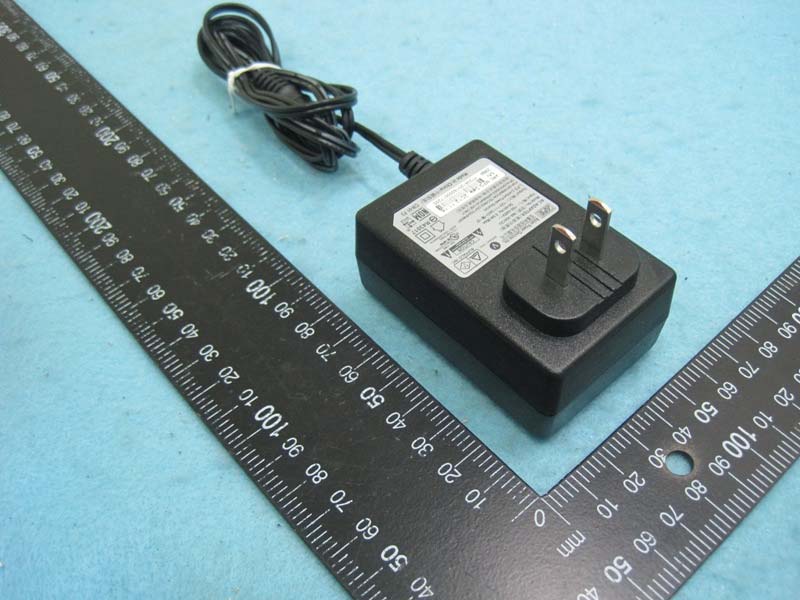

Report No.:321816-01 SPORTON International Inc. PAGE NUMBER : A1 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : May 23, 2013 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT Report No.:321816-01 SPORTON International Inc. PAGE NUMBER : A2 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : May 23, 2013 FAX : 886-2-2696-2255 Report No.:321816-01 SPORTON International Inc. PAGE NUMBER : A3 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : May 23, 2013 FAX : 886-2-2696-2255 Adapter Brand Holder: Asian Power Devices Inc. Model: WA-36A12U Report No.:321816-01 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : May 23, 2013 FAX : 886-2-2696-2255 Pedestal

Label Size: 89.4*25 4R-3.0mm

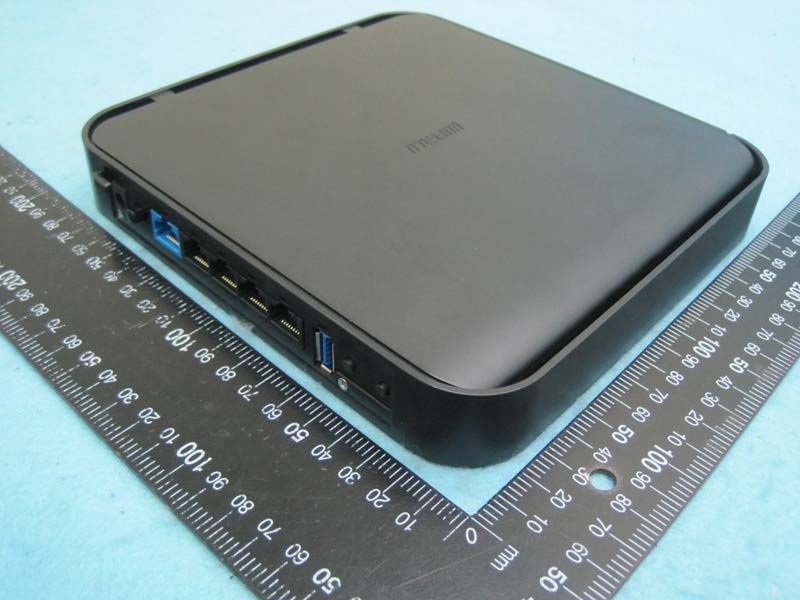

Report No.:321816-01 SPORTON International Inc. PAGE NUMBER : A1 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : May 23, 2013 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT Report No.:321816-01 SPORTON International Inc. PAGE NUMBER : A2 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : May 23, 2013 FAX : 886-2-2696-2255 Report No.:321816-01 SPORTON International Inc. PAGE NUMBER : A3 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : May 23, 2013 FAX : 886-2-2696-2255 Report No.:321816-01 SPORTON International Inc. PAGE NUMBER : A4 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : May 23, 2013 FAX : 886-2-2696-2255 Report No.:321816-01 SPORTON International Inc. PAGE NUMBER : A5 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : May 23, 2013 FAX : 886-2-2696-2255 Report No.:321816-01 SPORTON International Inc. PAGE NUMBER : A6 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : May 23, 2013 FAX : 886-2-2696-2255 Report No.:321816-01 SPORTON International Inc. PAGE NUMBER : A7 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : May 23, 2013 FAX : 886-2-2696-2255 Report No.:321816-01 SPORTON International Inc. PAGE NUMBER : A8 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : May 23, 2013 FAX : 886-2-2696-2255 Report No.:321816-01 SPORTON International Inc. PAGE NUMBER : A9 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : May 23, 2013 FAX : 886-2-2696-2255 Report No.:321816-01 SPORTON International Inc. PAGE NUMBER : A10 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : May 23, 2013 FAX : 886-2-2696-2255 Report No.:321816-01 SPORTON International Inc. PAGE NUMBER : A11 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : May 23, 2013 FAX : 886-2-2696-2255

Report No.: FR321816-01 FCC ID: FDI000000013 Page No. : C1 of C3 Appendix C. Maximum Permissible Exposure Report No.: FR321816-01 FCC ID: FDI000000013 Page No. : C2 of C3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR321816-01 FCC ID: FDI000000013 Page No. : C3 of C3 1.3. Calculated Result and Limit For 5GHz UNII Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11n20 : 16.44 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.20 1.6596 16.4358 44.0125 0.014539 1 Complies For 5GHz ISM Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11n 40: 25.25 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.20 1.6596 25.2509 335.0321 0.110672 1 Complies For 2.4GHz Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11n 20: 23.32 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.00 1.5849 23.3197 214.7688 0.067752 1 Complies CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.110672 / 1 + 0.067752 / 1 = 0.178424, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: FR321816-01 FCC ID: FDI000000013 Page No. : D1 of D3 Appendix D. Co-location Report No.: FR321816-01 FCC ID: FDI000000013 Page No. : D2 of D3 1. Results of Radiated Emissions for Co-located Temperature 24°C Humidity 60% Test Engineer Serway Li Configurations 2.4G + 5G Horizontal Report No.: FR321816-01 FCC ID: FDI000000013 Page No. : D3 of D3 Vertial

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company BUFFALO INC. Applicant Address Akamon-dori Bldg 30-20, Ohsu 3-chome Naka-ku, Nagoya 460-8315 Japan FCC ID FDI000000013 Manufacturer’s company BUFFALO INC. Manufacturer Address Akamon-dori Bldg 30-20, Ohsu 3-chome Naka-ku, Nagoya 460-8315 Japan Product Name AirStation Brand Name BUFFALO INC. Model No. WZR-600DHP2 Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250MHz Received Date Mar. 07, 2013 Final Test Date May 20, 2013 Submission Type Original Equipment Operating Mode Master Statement Test result included is for the IEEE 802.11n and IEEE 802.11a (5150 ~ 5250MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart E, KDB 789033 D01 v01r03 and KDB 662911 D01 v01r02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR321816-01AB Report Format Version: 01 Page No. : i of ii FCC ID: FDI000000013 Issued Date : Jun. 07, 2013 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................4 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................6 3.5. Table for Test Modes ...........................................................................................................................................................................7 3.6. Table for Testing Locations..................................................................................................................................................................8 3.7. Table for Supporting Units ...................................................................................................................................................................8 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................9 3.9. EUT Operation during Test ...................................................................................................................................................................9 3.10. Duty Cycle ........................................................................................................................................................................................10 3.11. Test Configurations ...........................................................................................................................................................................12 4. TEST RESULT ................................................................................................................................................... 14 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................14 4.2. 26dB Bandwidth & 99% Occupied Bandwidth Measurement ..........................................................................................................18 4.3. Maximum Conducted Output Power Measurement .........................................................................................................................25 4.4. Power Spectral Density Measurement ..............................................................................................................................................28 4.5. Peak Excursion Measurement ...........................................................................................................................................................34 4.6. Radiated Emissions Measurement ....................................................................................................................................................39 4.7. Band Edge Emissions Measurement .................................................................................................................................................53 4.8. Frequency Stability Measurement ....................................................................................................................................................57 4.9. Antenna Requirements .....................................................................................................................................................................59 5. LIST OF MEASURING EQUIPMENTS .…

Text truncated - open the document above for the full version.

Report No.: FR321816-01 FCC ID: FDI000000013 Page No. : B1 of B5 Appendix B. Test Photos Report No.: FR321816-01 FCC ID: FDI000000013 Page No. : B2 of B5 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR321816-01 FCC ID: FDI000000013 Page No. : B3 of B5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR321816-01 FCC ID: FDI000000013 Page No. : B4 of B5 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR321816-01 FCC ID: FDI000000013 Page No. : B5 of B5 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
