FDI000000015AirStation

www.buffalotech.com User Manual AirStation WZR-1166DHP - 1 - Contents Chapter 1 - Product Overview .........................................5 Package Contents ...................................................................5 Hardware Overview .................................................................6 Front Panel LEDs ...........................................................................6 Back Panel .....................................................................................8 Bottom ............................................................................................9 Right Side ......................................................................................10 Vertical Placement ..................................................................11 Horizontal Placement ..............................................................11 Wall-Mounting .........................................................................12 Chapter 2 - Installation .....................................................13 Initial Setup .............................................................................13 Appendix A - Specifications .............................................16 WZR-1750DHP .......................................................................16 WZR-1166DHP .......................................................................19 Appendix B - Environmental Information .......................22 Appendix C - GPL Information ........................................23 - 5 - Chapter 1 - Product Overview Package Contents The following items are included in your AirStation package. If any of the items are missing, please contact your vender. •AirStation .......................................................................................................................................1 •AirStation Setup Card ................................................................................................................1 •AC adapter .....................................................................................................................................1 •Stands ..............................................................................................................................................2 •Screws for wall-mounting ........................................................................................................2 •Ethernet Cable .............................................................................................................................1 •Quick Setup Guide ......................................................................................................................1 •Warranty Statement ...................................................................................................................1 1 2 3 5 4 - 6 - Chapter 1 Product Overview Hardware Overview Front Panel LEDs 1 AOSS buttonTo initiate AOSS, hold down this button until the wireless LED fl ashes (about 1 second). Then, push or click the AOSS button on your wireless client device to complete the connection. Both devices must be powered on for this to work. 2 Wireless LED (Blue or Amber) On: Wireless LAN is enabled. Randomly blinking: Wireless LAN is transmitting. Double blinks: AirStation is waiting for an AOSS or WPS security key. Continuously blinking: AOSS/WPS error; failed to exchange security keys. Off :Wireless LAN is disabled. Note: Wireless LED is blue : Security settings have been made for the wireless LAN. Wireless LED is amber : Security settings have not been made for the wireless LAN. Chapter 1 Product Overview - 7 - 3 Internet access LED (Blue) On: Internet access is available. Off:Internet access is not available. Router functionality is disabled. 4 Router LED (Blue) On: Router functionality is enabled. Off:Router functionality is disabled. 5 Buffalo LED (White or Red) On (White): Power is on. Off: Power is off. On (Red) *1 : Booting. 2 blinks (Red) *2 : Flash ROM error. 3 blinks (Red) *2 : Wired Ethernet LAN error. 4 blinks (Red) *2 : Wireless LAN error. 5 blinks (Red) *3 : IP address setting error. 9 blinks (Red) *2 : System error. Continuously blinking *1 : Updating firmware, saving settings, or initializing settings. *1 Never unplug the AC adapter while the Buffalo LED is blinking continuously. *2 Turn off AirStation first, wait for a few seconds, then turn it back on. *3 Because the network addresses of both the Internet port (WAN port) and the LAN port are the same, it is not possible to establish communication. Change the LAN-side IP address of the AirStation. 15 13 14 12 17 9 8 7 11 16 6 10 - 8 - Chapter 1 Product Overview Back Panel 6 Mode switchSwitches operation mode. 7 Mode buttonThis button turns the router on and off . The operation mode is changed by holding down the button. 8 USB LED (Blue) On: A USB drive is connected. Blinking:A USB drive can be removed. Note: When this LED is blinking, the connected USB drive cannot be used. Remove the connected USB drive. If the LED continues to blink even after the USB drive is removed, restart the AirStation. Do not remove the USB drive or turn off the AirStation while the USB LED is on. 9 USB Eject buttonTo dismount a USB hard drive, hold down this button until the USB LED fl ashes (about 3 seconds). The USB drive can then be unplugged safely. 10 USB 3.0 PortConnect the USB drive. 11 USB 2.0 PortConnect the USB drive. 12 LAN PortConnect your computer, hub, or other Ethernet devices to these ports. This switching hub supports 10 Mbps,100 Mbps, and 1000 Mbps connections. 19 18 Chapter 1 Product Overview - 9 - Bottom 18 Reset buttonTo reset all settings, hold down this button until the Buffalo LED turns red (about 3 seconds). The power must be on for this to work. 19 Setup card slotThis is the slot where the AirStation setup card is stored. The initial settings for the username, password, SSID, and encryption type are provided on the card for logging into the configur…

Text truncated - open the document above for the full version.

Regulatory Compliance Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular instal- lation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to oper- ate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired oper- ation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. This device is go- ing to be operated in 5.15~5.25GHz frequency range, it is restricted in indoor environment only. Important Note - FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. Industry Canada statement: Industrie Canada déclaration: CAN ICES-3(B)/NMB-3(B) This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-210 d’Industrie Canada applicable aux appareils radio exempts de licence. Son fonc- tionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. Caution: Prudence: The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference to co-channel mobile satellite systems. Le dispositif fonctionnant dans la bande 5150-5250 MHz est réservé uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux. The maximum antenna gain permitted for devices in the band 5725-5825 MHz shall comply with the e.i.r.p. limits specified for point- to-point and non point-to-point operation as appropriate. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. The device could automatically discontinue transmission in case of absence of information to transmit, or operational failure. Note that this is not intended to prohibit transmission of control or signaling information or the use of repetitive codes where required by the technology. Important Note - Radiation Exposure Statement: Note Importante - Déclaration d’exposition aux radiations: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be in- stalled and operated with minimum distance 20cm between the radiator and your body. This device has been designed to operate with an antenna having a maximum gain of [0.67] dBi. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communi- cation. Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équi- pement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. Ce dispositif a été conçu pour fonctionner avec une antenne ayant un gain maximal de dBi [0.67]. Une antenne à gain plus élevé est strictement interdite par les règlements d’Industrie Canada. L’impédance d’antenne requise est de 50 ohms. Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peutfonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pourl’émetteur par Industrie Canada. Dans le but de réduire les risques …

Text truncated - open the document above for the full version.

Report No.: FR322115 FCC ID: FDI000000015 Page No. : D1 of D3 Appendix D. Co-location Report No.: FR322115 FCC ID: FDI000000015 Page No. : D2 of D3 1. Results of Radiated Emissions for Co-located Temperature 24°C Humidity 60% Test Engineer Serway Li Configurations WALN 2.4G + 5G TX Horizontal Report No.: FR322115 FCC ID: FDI000000015 Page No. : D3 of D3 Vertial

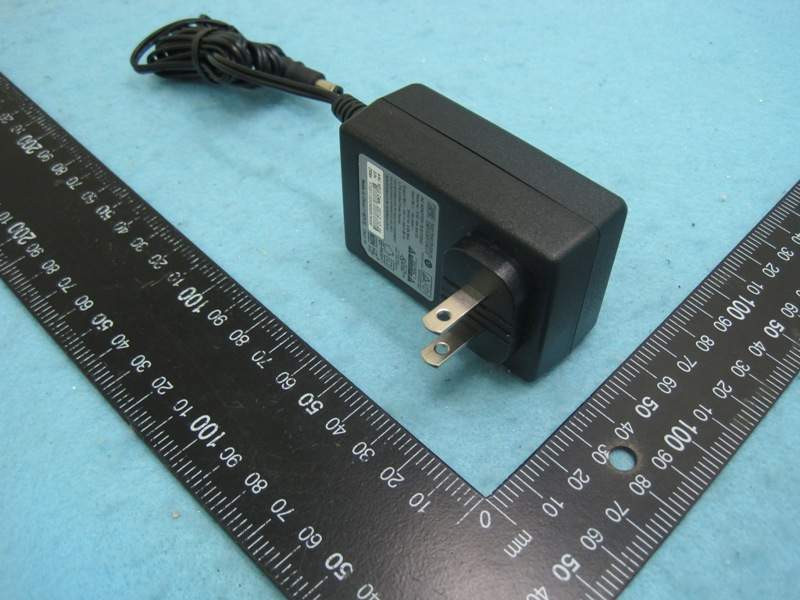

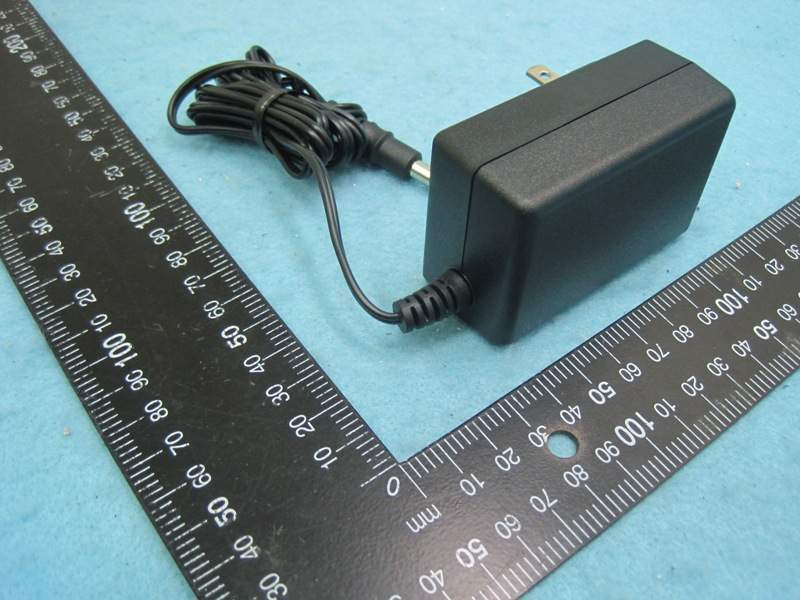

Report No.: 322115 SPORTON International Inc. PAGE NUMBER : 1 OF 4 TEL : 886-2-2696-2468 ISSUED DATE : May 13, 2013 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT Report No.: 322115 SPORTON International Inc. PAGE NUMBER : 2 OF 4 TEL : 886-2-2696-2468 ISSUED DATE : May 13, 2013 FAX : 886-2-2696-2255 Report No.: 322115 SPORTON International Inc. PAGE NUMBER : 3 OF 4 TEL : 886-2-2696-2468 ISSUED DATE : May 13, 2013 FAX : 886-2-2696-2255 Report No.: 322115 SPORTON International Inc. PAGE NUMBER : 4 OF 4 TEL : 886-2-2696-2468 ISSUED DATE : May 13, 2013 FAX : 886-2-2696-2255

Label Here

Report No.: 322115 SPORTON International Inc. PAGE NUMBER : 1 OF 13 TEL : 886-2-2696-2468 ISSUED DATE : May 13, 2013 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT Report No.: 322115 SPORTON International Inc. PAGE NUMBER : 2 OF 13 TEL : 886-2-2696-2468 ISSUED DATE : May 13, 2013 FAX : 886-2-2696-2255 Report No.: 322115 SPORTON International Inc. PAGE NUMBER : 3 OF 13 TEL : 886-2-2696-2468 ISSUED DATE : May 13, 2013 FAX : 886-2-2696-2255 Report No.: 322115 SPORTON International Inc. PAGE NUMBER : 4 OF 13 TEL : 886-2-2696-2468 ISSUED DATE : May 13, 2013 FAX : 886-2-2696-2255 Report No.: 322115 SPORTON International Inc. PAGE NUMBER : 5 OF 13 TEL : 886-2-2696-2468 ISSUED DATE : May 13, 2013 FAX : 886-2-2696-2255 Report No.: 322115 SPORTON International Inc. PAGE NUMBER : 6 OF 13 TEL : 886-2-2696-2468 ISSUED DATE : May 13, 2013 FAX : 886-2-2696-2255 Report No.: 322115 SPORTON International Inc. PAGE NUMBER : 7 OF 13 TEL : 886-2-2696-2468 ISSUED DATE : May 13, 2013 FAX : 886-2-2696-2255 Report No.: 322115 SPORTON International Inc. PAGE NUMBER : 8 OF 13 TEL : 886-2-2696-2468 ISSUED DATE : May 13, 2013 FAX : 886-2-2696-2255 Report No.: 322115 SPORTON International Inc. PAGE NUMBER : 9 OF 13 TEL : 886-2-2696-2468 ISSUED DATE : May 13, 2013 FAX : 886-2-2696-2255 Report No.: 322115 SPORTON International Inc. PAGE NUMBER : 10 OF 13 TEL : 886-2-2696-2468 ISSUED DATE : May 13, 2013 FAX : 886-2-2696-2255 Report No.: 322115 SPORTON International Inc. PAGE NUMBER : 11 OF 13 TEL : 886-2-2696-2468 ISSUED DATE : May 13, 2013 FAX : 886-2-2696-2255 Report No.: 322115 SPORTON International Inc. PAGE NUMBER : 12 OF 13 TEL : 886-2-2696-2468 ISSUED DATE : May 13, 2013 FAX : 886-2-2696-2255 Report No.: 322115 SPORTON International Inc. PAGE NUMBER : 13 OF 13 TEL : 886-2-2696-2468 ISSUED DATE : May 13, 2013 FAX : 886-2-2696-2255

Report No.: FR322115 FCC ID: FDI000000015 Page No. : C1 of C3 Appendix C. Maximum Permissible Exposure Report No.: FR322115 FCC ID: FDI000000015 Page No. : C2 of C3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR322115 FCC ID: FDI000000015 Page No. : C3 of C3 1.3. Calculated Result and Limit For 5GHz UNII Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11ac MCS0/Nss1 20MHz : 16.48dBm Directional Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.56 2.2709 16.4777 44.4398 0.020087 1 Complies Note: Directional gain=GANT+10log(NANT/Nss) For 5GHz ISM Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11ac MCS0/Nss1 20MHz: 28.28 dBm Directional Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.56 2.2709 28.2768 672.4766 0.303965 1 Complies Note: Directional gain=GANT+10log(NANT/Nss) For 2.4GHz Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11n MCS0 20MHz: 26.73 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result -0.99 0.7962 26.7294 470.9149 0.074626 1 Complies CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.074626 / 1 + 0.303965 / 1 = 0.378591, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company BUFFALO INC. Applicant Address Akamon-dori Bldg 30-20, Ohsu 3-chome Naka-ku, Nagoya 460-8315 Japan FCC ID FDI000000015 Manufacturer’s company BUFFALO INC. Manufacturer Address Akamon-dori Bldg 30-20, Ohsu 3-chome Naka-ku, Nagoya 460-8315 Japan Product Name AirStation Brand Name BUFFALO INC. Model No. WZR-1166DHP Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Received Date Feb. 21, 2013 Final Test Date May 08, 2013 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.11n, IEEE 802.11b/g part and IEEE 802.11a/ac (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v03 and KDB 662911 D01 v01r02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR322115AB Report Format Version: 01 Page No. : i of ii FCC ID: FDI000000015 Issued Date :May 16, 2013 Table of Contents 1. CERTIFICATE OF COMPLIANCE ........................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT ............................................................................................................................ 2 3. GENERAL INFORMATION..................................................................................................................................... 3 3.1. Product Details ........................................................................................................................................................................................... 3 3.2. Accessories ................................................................................................................................................................................................. 5 3.3. Table for Filed Antenna ............................................................................................................................................................................. 6 3.4. Table for Carrier Frequencies ................................................................................................................................................................... 7 3.5. Table for Test Modes .................................................................................................................................................................................. 8 3.6. Table for Testing Locations...................................................................................................................................................................... 10 3.7. Table for Supporting Units ....................................................................................................................................................................... 10 3.8. Table for Parameters of Test Software Setting ..................................................................................................................................... 11 3.9. EUT Operation during Test ....................................................................................................................................................................... 12 3.10. Duty Cycle................................................................................................................................................................................................. 13 3.11. Test Configurations................................................................................................................................................................................... 17 4. TEST RESULT......................................................................................................................................................... 21 4.1. AC Power Line Conducted Emissions Measurement ......................................................................................................................... 21 4.2. Maximum Conducted Output Power Measurement......................................................................................................................... 25 4.3. Power Spectral Density Measurement.................................................................................................................................................. 29 4.4. 6dB Spectrum Bandwidth Measurement ............................................................................................................................................. 39 4.5. Radiated Emissions Measurement......................................................................................................................................................... 48 4.6. Emissions Measurement........................................................................................................................................................................... 75 4.7. Antenna Requirements ......................................................................................................................................................................... 104 5. LIST OF MEASURING EQUIPMENTS .................................................................................................................. 105 6. TEST LOCATION.....................................................................................…

Text truncated - open the document above for the full version.

Report No.: FR322115 FCC ID: FDI000000015 Page No. : B1 of B5 Appendix B. Test Photos Report No.: FR322115 FCC ID: FDI000000015 Page No. : B2 of B5 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR322115 FCC ID: FDI000000015 Page No. : B3 of B5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR322115 FCC ID: FDI000000015 Page No. : B4 of B5 Test Configuration: 30MHz~1GHz Test Mode: Mode 3 FRONT VIEW REAR VIEW Report No.: FR322115 FCC ID: FDI000000015 Page No. : B5 of B5 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
