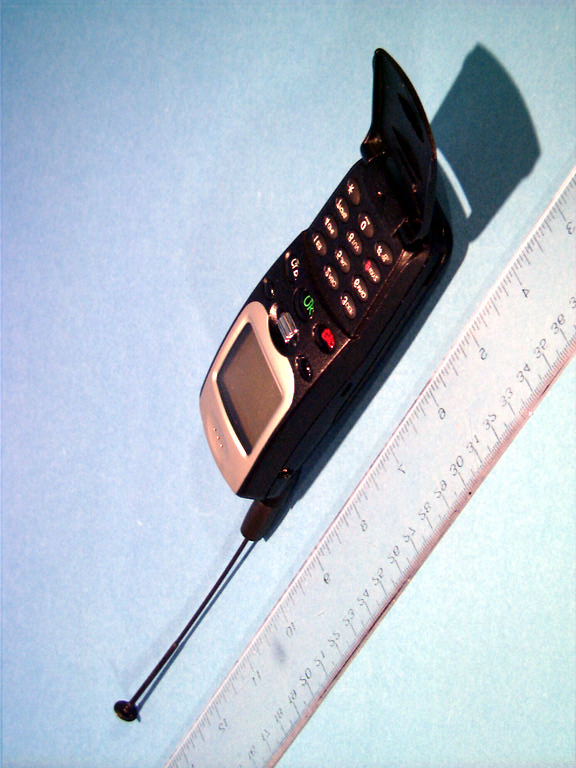

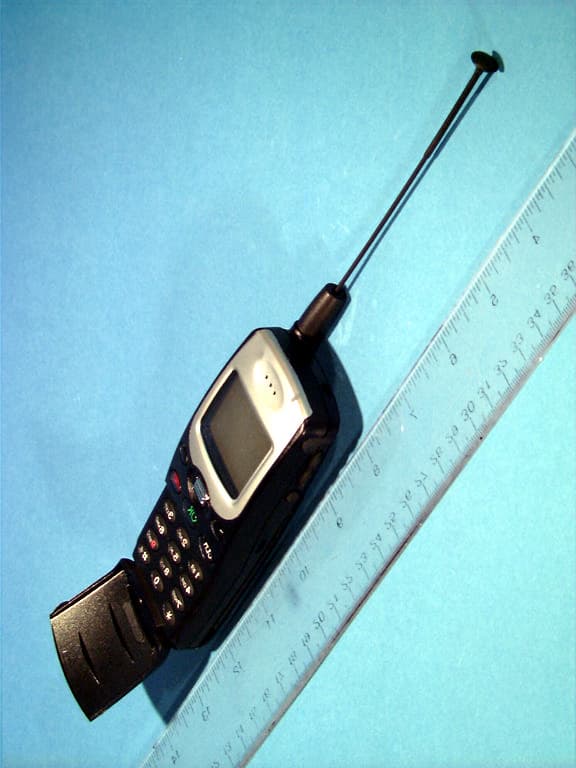

FFMDB210Dual-Band Analog/PCS Phone (AMPS/CDMA)

LG-DB210 Operator’s Guide February 08, 2000 Manual Part R&D Planning Department i FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 0.6 inches (1.5 cm) from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.6 inches (1.5 cm) must be maintained between the user’s body and the back of the phone, including the antenna, whether extended or retracted. Third-party belt-clips, holsters and similar accessories should not contain metallic components and must provide 0.6 inch (1.5 cm) separation distance between the user’s body and the back of the phone. Body-worn accessories that do not meet these requirements may not comply with FCC RF exposure limits and should be avoided. For more information about RF exposure, please visit the FCC website at www.fcc.gov WARNING! Read this information before using your phone Digital Mobile Handset Lab. 1 LGIC Front of the Phone 1. END/PWR Switch: Lets you power the phone on or off. 2. Antenna: Retractable antenna provides optimum reception for 1900 MHz frequencies. 3. Power On Indicator: Illuminates red when the phone powers on or when you receive incoming calls. Flashes red when you have messages of scheduled alarms. 4. Headset Jack: Provides connection for an optional headset. 5. Volume Control Keys: Adjust the Ring Volume in the Main Menu or the Voice Volume during a call. The keys also scroll through months in the Calendar or pages in the Mini Browser. 6. Mouse Key: Allows quick and easy scrolling through the menus. 7. OK: Lets you place a call, receive a call, end a call or select menu options. 8. Clear Key: Lets you clear an entry or back-up in the menu. 9. Folder : Lets you answer or end calls. Installing the Battery To install the battery, insert the bottom of the battery into the opening on the back of the phone. Then, push the battery down until the latch clicks. Removing the Battery To remove the battery, release the latch and remove the battery from the phone. Battery Charge Level Using the Desktop Charger To charge the battery, plug the AC Adapter into a standard wall outlet and connect it to the phone via the I/O Connector on the bottom of the phone. Alternatively, you can place the phone in the charging cradle provided with your phone and connect the AC Adapter to the back of the cradle. The battery Charge Status icon flashes during charging. When the battery is fully charged, the battery icon stops flashing Basic Functions Turning the Phone On To turn your phone on, press the [END/PWR] for 2 ~ 3 secs. Your phone performs a short self-test before letting you know it is operational. Digital Mobile Handset Lab. 2 LGIC Turning the Phone Off To turn your phone off, press the [END/PWR] for a few secs until “Powering Off” is displayed. Then release [END/PWR]. Power Save Mode When the phone is in an area without service for 15 minutes, it stops searching for service and enters into the power Save Mode. When your phone activates this feature, Power Save is displayed on your screen. The phone automatically checks for service periodically or you can check manually by pressing any key. Signal Strength The quality of each call you make or receive depends on the signal strength on your area. The number of bars in the Signal Strength icon informs you of the current strength. The more bars, the stronger the signal. If you are outside of a service area, the “No service” icon will be displayed. No calls can be made or received, including emergency calls. Extend the antenna when the signal strength is weak. If you are in a building, the reception may better near a window. Introduction Highlights Congratulations on the purchase of your LG-DB210. This phone is lightweight, easy-to-use, reliable and offers many significant features: l Roaming capability provides access to other PCS CDMA networks where LG PCS has implemented roaming agreements. l Data/Fax feature offers wireless modem capabilities for your personal computer in digital mode. l Mini Browser provides Internet access in digital mode. l Built-in Scheduler and Call Alarms remind you of events and important calls. l Two-hundred Phone Book entries store ??? phone numbers (up to 4 phone numbers per entry) l Graphical icons and text prompts inform you of messages, events and the status of your phone. Digital Mobile Handset Lab. 3 LGIC l A Mouse Key provides easy navigation through menu options. l Assign one of twenty ringer tones to any Phone Book entry. Important Information This Operator’s Guide contains important information on the use and operation of this phone. Please read all of the information carefully for optimal performance and to prevent damaging or misusing the phone. Any changes or modifications not expressly approved in this Operator’s Guide could void your warranty for this equipment and void your authorization to operate this equipment. Getting Started Making a Call When the phone is turned on, check the Signal Strength icon to see of you are in a LG PCS Service Area or authorized PCS CDMA networks provider’s service area. 1. Open the …

Text truncated - open the document above for the full version.

@ LG Information & Communications, Ltd. May 1, 1999 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely, General Manager of New York Office LG Information & Communications, Ltd.

March 15, 2000 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re : LG Information & Communication, Ltd. FCC ID: FFMDB210 Dual-Band Analog/PCS Phone(AMPS/CDMA) Part 22, Part24 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, LG Information & communications, Ltd. hereby requests confidentiality of the Block Diagrams attachment, Schematic Diagrams & Circuit Description attachment, Operational Description attachment, and Parts List/Tune-Up Procedure attachment for the above-referenced Type Acceptance application. These documents contain detailed system and equipment description and related information about the product which LG Information & Communications, Ltd. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Information& Communications, Ltd. considers this information to be of benefit to its competitors, such that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, E.S.Park Research Engineer Communication Terminal Research Lab LG Information & Communications, Ltd. Tel : 82-2-850-3861 Fax : 82-2-850-3861 E_mail :[email protected] 459-9, Kasan-dong, Kemchun-ku Seoul 153-023, Korea LG Information & Communications, Ltd. LGIC

AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the LGIC Handheld Portable Cellular Telephone ( FCC ID: FFMDB210 ) is so designed that it complies with all the requirements for ESN protection specified in section 22.919 of the FCC Rules. A) The transmitter in service has a unique ESN. B) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. C) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, E.S.Park Research Engineer Communication Terminal Research Lab LG Information & Communications, Ltd. Tel : 82-2-850-3861 Fax : 82-2-850-3861 E_mail :[email protected] 459-9, Kasan-dong, Kemchun-ku Seoul 153-023, Korea LG Information & Communications, Ltd. LGIC

April 07, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:LG Information & Communications, Ltd. FCC ID: FFMDB210 Part 24/22 Certification Gentlemen: Submitted herewith, on behalf of LG Information & Communications Ltd., is an application for Part 24/22 Certification of the following Dual-Band Analog/PCS Phone: FCC ID:FFMDB210 TRADE/MODEL(s):LGIC LG-DB210 EUT TYPE:Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Freq. Range(s):824.04 – 848.97 MHz (AMPS) 1851.25 – 1908.75 MHz (PCS CDMA) Max. RF Output Power:0.44 W ERP AMPS (26.43 dBm) / 0.327 W PCS CDMA (25.15 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Mr. Harris Ahn Principal Engineer Communication Terminal Research Lab, LGIC

Test Report S/N: 24/22.200323114.FFMFCC Parts 24 & 22 Test Date(s): April 03-07, 2000Certification © 2000 PCTEST Lab FCC ID: FFMDB210 (Model: LG-DB210) NVLAP Lab Code: 100431-0 LGIC Dual-Band Analog/PCS Phone (AMPS/CDMA) Test Report S/N: 24/22.200323114.FFMFCC Parts 24 & 22 Test Date(s): April 03-07, 2000Certification © 2000 PCTEST Lab FCC ID: FFMDB210 (Model: LG-DB210) NVLAP Lab Code: 100431-0 LGIC Dual-Band Analog/PCS Phone (AMPS/CDMA) Test Report S/N: 24/22.200323114.FFMFCC Parts 24 & 22 Test Date(s): April 03-07, 2000Certification © 2000 PCTEST Lab FCC ID: FFMDB210 (Model: LG-DB210) NVLAP Lab Code: 100431-0 LGIC Dual-Band Analog/PCS Phone (AMPS/CDMA) Test Report S/N: 24/22.200323114.FFMFCC Parts 24 & 22 Test Date(s): April 03-07, 2000Certification © 2000 PCTEST Lab FCC ID: FFMDB210 (Model: LG-DB210) NVLAP Lab Code: 100431-0 LGIC Dual-Band Analog/PCS Phone (AMPS/CDMA) Test Report S/N: 24/22.200323114.FFMFCC Parts 24 & 22 Test Date(s): April 03-07, 2000Certification © 2000 PCTEST Lab FCC ID: FFMDB210 (Model: LG-DB210) NVLAP Lab Code: 100431-0 LGIC Dual-Band Analog/PCS Phone (AMPS/CDMA) Test Report S/N: 24/22.200323114.FFMFCC Parts 24 & 22 Test Date(s): April 03-07, 2000Certification © 2000 PCTEST Lab FCC ID: FFMDB210 (Model: LG-DB210) NVLAP Lab Code: 100431-0 LGIC Dual-Band Analog/PCS Phone (AMPS/CDMA)

© 2000 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) LG Information & Communication Feb.19.2000 LG Information & Communications, Ltd. LGIC Model No. : LG-DB210 FCC ID : FFMDB210 S/N : Made in Korea

Test Report S/N: 24/22.200323114.FFMFCC Parts 24 & 22 Test Date(s): April 03-07, 2000Certification © 2000 PCTEST Lab FCC ID: FFMDB210 (Model: LG-DB210) NVLAP Lab Code: 100431-0 LGIC Dual-Band Analog/PCS Phone (AMPS/CDMA) Test Report S/N: 24/22.200323114.FFMFCC Parts 24 & 22 Test Date(s): April 03-07, 2000Certification © 2000 PCTEST Lab FCC ID: FFMDB210 (Model: LG-DB210) NVLAP Lab Code: 100431-0 LGIC Dual-Band Analog/PCS Phone (AMPS/CDMA) Test Report S/N: 24/22.200323114.FFMFCC Parts 24 & 22 Test Date(s): April 03-07, 2000Certification © 2000 PCTEST Lab FCC ID: FFMDB210 (Model: LG-DB210) NVLAP Lab Code: 100431-0 LGIC Dual-Band Analog/PCS Phone (AMPS/CDMA) Test Report S/N: 24/22.200323114.FFMFCC Parts 24 & 22 Test Date(s): April 03-07, 2000Certification © 2000 PCTEST Lab FCC ID: FFMDB210 (Model: LG-DB210) NVLAP Lab Code: 100431-0 LGIC Dual-Band Analog/PCS Phone (AMPS/CDMA) Test Report S/N: 24/22.200323114.FFMFCC Parts 24 & 22 Test Date(s): April 03-07, 2000Certification © 2000 PCTEST Lab FCC ID: FFMDB210 (Model: LG-DB210) NVLAP Lab Code: 100431-0 LGIC Dual-Band Analog/PCS Phone (AMPS/CDMA) Test Report S/N: 24/22.200323114.FFMFCC Parts 24 & 22 Test Date(s): April 03-07, 2000Certification © 2000 PCTEST Lab FCC ID: FFMDB210 (Model: LG-DB210) NVLAP Lab Code: 100431-0 LGIC Dual-Band Analog/PCS Phone (AMPS/CDMA) Test Report S/N: 24/22.200323114.FFMFCC Parts 24 & 22 Test Date(s): April 03-07, 2000Certification © 2000 PCTEST Lab FCC ID: FFMDB210 (Model: LG-DB210) NVLAP Lab Code: 100431-0 LGIC Dual-Band Analog/PCS Phone (AMPS/CDMA) Test Report S/N: 24/22.200323114.FFMFCC Parts 24 & 22 Test Date(s): April 03-07, 2000Certification © 2000 PCTEST Lab FCC ID: FFMDB210 (Model: LG-DB210) NVLAP Lab Code: 100431-0 LGIC Dual-Band Analog/PCS Phone (AMPS/CDMA) Test Report S/N: 24/22.200323114.FFMFCC Parts 24 & 22 Test Date(s): April 03-07, 2000Certification © 2000 PCTEST Lab FCC ID: FFMDB210 (Model: LG-DB210) NVLAP Lab Code: 100431-0 LGIC Dual-Band Analog/PCS Phone (AMPS/CDMA) Test Report S/N: 24/22.200323114.FFMFCC Parts 24 & 22 Test Date(s): April 03-07, 2000Certification © 2000 PCTEST Lab FCC ID: FFMDB210 (Model: LG-DB210) NVLAP Lab Code: 100431-0 LGIC Dual-Band Analog/PCS Phone (AMPS/CDMA) Test Report S/N: 24/22.200323114.FFMFCC Parts 24 & 22 Test Date(s): April 03-07, 2000Certification © 2000 PCTEST Lab FCC ID: FFMDB210 (Model: LG-DB210) NVLAP Lab Code: 100431-0 LGIC Dual-Band Analog/PCS Phone (AMPS/CDMA)

© 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road 6660-B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) LG Information & Communications, Ltd.Dates of Tests: April 03-07, 2000 Communication Terminal Research LabTest Report S/N: SAR.200323115.FFM 459-9, Kasan-dong, Keumchun-KuTest Site: PCTEST Lab, Columbia, MD USA Seoul 153-023, Korea Attn: Haris Ahn, Principal Engineer FCC ID FFMDB210 APPLICANT LG Information & Communications, Ltd. EUT Type:Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency:824.04 – 848.97 MHz (AMPS) / 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency:869.04 – 893.97 MHz (AMPS) / 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power:0.44 W ERP AMPS (26.43 dBm), 0.327 W EIRP PCS CDMA (25.15 dBm) Trade Name/Model(s):LGIC LG-DB210 FCC Classification:Licensed Portable Transmitter Held to Ear (PCE) Application Type:Certification Serial Number:n/a (pre production) FCC Rule Part(s):2.1093; ET Docket 96.326 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). 200323115.FFM SAR Measurement ReportFCC Part 24/22 Certification © 2000 PCTEST Labi Table of Contents 1.1 SCOPE 1 2.1 INTRODUCTION / SAR DEFINITION 2 3.1 SAR MEASUREMENT SET-UP 3 4.1 E-FIELD PROBE SYSTEM 4 5.1 E-FIELD PROBE CALIBRATION PROCESS 5-6 6.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE 7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS 9 9.1 TEST POSITION OF THE PHONE 10 10.1 BODY SAR TEST SETUP11 11.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 12 12.1 MEASUREMENT UNCERTAINTIES 13 13.1 TEST DATA SUMMARY 14-17 14.1 SAR TEST EQUIPMENT LIST 18 15.1 CONCLUSION 19 16.1 REFERENCES 20 Test Report S/N: SAR.200323115.FFMSAR Measurement Report Test Date(s): April 03-07, 2000FCC Part 24/22 Certification LGIC FCC ID: FFMDB210 (Model: LG-DB210) © 2000 PCTEST LabDual-Band Analog/PCS Phone (AMPS/CDMA)1 SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head and body tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name:LG Information & Communications, Ltd. Address:Communication Terminal Research Lab 459-9, Kasan-dong, Keumchun-Ku Seoul 153-023, Korea Attention:Harris Ahn, Principal Engineer • EUT Type:Dual-Band Analog/PCS Phone • Trade Name:LGIC • Model(s):LG-DB210 • FCC IDENTIFIER:FFMDB210 • S/N:Pre-production • Tx Frequency:824.04 – 848.97 MHz (AMPS) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Frequency:869.04 – 893.97 MHz (AMPS) 1931.25 – 1988.75 MHz (PCS CDMA) • Application Type: Certification • FCC Classification:Licensed Portable Transmitter Held to Ear (PCE) • Modulation(s):AMPS / CDMA • FCC Rule Part(s):§2.1093, Docket 96-326 • Max. RF Output Power:0.44W ERP AMPS (26.43 dBm) / 0.327W EIRP PCS CDMA (25.15 dBm) • Antenna Type:Helical (λ/2) • Antenna Dimensions:12.4 cm. (Length) • Dates of Tests:April 03-07, 2000 • Place of Tests:PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.200323115.FFM 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.200323115.FFMSAR Measurement Report Test Date(s): April 03-07, 2000FCC Part 24/22 Certification LGIC FCC ID: FFMDB210 (Model: LG-DB210) © 2000 PCTEST LabDual-Band Analog/PCS Phone (AMPS/CDMA)2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814.[4] SAR is a measure of the rate of energy absorption due to exposure to an RF t…

Text truncated - open the document above for the full version.

Probe ET3DV5 SN:1370 Manufactured:February 1999 Calibrated:February 1999 Calibrated for System DASY3 Page 1 of 8 ET3DV5 SN:1370 Introduction The performance of all probes is measured before delivery. This includes an assessment of the characteristic parameters, receiving patterns as a function of frequency, frequency response and relative accuracy. Furthermore, each probe is tested in use according to a dosimetric assessment protocol. The sensitivity parameters (NormX, NormY, NormZ), the diode compresion parameter (DCP) and the conversion factor (ConvF) of the probe and some of the measurement diagrams are given in the following. The performance of the individual probes varies slightly due to tolerances arising from the manufacturing process. Since the lines are highly resistive (several MOhms), the offset and noise problem is greatly increased if signals in the low μ V range are measured. Accurate measurement below 10 μW/g are possible if the following precautions are taken. 1) check the current grounding with the multimeter 1 , i.e., low noise levels, 2) compensate the current offset 1 , 3) use long integration time (approx. 10 seconds), 4) calibrate 1 before each measurement, 5) persons should avoid moving around the lab while measuring. Since the field distortion caused by the supporting material and the sheath is quite high in the θ direction, the receiving pattern is poor in air. However, the distortion in tissue equivalent material is much less because of its high dielectricity. In addition, the fields induced in the phantoms by dipole structures close to the body are dominently parallel to the surface. Thus, the error due to non-isotropy is much better than 1 dB for dosimetric assessments. The probes are calibrated in the TEM cell ifi 110 although the field distribution in the cell is not very uniform and the frequency response is not very flat. To ensure consistency, a strict protocol is followed. The conversion factor (ConF) between this calibration and the measurement in the tissue simulation solution is performed by comparison with temperature measurements and computer simulations. This conversion factor is only valid for the specified tissue simulating liquids at the specified frequencies. If measurements have to be performed in solutions with other electrical properties or at other frequencies, the conversion factor has to be assessed by the same procedure. As the probes have been constructed with printed resistive lines on ceramic substrates (thick film technique), the probe is very delicate with respect to mechanical shocks. Attention: Do not drop the probe or let the probe collide with any solid object. Never let the robot move without first activating the emergency stop feature (i.e., without first turning the data acquisition electronics on). 1 Feature of the DASY Software Tool. Fig 1: Due to the field distortion caused by the supporting material, the probe has two charac- teristic directions, referred to as angle ψ and θ . Page 2 of 8 ET3DV5 SN:1370 DASY3 - Parameters of Probe: ET3DV5 SN:1370 Sensitivity in Free Space NormX1.58μV/(V/m) 2 NormY1.64μV/(V/m) 2 NormZ1.80μV/(V/m) 2 Diode Compression DCP X96mV DCP Y96mV DCP Z96mV Sensitivity in Tissue Simulating Liquid 450 MHzConvF X6.5extrapolated ε r = 48 ± 5% ConvF Y6.5extrapolated σ =0.50 ± 10%mho/m ConvF Z6.5extrapolated(brain tissue simulating liquid) 900 MHz ConvF X6.0± 10% ε r = 42.5 ± 5% ConvF Y6.0± 10% σ =0.86 ± 10%mho/m ConvF Z6.0± 10%(brain tissue simulating liquid) 1500 MHz ConvF X5.4interpolated ε r = 41 ± 5% ConvF Y5.4interpolated σ =1.32 ± 10%mho/m ConvF Z5.4interpolated(brain tissue simulating liquid) 1800 MHz ConvF X5.1± 10% ε r = 41 ± 5% ConvF Y5.1± 10% σ =1.69 ± 10%mho/m ConvF Z5.1± 10%(brain tissue simulating liquid) Sensor Offset Probe Tip to Sensor Center2.7mm Surface to Probe Tip1.6 ± 0.2mm Page 3 of 8 ET3DV5 SN:1370 Receiving Pattern (φ), θ = 0° f = 30 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 100 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 300 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 900 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 4 of 8 ET3DV5 SN:1370 Isotropy Error (φ), θ = 0° -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 30 MHz 100 MHz 300 MHz 900 MHz 1800 MHz 2500 MHz f = 1800 MHz, WG R22 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 2500 MHz, WG R26 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 5 of 8 ET3DV5 SN:1370 Frequency Response of E-Field ( TEM-Cell:ifi110, Waveguide R22, R26 ) 0.50 0.60 0.70 0.80 0.90 1.00 1.10 1.20 1.30 1.40 1.50 050010001500200025003000 f [MHz] frequency response TEMR22R26 Page 6 of 8 ET3DV5 SN:1370 Dynamic Range f(SAR brain ) ( TEM-Cell:ifi110 ) 1.E+0 1.E+1 1.E+2 1.E+3 1.E+4 1.E+5 1.E+6 1.E+7 0.00010.0010.010.11.10.100. mW/cm 3 μ V not compensatedcompensated -3 -2 -1 0 1 0.00010.0010.010.1110100 mW/cm 3 errror[dB] not compensated diode characteristic compensated relative accuracy Page 7 of 8 ET3DV5 SN:1370 Conversion Factor Assessment Receiving Pattern (φ) ( in brain tissue, z = 5 mm ) -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 900 MHz1800 MHz f = 900 MHz, WG R9 0.00 0.05 0.10 0.15 0.20 0.25 0.30 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets f = 1800 MHz, WG R22 0.00 0.50 1.00 1.50 2.00 2.50 02040…

Text truncated - open the document above for the full version.

Validation Dipole D835V2 SN:406, d = 15mm Frequency: 835 MHz; Antenna Input Power: 250 [mW] Generic Twin Phantom; Flat Section; Grid Spacing: Dx = 20.0, Dy = 20.0, Dz = 10.0 Probe: ET3DV5 - SN1342/DAE3; ConvF(5.75,5.75,5.75); Brain 835 MHz: σ = 0.79 mho/m ε r = 41.9 ρ = 1.00 g/cm 3 Cubes (2): Peak: 3.17 mW/g ± 0.03 dB, SAR (1g): 2.11 mW/g ± 0.03 dB, SAR (10g): 1.41 mW/g ± 0.04 dB, (Worst-case extrapolation) Penetration depth: 13.4 (12.3, 14.9) [mm] Powerdrift: -0.01 dB SAR Tot [mW/g] 2.50E-1 5.00E-1 7.50E-1 1.00E+0 1.25E+0 1.50E+0 1.75E+0 2.00E+0 2.25E+0 2.50E+0 Validation SN406 Schmid & Partner Engineering AG, Zürich Switzerland 835MHz Brain Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 2/00 Medium Parameters 835MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 2.15 mW/g, SAR (10g): 1.31 mW/g 835MHz Brain Dipole Validation (D835V2 S/N: 406) Frequency: 835 MHz; Antenna Input Power: 250 [mW] PCTEST Brain Tissue Simulating Liquid SAR Tot [mW/g] 2.48E-1 5.29E-1 1.37E+0 1.31E+0 1.72E+0 PCTEST Engineering Laboratory, Inc. 835MHz Muscle Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 2/00 Medium Parameters 835 Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 2.17 mW/g, SAR (10g): 1.35 mW/g 835MHz Muscle Dipole Validation (D835V2 S/N: 406) Frequency: 835 MHz; Antenna Input Power: 250 [mW] PCTEST Muscle Tissue Simulating Liquid SAR Tot [mW/g] 2.09E-1 7.03E-1 1.24E+0 1.29E+0 2.38E+0 PCTEST Engineering Laboratory, Inc. Validation Dipole D1900V2 SN:502, d = 10mm Frequency: 1900 MHz; Antenna Input Power: 250 [mW] Generic Twin Phantom; Flat Section; Grid Spacing: Dx = 15.0, Dy = 15.0, Dz = 10.0 Probe: ET3DV5 - SN1302/DAE3; ConvF(4.55,4.55,4.55); Brain 1900 MHz: σ = 1.82 mho/m ε r = 40.4 ρ = 1.00 g/cm 3 Cubes (2): Peak: 21.2 mW/g ± 0.01 dB, SAR (1g): 10.7 mW/g ± 0.01 dB, SAR (10g): 5.26 mW/g ± 0.01 dB, (Worst-case extrapolation) Penetration depth: 7.0 (6.8, 7.5) [mm] SAR Tot [mW/g] 1.00E+0 2.00E+0 3.00E+0 4.00E+0 5.00E+0 6.00E+0 7.00E+0 8.00E+0 9.00E+0 Validation SN508 Schmid & Partner Engineering AG, Zürich Switzerland 1900MHz Brain Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 2/00 Medium Parameters Brain 1900 MHz: σ = 1.82 mho/m ε r = 40.4 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 10.7 mW/g, SAR (10g): 5.49 mW/g 1900MHz Brain Dipole Validation (D1900V2 S/N: 502) Frequency: 1900 MHz; Antenna Input Power: 250 [mW] PCTEST Brain Tissue Simulating Liquid SAR Tot [mW/g] 7.19E-1 3.17E+0 5.03E+0 6.31E+0 7.49E+0 PCTEST Engineering Laboratory, Inc. 1900MHz Muscle Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 2/00 Medium Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna P…

Text truncated - open the document above for the full version.
