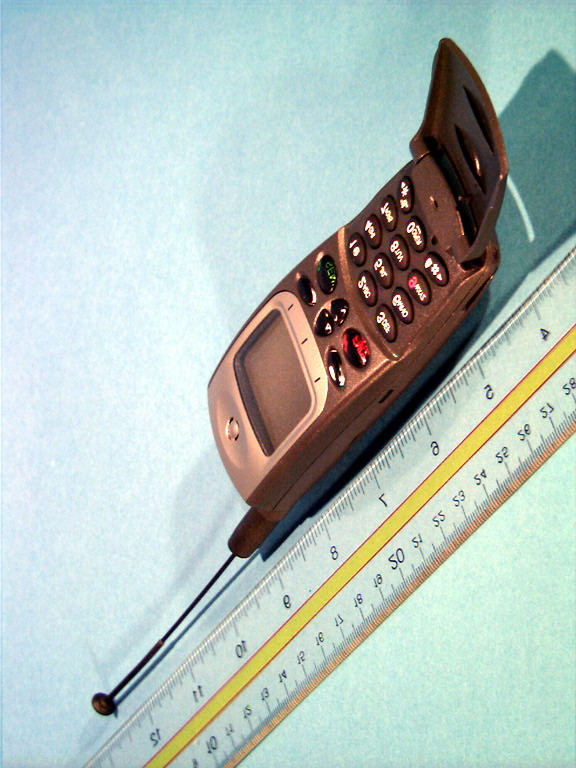

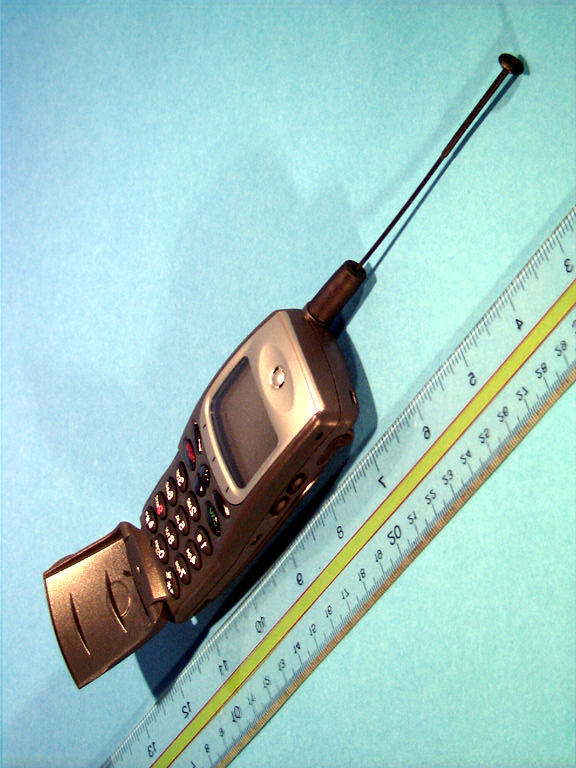

FFMDM110Dual-Mode Cellular Phone (AMPS/CDMA)

User Guide FCC WARNING STATEMENT For body-worn operation, the antenna should be kept at least 1 inch from the body when transmitting, to comply with FCC RF exposure requirements. An optional holster/belt-clip is available as an accessory. Users are cautioned that the use of non-tested accessories may exceed FCC RF exposure limits. Please contact your local dealer for optional accessory information. CHAPTER 1. THE NAME AND FUNCTIONS Hold Icon Rm Signal Strength (RSSI) In Use No Service Digital Service is available Roaming Short Message (Voice) Battery Level Short Message (Text) Vibrator Enabled D CHAPTER 2. BASIC FUNCTIONS Turning the Phone On and Off <Turning the Terminal On> 1. Connect the terminal to the charged battery or the external power supply. 2. Press the [END/PWR] key for about 1.5 seconds until a red right appears on the upper side of the terminal. < Turning the Terminal Off > 1. Press the [END/PWR] key until the end message appears on the LCD, and then stop pressing the key. 2. If an antenna is stretched, push it in for safety. Making a Call <Method1> Entering the Entire Phone Number 1. If the terminal is turned off, turn it on. 2. Enter the phone number. (Enter the area code, if necessary.) 3. Press the [SND] key. - If the terminal is locked on, enter the password to unlock the terminal. Then, attempt the call again. - If the call is not connected, “Call Failed” signal will be indicated on the LCD. 4. Press the [END] key. <Method2> Using Phone Book Entry 1. Enter the phone entry number, and press the [SND] key or press the related phone entry number for some time. Then, the call will be attempted. e.g.) Press the [2] key for some time, then call will be connected to the phone number stored in the Entry #2. 2. If you are not sure of the phone entry number, select the Soft Key (BOOK) on the right side. 3. Place the cursor on the Phone Book, and press the Soft Key (SEL) on the left side. 4. Search the Phone Book Entry number or name requested in the Phone Book to attempt a call to the phone number stored in it. <Method3> Using the Recent Call History 1. Select the Soft Key (BOOK) on the right side. 2. If the screen changes, place the cursor on the Call History. Then, press the Soft Key (SEL) on the left side. 3. If the “Outgoing Calls”, “Incoming Calls”, and “Missed Calls” are indicated on the screen, select the menu requested. Ten phone numbers of the recent calls are stored in each menu. Place the cursor on the menu requested, and press the Soft Key (SEL) on the left side. 4. The phone number list appears on the screen. Then, search and place the cursor on the phone number or name requested, and press the [SND] key. Correcting Dialing Mistakes 1. Press the Soft Key [CLR] on the right side of the screen to erase the number or character of the last entry. 2. Press the Soft Key (CLR) on the right side for one second, then all the number or character requested will be erased. Receiving Calls 1. Press any key except for the [END/PWR] key to receive a call. HPress the END Key once to stop the bell or vibration. HH Press the END Key twice to end the incoming call 2. When the call completes, press the [END/PWR] key. 3. Or close the flip. Mute 1. Press the Soft Key (MENU) on the left side during the call. Redialing Last Outgoing Number <Method 1> 1. Just press [SND] key to redial the last outgoing number. Then, the call will be attempted. <Method 2> using the Call History 1. Press the Soft Key (BOOK) on the right side. 2. Place the cursor on the Call history menu on the screen, and press the Soft Key (SEL) on the left side. 3. Then, three menus will appear. - “Outgoing Calls”: Ten last outgoing calls are stored in this menu. - “Incoming Calls”: Ten last incoming calls are stored in this menu. - “Missed Calls”: Ten last missed calls are stored in this menu. 2. If a popup menu appears on the screen, place the cursor on the Mute menu and press the Soft Key (SEL) on the left side to select the Mute state. (The message”Mute” will be indicated on the screen.) 3. Press the Soft Key (OPT) on the left side to clear the function. The popup menu will appear. Select the Unmute menu. (The message “Mute” will be disappear on the screen 4. Place the cursor on the menu requested, and press the Soft Key (SEL) on the left side. e.g.) Place the cursor on the “Outgoing Calls” menu and press the Soft Key (SEL) on the left side. 5. The phone number list will appear. Place the cursor on the phone number or name requested, and press the [SND] key. Then, the call will be attempted. Adjusting the Volume It is possible to adjust the speaker volume, ring volume, and the ringer type with the volume buttons on the upper left side of the terminal. - It is possible to adjust the speaker volume during the call. - It is possible to adjust the key tone volume in a idle state. - It is possible to adjust the ring volume during the ringing time. - It is possible to adjust the ring volume from the Sounds item on the Menu screen also. ( F [MENU] [Sounds][SpkVol] or [MENU]-1-2) If you turn the ring volume down to the minimum, the message “-Ringer Off-“ will be indicated on the LCD and no ringing sound will be sent out. - Adjust the ringer type on the Sounds item on the Menu screen. (F [MENU] [Sounds][Tone Length] or [MENU]-1-5) CHAPTER 3. PHONE BOOK FEATURES Two types of Phone Books This service enables easier use of the outgoing or incoming phone numbers because it is possible to store up to 200 phone numbers in the memory. It is possible to store the phone numbers either in the Personal Phone Book memory or in the Recent Call History List Personal Phone Book Memory It is possible to store up to 4 phone numbers of 32 digits including name up to 12 characters in each entry of the Phone Book. <Storing the Phone Number in the Personal Phone Book > 1. Enter the number to be stored. (Up to 32 characters) 2. Press the Soft Key (OPT) on the left side and then, a popup menu will appear. Place the cursor on the [save] key on the Men…

Text truncated - open the document above for the full version.

@ LG Information & Communications, Ltd. May 1, 1999 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely, General Manager of New York Office LG Information & Communications, Ltd.

November 19, 1999 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG Information & Communications, Ltd. FCC ID: FFMDM110 Part 22 Certification Gentlemen: Submitted herewith, on behalf of LG Information & Communications Ltd., is an application for Part 22 Certification of the following dual-mode cellular phone: FCC ID: FFMDM110 TRADE/MODEL(s): LGIC DM110 EUT TYPE: Dual-Mode Cellular Phone (AMPS/CDMA) Tx Freq. Range(s): 824.04 – 848.97 MHz (AMPS) 824.82 – 848.19 MHz (CDMA) Max. Output Power(s): 0.6 W ERP (AMPS) / 0.45 W ERP (CDMA) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Harris Ahn Principal Engineer Communication Terminal Research Lab, LGIC

March 6, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Errol Chang / Kwok Chan SUBJECT:LG Information & Communications, Ltd. FCC ID: FFMDM110 731 Confirmation Number: EA96027 Correspondence Reference No.: 12475 Request for Additional Info.: 03/03/2000 Dear Errol / Kwok: Submitted herewith, on behalf of LG Information & Communications, Ltd., is an amendment in response to your e-mail dated January 05, 2000 requesting additional information for the subject application. 1. Attached is the head SAR test plots showing illustration for antenna IN configuration confirming peak SAR location. Please note that the antenna OUT illustrations were inadvertently submitted. 2. Attached is the body SAR test plots showing illustration for antenna OUT configuration confirming peak SAR location. Please note that the antenna IN illustrations were inadvertently submitted. 3. We confirm that there is no optional holster/belt-clip accessory available for this phone (please see attached letter from LGIC). The phone was tested for body SAR with a fixed separation distance (2.5cm). The submitted RF exposure manual warning statement was inadvertently filed stating the use of an optional holster/belt-clip accessory item. 4. Attached is the revised RF exposure manual warning statement which will be placed in an obvious location towards the front of the user’s manual (please see attached letter from LGIC). 5. We will make sure that all body-worn SAR tests are performed with specific accessories designed to be used with the phone/device. We trust this information is sufficient to issue the grant asap. If you have any further questions, please do not hesitate to contact us. Thank you. Sincerely, cc:Harris Ahn Senior Engineer Communication Terminal Research Lab LG Information & Communications, Ltd.,

Test Report S/N: SAR.991115603.FFMFCC Part 22 Test Date(s): November 15-19, 1999Certification © 1999 PCTEST Lab FCC ID: FFMDM110 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS / CDMA) Test Report S/N: SAR.991115603.FFMFCC Part 22 Test Date(s): November 15-19, 1999Certification © 1999 PCTEST Lab FCC ID: FFMDM110 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS / CDMA) Test Report S/N: SAR.991115603.FFMFCC Part 22 Test Date(s): November 15-19, 1999Certification © 1999 PCTEST Lab FCC ID: FFMDM110 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS / CDMA) Test Report S/N: SAR.991115603.FFMFCC Part 22 Test Date(s): November 15-19, 1999Certification © 1999 PCTEST Lab FCC ID: FFMDM110 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS / CDMA) Test Report S/N: SAR.991115603.FFMFCC Part 22 Test Date(s): November 15-19, 1999Certification © 1999 PCTEST Lab FCC ID: FFMDM110 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS / CDMA) Test Report S/N: SAR.991115603.FFMFCC Part 22 Test Date(s): November 15-19, 1999Certification © 1999 PCTEST Lab FCC ID: FFMDM110 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS / CDMA)

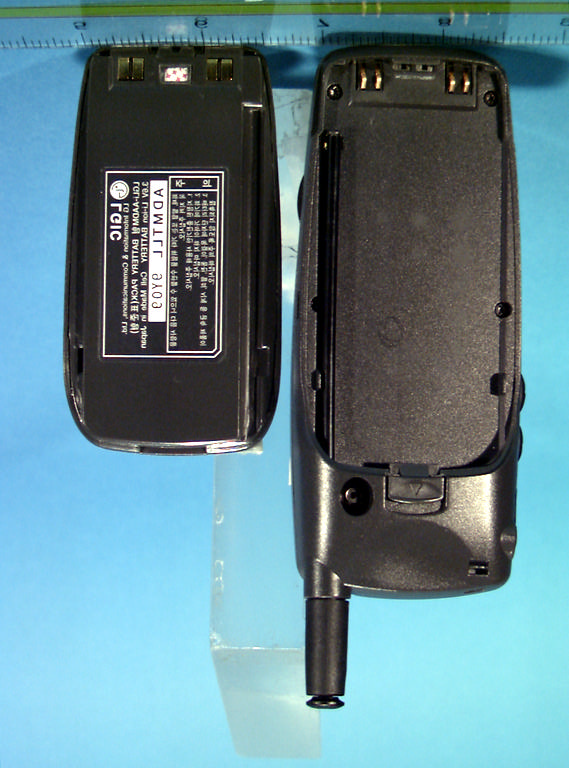

© 1999 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) LG Information & Communication 11 99-7-14 LG Information & Communications, Ltd. LGIC Model No. : DM110 FCC ID : FFMDM110 S/N : Made in Korea

Test Report S/N: SAR.991115603.FFMFCC Part 22 Test Date(s): November 15-19, 1999Certification © 1999 PCTEST Lab FCC ID: FFMDM110 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS / CDMA) Test Report S/N: SAR.991115603.FFMFCC Part 22 Test Date(s): November 15-19, 1999Certification © 1999 PCTEST Lab FCC ID: FFMDM110 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS / CDMA) Test Report S/N: SAR.991115603.FFMFCC Part 22 Test Date(s): November 15-19, 1999Certification © 1999 PCTEST Lab FCC ID: FFMDM110 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS / CDMA) Test Report S/N: SAR.991115603.FFMFCC Part 22 Test Date(s): November 15-19, 1999Certification © 1999 PCTEST Lab FCC ID: FFMDM110 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS / CDMA)

© 1999 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) LG Information & Communications, Ltd.Dates of Tests: November 15-19, 1999 Communication Terminal Research LabTest Report S/N: SAR.991115604.FFM 60-39, Kasan-dong, Keumchun-kuTest Site: PCTEST Lab, Columbia MD U.S.A. Seoul 153-023, Korea Attn: Harris Ahn, Principle Engineer Communication Terminal Research Lab FCC ID FFMDM110 APPLICANT LG INFORMATION & COMMUNICATIONS, LTD. EUT Type:Dual-Mode Cellular Phone (AMPS/CDMA) Tx Frequency:824.04 – 848.97 MHz (AMPS) / 824.82 – 848.19 MHz (CDMA) Rx. Frequency:869.04 – 893.97 MHz (AMPS) / 869.82 – 893.19 MHz (CDMA) Max. Output Power:0.6W ERP (AMPS) / 0.45W ERP (CDMA) Trade Name/Model(s):LGIC DM110 FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) Application Type:Certification Serial Number:n/a (pre-production) FCC Rule Part(s):2.1093; ET Docket 96.326; 22(H) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) 991115604.FFM SAR Measurement ReportFCC Part 22 Certification © 1999 PCTEST Labi Table of Contents 1.1: SCOPE ..............................................................1 2.1-2: INTRODUCTION / SAR DEFINITION ..........................2 3.1: SAR MEASUREMENT SET-UP .................................3 4.1-2: E-FIELD PROBE SYSTEM .......................................4 5.1-4: E-FIELD PROBE CALIBRATION .............................. 5-6 6.1-3: PHANTOM & EQUIVALENT TISSUE ...........................7 7.1-2: SYSTEM SPECIFICATIONS ..................................... 8 8.1-2: MEASUREMENT PROCESS ....................................9 9.1-2: TEST POSITION OF THE PHONE ............................. 10 10.1: ANSI/IEEE C95.1 RF EXPOSURE LIMITS .................. 11 11.1: MEASUREMENT UNCERTAINTIES .......................... 12 12.1-2: TEST DATA SUMMARY (HEAD SAR) ........................ 13 13.1-2: HANDS-FREE MODE TEST SETUP ........................ 14 14.1-2: TEST DATA SUMMARY (BODY-WORN) ................... 15 15.1: SAR TEST EQUIPMENT LIST ............................... 16 16.1: CONCLUSION / REFERENCES .............................. 17 Test Report S/N: SAR.991115604.FFMSAR Measurement Report Test Dates: November 15-19, 1999FCC Part 22 Certification LGIC Dual-Mode Cellular Phone (AMPS/CDMA) © 1999 PCTEST LabFCC ID: FFMDM110 (Tx 824-849 MHz)1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name:LG Information & Communications, Ltd. Address:60-39, Kasan-dong, Keumchun-ku Seoul 153-023, Korea Attention:Harris Ahn, Principle Engineer Communication Terminal Research Lab • EUT Type:Dual-Mode Cellular Phone (AMPS/CDMA) • Trade Name:LGIC • FCC IDENTIFIER:FFMDM110 • Model:DM110 • S/N:Pre-production • Tx Frequency:824.04 – 848.97 MHz (AMPS) 824.82 – 848.19 MHz (CDMA) • Rx Frequency:869.04 – 893.97 MHz (AMPS) 869.82 – 848.19 MHz (CDMA) • Application Type: Certification • FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) • FCC Rule Part(s):§ 2.1093, Docket 96-326; § 22(H) • Max. RF Output Power:0.6W ERP (AMPS) 0.45W ERP (CDMA) • Modulation:AMPS / CDMA • Antenna:Helical (λ/2) • Antenna Dimensions:12.0 cm. (Length) • Dates of Test(s):November 15-19, 1999 • Place of Test(s):PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.991115604.FFM 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.991115604.FFMSAR Measurement Report Test Dates: November 15-19, 1999FCC Part 22 Certification LGIC Dual-Mode Cellular Phone (AMPS/CDMA) © 1999 PCTEST LabFCC ID: FFMDM110 (Tx 824-849 MHz)2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Elec…

Text truncated - open the document above for the full version.

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99111601_ZOOM.VLT Start : 16-Nov-99 09:05:53 am End : 16-Nov-99 09:19:10 am Radio Type : LGIC Model Number : FFMDM110 Serial Number : 002 Frequency : 824.04 MHz Peak Trans. Pwr : 0.400 W Start Trans. Pwr: 0.400 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : DUAL MODE PHONE CHAN. 991 LGIC PHONE 26.00 dB CONDUCTED Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.790 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Max Location : X = -0.500, Y = -1.750, Z = 0.000 (cm) Value = 22.818 Measured Values (volts) = 2.150E-002 1.675E-002 1.345E-002 1.078E-002 9.148E-003 7.939E-003 7.266E-003 6.974E-003 6.728E-003 6.408E-003 5.876E-003 5.131E-003 4.338E-003 3.307E-003 2.375E-003 1.506E-003 1.008E-003 7.755E-004 8.502E-004 1.273E-003 1.482E-003 Calc. Voltage @ Surface (Vs) = 0.0272 Voltage @ 1.00 cm (Vt) = 0.0108 Ave. Voltage (Vs+Vt)/2 = 0.0190 Ave. SAR over 1 g (mW/g) = 1.3883 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 mW/g -1012345 Z centimeters SAR Scan File : 99111601_ZOOM Start : 16-Nov-99 09:05:53 am End : 16-Nov-99 09:19:10 am LGIC/FFMDM110/002;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : 99111601_ZOOM Start : 16-Nov-99 09:05:53 am End : 16-Nov-99 09:19:10 am LGIC/FFMDM110/002;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 1.669 1.588 1.508 1.427 1.346 1.266 1.185 1.104 1.023 0.943 File : 99111601_ZOOM Start : 16-Nov-99 09:05:53 am End : 16-Nov-99 09:19:10 am LGIC/FFMDM110/002;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 1.669 1.588 1.508 1.427 1.346 1.266 1.185 1.104 1.023 0.943 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99111512_ZOOM.VLT Start : 15-Nov-99 02:48:37 pm End : 15-Nov-99 03:01:34 pm Radio Type : LGIC Model Number : FFMDM110 Serial Number : 002 Frequency : 824.04 MHz Peak Trans. Pwr : 0.400 W Start Trans. Pwr: 0.400 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : DUAL MODE PHONE CHAN. 991 LGIC PHONE 26.00 dB CONDUCTED Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.790 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Max Location : X = -0.500, Y = -1.750, Z = 0.000 (cm) Value = 17.339 Measured Values (volts) = 1.706E-002 1.361E-002 1.102E-002 8.852E-003 7.196E-003 6.191E-003 5.547E-003 5.281E-003 5.137E-003 5.038E-003 4.832E-003 4.422E-003 3.866E-003 3.158E-003 2.271E-003 1.531E-003 9.387E-004 6.073E-004 5.557E-004 7.389E-004 1.087E-003 Calc. Voltage @ Surface (Vs) = 0.0212 Voltage @ 1.00 cm (Vt) = 0.0089 Ave. Voltage (Vs+Vt)/2 = 0.0150 Ave. SAR over 1 g (mW/g) = 1.1000 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g -1012345 Z centimeters SAR Scan File : 99111512_ZOOM Start : 15-Nov-99 02:48:37 pm End : 15-Nov-99 03:01:34 pm LGIC/FFMDM110/002;824.04MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : 99111512_ZOOM Start : 15-Nov-99 02:48:37 pm End : 15-Nov-99 03:01:34 pm LGIC/FFMDM110/002;824.04MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 1.268 1.175 1.081 0.988 0.894 0.800 0.707 0.613 0.519 0.426 File : 99111512_ZOOM Start : 15-Nov-99 02:48:37 pm End : 15-Nov-99 03:01:34 pm LGIC/FFMDM110/002;824.04MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 1.268 1.175 1.081 0.988 0.894 0.800 0.707 0.613 0.519 0.426 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99111603_ZOOM.VLT Start : 16-Nov-99 09:53:41 am End : 16-Nov-99 10:05:46 am Radio Type : LGIC Model Number : FFMDM110 Serial Number : 002 Frequency : 836.49 MHz Peak Trans. Pwr : 0.400 W Start Trans. Pwr: 0.400 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : DUAL MODE PHONE CHAN. 383 LGIC PHONE 26.00 dB CONDUCTED Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.790 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Max Location : X = 2.250, Y = -4.250, Z = 0.000 (cm) Value = 22.219 Measured Values (volts) = 2.092E-002 1.849E-002 1.693E-002 1.565E-002 1.448E-002 1.313E-002 1.149E-002 9.627E-003 7.661E-003 5.714E-003 4.190E-003 3.135E-003 2.446E-003 2.499E-003 3.201E-003 3.784E-003 4.512E-003 4.952E-003 4.576E-003 3.355E-003 1.831E-003 Calc. Voltage @ Surface (Vs) = 0.0233 Voltage @ 1.00 cm (Vt) = 0.0157 Ave. Voltage (Vs+Vt)/2 = 0.0195 Ave. SAR over 1 g (mW/g) = 1.4234 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 mW/g -1012345 Z centimeters SAR Scan File : 99111603_ZOOM Start : 16-Nov-99 09:53:41 am End : 16-Nov-99 10:05:46 am LGIC/FFMDM110/002;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : 99111603_ZOOM Start : 16-Nov-99 09:53:41 am End : 16-Nov-99 10:05:46 am LGIC/FFMDM110/002;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 1.625 1.570 1.515 1.460 1.404 1.349 1.294 1.239 1.183 1.128 File : 99111603_ZOOM Start : 16-Nov-99 09:53:41 am End : 16-Nov-99 10:05:46 am LGIC/FFMDM110/002;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 1.625 1.570 1.515 1.460 1.404 1.349 1.294 1.239 1.183 1.128 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99111509_ZOOM.VLT Start : 15-Nov-99 12:22:01 pm End : 15-Nov-99 12:34:33 pm Radio Type : LGIC Model Number : FFMDM110 Serial …

Text truncated - open the document above for the full version.

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99111702_ZOOM.VLT Start : 17-Nov-99 10:05:10 am End : 17-Nov-99 10:17:12 am Radio Type : LGIC Model Number : FFMDM110 Serial Number : 002 Frequency : 824.04 MHz Peak Trans. Pwr : 0.400 W Start Trans. Pwr: 0.400 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : DUAL MODE PHONE FM MODE FLIP CHAN. 991 LGIC PHONE 26.00 dB CONDUCTED Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.895 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Max Location : X = 4.000, Y = -5.500, Z = 0.000 (cm) Value = 16.089 Measured Values (volts) = 1.579E-002 1.405E-002 1.272E-002 1.143E-002 1.022E-002 8.778E-003 7.334E-003 5.906E-003 4.692E-003 3.592E-003 2.999E-003 2.808E-003 2.977E-003 3.385E-003 3.914E-003 4.356E-003 4.407E-003 3.948E-003 3.065E-003 3.381E-003 3.238E-003 Calc. Voltage @ Surface (Vs) = 0.0176 Voltage @ 1.00 cm (Vt) = 0.0114 Ave. Voltage (Vs+Vt)/2 = 0.0145 Ave. SAR over 1 g (mW/g) = 1.2020 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g -1012345 Z centimeters SAR Scan File : 99111702_ZOOM Start : 17-Nov-99 10:05:10 am End : 17-Nov-99 10:17:12 am LGIC/FFMDM110/002;824.04MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.7/1.100 File : 99111702_ZOOM Start : 17-Nov-99 10:05:10 am End : 17-Nov-99 10:17:12 am LGIC/FFMDM110/002;824.04MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.7/1.100 1.333 1.258 1.182 1.107 1.032 0.956 0.881 0.805 0.730 0.655 File : 99111702_ZOOM Start : 17-Nov-99 10:05:10 am End : 17-Nov-99 10:17:12 am LGIC/FFMDM110/002;824.04MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.7/1.100 1.333 1.258 1.182 1.107 1.032 0.956 0.881 0.805 0.730 0.655 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99111701_ZOOM.VLT Start : 17-Nov-99 09:37:53 am End : 17-Nov-99 09:50:03 am Radio Type : LGIC Model Number : FFMDM110 Serial Number : 002 Frequency : 824.04 MHz Peak Trans. Pwr : 0.400 W Start Trans. Pwr: 0.400 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : DUAL MODE PHONE FM MODE FLIP CHAN. 991 LGIC PHONE 26.00 dB CONDUCTED Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.895 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Max Location : X = 4.000, Y = -5.000, Z = 0.000 (cm) Value = 18.958 Measured Values (volts) = 1.860E-002 1.671E-002 1.487E-002 1.363E-002 1.207E-002 1.060E-002 8.942E-003 7.243E-003 5.702E-003 4.529E-003 3.602E-003 3.281E-003 3.287E-003 3.634E-003 4.203E-003 4.706E-003 4.975E-003 4.573E-003 3.798E-003 4.270E-003 5.169E-003 Calc. Voltage @ Surface (Vs) = 0.0208 Voltage @ 1.00 cm (Vt) = 0.0136 Ave. Voltage (Vs+Vt)/2 = 0.0172 Ave. SAR over 1 g (mW/g) = 1.4263 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 mW/g -1012345 Z centimeters SAR Scan File : 99111701_ZOOM Start : 17-Nov-99 09:37:53 am End : 17-Nov-99 09:50:03 am LGIC/FFMDM110/002;824.04MHz;W;Helical/Out; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 File : 99111701_ZOOM Start : 17-Nov-99 09:37:53 am End : 17-Nov-99 09:50:03 am LGIC/FFMDM110/002;824.04MHz;W;Helical/Out; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 1.571 1.483 1.394 1.306 1.217 1.129 1.040 0.952 0.863 0.775 File : 99111701_ZOOM Start : 17-Nov-99 09:37:53 am End : 17-Nov-99 09:50:03 am LGIC/FFMDM110/002;824.04MHz;W;Helical/Out; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 1.571 1.483 1.394 1.306 1.217 1.129 1.040 0.952 0.863 0.775 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99111612_ZOOM.VLT Start : 16-Nov-99 04:09:17 pm End : 16-Nov-99 04:22:08 pm Radio Type : LGIC Model Number : FFMDM110 Serial Number : 002 Frequency : 836.49 MHz Peak Trans. Pwr : 0.400 W Start Trans. Pwr: 0.400 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : DUAL MODE PHONE FM MODE FLIP CHAN. 383 LGIC PHONE 26.00 dB CONDUCTED Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.895 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Max Location : X = 2.750, Y = -4.000, Z = 0.000 (cm) Value = 14.486 Measured Values (volts) = 1.452E-002 1.145E-002 1.034E-002 9.546E-003 8.788E-003 7.993E-003 7.104E-003 6.069E-003 4.853E-003 3.747E-003 2.691E-003 1.981E-003 1.580E-003 1.481E-003 1.746E-003 2.175E-003 2.583E-003 2.896E-003 2.870E-003 2.236E-003 1.773E-003 Calc. Voltage @ Surface (Vs) = 0.0173 Voltage @ 1.00 cm (Vt) = 0.0095 Ave. Voltage (Vs+Vt)/2 = 0.0134 Ave. SAR over 1 g (mW/g) = 1.1103 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g -1012345 Z centimeters SAR Scan File : 99111612_ZOOM Start : 16-Nov-99 04:09:17 pm End : 16-Nov-99 04:22:08 pm LGIC/FFMDM110/002;836.49MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 File : 99111612_ZOOM Start : 16-Nov-99 04:09:17 pm End : 16-Nov-99 04:22:08 pm LGIC/FFMDM110/002;836.49MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 Degree…

Text truncated - open the document above for the full version.
