FFMDM112Dual-Mode Cellular Phone (AMPS/CDMA)

LG Electronics, Inc.

Click to zoom

Application Details

Equipment Class: TNE - Licensed Non-Broadcast Transmitter Held to Ear
Date of Grant: Mar 12, 2000
Application Purpose: Original Equipment
Date of Application: Dec 30, 1999
Equipment Note: Dual-Mode Cellular Phone (AMPS/CDMA)
Frequency Range: 824.82000000 - 848.19000000
Company: LG Electronics, Inc.
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

LG Information & Communications99-12-10 1/2626/ LG-DM112/114 Operating Manual i FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 0.79 inches (2 cm) from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.79 inches (2 cm) must be maintained between the user’s body and the back of the phone, including the antenna, whether extended or retracted. Third-party belt-clips, holsters and similar accessories containing metallic components should not be used. Body-worn accessories that cannot maintain 0.79 inch (2 cm) separation distance between the user’s body and the back of the phone, and have not been tested for typical body-worn operations may not comply with FCC RF exposure limits and should be avoided. For more information about RF exposure, please visit the FCC website at www.fcc.gov WARNING! Read this information before using your phone LG Information & Communications 99-12-10 2/2626/ CHAPTER 1. THE NAME AND FUNCTIONS Hold Icon Rm Signal Strength (RSSI) In Use No Service Digital Service is available Roaming Short Message (Voice) Battery Level Short Message (Text) Vibrator Enabled D LG Information & Communications99-12-10 3/2626/ CHAPTER 2. BASIC FUNCTIONS Turning the Phone On and Off <Turning the Terminal On> 1. Connect the terminal to the charged battery or the external power supply. 2. Press the [END/PWR] key for about 1.5 seconds until a red right appears on the upper side of the terminal. < Turning the Terminal Off > 1. Press the [END/PWR] key until the end message appears on the LCD, and then stop pressing the key. 2. If an antenna is stretched, push it in for safety. Making a Call <Method1> Entering the Entire Phone Number 1. If the terminal is turned off, turn it on. 2. Enter the phone number. (Enter the area code, if necessary.) 3. Press the [SND] key. - If the terminal is locked on, enter the password to unlock the terminal. Then, attempt the call again. - If the call is not connected, “Call Failed” signal will be indicated on the LCD. 4. Press the [END] key. <Method2> Using Phone Book Entry 1. Enter the phone entry number, and press the [SND] key or press the related phone entry number for some time. Then, the call will be attempted. e.g.) Press the [2] key for some time, then call will be connected to the phone number stored in the Entry #2. LG Information & Communications99-12-10 4/2626/ 2. If you are not sure of the phone entry number, select the Soft Key (BOOK) on the right side. 3. Place the cursor on the Phone Book, and press the Soft Key (SEL) on the left side. 4. Search the Phone Book Entry number or name requested in the Phone Book to attempt a call to the phone number stored in it. <Method3> Using the Recent Call History 1. Select the Soft Key (BOOK) on the right side. 2. If the screen changes, place the cursor on the Call History. Then, press the Soft Key (SEL) on the left side. 3. If the “Outgoing Calls”, “Incoming Calls”, and “Missed Calls” are indicated on the screen, select the menu requested. Ten phone numbers of the recent calls are stored in each menu. Place the cursor on the menu requested, and press the Soft Key (SEL) on the left side. 4. The phone number list appears on the screen. Then, search and place the cursor on the phone number or name requested, and press the [SND] key. Correcting Dialing Mistakes 1. Press the Soft Key [CLR] on the right side of the screen to erase the number or character of the last entry. 2. Press the Soft Key (CLR) on the right side for one second, then all the number or character requested will be erased. LG Information & Communications99-12-10 5/2626/ Receiving Calls 1. Press any key except for the [END/PWR] key to receive a call. HPress the END Key once to stop the bell or vibration. HH Press the END Key twice to end the incoming call 2. When the call completes, press the [END/PWR] key. 3. Or close the flip. Mute 1. Press the Soft Key (MENU) on the left side during the call. Redialing Last Outgoing Number <Method 1> 1. Just press [SND] key to redial the last outgoing number. Then, the call will be attempted. <Method 2> using the Call History 1. Press the Soft Key (BOOK) on the right side. 2. Place the cursor on the Call history menu on the screen, and press the Soft Key (SEL) on the left side. 3. Then, three menus will appear. - “Outgoing Calls”: Ten last outgoing calls are stored in this menu. - “Incoming Calls”: Ten last incoming calls are stored in this menu. - “Missed Calls”: Ten last missed calls are stored in this menu. 2. If a popup menu appears on the screen, place the cursor on the Mute menu and press the Soft Key (SEL) on the left side to select the Mute state. (The message”Mute” will be indicated on the screen.) 3. Press the Soft Key (OPT) on the left side to clear the function. The popup menu will appear. Select the Unmute menu. (The message “Mute” will be disappear on the screen LG Information & Communications99-12-10 6/2626/ 4. Place the cursor on the menu requested, and press the Soft Key (SEL) on the left side. e.g.) Place the cursor on the “Outgoing Call…

Text truncated - open the document above for the full version.

Attestation Statements

@ LG Information & Communications, Ltd. May 1, 1999 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely, General Manager of New York Office LG Information & Communications, Ltd.

Cover Letter(s)

February 3, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:LG Information & Communications, Ltd. FCC ID: FFMDM112 Dual-Mode Cellular Phone (AMPS/CDMA) Part 22 Certification Form 731 Confirmation No.: EA96416 Gentlemen: Submitted herewith, on behalf of LG Information & Communications, Ltd., is an amendment to correct the rated RF power output for CDMA mode listed in Item 12 of submitted FCC Form 731. The requested RF power output for CDMA mode to be listed on the grant is 0.4W in accordance with the ERP test data shown on page 8 of the test report. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jonathan Hughes PCTEST Lab cc:Mr. Harris Ahn Principal Engineer Communication Terminal Research Lab LG Information & Communications, Ltd.

Cover Letter(s)

January 05, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG Information & Communications, Ltd. FCC ID: FFMDM112 Part 22 Certification Gentlemen: Submitted herewith, on behalf of LG Information & Communications Ltd., is an application for Part 22 Certification of the following dual-mode cellular phone: FCC ID: FFMDM112 TRADE/MODEL(s): LGIC LG-DM112, LG-DM114 EUT TYPE: Dual-Mode Cellular Phone (AMPS/CDMA) Tx Freq. Range(s): 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) Max. RF Output Power(s): 0.6 W ERP (AMPS) / 0.4 W ERP (CDMA) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Harris Ahn Principal Engineer Communication Terminal Research Lab, LGIC

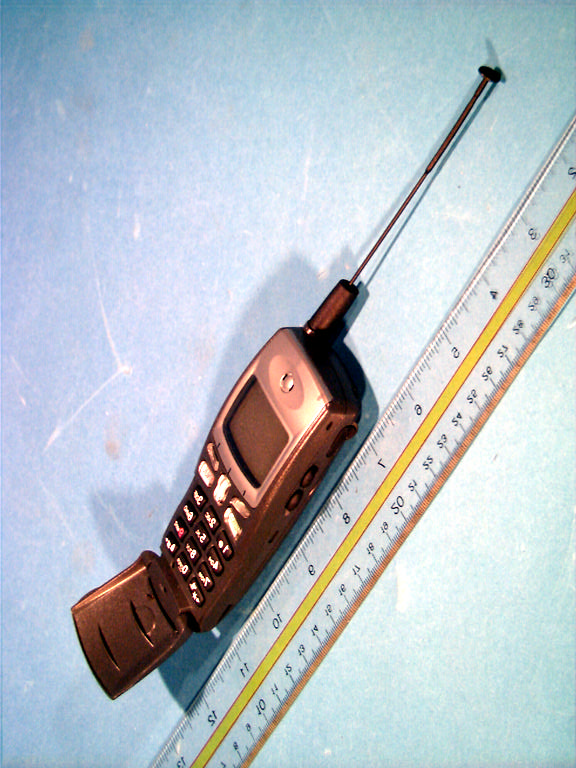

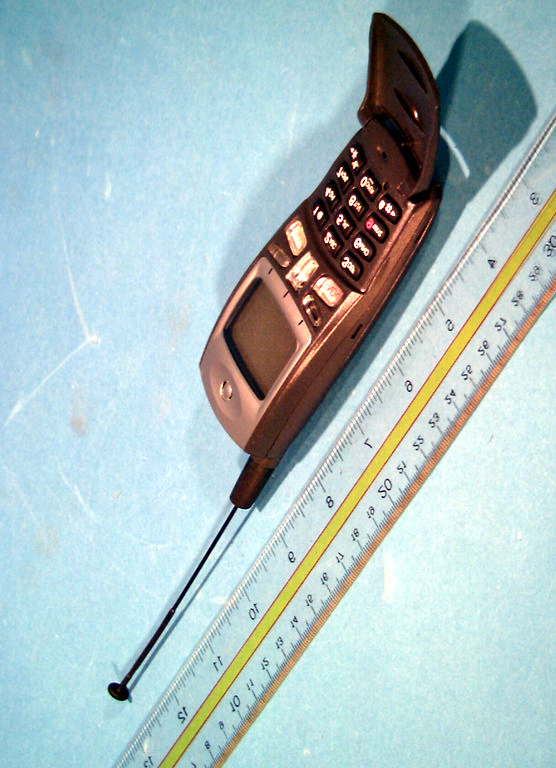

External Photos

Test Report S/N: 22.991213676.FFMFCC Part 22 Test Date(s): December 20-24, 1999Certification © 2000 PCTEST Lab FCC ID: FFMDM112 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: 22.991213676.FFMFCC Part 22 Test Date(s): December 20-24, 1999Certification © 2000 PCTEST Lab FCC ID: FFMDM112 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: 22.991213676.FFMFCC Part 22 Test Date(s): December 20-24, 1999Certification © 2000 PCTEST Lab FCC ID: FFMDM112 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: 22.991213676.FFMFCC Part 22 Test Date(s): December 20-24, 1999Certification © 2000 PCTEST Lab FCC ID: FFMDM112 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: 22.991213676.FFMFCC Part 22 Test Date(s): December 20-24, 1999Certification © 2000 PCTEST Lab FCC ID: FFMDM112 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: 22.991213676.FFMFCC Part 22 Test Date(s): December 20-24, 1999Certification © 2000 PCTEST Lab FCC ID: FFMDM112 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS/CDMA)

ID Label/Location Info

© 1999 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) LG Information & Communication 10 99-12-10 10/12 2.983 (e) Standard Test Conditions: 2. 983 (f) Equipment Identification: 2. 983 (g) Photograph : 2. 985 RF Power Output: 2. 987 Modulation Characteristics: 2. 989 Occupied Bandwidth 2. 991 Spurious Emissions at Antenna Terminals: 2. 993 Field Strength of Spurious Radiation: 2. 995 Frequency stability: 2. 997 Frequency spectrum to be investigated LG Information & Communications, Ltd. LGIC Model No. : LG-DM112 FCC ID : FFMDM112 S/N : Made in Korea

Internal Photos

RF Exposure Info

© 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) LG Information & Communications, Ltd.Dates of Tests: December 20-24, 1999 Communication Terminal Research LabTest Report S/N: SAR.991213677.FFM 459-9, Kasan-dong, Keumchun-kuTest Site: PCTEST Lab, Columbia MD U.S.A. Seoul 153-023, Korea Attn: Harris Ahn, Principal Engineer FCC ID FFMDM112 APPLICANT LG INFORMATION & COMMUNICATIONS, LTD. EUT Type:Dual-Mode Cellular Phone (AMPS/CDMA) Tx Frequency:824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) Rx. Frequency:869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) Max. RF Output Power:0.6W ERP AMPS (27.8 dBm) / 0.4W ERP CDMA (26.0 dBm) Trade Name/Model(s):LGIC LG-DM112, LG-DM114 FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) Application Type:Certification Serial Number:n/a (pre-production) FCC Rule Part(s):2.1093; ET Docket 96.326 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). 991213677.FFM SAR Measurement ReportFCC Part 22 Certification © 2000 PCTEST Labi Table of Contents 1.1: SCOPE ..............................................................1 2.1-2: INTRODUCTION / SAR DEFINITION ..........................2 3.1: SAR MEASUREMENT SET-UP .................................3 4.1-2: E-FIELD PROBE SYSTEM .......................................4 5.1-4: E-FIELD PROBE CALIBRATION .............................. 5-6 6.1-3: PHANTOM & EQUIVALENT TISSUE ...........................7 7.1-2: SYSTEM SPECIFICATIONS ..................................... 8 8.1-2: MEASUREMENT PROCESS ....................................9 9.1-2: TEST POSITION OF THE PHONE ............................. 10 10.1-2: BODY-WORN TEST SETUP .................................. 11 11.1: ANSI/IEEE C95.1 RF EXPOSURE LIMITS .................. 12 12.1: MEASUREMENT UNCERTAINTIES .......................... 13 13.1-3: TEST DATA SUMMARY ......................................... 14-15 14.1: SAR TEST EQUIPMENT LIST ............................... 16 15.1: CONCLUSION / REFERENCES .............................. 17 Test Report S/N: SAR.991213677.FFMSAR Measurement Report Test Dates: December 20-24, 1999FCC Part 22 Certification LGIC Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST LabFCC ID: FFMDM112 (Tx 824-849 MHz)1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name:LG Information & Communications, Ltd. Address:459-9, Kasan-dong, Keumchun-ku Seoul 153-023, Korea Attention:Harris Ahn, Principal Engineer Communication Terminal Research Lab • EUT Type:Dual-Mode Cellular Phone (AMPS/CDMA) • Trade Name:LGIC • FCC IDENTIFIER:FFMDM112 • Model:LG-DM112, LG-DM114 • S/N:Pre-production • Tx Frequency:824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) • Rx Frequency:869.04 – 893.97 MHz (AMPS) 869.70 – 848.31 MHz (CDMA) • Application Type: Certification • FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) • FCC Rule Part(s):§ 2.1093, Docket 96-326 • Max. RF Output Power:0.6W ERP AMPS (27.8 dBm) 0.4W ERP CDMA (26.0 dBm) • Modulation:AMPS / CDMA • Antenna Type:Helical (λ/2) • Antenna Dimensions:11.9 cm. (Length) • Dates of Test(s):December 20-24, 1999 • Place of Test(s):PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.991213677.FFM 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.991213677.FFMSAR Measurement Report Test Dates: December 20-24, 1999FCC Part 22 Certification LGIC Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST LabFCC ID: FFMDM112 (Tx 824-849 MHz)2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwav…

Text truncated - open the document above for the full version.

RF Exposure Info

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99123108_ZOOM.VLT Start : 31-Dec-99 10:38:30 am End : 31-Dec-99 10:50:11 am Radio Type : LGIC LG-DM112 FCC ID : FFMDM112 Serial Number : 01 Frequency : 824.04 MHz Peak Trans. Pwr : 0.400 W Start Trans. Pwr: 0.400 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : LGIC DUAL MODE PHONE CHAN. 991 FM MODE 2 cm SPACING +26.0 dBM CONDUCTED FLIP MODE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.895 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Max Location : X = 2.500, Y = -5.750, Z = 0.000 (cm) Value = 18.212 Measured Values (volts) = 1.798E-002 1.592E-002 1.443E-002 1.305E-002 1.149E-002 9.954E-003 8.238E-003 6.306E-003 4.783E-003 3.387E-003 2.685E-003 2.585E-003 2.960E-003 3.689E-003 4.492E-003 5.060E-003 5.018E-003 4.146E-003 3.839E-003 4.359E-003 1.900E-003 Calc. Voltage @ Surface (Vs) = 0.0201 Voltage @ 1.00 cm (Vt) = 0.0130 Ave. Voltage (Vs+Vt)/2 = 0.0166 Ave. SAR over 1 g (mW/g) = 1.3721 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 mW/g -1012345 Z centimeters SAR Scan File : 99123108_ZOOM Start : 31-Dec-99 10:38:30 am End : 31-Dec-99 10:50:11 am LGIC/LG-DM112/01;824.04MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99123109_ZOOM.VLT Start : 31-Dec-99 10:54:52 am End : 31-Dec-99 11:06:48 am Radio Type : LGIC LG-DM112 FCC ID : FFMDM112 Serial Number : 01 Frequency : 824.04 MHz Peak Trans. Pwr : 0.400 W Start Trans. Pwr: 0.400 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : LGIC DUAL MODE PHONE CHAN. 991 FM MODE 2 cm SPACING +26.0 dBM CONDUCTED FLIP MODE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.895 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Max Location : X = 2.750, Y = -5.750, Z = 0.000 (cm) Value = 19.036 Measured Values (volts) = 1.898E-002 1.700E-002 1.518E-002 1.378E-002 1.211E-002 1.049E-002 8.473E-003 6.629E-003 4.890E-003 3.682E-003 2.924E-003 2.856E-003 3.306E-003 4.025E-003 4.824E-003 5.323E-003 5.180E-003 4.084E-003 4.061E-003 4.651E-003 1.988E-003 Calc. Voltage @ Surface (Vs) = 0.0212 Voltage @ 1.00 cm (Vt) = 0.0138 Ave. Voltage (Vs+Vt)/2 = 0.0175 Ave. SAR over 1 g (mW/g) = 1.4502 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 mW/g -1012345 Z centimeters SAR Scan File : 99123109_ZOOM Start : 31-Dec-99 10:54:52 am End : 31-Dec-99 11:06:48 am LGIC/LG-DM112/01;824.04MHz;W;Helical/Out; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99123107_ZOOM.VLT Start : 31-Dec-99 10:28:21 am End : 31-Dec-99 10:34:21 am Radio Type : LGIC LG-DM112 FCC ID : FFMDM112 Serial Number : 01 Frequency : 836.49 MHz Peak Trans. Pwr : 0.400 W Start Trans. Pwr: 0.400 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : LGIC DUAL MODE PHONE CHAN. 383 FM MODE 2 cm SPACING +26.0 dBM CONDUCTED FLIP MODE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.895 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Max Location : X = 2.750, Y = -5.750, Z = 0.000 (cm) Value = 18.773 Measured Values (volts) = 1.856E-002 1.663E-002 1.502E-002 1.341E-002 1.190E-002 1.013E-002 8.445E-003 6.542E-003 4.853E-003 3.632E-003 2.929E-003 2.826E-003 3.268E-003 3.952E-003 4.772E-003 5.269E-003 5.104E-003 4.106E-003 4.097E-003 4.566E-003 1.955E-003 Calc. Voltage @ Surface (Vs) = 0.0206 Voltage @ 1.00 cm (Vt) = 0.0134 Ave. Voltage (Vs+Vt)/2 = 0.0170 Ave. SAR over 1 g (mW/g) = 1.4101 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 mW/g -1012345 Z centimeters SAR Scan File : 99123107_ZOOM Start : 31-Dec-99 10:28:21 am End : 31-Dec-99 10:34:21 am LGIC/LG-DM112/01;836.49MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99123113_ZOOM.VLT Start : 31-Dec-99 11:43:44 am End : 31-Dec-99 11:49:41 am Radio Type : LGIC LG-DM112 FCC ID : FFMDM112 Serial Number : 01 Frequency : 836.49 MHz Peak Trans. Pwr : 0.400 W Start Trans. Pwr: 0.400 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : LGIC DUAL MODE PHONE CHAN. 991 FM MODE 2 cm SPACING +26.0 dBM CONDUCTED FLIP MODE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.895 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Max Location : X = 2.500, Y = -5.750, Z = 0.000 (cm) Value = 19.119 Measured Values (volts) = 1.894E-002 1.686E-002 1.507E-002 1.392E-002 1.236E-002 1.052E-002 8.874E-003 6.773E-003 5.087E-003 3.743E-003 2.906E-003 2.788E-003 3.168E-003 4.105E-003 4.910E-003 5.569E-003 5.558E-003 4.634E-003 4.589E-003 5.332E-003 2.331E-003 Calc. Voltage @ Surface (Vs) = 0.0212 Voltage @ 1.00 cm (Vt) = 0.0139 Ave. Voltage (Vs+Vt)/2 = 0.0176 Ave. SAR over 1 g (mW/g) = 1.4562 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 mW/g -1012345 Z centimeters SAR Scan File : 99123113_ZOOM Start : 31-Dec-99 11:43:44 am End : 31-Dec-99 11:49:41 am LGIC/LG-DM112/01;836.49MHz;W;Helical/Out; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 File : 99123113_ZOOM Start : 31-Dec-99 11:43:44 am End : 31-Dec-99 11:49:41 am LGIC/LG-DM112/01;…

Text truncated - open the document above for the full version.

RF Exposure Info

Test Report S/N: SAR.991213677.FFMSAR Measurement Report Test Date(s): December 20-24, 1999FCC Part 22 Certification © 2000 PCTEST Lab FCC ID: FFMDM112 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: SAR.991213677.FFMSAR Measurement Report Test Date(s): December 20-24, 1999FCC Part 22 Certification © 2000 PCTEST Lab FCC ID: FFMDM112 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: SAR.991213677.FFMSAR Measurement Report Test Date(s): December 20-24, 1999FCC Part 22 Certification © 2000 PCTEST Lab FCC ID: FFMDM112 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: SAR.991213677.FFMSAR Measurement Report Test Date(s): December 20-24, 1999FCC Part 22 Certification © 2000 PCTEST Lab FCC ID: FFMDM112 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: SAR.991213677.FFMSAR Measurement Report Test Date(s): December 20-24, 1999FCC Part 22 Certification © 2000 PCTEST Lab FCC ID: FFMDM112 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS/CDMA)

RF Exposure Info

i FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 0.79 inches (2 cm) from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.79 inches (2 cm) must be maintained between the user’s body and the back of the phone, including the antenna, whether extended or retracted. Third-party belt-clips, holsters and similar accessories containing metallic components should not be used. Body-worn accessories that cannot maintain 0.79 inch (2 cm) separation distance between the user’s body and the back of the phone, and have not been tested for typical body-worn operations may not comply with FCC RF exposure limits and should be avoided. For more information about RF exposure, please visit the FCC website at www.fcc.gov WARNING! Read this information before using your phone

Test Report

Text truncated - open the document above for the full version.
