FFMLGC330WDUAL MODE PORTABLE CELLULAR PHONE (AMPS/CDMA)

LG Information & Communications, Ltd. 1 CDMA PORTABLE CELLULAR PHONE LGC-320/330W LGC-330W USER MANUAL LGC-320/330W LG Information & Communications, Ltd. 1 Table of Contents Introduction 1. Highlights .......................................................................................................................................... 3 2. Important Information ...................................................................................................................... 3 CHAPTER 1. Getting Started 1. Phone Parts and Function Key Description ....................................................................................... 4 2. LCD Icons ......................................................................................................................................... 5 CHAPTER 2. Basic Functions 1. Turning the Phone On and Off ........................................................................................................ 6 2. Making a Call .................................................................................................................................... 6 3. Correcting Dialing Mistakes ............................................................................................................. 7 4. Receiving Calls ................................................................................................................................. 7 5. Call Waiting ....................................................................................................................................... 7 6. Mute ................................................................................................................................................... 7 7. Re dialing Last Outgoing Number .................................................................................................... 8 8. Adjusting the Volume ....................................................................................................................... 8 9. Signal Strength ................................................................................................................................. 8 10. Emergency Dialing ........................................................................................................................... 9 11. Viewing Your Telephone Number ................................................................................................... 9 CHAPTER 3. Phone Book Features 1. Two Types of Phone Books ........................................................................................................... 10 2. Personal Phone Book Memory ..................................................................................................... 10 3. Entering Characters ....................................................................................................................... 11 4. Recent Call History List ................................................................................................................. 12 5. Retrieving Numbers ....................................................................................................................... 12 6. Changing the Personal Phone Book ............................................................................................. 14 7. Dialing Numbers from Your Phone Book ..................................................................................... 16 8. Advanced Phone Book Features .................................................................................................. 16 CHAPTER 4. Menu Features 1. Main Menu ...................................................................................................................................... 18 2. General Guidelines to MENU Access and Settings ............................................................................ 18 3. Menu Item Descriptions ................................................................................................................. 18 CHAPTER 5. Message Feature 1. New Message Alert ........................................................................................................................ 23 LGC-320/330W LG Information & Communications, Ltd. 2 2. Message ACK ................................................................................................................................... 23 3. Read new test message received......................................................................................................... 23 4. Read message is stored before . ........................................................................................................... 25 5. Erase all message............................................................................................................................... 26 6. Select ALERT and ALERT SOUND.................................................................................................. 26 7. Confirming message in post_office box.............................................................................................. 26 CHAPTER 6. Menu Tree .............................................................................................................................................................. 27 LGC-320/330W LG Information & Communications, Ltd. 3 1. Highlights Congratulations on your purchase of the LGP-320W phone that has been designed to operate on the latest digital mobile communication technology, Code Division Multiple Access (CDMA). This CDMA digital technology has greatly enhanced voice clarity and can provide various advanced features. The LGP-320W is a dual mode phone that can operate also on the analog cellular systems(Advanced Mobile Phone Service – AMPS). It is new and compact phone with many useful and advanced features including: • Large, easy-to read, 4-line, backlihgt LCD with status icons • Paging, Messaging, Voice Mail and Caller ID capability • 18-button keypad • …

Text truncated - open the document above for the full version.

LG Information & Cotmunications, Ltd. 60-39, Kasan-dong, Kemchun-ku Seoul 153-023, Korea Tel : 82-2-818-4110 Fax : 82-2-8 18-4428 http://[email protected] Novenber 12,199s Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re LG Information & Communication, Ltd. FCC ID: FFMLGC330W Dual - Mode Cellular Phone (CDMA & AMPS) Part 22 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, LG Information & communications, Ltd. hereby requests confidentiality of the Block Diagrams attachment, Schematic Diagrams, Operational Description, and Parts List/Tune-Up Procedure attachment for the above-referenced Certification application. These documents contain detailed system and equipment description and related information about the product which LG Information & Communications, Ltd. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Information& Communications, Ltd. considers this information to be of benefit to its competitors, such that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Harris Al-m Principal Engineer Communication Terminal Research Lab LG Information & Communications, Ltd.

November 30, 1998 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:LG Information & Communications, Ltd. FCC ID: FFMLGC330W Part 22 Certification Gentlemen: Attached herewith, on behalf of LG Information & Communications Ltd., is an application for Part 22 Certification of the following dual-mode cellular phone: FCC ID:FFMLGC330W TRADE/MODEL(s):LGIC LGC-330W, LGC-320W EUT TYPE:Dual-Mode Cellular Phone (AMPS/CDMA) Tx Freq. Range:824.04 – 848.97 MHz Max. Output Power:0.6 W ERP (AMPS) / 0.32 W ERP (CDMA) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Mr. Harris Ahn Principal Engineer Communication Terminal Research Lab

February 11, 1999 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Frank Coperich / Kwok Chan SUBJECT:LG Information & Communications, Ltd. FCC ID: FFMLGC330W Form 731 Confirmation No.: EA92424 Request for Tech. Info.: 02/10/99 Dear Frank / Kwok: Submitted herewith, on behalf of LG Information & Communications Ltd., is an amendment in response to your request dated 02/10/99 for additional information regarding the subject application. 1. Please find attached the revised Exhibit 11, showing correct applicant name and FCC ID on the figure captions. 2. The applicant, LGIC, confirms that the power ratings listed in Exhibit 12 are conducted power output ratings. Furthermore, the applicant confirms their request for 600mW ERP for AMPS mode, and 320mW ERP for CDMA mode to be listed on the grant, and acknowledges that the listed power ratings on the grant are the absolute maximum power ratings. Please find attached the revised Exhibit 12 power rating information page. We trust this amendment is sufficient to issue the grant as soon as possible. Should you have any further questions, please do not hesitate to contact us. Thank you. cc:Mr. Bruce W. Choi General Manager, New York Office LG Information & Communications, Ltd.

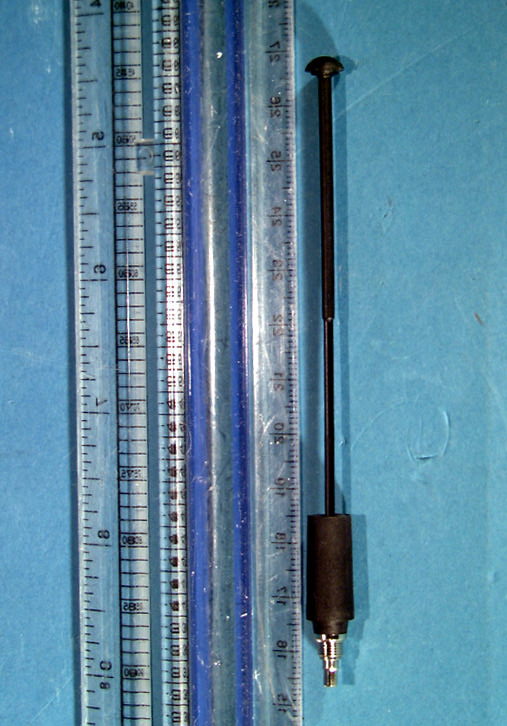

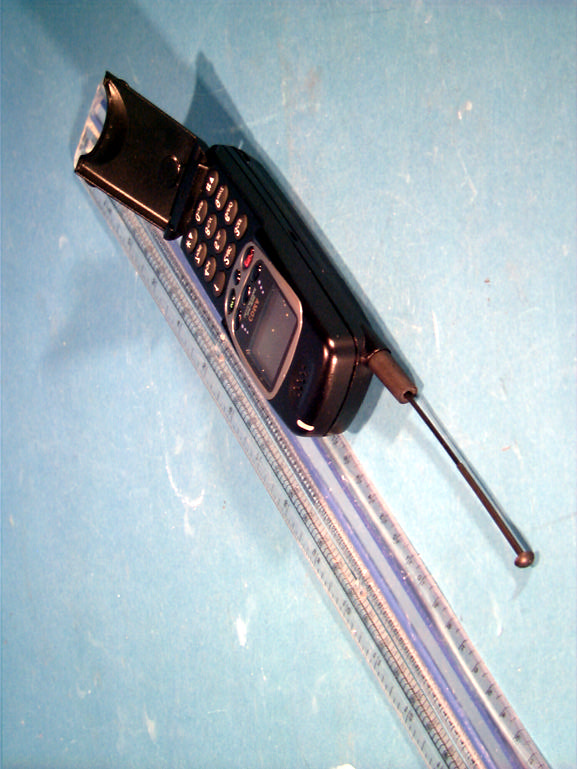

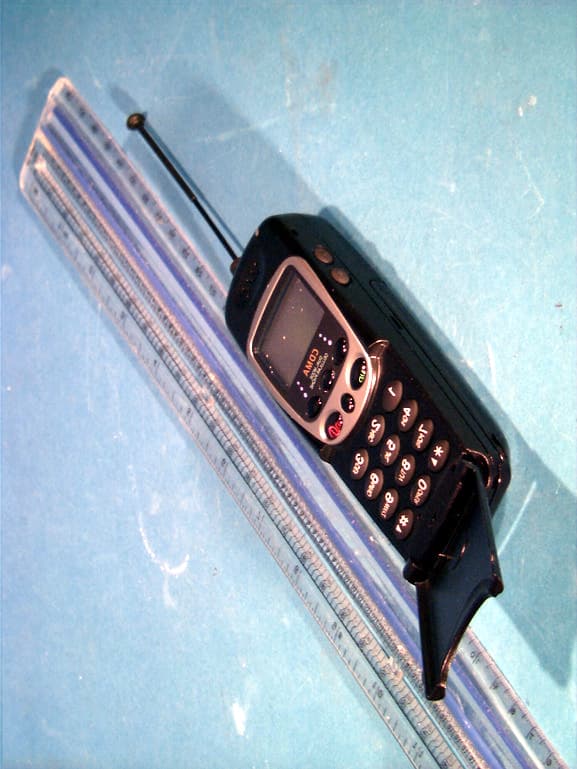

Test Report S/N: 22.981123791.FFMFCC Part 22 Test Date(s): November 23-25, 1998Certification © 1998 PCTEST LabFCC ID: FFMLGC330W NVLAP Lab Code: 100431-0 LG Information & Communication, Ltd. Test Report S/N: 22.981123791.FFMFCC Part 22 Test Date(s): November 23-25, 1998Certification © 1998 PCTEST LabFCC ID: FFMLGC330W NVLAP Lab Code: 100431-0 LG Information & Communication, Ltd. Test Report S/N: 22.981123791.FFMFCC Part 22 Test Date(s): November 23-25, 1998Certification © 1998 PCTEST LabFCC ID: FFMLGC330W NVLAP Lab Code: 100431-0 LG Information & Communication, Ltd. Test Report S/N: 22.981123791.FFMFCC Part 22 Test Date(s): November 23-25, 1998Certification © 1998 PCTEST LabFCC ID: FFMLGC330W NVLAP Lab Code: 100431-0 LG Information & Communication, Ltd. Test Report S/N: 22.981123791.FFMFCC Part 22 Test Date(s): November 23-25, 1998Certification © 1998 PCTEST LabFCC ID: FFMLGC330W NVLAP Lab Code: 100431-0 LG Information & Communication, Ltd. Test Report S/N: 22.981123791.FFMFCC Part 22 Test Date(s): November 23-25, 1998Certification © 1998 PCTEST LabFCC ID: FFMLGC330W NVLAP Lab Code: 100431-0 LG Information & Communication, Ltd.

© 1998 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. Fig 12. Sample label (SEE NEXT PAGE) LG Information & Communications, Ltd. LGIC 2. 983 (f) Equipment Identification: LG Information & Communications, Ltd. LGIC Model No. : LGC-330W FCC ID : FFMLGC330W S/N : Made in Korea

Test Report S/N: 22.981123791.FFMFCC Part 22 Test Date(s): November 23-25, 1998Certification © 1998 PCTEST LabFCC ID: FFMLGC330W NVLAP Lab Code: 100431-0 LG Information & Communication, Ltd. Test Report S/N: 22.981123791.FFMFCC Part 22 Test Date(s): November 23-25, 1998Certification © 1998 PCTEST LabFCC ID: FFMLGC330W NVLAP Lab Code: 100431-0 LG Information & Communication, Ltd. Test Report S/N: 22.981123791.FFMFCC Part 22 Test Date(s): November 23-25, 1998Certification © 1998 PCTEST LabFCC ID: FFMLGC330W NVLAP Lab Code: 100431-0 LG Information & Communication, Ltd. Test Report S/N: 22.981123791.FFMFCC Part 22 Test Date(s): November 23-25, 1998Certification © 1998 PCTEST LabFCC ID: FFMLGC330W NVLAP Lab Code: 100431-0 LG Information & Communication, Ltd.

LG Information & Communications, Ltd. LGIC l Range of Closed Loop Power Control : Range of closed loop power control should be at least within -50dBm ~ +23dBm. Range of maximum conducted power output should be in the range of +23dBm ~ +26dBm (in CDMA mode). Maximum power is recommended from manufacturer of Mobile Station and this means the output power which expresses the maximum permissible ERP per every grade of Mobile Station using antenna gain. Range of Maximum Conducted Power Output (in AMPS mode): +7.8dBm to +27.8dBm with the capability of reducing the maximum power in five steps of 4dB each on command from a Land station. Each power level is maintained within +2/-4dB of its normal level over The temperature range of –30 to +60 degrees cetigrade and +17/-17% change of the Battery voltage. 2. 983 (d) (4) Maximum Power Rating : 0.6W(AMPS) 0.32W(CDMA) 2. 983 (d) (5) DC Voltage and Current into the final radio frequency amplifying device : Supply Voltage : 5.0 V 1.58W(632mA) 0.63W(393mA)

© 1998 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) LG Information & Communications, Ltd.Dates of Tests: November 23-25, 1998 Communication Terminal Research LabTest Report S/N: SAR.981123792.L5A 60-39, Kasan-dong, Keumchun-kuTest Site: PCTEST Lab, Columbia MD Seoul 153-023, KOREA Attn: Mr. Harris Ahn, Principal Engineer FCC ID FFMLGC330W APPLICANT LG INFORMATION & COMMUNICATIONS, LTD. EUT Type:Dual Mode Cellular Phone (AMPS/CDMA) Tx Frequency:824.04 – 848.97 MHz Rx. Frequency:869.04 – 893.97 MHz Max Output Power:0.6 W ERP (AMPS) / 0.32 W ERP (CDMA) Trade Name/Model(s):LGIC LGC-330W, LGC-320W FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) Application Type:Certification Serial Number:n/a (pre production) FCC Rule Part(s):2.1093; ET Docket 96.326; 22(H) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) 981123792.L5A SAR Measurement ReportFCC Part 22 Certification © 1998 PCTEST Labi Table of Contents SCOPE .............................................................................1 INTRODUCTION / SAR DEFINITION ......................................2 SAR MEASUREMENT SET-UP .............................................3 E-FIELD PROBE SYSTEM ...................................................4 PHANTOM & BRAIN EQUIVALENT MATERIAL ......................7 SYSTEM SPECIFICATIONS ................................................. 8 MEASUREMENT PROCESS ................................................9 TEST POSITION OF THE PHONE .........................................10 ANSI/IEEE C95.1 RF EXPOSURE LIMITS ..............................11 MEASUREMENT UNCERTAINTIES ......................................12 TEST DATA SUMMARY ...................................................... 13 SAR TEST EQUIPMENT LIST .............................................. 14 CONCLUSION / REFERENCES ...........................................15 Test Report S/N: SAR.981123792.L5ASAR Measurement Report Test Dates: November 23-25, 1998FCC Part 22 Certification LGIC Dual Mode Cellular Phone (AMPS/CDMA) © 1998 PCTEST LabFCC ID: FFMLGC330W (Tx 824-849 MHz)1 SAR MEASUREMENT REPORT Scope - Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name:LG Information & Communications, Ltd. Communication Terminal Research Lab ADDRESS:60-39, Kasan-dong, Keumchun-ku Seoul 153-023, KOREA Attention:Harris Ahn, Principal Engineer • EUT Type:Dual Mode Cellular Phone (AMPS/CDMA) • Trade Name:LGIC • Model:LGC-330W, LGC-320W • FCC IDENTIFIER:FFMLGC330W • S/N:Pre-production • Tx Frequency:824.04 – 848.97 MHz • Rx Frequency:869.04 – 893.97 MHz • Application Type: Certification • FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) • FCC Rule Part(s):§ 2.1093, Docket 96-326; § 22(H) • Modulation :AMPS / CDMA • Max. Output Power:0.6W ERP (AMPS) / 0.32W ERP (CDMA) • Antenna:Helical (λ/2) • Antenna Dimensions:11.1 cm. (Length) • Date of Test(s):November 23-25, 1998 • Place of Test(s):PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.981123792.L5A 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Lab Code 100431-0 SAR Test Setup Test Report S/N: SAR.981123792.L5ASAR Measurement Report Test Dates: November 23-25, 1998FCC Part 22 Certification LGIC Dual Mode Cellular Phone (AMPS/CDMA) © 1998 PCTEST LabFCC ID: FFMLGC330W (Tx 824-849 MHz)2 1.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Pr…

Text truncated - open the document above for the full version.

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98112502_ZOOM.VLT Start : 25-Nov-98 08:42:55 am End : 25-Nov-98 08:51:46 am Radio Type : LGIC Model Number : FFMLGC330W Serial Number : 0001 Frequency : 824.04 MHz Peak Trans. Pwr : 0.600 W Start Trans. Pwr: 0.600 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : CHAN 991 FM MODE LGIC DUAL MODE PHONE PCTEST Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.790 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Max Location : X = 5.000, Y = -2.250, Z = 0.000 (cm) Value = 21.863 Measured Values (volts) = 2.028E-002 1.127E-002 7.105E-003 3.678E-003 1.490E-003 1.461E-003 7.598E-004 1.803E-004 1.912E-004 1.418E-004 5.052E-004 Calc. Voltage @ Surface (Vs) = 0.0231 Voltage @ 1.00 cm (Vt) = 0.0135 Ave. Voltage (Vs+Vt)/2 = 0.0183 Ave. SAR over 1 g (mW/g) = 1.3407 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 mW/g -1012345678910 Z centimeters SAR Scan File : 98112502_ZOOM Start : 25-Nov-98 08:42:55 am End : 25-Nov-98 08:51:46 am LGIC/FFMLGC330W/0001;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98112503_ZOOM.VLT Start : 25-Nov-98 08:54:03 am End : 25-Nov-98 09:03:20 am Radio Type : LGIC Model Number : FFMLGC330W Serial Number : 0001 Frequency : 824.04 MHz Peak Trans. Pwr : 0.600 W Start Trans. Pwr: 0.600 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : CHAN 991 FM MODE LGIC DUAL MODE PHONE PCTEST Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.790 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Max Location : X = 5.250, Y = -2.000, Z = 0.000 (cm) Value = 19.994 Measured Values (volts) = 1.911E-002 9.723E-003 6.844E-003 3.184E-003 1.006E-003 1.170E-003 5.073E-004 3.700E-004 6.200E-004 3.934E-004 1.411E-004 Calc. Voltage @ Surface (Vs) = 0.0218 Voltage @ 1.00 cm (Vt) = 0.0121 Ave. Voltage (Vs+Vt)/2 = 0.0169 Ave. SAR over 1 g (mW/g) = 1.2388 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g -1012345678910 Z centimeters SAR Scan File : 98112503_ZOOM Start : 25-Nov-98 08:54:03 am End : 25-Nov-98 09:03:20 am LGIC/FFMLGC330W/0001;824.04MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98112501_ZOOM.VLT Start : 25-Nov-98 08:25:39 am End : 25-Nov-98 08:32:24 am Radio Type : LGIC Model Number : FFMLGC330W Serial Number : 0001 Frequency : 836.49 MHz Peak Trans. Pwr : 0.600 W Start Trans. Pwr: 0.600 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : CHAN 383 FM MODE w lcd shd LGIC DUAL MODE PHONE PCTEST Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.790 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Max Location : X = 6.000, Y = -2.000, Z = 0.000 (cm) Value = 21.571 Measured Values (volts) = 2.035E-002 1.092E-002 8.287E-003 2.820E-003 1.087E-003 1.344E-003 4.676E-004 7.543E-004 5.553E-004 2.473E-004 1.706E-004 Calc. Voltage @ Surface (Vs) = 0.0229 Voltage @ 1.00 cm (Vt) = 0.0133 Ave. Voltage (Vs+Vt)/2 = 0.0181 Ave. SAR over 1 g (mW/g) = 1.3214 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 mW/g -1012345678910 Z centimeters SAR Scan File : 98112501_ZOOM Start : 25-Nov-98 08:25:39 am End : 25-Nov-98 08:32:24 am LGIC/FFMLGC330W/0001;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : 98112501_ZOOM Start : 25-Nov-98 08:25:39 am End : 25-Nov-98 08:32:24 am LGIC/FFMLGC330W/0001;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 1.578 1.504 1.431 1.357 1.284 1.210 1.137 1.063 0.990 0.916 File : 98112501_ZOOM Start : 25-Nov-98 08:25:39 am End : 25-Nov-98 08:32:24 am LGIC/FFMLGC330W/0001;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 1.578 1.504 1.431 1.357 1.284 1.210 1.137 1.063 0.990 0.916 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98112413_ZOOM.VLT Start : 24-Nov-98 06:54:25 pm End : 24-Nov-98 07:03:20 pm Radio Type : LGIC Model Number : FFMLGC330W Serial Number : 0001 Frequency : 836.49 MHz Peak Trans. Pwr : 0.600 W Start Trans. Pwr: 0.600 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : CHAN 383 FM MODE LGIC DUAL MODE PHONE PCTEST Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.790 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Max Location : X = 5.250, Y = -2.250, Z = 0.000 (cm) Value = 21.789 Measured Values (volts) = 2.098E-002 1.103E-002 7.414E-003 3.810E-003 1.448E-003 1.876E-003 7.630E-004 7.071E-004 6.410E-004 8.519E-004 4.339E-004 Calc. Voltage @ Surface (Vs) = 0.0239 Voltage @ 1.00 cm (Vt) = 0.0135 Ave. Voltage (Vs+Vt)/2 = 0.0187 Ave. SAR over 1 g (mW/g) = 1.3699 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 mW/g -1012345678910 Z centimeters SAR Scan File : 98112413_ZOOM Start : 24-Nov-98 06:54:25 pm End : 24-Nov-98 07:03:20 pm LGIC/FFMLGC330W/0001;836.49MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : 98112413_ZOOM Start : 24-Nov-98 06:54:25 pm End : 24-Nov-98 07:03:20 pm LGIC/FFMLGC330W/0001;836.49MHz;W;Helical/Out; Head/Left…

Text truncated - open the document above for the full version.

Test Report S/N: SAR.981105757.J9CSAR Measurement Report Test Date(s): November 05-06, 1998FCC Part 24 Certification © 1998 PCTEST LabFCC ID: J9QCP1960 NVLAP Lab Code: 100431-0 QUALCOMM, Inc. Test Report S/N: SAR.981105757.J9CSAR Measurement Report Test Date(s): November 05-06, 1998FCC Part 24 Certification © 1998 PCTEST LabFCC ID: J9QCP1960 NVLAP Lab Code: 100431-0 QUALCOMM, Inc. Test Report S/N: SAR.981105757.J9CSAR Measurement Report Test Date(s): November 05-06, 1998FCC Part 24 Certification © 1998 PCTEST LabFCC ID: J9QCP1960 NVLAP Lab Code: 100431-0 QUALCOMM, Inc. Test Report S/N: SAR.981105757.J9CSAR Measurement Report Test Date(s): November 05-06, 1998FCC Part 24 Certification © 1998 PCTEST LabFCC ID: J9QCP1960 NVLAP Lab Code: 100431-0 QUALCOMM, Inc. Test Report S/N: SAR.981105757.J9CSAR Measurement Report Test Date(s): November 05-06, 1998FCC Part 24 Certification © 1998 PCTEST LabFCC ID: J9QCP1960 NVLAP Lab Code: 100431-0 QUALCOMM, Inc. Test Report S/N: SAR.981105757.J9CSAR Measurement Report Test Date(s): November 05-06, 1998FCC Part 24 Certification © 1998 PCTEST LabFCC ID: J9QCP1960 NVLAP Lab Code: 100431-0 QUALCOMM, Inc. 1 1 Peak SAR Value at the surface of the phantom @ Z=0 (not averaged over 1-gram of tissue). This is a computer simulation of the hot spot(s) of the phone.

Test Report S/N: SAR.981209819.FFMSAR Measurement Report Test Dates: December 14, 1998FCC Part 22 Certification Amendment FCC ID: FFMLGC330W (Tx 824-849 MHz) © 1998 PCTEST LabLGIC Dual-Mode Cellular Phone (AMPS/CDMA)13 11.1 TEST DATA SUMMARY Ambient TEMPERATURE (°C) 24.0 Relative HUMIDITY (%) 51.0 Atmospheric PRESSURE (kPa) 99.0 Mixture Type: Brain Dielectric Constant: 43.4 Conductivity: 0.90 S/m Closest Distance (between E-Probe & Phone Antenna): 1.75 cm Measurement Results FREQUENCYModulationPOWEREARAntennaSAR MHzCh.(W)PositionPosition (W/kg) 836.49383AMPS0.6LeftIN1.2902 836.49383AMPS0.6LeftOUT1.2785 ANSI / IEEE C95.1 1992 - SAFETY LIMIT Spatial Peak (Brain) Uncontrolled Exposure/General Population 1.6 W/kg (mW/g) NOTES: 1. The test data reported are the worst-case SAR value with the antenna-head position set in a typical configuration. All modes of operation were investigated and the worst-case are reported. 2. Battery condition is fully charged for all readings. 3. Power measured:o Conducted o EIRP x ERP PCTEST SEAL

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98121408_ZOOM.VLT Start : 14-Dec-98 10:20:10 am End : 14-Dec-98 10:29:44 am Radio Type : LGIC Model Number : FFMLGC330W Serial Number : 001 Frequency : 836.49 MHz Peak Trans. Pwr : 0.600 W Start Trans. Pwr: 0.600 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : LGIC DUAL MODE PHONE FM MODE CHAN 383 PCTEST Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.790 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Max Location : X = 6.000, Y = -2.500, Z = 0.000 (cm) Value = 20.196 Measured Values (volts) = 1.973E-002 1.670E-002 1.365E-002 1.156E-002 9.664E-003 8.380E-003 7.199E-003 6.505E-003 5.670E-003 5.090E-003 4.510E-003 3.849E-003 3.179E-003 2.552E-003 1.918E-003 1.508E-003 1.132E-003 1.013E-003 1.014E-003 1.115E-003 1.211E-003 Calc. Voltage @ Surface (Vs) = 0.0237 Voltage @ 1.00 cm (Vt) = 0.0116 Ave. Voltage (Vs+Vt)/2 = 0.0176 Ave. SAR over 1 g (mW/g) = 1.2902 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 mW/g -1012345 Z centimeters SAR Scan File : 98121408_ZOOM Start : 14-Dec-98 10:20:10 am End : 14-Dec-98 10:29:44 am LGIC/FFMLGC330W/001;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : 98121408_ZOOM Start : 14-Dec-98 10:20:10 am End : 14-Dec-98 10:29:44 am LGIC/FFMLGC330W/001;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 1.477 1.423 1.368 1.314 1.259 1.205 1.150 1.095 1.041 0.986 File : 98121408_ZOOM Start : 14-Dec-98 10:20:10 am End : 14-Dec-98 10:29:44 am LGIC/FFMLGC330W/001;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 1.477 1.423 1.368 1.314 1.259 1.205 1.150 1.095 1.041 0.986 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98121411_ZOOM.VLT Start : 14-Dec-98 10:56:48 am End : 14-Dec-98 11:06:35 am Radio Type : LGIC Model Number : FFMLGC330W Serial Number : 001 Frequency : 836.49 MHz Peak Trans. Pwr : 0.600 W Start Trans. Pwr: 0.600 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric …

Text truncated - open the document above for the full version.
