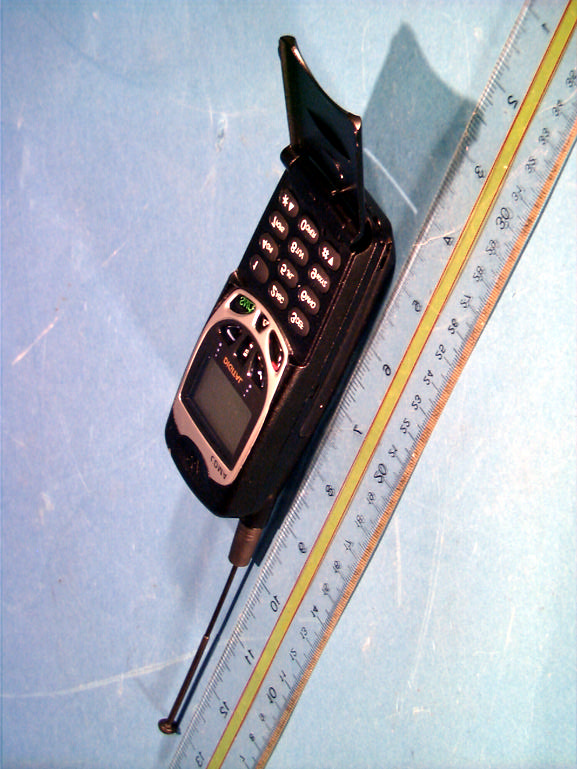

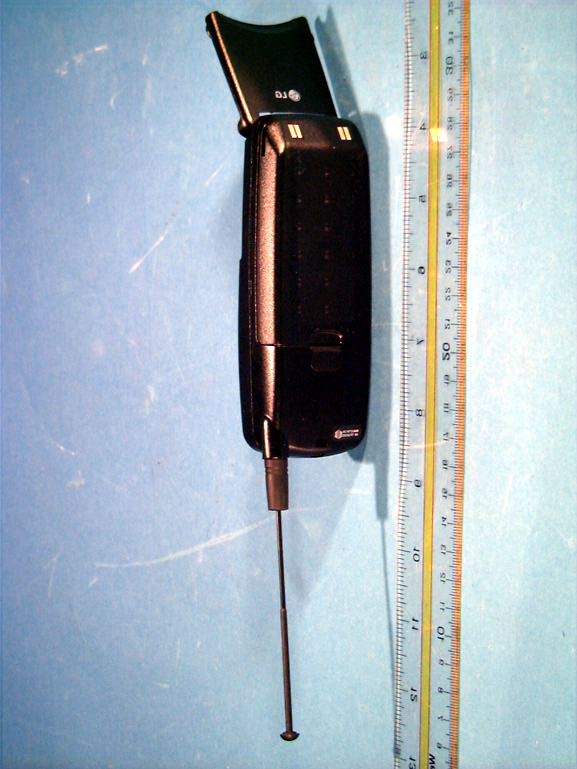

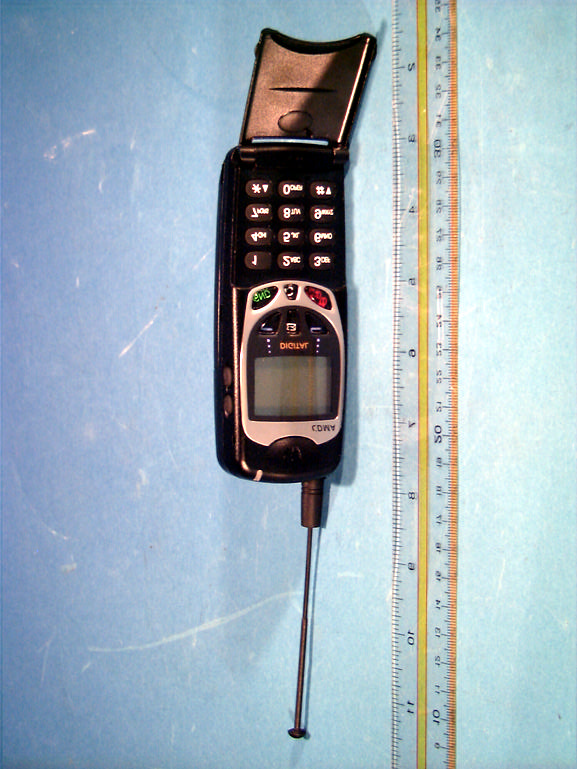

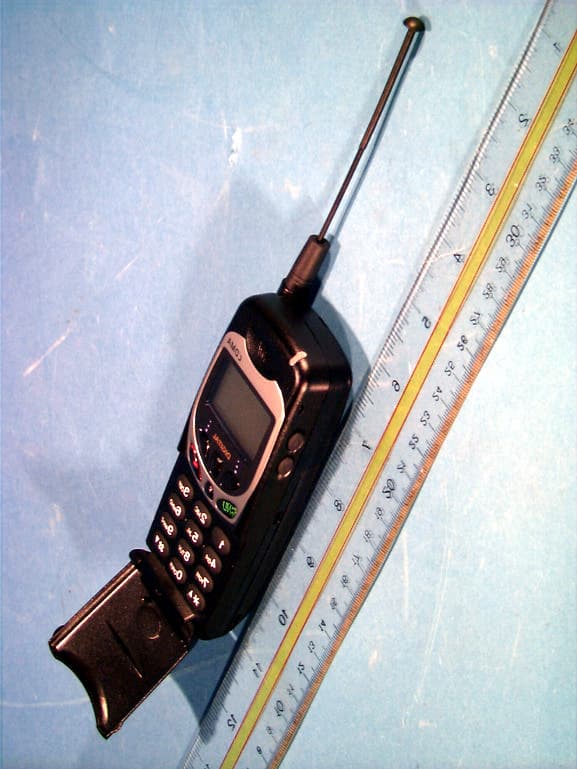

FFMLGC340WDUAL MODE CELLULAR PHONE (AMPS/CDMA)

LG Information & Communications, Ltd. 1 CDMA PORTABLE CELLULAR PHONE LGC-340/345W LGC-340/345W USER GUIDE LGC-340/345W LG Information & Communications, Ltd. 1 Table of Contents Introduction 1. Highlights ...................................................................................................................................................... 2. Important Information ................................................................................................................................... CHAPTER 1. Getting Started 1. Phone Parts and Function Key Description .................................................................................................. 2. LCD Icons ..................................................................................................................................................... CHAPTER 2. Basic Functions 1. Turning the Phone On and Off ...................................................................................................................... 2. Making a Call ................................................................................................................................................ 3. Correcting Dialing Mistakes .......................................................................................................................... 4. Receiving Calls ............................................................................................................................................. 5. Call Waiting .................................................................................................................................................. 6. Mute .............................................................................................................................................................. 7. Redialing Last Outgoing Number .................................................................................................................. 8. Adjusting the Volume ................................................................................................................................... 9. Signal Strength .............................................................................................................................................. 10. Emergency Dialing ........................................................................................................................................ 11. Viewing Your Telephone Number ................................................................................................................ 12. Etiquette Mode........................................................................................................... CHAPTER 3. Phone Book Features 1. Two Types of Phone Books .......................................................................................................................... 2. Personal Phone Book Memory ...................................................................................................................... 3. Entering Characters ....................................................................................................................................... 4. Recent Call History List ................................................................................................................................ 5. Retrieving Numbers ...................................................................................................................................... 6. Changing the Personal Phone Book .............................................................................................................. 7. Dialing Numbers from Your Phone Book ..................................................................................................... 8. Advanced Phone Book Features .................................................................................................................... CHAPTER 4. Menu Features 1. Main Menu .................................................................................................................................................... 2. General Guidelines to MENU Access and Settings ....................................................................................... 3. Menu Item Descriptions ................................................................................................................................ CHAPTER 5. Message Feature LGC-340/345W LG Information & Communications, Ltd. 2 1. New Message Alert ....................................................................................................................................... 2. Reading Newly Received Text Messages ...................................................................................................... 3. Reading Previously stored Messages............................................................................................................. 4. Delete All the Messages................................................................................................................................. 5. Selecting Alert and sound types .................................................................................................................... 6. Checking of voice Mailbox............................................................................................................................ CHAPTER 6. Caller I.D. Use of Caller I.D. ........................................................................................................................................... CHAPTER 7. Menu Tree. LGC-340/345W LG Information & Communications, Ltd. 3 1. Highlights Congratulations on your purchase of the LGC-340W phone that has been designed to operate on the latest digital mobile communication technology, Code Division Multiple Access (CDMA). This CDMA digital technology has greatly enhanced voice clarity and can provide various advanced features. T…

Text truncated - open the document above for the full version.

June 04, 1999 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:LG Information & Communications, Ltd. FCC ID: FFMLGC340W Part 22 Certification Gentlemen: Submitted herewith, on behalf of LG Information & Communications Ltd., is an application for Part 22 Certification of the following dual-mode cellular phone: FCC ID:FFMLGC340W TRADE/MODEL(s):LGIC LGC-340W, LGC-345W EUT TYPE:Dual-Mode Cellular Phone (AMPS/CDMA) Tx Freq. Range(s):824.04 – 848.97 MHz (AMPS) 824.64 – 848.37 MHz (CDMA) Max. Output Power(s):0.6 W (AMPS) / 0.4 W (CDMA) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Mr. Harris Ahn Principal Engineer Communication Terminal Research Lab

@ LG Information & Communications, Ltd. May 1, 1999 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely, General Manager of New York Office LG Information & Communications, Ltd.

LGIC LG Information & Communications, Ltd. 459-9, Kasan-dong, Kemchun-ku Seoul 153-023, Korea Tel : 82-2-850-3850 Fax : 82-2-850-3861 http:l/[email protected] May 25.1999 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re : LG Information & Communication, Ltd. FCC ID: FFMLGC340W Dual - Mode Cellular Phone (AMPSKDMA) Part 22 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, LG Information & communications, Ltd. hereby requests confidentiality of the Block Diagrams attachment, Schematic Diagrams attachment, Operational Description attachment, and Parts List/Tune-Up Procedure attachment for the above-referenced Certification application. These documents contain detailed system and equipment description and related information about the product which LG Information & Communications, Ltd. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Information& Communications, Ltd. considers this information to be of benefit to its competitors, such that the disclosure of the information in these documents would give competitors an unfair advantage in the market. PrincipalEngineer Communication Terminal Research Lab LG Inform&on & Communications, Ltd.

Test Report S/N: 22.990603350.FFMFCC Part 22 Test Date(s): June 01-04, 1999Certification © 1999 PCTEST Lab FCC ID: FFMLGC340W (Tx 824-849MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: 22.990603350.FFMFCC Part 22 Test Date(s): June 01-04, 1999Certification © 1999 PCTEST Lab FCC ID: FFMLGC340W (Tx 824-849MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: 22.990603350.FFMFCC Part 22 Test Date(s): June 01-04, 1999Certification © 1999 PCTEST Lab FCC ID: FFMLGC340W (Tx 824-849MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: 22.990603350.FFMFCC Part 22 Test Date(s): June 01-04, 1999Certification © 1999 PCTEST Lab FCC ID: FFMLGC340W (Tx 824-849MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: 22.990603350.FFMFCC Part 22 Test Date(s): June 01-04, 1999Certification © 1999 PCTEST Lab FCC ID: FFMLGC340W (Tx 824-849MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: 22.990603350.FFMFCC Part 22 Test Date(s): June 01-04, 1999Certification © 1999 PCTEST Lab FCC ID: FFMLGC340W (Tx 824-849MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS/CDMA)

Test Report S/N: 22.990603350.FFMFCC Part 22 Test Date(s): June 01-04, 1999Certification © 1999 PCTEST Lab FCC ID: FFMLGC340W (Tx 824-849MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: 22.990603350.FFMFCC Part 22 Test Date(s): June 01-04, 1999Certification © 1999 PCTEST Lab FCC ID: FFMLGC340W (Tx 824-849MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: 22.990603350.FFMFCC Part 22 Test Date(s): June 01-04, 1999Certification © 1999 PCTEST Lab FCC ID: FFMLGC340W (Tx 824-849MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: 22.990603350.FFMFCC Part 22 Test Date(s): June 01-04, 1999Certification © 1999 PCTEST Lab FCC ID: FFMLGC340W (Tx 824-849MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: 22.990603350.FFMFCC Part 22 Test Date(s): June 01-04, 1999Certification © 1999 PCTEST Lab FCC ID: FFMLGC340W (Tx 824-849MHz) NVLAP Lab Code: 100431-0 LGIC Dual-Mode Cellular Phone (AMPS/CDMA)

LG Information Communication 99-05-28 Component List ES 2 (99.04.30) PRO.Name:LGC-340W LGC-340W DOC.No.:503-S15256-0000 Item No.:3021640 No. Desig. No. Component Name Q'ty UnitDesc./Remark Maker Item No. LGC-340W 1 VSC-034D 1EA COAXIAL CABLE TAYA SCX-S92-593034 SHEET 1 OF 1 DRAW DATE 99. 04.12 CHKD APRD Component List ES 2 (99.04.24) PRO.Name:LGC-340W LGC-340W DOC.No.:503-S15255-0000 Item No.:3021591 No. Desig. No. Component Name Q'ty UnitDesc./Remark Maker Item No. LGC-340W 1 LNY124L04F 1EA LCD, LGC-330W LCD MATA SAU-S52-147000 SHEET 1 OF 1 2 LGC-330W FPCB V1.1 1EA FPCB,LGC-330W UP&DOWN KEY V1.1KCKT SPB-S68-215110 3 SBT-9303RP-4L1 1EA BUZZER,CONNECTOR(8005) SAMB EZA-B95-093411 4 C0611-H8 1EA MOTOR EZM-T95-06H822 5 MS-15TG-03HA 1EA SPEAKER GAC EZS-P99-310213 DRAW 6 KUB2823-017290 1EA MIC HOSH EZZ-Z99-859711 7 70294.1 1EA RETRACTABLE ANTENNA ALGN EZZ-Z99-921200 DATE 99. 04.12 CHKD APRD CONFIDENTIAL LG Information Communication 99-05-28 Component List ES 2 (1999.04.14) PRO.Name:LGC-340W LGC-340W,SUB_SMT-TOP DOC.No.:503-S15297-0000 Item No.:3021626 No. Desig. No. Component Name Q'ty UnitDesc./Remark Maker Item No. LGC-340W 1R119,833,834,836,Q5,6 6EA DATAKIT NETWORK INTERFACE DNI SHEET 1 OF 1 2C805 C1608Y5V1A154ZT 1EA CHIP CAPACITOR TDK ECC-C90-0105B0 3C808,818,828,829,830 C1005X7R1C103KT 5EA CHIP CAPACITOR TDK ECC-D50-0103A0 SUB_SMT_TOP 4C608,609,610,804,810,811 C1005Y5V1C104ZT 6EA CHIP CAPACITOR TDK ECC-D90-0104B0 5C819 C1005Y5V1C153ZT 1EA CHIP CAPACITOR TDK ECC-D90-0153B0 DRAW 6C802,812,813,814,815 C1005C0G1H101JT 5EA CHIP CAPACITOR TDK ECC-J40-0101C0 7C806,807 C1005X7R1H102KT 2EA CHIP CAPACITOR TDK ECC-J50-0102A0 DATE 99. 04.12 8C801,803,817 C1005JB1H471KT 3EA CAPACITOR TDK ECC-M50-0471A0 9C607,611 TA-010TCMS100K-AR 2EA TANTAL CAPACITOR TOWA ECS-C56-1005A0 CHKD 10C809,816,827 TA-016TCMS4R7K-AR 3EA TANTAL CAPACITOR TOWA ECS-D46-4704D2 11D802,842 MMBD914LT1 2EA DIODE,SWITCHING MOT EDE-H24-0914C0 APRD 12CON804 AXN49303004 1EA 30 PIN MAIL CONNECTOR MATA ENP-M03-009185 13Q803,805 DTC114EE-TL 2EA TR,NPN ROHM EQS-N00-0114D0 14Q801,804 UMT2907A 2EA TRANSISTOR ROHM EQS-P00-2907S9 15R835 MCR01MZSJX000 1EA RESISTOR CHIP ROHM ERS-U51-0000A3 16R819,820 MCR01MZSJX330 2EA RESISTOR CHIP ROHM ERS-U51-0330A3 17R829 MCR01MZSJX4R7 1EA CHIP RESISTOR ROHM ERS-U51-0477A3 18R817,828 MCR01MZSJX101 2EA CHIP RESISTOR ROHM ERS-U51-1000A3 19R808,810 MCR01MZSJX102 2EA CHIP RESISTOR ROHM ERS-U51-1001A3 20R811,812 MCR01MZSJX103 2EA RESISTOR CHIP ROHM ERS-U51-1002A3 21R807 MCR01MZSJX104 1EA CHIP RESISTOR ROHM ERS-U51-1003A3 22R801 MCR01MZSJX202 1EA RESISTOR CHIP ROHM ERS-U51-2001A3 23R827,831 MCR01MZSJX221 2EA RES 220 ROHM ERS-U51-2200A3 24R821 MCR01MZSJX222 1EA RESISTOR CHIP ROHM ERS-U51-2201A3 25R818 MCR01MZSJX223 1EA RESISTOR CHIP ROHM ERS-U51-2202A3 26R803 MCR01MZSJX392 1EA RESISTOR CHIP ROHM ERS-U51-3901A3 27R816,826,830 MCR01MZSJX473 3EA RESISTOR CHIP ROHM ERS-U51-4702A3 28R805 MCR01MZSJX153 1EA RESISTOR ROHM ERS-U51-J153A3 29R802 MCR01MZSJX203 1EA RESISTOR ROHM ERS-U51-J203A3 30R806 MCR01MZSJX273 1EA RESISTOR ROHM ERS-U51-J273A3 31R813,814,815 MCR01MZSJX331 3EA RESISTOR ROHM ERS-U51-J331A3 32R804 MCR01MZSJX363 1EA RESISTOR ROHM ERS-U51-J363A3 33U802 TLV320AC36IPT 1EA IC,AUDIO CODEC TEXA EUG-D00-0320Z0 34U801 TC75W51FU(TE12L) 1EA IC,OPAMP TOSH EUG-G71-2500S1 35U604 MIC5205-3.3BM5 1EA IC,REGULATOR MICR EUL-V05-3350Z1 36U605 TPS7133QD 1EA IC,3.3V REGULATOR TEXA EUZ-K00-7133S1 37PCB2 503-S15296-S02 1EA LGC-340W SUB PCB VER 0.2 LGE SPF-M45-158V02 38L801,802 HB-1M1608-601JT 2EA FERRITE BEAD CETE STL-M90-905601 CONFIDENTIAL LG Information Communication 99-05-28 Component List ES 2 (1999.04.14) PRO.Name:LGC-340W LGC-340W,SUB_SMT-BOTTOM DOC.No.:503-S15298-0000 Item No.:3021633 No.Desig. No. Component Name Q'ty UnitDesc./Remark Maker Item No. LGC-340W 1R701,C706,831 3EA DATAKIT NETWORK INTERFACE DNI SHEET 1 OF 1 2C710 C1005X7R1C472KT 1EA CHIP CAPACITOR TDK ECC-D50-0472A0 3C704 C2012JB1C474KT 1EA CHIP CAPACITOR TDK ECC-D50-0474A0 SUB_SMT_BOT 4C703,705,707,708,711 C1005Y5V1C104ZT 9EA CHIP CAPACITOR TDK ECC-D90-0104B0 C717,718,719,723 DRAW 5C724 C1005C0G1H300JT 1EA CHIP CAPACITOR TDK ECC-J40-0300C0 6C709 C1005C0G1H680JT 1EA CHIP CAPACITOR TDK ECC-J40-0680C0 DATE 99. 04.12 7C716 C2012X7R1C224KT 1EA CAPACITOR TDK ECR-D53-2203C0 8C701,702,714 595D476X0010B2T 3EA TANTAL CAPACITOR SPR ECS-C57-4705A5 CHKD 9C712,713,715,720,721 595D107X0016D2T 5EA TANTAL CAPACITOR SPR ECS-D57-1006A5 10D701,703 MBR0520LT1 2EA DIODE MOT EDZ-L01-0520L0 APRD 11CON802,803 24 8005 002 100 867 2EA CONNECTOR 2PIN(LGP-1000F)ELCO ENZ-Q04-102867 12U701 SI6803DQ-T1 1EA MOSFET SILX EQS-F00-6803S1 13R707 MCR01MZSF1802 1EA RESISTOR ROHMERS-U30-1802A4 14R713 MCR01MZSF1803 1EA CHIP RESISTOR 1% ROHMERS-U30-1803A3 15R709 MCR01MZSF2703 1EA CHIP RESISTOR 1% ROHMERS-U30-2703A3 16R712 MCR01MZSF3003 1EA CHIP RESISTOR 1% ROHMERS-U30-3003A3 17R706 MCR01MZSF3322 1EA CHIP RES ROHMERS-U30-3322A4 18R710 MCR01MZSF5103 1EA CHIP RESISTOR 1% ROHMERS-U30-5103A3 19R708 MCR01MZSF8202 1EA RESISTOR ROHMERS-U30-8202A3 20R714 MCR01MZSJX101 1EA CHIP RESISTOR ROHMERS-U51-1000A3 21R703,711 MCR01MZSJX103 2EA RESISTOR CHIP ROHMERS-U51-1002A3 22R702 MCR01MZSJX271 1EA RESISTOR ROHMERS-U51-J271A3 23R704 MCR01MZSJX432 1EA RESISTOR ROHMERS-U51-J432A3 24U703 MAX1705 1EA IC,DC/DC CONVERTER MAXM EUF-N00-1705S1 25U702 SI9161 1EA IC,DC/DC CONVERTER TEMICEUF-N00-9161S0 26L704,706 KNH21104 2EA EMI FILTER AVX SFE-S00-213104 27L702 ST103P 1EA DC DC INDUCTOR STEL STL-D90-940103 28L701 ST472P 1EA DC DC INDUCTOR STEL STL-D90-941472 29L705 HB-1M2012-601JT 1EA EMI FILTER CERA STD-S80-525001 CONFIDENTIAL LG Information Communication 99-05-28 Component List PRO.Name:LGC-340W LGC-340W,MAIN_SMT_BOTTOM DOC.No.:503-S15295-0000 Item No.:3021612 No.Desig. No. Component Name Q'ty UnitDesc./Remark Maker Item No. LGC-340W 1C27,238,245,312,316,318,321,509,972,974 DO NOT INSERT 18EA DO NOT INSERT DNI SHEET 1 OF 5 R2,201,410,517 R940,941,977,945 MAIN_SMT_BOT 2C39 C2012JB1A684KT 1EA CHIP CAPACITOR TDK ECC-C50-0684A0 3C6-12,15,1…

Text truncated - open the document above for the full version.

© 1999 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) LG Information & Communications, Ltd. Date(s) of Tests: June 01-04, 1999 Communication Terminal Research LabTest Report S/N: SAR.990603351.FFM 60-39, Kasan-dong, Keumchun-kuTest Site: PCTEST Lab, Columbia, MD USA Seoul 153-023, KOREA Attn: Mr. Harris Ahn, Principal Engineer Communication Terminal Research Lab FCC ID FFMLGC340W APPLICANT LG INFORMATION & COMMUNICATIONS, LTD. EUT Type:Dual-Mode Cellular Phone (AMPS/CDMA) Tx Frequency:824.04 – 848.97 MHz (AMPS) / 824.64 – 848.37 MHz (CDMA) Rx. Frequency:869.04 – 893.97 MHz (AMPS) / 869.64 – 893.37 MHz (CDMA) Max Output Power:0.6 W ERP (AMPS) / 0.4 W ERP (CDMA) Trade Name/Model(s):LGIC LGC-340W, LGC-345W FCC Classification:Non-Broadcast Transmitter held to ear (TNE) Application Type:Certification Serial Number:n/a (pre production) FCC Rule Part(s):2.1093; ET Docket 96.326; 22(H) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) 990603351.FFM SAR Measurement ReportFCC Part 22 Certification © 1999 PCTEST Labi Table of Contents SCOPE 1 INTRODUCTION / SAR DEFINITION 2 SAR MEASUREMENT SET-UP 3 E-FIELD PROBE SYSTEM 4 E-FIELD PROBE CALIBRATION PROCESS 5 DATA EXTRAPOLATION 6 PHANTOM, HOLDER & BRAIN EQUIVALENT TISSUE 7 SYSTEM SPECIFICATIONS 8 MEASUREMENT PROCESS 9 TEST POSITION OF THE PHONE 10 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 11 MEASUREMENT UNCERTAINTIES 12 TEST DATA SUMMARY 13 SAR TEST EQUIPMENT LIST 14 CONCLUSION 15 REFERENCES 16 Test Report S/N: SAR.990603351.FFMSAR Measurement Report Test Date(s): June 01-04, 1999FCC Part 22 Certification LGIC Dual-Mode Cellular Phone (AMPS/CDMA) © 1999 PCTEST LabFCC ID: FFMLGC340W (Tx 824-849 MHz)1 SAR MEASUREMENT REPORT Scope - Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name:LG Information & Communications, Ltd. Communication Terminal Research Lab Address:60-39, Kasan-dong, Keumchun-ku Seoul 153-023, KOREA Attention:Harris Ahn, Principal Engineer Communication Terminal Research Lab • EUT Type:Dual-Mode Cellular Phone • Trade Name:LGIC • Model(s):LGC-340W, LGC-345W • FCC IDENTIFIER:FFMLGC340W • S/N:Pre-production • Tx Frequency:824.04 – 848.97 MHz (AMPS) 824.64 – 848.37 MHz (CDMA) • Rx Frequency:869.04 – 893.97 MHz (AMPS) 869.64 – 893.37 MHz (CDMA) • Application Type: Certification • FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) • FCC Rule Part(s):§ 2.1093, Docket 96-326; § 22(H) • Modulation(s):AMPS / CDMA • Max. Output Power:0.6W ERP (AMPS) / 0.4W ERP (CDMA) • Antenna:Helical (λ/2) • Antenna Dimensions:11.4 cm. (Length) • Date(s) of Tests:June 01-04, 1999 • Place of Tests:PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.990603351.FFM 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.990603351.FFMSAR Measurement Report Test Date(s): June 01-04, 1999FCC Part 22 Certification LGIC Dual-Mode Cellular Phone (AMPS/CDMA) © 1999 PCTEST LabFCC ID: FFMLGC340W (Tx 824-849 MHz)2 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814.[4] SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential …

Text truncated - open the document above for the full version.

EUT LGIC-340W Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 835MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 File #71 Antenna Position In SAR (1g): 1.44 mW/g LGIC DUAL MODE PHONE CHANNEL 991 FM MODE CABLE LOSS - 0.7dBm CONDUCTED POWER - 25.5dBm. SAR Tot [mW/g] 1.21E-1 7.28E-1 PCTEST ENGINEERING LAB INC. EUT LGIC-340W Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 835MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 File #70 Antenna Position Out SAR (1g): 1.45 mW/g LGIC DUAL MODE PHONE CHANNEL 991 FM MODE CABLE LOSS - 0.7dBm CONDUCTED POWER - 25.5dBm SAR Tot [mW/g] 1.37E-1 8.24E-1 PCTEST ENGINEERING LAB INC. EUT LGIC-340W Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 835MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 File #73 Antenna Position In SAR (1g): 1.29 mW/g LGIC DUAL MODE PHONE CHANNEL 383 FM MODE CABLE LOSS - 0.7dBm CONDUCTED POWER - 25.5dBm. SAR Tot [mW/g] 1.21E-1 7.27E-1 PCTEST ENGINEERING LAB INC. EUT LGIC-340W Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 835MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 File #75 Antenna Position Out SAR (1g): 1.31 mW/g LGIC DUAL MODE PHONE CHANNEL 383 FM MODE CABLE LOSS - 0.7dBm CONDUCTED POWER - 25.5dBm. SAR Tot [mW/g] 1.25E-1 7.49E-1 PCTEST ENGINEERING LAB INC. EUT LGIC-340W Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 835MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 File #78 Antenna Position In SAR (1g): 1.15 mW/g LGIC DUAL MODE PHONE CHANNEL 799 FM MODE CABLE LOSS - 0.7dBm CONDUCTED POWER - 24.9dBm. SAR Tot [mW/g] 1.06E-1 6.36E-1 PCTEST ENGINEERING LAB INC. EUT LGIC-340W Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 835MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 File #76 Antenna Position Out SAR (1g): 1.16 mW/g LGIC DUAL MODE PHONE CHANNEL 799 FM MODE CABLE LOSS - 0.7dBm CONDUCTED POWER - 24.9dBm. SAR Tot [mW/g] 1.12E-1 6.71E-1 PCTEST ENGINEERING LAB INC. EUT LGIC-340W Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 835MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 File #86 Antenna Position In SAR (1g): 1.19 mW/g LGIC DUAL MODE PHONE CHANNEL 1016 CDMA MODE CABLE LOSS - 0.7dBm CONDUCTED POWER - 23.6dBm. SAR Tot [mW/g] 1.15E-1 6.89E-1 PCTEST ENGINEERING LAB INC. EUT LGIC-340W Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 835MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 File #85 Antenna Position Out SAR (1g): 1.41 mW/g LGIC DUAL MODE PHONE CHANNEL 1016 CDMA MODE CABLE LOSS - 0.7dBm CONDUCTED POWER - 23.6dBm. SAR Tot [mW/g] 1.30E-1 7.80E-1 PCTEST ENGINEERING LAB INC.

Test Report S/N: SAR.990603351.FFMSAR Measurement Report Test Date(s): June 01-04, 1999FCC Part 22 Certification © 1999 PCTEST Lab LGIC Dual-Mode Cellular Phone (AMPS/CDMA) NVLAP Lab Code: 100431-0 FCC ID: FFMLGC340W (Tx 824-849 MHz) Test Report S/N: SAR.990603351.FFMSAR Measurement Report Test Date(s): June 01-04, 1999FCC Part 22 Certification © 1999 PCTEST Lab LGIC Dual-Mode Cellular Phone (AMPS/CDMA) NVLAP Lab Code: 100431-0 FCC ID: FFMLGC340W (Tx 824-849 MHz)

Validation Dipole D835V2 SN:406, d = 15mmFrequency: 835 MHz; Antenna Input Power: 250 [mW]Generic Twin Phantom; Flat Section; Grid Spacing: Dx = 20.0, Dy = 20.0, Dz = 10.0Probe: ET3DV5 - SN1342/DAE3; ConvF(5.75,5.75,5.75); Brain 835 MHz: σ = 0.79 mho/m ε r = 41.9 ρ = 1.00 g/cm 3 Cubes (2): Peak: 3.17 mW/g ± 0.03 dB, SAR (1g): 2.11 mW/g ± 0.03 dB, SAR (10g): 1.41 mW/g ± 0.04 dB, (Worst-case extrapol ation) Penetration depth: 13.4 (12.3, 14.9) [mm]Powerdrift: -0.01 dB SAR Tot [mW/g] 2.50E-15.00E-17.50E-11.00E+01.25E+01.50E+01.75E+02.00E+02.25E+02.50E+0 Validation SN406, 07/21/99Schmid & Partner Engineering AG, Zürich Switzerland

EUT: 835 MHz Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1368 -- Probe Cal Date 2/99 Meduim Parameters 835MHz: σ = 0.79 mho/m ε r = 41.9 ρ = 1.00 g/cm 3 Crest Factor 1.0 SAR (1g): 2.16 mW/g ± 0.01 dB SAR Tot [mW/g] 2.25E-1 9.01E-1 1.58E+0 2.25E+0 PCTEST ENGINEERING LAB INC.

EUT LGIC LGC-340W Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 835MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 Crest Factor: 1.0 Antenna Position In SAR (1g): 1.44 mW/g LGIC DUAL MODE PHONE CHANNEL 991 FM MODE CABLE LOSS - 0.7dBm CONDUCTED POWER - 25.5dBm. SAR Tot [mW/g] 1.21E-1 7.28E-1 PCTEST ENGINEERING LAB INC. EUT LGIC LGC-340W Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 835MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 Crest Factor: 1.0 Antenna Position Out SAR (1g): 1.45 mW/g LGIC DUAL MODE PHONE CHANNEL 991 FM MODE CABLE LOSS - 0.7dBm CONDUCTED POWER - 25.5dBm SAR Tot [mW/g] 1.37E-1 8.24E-1 PCTEST ENGINEERING LAB INC. EUT LGIC LGC-340W Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 835MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 Crest Factor: 1.0 Antenna Position In SAR (1g): 1.29 mW/g LGIC DUAL MODE PHONE CHANNEL 383 FM MODE CABLE LOSS - 0.7dBm CONDUCTED POWER - 25.5dBm. SAR Tot [mW/g] 1.21E-1 7.27E-1 PCTEST ENGINEERING LAB INC. EUT LGIC LGC-340W Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 835MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 Crest Factor: 1.0 Antenna Position Out SAR (1g): 1.31 mW/g LGIC DUAL MODE PHONE CHANNEL 383 FM MODE CABLE LOSS - 0.7dBm CONDUCTED POWER - 25.5dBm. SAR Tot [mW/g] 1.25E-1 7.49E-1 PCTEST ENGINEERING LAB INC. EUT LGIC LGC-340W Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 835MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 Crest Factor: 1.0 Antenna Position In SAR (1g): 1.15 mW/g LGIC DUAL MODE PHONE CHANNEL 799 FM MODE CABLE LOSS - 0.7dBm CONDUCTED POWER - 24.9dBm. SAR Tot [mW/g] 1.06E-1 6.36E-1 PCTEST ENGINEERING LAB INC. EUT LGIC LGC-340W Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 835MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 Crest Factor: 1.0 Antenna Position Out SAR (1g): 1.16 mW/g LGIC DUAL MODE PHONE CHANNEL 799 FM MODE CABLE LOSS - 0.7dBm CONDUCTED POWER - 24.9dBm. SAR Tot [mW/g] 1.12E-1 6.71E-1 PCTEST ENGINEERING LAB INC. EUT LGIC LGC-340W Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 835MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 Crest Factor: 1.0 Antenna Position In SAR (1g): 1.19 mW/g LGIC DUAL MODE PHON…
