FFMLGC700WCellular CDMA Phone (Single Mode)

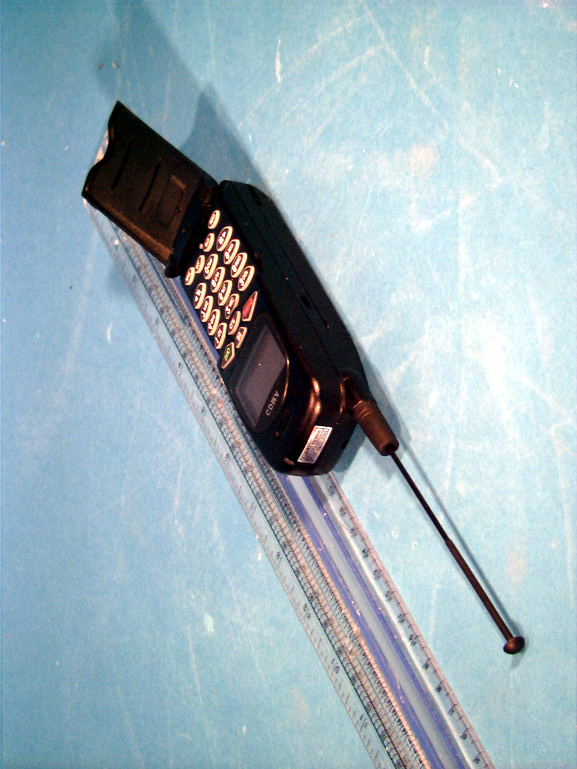

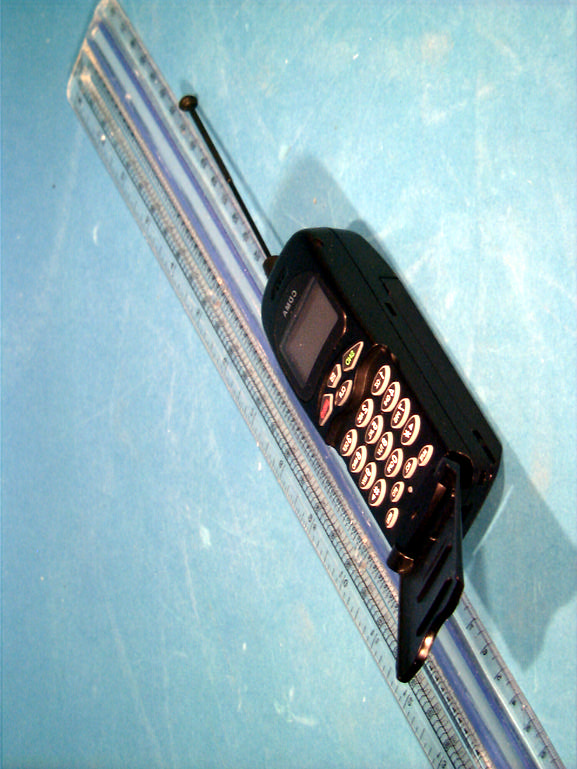

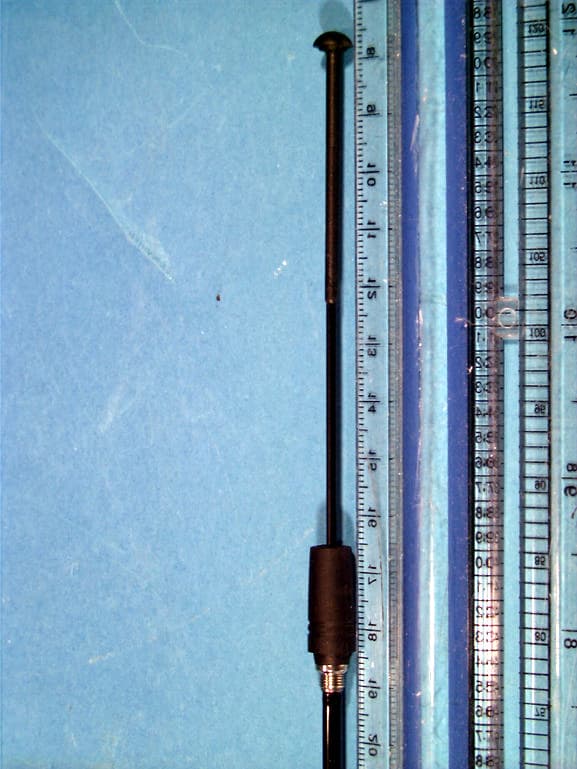

August 10, 1998 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:LG Information & Communications, Ltd. FCC ID: FFMLGC700W Part 22 Type Acceptance Gentlemen: Attached herewith, on behalf of LG Information & Communications Ltd., is an application for Part 22 Type Acceptance of the following single-mode cellular CDMA phone: FCC ID:FFMLGC700W TRADE/MODEL(s):LGIC LGC-700W, LG-600 EUT TYPE:Cellular CDMA Phone (Single Mode) Tx Freq. Range:824.64 – 848.37 MHz Max. Output Power:0.32 Watts Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Mr. Harris Ahn Principal Engineer Communication Terminal Research Lab

Test Report S/N: 22.980727515.FFMFCC Part 22 Test Date(s): August 03-07, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLGC700W NVLAP Lab Code: 100431-0 LG Information & Communication, Ltd. Test Report S/N: 22.980727515.FFMFCC Part 22 Test Date(s): August 03-07, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLGC700W NVLAP Lab Code: 100431-0 LG Information & Communication, Ltd. Test Report S/N: 22.980727515.FFMFCC Part 22 Test Date(s): August 03-07, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLGC700W NVLAP Lab Code: 100431-0 LG Information & Communication, Ltd. Test Report S/N: 22.980727515.FFMFCC Part 22 Test Date(s): August 03-07, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLGC700W NVLAP Lab Code: 100431-0 LG Information & Communication, Ltd. Test Report S/N: 22.980727515.FFMFCC Part 22 Test Date(s): August 03-07, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLGC700W NVLAP Lab Code: 100431-0 LG Information & Communication, Ltd. Test Report S/N: 22.980727515.FFMFCC Part 22 Test Date(s): August 03-07, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLGC700W NVLAP Lab Code: 100431-0 LG Information & Communication, Ltd. Test Report S/N: 22.980727515.FFMFCC Part 22 Test Date(s): August 03-07, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLGC700W NVLAP Lab Code: 100431-0 LG Information & Communication, Ltd.

Test Report S/N: 22.980727515.FFMFCC Part 22 Test Date(s): August 03-07, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLGC700W NVLAP Lab Code: 100431-0 LG Information & Communication, Ltd. 1 Test Report S/N: 22.980727515.FFMFCC Part 22 Test Date(s): August 03-07, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLGC700W NVLAP Lab Code: 100431-0 LG Information & Communication, Ltd. Test Report S/N: 22.980727515.FFMFCC Part 22 Test Date(s): August 03-07, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLGC700W NVLAP Lab Code: 100431-0 LG Information & Communication, Ltd. Test Report S/N: 22.980727515.FFMFCC Part 22 Test Date(s): August 03-07, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLGC700W NVLAP Lab Code: 100431-0 LG Information & Communication, Ltd. Test Report S/N: 22.980727515.FFMFCC Part 22 Test Date(s): August 03-07, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLGC700W NVLAP Lab Code: 100431-0 LG Information & Communication, Ltd.

© 1998 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) LG Information & Communications, Ltd.Dates of Tests: August 03-07, 1998 60-39, Kasan-dong, Keumchun-kuTest Report S/N: SAR.980727516.FFM Seoul 153-023, KoreaTest Site: PCTEST Lab, Columbia MD Attention: Harris Ahn, Principal Engineer Communication Terminal Research Lab FCC ID FFMLGC700W APPLICANT LG Information & Communications, Ltd. EUT Type:Cellular CDMA Phone (Single Mode) Tx Frequency:824.64 – 848.37 MHz Rx Frequency:869.64 – 893.37 MHz Max Output Power:0.32 Watts Trade Name/Model(s):LGIC LGC-700W, LG-600 FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) Application Type:Type Acceptance Serial Number:n/a (pre production) FCC Rule Part(s):2.1093; ET Docket 96.326; 24(E) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) 980727515.A3L SAR Measurement ReportFCC Part 22 Type Acceptance © 1998 PCTEST Labi Table of Contents SCOPE .............................................................................1 INTRODUCTION / SAR DEFINITION ......................................2 SAR MEASUREMENT SET-UP .............................................3 E-FIELD PROBE SYSTEM ...................................................4 PHANTOM & BRAIN EQUIVALENT MATERIAL ......................7 SYSTEM SPECIFICATIONS ................................................. 8 MEASUREMENT PROCESS ................................................9 TEST POSITION OF THE PHONE .........................................10 ANSI/IEEE C95.1 RF EXPOSURE LIMITS ..............................11 MEASUREMENT UNCERTAINTIES ......................................12 TEST DATA SUMMARY ...................................................... 13 SAR TEST EQUIPMENT LIST .............................................. 14 CONCLUSION / REFERENCES ...........................................15 Test Report S/N: SAR.980727516.FFMSAR Measurement Report Test Dates: August 03-07, 1998FCC Part 22 Type Acceptance LGIC Cellular CDMA Phone (Tx 824-849 MHz) © 1998 PCTEST LabFCC ID: FFMLGC700W (Models: LGC-700W, LG-600)1 SAR MEASUREMENT REPORT Scope - Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant Name:LG Information & Communications, Ltd. Address:60-39, Kasan-dong, Keumchun-ku, Seoul 153-023, Korea Attention:Harris Ahn, Principal Engineer Communication Terminal Research Lab • EUT Type:Cellular CDMA Phone • Trade Name:LGIC • FCC IDENTIFIER:FFMLGC700W • Models:LGC-700W, LG-600 • S/N:Pre-production • Tx Frequency:824.04 ~ 848.97 MHz • Rx Frequency:869.04 ~ 893.97 MHz • Application Type: Type Acceptance • FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) • FCC Rule Part(s):§ 2.1093, Docket 96-326; § 22(H) • Max. Output Power:0.32W (CDMA) • Modulation :CDMA • Antenna:Helical (λ/2) • Antenna Dimensions:10.9 cm. (Length) • Date of Test(s):August 03-07, 1998 • Place of Test(s):PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.980727516.FFM 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Figure 1. SAR Test Set-up Test Report S/N: SAR.980727516.FFMSAR Measurement Report Test Dates: August 03-07, 1998FCC Part 22 Type Acceptance LGIC Cellular CDMA Phone (Tx 824-849 MHz) © 1998 PCTEST LabFCC ID: FFMLGC700W (Models: LGC-700W, LG-600)2 1.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and E…

Text truncated - open the document above for the full version.

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98072805_ZOOM.VLT Start : 28-Jul-98 09:53:14 am End : 28-Jul-98 10:04:12 am Radio Type : LGIC Model Number : LGC-700W Serial Number : 011 Frequency : 848.37 MHz Peak Trans. Pwr : 0.320 W Start Trans. Pwr: 0.320 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : CHAN 799 CDMA MODE LGIC PHONE PCTEST ENGINEERING LABORATORY Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.790 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Diode Coefficients: Channel 1 An=-10.851 Bn=86.223 Cn=38.593 Dn=-0.016 Mn=0.026 Yn=0.000 Channel 2 An=-21.618 Bn=92.335 Cn=34.909 Dn=-0.019 Mn=0.029 Yn=0.000 Channel 3 An=-11.171 Bn=50.619 Cn=19.002 Dn=-0.025 Mn=0.052 Yn=0.001 Max Location : X = 2.000, Y = 0.750, Z = 0.000 (cm) Value = 5.396 Measured Values (volts) = 4.785E-003 3.072E-003 1.295E-003 5.041E-004 -5.974E-004 -1.080E-003 -1.170E-003 -1.128E-003 -1.267E-003 -1.238E-003 -1.267E-003 -1.267E-003 -1.267E-003 Calc. Voltage @ Surface (Vs) = 0.0059 Voltage @ 1.00 cm (Vt) = 0.0032 Ave. Voltage (Vs+Vt)/2 = 0.0045 Ave. SAR over 1 g (mW/g) = 0.3324 -0.1 0.0 0.1 0.2 0.3 0.4 0.5 mW/g 012345678910 Z centimeters SAR Scan File : 98072805_ZOOM Start : 28-Jul-98 09:53:14 am End : 28-Jul-98 10:04:12 am LGIC/LGC-700W/011;848.37MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98072807_ZOOM.VLT Start : 28-Jul-98 10:19:43 am End : 28-Jul-98 10:30:57 am Radio Type : LGIC Model Number : LGC-700W Serial Number : 011 Frequency : 835.89 MHz Peak Trans. Pwr : 0.320 W Start Trans. Pwr: 0.320 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : CHAN 363 CDMA MODE LGIC PHONE PCTEST ENGINEERING LABORATORY Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.790 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Diode Coefficients: Channel 1 An=-10.851 Bn=86.223 Cn=38.593 Dn=-0.016 Mn=0.026 Yn=0.000 Channel 2 An=-21.618 Bn=92.335 Cn=34.909 Dn=-0.019 Mn=0.029 Yn=0.000 Channel 3 An=-11.171 Bn=50.619 Cn=19.002 Dn=-0.025 Mn=0.052 Yn=0.001 Max Location : X = 2.000, Y = 0.750, Z = 0.000 (cm) Value = 5.085 Measured Values (volts) = 4.960E-003 2.523E-003 9.236E-004 5.563E-004 -2.631E-004 -9.432E-004 -1.182E-003 -1.267E-003 -1.267E-003 -1.267E-003 -1.267E-003 -1.267E-003 -1.267E-003 Calc. Voltage @ Surface (Vs) = 0.0065 Voltage @ 1.00 cm (Vt) = 0.0027 Ave. Voltage (Vs+Vt)/2 = 0.0046 Ave. SAR over 1 g (mW/g) = 0.3347 -0.1 0.0 0.1 0.2 0.3 0.4 0.5 mW/g 012345678910 Z centimeters SAR Scan File : 98072807_ZOOM Start : 28-Jul-98 10:19:43 am End : 28-Jul-98 10:30:57 am LGIC/LGC-700W/011;835.89MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98072808_ZOOM.VLT Start : 28-Jul-98 10:37:55 am End : 28-Jul-98 10:49:05 am Radio Type : LGIC Model Number : LGC-700W Serial Number : 011 Frequency : 824.64 MHz Peak Trans. Pwr : 0.320 W Start Trans. Pwr: 0.320 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : CHAN 1011 CDMA MODE LGIC PHONE PCTEST ENGINEERING LABORATORY Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.790 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Diode Coefficients: Channel 1 An=-10.851 Bn=86.223 Cn=38.593 Dn=-0.016 Mn=0.026 Yn=0.000 Channel 2 An=-21.618 Bn=92.335 Cn=34.909 Dn=-0.019 Mn=0.029 Yn=0.000 Channel 3 An=-11.171 Bn=50.619 Cn=19.002 Dn=-0.025 Mn=0.052 Yn=0.001 Max Location : X = 2.000, Y = 0.500, Z = 0.000 (cm) Value = 4.776 Measured Values (volts) = 4.803E-003 3.045E-003 1.343E-003 5.995E-004 -7.084E-004 -1.016E-003 -1.267E-003 -1.267E-003 -1.267E-003 -1.267E-003 -1.267E-003 -1.267E-003 -1.267E-003 Calc. Voltage @ Surface (Vs) = 0.0059 Voltage @ 1.00 cm (Vt) = 0.0032 Ave. Voltage (Vs+Vt)/2 = 0.0045 Ave. SAR over 1 g (mW/g) = 0.3309 -0.1 0.0 0.1 0.2 0.3 0.4 0.5 mW/g 012345678910 Z centimeters SAR Scan File : 98072808_ZOOM Start : 28-Jul-98 10:37:55 am End : 28-Jul-98 10:49:05 am LGIC/LGC-700W/011;824.64MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98080412_ZOOM.VLT Start : 4-Aug-98 12:20:08 pm End : 4-Aug-98 12:30:35 pm Radio Type : LGIC Model Number : LGC-700W Serial Number : 0011 Frequency : 824.64 MHz Peak Trans. Pwr : 0.320 W Start Trans. Pwr: 0.320 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : CH-1011 CDMA MODE LGIC PHONE PCTEST ENGINEERING LABORATORY Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.790 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Diode Coefficients: Channel 1 An=-10.851 Bn=86.223 Cn=38.593 Dn=-0.016 Mn=0.026 Yn=0.000 Channel 2 An=-21.618 Bn=92.335 Cn=34.909 Dn=-0.019 Mn=0.029 Yn=0.000 Channel 3 An=-11.171 Bn=50.619 Cn=19.002 Dn=-0.025 Mn=0.052 Yn=0.001 Max Location : X = 6.000, Y = -0.750, Z = 0.000 (cm) Value = 12.498 Measured Values (volts) = 1.218E-002 9.036E-003 6.209E-003 2.253E-003 1.511E-003 1.292E-003 1.994E-004 -5.294E-004 -7.166E-004 -1.029E-003 -8.862E-004 -1.061E-003 -9.793E-004 Calc. Voltage @ Surface (Vs) =…

Text truncated - open the document above for the full version.

Test Report S/N: SAR.980727516.FFMSAR Measurement Report Test Date(s): August 03-07, 1998FCC Part 22 Type Acceptance © 1998 PCTEST LabFCC ID: FFMLGC700W NVLAP Lab Code: 100431-0 LG Information & Communication, Ltd. 1 1 Peak SAR Value at the surface of the phantom @ Z=0 (not averaged over 1-gram of tissue). This is a computer simulation of the hot spot(s) of the phone. Test Report S/N: SAR.980727516.FFMSAR Measurement Report Test Date(s): August 03-07, 1998FCC Part 22 Type Acceptance © 1998 PCTEST LabFCC ID: FFMLGC700W NVLAP Lab Code: 100431-0 LG Information & Communication, Ltd. Test Report S/N: SAR.980727516.FFMSAR Measurement Report Test Date(s): August 03-07, 1998FCC Part 22 Type Acceptance © 1998 PCTEST LabFCC ID: FFMLGC700W NVLAP Lab Code: 100431-0 LG Information & Communication, Ltd. Test Report S/N: SAR.980727516.FFMSAR Measurement Report Test Date(s): August 03-07, 1998FCC Part 22 Type Acceptance © 1998 PCTEST LabFCC ID: FFMLGC700W NVLAP Lab Code: 100431-0 LG Information & Communication, Ltd. Test Report S/N: SAR.980727516.FFMSAR Measurement Report Test Date(s): August 03-07, 1998FCC Part 22 Type Acceptance © 1998 PCTEST LabFCC ID: FFMLGC700W NVLAP Lab Code: 100431-0 LG Information & Communication, Ltd.

© 1998 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (Type Acceptance) LG Information & Communications, Ltd.Dates of Tests: August 03-07, 1998 60-39, Kasan-dong, Keumchun-kuTest Report S/N: 22.980727515.FFM Seoul 153-023, KoreaTest Site: PCTEST Lab, Columbia MD Attention: Harris Ahn, Principal Engineer Communication Terminal Research Lab FCC ID FFMLGC700W APPLICANT LG Information & Communications, Ltd. Classification:Non-Broadcast Transmitter Held to Ear (TNE) FCC Rule Part(s):§§§§22(E), 2.983, 2.987 EUT Type:Cellular CDMA Phone Trade Name/Model(s):LGIC LGC-700W, LG-600 Tx Frequency Range:824.64 ~ 848.37 MHz Rx Frequency Range:869.64 ~ 893.37 MHz Max Output Power:0.32 W Frequency Tolerance:0.00025% (2.5 ppm) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947 with the following remarks (Note Codes): * (BC) The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) 980727515.FFM FCC Part 22Type Acceptance © 1998 PCTEST Engineering Laboratory, Inc.FCC Part 22 TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT SCOPE 1 INTRODUCTION 2 DESCRIPTION OF TESTS 3-6 EFFECTIVE RADIATED POWER OUTPUT 7 RADIATED MEASUREMENTS 8-10 FREQUENCY STABILITY 11-12 PLOTS OF EMISSIONS 13 LIST OF TEST EQUIPMENT 14 SAMPLE CALCULATIONS 15 RECOMMENDATION / CONCLUSION 16 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT L:OPERATIONAL DESCRIPTION ATTACHMENT M:USER’S MANUAL ATTACHMENT N:SAR MEASUREMENT REPORT ATTACHMENT O:SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS Test Report S/N: 22.980727515.FFMFCC Part 22 Test Dates: August 03-07, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLGC700W (Tx 824-849MHz)1 LGIC Cellular CDMA Phone (Models: LGC-700W, LG-600) MEASUREMENT REPORT Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2983(a) General Information Applicant Name:LG Information & Communications, Ltd. Address:60-39, Kasan-dong, Keumchun-ku, Seoul 153-023, Korea Attention:Harris Ahn, Principal Engineer Communication Terminal Research Lab • §2983(b) FCC ID:FFMLGC700W • Trade Name:LGIC • Model(s):LGC-700W, LG-600 • §2983(c) Quantity:Quantity production is planned • §2.983(d) Emission Designator:1M25F9W • §2.983(d) Tx Freq. Range:824.64 – 848.37 MHz Rx Freq. Range:869.64 – 893.37 MHz • Equipment Class:Non-Broadcast Transmitter Held to Ear (TNE) • Equipment Type:Cellular CDMA Phone (Single Mode) • Modulation:CDMA • Frequency Tolerance:± 0.00025% (2.5 ppm) • §2.983(d) Max. Power:0.32W • FCC Rule Part(s):§§§§ 22(E), 2.983, 2.987 • AC/DC Charger:110-220 VAC LG Model: NFLIH87-21 • Ni-MH Battery:3.6 VDC LG Model: MWMP-MD0305 • §2.983(d) D.C. Voltage into Final RF Amplifier:5.0 VDC • Dates of Tests:August 03-07, 1998 • Place of Tests:PCTEST Lab, Columbia, MD U.S.A. Test Report S/N: 22.980727515.FFMFCC Part 22 Test Dates: August 03-07, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLGC700W (Tx 824-849MHz)2 LGIC Cellular CDMA Phone (Models: LGC-700W, LG-600) 1.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at 3-meter test range (see Figure2). The equipment under test is placed on the turntable connected to a RF wattmeter and a dummy RF load, and then its power is adjusted to its rated output. A receiving antenna located 2 meters from the turntable picks up any signal radiated from the transmitter. The turntable containing the system was rotated; the receiving antenna height was varied 1 to 4 meters and stopped at the azimuth or height producing the maximum emission. The testing procedure is repeated for both horizontal and vertical polarization of the receiving antenna. The actual radiated signal strength is obtained by substitution method with a signal generator with a calibrated output. The signal generator is adjusted in output until its reading is ide…
