FFMLGI3000WSingle-Band PCS CDMA Phone

LG Electronics, Inc.

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Mar 15, 2000
Application Purpose: Original Equipment
Date of Application: Dec 30, 1999
Equipment Note: Single-Band PCS CDMA Phone
Frequency Range: 1850.25000000 - 1908.75000000
Company: LG Electronics, Inc.
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 LGI - 3000W Users Manual LG Information & Communications, Ltd. 1 Product Features Light Weight, Compact, Solid Design Low Cost Smartphone Easy to Use • Voice Activated Dialing • Large Graphic LCD Display with Touch Panel - 160 X 240(dots) - Partial Display in Phone Mode - Virtual Keyboard for Easy Entry - Backlight for High Visibility • Intuitive and Easy-to-use Phonebook,Large Screen Call Log • Scheduler(Datebook) with Alarms. • Various useful PIMs : Phonebook, Datebook, Todo List, Memo, Sketch, World Clock, Calculator, ... • Speaker Phone Capability(0.3W Max) Support Data Communication • Phone.com Browser • Text Message, E-Mail • PC Connectivity-Compatible with the Microsoft Outlook,Scheduler+ i FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 0.79 inches (2 cm) from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.79 inches (2 cm) must be maintained between the user’s body and the back of the phone, including the antenna, whether extended or retracted. Third-party belt-clips, holsters and similar accessories containing metallic components should not be used. Body-worn accessories that cannot maintain 0.79 inch (2 cm) separation distance between the user’s body and the back of the phone, and have not been tested for typical body-worn operations may not comply with FCC RF exposure limits and should be avoided. Vehicle Mounted External Antenna (optional, if available.) A minimum separation distance of 7.9 inches (20 cm) must be maintained between the user/bystander and the vehicle mounted external antenna to satisfy FCC RF exposure requirements. For more information about RF exposure, please visit the FCC website at www.fcc.gov WARNING! Read this information before using your phone 2 Specification SizeFlipUp type : 135 * 56.5 * 25mm Button /Dial Key pad : 12 keys Connector4 function keys, cursor key, Backlight/Power On-Off Button : Volume up/down Jack : Headset jack ICA/SIO jack Connector : for External device Contact : for Charger WeightTBD LCDResolution : 160 * 240 ModuleDot Pitch : 0.25mm Graphic LCD with Backlight Size : Full Active size : 40* 60mm , Partial Active size : 40 * 27.5mm Module size : 50.5*70.65mm(min) Touch Panel Size : 50.3 * 70.3 Battery 3.6V Li-ion 1 cell / 1300 mAH Cell Size : 9 * 34 * 48mm 3 Hours Talk (@+10dBm, 45 % rate, standard batt.) 100 hours Stand-by Time (@2.56s slot mode 2, standard) 2 Product Specifications 3 Design Rendering 3 CLR OK END PWR 1 2 3 4 5 6 7 8 9 *0 # ABC DEF GHI JKL MNO PQRSTUV WXYZ OPER LGIC Phone Mode(Flip Closed) Volume Control Adjust the sound level, both voice(during a call) and ringer(when in standby) OK Select highlighted menu item (Place a call, Receive a call, etc.) CLR Clear user input and Back to the previous menu Up/Down navigate throughout the menu Message button Headset Jack BackLight 4 Description Menu Area Banner Area Status Icon Area ICONDESCRIPTION Signal Strength Indicator No Service Roaming New page/text messages New voicemail Vibrator Indicator Battery Charge Status Display Icons Phone Mode LCD Display Basic Display Format 3 line 3 line 144 dot 20 dot 48 dot (16 dot/line) 42 dot (14 dot/line) 110 dot 4 CLR OK END PWR Apr.23 12:35A PIM Mode(Flip Opened) Contrast Control Adjust the Contrast level Flip Touch Panel touch with stylus pen or finger Stylus pen touch icons, input keyboard, draw line, etc. Go to select application 3:46p Status Bar Always display in the top of the screen current timeBatteryRSSI All Home All PIMs Communication 5 UI Specification 5 Initial Screen 1. Turning the Power On Call History Messages Phone Book LGI-3000W 2:23p Mar 18, (Th) Unlock Call 911 LGI-3000W 2:23p Mar 18, (Th) --Locked-- *Power Save* No Service available Press any key to exit. No System found within 15 minutes Phone Mode (Flip Closed) Security Setup Phone Off Phone On [PWR] Press & Hold O.K Call History Messages Phone Book Searching for Service Sprint PCS Handset locked System found? yes No System Found User can abort animation by pressing any key Trade Mark Tone 2.2 Phone Power Off O.K Phone is Off, while System Power is still On. Security Setup Phone Off LGI-3000W 2:20p Mar 18, (Th) 2. Power Off 2.1 System Power Off - Battery out or [PWR] press & hold in standby state Phone Mode (Flip Closed) Initial Screen (continued) Sprint PCS Powering Off Good-Bye! System Power Off 3 Sec Trade Mark Tone NV Write Application Close Beep Beep Security Setup Phone Off Phone On 6 3. Standby State Call History Messages Phone Book LGI-3000W 2:29p Mar 18, (Th) Default Standby State Call History Messages Phone Book LGI-3000W 2:29p Mar 18, (Th) Different size font for status indicator -Ringer Off- Call History Messages Phone Book Digital Roam -Ringer Off- Digital Roam flashing Unlock Call 911 LGI-3000W 2:23p Mar 18, (Th) --Locked-- Locked State *KeyGuard* To disable, hold the clear key LGI-3000W 2:29p Mar 18, (Th) KeyGuard StatePower Save State Call History Messages Phone Book * Car Kit* 2:29p Mar 18, (Th) Only in Car-kit mode and auto-answer is enabled -Auto Answer- Initial Screen (continued…

Text truncated - open the document above for the full version.

Attestation Statements

@ LG Information & Communications, Ltd. May 1, 1999 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely, General Manager of New York Office LG Information & Communications, Ltd.

Cover Letter(s)

January 15, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG Information & Communications, Ltd. FCC ID: FFMLGI3000W Part 24 Certification Gentlemen: Attached herewith, on behalf of LG Information & Communications, Ltd. is an application for Part 24 Certification of the following: FCC ID: FFMLGI3000W TRADE / MODEL(s): LGIC LGI-3000W Equipment Class: Part 24 Licensed Portable Transmitter Held to Ear (PCE) Equipment Type: Single-Band PCS CDMA Internet Phone Tx Freq. Range: 1851.25 – 1908.75 MHz Rx Freq. Range: 1931.25 – 1988.75 MHz Max. RF Output Power: 0.32 W EIRP (25.0 dBm) Attached is the Letter of Authorization, Confidentiality Request, measurement report data and plots, RF Exposure measurement report & photographs, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams & description (confidential), operational description (confidential), parts list & tune- up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Harris Ahn Principal Engineer LGIC Communication Terminal Research Lab

Cover Letter(s)

January 31, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:LG Information & Communications, Ltd. FCC ID: FFMLGI3000W Single-Band PCS CDMA Phone Part 24 Certification Form 731 Confirmation No.: EA96418 Gentlemen: Submitted herewith, on behalf of LG Information & Communications, Ltd., is an amendment to change the rated RF power output listed in Item 12 of submitted FCC Form 731. The requested RF power output to be listed on the grant is 0.32W in accordance with the EIRP test data shown on page 6 of the test report. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Mr. Harris Ahn Principal Engineer Communication Terminal Research Lab LG Information & Communications, Ltd.

Cover Letter(s)

March 13, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Errol Chang / Kwok Chan SUBJECT:LG Information & Communications, Ltd. FCC ID: FFMLGI3000W 731 Confirmation Number: EA96418 Correspondence Reference No.: 12723 Request for Additional Info.: March 13, 2000 Dear Errol / Kwok: Submitted herewith, on behalf of LG Information & Communications, Ltd., is an amendment in response to your e-mail dated March 13, 2000 requesting additional information for the subject application. 1. Attached is the revised RF exposure compliance statement. Vehicle-mounted external antennas are not applicable for this filing. 2. Revised RF exposure compliance statement amends retractable antenna statement. We trust this information is sufficient to issue the grant asap. If you have any further questions, please do not hesitate to contact us. Thank you. Sincerely, cc:Mr. Harris Ahn Principal Engineer Communication Terminal Research Lab LG Information & Communications, Ltd.

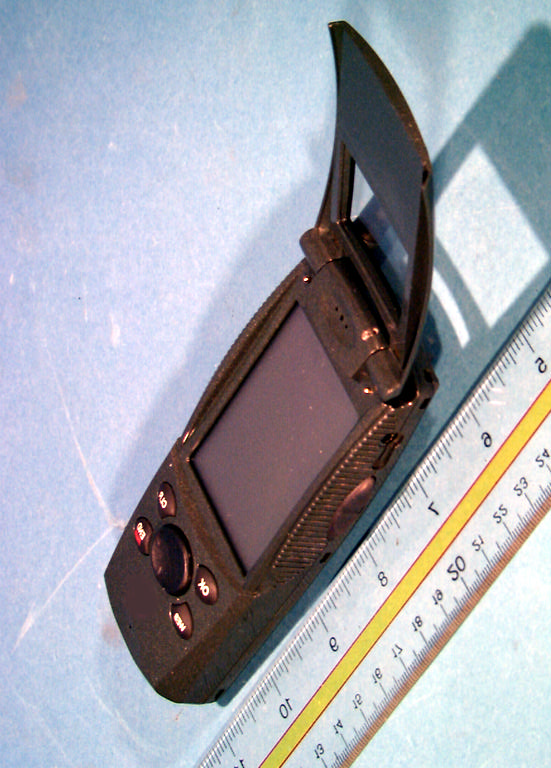

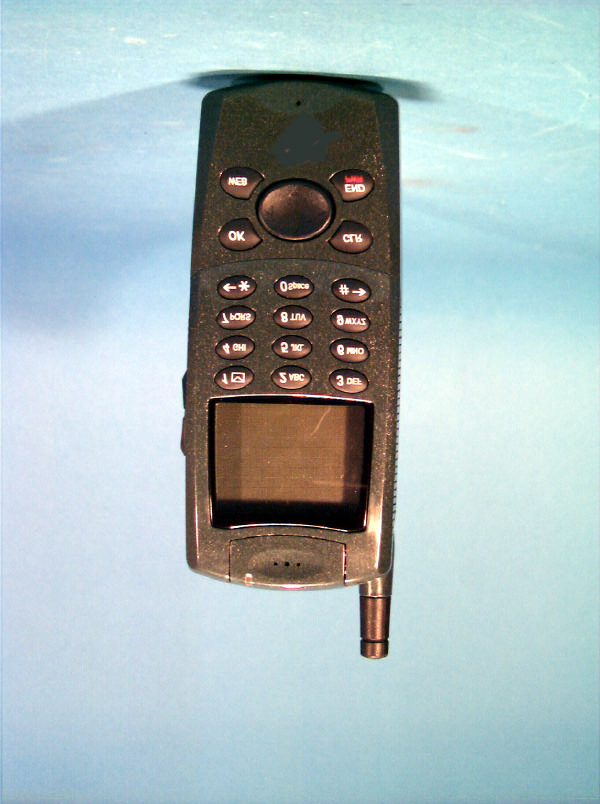

External Photos

Test Report S/N: 24.991213674.FFMFCC Part 24 Test Date(s): December 16-17, 1999Certification © 2000 PCTEST Lab FCC ID: FFMLGI3000W NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: 24.991213674.FFMFCC Part 24 Test Date(s): December 16-17, 1999Certification © 2000 PCTEST Lab FCC ID: FFMLGI3000W NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: 24.991213674.FFMFCC Part 24 Test Date(s): December 16-17, 1999Certification © 2000 PCTEST Lab FCC ID: FFMLGI3000W NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: 24.991213674.FFMFCC Part 24 Test Date(s): December 16-17, 1999Certification © 2000 PCTEST Lab FCC ID: FFMLGI3000W NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: 24.991213674.FFMFCC Part 24 Test Date(s): December 16-17, 1999Certification © 2000 PCTEST Lab FCC ID: FFMLGI3000W NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: 24.991213674.FFMFCC Part 24 Test Date(s): December 16-17, 1999Certification © 2000 PCTEST Lab FCC ID: FFMLGI3000W NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: 24.991213674.FFMFCC Part 24 Test Date(s): December 16-17, 1999Certification © 2000 PCTEST Lab FCC ID: FFMLGI3000W NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: 24.991213674.FFMFCC Part 24 Test Date(s): December 16-17, 1999Certification © 2000 PCTEST Lab FCC ID: FFMLGI3000W NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd.

ID Label/Location Info

© 1999 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

ID Label/Location Info

Internal Photos

RF Exposure Info

© 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) LG Information & Communications, Ltd.Dates of Tests: 12/16/99, 01/14/00 Communication Terminal Research Lab Test Report S/N: SAR.991213675.FFM 459-9, Kasan-dong, Keumchun-kuTest Site: PCTEST Lab, Columbia MD USA Seoul 153-023, Korea Attn: Harris Ahn, Principal Engineer FCC ID FFMLGI3000W APPLICANT LG INFORMATION & COMMUNICATIONS, LTD. EUT Type:Single-Band PCS CDMA Internet Phone Tx Frequency:1851.25 – 1908.75 MHz Rx Frequency:1931.25 – 1988.75 MHz Max. RF Output Power:0.32 W EIRP (25.0 dBm) Trade Name/Model:LGIC LGI-3000W FCC Classification:Licensed Portable Transmitter Held to Ear (PCE) Application Type:Certification Serial Number:n/a (pre production) FCC Rule Part(s):2.1093; ET Docket 96.326; 24(E) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). 991213675.FFM SAR Measurement ReportFCC Part 24 Certification © 2000PCTEST Labi Table of Contents 1.1 SCOPE1 2.1 INTRODUCTION / SAR DEFINITION2 3.1 SAR MEASUREMENT SET-UP3 4.1 E-FIELD PROBE SYSTEM4 5.1 E-FIELD PROBE CALIBRATION PROCESS5-6 6.1 PHANTOM & EQUIVALENT TISSUE7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS9 9.1 TEST POSITION OF THE PHONE10 10.1 BODY-WORN TEST SETUP11 11.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS12 12.1 MEASUREMENT UNCERTAINTIES13 13.1 SAR TEST DATA SUMMARY14-15 14.1 SAR TEST EQUIPMENT LIST16 15.1 CONCLUSION / REFERENCES17 Test Report S/N: SAR.991213675.FFMSAR Measurement Report Test Dates: 12/16/99, 01/14/00FCC Part 24 Certification FCC ID: FFMLGI3000W (Tx 1851.25 – 1908.75 MHz) © 2000 PCTEST LabLGIC Single-Band PCS CDMA Internet Phone 1 SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head and body tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name:LG Information & Communications, Ltd. Communication Terminal Research Lab Address:459-9, Kasan-dong, Keumchun-ku Seoul 153-023, Korea Attention:Harris Ahn, Principal Engineer • EUT Type:Single-Band PCS CDMA Internet Phone • FCC IDENTIFIER:FFMLGI3000W • Trade Name:LGIC • Model:LGI-3000W • S/N:Pre-production • Tx Frequency Range:1851.25 – 1908.75 MHz • Rx Frequency Range:1931.25 – 1988.75 MHz • Application Type: Certification • FCC Classification:Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s):§ 24(E); § 2.1093, Docket 96-326 • Max. RF Output Power:0.32 W EIRP ( 25.0 dBm) • Modulation:CDMA • Antenna Type:Helical (λ/3) • Antenna Dimensions:3.57 cm. (Length) • Dates of Test(s):12/16/99, 01/14/00 • Place of Test(s):PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.991213675.FFM 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Figure 1. SAR Test Set-up Test Report S/N: SAR.991213675.FFMSAR Measurement Report Test Dates: 12/16/99, 01/14/00FCC Part 24 Certification FCC ID: FFMLGI3000W (Tx 1851.25 – 1908.75 MHz) © 2000 PCTEST LabLGIC Single-Band PCS CDMA Internet Phone 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814.[4] SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential biological hazards. 2.2 SAR Definition Specific Absorption Rate (SAR) is defined as the time derivative (rate) of the incremental…

Text truncated - open the document above for the full version.

RF Exposure Info

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99121618_ZOOM.VLT Start : 16-Dec-99 03:39:47 pm End : 16-Dec-99 03:50:57 pm Radio Type : LGIC LGI-3000W FCC ID : FFMLGI3000W Serial Number : 01 Frequency : 1851.25 MHz Peak Trans. Pwr : 0.280 W Start Trans. Pwr: 0.280 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.300 Mixture Conductivity = 1.650 Comment : LGIC SINGLE MODE PCS PHONE CHAN. 0025 CDMA MODE +24.5 dBM CONDUCTED Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.200 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225 Max Location : X = 1.000, Y = -2.250, Z = 0.000 (cm) Value = 13.325 Measured Values (volts) = 1.319E-002 1.076E-002 7.259E-003 5.476E-003 4.370E-003 3.385E-003 2.669E-003 2.112E-003 1.744E-003 1.490E-003 1.293E-003 1.077E-003 9.843E-004 9.267E-004 8.784E-004 8.415E-004 7.427E-004 7.221E-004 7.284E-004 7.065E-004 7.485E-004 Calc. Voltage @ Surface (Vs) = 0.0179 Voltage @ 1.00 cm (Vt) = 0.0055 Ave. Voltage (Vs+Vt)/2 = 0.0117 Ave. SAR over 1 g (mW/g) = 1.2966 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 mW/g -1012345 Z centimeters SAR Scan File : 99121618_ZOOM Start : 16-Dec-99 03:39:47 pm End : 16-Dec-99 03:50:57 pm LGIC/LGI-3000W/01;1851.25MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.300/1.650 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99121617_ZOOM.VLT Start : 16-Dec-99 03:16:43 pm End : 16-Dec-99 03:26:02 pm Radio Type : LGIC LGI-3000W FCC ID : FFMLGI3000W Serial Number : 01 Frequency : 1880 MHz Peak Trans. Pwr : 0.280 W Start Trans. Pwr: 0.280 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.300 Mixture Conductivity = 1.650 Comment : LGIC SINGLE MODE PCS PHONE CHAN. 0600 CDMA MODE +24.5 dBM CONDUCTED Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.200 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225 Max Location : X = 0.000, Y = -2.000, Z = 0.000 (cm) Value = 13.137 Measured Values (volts) = 1.242E-002 1.012E-002 7.153E-003 5.200E-003 4.020E-003 3.076E-003 2.479E-003 2.069E-003 1.678E-003 1.411E-003 1.229E-003 1.069E-003 9.835E-004 8.921E-004 8.434E-004 8.101E-004 8.013E-004 7.875E-004 7.109E-004 7.269E-004 7.572E-004 Calc. Voltage @ Surface (Vs) = 0.0164 Voltage @ 1.00 cm (Vt) = 0.0052 Ave. Voltage (Vs+Vt)/2 = 0.0108 Ave. SAR over 1 g (mW/g) = 1.2005 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 mW/g -1012345 Z centimeters SAR Scan File : 99121617_ZOOM Start : 16-Dec-99 03:16:43 pm End : 16-Dec-99 03:26:02 pm LGIC/LGI-3000W/01;1880MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.300/1.650 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99121620_ZOOM.VLT Start : 16-Dec-99 04:21:44 pm End : 16-Dec-99 04:33:06 pm Radio Type : LGIC LGI-3000W FCC ID : FFMLGI3000W Serial Number : 01 Frequency : 1908.75 MHz Peak Trans. Pwr : 0.280 W Start Trans. Pwr: 0.280 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.300 Mixture Conductivity = 1.650 Comment : LGIC SINGLE MODE PCS PHONE CHAN. 1175 CDMA MODE +24.5 dBM CONDUCTED Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.200 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225 Max Location : X = -0.250, Y = -2.000, Z = 0.000 (cm) Value = 13.669 Measured Values (volts) = 1.340E-002 9.986E-003 7.117E-003 5.299E-003 3.915E-003 3.123E-003 2.493E-003 1.975E-003 1.652E-003 1.364E-003 1.206E-003 1.064E-003 9.510E-004 8.835E-004 8.424E-004 7.992E-004 7.676E-004 7.460E-004 7.036E-004 6.670E-004 7.180E-004 Calc. Voltage @ Surface (Vs) = 0.0184 Voltage @ 1.00 cm (Vt) = 0.0053 Ave. Voltage (Vs+Vt)/2 = 0.0119 Ave. SAR over 1 g (mW/g) = 1.3167 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 mW/g -1012345 Z centimeters SAR Scan File : 99121620_ZOOM Start : 16-Dec-99 04:21:44 pm End : 16-Dec-99 04:33:06 pm LGIC/LGI-3000W/01;1908.75MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.300/1.650 File : 99121620_ZOOM Start : 16-Dec-99 04:21:44 pm End : 16-Dec-99 04:33:06 pm LGIC/LGI-3000W/01;1908.75MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.300/1.650 1.519 1.422 1.325 1.229 1.132 1.035 0.939 0.842 0.745 0.648 File : 99121620_ZOOM Start : 16-Dec-99 04:21:44 pm End : 16-Dec-99 04:33:06 pm LGIC/LGI-3000W/01;1908.75MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.300/1.650 1.519 1.422 1.325 1.229 1.132 1.035 0.939 0.842 0.745 0.648

RF Exposure Info

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00011410_ZOOM.VLT Start : 14-Jan-100 12:28:24 pm End : 14-Jan-100 12:39:09 pm Radio Type : LGIC LGI-3000W FCC ID : FFMLGI3000W Serial Number : 01 Frequency : 1851.25 MHz Peak Trans. Pwr : 0.280 W Start Trans. Pwr: 0.280 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 54.200 Mixture Conductivity = 1.850 Comment : CDMA MODE PHONE CHAN. 25 BODY SAR FLIP MODE SINGLE BAND HAND SAR 2.0 CM SPACING Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.380 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225 Max Location : X = -0.750, Y = -2.250, Z = 0.000 (cm) Value = 12.735 Measured Values (volts) = 1.195E-002 8.818E-003 6.127E-003 4.667E-003 3.571E-003 2.787E-003 2.108E-003 1.589E-003 1.174E-003 9.244E-004 6.868E-004 5.346E-004 4.381E-004 3.437E-004 2.400E-004 2.134E-004 1.594E-004 1.383E-004 8.937E-005 8.230E-005 8.868E-005 Calc. Voltage @ Surface (Vs) = 0.0167 Voltage @ 1.00 cm (Vt) = 0.0047 Ave. Voltage (Vs+Vt)/2 = 0.0107 Ave. SAR over 1 g (mW/g) = 1.3651 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 mW/g -1012345 Z centimeters SAR Scan File : 00011410_ZOOM Start : 14-Jan-100 12:28:24 pm End : 14-Jan-100 12:39:09 pm LGI-3000W/FFMLGI3000W/01;1851.25MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/54.200/1.850 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00011411_ZOOM.VLT Start : 14-Jan-100 12:44:27 pm End : 14-Jan-100 12:52:02 pm Radio Type : LGI-3000W Model Number : FFMLGI3000W Serial Number : 01 Frequency : 1880 MHz Peak Trans. Pwr : 0.280 W Start Trans. Pwr: 0.280 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 54.200 Mixture Conductivity = 1.850 Comment : CDMA MODE PHONE CHAN. 600 BODY SAR FLIP MODE SINGLE BAND HAND SAR 2.0 CM SPACING Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.380 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225 Max Location : X = -0.500, Y = -2.000, Z = 0.000 (cm) Value = 12.984 Measured Values (volts) = 1.229E-002 9.073E-003 6.390E-003 4.902E-003 3.697E-003 2.928E-003 2.234E-003 1.665E-003 1.322E-003 9.868E-004 7.618E-004 6.242E-004 4.574E-004 3.312E-004 3.035E-004 2.088E-004 2.385E-004 1.491E-004 1.293E-004 1.036E-004 1.336E-004 Calc. Voltage @ Surface (Vs) = 0.0171 Voltage @ 1.00 cm (Vt) = 0.0049 Ave. Voltage (Vs+Vt)/2 = 0.0110 Ave. SAR over 1 g (mW/g) = 1.4029 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 mW/g -1012345 Z centimeters SAR Scan File : 00011411_ZOOM Start : 14-Jan-100 12:44:27 pm End : 14-Jan-100 12:52:02 pm LGI-3000W/FFMLGI3000W/01;1880MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/54.200/1.850 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00011412_ZOOM.VLT Start : 14-Jan-100 12:59:13 pm End : 14-Jan-100 01:06:48 pm Radio Type : LGIC LGI-3000W FCC ID : FFMLGI3000W Serial Number : 01 Frequency : 1908.75 MHz Peak Trans. Pwr : 0.280 W Start Trans. Pwr: 0.280 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 54.200 Mixture Conductivity = 1.850 Comment : CDMA MODE PHONE CHAN. 1175 BODY SAR FLIP MODE SINGLE BAND HAND SAR 2.0 CM SPACING Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.380 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225 Max Location : X = -0.500, Y = -2.000, Z = 0.000 (cm) Value = 13.087 Measured Values (volts) = 1.254E-002 9.524E-003 6.379E-003 4.875E-003 3.804E-003 2.924E-003 2.278E-003 1.749E-003 1.295E-003 1.007E-003 7.165E-004 6.483E-004 5.360E-004 3.867E-00…

Text truncated - open the document above for the full version.
