FFMLGP2300WSINGLE-BAND PCS CDMA PHONE

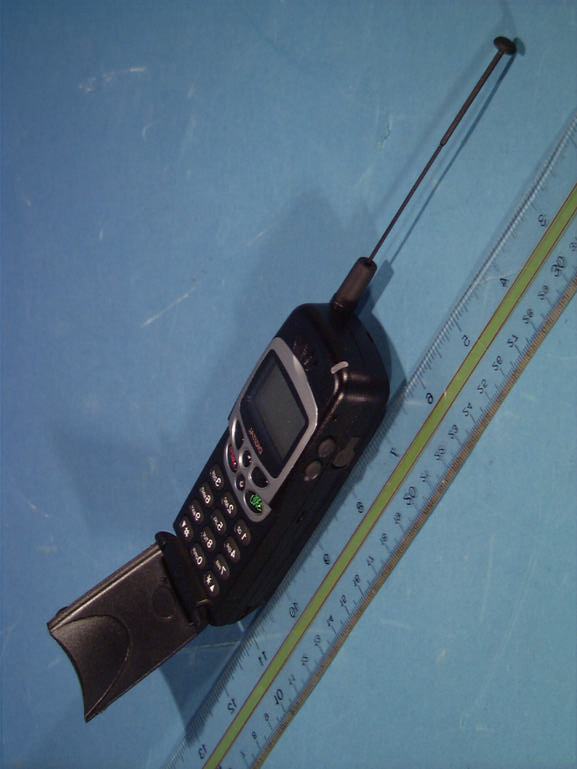

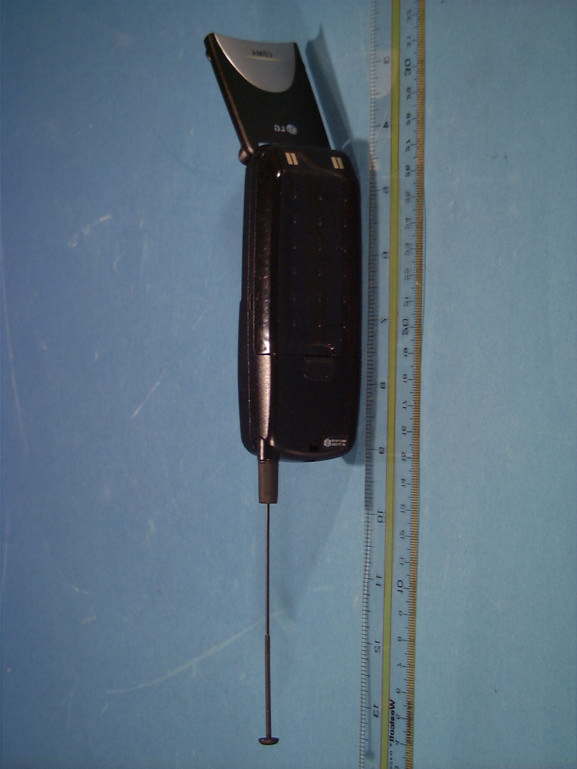

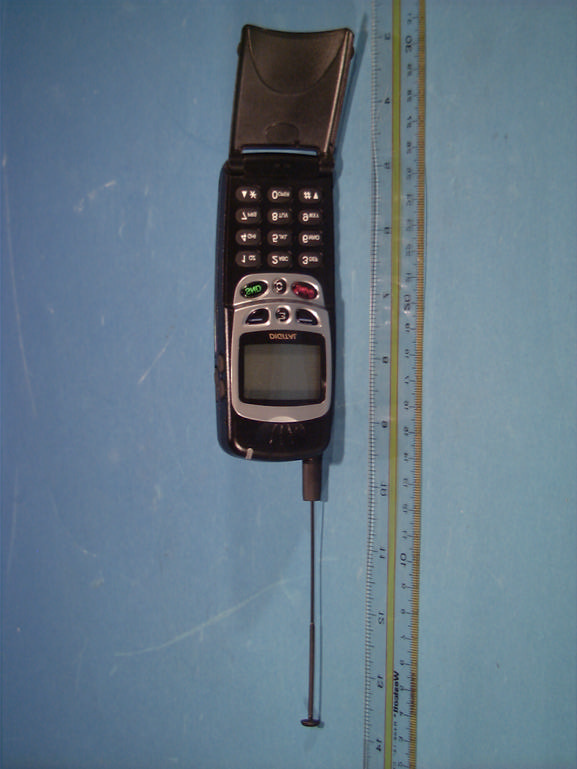

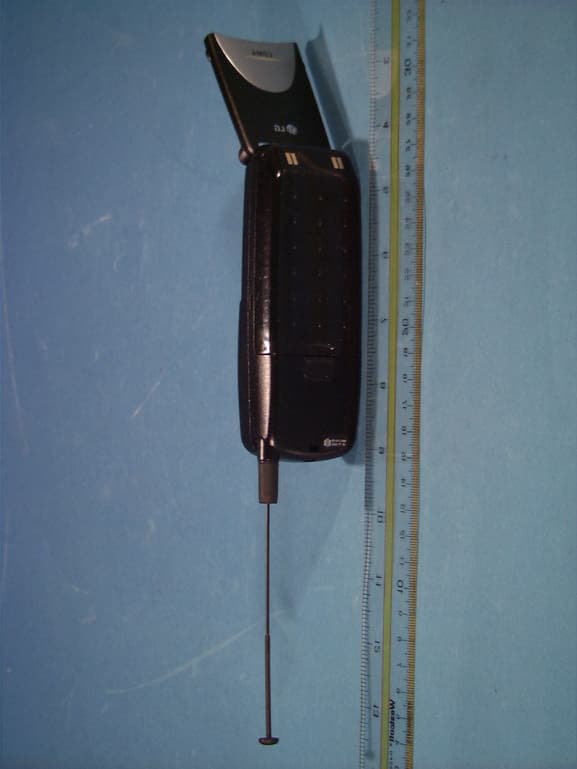

LG Information & Communications, Ltd. 1 CDMA PORTABLE PCS PHONE LGP-2300W (flip) Version 1.0 : initial FCC Version Documentation. LGP-2300W USER GUIDE LGP-2300W LG Information & Communications, Ltd. 1 Table of Contents Introduction 1. Highlights ......................................................................................................................................... 2. Important Information ...................................................................................................................... CHAPTER 1. Getting Started 1. Phone Parts and Function Key Description .................................................................................... 2. LCD Icons ........................................................................................................................................ CHAPTER 2. Basic Functions 0. Basic Screen and keys .................................................................................................................... 1. Turning the Phone On and Off ........................................................................................................ 2. Making a Call ................................................................................................................................... 3. Correcting Dialing Mistakes ............................................................................................................. 4. Receiving Calls ................................................................................................................................ 5. Call Waiting ..................................................................................................................................... 6. Mute ................................................................................................................................................ 7. Redialing Last Outgoing Number .................................................................................................... 8. Adjusting the Volume ...................................................................................................................... 9. Signal Strength ................................................................................................................................ 10. Emergency Dialing ......................................................................................................................... 11. Viewing Your Telephone Number ................................................................................................... CHAPTER 3. Phone Book Features 1. Two Types of Phone Books ............................................................................................................. 2. Personal Phone Book Memory ........................................................................................................ 3. Entering Characters ........................................................................................................................ 4. Recent Call History List ................................................................................................................... 5. Retrieving Numbers ......................................................................................................................... 6. Changing the Personal Phone Book ............................................................................................... 7. Dialing Numbers from Your Phone Book ........................................................................................ 8. Advanced Phone Book Features ..................................................................................................... CHAPTER 4. Menu Features 1. Main Menu ....................................................................................................................................... 2. General Guidelines to MENU Access and Settings ......................................................................... 3. Menu Item Descriptions ................................................................................................................... CHAPTER 5. Message Feature LGP-2300W LG Information & Communications, Ltd. 2 1. New Message Alert ......................................................................................................................... 2. Reading Newly Received Text Messages ....................................................................................... 3. Reading Previously stored Messages.............................................................................................. 4. Delete All the Messages................................................................................................................... 5. Selecting Alert and sound types ...................................................................................................... 6. Checking of voice Mailbox................................................................................................................ CHAPTER 6. Caller I.D. 1. Use of caller ID ................................................................................................................................ CHAPTER 7. Other Features 1. Multi-Language  LGP-2300W LG Information & Communications, Ltd. 3 1. Highlights Congratulations on your purchase of the LGP-2300W phone that has been designed to operate on the latest digital mobile communication technology, Code Division Multiple Access (CDMA). This CDMA digital technology has greatly enhanced voice clarity and can provide various advanced features. The LGP-2300W is a PCS phone that can operate on Digital cellular systems. It is new and compact phone with many useful and advanced features including: • Large, easy-to read, 4-line, backlight LCD with status icons • Paging, Messaging, Voice Mail and Caller ID capability • 18-button keypad • Exceptionally long battery life using state-of-the-art Li-Ion battery techno…

Text truncated - open the document above for the full version.

1 LG Information & Communications, Ltd. - 1 - Features of Mobile Subscriber RadioFeatures of Mobile Subscriber Radio Telephone SetTelephone Set (LG(LGPP--2300/23102300/2310 W Type)W Type) 1. Wave Type : G7W 2. Frequency Scope • Send Frequency : 1850~1910MHz • Receive Frequency : 1930~1990MHz 3. Rated Output • 360mW 4. Output Conversion Method : This is possible by correcting the key board channel. 5. Voltage and Current Value of Termination Part Amplifier(Catalogue included) Product Type Name Voltage Current Power PWR AMP RI-21108U 5.0V 450mA 250mW 6. Functions of Major Semi-Conductors Classification Function MSM3000-PBGA Terminal operation control and digital signal processing FLASH MEMORY & STATIC RAM (MB84VA2103-10) Flash Memory (16Mbit) ’ Storing of terminal operation program SRAM (2Mbit) ’ Temporary storing of the data created while busy IFR3000 Converts IF signal into digital baseband signal IFT3000 Converts digital baseband signal to IF signal 7. Frequency Stability • ±0.1PPM LGP-2300/2310W LG Information & Communications, Ltd. - 1 - CDMA Mobile Subscriber Unit LGP-2300/2310W SERVICE MANUAL LGP-2300/2310W LG Information & Communications, Ltd. - 2 - LGP-2300/2310W LG Information & Communications, Ltd. - 3 - Table of ContentsTable of Contents General Introduction ...................................................................................................................................................................... 3 CHAPTER 1. System Introduction 1. System Introduction ..................................................................................................................................... 4 2. Features and Advantages of CDMA Mobile Phone ...................................................................................... 4 3. Structure and Functions of CDMA Mobile Phone ........................................................................................ 8 4. Specification .................................................................................................................................................. 9 5. Installation ................................................................................................................................................... 12 CHAPTER 2. NAM Input Method(Inputting of telephone numbers included) 1. Telephone Number Input Method ................................................................................................................14 2. NAM Program Method ............................................................................................................................... 14 CHAPTER 3. Circuit Description 1. RF Transmit/Receive Part ........................................................................................................................... 15 2. Digital/Voice Processing Part ..................................................................................................... 20 CHAPTER 4. Trouble Shooting ................................................................................................................................................... 24 CHAPTER 5. Test Procedure ................................................................................................................................................... 31 Appendix ................................................................................................................................................... 32 1. Assembly and Disassembly Diagram 2. Block & Circuit Diagram 3. Part List 4. Component Layout 5. Accessories - Desktop Charger - Travel Charger - Hands Free Kit - Cigar Light Charger - Data Kit 6. WLPST ( LGIC Product Support Tool For Win95 ) LGP-2300/2310W LG Information & Communications, Ltd. - 4 - The LGP-2300/2310W is a 1.9GHz CDMA(Code Division Multiple Access) PCS phone. CDMA technology with this phone adopts DSSS(Direct Sequence Spread Spectrum) ,which is also used in the military. This feature of DSSS enables the phone to keep communication from being crossed and to use one frequency channel by multiple users in the same specific area, resulting that it increases the capacity 10 times more compared with that in the analog mode currently used. Soft/Softer Handoff, Hard Handoff, and Dynamic RF power Control technologies are combined into this phone to reduce the call being interrupted in a middle of talking over the phone. A CDMA PCS network consists of MSC (Mobile Switching Center), BSC (Base Station Controller), BTS (Base station Transmission System), and MS (Mobile Station). Communication between MS and BTS is designed to meet the specification of ANSI J-STD-008 (Common Air Interface). MS meets the specifications of the below: - ANSI J-STD-008Personal Station - Base Station Compatibility Requirements for 1.8 to 2.0 GHz CDMA PCS - ANSI J-STD-018Recommended Minimum Performance Requirements for 1.8 to 2.0 GHz CDMA Personal Stations - TIA/EIA IS-126-AMobile Station Loopback Service Options Standard - TIA/EIA IS-127Enhanced Variable Rate Voice Coder - TIA/EIA IS-683Over-the-Air Service Provisioning of Mobile Stations in Wideband Spread Spectrum Systems - TIA/EIA-IS-707Data Service Options for Wideband Spread Spectrum Systems LGP-2300/2310W is composed of transceiver, desktop charger, Li-Ion Battery (1600mAh), h ands-free kit, travel charger, cigar light charger and data kit. Hands-free kit is designed to operate in full duplex. General Introduction LGP-2300/2310W 5 LG Information & Communications, Ltd. - 5 - 1. System Introduction 1.1 CDMA Abstract Currently,2 methods of PCS services are in use worldwide; One is TDMA and the other is CDMA. DCS- 1800,which is based on the GSM protocol , TDMA technology, and 1.8GHz frequency range is in service in many areas including Europe. Japanese PHS(Personal Handy-phone System) is based on the TDMA/TDD technoogy and uses 1.9GHz frequency range. Meanwhile,in the United States,both of PCS-1900,a TDMA standard,and J-STD-018,a CDMA standard have bee…

Text truncated - open the document above for the full version.

@ LG Information & Communications, Ltd. May 1, 1999 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely, General Manager of New York Office LG Information & Communications, Ltd.

June 04, 1999 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:LG Information & Communications, Ltd. FCC ID: FFMLGP2300W Part 24 Certification Gentlemen: Submitted herewith, on behalf of LG Information & Communications, Ltd., is an application for Part 24 Certification as follows: FCC ID:FFMLGP2300W TRADE / MODEL(s):LGIC LGP-2300W, LGP-2310W EUT TYPE:Single-Band PCS CDMA Phone (PCE) Tx Freq. Range:1851.25 – 1908.75 MHz Max. Output Power:0.36 Watts (EIRP) Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Mr. Harris Ahn Principal Engineer LGIC Communication Terminal Research Lab

July 26, 1999 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Errol Chang / Kwok Chan SUBJECT:LG Information & Communications, Ltd. FCC ID: FFMLGP2300W 731 Confirmation Number: EA94433 Correspondence Reference No.: 8816 Request for Tech. Info.: 07/20/99 Dear Errol / Kwok: Submitted herewith, on behalf of LG Information & Communications, Ltd., is an amendment in response to your e-mail dated July 20 requesting additional information for the subject application. 1. Attached are the SPEAG SAR test system dipole validation results provided by the SAR system manufacturer, and PCTEST Lab’s results for comparison, with tabulated data and plot including tissue dielectric parameters. 2. Attached are the revised SAR test plots indicating crest factor used. 3. Attached is the E-field probe calibration information confirming the calibration is current. We trust this information is sufficient to issue the grant. Should you have any further questions, please do not hesitate to contact us. Thank you.

Test Report S/N: 24.990601352.FFMFCC Part 24 Test Date(s): June 01-04, 1999Certification © 1999 PCTEST Lab LGIC Single-Band PCS CDMA Phone NVLAP Lab Code: 100431-0 FCC ID: FFMLGP2300W (Tx 1851.25 - 1908.75 MHz) Test Report S/N: 24.990601352.FFMFCC Part 24 Test Date(s): June 01-04, 1999Certification © 1999 PCTEST Lab LGIC Single-Band PCS CDMA Phone NVLAP Lab Code: 100431-0 FCC ID: FFMLGP2300W (Tx 1851.25 - 1908.75 MHz) Test Report S/N: 24.990601352.FFMFCC Part 24 Test Date(s): June 01-04, 1999Certification © 1999 PCTEST Lab LGIC Single-Band PCS CDMA Phone NVLAP Lab Code: 100431-0 FCC ID: FFMLGP2300W (Tx 1851.25 - 1908.75 MHz) Test Report S/N: 24.990601352.FFMFCC Part 24 Test Date(s): June 01-04, 1999Certification © 1999 PCTEST Lab LGIC Single-Band PCS CDMA Phone NVLAP Lab Code: 100431-0 FCC ID: FFMLGP2300W (Tx 1851.25 - 1908.75 MHz) Test Report S/N: 24.990601352.FFMFCC Part 24 Test Date(s): June 01-04, 1999Certification © 1999 PCTEST Lab LGIC Single-Band PCS CDMA Phone NVLAP Lab Code: 100431-0 FCC ID: FFMLGP2300W (Tx 1851.25 - 1908.75 MHz) Test Report S/N: 24.990601352.FFMFCC Part 24 Test Date(s): June 01-04, 1999Certification © 1999 PCTEST Lab LGIC Single-Band PCS CDMA Phone NVLAP Lab Code: 100431-0 FCC ID: FFMLGP2300W (Tx 1851.25 - 1908.75 MHz)

© 1999 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

Test Report S/N: 24.990601352.FFMFCC Part 24 Test Date(s): June 01-04, 1999Certification © 1999 PCTEST Lab LGIC Single-Band PCS CDMA Phone NVLAP Lab Code: 100431-0 FCC ID: FFMLGP2300W (Tx 1851.25 - 1908.75 MHz) Test Report S/N: 24.990601352.FFMFCC Part 24 Test Date(s): June 01-04, 1999Certification © 1999 PCTEST Lab LGIC Single-Band PCS CDMA Phone NVLAP Lab Code: 100431-0 FCC ID: FFMLGP2300W (Tx 1851.25 - 1908.75 MHz) Test Report S/N: 24.990601352.FFMFCC Part 24 Test Date(s): June 01-04, 1999Certification © 1999 PCTEST Lab LGIC Single-Band PCS CDMA Phone NVLAP Lab Code: 100431-0 FCC ID: FFMLGP2300W (Tx 1851.25 - 1908.75 MHz) Test Report S/N: 24.990601352.FFMFCC Part 24 Test Date(s): June 01-04, 1999Certification © 1999 PCTEST Lab LGIC Single-Band PCS CDMA Phone NVLAP Lab Code: 100431-0 FCC ID: FFMLGP2300W (Tx 1851.25 - 1908.75 MHz) Test Report S/N: 24.990601352.FFMFCC Part 24 Test Date(s): June 01-04, 1999Certification © 1999 PCTEST Lab LGIC Single-Band PCS CDMA Phone NVLAP Lab Code: 100431-0 FCC ID: FFMLGP2300W (Tx 1851.25 - 1908.75 MHz) Test Report S/N: 24.990601352.FFMFCC Part 24 Test Date(s): June 01-04, 1999Certification © 1999 PCTEST Lab LGIC Single-Band PCS CDMA Phone NVLAP Lab Code: 100431-0 FCC ID: FFMLGP2300W (Tx 1851.25 - 1908.75 MHz)

© 1999 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) LG Information & Communications, Ltd. Date(s) of Tests: June 01-04, 1999 Communication Terminal Research LabTest Report S/N: SAR.990601353.FFM 60-39, Kasan-dong, Keumchun-kuTest Site: PCTEST Lab, Columbia, MD USA Seoul 153-023, KOREA Attn: Mr. Harris Ahn, Principal Engineer Communication Terminal Research Lab FCC ID FFMLGP2300W APPLICANT LG Information & Communications, Ltd. EUT Type:Single-Band PCS CDMA Phone Tx Frequency:1851.25 – 1908.75 MHz Rx. Frequency:1931.25 – 1988.75 MHz Max Output Power:0.36 W EIRP Trade Name/Model(s):LGIC LGP-2300W, LGP-2310W FCC Classification:Licensed Portable Transmitter Held to Ear (PCE) Application Type:Certification Serial Number:n/a (pre production) FCC Rule Part(s):2.1093; ET Docket 96.326; 24(E) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) 990601353.FFM SAR Measurement ReportFCC Part 24 Certification © 1999 PCTEST Labi Table of Contents SCOPE 1 INTRODUCTION / SAR DEFINITION 2 SAR MEASUREMENT SET-UP 3 E-FIELD PROBE SYSTEM 4 E-FIELD PROBE CALIBRATION PROCESS 5 DATA EXTRAPOLATION 6 PHANTOM, HOLDER & BRAIN EQUIVALENT TISSUE 7 SYSTEM SPECIFICATIONS 8 MEASUREMENT PROCESS 9 TEST POSITION OF THE PHONE 10 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 11 MEASUREMENT UNCERTAINTIES 12 TEST DATA SUMMARY 13 SAR TEST EQUIPMENT LIST 14 CONCLUSION 15 REFERENCES 16 Test Report S/N: SAR.990601353.FFMSAR Measurement Report Test Date(s): June 01-04, 1999FCC Part 24 Certification FCC ID: FFMLGP2300W (Tx 1851.25 – 1908.75 MHz) © 1999 PCTEST LabLGIC Single-Band PCS CDMA Phone1 SAR MEASUREMENT REPORT Scope - Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name:LG Information & Communications, Ltd. Communication Terminal Research Lab Address:60-39, Kasan-dong, Keumchun-ku Seoul 153-023, KOREA Attention:Harris Ahn, Principal Engineer Communication Terminal Research Lab • EUT Type:Single-Band PCS CDMA Phone • Trade Name:LGIC • Model(s):LGP-2300W, LGP-2310W • FCC IDENTIFIER:FFMLGP2300W • S/N:Pre-production • Tx Frequency:1851-25 – 1908.75 MHz • Rx Frequency:1931.25 – 1988.75 MHz • Application Type: Certification • FCC Classification:Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s):§ 2.1093, Docket 96-326; § 24(E) • Modulation(s):CDMA • Max. Output Power:0.36 W EIRP • Antenna:Helical (λ/2) • Antenna Dimensions:11.9 cm. (Length) • Date(s) of Tests:June 01-04, 1999 • Place of Tests:PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.990601353.FFM 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.990601353.FFMSAR Measurement Report Test Date(s): June 01-04, 1999FCC Part 24 Certification FCC ID: FFMLGP2300W (Tx 1851.25 – 1908.75 MHz) © 1999 PCTEST LabLGIC Single-Band PCS CDMA Phone2 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814.[4] SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential biological hazards. SAR Definition Specific Absorption Rate (SAR) is defined as the time derivative (rate) of the incremental energy (dU) absorbed by (dissipated in) an incremen…

Text truncated - open the document above for the full version.

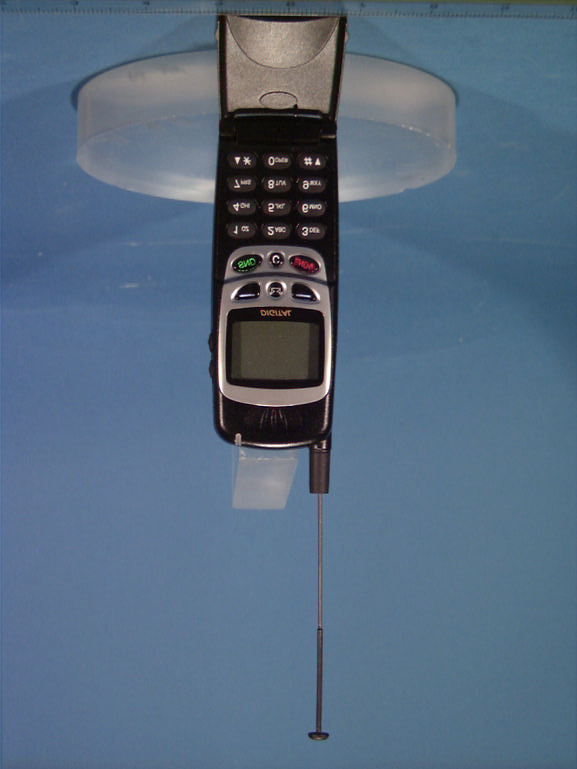

EUT LGP-2300W Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 Brain 1800 MHz: σ = 1.65 mho/m ε r = 41.0 ρ = 1.00 g/cm 3 File #121 Antenna Position In SAR (1g): 1.15 mW/g LGIC PCS Phone Channel 0025 PCS/CDMA Mode Cable offset 1.2dBm Conducted Power - 24.7dBm SAR Tot [mW/g] 1.18E-1 7.06E-1 PCTEST ENGINEERING LAB INC. EUT LGP-2300W Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 Brain 1800 MHz: σ = 1.65 mho/m ε r = 41.0 ρ = 1.00 g/cm 3 File #122 Antenna Position Out SAR (1g): 0.752 mW/g LGIC PCS Phone Channel 0025 PCS/CDMA Mode Cable offset 1.2dBm Conducted Power - 24.7dBm SAR Tot [mW/g] 7.08E-2 4.25E-1 PCTEST ENGINEERING LAB INC. EUT LGP-2300W Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 Brain 1800 MHz: σ = 1.65 mho/m ε r = 41.0 ρ = 1.00 g/cm 3 File #119 Antenna Position In SAR (1g): 1.04 mW/g LGIC PCS Phone Channel 0600 PCS/CDMA Mode Cable offset 1.2dBm Conducted Power - 24.7dBm SAR Tot [mW/g] 1.07E-1 6.42E-1 PCTEST ENGINEERING LAB INC. EUT LGP-2300W Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 Brain 1800 MHz: σ = 1.65 mho/m ε r = 41.0 ρ = 1.00 g/cm 3 File #120 Antenna Position Out SAR (1g): 0.730 mW/g LGIC PCS Phone Channel 0600 PCS/CDMA Mode Cable offset 1.2dBm Conducted Power - 23.7dBm SAR Tot [mW/g] 7.51E-2 4.51E-1 PCTEST ENGINEERING LAB INC. EUT LGP-2300W Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 Brain 1800 MHz: σ = 1.65 mho/m ε r = 41.0 ρ = 1.00 g/cm 3 File #123 Antenna Position In SAR (1g): 1.15 mW/g LGIC PCS Phone Channel 1175 PCS/CDMA Mode Cable offset 1.2dBm Conducted Power - 24.7dBm SAR Tot [mW/g] 1.13E-1 6.79E-1 PCTEST ENGINEERING LAB INC. EUT LGP-2300W Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 Brain 1800 MHz: σ = 1.65 mho/m ε r = 41.0 ρ = 1.00 g/cm 3 File #125 Antenna Position Out SAR (1g): 0.677 mW/g LGIC PCS Phone Channel 1175 PCS/CDMA Mode Cable offset 1.2dBm Conducted Power - 24.7dBm SAR Tot [mW/g] 7.43E-2 4.46E-1 PCTEST ENGINEERING LAB INC.

Test Report S/N: SAR.990601353.FFMSAR Measurement Report Test Date(s): June 01-04, 1999FCC Part 24 Certification © 1999 PCTEST Lab FCC ID: FFMLGP2300W (Tx 1851.25 - 1908.75) NVLAP Lab Code: 100431-0 LGIC Single-Band PCS CDMA Phone Test Report S/N: SAR.990601353.FFMSAR Measurement Report Test Date(s): June 01-04, 1999FCC Part 24 Certification © 1999 PCTEST Lab FCC ID: FFMLGP2300W (Tx 1851.25 - 1908.75) NVLAP Lab Code: 100431-0 LGIC Single-Band PCS CDMA Phone

Test Report S/N: SAR.990601353.FFMSAR Measurement Report Test Date(s): June 01-04, 1999FCC Part 24 Certification FCC ID: FFMLGP2300W (Tx 1851.25 – 1908.75 MHz) © 1999 PCTEST LabLGIC Single-Band PCS CDMA Phone9 Fig 10. SAR Measurement Points in Area Scan MEASUREMENT PROCESS System Verification Prior to assessment, the sytem is verified to the ±5% of the specifications by using the system validation kit. Validation Kit D1900V2, S/N: 502 Targeted SAR 1g (mW/g) 10.7 Measured SAR 1g (mW/g) 11.2 Dosimetric Assessment Setup The evaluation was performed with the following procedure: 1. The SAR value at a fixed location above the ear point was measured and was used as a reference value for assessing the power drop. 2. The SAR distribution at the exposed side of the head was measured at a distance of 3.9mm from the inner surface of the shell. The area covered the entire dimension of the head and the horizontal grid spacing was 20mm x 20mm. Based on this data, the area of the maximum absorption was determined by spline interpolation. 3. Around this point, a volume of 32mm x 32mm x 34mm was assessed by measuring 5 x 5 x 7 points. On this basis of this data set, the spatial peak SAR value was evaluated with the following procedure: a. The data at the surface were extrapolated, since the center of the dipoles is 2.7mm away from the tip of the probe and the distance between the surface and the lowest measuring point is 1.2mm. The extrapolation was based on a least square algorithm [13]. A polynomial of the fourth order was calculated through the points in z-axes. This polynomial was then used to evaluate the points between the surface and the probe tip. b. The maximum interpolated value was searched with a straight-forward algorithm. Around this maximum the SAR values averaged over the spatial volumes (1g or 10g) were computed using the 3D-Spline interpolation algorithm. The 3D-spline is composed of three one-dimensional splines with the “Not a knot” condition (in x,y, and z directions) [13][14]. The volume was integrated with the trapezoidal algorithm. One thousand points (10 x 10 x 10) were interpolated to calculate the average. c. All neighboring volumes were evaluated until no neighboring volume with a higher average value was found. 4. The SAR value, at the same location as procedure #1, was re-measured. If the value changed by more than 5%, the evaluation is repeated. Origin Y-axis X-axis

EUT Dipole 1900 MHz Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 Brain 1900 MHz: σ = 1.84 mho/m ε r = 38.1 ρ = 1.00 g/cm 3 File #Validation 1900 MHzpctest2 Antenna Position Out Crest Factor 1.0 SAR (1g): 11.2 mW/g ± 0.01 dB SAR Tot [mW/g] 1.21E+0 6.05E+0 1.09E+1 PCTEST ENGINEERING LAB INC.

EUT LGP-2300W Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 Brain 1800 MHz: σ = 1.65 mho/m ε r = 41.0 ρ = 1.00 g/cm 3 File #121 Antenna Position In Crest Factor 1.0 SAR (1g): 1.15 mW/g LGIC PCS Phone Channel 0025 PCS/CDMA Mode Cable offset 1.2dBm Conducted Power - 24.7dBm SAR Tot [mW/g] 1.18E-1 9.42E-1 PCTEST ENGINEERING LAB INC. EUT LGP-2300W Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 Brain 1800 MHz: σ = 1.65 mho/m ε r = 41.0 ρ = 1.00 g/cm 3 File #122 Antenna Position Out Crest Factor 1.0 SAR (1g): 0.752 mW/g LGIC PCS Phone Channel 0025 PCS/CDMA Mode Cable offset 1.2dBm Conducted Power - 24.7dBm SAR Tot [mW/g] 7.08E-2 5.66E-1 PCTEST ENGINEERING LAB INC. EUT LGP-2300W Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 Brain 1800 MHz: σ = 1.65 mho/m ε r = 41.0 ρ = 1.00 g/cm 3 File #119 Antenna Position In Crest Factor 1.0 SAR (1g): 1.04 mW/g LGIC PCS Phone Channel 0600 PCS/CDMA Mode Cable offset 1.2dBm Conducted Power - 24.7dBm SAR Tot […

Text truncated - open the document above for the full version.
