FFMLSP1000

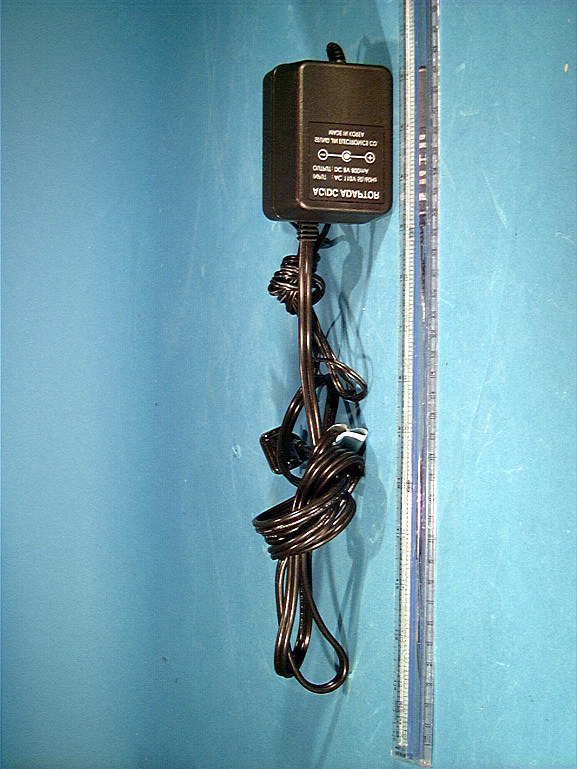

August 13, 1998 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:LG Information & Communications, Ltd. FCC ID: FFMLSP1000 Part 24 Type Acceptance Gentlemen: Attached herewith, on behalf of LG Information & Communications Ltd., is an application for Part 24 Type Acceptance of the following PCS CDMA WLL Phone (Wireless Local Loop): FCC ID:FFMLSP1000 TRADE/MODEL(s):LGIC LSP-1000 EUT TYPE:PCS CDMA WLL Phone (Wireless Local Loop) Tx Freq. Range:1851.25 – 1908.75 MHz Max. Output Power:0.2 Watts Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Mr. Harris Ahn Principal Engineer Communication Terminal Research Lab

Item 13. EQUIPMENT SPECIFICATIONS: (See instructions) Frequency range in MHzRated RF power output in watts Frequency toleranceEmission designator (See 47 CFR § 2.201 and § 2.202) Microprocessor Model Number Item 14. Is the equipment in this application: * (a) a composite deivce subject to more than one type of equipment authorization? * (b) part of a system that operates with, or is marketed with, another device that requires an equipment authorization? If either of the above questions is answered "Yes" complete section 15. Yes No Yes No Item 15. (a) Additional Type of equipment authorization required: Certification Type Acceptance Notification (b) The related application checked in item 15.(a): has been filed at same time as this application under the FCC ID listed to the right has been granted under the FCC ID listed listed to the right is in the process of being filed under the FCC ID listed listed to the right is pending with the FCC under the FCC ID listed listed to the right FCC ID Item 16. Name of test firm and contact person on file with the FCC, if different from applicant or contact person: Firm Name: First Name: Last Name: Telephone: Ext: Fax No: E-mail: Read each certification carefully before answering and signing this application WILLFUL FALSE STATEMENTS MADE ON THIS FORM ARE PUNISHABLE BY FINE AND IMPRISONMENT (U.S. CODE, TITLE 18, SECTION 1001), AND/OR REVOCATION OF ANY STATION LICENSE OR CONSTITUTION PERMIT (U.S. CODE, TITLE 47, SECTION 312(a)(1)), AND/OR FORFEITURE (U.S. CODE, TITLE 47, SECTION 503). Item 17. SECTION 5301 (ANTI-DRUG ABUSE) CERTIFICATION: * The applicant must certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Does the applicant or authorized agent so certify? Yes No Item 18. APPLICANT/AGENT CERTIFICATION: 1851.251908.75.215 2.5 ppm 1M25F9W80C186 NA DOC PROCEDURE PCTEST Engineering Laboratory, Inc. - RANDY ORTANEZ [email protected] 3 of 4 8/13/98 17:26 FCC Form 731 https://gullfoss.fcc.gov/cgi-bin/ws.exe/prod/oet/forms/731/731_Form.hts

Test Report S/N: 24.980803538.FFMFCC Part 24 Test Date(s): August 10-13, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLSP1000 NVLAP Lab Code: 100431-0 LG Informations & Communications, Ltd. Test Report S/N: 24.980803538.FFMFCC Part 24 Test Date(s): August 10-13, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLSP1000 NVLAP Lab Code: 100431-0 LG Informations & Communications, Ltd. Test Report S/N: 24.980803538.FFMFCC Part 24 Test Date(s): August 10-13, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLSP1000 NVLAP Lab Code: 100431-0 LG Informations & Communications, Ltd. Test Report S/N: 24.980803538.FFMFCC Part 24 Test Date(s): August 10-13, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLSP1000 NVLAP Lab Code: 100431-0 LG Informations & Communications, Ltd. Test Report S/N: 24.980803538.FFMFCC Part 24 Test Date(s): August 10-13, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLSP1000 NVLAP Lab Code: 100431-0 LG Informations & Communications, Ltd. Test Report S/N: 24.980803538.FFMFCC Part 24 Test Date(s): August 10-13, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLSP1000 NVLAP Lab Code: 100431-0 LG Informations & Communications, Ltd.

© 1998 PCTEST Lab FCC ID SAMPLE LABEL LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. Fig 12. Sample label (SEE NEXT PAGE)

Test Report S/N: 24.980803538.FFMFCC Part 24 Test Date(s): August 10-13, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLSP1000 NVLAP Lab Code: 100431-0 LG Informations & Communications, Ltd. Test Report S/N: 24.980803538.FFMFCC Part 24 Test Date(s): August 10-13, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLSP1000 NVLAP Lab Code: 100431-0 LG Informations & Communications, Ltd. Test Report S/N: 24.980803538.FFMFCC Part 24 Test Date(s): August 10-13, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLSP1000 NVLAP Lab Code: 100431-0 LG Informations & Communications, Ltd. Test Report S/N: 24.980803538.FFMFCC Part 24 Test Date(s): August 10-13, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLSP1000 NVLAP Lab Code: 100431-0 LG Informations & Communications, Ltd. Test Report S/N: 24.980803538.FFMFCC Part 24 Test Date(s): August 10-13, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLSP1000 NVLAP Lab Code: 100431-0 LG Informations & Communications, Ltd. Test Report S/N: 24.980803538.FFMFCC Part 24 Test Date(s): August 10-13, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLSP1000 NVLAP Lab Code: 100431-0 LG Informations & Communications, Ltd. Test Report S/N: 24.980803538.FFMFCC Part 24 Test Date(s): August 10-13, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLSP1000 NVLAP Lab Code: 100431-0 LG Informations & Communications, Ltd. Test Report S/N: 24.980803538.FFMFCC Part 24 Test Date(s): August 10-13, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLSP1000 NVLAP Lab Code: 100431-0 LG Informations & Communications, Ltd. Test Report S/N: 24.980803538.FFMFCC Part 24 Test Date(s): August 10-13, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLSP1000 NVLAP Lab Code: 100431-0 LG Informations & Communications, Ltd.

© 1998 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) LG Information & Communications, Ltd.Dates of Tests: October 26-27, 1998 60-39, Kasan-dong, Keumchun-kuTest Report S/N: SAR.981026727.FFM Seoul 153-023, KoreaTest Site: PCTEST Lab, Columbia MD Attention: Harris Ahn, Principal Engineer Communication Terminal Research Lab FCC ID FFMLSP1000 APPLICANTLG Information & Communications, Ltd. EUT Type:PCS CDMA WLL Phone (Wireless Local Loop) Tx Frequency:1851.25 – 1908.75 MHz Rx Frequency:1931.25 – 1988.75 MHz Max Output Power:0.214 Watts (EIRP) Trade Name/Model(s):LGIC LSP-1000 FCC Classification:Licensed Base Station for Part 24 (PCB) Application Type:Certification Serial Number:n/a (pre production) FCC Rule Part(s):2.1093; ET Docket 96.326; 24(E) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) 981026727.FFM SAR Measurement ReportFCC Part 24 Certification © 1998 PCTEST Labi Table of Contents SCOPE .............................................................................1 INTRODUCTION / SAR DEFINITION ......................................2 SAR MEASUREMENT SET-UP .............................................3 E-FIELD PROBE SYSTEM ...................................................4 PHANTOM & MUSCLE EQUIVALENT MATERIAL ...................7 SYSTEM SPECIFICATIONS ................................................. 8 MEASUREMENT PROCESS ................................................9 TEST POSITION OF THE PHONE .........................................10 ANSI/IEEE C95.1 RF EXPOSURE LIMITS ..............................11 MEASUREMENT UNCERTAINTIES ......................................12 TEST DATA SUMMARY ...................................................... 13 SAR TEST EQUIPMENT LIST .............................................. 14 CONCLUSION / REFERENCES ...........................................15 ATTACHMENT A – TEST PLOTS ATTACHMENT B – PHOTOGRAPHS Test Report S/N: SAR.981026727.FFMSAR Measurement Report Test Dates: October 26-27, 1998FCC Part 24 Certification LGIC FCC ID: FFMLSP1000 (Model: LSP-1000) © 1998 PCTEST LabPCS CDMA WLL Phone (Tx 1851-1908 MHz)1 SAR MEASUREMENT REPORT Scope - Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head/body tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name:LG Information & Communications, Ltd. ADDRESS:60-39, Kasan-dong, Keumchun-ku Seoul 153-023, Korea Attention :Harris Ahn, Principal Engineer Communication Terminal Research Lab • EUT Type:PCS CDMA WLL Phone • Trade Name / Model(s):LGIC LSP-1000 • FCC IDENTIFIER:FFMLSP1000 • S/N:Pre-production • Tx Frequency:1851.25 – 1908.75 MHz Rx Frequency:1931.25 – 1988.75 MHz • Application Type: Certification • FCC Classification:Licensed Base Station for Part 24 (PCB) • FCC Rule Part(s):§ 2.1093, Docket 96-326; § 24(E) • Max. Output Power:0.214 W (EIRP) • Modulation:CDMA • Antenna:Helical (λ/2) • Antenna Dimensions:16.5 cm. (Length) • Dates of Tests:October 26-27, 1998 • Place of Tests:PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.981026727.FFM 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Figure 1. SAR Test Set-up Test Report S/N: SAR.981026727.FFMSAR Measurement Report Test Dates: October 26-27, 1998FCC Part 24 Certification LGIC FCC ID: FFMLSP1000 (Model: LSP-1000) © 1998 PCTEST LabPCS CDMA WLL Phone (Tx 1851-1908 MHz)2 1.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) …

Text truncated - open the document above for the full version.

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98102704_ZOOM.VLT Start : 27-Oct-98 03:21:21 pm End : 27-Oct-98 03:30:26 pm Radio Type : LGIC Model Number : FFMLSP1000 Serial Number : 001 Frequency : 1851.25 MHz Peak Trans. Pwr : 0.214 W Start Trans. Pwr: 0.214 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 54.200 Mixture Conductivity = 1.450 Comment : CHAN 0025 CDMA MODE PCS PHONE PCTEST ENGINEERING LABORATORY Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.380 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225 Diode Coefficients: Channel 1 An=-52.065 Bn=113.200 Cn=39.800 Dn=0.000 Mn=0.024 Yn=0.000 Channel 2 An=0.000 Bn=0.000 Cn=0.000 Dn=0.000 Mn=0.000 Yn=0.000 Channel 3 An=0.000 Bn=0.000 Cn=0.000 Dn=0.000 Mn=0.000 Yn=0.000 Max Location : X = 2.250, Y = -2.750, Z = 0.000 (cm) Value = 9.703 Measured Values (volts) = 9.047E-003 6.339E-003 1.682E-003 7.975E-004 1.393E-003 7.552E-004 0.000E+000 0.000E+000 2.021E-004 5.676E-004 0.000E+000 Calc. Voltage @ Surface (Vs) = 0.0115 Voltage @ 1.00 cm (Vt) = 0.0070 Ave. Voltage (Vs+Vt)/2 = 0.0093 Ave. SAR over 1 g (mW/g) = 1.1821 -0.2 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g 012345678910 Z centimeters SAR Scan File : 98102704_ZOOM Start : 27-Oct-98 03:21:21 pm End : 27-Oct-98 03:30:26 pm LGIC/FFMLSP1000/001;1851.25MHz;W;Helical/Out; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/54.200/1.450 File : 98102704_ZOOM Start : 27-Oct-98 03:21:21 pm End : 27-Oct-98 03:30:26 pm LGIC/FFMLSP1000/001;1851.25MHz;W;Helical/Out; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/54.200/1.450 1.240 1.167 1.093 1.020 0.947 0.874 0.801 0.728 0.654 0.581 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98102711_ZOOM.VLT Start : 27-Oct-98 05:12:44 pm End : 27-Oct-98 05:22:39 pm Radio Type : LGIC Model Number : FFMLSP1000 Serial Number : 001 Frequency : 1880 MHz Peak Trans. Pwr : 0.214 W Start Trans. Pwr: 0.214 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 54.200 Mixture Conductivity = 1.450 Comment : CHAN 0600 CDMA MODE PCS PHONE PCTEST ENGINEERING LABORATORY Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.380 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225 Diode Coefficients: Channel 1 An=-52.065 Bn=113.200 Cn=39.800 Dn=0.000 Mn=0.024 Yn=0.000 Channel 2 An=0.000 Bn=0.000 Cn=0.000 Dn=0.000 Mn=0.000 Yn=0.000 Channel 3 An=0.000 Bn=0.000 Cn=0.000 Dn=0.000 Mn=0.000 Yn=0.000 Max Location : X = 3.000, Y = -1.500, Z = 0.000 (cm) Value = 9.944 Measured Values (volts) = 9.263E-003 6.023E-003 3.541E-003 1.826E-003 5.472E-004 1.210E-005 1.442E-003 0.000E+000 0.000E+000 0.000E+000 0.000E+000 Calc. Voltage @ Surface (Vs) = 0.0104 Voltage @ 1.00 cm (Vt) = 0.0068 Ave. Voltage (Vs+Vt)/2 = 0.0086 Ave. SAR over 1 g (mW/g) = 1.1041 -0.2 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 mW/g 012345678910 Z centimeters SAR Scan File : 98102711_ZOOM Start : 27-Oct-98 05:12:44 pm End : 27-Oct-98 05:22:39 pm LGIC/FFMLSP1000/001;1880MHz;W;Helical/Out; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/54.200/1.450 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98102713_ZOOM.VLT Start : 27-Oct-98 05:43:29 pm End : 27-Oct-98 05:53:24 pm Radio Type : LGIC Model Number : FFMLSP1000 Serial Number : 001 Frequency : 1908.75 MHz Peak Trans. Pwr : 0.214 W Start Trans. Pwr: 0.214 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 54.200 Mixture Conductivity = 1.450 Comment : CHAN 1175 CDMA MODE PCS PHONE PCTEST ENGINEERING LABORATORY Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.380 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225 Diode Coefficients: Channel 1 An=-52.065 Bn=113.200 Cn=39.800 Dn=0.000 Mn=0.024 Yn=0.000 Channel 2 An=0.000 Bn=0.000 Cn=0.000 Dn=0.000 Mn=0.000 Yn=0.000 Channel 3 An=0.000 Bn=0.000 Cn=0.000 Dn=0.000 Mn=0.000 Yn=0.000 Max Location : X = 3.250, Y = -0.750, Z = 0.000 (cm) Value = 9.276 Measured Values (volts) = 8.861E-003 6.146E-003 2.214E-003 1.461E-003 1.060E-003 1.536E-003 1.968E-005 7.002E-004 1.127E-003 0.000E+000 5.720E-004 Calc. Voltage @ Surface (Vs) = 0.0107 Voltage @ 1.00 cm (Vt) = 0.0068 Ave. Voltage (Vs+Vt)/2 = 0.0088 Ave. SAR over 1 g (mW/g) = 1.1182 -0.2 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 mW/g 012345678910 Z centimeters SAR Scan File : 98102713_ZOOM Start : 27-Oct-98 05:43:29 pm End : 27-Oct-98 05:53:24 pm LGIC/FFMLSP1000/001;1908.75MHz;W;Helical/Out; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/54.200/1.450

Test Report S/N: SAR.981026727.FFM SAR Measurement Report Test Date(s): October 26-27, 1998 FCC Part 24 Certification © 1998 PCTEST Lab FCC ID: FFMLSP1000 NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: SAR.981026727.FFM SAR Measurement Report Test Date(s): October 26-27, 1998 FCC Part 24 Certification © 1998 PCTEST Lab FCC ID: FFMLSP1000 NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: SAR.981026727.FFM SAR Measurement Report Test Date(s): October 26-27, 1998 FCC Part 24 Certification © 1998 PCTEST Lab FCC ID: FFMLSP1000 NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. 1 1 Peak SAR Value at the surface of the phantom @ Z=0 (not averaged over 1-gram of tissue). This is a computer simulation of the hot spot(s) of the phone.

Test Report S/N: SAR.981026727.FFMSAR Measurement Report Test Dates: October 26-27, 1998FCC Part 24 Certification LGIC FCC ID: FFMLSP1000 (Model: LSP-1000) © 1998 PCTEST LabPCS CDMA WLL Phone (Tx 1851-1908 MHz)7 5.1 PHANTOM & THE MUSCLE EQUIVALENT TISSUE 5.2 Phantom The phantom is an anatomically-shaped homogeneous torso model filled with a liquid simulating muscle tissue. The phantom is placed at 0 degrees (horizontal position) with the torso placed on the EUT (see Fig. 5). The phantom is made of a shell of fiberglass 1.5mm. thick (giving the worst case SAR value absorbed by muscle tissue and the skull bones) and the EUT supported by a non-metallic (delrin) material*. Similar phantoms have been used to simulate human head/muscle modelling studies[6][7]. 5.3 Muscle Simulating Mixture Characterization The muscle mixture consists of a viscous gel using hydroxethylcellullose (HEC) gelling agent and saline solution (see Table 1). Preservation with a bacteriacide is added and visual inspection is made to make sure air bubbles are not trapped during the mixing process. The mixture is calibrated to obtain proper dielectric constant (permittivity) and conductivity of the muscle. The mixture characterizations used for the muscle tissue simulating liquid are according to the data by C. Gabriel and G. Hartsgrove [9]. MUSCLE MIXTURE % FREQUENCY 1850-1910 MHz WATER 40.4 SUGAR 58.0 SALT 0.5 BACTERIACIDE 0.1 HEC 1.0 Table 1. Composition of the Muscle Tissue Equivalent Matter * Note:A simulating human hand is not used due to the complex anatomical and geometrical structure of the hand that may produced infinite number of configurations [8]. To produce the worst-case condition (the hand absorbs antenna output power), the hand is omitted during the tests. Test Report S/N: SAR.981026727.FFMSAR Measurement Report Test Dates: October 26-27, 1998FCC Part 24 Certification LGIC FCC ID: FFMLSP1000 (Model: LSP-1000) © 1998 PCTEST LabPCS CDMA WLL Phone (Tx 1851-1908 MHz)8 6.1 SYSTEM SPECIFICATIONS 6.2 Robotic System Specifications Specifications POSITIONER:IDX Robot with 6 axis Repeatability:0.002 in. Accuracy:0.004 in. Data Acquisition Processor:Pentium PRO CPU Clock Speed:200 MHz Operating System:Windows NT Data Card:National Instruments Analog Card Software:IDX Flexware AMPLIFIER GAIN:Adjustable 20 - 40, high isolation between channels Connecting Lines:High Impedance 4.5 kohm/foot Sample Rate:6000 E-Field ProbeE-Probe #1 E-Probe #2 Probe Offset:2.5 mm2.5 mm Frequency Band:150 - 2200 MHz150 - 2200 MHz Conversion Factor:0.601 (800-880MHz)0.79 (800-880MHz) Conversion Factor:1.20 (1850-1910MHz)1.20 (1850-1910MHz) Dynamic Response:2 μW/g - 10 mW/g2 μW/g - 10 mW/g Input:2.2 meg2.2 meg Isotropicity:± 0.5 dB± 0.5 dB Resolution:0.1 cm 3 0.1 cm 3 PhantomPhantom #1 (Left) Phantom #2 (Right) Phantoms:HomogenousHomogenous Shell Material:FiberglassFiberglass Thickness:1 - 1.5 mm1 - 1.5 mm Head:with Left earwith Right ear Muscle Tissue Equivalent800-850 MHz 1850-1910 MHz Dielectric Constant: εε 56.2 52.0 Conductivity: σσ 0.95 1.85 Test Report S/N: SAR.981026727.FFMSAR Measurement Report Test Dates: October 26-27, 1998FCC Part 24 Certification LGIC FCC ID: FFMLSP1000 (Model: LSP-1000) © 1998 PCTEST LabPCS CDMA WLL Phone (Tx 1851-1908 MHz)13 11.1 TEST DATA SUMMARY Ambient TEMPERATURE (°C) 22 Relative HUMIDITY (%) 53 Atmospheric PRESSURE (kPa) 92 Mixture Type: Muscle Dielectric Constant: 52.0 Conductivity: 1.85 S/m Closest Distance (between E-Probe & EUT Antenna): 2.0 cm Measurement Results FREQUENCYModulationPOWERAntennaSAR MHzCh.(W)*Position (W/kg) or (mW/g) 1851.2525CDMA0.214OUT1.1821 1880.00600CDMA0.214OUT1.1041 1908.751175CDMA0.214OUT1.1182 ANSI / IEEE C95.1 1992 - SAFETY LIMIT Spatial Peak (Muscle) Uncontrolled Exposure/General Population 1.6 W/kg (mW/g) NOTES: 1. The test data reported are the worst-case SAR value with the antenna-phantom setup in a normal operating position. All modes of operation were investigated and the worst-case are reported. 2. Battery condition is fully charged for all readings. 3. Power measured:o Conducted x EIRP o ERP PCTEST SEAL

© 1998 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (Part 24 Type Acceptance) LG Information & Communications, Ltd.Dates of Tests: August 10-13, 1998 60-39, Kasan-dong, Keumchun-kuTest Report S/N: 24.980803538.FFM Seoul 153-023, KoreaTest Site: PCTEST Lab, Columbia MD Attention: Harris Ahn, Principal Engineer Communication Terminal Research Lab FCC ID FFMLSP1000 APPLICANT LG Information & Communications, Ltd. Classification:Licensed Base Station for Part 24 (PCB) FCC Rule Part(s):§§§§24(E), 2.983, 2.987 EUT Type:PCS CDMA WLL Phone (Wireless Local Loop) Trade Name/Model(s):LGIC LSP-1000 Frequency Range:Tx: 1851.25 – 1908.75MHz Rx: 1931.25 – 1988.75MHz Max Output Power:0.2 Watts Frequency Tolerance:0.00025% (2.5 ppm) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947 with the following remarks (Note Codes): * (BC) The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) 980706486.A3L Type Acceptance © 1998PCTEST Engineering Laboratory, Inc.FCC Part 24 TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT SCOPE 1 INTRODUCTION (SITE DESCRIPTION) 2 INSERTS PER §2.983 3 DESCRIPTION OF TESTS 4-6 TEST DATA (RADIATED) 7-9 TEST DATA (FREQUENCY STABILITY) 10-11 PLOTS OF EMISSIONS 12 LIST OF TEST EQUIPMENT 13 SAMPLE CALCULATIONS 14 RECOMMENDATION / CONCLUSION 15 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT L:OPERATIONAL DESCRIPTION ATTACHMENT M:USER’S MANUAL ATTACHMENT N:MPE MEASUREMENT REPORT ATTACHMENT O:MPE TEST SETUP PHOTOGRAPHS Test Report S/N: 24.980803538.FFMFCC Part 24 Dates of Tests: August 10-13, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLSP1000 (Part 24 – Licensed PCS)1 LGIC PCS CDMA WLL Phone (Model: LSP-1000) MEASUREMENT REPORT Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2983(a) General Information Applicant Name:LG Information & Communications, Ltd. Address:60-39, Kasan-dong, Keumchun-ku, Seoul 153-023, Korea Attention:Harris Ahn, Principal Engineer Communication Terminal Research Lab • §2983(b) FCC ID:FFMLSP1000 • §2983(c) Quantity:Quantity production is planned • §2.983(d) Emission Designator:1M25F9W • §2.983(d) Maximum Power Rating:0.2 W • §2.983(d) D.C. Voltage into Final RF Amplifier:6.0 VDC • §2.983(d) D.C. Current into Final RF Amplifier:400 mA • Battery Pack:6.0 VDC Ni-MH Battery Pack • AC Power Adapter:Seung Jin Electronics Co. Input: 110 VAC 50/60 Hz Output: 8 VDC 800 mA • FCC Classification:Licensed Base Station for Part 24 (PCB) • Equipment (EUT) Type:PCS CDMA WLL Phone (Wireless Local Loop) • Modulation:CDMA • Tx Frequency Range: 1851.25 – 1908.75 MHz • Rx Frequency Range:1931.25 – 1988.75 MHz • Frequency Tolerance:± 2.5 ppm • FCC Rule Part(s):§§§ 24, 2.983, 2.987 • Dates of Tests:August 10-13, 1998 • Place of Tests:PCTEST Lab, Columbia, MD U.S.A. 980803538.FFM Test Report S/N: 24.980803538.FFMFCC Part 24 Dates of Tests: August 10-13, 1998Type Acceptance © 1998 PCTEST LabFCC ID: FFMLSP1000 (Part 24 – Licensed PCS)2 LGIC PCS CDMA WLL Phone (Model: LSP-1000) 1.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. PCTEST Lab is recognized under the National Voluntary Laboratory Accreditation Program for satisfactory compliance with criteria established in Title 15, Part 285 Code of Federal Regulations. These criteria encompass the requirements of ISO/IEC Guide 25 and the relevant requirements of ISO 9002 (ANSI/ASQC Q92-1987) as suppliers of calibration or test results. The Scope of PCTEST Accreditation are for Electromagnetic Compatibility and Telecommunications and FCC. 1.2 PCTEST Location The map at right shows the location of the PCTEST Lab, its proximity to the FCC Lab, the Columbia vicinity area, the Baltimore- Washington International (BWI) airport, and the city of Baltimore, and the Washington, D.C. area. (see Figure1). Figure 1. Map of the Greater Baltimore and Metropol…

Text truncated - open the document above for the full version.

© 1998 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (MPE EVALUATION) LG Information & Communications, Ltd.Dates of Tests: August 10-13, 1998 60-39, Kasan-dong, Keumchun-ku,Test Report S/N: MPE.980803539.FFM Seoul 153-023, KOREATest Site: PCTEST Lab, Columbia MD Attention: Harris Ahn, Principal Engineer Communication Terminal Research Lab FCC ID FFMLSP1000 APPLICANT LG Information & Communications, Ltd. EUT Type:PCS CDMA WLL Phone (Wireless Local Loop) Tx Frequency:1851.25 – 1908.75 MHz Rx Frequency:1931.25 – 1988.75 MHz Max Output Power:0.2 Watts Trade Name/Model(s):LGIC LSP-1000 FCC Classification:Licensed Base Station for Part 24 (PCB) Application Type:Type Acceptance Serial Number:n/a (pre production) FCC Rule Part(s):24.52; ET Docket 96.326 This wireless portable device has been shown to be capable of compliance for localized maximum permissible exposure (MPE) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and was tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and a…

Text truncated - open the document above for the full version.
