FFMLSP200

CDMA Fixed Wireless Telephone User Manual Model: LSP-200 / 201 LGIC CDMA Fixed Wireless Telephone LSP-200 3 REVISED HISTORY DATEISSUECONTENTS OF CHANGESS/W VERSION 1999/06/30ISSUE 1 . Initial Release . Blank Page LGIC CDMA Fixed Wireless Telephone LSP-200 4 CONTENTS Highlights................................................................................................................................7 1. Important Information....................................................................................................8 1.1 Safety Information......................................................................................................8 1.2 Optimal Phone Performance.......................................................................................8 1.3 Care and Service........................................................................................................9 2. Introduction...................................................................................................................10 2.1 Front View of the Telephone.....................................................................................10 2.2 LCD Display..............................................................................................................11 2.3 Installation................................................................................................................12 2.4 Installation Steps......................................................................................................14 3. Basic Operation............................................................................................................15 3.1 Making a Call............................................................................................................15 3.2 Redialing Last Outgoing Number..............................................................................15 3.3 Receiving a Call........................................................................................................16 3.4 Signal Strength.........................................................................................................16 3.5 Missed Call Message................................................................................................16 4. List of Menu State........................................................................................................17 4.1 Select Volume..........................................................................................................17 4.1.1 Ring Volume.....................................................................................................17 4.1.2 Key Volume......................................................................................................18 4.1.3 Ear Volume......................................................................................................18 4.2 Ring Type Selection..................................................................................................18 4.3 Wake-up Time..........................................................................................................19 4.4 Security.....................................................................................................................19 4.4.1 Lock Mode Set..................................................................................................19 4.4.2 Clear Calls.......................................................................................................20 4.4.3 Clear Memory................................................................................................................20 4.4.4 Emergency Call.............................................................................................................20 4.4.5 Changing Lock Code....................................................................................................20 4.5 Convenient Features................................................................................................21 4.5.1 Hot Line.........................................................................................................................21 4.5.2 Hot Line Time................................................................................................................21 4.5.3 Speed Dial(enable/disable)...........................................................................................21 4.6 Additional Feature.....................................................................................................22 4.6.1 Key-tone Length............................................................................................................22 4.6.2 Auto Time-out...............................................................................................................22 4.6.3 3 Minute Alert................................................................................................................22 LGIC CDMA Fixed Wireless Telephone LSP-200 5 5. Features while in a Call...............................................................................................23 5.1 Ear Volume...............................................................................................................23 5.2 MIC Volume..............................................................................................................23 5.3 Mute.........................................................................................................................23 5.4 Memo.......................................................................................................................24 5.5 Transmitting your own number.................................................................................24 6. Searching, Editing & Dialing................................................................................25 6.1 Retrieving Last Call History...................................................................................…

Text truncated - open the document above for the full version.

Communications, Ltd. 73, Hyangjeong-dong, Hungduk-gu Cheongju, 361480, Korea Telephone : 82431-279-1470-2 Fax : 82-431-279-1473 AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the LGIC Handheld Portable Cellular Telephone (FCC ID: FFMLSP200) is so designed that it complies with all the requirements for ESN protection specified in section 22.919 of the FCC Rules. A) The transmitter in service has a unique ESN. B) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynominal and the ESN data programmed in the memory with other information. C) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely yours, D.S.KIM / Quality Enfieering Dept. LG Information & Communications, Ltd.

July 21, 1999 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:LG Information & Communications, Ltd. FCC ID: FFMLSP200 Part 22 Certification Gentlemen: Attached herewith, on behalf of LG Information & Communications, Ltd., is an application for Part 22 certification of the following Cellular CDMA WLL Phone: FCC ID:FFMLSP200 TRADE / MODEL(s):LGIC LSP-200, LSP-201 EUT TYPE:Cellular CDMA WLL Phone Tx Freq. Range:824.64 – 848.37 MHz Rx Freq. Range:869.64 – 893.37 MHz Max. Output Power:0.63 Watts (ERP) Attached is the Letter of Authorization, Confidentiality Request, ESN affidavit, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), schematic diagrams & circuit description (confidential), operational description (confidential), circuit description (confidential), antenna specifications (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Harris Ahn, Principal Engineer Communications Terminal & Research Lab LG Information & Communications, Ltd.

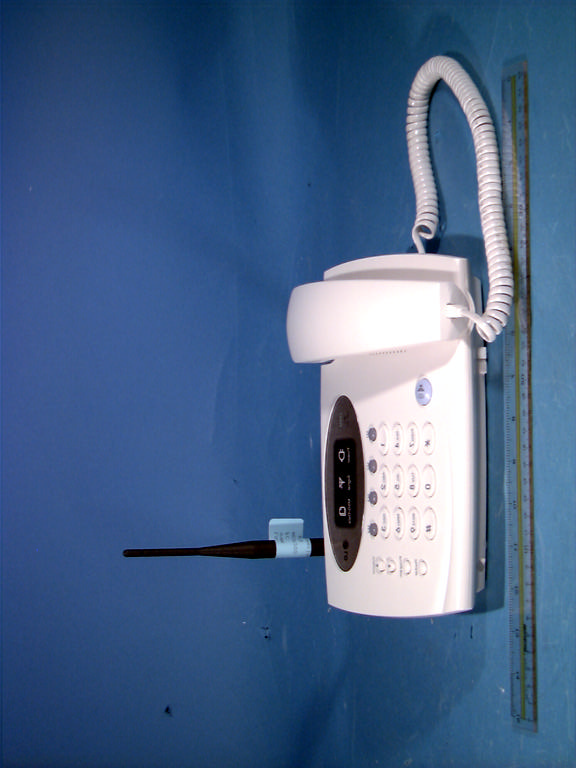

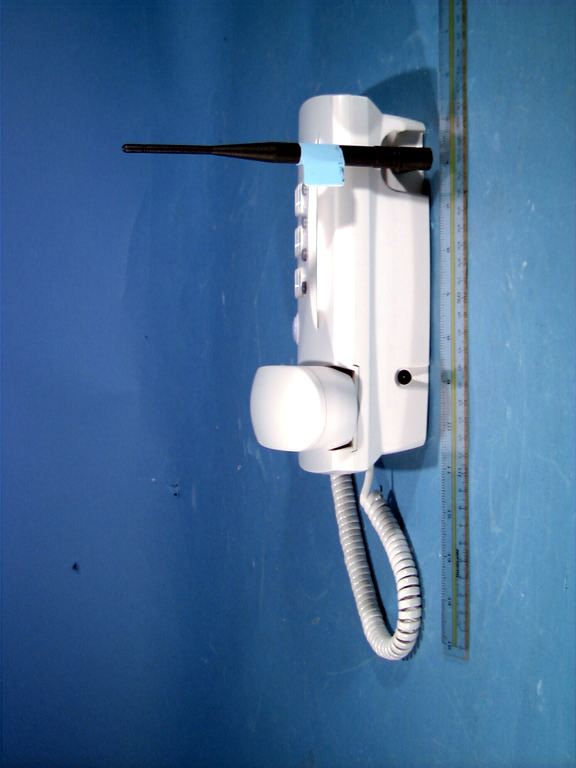

Test Report S/N: 22.990719432.FFMFCC Part 22 Test Date(s): July 19-21, 1999Certification © 1999 PCTEST Lab LGIC FCC ID: FFMLSP200 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Phone Test Report S/N: 22.990719432.FFMFCC Part 22 Test Date(s): July 19-21, 1999Certification © 1999 PCTEST Lab LGIC FCC ID: FFMLSP200 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Phone Test Report S/N: 22.990719432.FFMFCC Part 22 Test Date(s): July 19-21, 1999Certification © 1999 PCTEST Lab LGIC FCC ID: FFMLSP200 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Phone

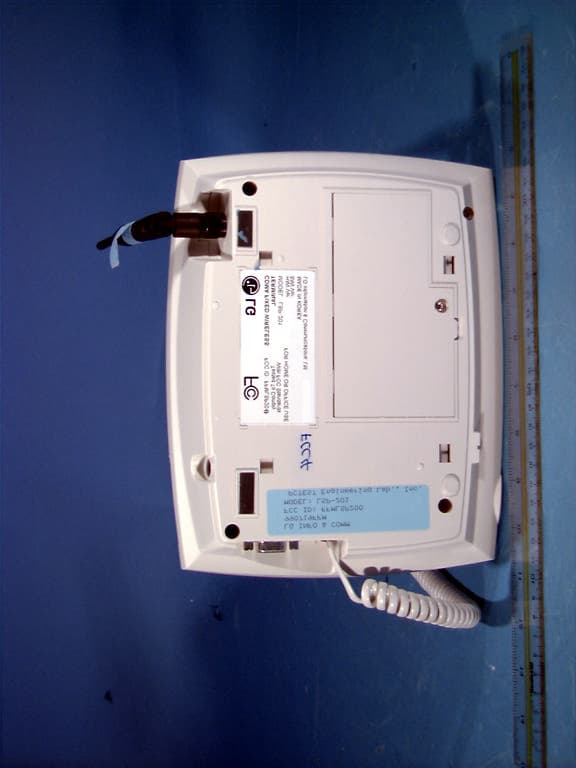

© 1999 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

Test Report S/N: 22.990719432.FFMFCC Part 22 Test Date(s): July 19-21, 1999Certification © 1999 PCTEST Lab LGIC FCC ID: FFMLSP200 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Phone Test Report S/N: 22.990719432.FFMFCC Part 22 Test Date(s): July 19-21, 1999Certification © 1999 PCTEST Lab LGIC FCC ID: FFMLSP200 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Phone Test Report S/N: 22.990719432.FFMFCC Part 22 Test Date(s): July 19-21, 1999Certification © 1999 PCTEST Lab LGIC FCC ID: FFMLSP200 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Phone Test Report S/N: 22.990719432.FFMFCC Part 22 Test Date(s): July 19-21, 1999Certification © 1999 PCTEST Lab LGIC FCC ID: FFMLSP200 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Phone Test Report S/N: 22.990719432.FFMFCC Part 22 Test Date(s): July 19-21, 1999Certification © 1999 PCTEST Lab LGIC FCC ID: FFMLSP200 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Phone Test Report S/N: 22.990719432.FFMFCC Part 22 Test Date(s): July 19-21, 1999Certification © 1999 PCTEST Lab LGIC FCC ID: FFMLSP200 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Phone Test Report S/N: 22.990719432.FFMFCC Part 22 Test Date(s): July 19-21, 1999Certification © 1999 PCTEST Lab LGIC FCC ID: FFMLSP200 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Phone Test Report S/N: 22.990719432.FFMFCC Part 22 Test Date(s): July 19-21, 1999Certification © 1999 PCTEST Lab LGIC FCC ID: FFMLSP200 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Phone Test Report S/N: 22.990719432.FFMFCC Part 22 Test Date(s): July 19-21, 1999Certification © 1999 PCTEST Lab LGIC FCC ID: FFMLSP200 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Phone Test Report S/N: 22.990719432.FFMFCC Part 22 Test Date(s): July 19-21, 1999Certification © 1999 PCTEST Lab LGIC FCC ID: FFMLSP200 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Phone

© 1999 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) LG Information & Communications, Ltd. Dates of Tests: July 19-21, 1999 73, Hyang jeong-dong, Hungduk-guTest Report S/N: SAR.990719433.FFM Cheongiu, 361-726, KOREATest Site: PCTEST Lab, Columbia, MD USA Attn: Mr. Yu-Sung Sim, Associate Research Engineer Quality Engineering Dept. / Research Laboratory FCC ID FFMLSP200 APPLICANT LG Information & Communications, Ltd. EUT Type:Cellular CDMA WLL Phone Tx Frequency:824.64 – 848.37 MHz Rx. Frequency:869.64 – 893.37 MHz Max Output Power:0.63 W ERP Trade Name/Model(s):LGIC LSP-200, LSP-201 FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) Application Type:Certification Serial Number:n/a (pre production) FCC Rule Part(s):2.1093; ET Docket 96.326; 22(H) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) 990719433.FFM SAR Measurement ReportFCC Part 22 Certification © 1999 PCTEST Labi Table of Contents SCOPE 1 INTRODUCTION / SAR DEFINITION 2 SAR MEASUREMENT SET-UP 3 E-FIELD PROBE SYSTEM 4 E-FIELD PROBE CALIBRATION PROCESS 5 DATA EXTRAPOLATION 6 PHANTOM, HOLDER & MUSCLE EQUIVALENT TISSUE 7 SYSTEM SPECIFICATIONS 8 MEASUREMENT PROCESS 9 TEST POSITION OF THE PHONE 10 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 11 MEASUREMENT UNCERTAINTIES 12 TEST DATA SUMMARY 13 SAR TEST EQUIPMENT LIST 14 CONCLUSION 15 REFERENCES 16 APPENDIX A – PROBE CALIBRATION DATA17 APPENDIX B – DIPOLE VALIDATION DATA18 Test Report S/N: SAR.990719433.FFMSAR Measurement Report Test Date(s): July 19-21, 1999FCC Part 22 Certification FCC ID: FFMLSP200 (Tx 824-849 MHz) © 1999 PCTEST LabLGIC Cellular CDMA WLL Phone1 SAR MEASUREMENT REPORT Scope - Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human muscle tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name:LG Information & Communications, Ltd. Address:73, Hyang jeong-dong, Hungduk-gu, Cheongju, 361-726, KOREA Attention:Yu-Sung Sim, Associate Research Engineer Quality Engineering Dept. / Research Laboratory • EUT Type:Cellular CDMA WLL Phone • Trade Name:LGIC • Model(s):LSP-200, LSP-201 • FCC IDENTIFIER:FFMLSP200 • S/N:Pre-production • Tx Frequency:824.64 – 848.37 MHz • Rx Frequency:869.64 – 893.37 MHz • Application Type: Certification • FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) • FCC Rule Part(s):§ 2.1093, Docket 96-326; § 22(H) • Modulation(s):CDMA • Max. Output Power:0.63 W ERP • Antenna Type:Helical (λ/2) • Antenna Dimensions:21.0 cm. (Length) • Date(s) of Tests:July 19-21, 1999 • Place of Tests:PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.990719433.FFM 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.990719433.FFMSAR Measurement Report Test Date(s): July 19-21, 1999FCC Part 22 Certification FCC ID: FFMLSP200 (Tx 824-849 MHz) © 1999 PCTEST LabLGIC Cellular CDMA WLL Phone2 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814.[4] SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential biological hazards. SAR Definition Specific Absorption Rate (SAR) is defined as the time derivative (rate) of the incremental energy (dU) absorbed by (dissipated in) an increme…

Text truncated - open the document above for the full version.

Probe ET3DV5 SN:1368 Manufactured:December 1998 Calibrated:February 1999 Calibrated for System DASY3 Page 1 of 8 ET3DV5 SN:1368 Introduction The performance of all probes is measured before delivery. This includes an assessment of the characteristic parameters, receiving patterns as a function of frequency, frequency response and relative accuracy. Furthermore, each probe is tested in use according to a dosimetric assessment protocol. The sensitivity parameters (NormX, NormY, NormZ), the diode compresion parameter (DCP) and the conversion factor (ConvF) of the probe and some of the measurement diagrams are given in the following. The performance of the individual probes varies slightly due to tolerances arising from the manufacturing process. Since the lines are highly resistive (several MOhms), the offset and noise problem is greatly increased if signals in the low μV range are measured. Accurate measurement below 10 μW/g are possible if the following precautions are taken. 1) check the current grounding with the multimeter 1 , i.e., low noise levels, 2) compensate the current offset 1 , 3) use long integration time (approx. 10 seconds), 4) calibrate 1 before each measurement, 5) persons should avoid moving around the lab while measuring. Since the field distortion caused by the supporting material and the sheath is quite high in the θ direction, the receiving pattern is poor in air. However, the distortion in tissue equivalent material is much less because of its high dielectricity. In addition, the fields induced in the phantoms by dipole structures close to the body are dominently parallel to the surface. Thus, the error due to non-isotropy is much better than 1 dB for dosimetric assessments. The probes are calibrated in the TEM cell ifi 110 although the field distribution in the cell is not very uniform and the frequency response is not very flat. To ensure consistency, a strict protocol is followed. The conversion factor (ConF) between this calibration and the measurement in the tissue simulation solution is performed by comparison with temperature measurements and computer simulations. This conversion factor is only valid for the specified tissue simulating liquids at the specified frequencies. If measurements have to be performed in solutions with other electrical properties or at other frequencies, the conversion factor has to be assessed by the same procedure. As the probes have been constructed with printed resistive lines on ceramic substrates (thick film technique), the probe is very delicate with respect to mechanical shocks. Attention: Do not drop the probe or let the probe collide with any solid object. Never let the robot move without first activating the emergency stop feature (i.e., without first turning the data acquisition electronics on). 1 Feature of the DASY Software Tool. Fig 1: Due to the field distortion caused by the supporting material, the probe has two charac- teristic directions, referred to as angle ψ and θ. Page 2 of 8 ET3DV5 SN:1368 DASY3 - Parameters of Probe: ET3DV5 SN:1368 Sensitivity in Free Space NormX1.35μV/(V/m) 2 NormY1.29μV/(V/m) 2 NormZ1.46μV/(V/m) 2 Diode Compression DCP X78mV DCP Y78mV DCP Z78mV Sensitivity in Tissue Simulating Liquid 450 MHzConvF X6.2extrapolated ε r = 48 ± 5% ConvF Y6.2extrapolated σ =0.50 ± 10%mho/m ConvF Z6.2extrapolated(brain tissue simulating liquid) 900 MHz ConvF X5.8± 10% ε r = 42.5 ± 5% ConvF Y5.8± 10% σ =0.86 ± 10%mho/m ConvF Z5.8± 10%(brain tissue simulating liquid) 1500 MHz ConvF X5.2interpolated ε r = 41 ± 5% ConvF Y5.2interpolated σ =1.32 ± 10%mho/m ConvF Z5.2interpolated(brain tissue simulating liquid) 1800 MHz ConvF X4.9± 10% ε r = 41 ± 5% ConvF Y4.9± 10% σ =1.69 ± 10%mho/m ConvF Z4.9± 10%(brain tissue simulating liquid) Sensor Offset Probe Tip to Sensor Center2.7mm Surface to Probe Tip1.7 ± 0.2mm 1 Feature of the DASY Software Tool. Page 3 of 8 ET3DV5 SN:1368 Receiving Pattern (φ), θ = 0° f = 30 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 100 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 300 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 900 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 4 of 8 ET3DV5 SN:1368 Isotropy Error (φ), θ = 0° -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 30 MHz 100 MHz 300 MHz 900 MHz 1800 MHz 2500 MHz f = 1800 MHz, WG R22 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 2500 MHz, WG R26 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 5 of 8 ET3DV5 SN:1368 Frequency Response of E-Field ( TEM-Cell:ifi110, Waveguide R22, R26 ) 0.50 0.60 0.70 0.80 0.90 1.00 1.10 1.20 1.30 1.40 1.50 050010001500200025003000 f [MHz] frequency response TEMR22R26 Page 6 of 8 ET3DV5 SN:1368 Dynamic Range f(SAR brain ) ( TEM-Cell:ifi110 ) 1.E+0 1.E+1 1.E+2 1.E+3 1.E+4 1.E+5 1.E+6 1.E+7 0.00010.0010.010.11.10.100. mW/cm 3 μ V not compensatedcompensated -3 -2 -1 0 1 0.00010.0010.010.1110100 mW/cm 3 errror[dB] not compensated diode characteristic compensated relative accuracy Page 7 of 8 ET3DV5 SN:1368 Conversion Factor Assessment Receiving Pattern (φ) ( in brain tissue, z = 5 mm ) -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 900 MHz1800 MHz f = 900 MHz, WG R9 0.00 0.05 0.10 0.15 0.20 0.25 0.30 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets f = 1800 MHz, WG R22 …

Text truncated - open the document above for the full version.

Validation Dipole D835V2 SN:406, d = 15mmFrequency: 835 MHz; Antenna Input Power: 250 [mW]Generic Twin Phantom; Flat Section; Grid Spacing: Dx = 20.0, Dy = 20.0, Dz = 10.0Probe: ET3DV5 - SN1342/DAE3; ConvF(5.75,5.75,5.75); Brain 835 MHz: σ = 0.79 mho/m ε r = 41.9 ρ = 1.00 g/cm 3 Cubes (2): Peak: 3.17 mW/g ± 0.03 dB, SAR (1g): 2.11 mW/g ± 0.03 dB, SAR (10g): 1.41 mW/g ± 0.04 dB, (Worst-case extrapol ation) Penetration depth: 13.4 (12.3, 14.9) [mm]Powerdrift: -0.01 dB SAR Tot [mW/g] 2.50E-15.00E-17.50E-11.00E+01.25E+01.50E+01.75E+02.00E+02.25E+02.50E+0 Validation SN406, 07/21/99Schmid & Partner Engineering AG, Zürich Switzerland EUT 835 MHz Dipole Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1368 835MHz: σ = 0.78 mho/m ε r = 43.4 ρ = 1.00 g/cm 3 Antenna Position Out Crest Factor 1.0 SAR (1g): 2.06 mW/g SAR Tot [mW/g] 2.14E-1 1.07E+0 1.93E+0 PCTEST ENGINEERING LAB INC.

EUT LSP-200 Generic Twin Phantom; Section; Probe: ET3DV5 - SN1368 Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 File #746 Antenna Position Crest Factor 1.0 SAR (1g): 0.914 mW/g LSP-200 CDMA Wireless Local Loop Channel 1011 CDMA Mode Conducted Power - 26.0dBm Cable loss - 0.7dBm SAR Tot [mW/g] 8.53E-2 6.82E-1 PCTEST ENGINEERING LAB INC. EUT LSP-200 Generic Twin Phantom; Section; Probe: ET3DV5 - SN1368 Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 File #747 Antenna Position Crest Factor 1.0 SAR (1g): 1.20 mW/g LSP-200 CDMA Wireless Local Loop Channel 363 CDMA Mode Conducted Power - 26.0dBm Cable loss - 0.7dBm SAR Tot [mW/g] 1.22E-1 9.76E-1 PCTEST ENGINEERING LAB INC. EUT LSP-200 Generic Twin Phantom; Section; Probe: ET3DV5 - SN1368 Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 File #748 Antenna Position Crest Factor 1.0 SAR (1g): 0.941 mW/g LSP-200 CDMA Wireless Local Loop Channel 779 CDMA Mode Conducted Power - 26.0dBm Cable loss - 0.7dBm SAR Tot [mW/g] 9.77E-2 7.82E-1 PCTEST ENGINEERING LAB INC.

Test Report S/N: SAR.990719433.FFMSAR Measurement Report Measurement Report Test Date(s): July 19-21, 1999FCC Part 22 Certification © 1999 PCTEST LGIC FCC ID: FFMLSP200 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Phone Test Report S/N: SAR.990719433.FFMSAR Measurement Report Measurement Report Test Date(s): July 19-21, 1999FCC Part 22 Certification © 1999 PCTEST LGIC FCC ID: FFMLSP200 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Phone Test Report S/N: SAR.990719433.FFMSAR Measurement Report Measurement Report Test Date(s): July 19-21, 1999FCC Part 22 Certification © 1999 PCTEST LGIC FCC ID: FFMLSP200 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Phone Test Report S/N: SAR.990719433.FFMSAR Measurement Report Measurement Report Test Date(s): July 19-21, 1999FCC Part 22 Certification © 1999 PCTEST LGIC FCC ID: FFMLSP200 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Phone

Test Report S/N: SAR.990719433.FFMSAR Measurement Report Test Date(s): July 19-21, 1999FCC Part 22 Certification FCC ID: FFMLSP200 (Tx 824-849 MHz) © 1999 PCTEST LabLGIC Cellular CDMA WLL Phone13 TEST DATA SUMMARY Ambient TEMPERATURE (°C) 24.0 Relative HUMIDITY (%) 78.0 Atmospheric PRESSURE (kPa) 100.0 Mixture Type: Muscle Dielectric Constant: 56.2 Conductivity: 0.95 S/m Closest Distance (between Phantom Surface & Phone Antenna): 2.0 cm Measurement Results FREQUENCYModulationPOWERSAR MHzCh.(W) (W/kg) 824.641011CDMA0.40.914 835.89363CDMA0.41.200 848.37779CDMA0.40.941 ANSI / IEEE C95.1 1992 - SAFETY LIMIT Spatial Peak (Muscle) Uncontrolled Exposure/General Population 1.6 W/kg (mW/g) NOTES: 1. The test data reported are the worst-case SAR values with the antenna-phantom position set in a typical configuration. All modes of operation were investigated and the worst-case are reported. 2. Battery condition is fully charged for all readings. 3.Power Measured:xConducted o ERP o EIRP PCTEST SEAL

© 1999 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification LG Information & Communications, Ltd.Dates of Tests: July 19-21, 1999 73, Hyang jeoung-dong, Hungduk-guTest Report S/N: 22.990719432.FFM Cheongiu, 361-726, KOREATest Site: PCTEST Lab, Columbia MD U.S.A. Attention: Mr. Yu-Sung, Sim, Associate Research Engineer Quality Engineering Dept. / Research Laboratory FCC ID FFMLSP200 APPLICANT LG Information & Communications, Ltd. Classification:Non-Broadcast Station Transmitter (TNB) FCC Rule Part(s):§§§§22(H), 2 EUT Type:Cellular CDMA WLL Phone Trade Name/Model(s):LGIC LSP-200, LSP-201 Tx Frequency Range:824.64 ~ 848.37 MHz Rx Frequency Range:869.64 ~ 893.37 MHz Max Output Power:0.63 W (ERP) Frequency Tolerance:0.00025% (2.5 ppm) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947 with the following remarks (Note Codes): * (BC) The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) 990719432.FFM FCC Part 22Certification © 1999 PCTEST Engineering Laboratory, Inc.FCC Part 22 TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT SCOPE 1 INTRODUCTION 2 DESCRIPTION OF TESTS 3-6 EFFECTIVE RADIATED POWER OUTPUT 7 RADIATED MEASUREMENTS 8-10 FREQUENCY STABILITY 11-12 PLOTS OF EMISSIONS 13 LIST OF TEST EQUIPMENT 14 SAMPLE CALCULATIONS 15 RECOMMENDATION / CONCLUSION 16 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT L:OPERATIONAL DESCRIPTION ATTACHMENT M:USER’S MANUAL ATTACHMENT N:SAR TEST REPORT ATTACHMENT O: SAR TEST PLOTS ATTACHMENT P:SAR TEST SETUP PHOTOGRAPHS Test Report S/N: 22.990719432.FFMFCC Part 22 Test Dates: July 19-21, 1999Certification © 1999 PCTEST LabLGIC FCC ID: FFMLSP200 (Tx 824-849MHz)1 Cellular CDMA WLL Phone (Models: LSP-200, LSP-201) MEASUREMENT REPORT Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for complianc…

Text truncated - open the document above for the full version.
