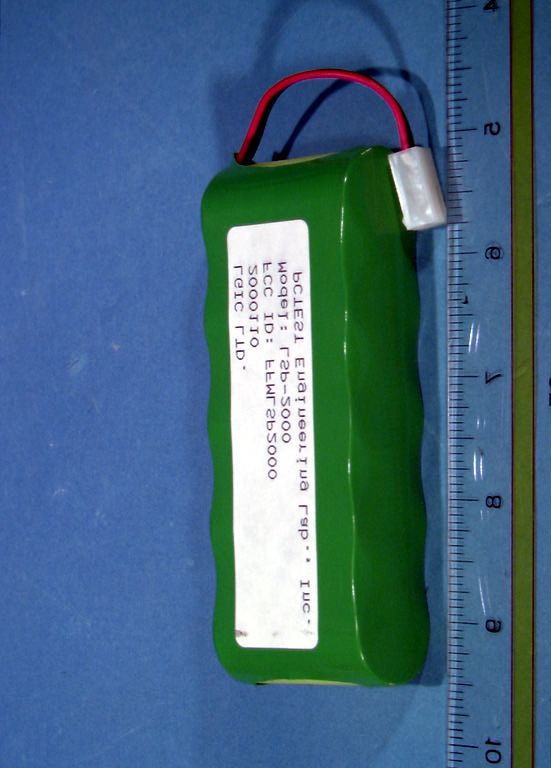

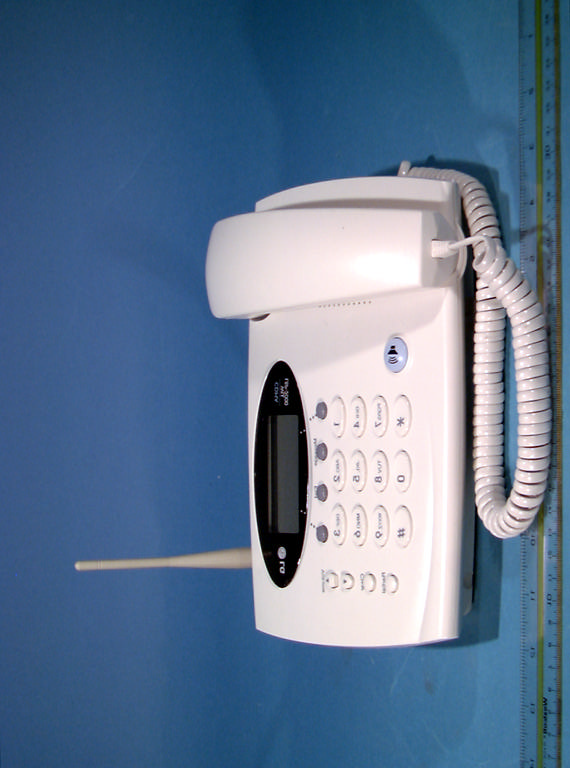

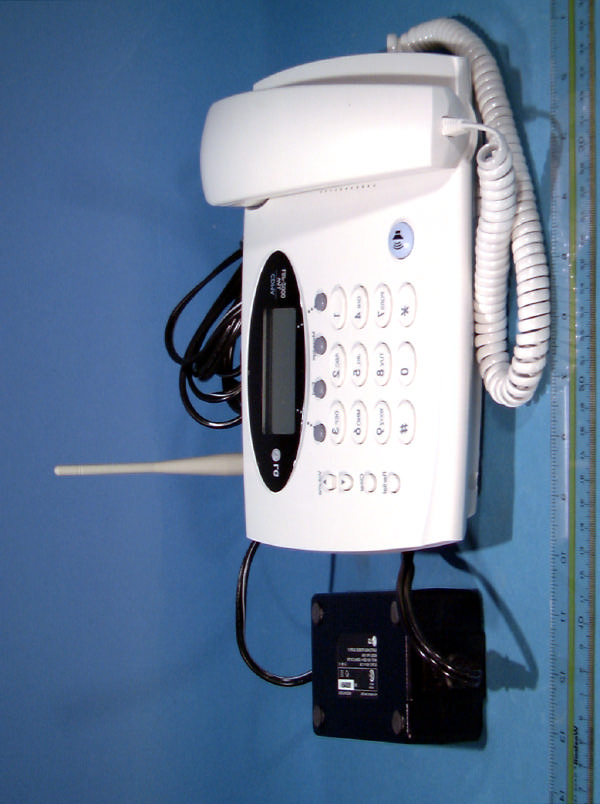

FFMLSP2000PCS CDMA WLL Telephone

CDMA Fixed Wireless Telephone User Manual Model: LSP-2000 i FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. To comply with FCC RF exposure requirements, a minimum separation distance of 2 cm (0.8 inches) must be maintained between the user/bystander and the back of the phone, including the antenna. For more information about RF exposure, please visit the FCC website at www.fcc.gov WARNING! Read this information before using your phone LGIC CDMA Fixed Wireless Telephone LSP- 2000 2 REVISED HISTORY DATE ISSUE CONTENTS OF CHANGES REMARK 1999/07 ISSUE 1 Initial Release Blank Page LGIC CDMA Fixed Wireless Telephone LSP- 2000 3 CONTENTS Highlights .........................................................................................................................................5 1. Important Information ...........................................................................................................6 1.1 Safety Information............................................................................................................6 1.2 Optimal Phone Performance...........................................................................................6 1.3 Care and Service..............................................................................................................7 2. Introduction ............................................................................................................................ 8 2.1 Front View of the Telephone............................................................................................8 2.2 LCD Display......................................................................................................................9 2.3 Installation.......................................................................................................................10 2.4 Installation Steps............................................................................................................12 3. Basic Operation....................................................................................................................13 3.1 Making a Call..................................................................................................................13 3.2 Redialing Last Outgoing Number..................................................................................13 3.3 Receiving a Call..............................................................................................................14 3.4 Signal Strength...............................................................................................................14 3.5 Missed Call Message.....................................................................................................14 4. List of Menu State................................................................................................................15 4.1 Select Volume................................................................................................................15 4.1.1 Ring Volume.......................................................................................................15 4.1.2 Key Volume........................................................................................................16 4.1.3 Ear Volume.........................................................................................................16 4.2 Ring Type Selection.......................................................................................................16 4.3 Wake-up Time................................................................................................................16 4.4 Security...........................................................................................................................17 4.4.1 Lock Mode Set....................................................................................................17 4.4.2 Clear Calls..........................................................................................................17 4.4.3 Clear Memory.....................................................................................................18 4.4.4 Emergency Call..................................................................................................18 4.4.5 Changing Lock Code.........................................................................................18 4.5 Convenient Features......................................................................................................18 4.5.1 Hot Line..............................................................................................................18 4.5.2 Hot Line Time.....................................................................................................19 4.5.3 Speed Dial(enable/disable)...............................................................................19 LGIC CDMA Fixed Wireless Telephone LSP- 2000 4 4.6 Additional Feature..........................................................................................................19 4.6.1 Key-tone Length.................................................................................................19 4.6.2 Auto Time-out.....................................................................................................20 4.6.3 3 Minute Alert.....................................................................................................20 5. Function while in a Call.................................................................…

Text truncated - open the document above for the full version.

January 02, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG Information & Communications, Ltd. FCC ID: FFMLSP2000 Part 24 Certification Gentlemen: Attached herewith, on behalf of LG Information & Communications, Ltd. is an application for Part 24 Certification of the following: FCC ID: FFMLSP2000 TRADE / MODEL(s): LGIC LSP-2000, LSP-2001 Equipment Class: Licensed Base Station for Part 24 (PCB) Equipment Type: PCS CDMA WLL Phone Tx Freq. Range: 1851.25 – 1908.75 MHz Rx Freq. Range: 1931.25 – 1988.75 MHz Max. RF Output Power: 0.32 W EIRP (25.05 dBm) Attached is the Letter of Authorization, Confidentiality Request, measurement report data and plots, RF Exposure measurement report & photographs, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams & description (confidential), operational description (confidential), parts list & tune- up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Yu-Sung, Sim, Approvals Engineer Quality Engineering Dept, / Research Laboratory

Test Report S/N: 24.200110019.FFMFCC Part 24 Test Date(s): January 10-13, 2000Certification © 2000 PCTEST Lab FCC ID: FFMLSP2000NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: 24.200110019.FFMFCC Part 24 Test Date(s): January 10-13, 2000Certification © 2000 PCTEST Lab FCC ID: FFMLSP2000NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: 24.200110019.FFMFCC Part 24 Test Date(s): January 10-13, 2000Certification © 2000 PCTEST Lab FCC ID: FFMLSP2000NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: 24.200110019.FFMFCC Part 24 Test Date(s): January 10-13, 2000Certification © 2000 PCTEST Lab FCC ID: FFMLSP2000NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: 24.200110019.FFMFCC Part 24 Test Date(s): January 10-13, 2000Certification © 2000 PCTEST Lab FCC ID: FFMLSP2000NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: 24.200110019.FFMFCC Part 24 Test Date(s): January 10-13, 2000Certification © 2000 PCTEST Lab FCC ID: FFMLSP2000NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd.

© 2000 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) LGIC CDMA Fixed Wireless Telephone LSP-2000 / 2001 Technical Manual

Test Report S/N: 24.200110019.FFMFCC Part 24 Test Date(s): January 10-13, 2000Certification © 2000 PCTEST Lab FCC ID: FFMLSP2000NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: 24.200110019.FFMFCC Part 24 Test Date(s): January 10-13, 2000Certification © 2000 PCTEST Lab FCC ID: FFMLSP2000NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: 24.200110019.FFMFCC Part 24 Test Date(s): January 10-13, 2000Certification © 2000 PCTEST Lab FCC ID: FFMLSP2000NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: 24.200110019.FFMFCC Part 24 Test Date(s): January 10-13, 2000Certification © 2000 PCTEST Lab FCC ID: FFMLSP2000NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: 24.200110019.FFMFCC Part 24 Test Date(s): January 10-13, 2000Certification © 2000 PCTEST Lab FCC ID: FFMLSP2000NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: 24.200110019.FFMFCC Part 24 Test Date(s): January 10-13, 2000Certification © 2000 PCTEST Lab FCC ID: FFMLSP2000NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: 24.200110019.FFMFCC Part 24 Test Date(s): January 10-13, 2000Certification © 2000 PCTEST Lab FCC ID: FFMLSP2000NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: 24.200110019.FFMFCC Part 24 Test Date(s): January 10-13, 2000Certification © 2000 PCTEST Lab FCC ID: FFMLSP2000NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: 24.200110019.FFMFCC Part 24 Test Date(s): January 10-13, 2000Certification © 2000 PCTEST Lab FCC ID: FFMLSP2000NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: 24.200110019.FFMFCC Part 24 Test Date(s): January 10-13, 2000Certification © 2000 PCTEST Lab FCC ID: FFMLSP2000NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: 24.200110019.FFMFCC Part 24 Test Date(s): January 10-13, 2000Certification © 2000 PCTEST Lab FCC ID: FFMLSP2000NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: 24.200110019.FFMFCC Part 24 Test Date(s): January 10-13, 2000Certification © 2000 PCTEST Lab FCC ID: FFMLSP2000NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: 24.200110019.FFMFCC Part 24 Test Date(s): January 10-13, 2000Certification © 2000 PCTEST Lab FCC ID: FFMLSP2000NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd.

© 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) LG Information & Communications, Ltd.Dates of Tests: January 10-13, 2000 LG Kangeo B/D 36, Munlae-Dong, 6-Ga,Test Report S/N: SAR.200110020.FFM Youngdungpo-Gu, Seoul, 150-096, KoreaTest Site: PCTEST Lab, Columbia MD U.S.A. Attention: Mr. Yu-Sung, Sim, Approvals Engineer Quality Engineering Dept. / Research Laboratory FCC ID FFMLSP2000 APPLICANT LG INFORMATION & COMMUNICATIONS, LTD. EUT Type:PCS CDMA WLL Phone Tx Frequency:1851.25 – 1908.75 MHz Rx Frequency:1931.25 – 1988.75 MHz Max. RF Output Power:0.32 W EIRP (25.05 dBm) Trade Name/Model:LGIC LSP-2000, LSP-2001 FCC Classification:Licensed Base Station for Part 24 (PCB) Application Type:Certification Serial Number:n/a (pre-production) FCC Rule Part(s):2.1093; ET Docket 96.326 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). 200110020.FFM SAR Measurement ReportFCC Part 24 Certification © 2000 PCTEST Labi Table of Contents 1.1 SCOPE1 2.1 INTRODUCTION / SAR DEFINITION2 3.1 SAR MEASUREMENT SET-UP3 4.1 E-FIELD PROBE SYSTEM4 5.1 E-FIELD PROBE CALIBRATION PROCESS5-6 6.1 PHANTOM & EQUIVALENT TISSUE7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS9 9.1 EUT TEST POSITION10 10.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS11 11.1 MEASUREMENT UNCERTAINTIES12 12.1 SAR TEST DATA SUMMARY13 13.1 SAR TEST EQUIPMENT LIST14 14.1 CONCLUSION / REFERENCES15 Test Report S/N: SAR.200110020.FFMSAR Measurement Report Test Dates: January 10-13, 2000FCC Part 24 Certification LGIC FCC ID: FFMLSP2000 (Tx 1851.25 – 1908.75 MHz) © 2000 PCTEST LabPCS CDMA WLL Phone (Models: LSP-2000, LSP-2001)1 SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant Name:LG Information & Communications, Ltd. Address:LG Kangeo B/D 36, Munlae-Dong, 6-Ga Youngdungpo-Gu, Seoul, 150-096, Korea Attention:Yu-Sung Sim, Approvals Engineer Quality Engineering Dept. / Research Laboratory • EUT Type:PCS CDMA WLL Phone • FCC IDENTIFIER:FFMLSP2000 • Trade Name:LGIC • Model:LSP-2000, LSP-2001 • S/N:Pre-production • Tx Frequency Range:1851.25 – 1908.75 MHz • Rx Frequency Range:1931.25 – 1988.75 MHz • Application Type: Certification • FCC Classification:Licensed Base Station for Part 24 (PCE) • FCC Rule Part(s):§ 2.1093, Docket 96-326 • Max. RF Output Power:0.32 W EIRP ( 25.05 dBm) • Modulation:CDMA • Antenna Type:Sleeve Dipole (λ/2) • Antenna Dimensions:8.25 cm. (Length) • Dates of Tests:January 10-13, 2000 • Place of Tests:PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.200110020.FFM 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Figure 1. SAR Test Set-up Test Report S/N: SAR.200110020.FFMSAR Measurement Report Test Dates: January 10-13, 2000FCC Part 24 Certification LGIC FCC ID: FFMLSP2000 (Tx 1851.25 – 1908.75 MHz) © 2000 PCTEST LabPCS CDMA WLL Phone (Models: LSP-2000, LSP-2001)2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814.[4] SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential biological hazards. 2.2 SAR Definition Specific Absorption Rate (SAR) is defined as the time derivative (rate) of the i…

Text truncated - open the document above for the full version.

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00011016_ZOOM.VLT Start : 10-Jan-100 05:28:35 pm End : 10-Jan-100 05:40:57 pm Radio Type : LGIC LSP-2000/2001 FCC ID : FFMLSP2000 Serial Number : 01 Frequency : 1851.25 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Dipole Antenna Posn. : Out Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 54.200 Mixture Conductivity = 1.850 Comment : CDMA MODE PHONE CHAN. 0025 BODY 2.0 CM SPACING SINGLE BAND 23 dB CONDUCTED Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.380 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225 Max Location : X = 0.250, Y = 0.250, Z = 0.000 (cm) Value = 12.032 Measured Values (volts) = 1.172E-002 9.306E-003 6.353E-003 4.740E-003 3.740E-003 2.928E-003 2.268E-003 1.651E-003 1.458E-003 8.922E-004 8.042E-004 6.869E-004 5.272E-004 4.373E-004 5.016E-004 3.159E-004 2.085E-004 2.051E-004 1.662E-004 1.456E-004 1.383E-004 Calc. Voltage @ Surface (Vs) = 0.0160 Voltage @ 1.00 cm (Vt) = 0.0047 Ave. Voltage (Vs+Vt)/2 = 0.0104 Ave. SAR over 1 g (mW/g) = 1.3228 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 mW/g -1012345 Z centimeters SAR Scan File : 00011016_ZOOM Start : 10-Jan-100 05:28:35 pm End : 10-Jan-100 05:40:57 pm LGIC/FFMLSP2000/01;1851.25MHz;W;Dipole/Out; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/54.200/1.850 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00011012_ZOOM.VLT Start : 10-Jan-100 04:09:55 pm End : 10-Jan-100 04:22:17 pm Radio Type : LGIC LSP-2000/2001 FCC ID : FFMLSP2000 Serial Number : 01 Frequency : 1880 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Dipole Antenna Posn. : Out Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 54.200 Mixture Conductivity = 1.850 Comment : CDMA MODE PHONE CHAN. 600 BODY 2 CM SPACING SINGLE BAND 23 dB CONDUCTED Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.380 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225 Max Location : X = -0.250, Y = -0.250, Z = 0.000 (cm) Value = 12.966 Measured Values (volts) = 1.262E-002 9.859E-003 6.893E-003 4.936E-003 3.973E-003 3.012E-003 2.338E-003 1.784E-003 1.346E-003 1.027E-003 8.473E-004 7.009E-004 4.816E-004 3.786E-004 3.575E-004 4.346E-004 2.171E-004 1.849E-004 1.868E-004 1.862E-004 1.445E-004 Calc. Voltage @ Surface (Vs) = 0.0171 Voltage @ 1.00 cm (Vt) = 0.0049 Ave. Voltage (Vs+Vt)/2 = 0.0110 Ave. SAR over 1 g (mW/g) = 1.4083 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 mW/g -1012345 Z centimeters SAR Scan File : 00011012_ZOOM Start : 10-Jan-100 04:09:55 pm End : 10-Jan-100 04:22:17 pm LGIC/FFMLSP2000/01;1880MHz;W;Dipole/Out; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/54.200/1.850 File : 00011012_ZOOM Start : 10-Jan-100 04:09:55 pm End : 10-Jan-100 04:22:17 pm LGIC/FFMLSP2000/01;1880MHz;W;Dipole/Out; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/54.200/1.850 1.66 1.54 1.42 1.30 1.18 1.06 0.94 0.81 0.69 0.57 File : 00011012_ZOOM Start : 10-Jan-100 04:09:55 pm End : 10-Jan-100 04:22:17 pm LGIC/FFMLSP2000/01;1880MHz;W;Dipole/Out; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/54.200/1.850 1.66 1.54 1.42 1.30 1.18 1.06 0.94 0.81 0.69 0.57 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00011017_ZOOM.VLT Start : 10-Jan-100 05:47:14 pm End : 10-Jan-100 05:54:58 pm Radio Type : LGIC LSP-2000/2001 FCC ID : FFMLSP2000 Serial Number : 01 Frequency : 1908.75 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Dipole Antenna Posn. : Out Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 54.200 Mixture Conductivity = 1.850 Comment : CDMA MODE PHONE CHAN. 1175 BODY 2.0 CM SPACING SINGLE BAND 23 dB CONDUCTED Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.380 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225 Max Location : X = 0.250, Y = 0.250, Z = 0.000 (cm) Value = 12.369 Measured Values (volts) = 1.189E-002 9.363E-003 6.510E-003 4.818E-003 3.816E-003 2.976E-003 2.268E-003 1.774E-003 1.404E-003 1.107E-003 8.554E-004 7.164E-004 5.724E-004 4.885E-004 3.752E-004 3.291E-004 2.569E-004 2.504E-004 1.998E-004 2.774E-004 1.801E-004 Calc. Voltage @ Surface (Vs) = 0.0161 Voltage @ 1.00 cm (Vt) = 0.0048 Ave. Voltage (Vs+Vt)/2 = 0.0105 Ave. SAR over 1 g (mW/g) = 1.3366 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 mW/g -1012345 Z centimeters SAR Scan File : 00011017_ZOOM Start : 10-Jan-100 05:47:14 pm End : 10-Jan-100 05:54:58 pm LGIC/FFMLSP2000/01;1908.75MHz;W;Dipole/Out; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/54.200/1.850

Test Report S/N: 24.200110019.FFMFCC Part 24 Test Date(s): January 10-13, 2000Certification © 2000 PCTEST Lab FCC ID: FFMLSP2000 NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: SAR.200110020.FFMSAR Measurement Report Test Date(s): January 10-13, 2000FCC Part 24 Certification © 2000 PCTEST Lab FCC ID: FFMLSP2000 NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: SAR.200110020.FFMSAR Measurement Report Test Date(s): January 10-13, 2000FCC Part 24 Certification © 2000 PCTEST Lab FCC ID: FFMLSP2000 NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: SAR.200110020.FFMSAR Measurement Report Test Date(s): January 10-13, 2000FCC Part 24 Certification © 2000 PCTEST Lab FCC ID: FFMLSP2000 NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd. Test Report S/N: SAR.200110020.FFMSAR Measurement Report Test Date(s): January 10-13, 2000FCC Part 24 Certification © 2000 PCTEST Lab FCC ID: FFMLSP2000 NVLAP Lab Code: 100431-0 LG Information & Communications, Ltd.

i FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. To comply with FCC RF exposure requirements, a minimum separation distance of 2 cm (0.8 inches) must be maintained between the user/bystander and the back of the phone, including the antenna. For more information about RF exposure, please visit the FCC website at www.fcc.gov WARNING! Read this information before using your phone

© 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 Certification LG Information & Communications, Ltd.Dates of Tests: January 10-13, 2000 LG Kangseo B/D 36, Munlae-Dong, 6-GaTest Report S/N: 24.200110019.FFM Youngdungpo-Gu, Seoul, 150-096, KoreaTest Site: PCTEST Lab, Columbia MD U.S.A. Attention: Mr. Yu-Sung, Sim, Approvals Engineer Quality Engineering Dept. / Research Laboratory FCC ID FFMLSP2000 APPLICANT LG Information & Communications, Ltd. Classification:Licensed Base Station for Part 24 (PCB) FCC Rule Part(s):§24(E), §2 EUT Type:PCS CDMA WLL Phone Trade Name/Model(s):LGIC LSP-2000, LSP-2001 Tx Frequency Range:1851.25 ~ 1908.75 MHz Rx Frequency Range:1931.25 ~ 1988.75 MHz Max. RF Output Power:0.32 W EIRP (25.05 dBm) Frequency Tolerance:0.00025% (2.5 ppm) Emission Designator:1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947 with the following remarks (Note Codes): * (BC) The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). 200110019.FFM Certification © 2000PCTEST Engineering Laboratory, Inc.FCC Part 24 TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 1 2.1 INTRODUCTION (SITE DESCRIPTION) 2 3.1 INSERTS PER §2.1033 3 4.1 DESCRIPTION OF TESTS 4-5 5.1 TEST DATA (Equivalent Isotropic Radiated Power) 6 6.1 TEST DATA (RADIATED) 7-9 7.1 TEST DATA (FREQUENCY STABILITY) 10-11 8.1 PLOTS OF EMISSIONS 12 9.1 LIST OF TEST EQUIPMENT 13 10.1 SAMPLE CALCULATIONS 14 11.1 CONCLUSION 15 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL & LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT L:OPERATIONAL DESCRIPTION ATTACHMENT M:USER’S MANUAL ATTACHMENT N:SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P:SAR TEST SETUP PHOTOGRAPHS Test Report S/N: 24.200110019.FFMFCC Part 24 Test Dates: January 10-13, 2000Certification © 2000 PCTEST LabLGIC FCC ID: FFMLSP2000 (Tx 1851.25-1908.75 MHz)1 PCS CDMA WLL Phone (Models: LSP-2000, LSP-2001) MEASUREMENT REPORT 1.1 Scope Product Evaluation and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033(d) General Information Applicant Name:LG Information & Communications, Ltd. Address:LG Kangseo B/D 36, Munlae-Dong, 6-Ga Youngdungpo-Gu, Seoul, 150-096, Korea Attention:Yu-Sung Sim, Approvals Engineer Quality Engineering Dept. / Research Laboratory • FCC ID:FFMLSP2000 • Trade Name:LGIC • Model(s):LSP-2000, LSP-2001 • Quantity:Quantity production is planned • Emission Designator:1M25F9W • Tx Freq. Range:1851.25 – 1908.75 MHz Rx Freq. Range:1931.25 – 1988.75 MHz • Equipment Class:Licensed Base Station for Part 24 (PCB) • Equipment Type:PCS CDMA WLL Phone • Modulation:CDMA • Frequency Tolerance:± 0.00025% (2.5 ppm) • Max. RF Output Power:0.32 W EIRP (25.05 dBm) • FCC Rule Part(s):§24(E), §2 • AC/DC Charger:120 VAC LG Model: PPS-100A (LSP-2000) 120 VAC LG Model: BPA-9.6W (LSP-2001) • Battery Pack:6.0 VDC NiCD 1700 mAh • Dates of Tests:January 10-13, 2000 • Place of Tests:PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N:24.200110019.FFM Test Report S/N: 24.200110019.FFMFCC Part 24 Test Dates: January 10-13, 2000Certification © 2000 PCTEST LabLGIC FCC ID: FFMLSP2000 (Tx 1851.25-1908.75 MHz)2 PCS CDMA WLL Phone (Models: LSP-2000, LSP-2001) 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. PCTEST Lab is recognized under the National Voluntary Laboratory Accreditation Program for satisfactory compliance with criteria established in Title 15, Part 285 Code of Federal Regulations. These criteria encompass the requirements of ISO/IEC Guide 25 and the relevant requirements of ISO 9002 (ANSI/ASQC Q92-1987) as suppliers of calibration or test results. The Scope of PCTEST Accreditation are for Electromagnetic Compatibility and Telecommunications and FCC. 2.2 PCTEST Location The map at right shows the location of the PCTEST Lab, its proximity to the FCC Lab, the Columbia vicinity area, the Baltimore- Washington…
