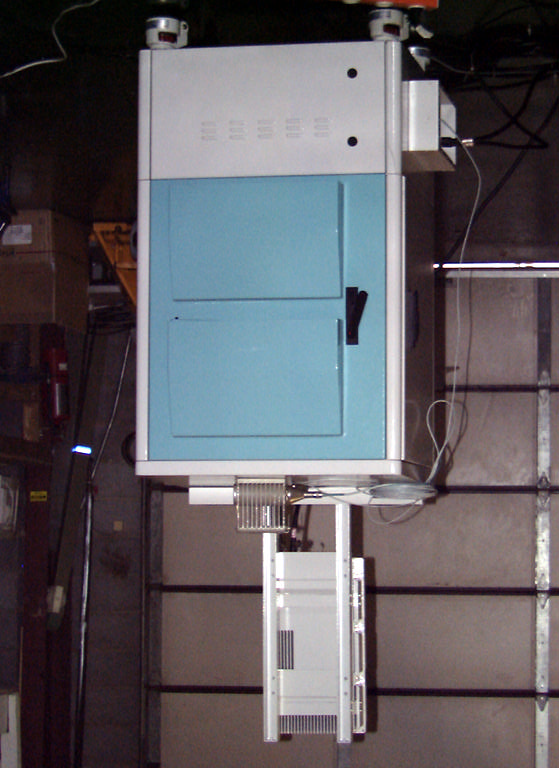

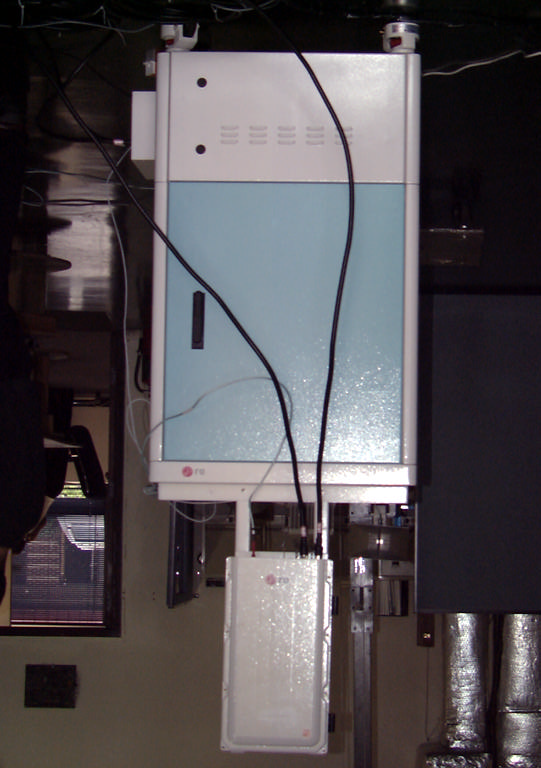

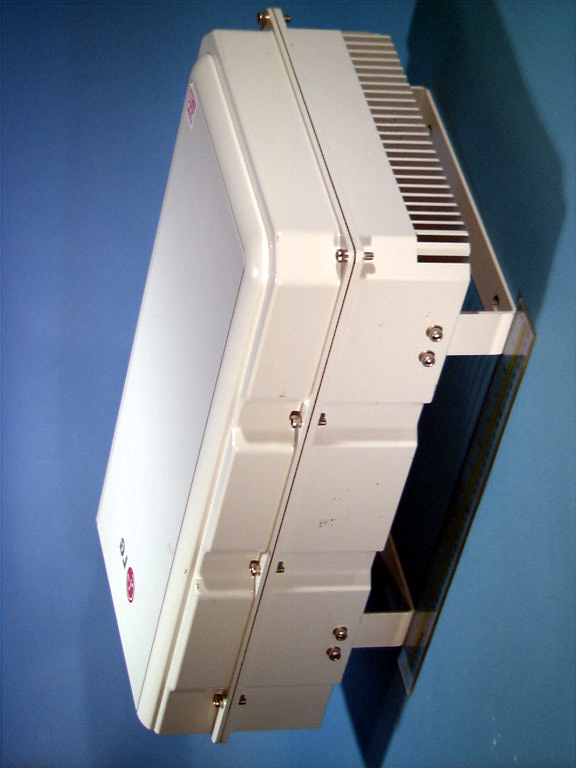

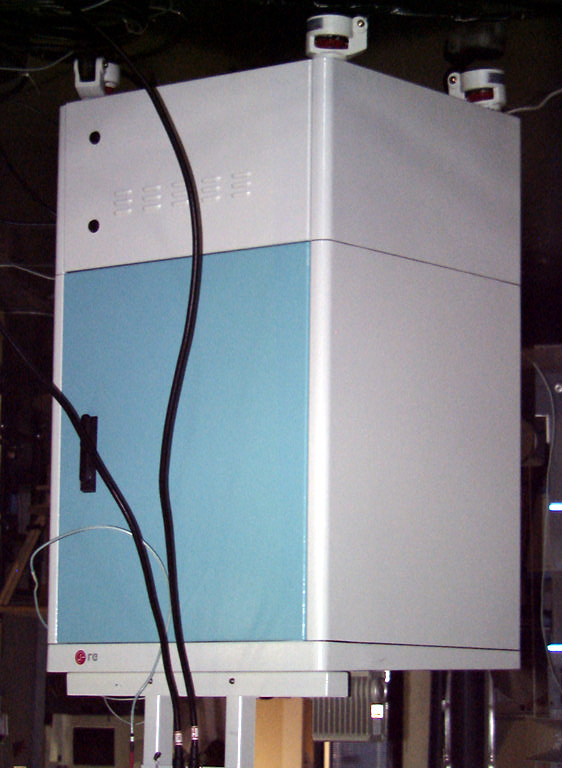

FFMMICRO-BBTSMicro-BTS Base Station Transceiver Subsystem

November 12, 1999 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:LG Information & Communications, Ltd. FCC ID: FFMMICRO-BBTS Part 24 Certification Gentlemen: Submitted herewith, on behalf of LG Information & Communications, Ltd., is an application for Part 24 Certification of the following: FCC ID:FFMMICRO-BBTS TRADE / MODEL(s):LGIC STAREX-1900 EUT TYPE:PCS CDMA Licensed Base Station for Part 24 (PCB) Tx Freq. Range:1931.25 – 1988.75 MHz Max. Output Power:10 Watts Frequency Block(s):A, B, C, D, E, F Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report data and plots, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), circuit diagrams & description (confidential), operational description , parts list & tune-up procedure , and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Mr. Won-Chul Kim, General Manager, System Engineering Team LG Information & Communications, Ltd.

Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem

© 1999 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem

Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem

Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem Test Report S/N: 24.991108597.FFMFCC Part 24 Test Date(s): November 08-12, 1999Certification © 1999 PCTEST Lab FCC ID: FFMMICRO-BBTS NVLAP Lab Code: 100431-0 LGIC CDMA Base Station Transceiver Subsystem

1 DESCRIPTIVE INFORMATION FCC FILING FOR MICROBTS TYPE B SYSTEM The information in this exhibits is in accordance with the FCC Rules and Regulations, Vol.II, Part 2, Subpart J. Sections 2.983 through 2.999 are addressed. Section 2.983(d) Technical Description of the equipment. Section 2.983(d)(1) Type or types of emission The emission designator is 1M25G7W(per FCC Part 2.201, Subpart C). Section 2.983(d)(2) Frequency Range This transmitter operates within the 1930 to 1990 MHz Band(per FCC Part 24). This Base Station will support CDMA operations on channel numbers 25 through 1175 as defined ANSI J-STD- 008(1931.25MHz – 1988.75MHz). Section 2.983(d)(3) Range of Operating Power Levels The rated maximum average power out of the Front End Filter is 10Watt(40dBm). However, in PCS the actual power output is based on the number of traffic channels in operation. The minimum power occurs when only a pilot signal is present. The maximum power occurs when a pilot along with synchronization, paging, and traffic channels are present. Section 2.983(d)(4) Maximum Output Power Rating The maximum output power is 10 Watts(40dBm) Section 2.983(d)(5) Final RF Amplifying Device Power Consumption The power consumption of the Powerwave High Power Amplifier is 162Watt( 27volts , 6 amps) Section 2.983(d)(6) Function of Each Active Device Refer to Exhibit #XX Section 2.983(d)(7) Complete Circuit Diagrams Refer to Exhibit #XX Section 2.983(d)(8) Instruction/Installation Manual Refer to Exhibit #XX 2 Section 2.983(d)(9) Tune-up Procedure All frequency adjustments are set by X-terminal. Refer to Exhibit #XX Section 2.983(d)(10) Circuit Description for Frequency Determining and Stabilizing. GPS(Global Positioning Systems) Receiver in BTS System provides highly accurate Frequency output signal(10MHz), synchronized to UTC(Coordinated Universal Time) signals transmitted by the GPS satellites. This GPS is optimized for synchronization of wireless base stations. Frequency output signal are subjected temperature conditions of 0 to 50 °C. The stability of 10 MHz output is not more than 5 x 10 -11 . Section 2.983(d)(11) Circuit Description for suppression of spurious radiation The transmi front end filter provides filtering of the RF signal in order to meet FCC Specifications. Fot Radiated spurious suppression proper design techniques ans the use of proper shielding techniques reduced the emission levels well below the permissible FCC limits. Section 2.983(d)(12) Description of Modulation Limiting Circuits and Modulation Characteristics 1)Baseband Filtering(FIR Filter) for Modulation Limiting Following the spreading operation, the I and Q impulses are applied to the inputs of the I and Q baseband filters . The baseband filters shall have a frequency response S(f) that satisfies the limits given in Figure 1. Specifically, the normalized frequency response of the filter shall be contained within ±δ 1 in the passband 0  f  f p and shall be less than or equal to -δ 2 in the stopband f  f s . The numerical values for the parameters are δ 1 = 1.5 dB, δ 2 = 40 dB, f p = 590 kHz, and f s = 740 kHz. 3 Figure 1. a Baseband Filters Frequency Response 2) Phase Response Characteristic of FIR Filter π −π 20kHz Frequency Phase 0 -2.5 Figure 1.b Baseband Filters Phase Response 3) After baseband filtering , the binary data (‘0’s and ‘1’s), I and Q mapped into phase according to Table 1. The resulting signal constellation and phase transition are shown in Figure 2. 4 Table 1. Forward CDMA Channel I and Q Mapping IQPhase 00c/4 103π/4 11-3π/4 01-π/4 Figure 2 Forward CDMA Channel Signal Constellation and Phase Transition 5 Section 2.983(e) Standard Test Conditions The following conditions and procedures were followed during testing of this transmitter: Room temperature : +25 o C Room Humidity : 50% AC Supply Voltage : +208VAC(Nominal) Prior to testing, the unit was tuned up according the tune up procedure(Exhibit #xx). All data presented represents the worst case parameter being measured. All test data required by section 2.985 through 2.997 can be found in Exhibits #xx through #XX.

Micro-FCC Tune up Procedure Page: 11((66)) Issue: 1.0 SMD-007-TUA210 APPENDIX Tune up Procedure 1. PN Offset Checking Method To check the feature of CDMA with measurement equipment, PN OFFEST value of BTS should be given. The following describes the prcedure for this. You can check PN OFFSET value through ECPA. When you input DISPLD on ECPA, various MENUs will appear as follows; ECP NW R3.0.0> displd ** PLD Data Display Options ** << LGT MDR VERSION >> 0. PLD Data Address Display. 1. BTS Data Display. 2. Sector Data Display. 3. CDMA Channel Data Display. 4. Extended System Parametrs Display. 5. System Parameter Display. 6. Neighbor List Display. 7. BTS Configuration Display. 8. TIC Data Display. 9. TXMS Paramter Display. 10. Power Management Paramter Display. 11. Access Channel Configuration Display. 12. Access Parameter Display. 13. Paging Channel Configuration Display. 14. Global Redirection Message Display. 15. Pilot/Sync Channel Configuration Display. 16. Tcparam Configuration Display. 17. OCNS Paramter Display. 18. Tx Timing Display. Among the MENUs above, select the second item to check PN OFFSET value. Enter the number : 2 PN OFFSET of each sector appears as follows; * Sector Configuration Display * Sector #2 Configured : TRUE Pilot_pn_offset : 200 num_of_cdma_ch : 1 sector_cai_rev : 1 sector_cai_min_rev : 1 Sector #2 Configured : TRUE Pilot_pn_offset : 204 num_of_cdma_ch : 1 sector_cai_rev : 1 sector_cai_min_rev : 1 Sector #2 Configured : TRUE Pilot_pn_offset : 208 num_of_cdma_ch : 1 sector_cai_rev : 1 sector_cai_min_rev : 1 You can check PN OFFSET from the value displayed above. This value is used in the equipment measuring MODULATION CHARACTERISTIC among test items. Micro-FCC Tune up Procedure Page: 22((66)) Issue: 1.0 SMD-007-TUA210 2. CDMA Code Channel Gain Adjusting Method The following describes how to set the distribution of CDMA signal that is displayed through BTS as the following table. TypeNumber of Channels Fraction of Power(linear) Fraction of Power (dB) Comments Pilot10.2000-7.0Code channel 0 Sync10.0471-13.3Code channel 32,always 1/8 rate Paging10.1882-7.3Code channel 1, full rate only Traffic60.09412 each-10.3 eachVariable code channel assignments; full rate only The Power Level of each channel can be changed through ECPA and you can adjust Level by changing GAIN value of CODE. The proceudure is as follows; ECP NW R3.0.0>3383 ---------- PN-3383 SUPPORTING FUNCTION ---------- 1. Access Probe Acquisition Test 2. BTS Test Call(Termination) 3. Sector TX Gain Change 4. FER Display Request 5. Automatic Release Mode Set Select the third menu to change Power distribution of Pilot, Paging and Sync Channel. Select the menu? 3 ---- SECTOR TX Gain Change Function ---- 1. Pilot Ch Gain 2. Pilot/Sync Ch Gain 3. Paging Ch Gain 4. Nominal TC Gain 5. Total Gain Display 6. Quit Select 2 to change Pilot and Power Level of Sync Channel. Select the menu? 2 > Enter the Sector(0,1,2) ? 0 - Enter 0 to select Alpha sector. (Beta : 1, Gamma : 2) > Enter the CDMA channel ? 0 - > Enter the pilot gain(108) ? 80 - Change Gain from 108 (Default Value) to 80. > Enter the sync gain(34) ? 105 - - Change Gain from 34 (Default Value) to 105. > Do you want to change gain(y/n)? y Changed ok ! Input corresponding values as follows to change Power Level of Paging Channel. ---- SECTOR TX Gain Change Function ---- 1. Pilot Ch Gain 2. Pilot/Sync Ch Gain 3. Paging Ch Gain 4. Nominal TC Gain 5. Total Gain Display 6. Quit Select the menu? 3 > Enter the Sector(0,1,2) ? 0 > Enter the CDMA channel ? 0 > Enter the PC id ? > Enter the PC gain(65) ? 77 > Do you want to change gain(y/n)? y Changed ok ! To change Power Level for the virtual call, do the followings. ---- SECTOR TX Gain Change Function ---- 1. Pilot Ch Gain 2. Pilot/Sync Ch Gain 3. Paging Ch Gain Micro-FCC Tune up Procedure Page: 33((66)) Issue: 1.0 SMD-007-TUA210 4. Nominal TC Gain 5. Total Gain Display 6. Quit Select the menu? 4 > Enter the Sector(0,1,2) ? 0 > Enter the CDMA channel ? 0 > Enter the nominal tc gain(100) ? 53 > Do you want to change 100 to 53 (y/n)? y Changed ok ! To check the changed value, select the fifth MENU and confirm if the work is properly done. ---- SECTOR TX Gain Change Function ---- 1. Pilot Ch Gain 2. Pilot/Sync Ch Gain 3. Paging Ch Gain 4. Nominal TC Gain 5. Total Gain Display 6. Quit Select the menu? 5 ----------- Sector [0] Gain Config ------------- PILOT SYNC PAGING TRAFFIC FA[0] 80 105 77 53 ------------------------------------------------- ----------- Sector [1] Gain Config ------------- PILOT SYNC PAGING TRAFFIC FA[0] 108 34 65 100 ------------------------------------------------- ----------- Sector [2] Gain Config ------------- PILOT SYNC PAGING TRAFFIC FA[0] 108 34 65 100 ------------------------------------------------- As seen above, only Gain of Alpha Sector is changed into new value. Lastly, select Menu No. 6 and finish. ---- SECTOR TX Gain Change Function ---- 1. Pilot Ch Gain 2. Pilot/Sync Ch Gain 3. Paging Ch Gain 4. Nominal TC Gain 5. Total Gain Display 6. Quit Select the menu? 6 ECP NW R3.0.0> Micro-FCC Tune up Procedure Page: 44((66)) Issue: 1.0 SMD-007-TUA210 3. CDMA Test Call Setting Method To make the distribution of CDMA that is displayed through BTS as the table suggested in APPENDIX 2, the following describes how to set virtual calls necessary for this job. The setting could be done through ECPA. ECP NW R3.0.0>3383 ---------- PN-3383 SUPPORTING FUNCTION ---------- 1. Access Probe Acquisition Test 2. BTS Test Call(Termination) 3. Sector TX Gain Change 4. FER Display Request 5. Automatic Release Mode Set Select the menu? 2 >> Test Start ? ('1'), Set mobile informations ? ('2')2 ↵ > Enter the Sector [0/1/2/fe(all sector)] ? 0 ↵ > Enter the CDMA channel [0~7/fe(all cdma ch)] ? 0 ↵ > Enter the PC id [0~6] ? ↵ > Enter the slot cycle index [0~7] ? 2 ↵ > Enter the Call Type [0(Normal)/1(Markov)/2(Loopback)/3(BTU)/4(Null)/7(OCNS)] ? 4 ↵ > Enter the Service Option [2(Loopback)/9(Loopback_13K)] ? 9 ↵ > Enter …

Text truncated - open the document above for the full version.

© 1999 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 Certification LG Information & Communications, Ltd.Dates of Tests: November 08-12, 1999 LG Twin Towers, 20 Yoido-DongTest Report S/N: 24.991108597.FFM Youngdungpo-Gu, Seoul, 150-721 KOREATest Site: PCTEST Lab, Columbia MD U.S.A. Attn: Mr. Won-Chul Kim, General Manager System Engineering Team FCC ID FFMMICRO-BBTS APPLICANT LG Information & Communications, Ltd. Classification:Licensed Base Station for Part 24 (PCB) FCC Rule Part(s):§24(E), §2 EUT Type:PCS CDMA Base Station Transceiver Subsystem (Micro-BTS System) Trade Name/Model(s):LGIC MICRO-BBTS Frequency Range:Tx: 1931.25 – 1988.75 MHz Rx: 1851.25 – 1908.75 MHz Max Output Power:10 Watts Frequency Block(s):A, B, C, D, E, F Frequency Tolerance:0.000005% (0.05 ppm) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947 with the following remarks (Note Codes): * (BC) The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) 991108597.FFM Certification © 1999PCTEST Engineering Laboratory, Inc.FCC Part 24 TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT SCOPE 1 INTRODUCTION (SITE DESCRIPTION) 2 INSERTS PER §2.1033 3 DESCRIPTION OF TESTS 4-6 TEST DATA (RADIATED) 7-9 TEST DATA (FREQUENCY STABILITY) 10-11 PLOTS OF EMISSIONS 12 LIST OF TEST EQUIPMENT 13 SAMPLE CALCULATIONS 14 RECOMMENDATION / CONCLUSION 15 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: EXTERNAL PHOTOGRAPHS ATTACHMENT G: INTERNAL PHOTOGRAPHS ATTACHMENT H: BLOCK DIAGRAM(S) ATTACHMENT I: SCHEMATIC DIAGRAM(S) ATTACHMENT J: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT K:OPERATIONAL DESCRIPTION ATTACHMENT L:USER’S MANUAL Test Report S/N: 24.991108597.FFMFCC Part 24 Dates of Tests: November 08-12, 1999Certification © 1999 PCTEST LabFCC ID: FFMMICRO-BBTS (Licensed Base Station)1 LGIC PCS CDMA Base Station Transceiver Subsystem MEASUREMENT REPORT Scope – Product Evaluation and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name:LG Information & Communications, Ltd. Address:LG Twin Towers, 20 Yoido-Dong Youngdungpo-Gu, Seoul, 150-721 KOREA Attention:Mr. Won-Chul Kim, General Manager System Engineering Team • FCC ID:FFMMICRO-BBTS • Trade Name(s):LGIC • Model(s):MICRO-BBTS • Quantity:Quantity production is planned • Emission Designator:1M25F9W • Power Range:0.00005 – 10.0 W • Maximum Power Rating:10.0 W (+40 dBm) • FCC Classification:Licensed Base Station for Part 24 (PCB) • Equipment (EUT) Type:Base Station Transceiver Subsystem • Frequency Block(s):A, B, C, D, E, F • Channel(s):25-1175 • Modulation:CDMA • FCC Rule Part(s):§24(E), §2 • Application Type:Certification • Tx Frequency Range: 1931.25 – 1988.75 MHz • Rx Frequency Range:1851.25 – 1908.75 MHz • Frequency Tolerance:± 0.05 ppm • Dates of Tests:November 08-12, 1999 • Place of Tests:PCTEST Lab, Columbia, MD U.S.A. 991108597.FFM Test Report S/N: 24.991108597.FFMFCC Part 24 Dates of Tests: November 08-12, 1999Certification © 1999 PCTEST LabFCC ID: FFMMICRO-BBTS (Licensed Base Station)2 LGIC PCS CDMA Base Station Transceiver Subsystem 1.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. PCTEST Lab is recognized under the National Voluntary Laboratory Accreditation Program for satisfactory compliance with criteria established in Title 15, Part 285 Code of Federal Regulations. These criteria encompass the requirements of ISO/IEC Guide 25 and the relevant requirements of ISO 9002 (ANSI/ASQC Q92-1987) as suppliers of calibration or test results. The Scope of PCTEST Accreditation are for Electromagnetic Compatibility and Telecommunications and FCC. 1.2 PCTEST Location The map at right shows the location of the PCTEST Lab, its proximity to the FCC Lab, the Columbia vicinity area, the Baltimore- Washington International (BWI) airport, and the city of Baltimore, and the Washington, D.C. area. (see Figure1). Figure 1. Map of the Greater Baltimore and Metropolitan Washington, D.C. area. Test Report S/N: 24.991108597.FFMFCC Part 24 Dates of Tests: November 08-12, 1999Certification © 1999 PCTEST L…
