FFMTM510Tri-Mode Dual Band Analog/PCS Phone (AMPS/CDMA)

LG-TM510 Operator’s Guide Manual Part R&D Planning Department i FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 0.8 inches (2.0 cm) from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.8 inches (2.0 cm) must be maintained between the user’s body and the back of the phone, including the antenna, whether extended or retracted. Third-party belt-clips, holsters and similar accessories should not contain metallic components and must provide 0.8 inch (2.0 cm) separation distance between the user’s body and the back of the phone. Body-worn accessories that do not meet these requirements may not comply with FCC RF exposure limits and should be avoided. For more information about RF exposure, please visit the FCC website at www.fcc.gov WARNING! Read this information before using your phone 2 M510 Ver. 1.1.5 CHAPTER 1. THE NAME AND FUNCTIONS Hold Icon Rm Signal Strength (RSSI) In Use No Service Digital Service is available Roaming Short Message (Voice) Battery Level Short Message (Text) Vibrator Enabled D 3 M510 Ver. 1.1.5 CHAPTER 2. BASIC FUNCTIONS Turning the Phone On and Off <Turning the Terminal On> 1. Connect the terminal to the charged battery or the external power supply. 2. Press the [END/PWR] key for about 1.5 seconds until a red right appears on the upper side of the terminal. < Turning the Terminal Off > 1. Press the [END/PWR] key until the end message appears on the LCD, and then stop pressing the key. 2. If an antenna is stretched, push it in for safety. Making a Call <Method1> Entering the Entire Phone Number 1. If the terminal is turned off, turn it on. 2. Enter the phone number. (Enter the area code, if necessary.) 3. Press the [OK] key. - If the terminal is locked on, enter the password to unlock the terminal. Then, attempt the call again. - If the call is not connected, “Call Failed” signal will be indicated on the LCD. 4. Press the [END] key. <Method2> Using Phone Book Entry 1. Enter the phone entry number, and press the [OK] key or press the related phone entry number for some time. Then, the call will be attempted. e.g.) Press the [2] key for some time, then call will be connected to the phone number stored in the Entry #2. 4 M510 Ver. 1.1.5 2. If you are not sure of the phone entry number, select the Soft Key(BOOK) with the Right Mouse Button. 3. Place the cursor on the Phone Book, and press the Soft Key(SEL) with the Left Mouse Button. 4. Search the Phone Book Entry number or name requested in the Phone Book to attempt a call to the phone number stored in it. <Method3> Using the Recent Call History 1. Select the Soft Key(BOOK) with the Right Mouse Button.. 2. If the screen changes, place the cursor on the Call History. Then, press the Soft Key(SEL) with the Left Mouse Button. 3. If the “Outgoing”, “Incoming”, and “Missed” are indicated on the screen, select the menu requested. Ten phone numbers of the recent calls are stored in each menu. Place the cursor on the menu requested, and press the Soft Key(SEL) with the Left Mouse Button. 4. The phone number list appears on the screen. Then, search and place the cursor on the phone number or name requested, and press the [OK] key. Correcting Dialing Mistakes 1. Press the Soft Key(CLR) with the Right Mouse Button of the screen to erase the number or character of the last entry. 5 M510 Ver. 1.1.5 2. Press the Soft Key(CLR) with the Right Mouse Button for one second, then all the number or character requested will be erased. Receiving Calls 1. Press any key except for the [END/PWR] key to receive a call. HPress the END Key once to stop the bell or vibration. HH Press the END Key twice to end the incoming call 2. When the call completes, press the [END/PWR] key. 3. Or close the flip. Mute 1. Press the Soft Key(MENU) with the Left Mouse Button during the call. Redialing Last Outgoing Number <Method 1> 1. Just press [OK] key to redial the last outgoing number. Then, the call will be attempted. <Method 2> using the Call History 1. Press the Soft Key(BOOK) with the Right Mouse Button. 2. Place the cursor on the Call history menu on the screen, and press the Soft Key(SEL) with the Left Mouse Button. 2. If a popup menu appears on the screen, place the cursor on the Mute menu and press the Soft Key(SEL) with the Left Mouse Button to select the Mute state. (The message”Mute” will be indicated on the screen.) 3. Press the Soft Key(OPT) with the Left Mouse Button to clear the function. The popup menu will appear. Select the Unmute menu. (The message “Mute” will be disappear on the screen 6 M510 Ver. 1.1.5 3. Then, three menus will appear. - “Outgoing”: Ten last outgoing calls are stored in this menu. - “Incoming”: Ten last incoming calls are stored in this menu. - “Missed”: Ten last missed calls are stored in this menu . 4. Place the cursor on the menu requested, and press the Soft Key(SEL) with the Left Mouse Button. e.g.) Place the cursor on the “Outgoing” menu and press the Soft Key (SEL) with the Left Mouse Button. 5. The phone number list will appear. Place the cursor on the ph…

Text truncated - open the document above for the full version.

@ LG Information & Communications, Ltd. May 1, 2000 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely, General Manager of New York Office LG Information & Communications, Ltd.

June 7, 2000 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : LG Information & Communication, Ltd. FCC ID: FFMTM510 Tri-Mode Dual Band Analog/PCS Part 22, Part24 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, LG Information & communications, Ltd. hereby requests confidentiality of the Block Diagrams attachment, Schematic Diagrams & Circuit Description attachment, Operational Description attachment, and Parts List/Tune-Up Procedure attachment for the above-referenced Type Acceptance application. These documents contain detailed system and equipment description and related information about the product which LG Information & Communications, Ltd. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Information& Communications, Ltd. considers this information to be of benefit to its competitors, such that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, E.S.Park Research Engineer Communication Terminal Research Lab LG Information & Communications, Ltd. Tel : 82-2-850-3861 Fax : 82-2-850-3861 E_mail : [email protected] 459-9, Kasan-dong, Kemchun-ku Seoul 153-023, Korea LG Information & Communications, Ltd. LGIC

LGIC LG Information & Communications, Ltd. 459-9,Kasan-dong,Kemchun-ku Seoul 153-023,Korea Tel: 82-2-850-3861 Fax:82-2-850-3861 E-mail :[email protected] June 7, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG Information & Communications, Ltd. FCC ID: FEMTM510 FCC E911 Requirements Per S22.921 Gentlemen: LG Information & Communications, Ltd. hereby certifies that the analog cellular telephone (FCC ID:FFMTM510), using the Automatic A/B Roaming - Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a "9-l-l" call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. E.S.Park Research Engineer Communication Terminal Research Lab LG Information & Communications, Ltd.

AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the LGIC Handheld Portable Cellular Telephone ( FCC ID: FFMTM510 ) is so designed that it complies with all the requirements for ESN protection specified in section 22.919 of the FCC Rules. A) The transmitter in service has a unique ESN. B) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. C) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, E.S.Park Research Engineer Communication Terminal Research Lab LG Information & Communications, Ltd. Tel : 82-2-850-3861 Fax : 82-2-850-3861 [email protected] 459-9, Kasan-dong, Kemchun-ku Seoul 153-023, Korea LG Information & Communications, Ltd. LGIC

June 7, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG Information & Communications, Ltd. FCC ID: FFMTM510 Part 24/22 Certification Gentlemen: Submitted herewith, on behalf of LG Information & Communications Ltd., is an application for Part 24/22 Certification of the following Tri-Mode Dual-Band Analog/PCS Phone: FCC ID: FFMTM510 TRADE/MODEL(s): LGIC LG-TM510 EUT TYPE: Tri-Mode Dual-Band Analog/PCS Phone Tx Freq. Range(s): 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Max. RF Output Power: 0.60 W ERP AMPS (27.77 dBm) / 0.425 W ERP CDMA (26.28 dBm) 0.362 W PCS CDMA (25.58 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Harris Ahn Principal Engineer Communication Terminal Research Lab, LGIC

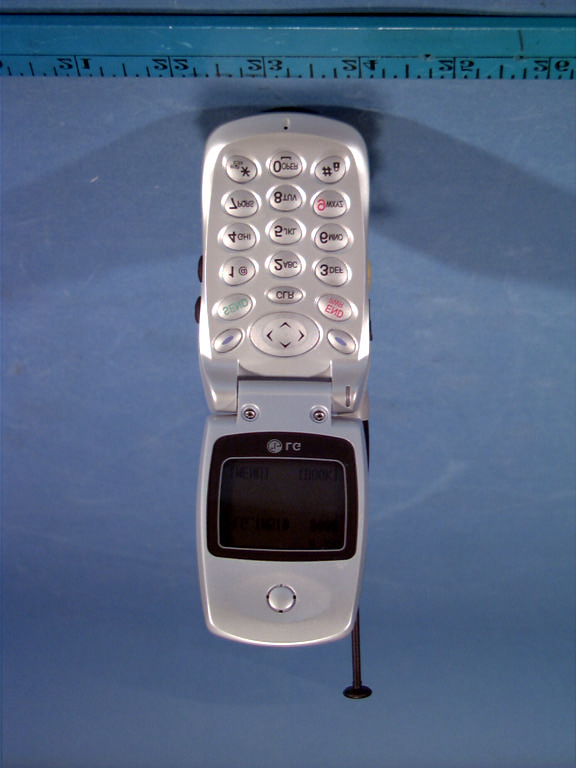

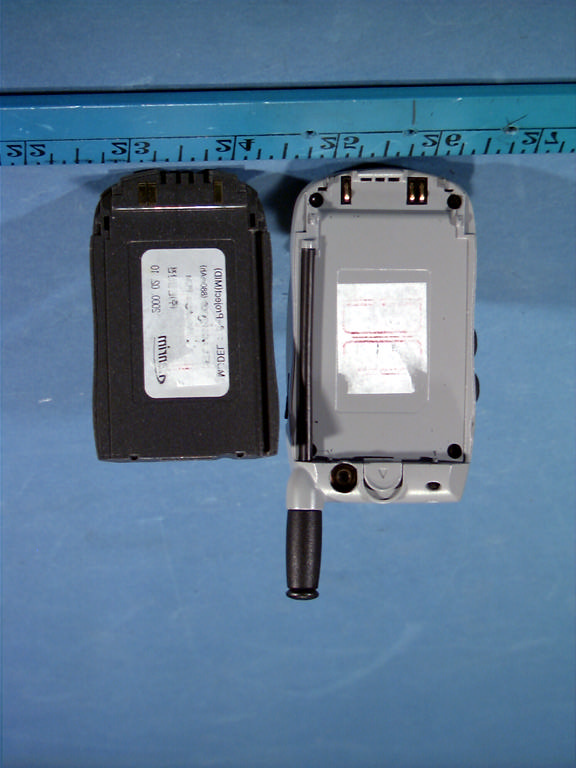

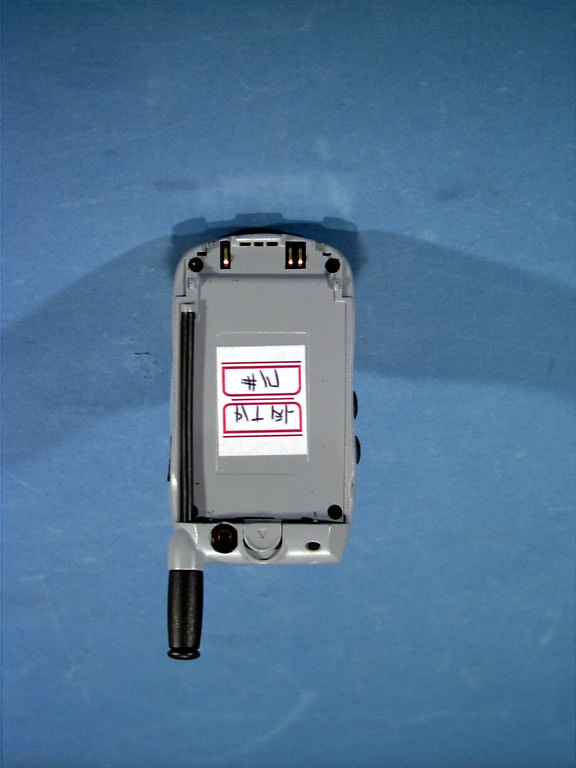

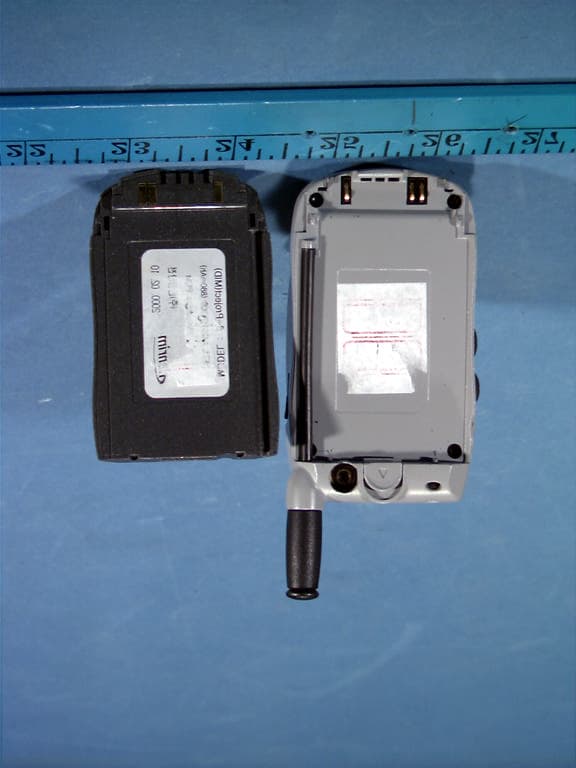

© 2000 PCTEST Lab FCC ID: FFMTM510 (Model: LG-TM510) NVLAP Lab Code: 100431-0 LGIC Tri-Mode Dual Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: FFMTM510 (Model: LG-TM510) NVLAP Lab Code: 100431-0 LGIC Tri-Mode Dual Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: FFMTM510 (Model: LG-TM510) NVLAP Lab Code: 100431-0 LGIC Tri-Mode Dual Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: FFMTM510 (Model: LG-TM510) NVLAP Lab Code: 100431-0 LGIC Tri-Mode Dual Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: FFMTM510 (Model: LG-TM510) NVLAP Lab Code: 100431-0 LGIC Tri-Mode Dual Band Analog/PCS Phone

© 2000 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

© 2000 PCTEST Lab FCC ID: FFMTM510 (Model: LG-TM510) NVLAP Lab Code: 100431-0 LGIC Tri-Mode Dual Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: FFMTM510 (Model: LG-TM510) NVLAP Lab Code: 100431-0 LGIC Tri-Mode Dual Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: FFMTM510 (Model: LG-TM510) NVLAP Lab Code: 100431-0 LGIC Tri-Mode Dual Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: FFMTM510 (Model: LG-TM510) NVLAP Lab Code: 100431-0 LGIC Tri-Mode Dual Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: FFMTM510 (Model: LG-TM510) NVLAP Lab Code: 100431-0 LGIC Tri-Mode Dual Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: FFMTM510 (Model: LG-TM510) NVLAP Lab Code: 100431-0 LGIC Tri-Mode Dual Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: FFMTM510 (Model: LG-TM510) NVLAP Lab Code: 100431-0 LGIC Tri-Mode Dual Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: FFMTM510 (Model: LG-TM510) NVLAP Lab Code: 100431-0 LGIC Tri-Mode Dual Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: FFMTM510 (Model: LG-TM510) NVLAP Lab Code: 100431-0 LGIC Tri-Mode Dual Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: FFMTM510 (Model: LG-TM510) NVLAP Lab Code: 100431-0 LGIC Tri-Mode Dual Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: FFMTM510 (Model: LG-TM510) NVLAP Lab Code: 100431-0 LGIC Tri-Mode Dual Band Analog/PCS Phone © 2000 PCTEST Lab FCC ID: FFMTM510 (Model: LG-TM510) NVLAP Lab Code: 100431-0 LGIC Tri-Mode Dual Band Analog/PCS Phone

© 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) LG Information & Communications, Ltd. Dates of Tests: May 31 - June 5, 2000 Communication Terminal Research Lab Test Report S/N: SAR.200531258.FFM 459-9, Kasan-dong, Keumchun-Ku Test Site: PCTEST Lab, Columbia, MD USA Seoul 153-023, Korea Attn: Harris Ahn, Principal Engineer FCC ID FFMTM510 APPLICANT LG Information & Communications, Ltd. EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency: 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) 1931.25 – 1908.75 MHz (PCS CDMA) Max. RF Output Power: 0.60 W ERP AMPS (27.77 dBm) / 0.425 W ERP CDMA (26.28 dBm) 0.362 W EIRP PCS CDMA (25.58 dBm) Trade Name/Model(s): LGIC LG-TM510 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). Part 22 AMPS Mode – Head Max. SAR: 1.4550 W/kg Body Max. SAR: 1.3928 W/kg CDMA Mode - Head Max. SAR: 1.2102 W/kg Part 24 PCS Mode - Head Max. SAR: 1.3735 W/kg Body Max. SAR: 0.9864 W/kg I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C. 862. 200531258.FFM SAR Measurement Report Parts 24 & 22 Certification © 2000 PCTEST Lab i Table of Contents 1.1 SCOPE 1 2.1 INTRODUCTION / SAR DEFINITION 2 3.1 SAR MEASUREMENT SET-UP 3 4.1 E-FIELD PROBE SYSTEM 4 5.1 E-FIELD PROBE CALIBRATION PROCESS 5-6 6.1 PHANTOM & EQUIVALENT TISSUES 7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS 9 9.1 BODY WORN TEST SETUP 10 10.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 11 11.1 MEASUREMENT UNCERTAINTIES 12 12.1 TEST DATA SUMMARY 13-17 13.1 SAR TEST EQUIPMENT LIST 18 14.1 CONCLUSION / REFERENCES 19 Test Report S/N: SAR.200531258.FFM SAR Measurement Report Test Dates: May 31 - June 5, 2000 FCC Part 24/22 Certification LGIC FCC ID: FFMTM510 (Model: TM510) © 2000 PCTEST Lab Tri-Mode Dual-Band Analog/PCS Phone 1 SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name: LG Information & Communications, Ltd. Communication Terminal Research Lab Address: 459-9, Kasan-dong, Keumchun-ku Seoul 153-023, Korea Attention: Mr. Harris Ahn, Principal Engineer • EUT Type: Tri-Mode Analog/PCS Phone (AMPS/CDMA) • Trade Name: LGIC • Model(s): LG-TM510 • FCC IDENTIFIER: FFMTM510 • S/N: Pre-production • Tx Frequency: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.32 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Frequency: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Application Type: Certification • FCC Classification: Licensed Portable Transmitter Held to Ear (PCS) • FCC Rule Part(s): § 2.1093, Docket 96-326 • Modulation(s): AMPS/CDMA • Max RF. Output Power: 0.60W ERP AMPS (27.77 dBm) 0.425W ERP CDMA (26..28 dBm) 0.362W EIRP PCS CDMA (25.58 dBm) • Date(s) of Tests: May 31 – June 5, 2000 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.200531258.FFM 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.200531258.FFM SAR Measurement Report Test Dates: May 31 - June 5, 2000 FCC Part 24/22 Certification LGIC FCC ID: FFMTM510 (Model: TM510) © 2000 PCTEST Lab Tri-Mode Dual-Band Analog/PCS Phone 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protect…

Text truncated - open the document above for the full version.

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00060102_ZOOM.VLT Start : 1-Jun-100 10:08:15 am End : 1-Jun-100 10:20:37 am Radio Type : LGIC Model Number : LGIC LGC-TM510 Serial Number : #17 Frequency : 824.04 MHz Peak Trans. Pwr : 0.450 W Start Trans. Pwr: 0.450 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : LGIC TRI-MODE PHONE FM MODE CHAN 0991 26.5 dBm conducted FCC ID:FFMLGCTM510 Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 0.750, Y = -0.750, Z = 0.000 (cm) Value = 22.300 Measured Values (volts) = 2.200E-002 1.562E-002 1.268E-002 1.085E-002 9.383E-003 8.133E-003 7.358E-003 6.745E-003 6.288E-003 6.010E-003 5.593E-003 5.128E-003 4.592E-003 3.921E-003 3.130E-003 2.569E-003 2.000E-003 1.647E-003 1.537E-003 1.630E-003 1.782E-003 Calc. Voltage @ Surface (Vs) = 0.0290 Voltage @ 1.00 cm (Vt) = 0.0108 Ave. Voltage (Vs+Vt)/2 = 0.0199 Ave. SAR over 1 g (mW/g) = 1.4550 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 mW/g -1012345 Z centimeters SAR Scan File : 00060102_ZOOM Start : 1-Jun-100 10:08:15 am End : 1-Jun-100 10:20:37 am LGIC/LGIC LGC-TM510/#17;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : 00060102_ZOOM Start : 1-Jun-100 10:08:15 am End : 1-Jun-100 10:20:37 am LGIC/LGIC LGC-TM510/#17;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 1.63 1.52 1.41 1.30 1.19 1.08 0.97 0.86 0.75 0.64 File : 00060102_ZOOM Start : 1-Jun-100 10:08:15 am End : 1-Jun-100 10:20:37 am LGIC/LGIC LGC-TM510/#17;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 1.63 1.52 1.41 1.30 1.19 1.08 0.97 0.86 0.75 0.64 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00060103_ZOOM.VLT Start : 1-Jun-100 10:38:10 am End : 1-Jun-100 10:50:23 am Radio Type : LGIC Model Number : LGIC LGC-TM510 Serial Number : #17 Frequency : 824.04 MHz Peak Trans. Pwr : 0.450 W Start Trans. Pwr: 0.450 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : LGIC TRI-MODE PHONE FM MODE CHAN 0991 26.5 dBm conducted FCC ID:FFMLGCTM510 Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 0.750, Y = -0.750, Z = 0.000 (cm) Value = 17.051 Measured Values (volts) = 1.671E-002 1.228E-002 9.837E-003 8.443E-003 7.289E-003 6.394E-003 5.841E-003 5.344E-003 4.956E-003 4.681E-003 4.360E-003 4.017E-003 3.502E-003 3.001E-003 2.495E-003 2.003E-003 1.639E-003 1.357E-003 1.256E-003 1.275E-003 1.407E-003 Calc. Voltage @ Surface (Vs) = 0.0218 Voltage @ 1.00 cm (Vt) = 0.0084 Ave. Voltage (Vs+Vt)/2 = 0.0151 Ave. SAR over 1 g (mW/g) = 1.1034 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g -1012345 Z centimeters SAR Scan File : 00060103_ZOOM Start : 1-Jun-100 10:38:10 am End : 1-Jun-100 10:50:23 am LGIC/LGIC LGC-TM510/#17;824.04MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : 00060103_ZOOM Start : 1-Jun-100 10:38:10 am End : 1-Jun-100 10:50:23 am LGIC/LGIC LGC-TM510/#17;824.04MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 1.244 1.168 1.092 1.016 0.939 0.863 0.787 0.711 0.635 0.558 File : 00060103_ZOOM Start : 1-Jun-100 10:38:10 am End : 1-Jun-100 10:50:23 am LGIC/LGIC LGC-TM510/#17;824.04MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 1.244 1.168 1.092 1.016 0.939 0.863 0.787 0.711 0.635 0.558 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00060106_ZOOM.VLT Start : 1-Jun-100 11:26:01 am End : 1-Jun-100 11:35:17 am Radio Type : LGIC Model Number : LGIC LGC-TM510 Serial Number : #17 Frequency : 836.49 MHz Peak Trans. Pwr : 0.450 W Start Trans. Pwr: 0.450 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : LGIC TRI-MODE PHONE FM MODE CHAN 0383 26.5 dBm conducted FCC ID:FFMLGCTM510 Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 1.000, Y = -1.000, Z = 0.000 (cm) Value = 20.158 Measured Values (volts) = 2.001E-002 1.469E-002 1.216E-002 1.028E-002 8.853E-003 7.814E-003 7.133E-003 6.515E-003 6.041E-003 5.632E-003 5.181E-003 4.730E-003 4.186E-003 3.554E-003 2.923E-003 2.287E-003 1.858E-003 1.563E-003 1.436E-003 1.462E-003 1.613E-003 Calc. Voltage @ Surface (Vs) = 0.0257 Voltage @ 1.00 cm (Vt) = 0.0103 Ave. Voltage (Vs+Vt)/2 = 0.0180 Ave. SAR over 1 g (mW/g) = 1.3129 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 mW/g -1012345 Z centimeters SAR Scan File : 00060106_ZOOM Start : 1-Jun-100 11:26:01 am End : 1-Jun-100 11:35:17 am LGIC/LGIC LGC-TM510/#17;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : 00060106_ZOOM Start : 1-Jun-100 11:26:01 am End : 1-Jun-100 11:35:17 am LGIC/LGIC LGC-TM510/#17;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 1.471 1.391 1.312 1.232 1.153 1.073 0.994 0.914 0.835 0.755 File : 00060106_ZOOM Start : 1-Jun-100 11:26:01 am End : 1-Jun-100 11:35:17 am LGIC/LGIC LGC-TM510/#17;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 1.471 1.391 1.312 1.232 1.153 1.073 0.994 0.914 0.835 0.755 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/0006010…

Text truncated - open the document above for the full version.

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00060513_ZOOM.VLT Start : 5-Jun-100 03:30:34 pm End : 5-Jun-100 03:38:21 pm Radio Type : LGIC Model Number : LGIC LGC-TM510 Serial Number : #17 Frequency : 824.04 MHz Peak Trans. Pwr : 0.450 W Start Trans. Pwr: 0.450 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : LGIC TRI-MODE PHONE FM MODE CHAN 0991 26.50 dBm conducted FCC ID:FFMLGCTM510 Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.894 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 0.000, Y = -1.000, Z = 0.000 (cm) Value = 20.124 Measured Values (volts) = 1.783E-002 1.516E-002 1.312E-002 1.108E-002 9.365E-003 7.891E-003 6.920E-003 6.384E-003 6.083E-003 6.059E-003 6.019E-003 5.830E-003 5.227E-003 4.368E-003 3.404E-003 2.513E-003 1.894E-003 1.717E-003 1.889E-003 2.286E-003 2.934E-003 Calc. Voltage @ Surface (Vs) = 0.0208 Voltage @ 1.00 cm (Vt) = 0.0111 Ave. Voltage (Vs+Vt)/2 = 0.0159 Ave. SAR over 1 g (mW/g) = 1.3190 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 mW/g -1012345 Z centimeters SAR Scan File : 00060513_ZOOM Start : 5-Jun-100 03:30:34 pm End : 5-Jun-100 03:38:21 pm LGIC/LGIC LGC-TM510/#17;824.04MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00060504_ZOOM.VLT Start : 5-Jun-100 11:06:50 am End : 5-Jun-100 11:20:22 am Radio Type : LGIC Model Number : LGIC LGC-TM510 Serial Number : #17 Frequency : 836.49 MHz Peak Trans. Pwr : 0.450 W Start Trans. Pwr: 0.450 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : LGIC TRI-MODE PHONE FM MODE CHAN 0383 26.50 dBm conducted FCC ID:FFMLGCTM510 Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.894 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = -0.750, Y = -0.750, Z = 0.000 (cm) Value = 19.582 Measured Values (volts) = 1.836E-002 1.465E-002 1.270E-002 1.053E-002 8.736E-003 7.380E-003 6.320E-003 5.876E-003 5.844E-003 5.868E-003 5.861E-003 5.507E-003 4.820E-003 3.793E-003 2.770E-003 1.785E-003 1.106E-003 1.013E-003 1.343E-003 2.012E-003 2.605E-003 Calc. Voltage @ Surface (Vs) = 0.0221 Voltage @ 1.00 cm (Vt) = 0.0105 Ave. Voltage (Vs+Vt)/2 = 0.0163 Ave. SAR over 1 g (mW/g) = 1.3505 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 mW/g -1012345 Z centimeters SAR Scan File : 00060504_ZOOM Start : 5-Jun-100 11:06:50 am End : 5-Jun-100 11:20:22 am LGIC/LGIC LGC-TM510/#17;836.49MHz;W;Helical/Out; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 File : 00060504_ZOOM Start : 5-Jun-100 11:06:50 am End : 5-Jun-100 11:20:22 am LGIC/LGIC LGC-TM510/#17;836.49MHz;W;Helical/Out; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 1.621 1.538 1.455 1.372 1.290 1.207 1.124 1.041 0.958 0.876 File : 00060504_ZOOM Start : 5-Jun-100 11:06:50 am End : 5-Jun-100 11:20:22 am LGIC/LGIC LGC-TM510/#17;836.49MHz;W;Helical/Out; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 1.621 1.538 1.455 1.372 1.290 1.207 1.124 1.041 0.958 0.876 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00060505_ZOOM.VLT Start : 5-Jun-100 11:37:41 am End : 5-Jun-100 11:49:49 am Radio Type : LGIC Model Number : LGIC LGC-TM510 Serial Number : #17 Frequency : 836.49 MHz Peak Trans. Pwr : 0.450 W Start Trans. Pwr: 0.…

Text truncated - open the document above for the full version.
