FIHE6PT90V1Location and Monitoring Service Interrogator

TransCore

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Feb 18, 2021
Application Purpose: Original Equipment
Date of Application: Feb 18, 2021
Equipment Note: Location and Monitoring Service Interrogator
Frequency Range: 914.75000000 - 916.75000000
Company: TransCore
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Encompass® MultiProtocol Reader System Guide TransCore 8600 Jefferson Street NE Albuquerque, New Mexico 87113 P/N 411880 © 2005 TC IP, Ltd. All rights reserved. TRANSCORE, AMTECH, and EGO are registered trademarks of TC IP, Ltd, and are used under license. All other trademarks listed are the property of their respective owners. Contents are subject to change. Printed in the U.S.A. For further information, contact: TransCore 8600 Jefferson Street NE Albuquerque, New Mexico 87113 USA Phone: (505) 856-8007 Fax: (505) 856-8174 . WARNING TO USERS IN THE UNITED STATES FEDERAL COMMUNICATIONS COMMISSION (FCC) LOCATION AND MONITORING SERVICE STATEMENT 47 CFR §90.351 NOTE: The user is required to obtain a Part 90 site license from the FCC to operate this radio frequency identification (RFID) device in the United States and Canada. FCC ID number is FIHE6PT90V1. IC ID number is 1584A-E6RSS137V1. Access the FCC Web site at www.fcc.gov/Forms/Form601/601.html or at wireless.fcc.gov/index.htm?job=online_filing to obtain additional information concerning licensing requirements. NOTE: Users in all countries should check with the appropriate local authorities for licensing requirements. FCC RADIO FREQUENCY INTERFERENCE STATEMENT 47 CFR §15.105(a) NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate RF energy and may cause harmful interference to radio communications if not installed and used in accordance with the instruction manual. Operating this equipment in a residential area is likely to cause harmful interference, in which case, depending on the regulations in effect, the user may be required to correct the interference at their own expense. NO UNAUTHORIZED MODIFICATIONS 47 CFR §15.21 CAUTION: This equipment may not be modified, altered, or changed in any way without permission from TransCore, LP. Unauthorized modification may void the equipment authorization from the FCC and will void the TransCore warranty. USE OF SHIELDED CABLES IS REQUIRED 47 CFR §15.27(a) NOTE: Shielded cables and earth grounding the unit is recommended for this equipment to comply with FCC regulations. TransCore, LP USA Health Limits for Encompass ® Multiprotocol Reader Using External Antenna (902 to 921.5 MHz) Within the United States, environmental guidelines regulating safe exposure levels are issued by the Occu- pational Safety and Health Administration (OSHA). Section 1910.97 of OSHA Safety and Health Standards 2206 legislates a maximum safe exposure limit of 10 milliwatts per square centimeter (mW/cm 2 ) averaged over 6 minutes at 902 MHz. Although not binding, other organizations such as the American National Standards Institute (ANSI) have issued similar guidelines that are more restrictive than the OSHA limits (ANSI C95.1). ANSI guidelines recommend a maximum safe power density in mW/cm 2 of: Frequency (in MHz) 1500 Thus, the maximum permissible exposure for general population/uncontrolled exposure at 902 MHz is 0.60 mW/cm 2 . The average time is thirty minutes. The maximum permissible exposure for occupational/controlled exposures is 3.0 mW/cm 2 . The average time is six minutes. The RF power density generated by the Encompass Multiprotocol Reader was calculated using a maxi- mum antenna gain of 14.0 dBi, equivalent to the antenna gain of the external AA3152 Universal Toll Antenna (UTA). Warning At 2 W transmitted power, 0 dB transmit attenuation, and a distance of 33 inches (82 cm) from the antenna, the maximum power density calculated was less than 0.60 mW/cm 2 . Install the antenna at least 33 inches (82 cm) from the general public. Maintenance personnel must remain at least 15 inches (37 cm) from the antenna when the system is operating. The data confirms that when the UTA, or equivalent antenna, is used with the TransCore Encompass Multiprotocol Reader, the antenna effectively meets OSHA requirements and thus does not represent an operating hazard to either the general public or maintenance personnel. Contents Contents Health Limits ............................................................................................................ v RF Levels From TransCore Equipment ................................................................. v 1 Before You Begin Purpose of the Guide .......................................................................................... 1-3 Intended Audience ............................................................................................... 1-3 Guide Topics ........................................................................................................ 1-3 Related Documentation ....................................................................................... 1-4 Typographical Conventions Used in this Manual ...............................................1-4 Licensing Requirements ......................................................................................1-5 U.S. and Canada Licensing................................................................................ 1-5 2 Developing the Installation Site Plan 3 Installing and Configuring the Encompass Overview of the Encompass ............................................................................... 3-3 Connecting the Encompass for Operation ........................................................ 3-3 External Connectors ..................................................................................... 3-3 Installing and Using the Encompass Host Software ......................................... 3-6 Installing the Host Software ............................................................................... 3-6 Connecting to the Encompass Reader with the Host Software ..................... 3-7 Configuring the En…

Text truncated - open the document above for the full version.

Cover Letter(s)

February 15, 2021 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Transcore - Amtech Technology Center 8600 Jefferson Street NE Albuquerque, New Mexico 87113 Re: Confidentiality request for FCC ID: FIHE6PT90V1 Dear Sirs: Transcore Amtech Technology Center requests that the material in the Block Diagram, Operational Description, Parts Lists, Schematics, and Tune Procedure be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. In support of this request, Transcore Amtech Technology Center submits the following information. CONFIDENTIAL FILES Block Diagram E6V1 Conf BlkDia.pdf Operational Description E6V1 Conf OpDes.pdf Parts List E6V1 Conf PartsList1.pdf Parts List E6V1 Conf PartsList2.pdf Parts List E6V1 Conf PartsList3.pdf Parts List E6V1 Conf PartsList4.pdf Schematics E6V1 Conf Schem1.pdf Schematics E6V1 Conf Schem2.pdf Schematics E6V1 Conf Schem3.pdf Schematics E6V1 Conf Schem4.pdf Tune Procedure E6V1 Conf TunPro.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set forth in the Block Diagram, Operational Description, Parts List, Schematics, and Tune Procedure which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID: FIHE6PT90V1 ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes Block Diagram, Operational Description, Parts List, Schematics, and Tune Procedure. As such, this material is treated as highly confidential business information. 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Transcore Amtech Technology Center engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Transcore Amtech Technology Center. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Transcore Amtech Technology Center and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. This equipment is designed for commercial, industrial, and governmental applications. As such, unlike most consumer equipment, this equipment could be used for more than a decade in some cases. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

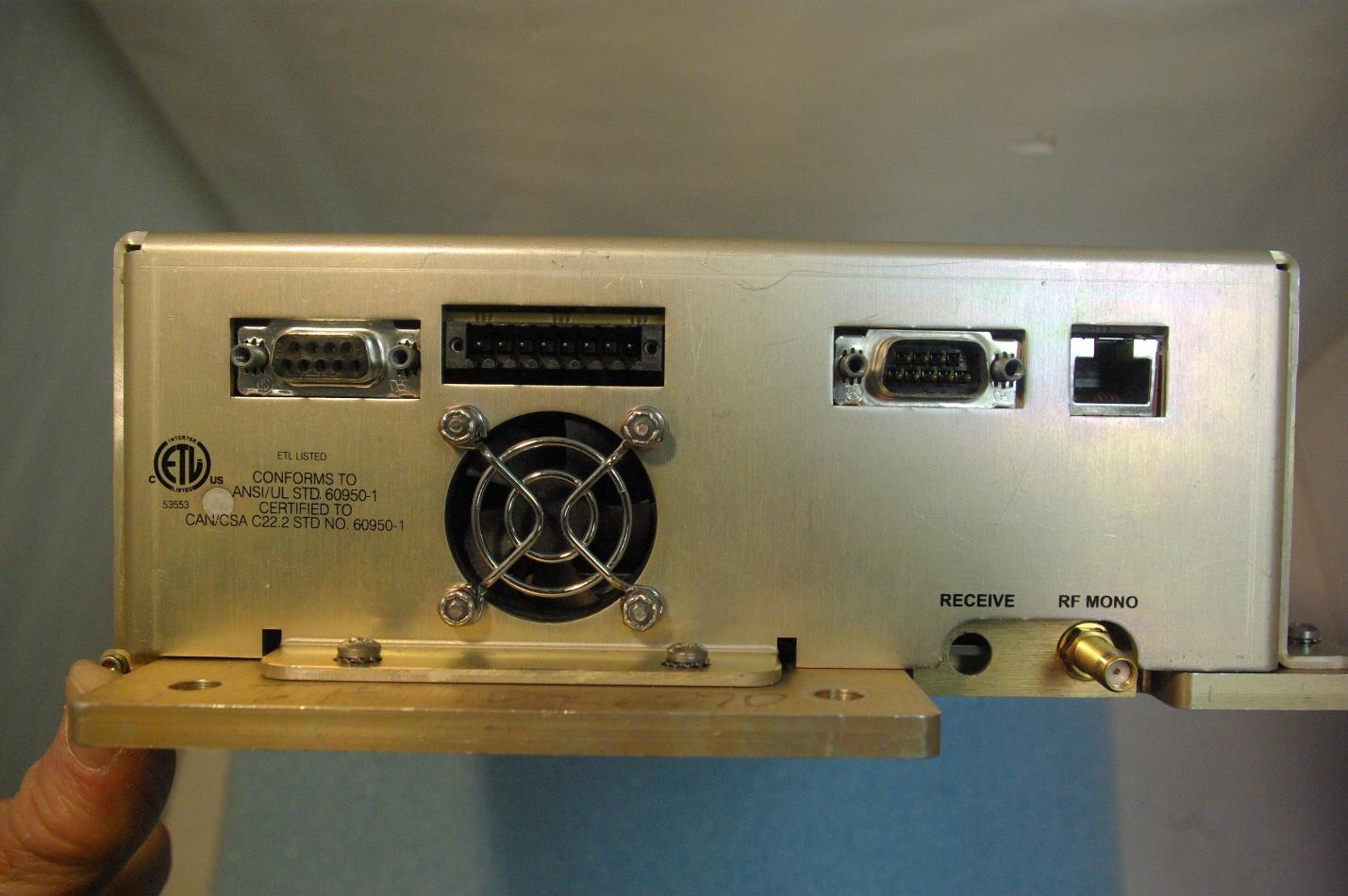

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Rogers Labs, Inc. Transcore SN: 3431565 4405 West 259 th Terrace HVIN: E6V1 FCC ID: FIHE6PT90V1 Louisburg, KS 66053 Test: 210107 IC: 1584A-E6RSS137V1 Phone/Fax: (913) 837-3214 Test to: 47CFR Parts 2, 90 and RSS-137 Date: February 15, 2021 Revision 1 File: E6V1 RFExp Page 1 of 1 Model: E5/E6 Interrogator Test Number: 210107 MPE Calculator RF Exposure uses EIRP for calculation. EIRP is based on TX power added to the antenna gain in dBi. dBi = dB gain compared to an isotropic radiator. S = power density in mW/cm^2 Transmitter Output power (mW) 2041.7 Transmitter Output power (W) 2.04 Output Power for % duty Cycle operation (Watts) 100 2.04 Antenna Gain (dBi) 14 Output Power for 100% duty Cycle operation (Watts) 2.04 Antenna Gain (Numeric) 25.12 Tx Frequency (MHz) 910 Calculation power (Watts) 2.04 dBd + 2.17 = dBi dBi to dBd 2.2 Antenna Gain (dBd) 11.83 Cable Loss (dB) 0.0 Adjusted Power (dBm) 33.10 Antenna minus cable (dBi) 14.00 Antenna Gain (Numeric) 25.12 Calculated ERP (mw) 31117.163 EIRP = Po(dBm) + Gain (dB) Calculated EIRP (mw) 51286.138 Radiated (EIRP) dBm 47.100 ERP = EIRP - 2.17 dB Radiated (ERP) dBm 44.930 Occupational Limit 3.033333333 mW/cm 2 Frequency (MHz) Occupational Limit (mW/cm 2 ) Public Limit (mW/cm 2 ) 30 W/m 2 30-300 1 0.2 General Public Limit 300-1,500 f/300 f/1500 0.606666667 mW/cm 2 1,500-10,000 5 1 6 W/m 2 Occupational Limit 0.6455ƒ 0.5 W/m 2 24.2 W/m 2 Frequency (MHz) Occupational Limit (W/m 2 ) Public Limit (W/m 2 ) General Public Limit 100-6,000 0.6455ƒ 0.5 0.02619ƒ 0.6834 W/m 2 6,000-15,000 50 8.7 W/m 2 48-300 1.291 300-6,000 0.02619ƒ 0.6834 6,000-15,000 50 10 f = Transmit Frequency (MHz) f (MHz) = 910 MHz P T = Power Input to Antenna (mW) P T (mW) = 2,041.7379 mW Duty cycle (percentage of operation) % = 100 % P A = Adjusted Power due to Duty cycle or Cable Loss (mW) P A (mW) = 2,041.74 mW G N = Numeric Gain of the Antenna GN (numeric) = 25.12 numeric S 20 = Power Density of device at 20cm (mW/m 2 ) S 20 =(P A G N )/(4πR 20 ) 2 S 20 (mW/m 2 ) = 10.20 mW/m 2 S 20 = Power Density of device at 20cm (W/m 2 ) S 20 =(P A G N )/(4πR 20 ) 2 S 20 (W/m 2 ) = 102.03 W/m 2 S L = Power Density Limit (W/m 2 ) S L (W/m 2 )= 8.733 W/m 2 R C = Minimum distance to the Radiating Element for Compliance (cm) R C =√ (P A G N /4π S L ) R C (cm) = 68.4 cm S C = Power Density of the device at the Compliance Distance R C (W/m 2 ) S C =(P A G N )/(4πR C ) 2 S C (W/m 2 ) = 8.73 W/m 2 R 20 = 20cm R20= 20 cm For Compliance with Canada General Population Limits, User Manual must indicate a minimum separation distance of 68.4 cm Or in Meters for Compliance with Canada General Population Limits, a minimum separation distance of 0.68 Meters Summary: Standalone MPE Calculations and Summary Band (MHZ) Tx Duty Cycle (%) Tx Frequency (MHz) Power Total (mW) Antenna Gain (numeric) S L (W/m 2 ) S 20 (W/m 2 ) R C (cm) S C (W/m 2 ) 902-928 100 910 2,042 25.12 8.733 102.03 68.4 8.73 FCC radio frequency radiation exposure limits per 1.1310 IC radio frequency radiation exposure limits per RSS-102 EIRP Power density (S) mW/cm 2 = ------- 4 p r^2 r (cm) EIRP (mW)

Test Report

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Transcore SN: 3431565 4405 West 259 th Terrace HVIN: E6V1 FCC ID: FIHE6PT90V1 Louisburg, KS 66053 Test: 210107 IC: 1584A-E6RSS137V1 Phone/Fax: (913) 837-3214 Test to: 47CFR Parts 2, 90 and RSS-137 Date: February 14, 2021 Revision 1 File: Transcore E6V1 FIHE6PT90V1 TstRpt 210107r1 Page 1 of 57 Engineering Test Report for Grant of Certification of Application 47CFR Part 90 and Industry Canada RSS-137 Location and Monitoring Service Transmitter Model: E5/E6 HVIN: E6V1 902.25-903.75 and 910.00-921.50 MHz FCC ID: FIHE6PT90V1 IC: 1584A-E6RSS137V1 Transcore Amtech Technology Center 8600 Jefferson Street, NE Albuquerque, NM 87113 FCC Designation: US5305 ISED Registration: 3041A-1 Test Report Number: 210107 Test Date: January 7, 2021 Authorized Signatory: Scot D. Rogers This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Transcore SN: 3431565 4405 West 259 th Terrace HVIN: E6V1 FCC ID: FIHE6PT90V1 Louisburg, KS 66053 Test: 210107 IC: 1584A-E6RSS137V1 Phone/Fax: (913) 837-3214 Test to: 47CFR Parts 2, 90 and RSS-137 Date: February 14, 2021 Revision 1 File: Transcore E6V1 FIHE6PT90V1 TstRpt 210107r1 Page 2 of 57 Tabl e of Cont ents Table of Contents TABLE OF CONTENTS .................................................................................................. 2 REVISION HISTORY ...................................................................................................... 4 EXECUTIVE SUMMARY ................................................................................................ 5 SUMMARY ...................................................................................................................... 5 ATTESTATIONS ............................................................................................................. 5 APPLICABLE STANDARDS AND TEST PROCEDURES ............................................. 6 OPINION / INTERPRETATION OF RESULTS ............................................................... 6 EQUIPMENT UNDER TEST ........................................................................................... 7 Equipment Function and Configuration .............................................................................................................. 7 Equipment Configuration ...................................................................................................................................... 8 APPLICATION FOR CERTIFICATION ........................................................................... 9 UNITS OF MEASUREMENTS ...................................................................................... 12 TEST SITE LOCATIONS .............................................................................................. 12 ENVIRONMENTAL CONDITIONS................................................................................ 12 TEST #1 TRANSMITTER POWER OUTPUT ............................................................... 13 Measurements Required ...................................................................................................................................... 13 Test Arrangement Output Power ........................................................................................................................ 13 Table 1 Transmitter Power Results ..................................................................................................................... 14 Figure 1 Transmitter Output Across Frequency Band CW (ATA) Highest Power Level .................................. 15 Figure 2 Transmitter Output Across Frequency Band CW (ATA) Lowest Power Level ................................... 16 Figure 3 Transmitter Output Across Frequency Band EPC ............................................................................... 17 Figure 4 Transmitter Output Across Frequency Band SeGo .............................................................................. 18 Figure 5 Transmitter Output Across Frequency Band IAG ............................................................................... 19 Figure 6 Transmitter Output Across Frequency Band ASTM............................................................................ 20 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Transcore SN: 3431565 4405 West 259 th Terrace HVIN: E6V1 FCC ID: FIHE6PT90V1 Louisburg, KS 66053 Test: 210107 IC: 1584A-E6RSS137V1 Phone/Fax: (913) 837-3214 Test to: 47CFR Parts 2, 90 and RSS-137 Date: February 14, 2021 Revision 1 File: Transcore E6V1 FIHE6PT90V1 TstRpt 210107r1 Page 3 of 57 Figure 7 Transmitter Output Across Frequency Band Title 21 .......................................................................... 21 TEST #2 MODULATION CHARACTERISTICS ............................................................ 22 Measurements Required ...................................................................................................................................... 22 Test Arrangement ................................................................................................................................................. 22 TEST #3 OCCUPIED BANDWIDTH ............................................................................. 23 Measurements Required ...................................................................................................................................... 23 Test Arrangement ................................................................................................................................................. 23 Table 2 Occupied Bandwidth Results ..............................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Rogers Labs, Inc. Transcore SN: 3431565 4405 West 259 th Terrace HVIN: E6V1 Models:E5, E6 FCC ID: FIHE6PT90V1 Louisburg, KS 66053 Test: 210107 IC: 1584A-E6RSS137V1 Phone/Fax: (913) 837-3214 Test to: 47CFR Parts 2, 90 and RSS-137 Date: February 18, 2021 Revision 1 File: E6V1 TSup Page 1 of 4 Test setup photographs Rogers Labs, Inc. Transcore SN: 3431565 4405 West 259 th Terrace HVIN: E6V1 Models:E5, E6 FCC ID: FIHE6PT90V1 Louisburg, KS 66053 Test: 210107 IC: 1584A-E6RSS137V1 Phone/Fax: (913) 837-3214 Test to: 47CFR Parts 2, 90 and RSS-137 Date: February 18, 2021 Revision 1 File: E6V1 TSup Page 2 of 4 Rogers Labs, Inc. Transcore SN: 3431565 4405 West 259 th Terrace HVIN: E6V1 Models:E5, E6 FCC ID: FIHE6PT90V1 Louisburg, KS 66053 Test: 210107 IC: 1584A-E6RSS137V1 Phone/Fax: (913) 837-3214 Test to: 47CFR Parts 2, 90 and RSS-137 Date: February 18, 2021 Revision 1 File: E6V1 TSup Page 3 of 4 Rogers Labs, Inc. Transcore SN: 3431565 4405 West 259 th Terrace HVIN: E6V1 Models:E5, E6 FCC ID: FIHE6PT90V1 Louisburg, KS 66053 Test: 210107 IC: 1584A-E6RSS137V1 Phone/Fax: (913) 837-3214 Test to: 47CFR Parts 2, 90 and RSS-137 Date: February 18, 2021 Revision 1 File: E6V1 TSup Page 4 of 4

Contact Information

Applicant

Dale Scott(VP of Engineering and Manufacturing)

[email protected]505 856-8178Fax: (505) 856-8174

Test Firm

Rogers Labs, a division of The Compatibility CntrPatrick Powell

[email protected]913-837-3214Fax: 913-837-3214

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
6	9	914.75 MHz - 916.75 MHz	1.911 W	1M72L1D	0.2 ppm

Confidentiality

Long Term

Grant Notes

Power Output listed is Conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 68.4 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
