FIHE6PT90V2Location and Monitoring Service Interrogator

TransCore

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Jan 24, 2023
Application Purpose: Original Equipment
Date of Application: Jan 24, 2023
Equipment Note: Location and Monitoring Service Interrogator
Frequency Range: 912.75000000 - 918.75000000
Company: TransCore
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Encompass ® Multiprotocol Reader System Guide Do not distribute this document outside of TransCore. Distribution to external parties is governed by TransCore non-disclosure agreement. TransCore 8600 Jefferson Street NE Albuquerque, New Mexico 87113 January 2023 P/N 412067-011A Use or disclosure of Proprietary Information contained on this sheet is subject to the restriction stated on the title page of this document. Use or disclosure of Proprietary Information contained on this sheet is subject to the restriction stated on the title page of this document.iii © 2008 TC License, Ltd. All rights reserved. TRANSCORE, AMTECH, EGO, and ENCOMPASS are registered trademarks and STEP-LOCK is a trademark of TC License, Ltd. All other trademarks listed are the property of their respective owners. Contents are subject to change. Printed in the U.S.A. For further information, contact: TransCore 8600 Jefferson Street NE Albuquerque, NM 87113 USA TransCore Sales Support: (800)923-4824 Technical Support Web: www.transcore.com Phone:(505) 856-8007 Encompass Multiprotocol Reader System Guide ivUse or disclosure of Proprietary Information contained on this sheet is subject to the restriction stated on the title page of this document. WARNING TO USERS IN THE UNITED STATES AND CANADA FEDERAL COMMUNICATIONS COMMISSION (FCC) LOCATION AND MONITORING SERVICE STATEMENT 47 CFR §90.351 NOTE: The user is required to obtain a Part 90 site license from the Federal Communications Commission (FCC), or an equivalent delivered by Industry Canada (IC), to operate this radio frequency identification (RFID) device in the United States or Canada. FCC ID number is FIHE6PT90V2. The IC ID number is 1584A-E6RSS137V2. Access the FCC website at www.fcc.gov/Forms/Form601/601.html or at http:// wireless.fcc.gov/index.htm?job=online_filing or at the IC website at http://www.ic.gc.ca/eic/site/sd-sd.nsf/ eng/h_00023.html to obtain additional information concerning licensing requirements. NOTE: Users in all countries should check with the appropriate local authorities for licensing requirements. FCC RADIO FREQUENCY INTERFERENCE STATEMENT 47 CFR §15.105(a) NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate RF energy and may cause harmful interference to radio communications if not installed and used in accordance with the instruction manual. Operating this equipment in a residential area is likely to cause harmful interference, in which case, depending on the regulations in effect, the user may be required to correct the interference at their own expense. NO UNAUTHORIZED MODIFICATIONS 47 CFR §15.21 CAUTION: This equipment may not be modified, altered, or changed in any way without permission from TransCore, LP. Unauthorized modification may void the equipment authorization from the FCC and will void the TransCore warranty. USE OF SHIELDED CABLES AND GROUNDING 47 CFR §15.27(a) NOTE: Shielded cables and Earth Grounding the unit is recommended for this equipment to comply with FCC regulations. TransCore, LP Use or disclosure of Proprietary Information contained on this sheet is subject to the restriction stated on the title page of this document.v AVERTISSEMENT POUR LES UTILISATEURS DES ÉTATS-UNIS ET DU CANADA DÉCLARATION SUR L’UTILISATION ET L’EMPLACEMENT DES APPAREILS, CONFORMÉMENT AUX EXIGENCES DE LA FCC (COMMISSION FÉDÉRALE DES COMMUNICATIONS DES ÉTATS-UNIS) 47 CFR §90.351 NOTE : L’utilisateur est tenu d’obtenir une licence de site de la FCC aux termes de la partie 90 du Code des règlements fédéraux des États-Unis (CFR), ou un équivalent délivré par Industrie Canada (IC), pour pouvoir se servir de ce dispositif d’identification par radiofréquence (RFID) aux États-Unis et au Canada. Le numéro d’identification pour la FCC est FIHE6PT90V2. Le numéro d’identification pour IC est 1584A-E6RSS137V2. Prière de consulter le site Web de la FCC au www.fcc.gov/Forms/Form601/601.html ou au http:// wireless.fcc.gov/index.htm?job=online_filing, ou encore le site Web d’IC à http://www.ic.gc.ca/eic/site/sd- sd.nsf/fra/h_00023.html?Open&src=mm1, pour obtenir des renseignements supplémentaires sur les exigences en matière de licence. NOTE : Les utilisateurs de tous les pays sont priés de vérifier, auprès des autorités concernées, les exigences locales en matière de licence. DÉCLARATION SUR LE BROUILLAGE RADIOÉLECTRIQUE, CONFORMÉMENT AUX EXIGENCES DE LA FCC 47 CFR §15.105(a) NOTE : Cet appareil a été testé et jugé conforme aux limites établies pour un dispositif numérique de classe A, selon la partie 15 des règlements de la FCC. Ces limites visent à assurer un degré raisonnable de protection contre le brouillage préjudiciable lorsque l’appareil est utilisé dans un environnement commercial. Cet appareil génère, utilise et peut diffuser de l’énergie sous forme de radiofréquences (RF) et peut causer un brouillage préjudiciable aux communications radio s’il n’est pas installé conformément au mode d’emploi. L’utilisation de cet appareil en zone résidentielle est susceptible de causer un brouillage préjudiciable, auquel cas, selon la réglementation applicable, l’utilisateur pourrait être tenu d'éliminer le signal parasite à ses propres frais. AUCUNE MODIFICATION SANS AUTORISATION 47 CFR §15.21 MISE EN GARDE : Cet appareil ne peut en aucune façon être modifié, altéré ou transformé sans l’autorisation de TransCore, LP. Toute modification non autorisée pourrait invalider l’autorisation de la FCC au regard de l’appareil et annulera la garantie de TransCore. UTILISATION DE CÂBLES BLINDÉS ET MISE À LA TERRE 47 CFR §15.27(a) NOTE : Il est recommandé d’utiliser des câbles blindés et de mettre l’appareil à la terre pour assurer la conformité aux règlements de la FCC. TransCore, LP États-Unis E…

Text truncated - open the document above for the full version.

Cover Letter(s)

January 23, 2023 Timco Engineering Inc. Federal Communications Commission 849 NW State Road 45 Equipment Approval Services Newberry, FL 32669 Pittsburgh, PA 15251-3315 Applicant: Transcore - Amtech Technology Center 8600 Jefferson Street NE Albuquerque, New Mexico 87113 Equipment: FCC ID: FIHE6PT90V2 FCC Rules: Part 2, 90M Sirs The 731 Form and application have been electronically submitted and attachments uploaded to your site for use in processing for grant of certification. Confidentiality is requested as outlined below. Permanent Transcore Amtech Technology Center requests that the material in the Block Diagram, Operational Description, Parts List, Schematics, and Tune Procedure be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. A statement of confidentiality will be attached with the application at the time of submittal. CONFIDENTIAL FILES Block Diagram E6V2 Conf BlkDia.pdf Operational Description E6V2 Conf OpDes.pdf Parts List E6V2 Conf PartsList.pdf Schematics E6V2 Conf Schem.pdf Tune Procedure E6V2 Conf TunPro.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Telephone / Facsimile (913) 837-3214

Cover Letter(s)

January 23, 2023 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Transcore - Amtech Technology Center 8600 Jefferson Street NE Albuquerque, New Mexico 87113 Re: Confidentiality request for FCC ID: FIHE6PT90V2 Dear Sirs: Transcore Amtech Technology Center requests that the material in the Block Diagram, Operational Description, Parts Lists, Schematics, and Tune Procedure be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. In support of this request, Transcore Amtech Technology Center submits the following information. CONFIDENTIAL FILES Block Diagram E6V2 Conf BlkDia.pdf Operational Description E6V2 Conf OpDes.pdf Parts List E6V2 Conf PartsList.pdf Schematics E6V2 Conf Schem.pdf Tune Procedure E6V2 Conf TunPro.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set forth in the Block Diagram, Operational Description, Parts List, Schematics, and Tune Procedure which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID: FIHE6PT90V2 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes Block Diagram, Operational Description, Parts List, Schematics, and Tune Procedure. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Transcore Amtech Technology Center engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Transcore Amtech Technology Center. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Transcore Amtech Technology Center and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. This equipment is designed for commercial, industrial, and governmental applications. As such, unlike most consumer equipment, this equipment could be used for more than a decade in some cases. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

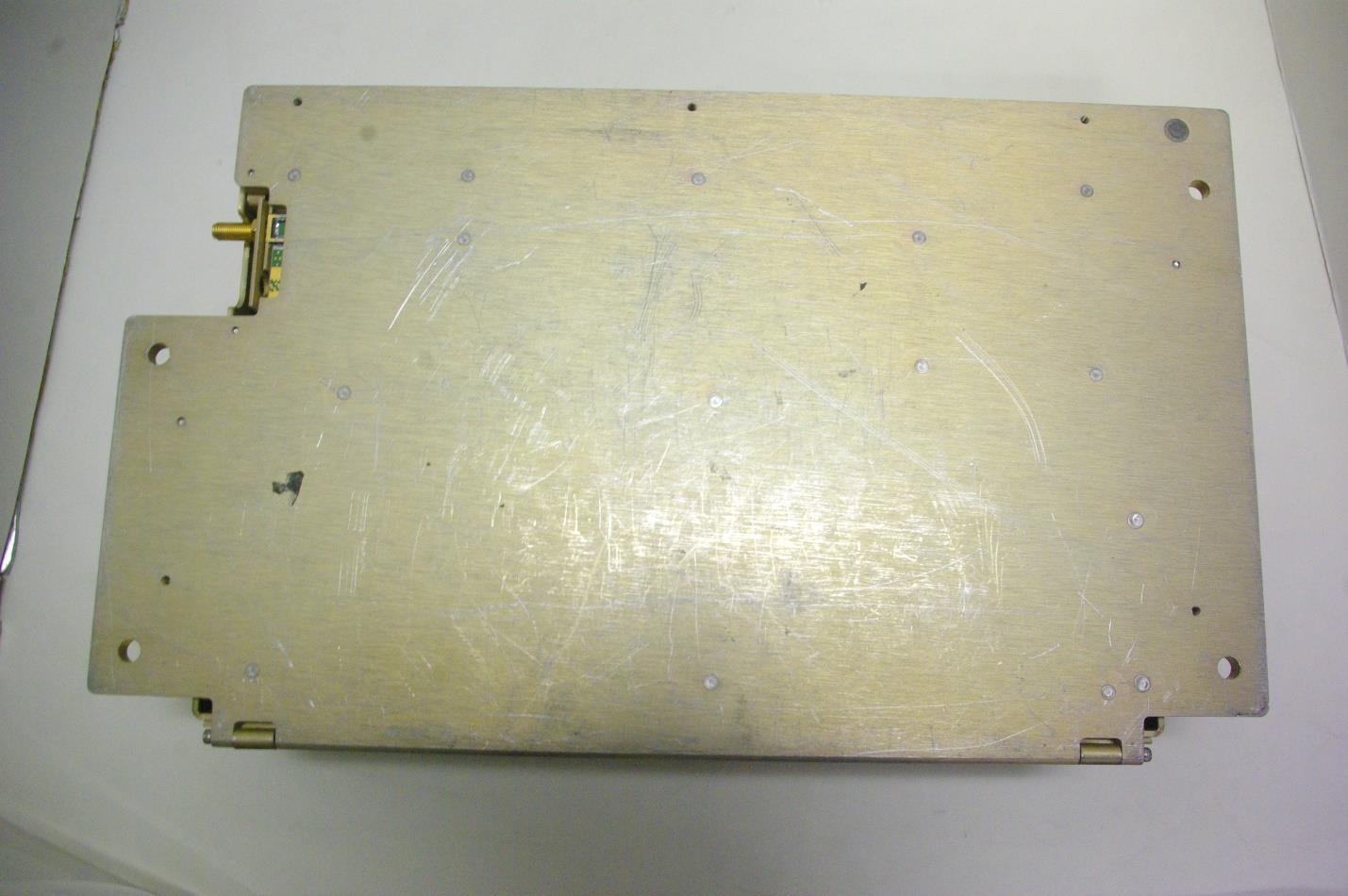

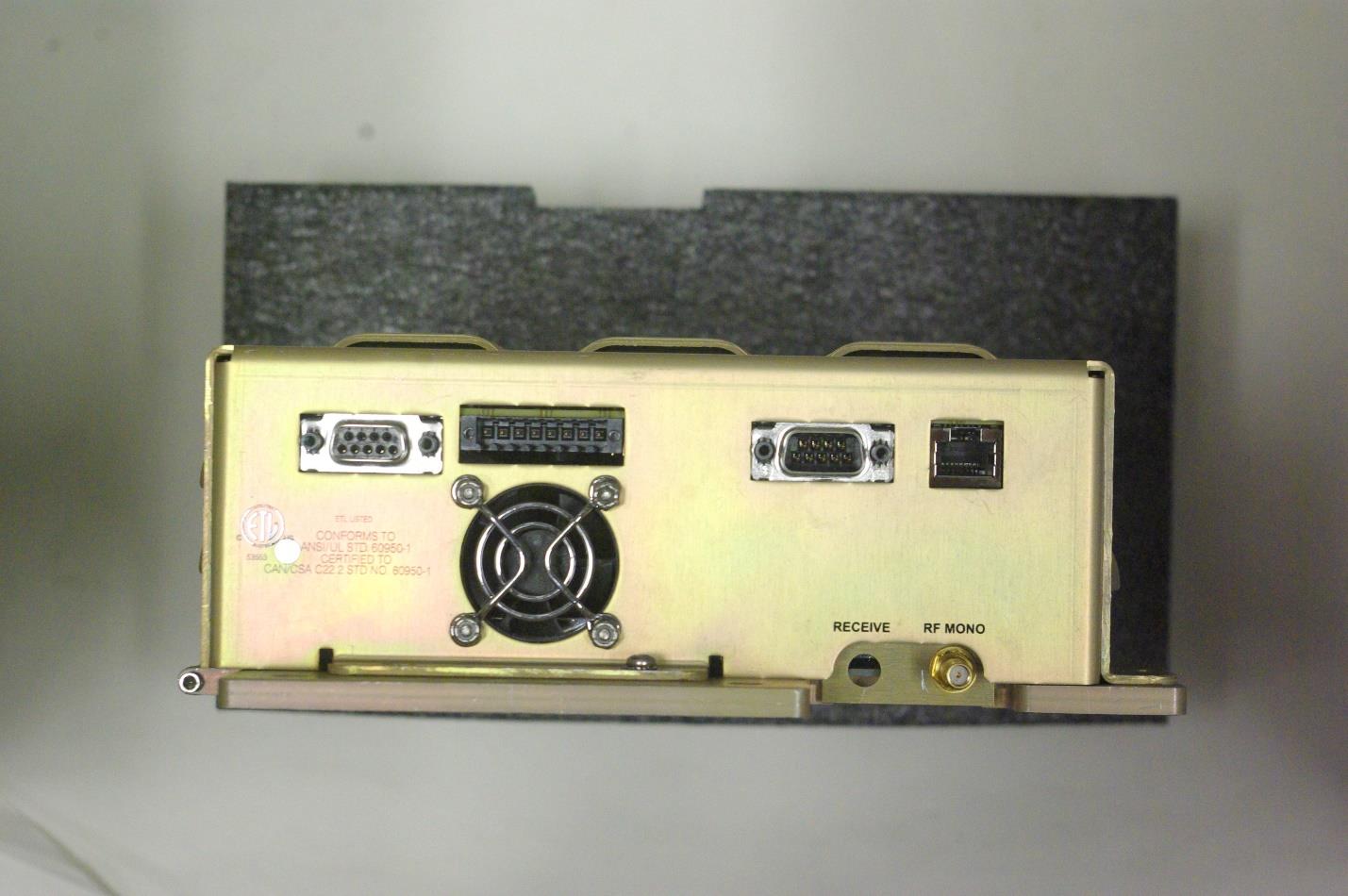

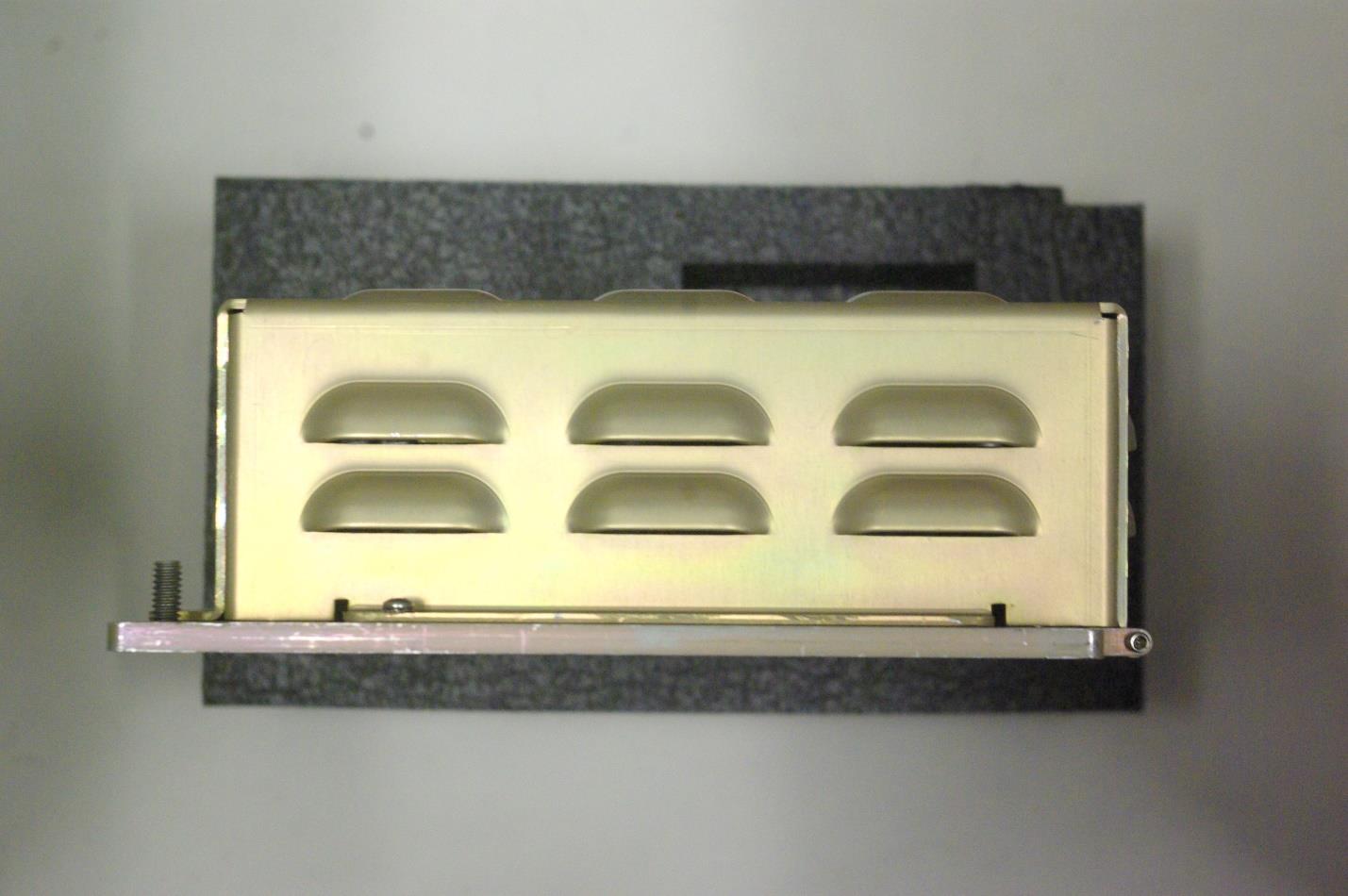

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Rogers Labs, Inc. Transcore SN: 22176999 4405 West 259th Terrace HVIN: E6V2 PMN: E5, E6 FCC ID: FIHE6PT90V2 Louisburg, KS 66053 Test: 221228 IC: 1584A-E6RSS137V2Phone/Fax: (913) 837-3214 Test to: 47CFR Parts 2, 90 and RSS-137 Date: January 18, 2023 Revision 1 File: E6V2 RFExp Page 1 of 1 HVIN:E6V2Test Number:221228 MPE CalculatorRF Exposure uses EIRP for calculation. EIRP is based on TX power added to the antenna gain in dBi. dBi = dB gain compared to an isotropic radiator. S = power density in mW/cm^2 Transmitter Output power (mW)2051.2 Transmitter Output power (W)2.05 Output Power for % duty Cycle operation (Watts)1002.05Antenna Gain (dBi)14 Output Power for 100% duty Cycle operation (Watts)2.05Antenna Gain (Numeric)25.12 Tx Frequency (MHz)915Calculation power (Watts)2.05dBd + 2.17 = dBidBi to dBd2.17 Antenna Gain (dBd)11.83 Cable Loss (dB)0.0Adjusted Power (dBm)33.12Antenna minus cable (dBi)14.00 Antenna Gain (Numeric)25.12 Calculated ERP (mw)31260.794EIRP = Po(dBm) + Gain (dB) Calculated EIRP (mw)51522.864Radiated (EIRP) dBm47.120 ERP = EIRP - 2.17 dB Radiated (ERP) dBm44.950 Occupational Limit 3.05 mW/cm 2 Frequency (MHz) Occupational Limit (mW/cm 2 )Public Limit (mW/cm 2 ) 30.5 W/m 2 30-30010.2 General Public Limit300-1,500f/300f/1500 0.61 mW/cm 2 1,500-10,00051 6.1 W/m 2 Occupational Limit 0.6455ƒ 0.5 W/m 2 19.5 W/m 2 Frequency (MHz) Occupational Limit (W/m 2 )Public Limit (W/m 2 ) General Public Limit100-6,000 0.6455ƒ 0.5 0.02619ƒ 0.6834 W/m 2 6,000-15,00050 2.77 W/m 2 48-3001.291 300-6,000 0.02619ƒ 0.6834 6,000-15,0005010 General PublicOccupational f = Transmit Frequency (MHz) f (MHz) =915915MHz P T = Power Input to Antenna (mW) P T (mW) = 2,051.16222,051.1622 mW Duty cycle (percentage of operation) % =100100% P A = Adjusted Power due to Duty cycle or Cable Loss (mW) P A (mW) = 2,051.162,051.16 mW G N = Numeric Gain of the Antenna GN (numeric) =25.1225.12numeric S 20 = Power Density of device at 20cm (mW/m 2 ) S 20 =(P A G N )/(4πR 20 ) 2 S 20 (mW/m 2 ) = 10.2510.25 mW/m 2 S 20 = Power Density of device at 20cm (W/m 2 ) S 20 =(P A G N )/(4πR 20 ) 2 S 20 (W/m 2 ) = 102.50102.50 W/m 2 S L = Power Density Limit (W/m 2 ) FCC S L (W/m 2 )= 6.10030.500 W/m 2 S L = Power Density Limit (W/m 2 ) Canada S L (W/m 2 )= 2.76719.526 W/m 2 R C = Minimum distance to the Radiating Element for Compliance (cm) FCC R C =√(P A G N /4πS L )R C (cm) =82.036.7cm R C = Minimum distance to the Radiating Element for Compliance (cm) Canada R C =√(P A G N /4πS L )R C (cm) =121.745.8cm S C = Power Density of the device at the Compliance Distance R C (W/m 2 ) FCC S C =(P A G N )/(4πR C ) 2 S C (W/m 2 ) = 6.1030.50 W/m 2 S C = Power Density of the device at the Compliance Distance R C (W/m 2 ) Canada S C =(P A G N )/(4πR C ) 2 S C (W/m 2 ) = 2.7719.53 W/m 2 R 20 = 20cm R20=2020cm For Compliance with Canada General Population Limits, User Manual must indicate a minimum separation distance of 121.7cm Or in Meters for Compliance with Canada General Population Limits, a minimum separation distance of 1.22Meters Summary: Standalone MPE Calculations and SummaryPublic LimitPublic Tx Duty Cycle (%)Tx Frequency (MHz)Power Total (mW)Antenna Gain (numeric) S L (W/m 2 )S 20 (W/m 2 ) R C (cm) S C (W/m 2 ) FCC1009152,05125.126.100102.5082.06.10 Canada1009152,05125.122.767102.50121.72.77 Overall Minimum (cm)Overall Minimum (inches) PublicOccupational FCC (cm)82.036.7 FCC (inches)33.015.0 Canada (cm)121.745.8 Canada (inches)48.019.0 122cm46cm 49inches19inches FCC radio frequency radiation exposure limits per 1.1310 IC radio frequency radiation exposure limits per RSS-102 Limit Overall Minimum Limit PublicOverall Minumu Limit Occuppational EIRP Power density (S) mW/cm 2 =------- 4 pr^2 r (cm) EIRP (mW)

Test Report

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Transcore SN: 22176999 4405 West 259 th Terrace HVIN: E6V2 PMN: E5, E6 FCC ID: FIHE6PT90V2 Louisburg, KS 66053 Test: 221228 IC: 1584A-E6RSS137V2 Phone/Fax: (913) 837-3214 Test to: 47CFR Parts 2, 90 and RSS-137 Date: January 18, 2023 Revision 1 File: Transcore E6V2 TstRpt 221228 Page 1 of 65 Engineering Test Report for Grant of Certification of Application 47CFR Part 90 and Industry Canada RSS-137 Location and Monitoring Service Transmitter PMN: E5, E6 HVIN: E6V2 902.25-903.75 and 910.00-921.50 MHz FCC ID: FIHE6PT90V2 IC: 1584A-E6RSS137V2 Transcore Amtech Technology Center 8600 Jefferson Street, NE Albuquerque, NM 87113 FCC Designation: US5305 ISED Registration: 3041A-1 Test Report Number: 221228 Test Date: December 28, 2022 Authorized Signatory: Scot D. Rogers This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Transcore SN: 22176999 4405 West 259 th Terrace HVIN: E6V2 PMN: E5, E6 FCC ID: FIHE6PT90V2 Louisburg, KS 66053 Test: 221228 IC: 1584A-E6RSS137V2 Phone/Fax: (913) 837-3214 Test to: 47CFR Parts 2, 90 and RSS-137 Date: January 18, 2023 Revision 1 File: Transcore E6V2 TstRpt 221228 Page 2 of 65 Tabl e of Cont ents Table of Contents TABLE OF CONTENTS .................................................................................................. 2 REVISION HISTORY ...................................................................................................... 5 EXECUTIVE SUMMARY ................................................................................................ 6 SUMMARY ...................................................................................................................... 6 ATTESTATIONS ............................................................................................................. 6 APPLICABLE STANDARDS AND TEST PROCEDURES ............................................. 7 OPINION / INTERPRETATION OF RESULTS ............................................................... 7 EQUIPMENT UNDER TEST ........................................................................................... 8 Equipment Function and Configuration .............................................................................................................. 8 Equipment Configuration ...................................................................................................................................... 9 APPLICATION FOR CERTIFICATION ......................................................................... 10 UNITS OF MEASUREMENTS ...................................................................................... 13 TEST SITE LOCATIONS .............................................................................................. 13 ENVIRONMENTAL CONDITIONS................................................................................ 13 TEST #1 TRANSMITTER POWER OUTPUT ............................................................... 14 Measurements Required ...................................................................................................................................... 14 Test Arrangement Output Power ........................................................................................................................ 14 Table 1 Transmitter Power Results ..................................................................................................................... 15 Figure 1 Transmitter Output Across Frequency Band CW (ATA) High Power Level ...................................... 16 Figure 2 Transmitter Output Across Frequency Band CW (ATA) Lowest Power Level ................................... 17 Figure 3 Transmitter Output Across Frequency Band eGo ................................................................................ 18 Figure 4 Transmitter Output Across Frequency Band SeGo .............................................................................. 19 Figure 5 Transmitter Output Across Frequency Band CVSN ............................................................................ 20 Figure 6 Transmitter Output Across Frequency Band IAG ............................................................................... 21 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Transcore SN: 22176999 4405 West 259 th Terrace HVIN: E6V2 PMN: E5, E6 FCC ID: FIHE6PT90V2 Louisburg, KS 66053 Test: 221228 IC: 1584A-E6RSS137V2 Phone/Fax: (913) 837-3214 Test to: 47CFR Parts 2, 90 and RSS-137 Date: January 18, 2023 Revision 1 File: Transcore E6V2 TstRpt 221228 Page 3 of 65 Figure 7 Transmitter Output Across Frequency Band Title 21 .......................................................................... 22 Figure 8 Transmitter Output Across Frequency Band 6C/EPC.......................................................................... 23 TEST #2 MODULATION CHARACTERISTICS ............................................................ 24 Measurements Required ...................................................................................................................................... 24 Test Arrangement ................................................................................................................................................. 24 TEST #3 OCCUPIED BANDWIDTH ............................................................................. 25 Measurements Required ...................................................................................................................................... 25 Test Arrangement ...................................................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Contact Information

Applicant

Dale Scott(VP of Engineering and Manufacturing)

[email protected]505 856-8178Fax: (505) 856-8174

Test Firm

Rogers Labs, a division of The Compatibility CntrPatrick Powell

[email protected]913-837-3214Fax: 913-837-3214

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
5	9	912.75 MHz - 918.75 MHz	2 W	918KL1D	0.2 ppm

Confidentiality

Long Term

Grant Notes

Output Power rated conducted output power. The antenna(s) used for this transmitter must be installed and operated so as to provide a separation distance of at least 82 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures.
