FIHMPRXFHV1Multiprotocol Reader Extreme - Frequency Hopper

16-0142-001 Rev A 1/2020 TransCore’s Multiprotocol Reader Extreme Frequency Hopper (MPRX-FH) is a radio frequency identification (RFID) reader designed for harsh environment applications. This guide provides site planning, testing, and operating instructions for this system. This guide is intended for use by authorized TransCore dealers, professional installers, and service personnel. The MPRX-FH must be installed by a professional installer. Once installed, configured, and verified by testing, the end user cannot change the configuration (transmit power, etc) of the MPRX-FH. If changes are required, the end user must contact their authorized TransCore dealer, professional installer, and/or service personnel for additional service. MPRX-FH Reader User Guide Trusted Transportation Solutions Information in this document is subject to change and does not represent a commitment on the part of TransCore, LP. © 2020 TransCore, LP. All rights reserved. TRANSCORE, AMTECH, EGO, and ENCOMPASS are registered trademarks and are used under license. All other trademarks are the property of their respective owners. Contents are subject to change. Printed in the U.S.A. For further information, contact: TransCore 8600 Jefferson Street NE Albuquerque, New Mexico 87113 USA TransCore Technical Support Phone: (505) 856-8007 Web: www.transcore.com TransCore Sales Support Phone: (800) 923-4824 Lantronix ® Technical Support (Ethernet Support) Phone: (949) 453-7198 Web: www.lantronix.com/support/ ii MPRX-FH User Guide Approved Antenna List TRANSMITTERS FOR DETACHABLE ANTENNAS This radio transmitter, ISED ID: 1584A-MPRXV1, has been approved by Innovation, Science, and Economic Development Canada to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device. FCC COMPLIANCE NOTICE The MPRX-FH complies with FCC Part 15.247 and IC RSS-247 rules and has been designed to operate with the listed antennas presented in Table 1. The effective maximum gain of each antenna is listed as well as the required attenuation to ensure that effective gain of greater than the allowed 6dB cannot occur. The required attenuation presented in Table 1 also includes any cable loss that is included with the system. To reduce potential interference to other systems, antenna gain and type should be selected in a way that the EIRP (equivalent isotropically radiated power) is no more than the allowed 36dBm, preferably as low as possible that is needed for proper operation of the system. Table 1 Approved Antenna List Manufacture Part NumberPolarization Gain (dBi) Min lnline Loss Required (dB) Huber Suhner1309.17.0111/85018546 Circular 5.50 0.00 Kathrein52010087 Circular11.00 5.00 Kathrein 52010249 Linear 11.00 5.00 Kathrein52010092Circular-30.00 0.00 LairdS9028P Linear8.002.00 LairdS9025PR Circular5.500.00 MARS Antennas & RF Systems LTD. MA-IS91-T2 Linear 10.50 4.50 Mobile Mark PN6-915RCP-1C-WHT-6 RH Circular 6.00 0.00 Mobile MarkPN6-915LCP-1C-WHT-6LH Circular6.00 0.00 Mobile MarkPL8-915RCP-1Y-WHT-12 RH Circular 8.002.00 Mobile MarkHD7-915RCP-BLK RH Circular 7.00 1.00 MTI Wireless Edge LTD. MT-263007/TRH/A/KCircular11.505.50 TransCoreAA3152 UTALinear 14.00 8.00 TransCore AA3237 Linear6.00 0.00 TransCore AA3110 Linear 12.50 6.50 TransCore AA3153Linear10.50 4.50 Table 1 has the antenna polarization, peak linear dBi (decibels over isotropic) gain figures, and the required loss required between the MPRX-FH and the antenna. This loss can include the cable loss for the length of the cable required to set up system. Example: To set up an MPRX-FH reader for use with the AA3152 antenna using a cable length of LMR-400 with an average attenuation of 3.94dBi and a length of 115ft, the cable loss would be 4.53dBi. With a gain of 14dBi iii from the AA3152, and another external attenuator with a value of at least 3.47dBi or greater, this setup would meet the FCC rule of the maximum EIRP of 36dBm. Liste des antennes approuvées ÉMETTEURS RADIO POUR ANTENNES DÉMONTABLES Cet émetteur radio, n o ISDE 1584A-MPRXV1, a obtenu l’homologation d’Innovation, Sciences et Développement économique Canada pour fonctionner avec les types d’antennes qui figurent dans la liste ci-dessous, sous réserve du gain maximal admissible indiqué. Il est strictement interdit d’utiliser tout type d’antenne qui ne figure pas sur cette liste et dont le gain est supérieur au gain maximal indiqué sur la liste, tous types confondus, avec cet appareil. AVIS DE CONFORMITÉ À LA FCC Le MPRX-FH est conforme à la section 15.247 des règles de la FCC et aux règles du CNR-247, et est conçu pour fonctionner avec les antennes énumérées dans la liste du tableau 1. La liste prescrit le gain maximal apparent de chaque antenne, ainsi que l’atténuation requise pour faire en sorte qu’un gain apparent supérieur aux 6 dB admis ne peut se produire. L’atténuation requise indiquée au Tableau 1 comprend en outre toute atténuation de câble qui est comprise dans le système. Pour limiter les interférences potentielles sur d’autres systèmes, le gain et le type d’antenne doivent être choisis de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas les 36 dBm admissibles et, de préférence, soit la plus faible possible compte tenu des exigences de fonctionnement du système. Tableau 1 – Liste des antennes approuvées FabricantNuméro de piècePolarisation Gain (dBi) Atténuation de câble minimale requise (dB ) Huber Suhner1309.17.0111/85018546Circulaire5,500,00 Kathrein52010087Circulaire11,005,00 Kathrein52010249Linéaire11,005,00 Kathrein52010092Circulaire-30,000,00 LairdS9028PLinéaire8,002,00 LairdS9025PRCirculaire5,500,00 MARS Antennas & RF Systems LTD MA-IS91-T2Linéaire10,504,50 Mobile MarkPN6-915RCP-1C-WHT-6 Circulaire sens horaire 6,000,00 Mobile MarkPN6-915LCP-1C-WHT-6 Circulaire sens antihoraire 6,000,00 …

Text truncated - open the document above for the full version.

DETAIL A SCALE 2 : 1 A Model No.- MPRXFH Serial No.- Date of MFG.- Rev- Freq. (MHz) CW: 915 Frequency Hopping MOD: PRIMARY POWER- Assy No. 05XXX-XX IC: 1584A-MPRXFHV1 HVIN:MRPXFH FCC ID: FIHMPRXFHV1

2.1033 (b) (2)FCC Identifier Model Number:MPRXFH FCC ID: FIH MPRXFH-V1 IC:1584A-MPRXFH-V1 Figure 1 - Label and placement Page 7 of 100

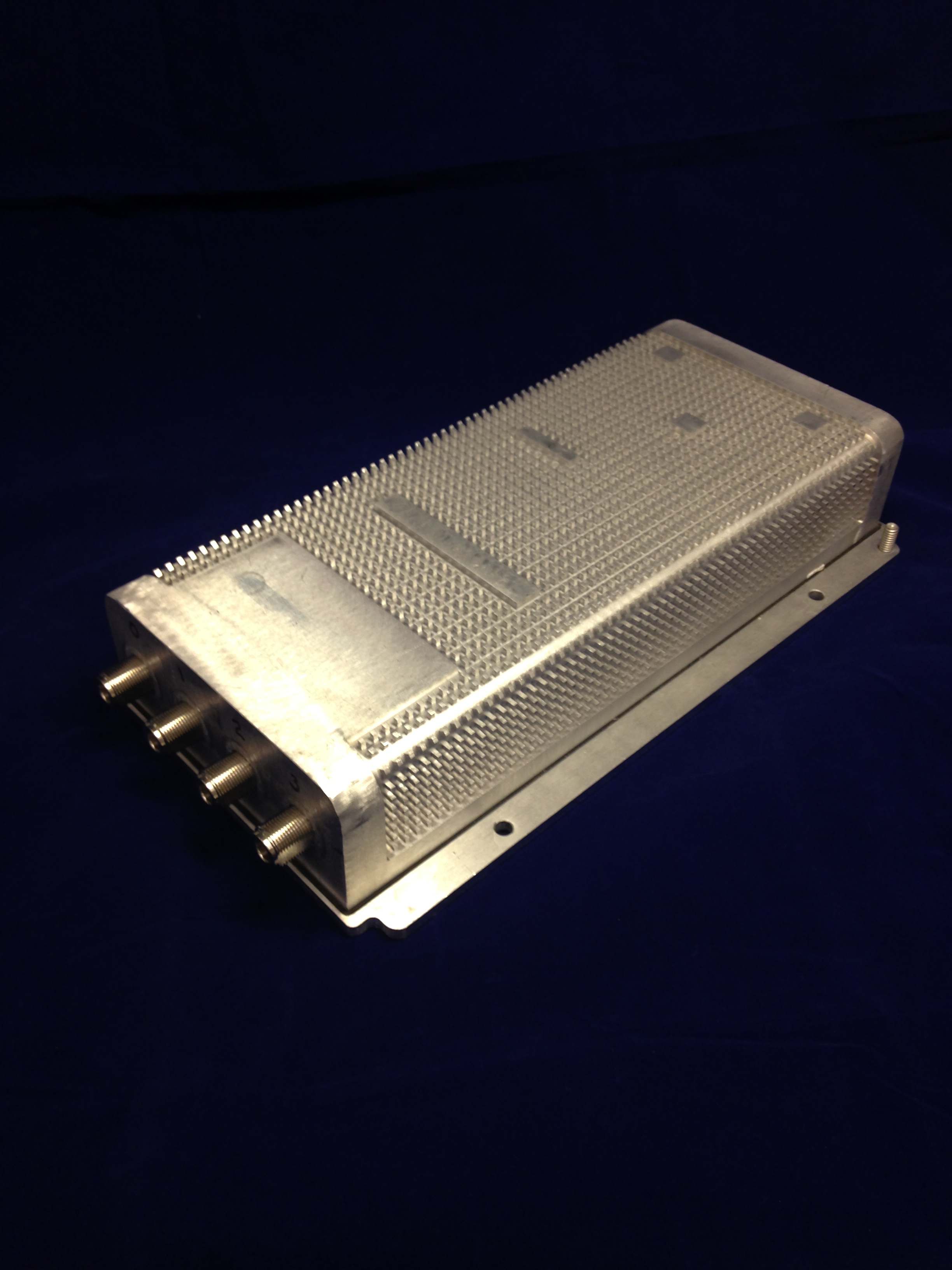

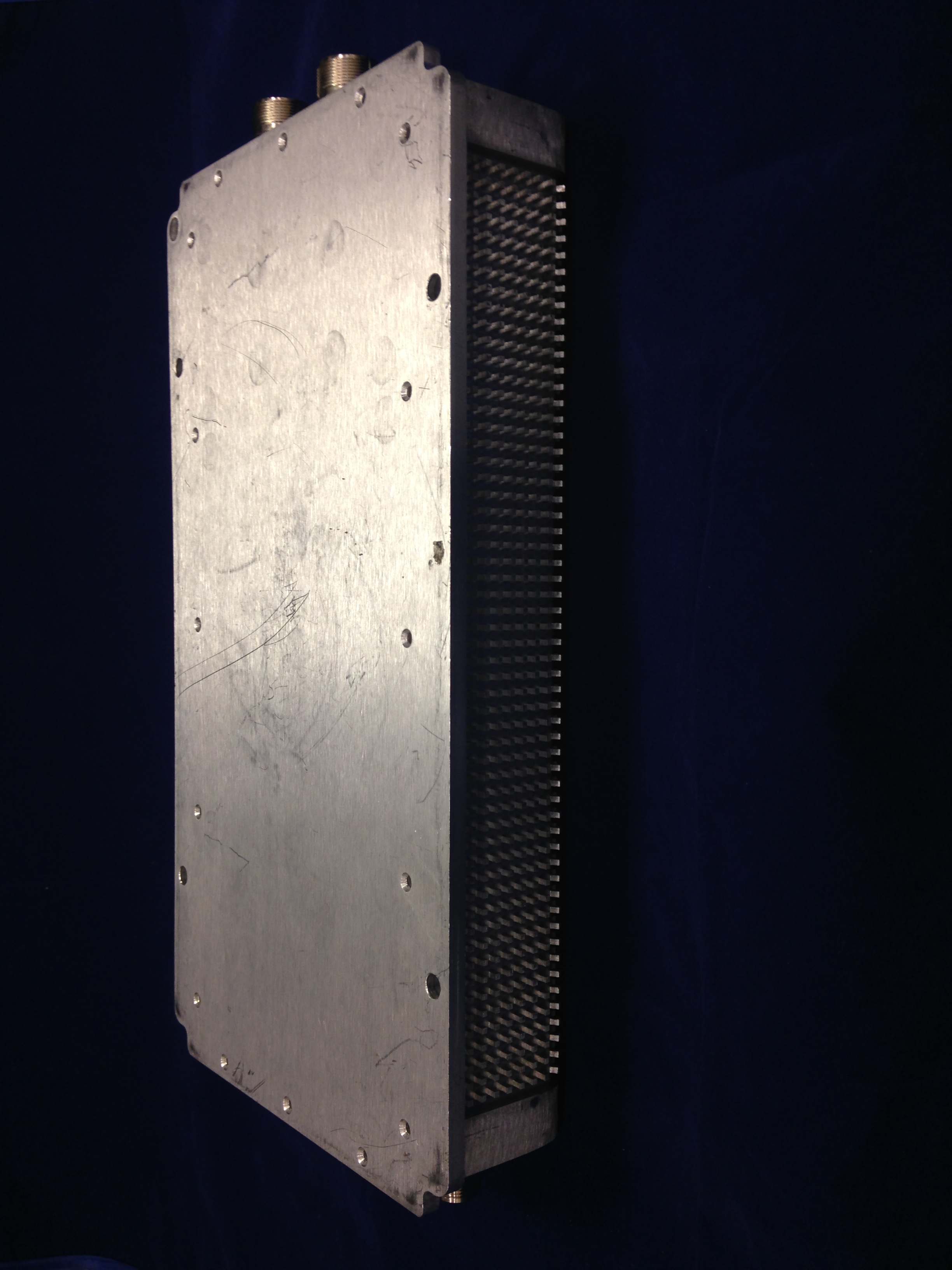

Antenna Mux Back Antenna Mux Front I/O Board Front I/O Borad Back Proc Board Back Proc Board Front Transceiver Board Back Transceiver Board Front

MPE Calculator Lowest Frequency902.000MHz902.000MHz902.000MHz902.000MHz902.000MHz902.000MHz Highest Frequency928.000MHz928.000MHz928.000MHz928.000MHz928.000MHz928.000MHz Wavelength (lowest frequency)0.333m0.333m0.33m0.33m0.33m0.33m Antenna aperture (1/4 wavelength radiator assumed)0.083m0.083m0.083m0.083m0.083m0.083m Far Field Distance4.157cm4.157cm4.16cm4.16cm4.16cm4.16cm Power (Conducted)29.040dBm29.040dBm29.040dBm29.040dBm29.040dBm29.040dBm Ant Gain dBi6.000dB6.000dB6.000dB6.000dB6.000dB6.000dB Cable Loss0.000dB0.000dB0.000dB0.000dB0.000dB0.000dB EIRP dBm35.040dB35.040dB35.040dB35.040dB35.040dB35.040dB EIRP mW3191.538mW3191.538mW3191.538mW3191.538mW3191.538mW3191.538mW R5.040cm9.130cm11.420cm5.040cm20.350cm30.000cm S10.00mW/cm^23.05mW/cm^21.95mW/cm^210.00mW/cm^20.61mW/cm^20.28mW/cm^2 Occupational/Controlled Exposure Limitinchescmtime OSHA10.000mW/cm^2256 FCC3.050mW/cm^2496 IC1.950mW/cm^24116 General Population/Uncontrolled Exposure Limit OSHA10.000mW/cm^2256 FCC0.610mW/cm^282030 IC0.280mW/cm^212306 Occupational/Controlled Exposure OSHAFCCIC General Population/Uncontrolled Exposure OSHAFCCIC

AA3237 Compact HE Antenna Features fConstructed to meet AREMA and EN shock and vibration standards fIP65/67 rugged weatherproof enclosure fCorrosion and chemical resistant fCompact and light-weight fRoHS, low-smoke, and low-toxicity compatible fOptional strain relief for high vibration applications Applications fTrain positioning fRail Automatic Equipment Identification (AEI) TransCore’s AA3237 Compact HE (Harsh Environment) Antenna offers rail integrators a rugged, reliable antenna in a small, easy to install package for today’s increasingly crowded train undercarriages. Designed to meet AREMA and EN shock and vibration standards, the Compact HE Antenna can stand up to some of the harshest conditions. The IP65/67 sealed radome protects the antenna from wash-down spray and full submersion. The Compact HE Antenna can be mounted under the locomotive or on the truck/ bogie. Optional spacers allow the antenna to interface with brackets for other readers, minimizing modifications to existing equipment. TransCore’s specially designed strain relief mount provides better coaxial cable durability when used in bogie mount applications. The Compact HE Antenna case materials are designed to meet RoHS, low-toxicity, and low- smoke requirements. Trusted Transportation Solutions © 2015-2017 TransCore LP. All rights reserved. TRANSCORE is a registered trademark and is used under license. All other trademarks listed are the property of their respective owners. Contents are subject to change. 16-0080-001 Rev D 5/17 Trusted Transportation Solutions Trusted Transportation Solutions For more information: Sales Support 800.923.4824 Technical Support 505.856.8007 transcore.com AA3237 Compact HE Antenna COMMUNICATIONS Frequency Range 902 to 928MHz Gain (peak) 6 dBi Polarization Linear, parallel with longer side VSWR Maximum: 2.0 Typical: 1.6 Impedance 50 ohms nominal HARDWARE FEATURES Connectors Antenna: right angle N-type female PHYSICAL Dimensions Size: 7.9 x 12.2 x 2.1 in (20.1 x 31.0 x 5.3 cm) Weight: 6.1 lbs (2.8 kg) Radome Impact Rating: 168 inch-pound Gardner ENVIRONMENTAL Operating Air Temperature -40°F to + 176°F (-40°C to +80°C) Humidity 100% condensing Vibration Tolerance AREMA Part 11.5.1 Class G & H EN 61373:2010 Category 1B & 2 3G RMS 5 to 250Hz Shock Tolerance AREMA Part 11.5.1 Class G & H EN 61373:2010 Category 1B & 2 30G peak x 18ms Operational Vibration EN 61373:2010 Category 1B & 2 Maximum: 20G Random 20-700Hz at 99.99% accuracy Dust/Water Ingress IP65/67 Antenna Field Pattern

AA3152 Universal Toll Antenna Features Toll lane suitability Symmetrical broadcast pattern Low-profile design Weatherproof enclosure The AA3152 Universal Toll Antenna (UTA) broadcasts and receives radio frequency (RF) signals in the 902 to 928 MHz frequency band. For installations requiring a relatively symmetrical, three-dimensional reading area, the UTA offers a broadcast pattern of similar size and shape in both the horizontal and vertical planes. The UTA read area is ideal for toll lane applications because the read area has virtually no side or back lobes, helping to confine antenna coverage to a single lane width. Only 2.25 inches (5.7 centimeters) in depth, the AA3152 antenna is also ideally suited to applications requiring a low-profile antenna. The weatherproof enclosure provides favorable electrical characteristics, resistance to ultraviolet radiation, and maximum corrosion resistance. For more information: Call 800.923.4824 (Sales Support) 505.856.8007 (Technical Support) © 1996-2016 Transcore LP. All rights reserved. TRANSCORE is a registered trademark and is used under license. All other trademarks listed are the property of their respective owners. Contents subject to change. Printed in the U.S.A . AA3152 Universal Toll Antenna 411011-015 - 06/16 COMMUNICATIONS Frequency Range 902 to 928 MHz Gain 14 dBi Polarization Linear-horizontal Cross Polarization (with respect to main beam) -20 dB Side Lobes (with respect to peak of main beam) < -25 dB (E-plane) and < -17 dB (H-plane) VSWR 1.9:1 Impedance 50 ohms nominal Half-Power Beam Width 36° E-plane and 38° H-plane HARDWARE FEATURES Connector Type N female PHYSICAL Dimensions Size: 31.5 x 2.25 x 20 in. (80 x 5.7 x 50.8 cm) Weight: 26 lb (11.7 kg) Mounting Height 15 to 20 ft (4.6 m to 6 m) above lane 16 ft (4.9 m) optimum Mounting Method To support pipe with a maximum outer diame- ter of 3.0 in. (7.6 cm) Enclosure Weatherproof radome ENVIRONMENTAL Operating Temperature -40°F to +167°F (-40°C to +75°C) Humidity 100% condensing Vibration Tolerance 1 G rms , 10 to 500 Hz OPTIONS Check Tag May be ordered with the AT5720 Check Tag installed Radiation Patterns Normalized H-Plane (Elevation) Pattern (H-Pol), Gpk = 14 dBi @915 MHz Normalized E-Plane (Azimuth) Pattern (H-Pol), Gpk = 14 dBi

AA3153 Toll Antenna Features Low-profile antenna Virtually no side or back lobes Weatherproof enclosure The AA3153 Toll Antenna broadcasts and receives radio frequency signals in the 902 to 928 MHz radio frequency band. It is specifically designed for toll lane applications, with virtually no side or back lobes, which helps confine antenna coverage to a single lane width. The AA3153 Toll Antenna is ideally suited to applications requiring a low profile antenna. A weatherproof enclosure provides favorable electrical characteristics, resistance to ultraviolet radiation, and maximum corrosion resistance. The AA3153 Toll Antenna includes a sturdy aluminum backplate with mounting hardware, a multi-patch array, and matching network. For more information: Call 800.923.4824 (Sales Support) 505.856.8007 (Technical Support) © 2000-2016 TransCore LP. All rights reserved. TRANSCORE is a registered trademark and is used under license. All other trademarks are the property of their respective owners. Contents subject to change. Printed in the U.S.A. AA3153 Toll Antenna 411271-010 - 06/16 COMMUNICATIONS Frequency Range 902 to 928 MHz Gain 10.5 dB i Polarization Linear — horizontal Cross Polarization < -15 dB Side Lobes £ -25 dB VSWR 1.9:1 Impedance 50 ohms nominal Half-Power Beam Width 50° E-plane and 60° H-plane HARDWARE FEATURES Connector N-Type socket PHYSICAL Dimensions Size (LxHxD): 20.06* x 15.13 x 2.50 in. (50.96 x 38.43 x 6.35 cm) *Length includes mounting flanges Weight: 6.4 lb (2.9 kg) Mounting Location 15 to 20 ft (4.6 to 6 m) above lane Mounting Method To support pipe with a maximum outer diameter of 3.0 in. (7.6 cm) ENVIRONMENTAL Temperature -40°F to +167°F (-40°C to +75°C) Humidity 100% condensing Vibration Tolerance 0.5 G rms , 10 to 500 Hz OPTIONS Check Tag The AA3153 Toll Antenna may be ordered without an internal check tag or with the AT5720 external check tag installed. H-Plane Read Pattern E-Plane Read Pattern

Wide Range RFID UHF Antenna | Page 1 of 2 WIRA 30 Circular Antenna Unit 9363625E I Subject to changesdate of creation: 05.12.2011 Kathrein Solutions GmbH, Kronstaudener Weg 1, 83071 Stephanskirchen, Germany Phone: +49 8036 90831 20 I Fax: +49 8036 90831 69 www.kathrein-solutions.com Remarks > Accessories optional All accessories can be found at: https://http://www.kathrein-solutions.com/products/hardware/accessories > Features Compact design for ruggedized enviromental applications Low axial ratio for optimum performance Read range*: up to 18 m (* depending on tag properties, environment and requirements) Ideal solution for portal applications Different far field half-power beam widths in azimuth and elevation plane Suitable for bulk and single tag applications High IP67 degree of protection, suitable for outdoor use Order No.5201008652010087 TypeWIRA-30-circular-ETSIWIRA-30-circular-FCC Frequency range[MHz]865-868 (865-867 for India)902-928 ©KRAI- Polarizationcircularcircular Antenna gain[dBiC]typ. 11.5 typ. 11 Axial ratio[dB]< 2 VSWR typ. 1.2:1< 1.3:1 Front-to-back ratio[dB]> 20 Impedance antennaport[Ohm]50 Max. radiated power [dBm]+33 e.r.p. (ETSI EN 302 208) +36 EIRP (FCC15.247) Far field half-power beam width (if mounted like picture) [°]30 vertical 70 horizontal ConnectionN female Weight[kg]3.7 Degree of protectionIP67 Operating temperature range[°C]-40 to +70 Storage temperature range[°C]-40 to +85 Dimensions (L x W x H) (without brackets) [mm]557 x 270 x 58.5 Packing size (L x W x H)[mm]762 x 356 x 203 Material Antenna coverfibreglass radome, UV resistance, gray Chassisstainless steel Patch platebrass tin-plated Antenna supportaluminium Sealsthermoplastic elastomer > General specifications 9363625E I Subject to changesdate of creation: 05.12.2011 Wide Range RFID UHF Antenna | Page 2 of 2 WIRA 30 Circular Antenna Unit > Dimensions [mm] Kathrein Solutions GmbH, Kronstaudener Weg 1, 83071 Stephanskirchen, Germany Phone: +49 8036 90831 20 I Fax: +49 8036 90831 69 www.kathrein-solutions.com

Low Range RFID UHF Antenna | Page 1 of 2 U-LORA Antenna Unit Kathrein Solutions GmbH, Kronstaudener Weg 1, 83071 Stephanskirchen, Germany Phone: +49 8036 90831 20 I Fax: +49 8036 90831 69 www.kathrein-solutions.com Remarks > Accessories optional All accessories can be found at: https://http://www.kathrein-solutions.com/products/hardware/accessories > Features Mounting options Four through-holes Ø 4.2 mm for M4 screws 9363836B I Subject to changesdate of creation: 05.12.2011 Minimal dimensions Extremely high selectivity Extremely high resistance to interference (multi-reader applications) Suitable for use in industrial environments Optimized for near field applications High IP67 degree of protection Suitable for outdoor use Order No.52010092 Type U-LORA-ETSI-FCC Frequency range[MHz]865-928 ©KRAI- Polarization- Antenna gain[dBiC- 30 EIFF *[dB]15 VSWR typ. 1.2:1 Impedance antennaport[Ohm]50 Max. input power[dBm]+30 (at antenna port) Range of near field tags **[cm]3 Selectivity of near field tags **[cm]3 Range of far field tags **[cm]8 Selectivity of far field tags **[cm]10 ConnectionTNC female Weight[kg]0.11 Degree of protectionIP67 Operating temperature range[°C]-20 to +55 Storage temperature range[°C]-40 to +85 Dimensions (L x W x H)[mm]79.5 x 90 x 31 Packing size (L x W x H)[mm]approx. 165 x 250 x 50 Material Antenna covertough, weather-resistant polymer blend, colour: RAL7045 > General specifications * The Effective Isotropic Field Factor (EIFF) shows the field isolation from far field to near field standardised to an isotropic radiator. The values were determined with 3 cm spacing. ** dependant upon transmission power and tag type > Dimensions [mm] Kathrein Solutions GmbH, Kronstaudener Weg 1, 83071 Stephanskirchen, Germany Phone: +49 8036 90831 20 I Fax: +49 8036 90831 69 www.kathrein-solutions.com 9363836B I Subject to changesdate of creation: 05.12.2011 Low Range RFID UHF Antenna | Page 2 of 2 U-LORA Antenna Unit The Ultra Low Range Antenna (ULORA) and Low Range Antenna (LORA) feature a high field concentration in the near field with simultaneously extremely minimised antenna gain in the far field. With these properties the antennas achieve outstanding reading and writing results with ranges up to 10 cm with a typical selectivity of 5 cm. The special design of these antennas guarantees interference-free operation in multi-reader environments. The ULORA was especially developed to read dipolar tags (far field tags) at very limited distances. In addition this antenna can address looped tags (near field tags) up to 3 cm. The LORA version was developed in order to increase the range for near fi eld tags, with which ranges up to 7 cm can be achieved. The range of applications of the antennas according to tag type is displayed in the tag association table. Pharmaceutical industry (e.g. individual tag capture on liquid-filled vessels and blister packs) Access controls Automation industry Key Application Description > Tag type

AA3110 Parapanel Antenna The AA3110 Parapanel Antenna broadcasts and receives radio frequency (RF) signals in the 902 to 928 MHz RF band. It is a precision dipole array designed for directional transmission and reception. For installations requiring a reading area larger in one dimension than in another, the AA3110 Parapanel Antenna provides a 47° difference in half-power beam width from the horizontal to the vertical plane. The AA3110 antenna’s relatively narrow seven- inch (17.78 centimeter) depth makes it ideally suited to applications requiring a low-profile antenna. Rugged A heavy laminated fiberglass radome encloses the AA3110 Parapanel Antenna for protection against severe environmental conditions. Radome materials provide favorable electrical characteristics and resistance to ultraviolet (UV) radiation. Drilled, tapped, and plugged holes accommodate the AT5720 Check Tag and Thomas & Betts (T&B) hood mounting accessories. All fastenings and hardware are stainless steel for maximum corrosion resistance. Features fAsymmetrical broadcast pattern fLow-profile design fWeatherproof enclosure fUV-tolerant and corrosion-resistant construction Trusted Transportation Solutions © 1996-2016 TransCore LP. All rights reserved. TRANSCORE is a registered trademark and is used under license. All other trademarks listed are the property of their respective owners. Contents are subject to change. Printed in the USA. AA3110 Parapanel Antenna Trusted Transportation Solutions COMMUNICATIONS Frequency Range 902 to 928 MHz Custom frequencies available upon request Gain 12.5 dBi Front-to-Back Ratio 20 dB VSWR 1.1:1 maximum Impedance 50 ohms Half-Power Beam Width 75° E-Plane and 28° H-Plane HARDWARE FEATURES Connector Type N female PHYSICAL Dimensions Size: 29 x 10.5 x 7 in. (73.3 x 26.7 x 17.8 cm) Weight: 9.0 lb (4.1 kg) Mounting Method To circular support with maximum outside diameter of 2.4 in. (6 cm) Enclosure Weatherproof radome OPTIONS Connector Available with T & B industrial connectors, including straight or right-angle hood and base with gasket Check Tag AT5720 check tags available from TransCore for user installation 16-3110-001 Rev B 06/16 For more information: Sales Support 800.923.4824 Technical Support 505.856.8007 transcore.com

S9025PL / S9025PR Mini RFID Panel Antenna FEATURES •Circularly polarized •Low VSWR and axial ratio •Rugged, ultra heavy duty construction •IP 67 Rated •Weather and UV resistant radome •High performance in a small package •Wide range of connector and cable options •Left hand and right hand CP versions APPLICATIONS •Warehouse •Distribution center •Airports and hospitals •Transit terminals •Conveyer belt 902-928 MHz 5.5 dBi CP MINI RFID PANEL ANTENNA The Laird S9025PL / S9025PR are high-performance RFID antennas and the only UHF RFID antenna available to the market that offers no-compromise performance in a small package. At only 5.2” square the antenna offers a gain specification of 5.5 dBic and axial ratio better than 2 dB. In effect the antenna is providing the performance one would expect of a much larger antenna. The antenna is not only mechanically robust but is less likely to be exposed to excessive damage by virtue of its reduced size. Americas: +1.847 839.6925 IAS‐[email protected] Europe: +44.1628.858941 IAS‐[email protected] Asia: IAS‐[email protected] www.lairdtech.com 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 34 5 -30-20-10 dB 910 MHz 0 SPECIFICATIONS Antenna Part NumberS9025PR and S9025PL Frequency Range902 - 928 MHz Gain5.5 dBi Maxium VSWR1.5:1 3 dB Beamwidth - Azimuth100° Front to Back Ratio8 dB PolarizationCircular RH or Circular LH Maxium Input Power10 Watts Input Impedence50 Ohms Axial Ratio2.0 dB Typical Weight (Kg) .8 lbs (.37) Mechanical Size5.2” x 5.2” x .71” Antenna vConnectionType N Female, RP-TNC Female, RP-SMA Female, SMA Female RadomeWhite or Charcoal High Strengh PC Mount StyleThreaded Stud 2x #10-32 Temperature Operational- 30°C to +70°C Storage Temperature40°C to 85°C Impact Resistance1 lbs. Ball Drop, 24” SaltMIL-STD-810 VibrationMIL-STD-810 ShockIEC 68-2-27 HumidityIEC 68-2-30 Lightning ProtectionDC Grounded Enclosure RatingIP 67 ANT-DS-S9025P 0317 Any information furnished by Laird Inc. and its agents is believed to be accurate and reliable. All specifications are subject to change without notice. Responsibility for the use and application of Laird materials rests with the end user, since Laird and its agents cannot be aware of all potential uses. Laird makes no warranties as to the fitness, merchantability or suitability of any Laird materials or products for any specific or general uses. Laird shall not be liable for incidental or consequential damages of any kind. All Laird products are sold pursuant to the Laird Terms and Conditions of sale in effect from time to time, a copy of which will be furnished upon request. © Copyright 2015 Laird Inc. All Rights Reserved. Laird, Laird Technologies, the Laird Logo, and other marks are trademarks or registered trademarks of Laird Inc. or an affiliate company thereof. Other product or service names may be the property of third parties. Nothing herein provides a license under any Laird or any third party intellectual property rights.

S9028P Single Patch Antenna ANT-DS-S9028P 1115 Any information furnished by Laird Inc. and its agents is believed to be accurate and reliable. All specifications are subject to change without notice. Responsibility for the use and application of Laird materials rests with the end user, since Laird and its agents cannot be aware of all potential uses. Laird makes no warranties as to the fitness, merchantability or suitability of any Laird materials or products for any specific or general uses. Laird shall not be liable for incidental or consequential damages of any kind. All Laird products are sold pursuant to the Laird Terms and Conditions of sale in effect from time to time, a copy of which will be furnished upon request. © Copyright 2015 Laird Inc. All Rights Reserved. Laird, Laird Technologies, the Laird Logo, and other marks are trademarks or registered trademarks of Laird Inc. or an affiliate company thereof. Other product or service names may be the property of third parties. Nothing herein provides a license under any Laird or any third party intellectual property rights. ISM LINEARLY POLARIZED ANTENNA Laird's S9028P antenna is one of our 900 MHz series of patch atennas. The S9028P is housed in a rugged low profile, UV stable polycarbonate radome which is weather resistant for outdoor applications. Standard models of the S9028P are gray in color with a textured finish. Custom configurations of radome finish, color and texture can be provided to complement and blend within any environment. A variety of standard and custom mounting configurations are available. The mounting configurations can provide fixed or variable pointing angle. The RF input connector and/or cable combination may be specified by the customer. MARKETS • WiMAX PARAMETERSPECIFICATION Frequency (MHz)902 - 928 Impedance (Ohms)50 VSWR1.5:1 maximum PolarizationLinear Gain (min.)8 dBi E-Plane (3 dB beamwidth)65º, typical H-Plane (3 dB beamwidth)70º, typical RF ConnectorType N, or customer specified Dimensions8 x 12 x 2 in Mount wall/mast S9028P -5 -10 -15 -20 0 H-Plane E-Plane Americas: +1.847 839.6925 IAS‐[email protected] Europe: +44.1628.858941 IAS‐[email protected] Asia: +86.21.5855.0827.127 IAS‐[email protected] www.lairdtech.com

Approved Antenna List The MPRX-FM complies with FCC Part 15.247 and IC RSS-247 rules and has been designed to operate with the listed antennas presented in Table X. The effective maximum gain of each antenna is listed as well as the required attenuation to ensure that effective gain of greater than the allowed 6dB cannot occur. The required attenuation presented in Table X also includes any cable loss that is included with the system. To reduce potential interference to other systems antenna, gain and type should be selected in a way that the eirp. (equivalent isotopically radiated power) is no more than the allowed 36dBm, preferably as low as possible that is needed for proper operation of the system. TABLE X: Approved Antenna List Table X has the antenna polarization, peak linear dBi (decibels over isotropic) gain figures, and the required loss required between the MPRX-FH and the antenna. This loss can include the cable loss for the length of the cable required to set up system. An Example Setup: Setting up an MPRX-FH with use with the AA3152 using a cable length of 115ft LMR-400 with a average attenuation of 3.94dB/100ft making the total cable loss 4.53dB. With a gain of the AA3152 of 14dB subtracting the cable loss (4.53dB) an external attenuator with a value of at least 3.47dB or greater would be required for this setup would be required to meet the FCC rule of the maximum eirp of 36dBm. Manufacture Part Number Polarization Gain (dBi) Min Inline Loss Required (dB) Huber Suhner 1309.17.0111/85018546 Circular 5.50 0.00 Kathrein 52010087 Circular 11.00 5.00 Kathrein 52010249 Linear 11.00 5.00 Kathrein 52010092 Circular -30.00 0.00 Laird S9028P Linear 8.00 2.00 Laird S9025PR Circular 5.50 0.00 MARS Antennas & RF Systems LTD. MA-IS91-T2 Linear 10.50 4.50 Mobile Mark PN6-915RCP-1C-WHT-6 RH Circular 6.00 0.00 Mobile Mark PN6-915LCP-1C-WHT-6 LH Circular 6.00 0.00 Mobile Mark PL8-915RCP-1Y-WHT-12 RH Circular 8.00 2.00 Mobile Mark HD7-915RCP-BLK RH Circular 7.00 1.00 MTI Wireless Edge LTD. MT-263007/TRH/A/K Circular 11.50 5.50 TransCore AA3152 Universal Toll Antenna Linear 14.00 8.00 TransCore AA3237 Linear 6.00 0.00 TransCore AA3110 Linear 12.50 6.50 TransCore AA3153 Linear 10.50 4.50

antenna solutions US Office: Tel: 800.648.2800 or +1.847.671.6690 UK Office: Tel: (+44) 1543 459 555 www.mobilemark.com 11 Specifications subject to change without notice (9/2018) • Heavy-duty impact resistant; has passed industry standard shock & vibration tests • Has dust/water ingress rating of IP67 • 7 dBic panel for long range systems Heavy Duty, High Vibration Panel Antennas, 7 dBic RFID & ISM When an extremely rugged antenna is needed for use in the harshest conditions, then the HD7 antenna are the antennas of choice. They are the most rugged RFID antennas designed to date and have surpassed every test thrown at them, including being run over by a car. The HD7 Series antennas are circularly polarized, US models are RHCP (Right Hand Circularly Polarized) and European models are LHCP (Left hand Circularly Polarized). Because of the circular polarization, the orientat…
