FKGF11YNOTEBOOK BUILT-IN 802.11b/g MODULE

X0.1 U U s s e e r r ’ ’ s s M M a a n n u u a a l l Table of Contents i Table of Contents CHAPTER 1...........................................................................................................3 INTRODUCTION.....................................................................................3 Getting Started ........................................................................................... 3 Inventory .................................................................................................... 3 Safety and Maintenance ............................................................................. 3 Checklists ................................................................................................... 3 Features...................................................................................................... 3 Where to Look For Information ................................................................. 3 Quick Start.................................................................................................. 3 Loading Windows ....................................................................................... 3 Adjusting the Volume.................................................................................. 3 Adjusting the Brightness............................................................................. 3 Turning off Your Computer ........................................................................ 3 Making a Startup Disk................................................................................ 3 Tips for New Owners .................................................................................. 3 CHAPTER 2...........................................................................................................3 GETTING STARTED...............................................................................3 Hardware and Software ............................................................................. 3 Front View.................................................................................................. 3 Left View..................................................................................................... 3 Right View .................................................................................................. 3 Bottom View ............................................................................................... 3 LED Status Indicators ................................................................................ 3 Power Indicators ........................................................................................ 3 Function Keys............................................................................................. 3 Numeric Keypad ......................................................................................... 3 Touchpad.................................................................................................... 3 The Optical Drive ....................................................................................... 3 Connecting the Printer ............................................................................... 3 The PC Card Slot ....................................................................................... 3 The Graphics System .................................................................................. 3 Communication Components...................................................................... 3 Information about the Wireless LAN button............................................... 3 CHAPTER 3...........................................................................................................3 MAKING CONNECTIONS........................................................................3 Making Connections................................................................................... 3 Left Side Connectors .................................................................................. 3 2. Fax/modem RJ-11 Jack .......................................................................... 3 Table of Contents ii Right Side Connectors ................................................................................ 3 Front Side Connectors................................................................................ 3 CHAPTER 4...........................................................................................................3 SYSTEM SOFTWARE.............................................................................3 Instant Recovery Software.......................................................................... 3 CHAPTER 5...........................................................................................................3 POWER MANAGEMENT.........................................................................3 Power Management.................................................................................... 3 Monitoring Battery Power.......................................................................... 3 Power Saving Modes .................................................................................. 3 Power Saving Tips...................................................................................... 3 When to Replace the Battery ...................................................................... 3 Heat Considerations................................................................................... 3 CHAPTER 6...........................................................................................................3 USING THE BIOS SETUP UTILITY..........................................................3 Using the BIOS Setup Utility...................................................................... 3 APPENDIX A..........................................................................................................3 FREQUENTLY ASKED QUESTIONS.............................................…

Text truncated - open the document above for the full version.

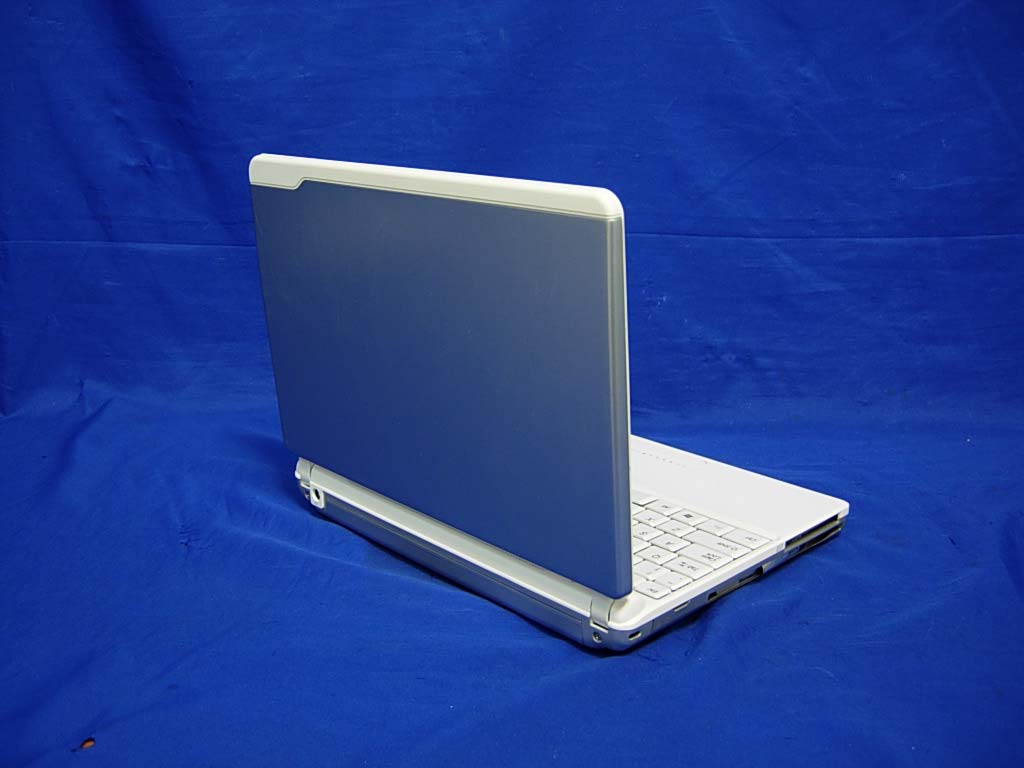

Report No.: 074L013-RFUSP05V01 Page : 1 of 11 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

Twinhead International Corp. FCC ID.: FKGF11Y 10F, 550 Rueiguang Road Neihu, Taipei, Taiwan 114, R.O.C. Tel : 886-2-5589-9999 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 074L013-RFUSP05V01 Page : 2 of 11 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 074L013-RFUSP05V01 Page : 3 of 11 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 074L013-RFUSP05V01 Page : 4 of 11 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 074L013-RFUSP05V01 Page : 5 of 11 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 074L013-RFUSP05V01 Page : 6 of 11 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 074L013-RFUSP05V01 Page : 7 of 11 Version:1.0 (13) EUT Photo (14) EUT Photo Report No.: 074L013-RFUSP05V01 Page : 8 of 11 Version:1.0 (15) EUT Photo (16) EUT Photo Report No.: 074L013-RFUSP05V01 Page : 9 of 11 Version:1.0 (17) EUT Photo (18) EUT Photo Report No.: 074L013-RFUSP05V01 Page : 10 of 11 Version:1.0 (19) EUT Photo (20) EUT Photo Report No.: 074L013-RFUSP05V01 Page : 11 of 11 Version:1.0 (21) EUT Photo (22) EUT Photo

Report No. 074L013-RFUSP05V01 Page: 7 of 58 Version:1.0 1.2. Operational Description The EUT is a Notebook built-in 802.11b/g Module with a built-in 2.4GHz transceiver. There are 11 channels in 2412 – 2462MHz. The channels are separated by 5MHz. This device supports the data rates of 1, 2, 5.5, 11Mbps in 802.11b mode and 6, 9, 12, 18, 24, 36, 48, 54Mbps in 802.11g mode. The signals are modulated by DSSS in 802.11b mode and OFDM in 802.11g mode. The antenna type is PIFA. Mode 1: Transmitter 802.11b Test Mode Mode 2: Transmitter 802.11g

Report No：074L013-HPUSP09V01 Page: 1 of 22 Version:1.0 SAR Test Report Product Name ： Notebook built-in 802.11b/g Module Model No. ： 15XXXXXXXXXXXX (X =0-9, A~Z) Applicant ： Twinhead International Corp. Address ： 10F, 550 Rueiguang Road Neihu, Taipei, Taiwan 114, R.O.C. Date of Receipt ：2007/03/27 Issued Date ：2007/04/25 Report No. ：074L013-HPUSP09V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：074L013-HPUSP09V01 Page: 2 of 22 Version:1.0 Test Report Certification Issued Date: 2007/04/25 Report No.: 074L013-HPUSP09V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Product Name ： Notebook built-in 802.11b/g Module Applicant ： Twinhead International Corp. Address ： 10F, 550 Rueiguang Road Neihu, Taipei, Taiwan 114, R.O.C. Manufacturer ： Twinhead International Corp. Model No. ： 15XXXXXXXXXXXX (X =0-9, A~Z) Trade Name ： Averatec Applicable Standard ： FCC Oet65 Supplement C June 2001 Test Result ： Max. SAR Measurement (1g) 802.11b: 0.231 W/kg 802.11g: 0.228 W/kg Application Type Certification Documented By ： (Engineering Adm. Assistant / Eva Huang) Tested By ： (Senior Engineer / Shine Hsu) Approved By ： (President / Gene Chang) Report No：074L013-HPUSP09V01 Page: 3 of 22 Version:1.0 TABLE OF CONTENTS Description Page 1. General Information.............................................................................. 5 1.1 EUT Description ............................................................................................................5 1.2 Test Environment ...........................................................................................................5 2. SAR Measurement System .................................................................. 6 2.1 ALSAS-10U System Description .................................................................................. 6 2.1.1 Applications ................................................................................................................ 6 2.1.2 Area Scans................................................................................................................... 6 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 7 2.1.4 ALSAS-10U Interpolation and Extrapolation Uncertainty......................................... 7 2.2 Isotropic E-Field Probe .................................................................................................. 7 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ................................................. 9 2.4 Daq-Paq (Analog to Digital Electronics) ..................................................................... 10 2.5 Axis Articulated Robot ................................................................................................ 10 2.6 ALSAS Universal Workstation.................................................................................... 11 2.7 Universal Device Positioner......................................................................................... 11 2.8 Phantom Types............................................................................................................. 11 2.8.1 APREL SAM Phantoms ........................................................................................... 12 2.8.2 APREL Laboratories Universal Phantom ................................................................. 12 3. Tissue Simulating Liquid ................................................................... 13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 14 4. SAR Measurement Procedure ........................................................... 15 4.1 SAR System Validation................................................................................................ 15 4.1.1 Validation Dipoles..................................................................................................... 15 4.1.2 Validation Result ....................................................................................................... 15 4.2 SAR Measurement Procedure ...................................................................................... 16 5. SAR Exposure Limits ......................................................................... 17 6. Test Equipment List............................................................................ 18 7. Measurement Uncertainty .................................................................. 19 8. Test Results ......................................................................................... 20 Report No：074L013-HPUSP09V01 Page: 4 of 22 Version:1.0 8.1 SAR Test Results Summary ......................................................................................... 20 Appendix A. SAR System Validation Data........................................................................ 22 Appendix B. SAR measurement Data................................................................................ 22 Appendix C. Test Setup Photographs & EUT Photographs............................................... 22 Appendix D. Probe Calibration Data ................................................................................. 22 Appendix E. Dipole Calibration Data ................................................................................ 22 Report No：074L013-HPUSP09V01 Page: 5 of 22 Version:1.0 1. General…

Text truncated - open the document above for the full version.

Report No：074L013-HPUSP09V01 Page: 30 of 38 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 21.30 °C Ambient Temp. : 22.10 °C Area Scan : 5x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.102 W/kg Power Drift-Finish: 0.104 W/kg Power Drift (%) : 1.955 DUT Position : Touch EUT Back Channel : 11 1 gram SAR value : 0.210 W/kg 10 gram SAR value : 0.121 W/kg Area Scan Peak SAR : 0.228 W/kg Zoom Scan Peak SAR : 0.420 W/kg Report No：074L013-HPUSP09V01 Page: 31 of 38 Version:1.0 This is previous page plot (zoom in) Report No：074L013-HPUSP09V01 Page: 32 of 38 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 21.30 °C Ambient Temp. : 22.10 °C Area Scan : 5x7x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.096 W/kg Power Drift-Finish: 0.098 W/kg Power Drift (%) : 2.069 DUT Position : Touch EUT Front Channel : 6 1 gram SAR value : 0.128 W/kg 10 gram SAR value : 0.080 W/kg Area Scan Peak SAR : 0.124 W/kg Zoom Scan Peak SAR : 0.310 W/kg Report No：074L013-HPUSP09V01 Page: 33 of 38 Version:1.0 This is previous page plot (zoom in) Report No：074L013-HPUSP09V01 Page: 34 of 38 Version:1.0 SAR Measurement Data ALSAS-10U VER 2.3.2APREL Laboratories SAR Test Report (802.11g, Aux Antenna) Report Date : 29-Mar-2007 Measurement Date : 29-Mar-2007 Product Data Device Name : Twinhead Type : Other Model : 15XXXXXXXXXXXX Frequency : 2450.00 MHz Max. Transmit Pwr : 0 W Drift Time : 0 min(s) Length : 203 mm Width : 267 mm Depth : 9.8 mm Antenna Type : Internal Phantom Data Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Location : Center Tissue Data Type : BODY Serial No. : 325-B Frequency : 2450.00 MHz Last Calib. Date : 29-Mar-2007 Temperature : 21.30 °C Ambient Temp. : 22.10 °C Humidity : 57.00 RH% Epsilon : 51.34 F/m Sigma : 2.004 S/m Density : 1000.00 kg/cu. m Probe Data Name : Probe 264 Model : E020 Type : E-Field Triangle Serial No. : 264 Last Calib. Date : 21-Mar-2006 Frequency : 2450.00 MHz Duty Cycle Factor: 1 Conversion Factor: 5.2 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Report No：074L013-HPUSP09V01 Page: 35 of 38 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 21.30 °C Ambient Temp. : 22.10 °C Area Scan : 5x7x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.099 W/kg Power Drift-Finish: 0.102 W/kg Power Drift (%) : 3.085 DUT Position : Touch EUT Back Channel : 6 1 gram SAR value : 0.167 W/kg 10 gram SAR value : 0.099 W/kg Area Scan Peak SAR : 0.161 W/kg Zoom Scan Peak SAR : 0.330 W/kg Report No：074L013-HPUSP09V01 Page: 36 of 38 Version:1.0 This is previous page plot (zoom in) Report No：074L013-HPUSP09V01 Page: 37 of 38 Version:1.0 EUT 2450MHz SAR test Z-Axis plot (802.11b, TOP, Channel 6) Report No：074L013-HPUSP09V01 Page: 38 of 38 Version:1.0 EUT 2450MHz SAR test Z-Axis plot (802.11g, Back, Channel 6) Report No：074L013-HPUSP09V01 Page: 1 of 5 Version:1.0 Test Setup Photographs EUT TOP EUT Back Report No：074L013-HPUSP09V01 Page: 2 of 5 Version:1.0 EUT Front Report No：074L013-HPUSP09V01 Page: 3 of 5 Version:1.0 EUT Photographs Report No：074L013-HPUSP09V01 Page: 4 of 5 Version:1.0 Report No：074L013-HPUSP09V01 Page: 5 of 5 Version:1.0 Page: 1 of 11 Appendix - Probe Calibration Miniature Isotropic RF Probe M/N: ALS-E-020 S/N: 264 2450MHz Body Calibration page 2~11 Page: 2 of 11 Page: 3 of 11 Page: 4 of 11 Page: 5 of 11 Page: 6 of 11 Page: 7 of 11 Page: 8 of 11 Page: 9 of 11 Page: 10 of 11 Page: 11 of 11 Appendix - Dipole Calibration Validation Dipole 2450MHz P/N: ALS-D-2450-S-2 S/N: QTK-319

Report No. 074L013-RFUSP05V01 Page: 1 of 57 Version:1.0 Test Report Product Name Notebook built-in 802.11b/g Module Model No. 15XXXXXXXXXXXX (X=0~9,A~Z) FCC ID FKGF11Y Applicant Twinhead International Corp. Address 10F, 550 Rueiguang Road Neihu, Taipei, Taiwan 114, R.O.C. Date of Receipt Mar. 27, 2007 Issued Date Apr. 12, 2007 Report No. 074L013-RFUSP05V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 074L013-RFUSP05V01 Page: 2 of 57 Version:1.0 Test Report Certification Issued Date: Apr. 12, 2007 Report No.: 074L013-RFUSP05V01 Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name Notebook built-in 802.11b/g Module Applicant Twinhead International Corp. Address 10F, 550 Rueiguang Road Neihu, Taipei, Taiwan 114, R.O.C. Manufacturer Twinhead International Corp. Model No. 15XXXXXXXXXXXX (X=0~9,A~Z) Rated Voltage AC 120V/60Hz Working Voltage DC 3.3V Trade Name Averatec Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2006 ANSI C63.4: 2003 Test Result Complied Documented By : ( Engineering Adm. Specialist / Rita Huang ) Tested By : (Engineer /Tim Sung) Approved By : ( President / Gene Chang ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 0914 Report No. 074L013-RFUSP05V01 Page: 3 of 57 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................6 1.3. Tested System Datails....................................................................................................................7 1.4. Configuration of Test System ........................................................................................................7 1.5. EUT Exercise Software .................................................................................................................7 1.6. Test Facility ...................................................................................................................................8 2. Conducted Emission....................................................................................................................9 2.1. Test Equipment..............................................................................................................................9 2.2. Test Setup ......................................................................................................................................9 2.3. Limits ............................................................................................................................................9 2.4. Test Procedure .............................................................................................................................10 2.5. Uncertainty ..................................................................................................................................10 2.6. Test Result of Conducted Emission.............................................................................................11 3. Peak Power Output ...................................................................................................................15 3.1. Test Equipment............................................................................................................................15 3.2. Test Setup ....................................................................................................................................15 3.3. Limits ..........................................................................................................................................15 3.4. Uncertainty ..................................................................................................................................15 3.5. Test Result of Peak Power Output...............................................................................................16 4. Radiated Emission .....................................................................................................................20 4.1. Test Equipment............................................................................................................................20 4.2. Test Setup ....................................................................................................................................21 4.3. Limits ..........................................................................................................................................21 4.4. Test Procedure .............................................................................................................................22 4.5. Uncertainty ..................................................................................................................................22 4.6. Test Result of Radiated Emission................................................................................................23 5. Band Edge ..................................................................................................................................31 Report No. 074L013-RFUSP05V01 Page: 4 of 57 Version:1.0 5.1. Test Equipment............................................................................................................................31 5.2. Test Setup ..................…

Text truncated - open the document above for the full version.

Report No.: 074L013-RFUSP05V01 Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 074L013-RFUSP05V01 Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 074L013-RFUSP05V01 Page : 3 of 3 Version:1.0 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
