FKGPN1HPlug-In PC

TWINHEAD 2 3 Note: 1. HDMI and VGA cannot be used at the same time. 2. Turn On/Off the Plug-In PC from TV remote 3. The Plug-In PC will follow TV power status LED Indicator LED Indicator Item Description Power LED Green when system is active HDD LED Green when the read/write data Green when the LAN is connected LAN LED Yellow when the LAN access data 4 5 6 7 Copyright Copyright© 2010. All rights reserved. No part of this user manual may be transmitted, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without the prior written permission of the manufacturer. Information is subject to change without prior notice. Regulatory Statement Federal Communications Commission Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and the receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 8  Consult the dealer or an experienced radio/TV technician for help. Shielded interconnect cables and shielded AC power cable must be employed with this equipment to insure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system's manufacturer could void the user's authority to operate the equipment. Declaration of Conformity This device complies with part 15 of the FCC rules. Operation is subject to the following conditions:  This device may not cause harmful interference  This device must accept any interference received, including interference that may cause undesired operation. RF exposure warning This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device is operation in 5.15 – 5.25GHz frequency range, then restricted in indoor use only. This device is slave equipment, the device is not radar detection and not ad-hoc operation in the DFS band. European Notice Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European Norms: EN 55022 ( CISPR 22 ) Radio Frequency Interference EN 55024 ( EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8,EN61000-4-11, EN61000-3-2, EN61000-3-3 ) Generic Immunity Standard EN 60950-1 ( IEC 60950-1 ) Product Safety 9 R&TTE (CE) MANUAL REGULATORY REQUIREMENT (WLAN - IEEE 802.11a/b/g/n) 802.11a Restrictions: The low band 5.15 -5.35 GHz is for indoor use only. 802.11b.g.n Restrictions: European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range 2.400-2.4835GHz. In France, the equipment must be restricted to the 2.4465-2.4835GHz frequency range and must be restricted to indoor use." CE Declaration of Conformity CE ! Is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (89/336/EEC), Low- voltage Directive (73/23/EEC) and the Amendment Directive (93/68/EEC), the procedures given in European Council Directive 99/5/EC and 9/3360EEC. The equipment was passed. The test was performed according to the following European standards. EN 301 893 V1.2.3 EN 300 328 V1.7.1 (2006-05) EN 301 489-1 V.1.4.1 (2005-09) / EN 301 489-17 V.1.2.1 (2002-04) EN 60950-1:2001 10 11 ▓認定番号 本製品は以下に認証を受けたものです。 認証機器名：PN1H 認定番号：

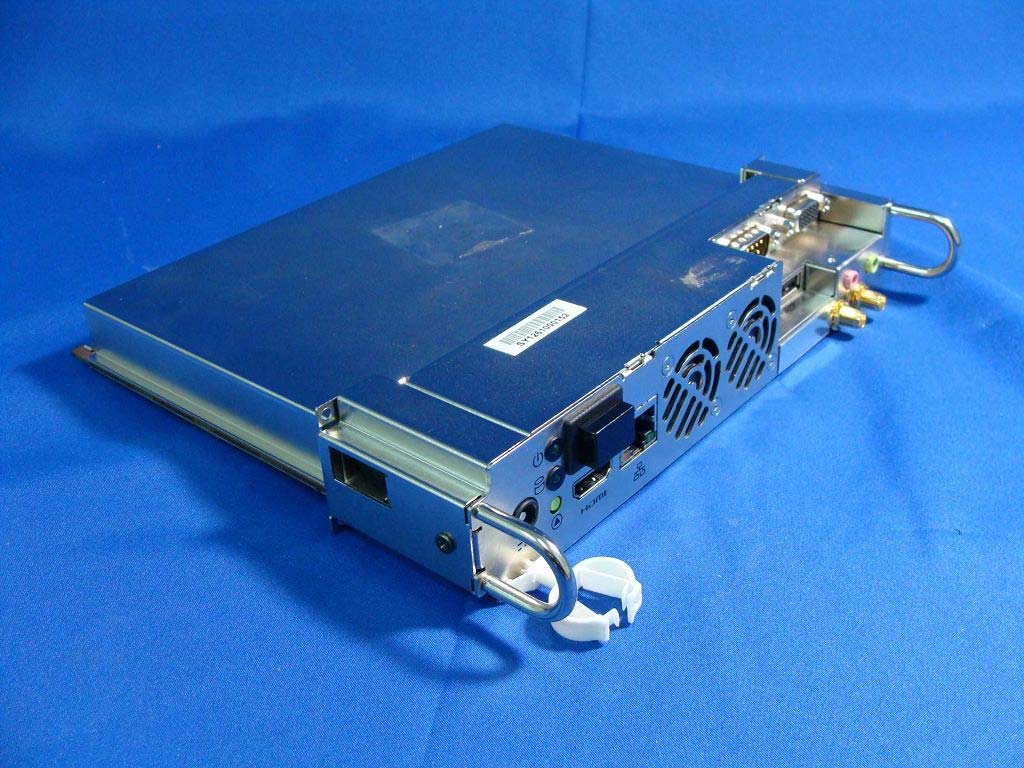

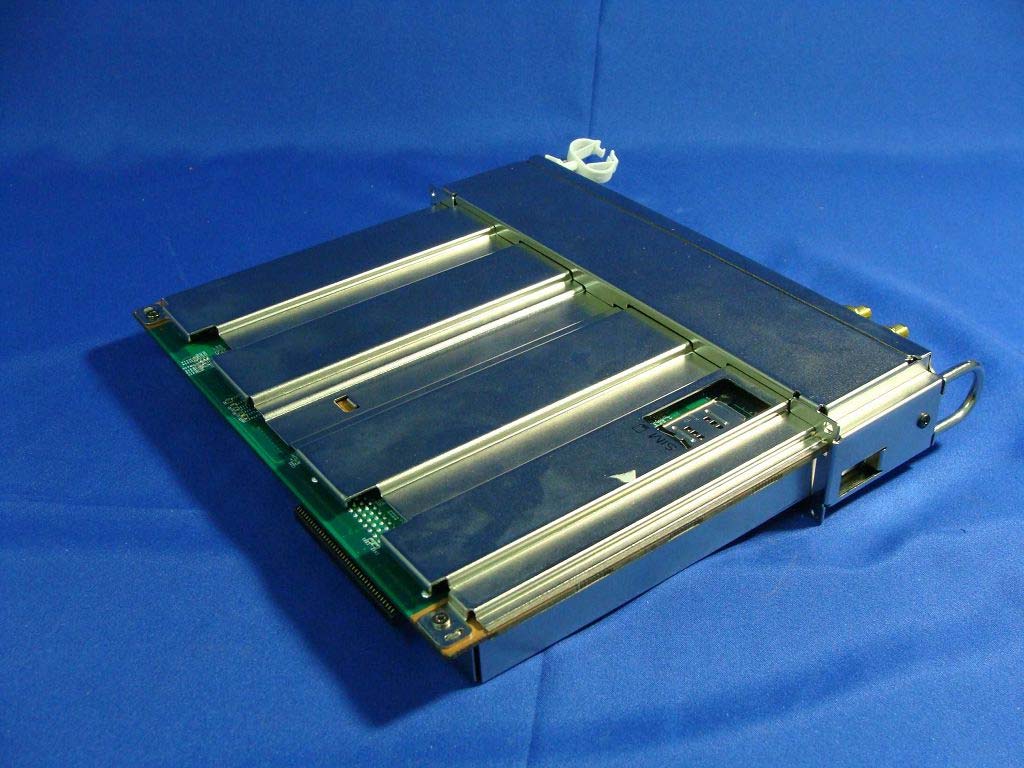

Report No.: 117148R-RFUSP42V01 Page : 1 of 14 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 117148R-RFUSP42V01 Page : 2 of 14 (3) EUT Photo (4) EUT Photo Report No.: 117148R-RFUSP42V01 Page : 3 of 14 (5) EUT Photo (6) EUT Photo

Twinhead International Corporation FCC ID.: FKGPN1H 10F,550 Rueiguand Rd Neihu,Taipei,Taiwan 114,ROC.Tel : 886-2-55899999 FCC ID Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below.

Report No.: 117148R-RFUSP42V01 Page : 4 of 14 (7) EUT Photo (8) EUT Photo Report No.: 117148R-RFUSP42V01 Page : 5 of 14 (9) EUT Photo (10) EUT Photo Report No.: 117148R-RFUSP42V01 Page : 6 of 14 (11) EUT Photo (12) EUT Photo Report No.: 117148R-RFUSP42V01 Page : 7 of 14 (13) EUT Photo (14) EUT Photo Report No.: 117148R-RFUSP42V01 Page : 8 of 14 (15) EUT Photo (16) EUT Photo Report No.: 117148R-RFUSP42V01 Page : 9 of 14 (17) EUT Photo (18) EUT Photo Report No.: 117148R-RFUSP42V01 Page : 10 of 14 (19) EUT Photo (20) EUT Photo Report No.: 117148R-RFUSP42V01 Page : 11 of 14 (21) EUT Photo (22) EUT Photo Report No.: 117148R-RFUSP42V01 Page : 12 of 14 (23) EUT Photo (24) EUT Photo Report No.: 117148R-RFUSP42V01 Page : 13 of 14 (25) EUT Photo (26) EUT Photo Report No.: 117148R-RFUSP42V01 Page : 14 of 14 (27) EUT Photo

Report No. 117148R-RFUSP42V01 Page : 7 of 216 1.2. Operational Description The EUT is a Plug-In PC with a built-in 2.4GHz and 5GHz WLAN transceiver. This device provided four kinds of transmitting speed 1, 2, 5.5 and 11Mbps and the device of RF carrier is DBPSK, DQPSK and CCK (IEEE 802.11b). The device provided of eight kinds of transmitting speed 6, 9, 12, 18, 24, 36, 48 and 54Mbps the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11a/g). The device provided of eight kinds of transmitting speed 14.4,28.9,43.3,57.8,86.7,115.6,130 and 144.4Mbps in 802.11n(20M-BW) mode and 30,60,90,120,180,240,270 and 300 Mbps(40M-BW) the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11n), the IEEE 802.11n is Multiple In, Multiple Out” (MIMO) technology. The device adapts direct sequence spread spectrum modulation. The antenna provides diversity function to improve the receiving function and the antennas to support 2(Transmit) × 2(Receive) MIMO technology. This Plug-In PC, compliant with IEEE 802.11b/g/n, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) radio transmission, the Plug-In PC Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b/g/n network. The Device no radar detection and no ad-hoc operation in the DFS band, another information please refer to users manual. Mode 1: Transmit - 802.11b 1Mbps Mode 2: Transmit - 802.11g 6Mbps Mode 3: Transmit - 802.11a 6Mbps Mode 4: Transmit - 802.11n-20BW_14.4Mbps(2.4G Band) Mode 5: Transmit - 802.11n-40BW_30Mbps(2.4G Band) Mode 6: Transmit - 802.11n-20BW_14.4Mbps(5G Band) Test Mode: Mode 7: Transmit - 802.11n-40BW_30Mbps(5G Band)

Report No. 117148R-RFUSP42V01 Page: 1 of 7 Version: 1.0 RF Exposure Evaluation declaration Product Name : Plug-In PC. Model No. : PN1HXXXXXX(X=0~9,A~Z or Blank) FCC ID : FKGPN1H Applicant : Twinhead International Corp Address : 10F,550 Rueiguand Rd Neihu,Taipei,Taiwan 114,ROC Date of Receipt : Jul. 05, 2011 Date of Declaration: Aug. 29, 2011 Report No. : 117148R-RFUSP42V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 117148R-RFUSP42V01 Page: 2 of 7 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 117148R-RFUSP42V01 Page: 3 of 7 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : Plug-In PC. Test Item : RF Exposure Evaluation Test Site : No.3 OATS 802.11b (1Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 34.8337 0.010983 6 2437.00 31.2608 0.009857 11 2462.00 32.8095 0.010345 The RF exposure at 20 cm is below limit. 802.11g (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 103.9920 0.032789 6 2437.00 139.6368 0.044028 11 2462.00 103.2761 0.032563 The RF exposure at 20 cm is below limit. 802.11a (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 149 5745.00 132.4342 0.041757 157 5785.00 130.6171 0.041184 165 5825.00 129.1219 0.040713 The RF exposure at 20 cm is below limit. Report No. 117148R-RFUSP42V01 Page: 4 of 7 Version: 1.0 802.11n-20MHz_14.4Mbps - 2.4G Band Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 135.2073 0.042631 06 2437.00 174.5822 0.055047 11 2462.00 157.3983 0.049628 The RF exposure at 20 cm is below limit. 802.11n-40MHz_30Mbps - 2.4G Band Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 03 2422.00 131.5225 0.041470 06 2437.00 152.0548 0.047944 09 2452.00 155.2387 0.048947 The RF exposure at 20 cm is below limit. 802.11n-20MHz_14.4Mbps - 5G Band Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 149 5745.00 196.3360 0.061906 157 5785.00 197.6970 0.062335 165 5825.00 208.4491 0.065725 The RF exposure at 20 cm is below limit. 802.11n-40MHz_30Mbps - 5G Band Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 151 5755.00 187.4995 0.059119 159 5795.00 184.9269 0.058308 The RF exposure at 20 cm is below limit. Report No. 117148R-RFUSP42V01 Page: 5 of 7 Version: 1.0 802.11a (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 36 5180.00 13.7088 0.004322 44 5220.00 14.7571 0.004653 48 5240.00 13.8676 0.004373 The RF exposure at 20 cm is below limit. 802.11a (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 52 5260.00 15.6675 0.004940 60 5300.00 15.6315 0.004929 64 5320.00 16.5196 0.005209 The RF exposure at 20 cm is below limit. 802.11a (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 100 5500.00 25.1189 0.007920 120 5600.00 25.5859 0.008067 140 5700.00 27.0396 0.008526 The RF exposure at 20 cm is below limit. 802.11n-20MHz_14.4Mbps Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 36 5180.00 19.8153 0.006248 44 5220.00 17.0216 0.005367 48 5240.00 15.7036 0.004951 The RF exposure at 20 cm is below limit. Report No. 117148R-RFUSP42V01 Page: 6 of 7 Version: 1.0 802.11n-20MHz_14.4Mbps Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 52 5260.00 19.9526 0.006291 60 5300.00 19.3642 0.006106 64 5320.00 19.3197 0.006092 The RF exposure at 20 cm is below limit. 80…

Text truncated - open the document above for the full version.

Report No. 117148R-RFUSP42V01 Page : 1 of 216 Test Report Product Name Plug-In PC. Model No PN1HXXXXXX(X=0~9,A~Z or Blank) FCC ID. FKGPN1H Applicant Twinhead International Corp Address 10F,550 Rueiguand Rd Neihu,Taipei,Taiwan 114,ROC Date of Receipt Jul. 05, 2011 Issue Date Aug. 29, 2011 Report No. 117148R-RFUSP42V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 117148R-RFUSP42V01 Page : 2 of 216 Test Report Certification Issue Date: Aug. 29, 2011 Report No.: 117148R-RFUSP42V01 Product Name Plug-In PC. Applicant Twinhead International Corp Address 10F,550 Rueiguand Rd Neihu,Taipei,Taiwan 114,ROC Manufacturer Twinhead International Corp Model No. PN1HXXXXXX(X=0~9,A~Z or Blank) EUT Rated Voltage AC 100-240V, 50-60Hz EUT Test Voltage AC 120V/60Hz Trade Name Twinhead Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2010 ANSI C63.4: 2009 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Jinn Chen ) Tested By : ( Engineer / Sabrina Tsai ) Approved By : ( Manager / Vincent Lin) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 117148R-RFUSP42V01 Page : 3 of 216 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................9 1.5. EUT Exercise Software .................................................................................................................9 1.6. Test Facility .................................................................................................................................10 2. Conducted Emission.................................................................................................................. 11 2.1. Test Equipment............................................................................................................................11 2.2. Test Setup ....................................................................................................................................11 2.3. Limits ..........................................................................................................................................12 2.4. Test Procedure .............................................................................................................................12 2.5. Uncertainty ..................................................................................................................................12 2.6. Test Result of Conducted Emission.............................................................................................13 3. Peak Power Output ...................................................................................................................17 3.1. Test Equipment............................................................................................................................17 3.2. Test Setup ....................................................................................................................................17 3.3. Limits ..........................................................................................................................................17 3.4. Test Procedure .............................................................................................................................17 3.5. Uncertainty ..................................................................................................................................17 3.6. Test Result of Peak Power Output...............................................................................................18 4. Radiated Emission .....................................................................................................................25 4.1. Test Equipment............................................................................................................................25 4.2. Test Setup ....................................................................................................................................26 4.3. Limits ..........................................................................................................................................27 4.4. Test Procedure .............................................................................................................................28 4.5. Uncertainty ..................................................................................................................................28 4.6. Test Result of Radiated Emission................................................................................................29 5. RF antenna conducted test........................................................................................................56 5.1. Test Equipment............................................................................................................................56 5.2. Test Setu…

Text truncated - open the document above for the full version.

Report No. 117148R-RFUSP42V01 Page: 82 of 216 Report No. 117148R-RFUSP42V01 Page: 83 of 216 Channel 11 (2462MHz) 30MHz -25GHz-Chain B Report No. 117148R-RFUSP42V01 Page: 84 of 216 Report No. 117148R-RFUSP42V01 Page: 85 of 216 Product : Plug-In PC. Test Item : RF Antenna Conducted Spurious Test Site : No.3 OATS Test Mode : Mode 5: Transmit - 802.11n-40BW_30Mbps(2.4G Band) Channel 03 (2422MHz) 30MHz -25GHz-Chain A Report No. 117148R-RFUSP42V01 Page: 86 of 216 Report No. 117148R-RFUSP42V01 Page: 87 of 216 Channel 06 (2437MHz) 30MHz -25GHz-Chain A Report No. 117148R-RFUSP42V01 Page: 88 of 216 Channel 09 (2452MHz) 30MHz -25GHz-Chain A Report No. 117148R-RFUSP42V01 Page: 89 of 216 Report No. 117148R-RFUSP42V01 Page: 90 of 216 Channel 03 (2422MHz) 30MHz -25GHz-Chain B Report No. 117148R-RFUSP42V01 Page: 91 of 216 Channel 06 (2437MHz) 30MHz -25GHz-Chain B Report No. 117148R-RFUSP42V01 Page: 92 of 216 Report No. 117148R-RFUSP42V01 Page: 93 of 216 Channel 09 (2452MHz) 30MHz -25GHz-Chain B Report No. 117148R-RFUSP42V01 Page: 94 of 216 Report No. 117148R-RFUSP42V01 Page: 95 of 216 Product : Plug-In PC. Test Item : RF Antenna Conducted Spurious Test Site : No.3 OATS Test Mode : Mode 6: Transmit - 802.11n-20BW_14.4Mbps(5G Band) Channel 149 (5745MHz) 30MHz -40GHz-Chain A Report No. 117148R-RFUSP42V01 Page: 96 of 216 Report No. 117148R-RFUSP42V01 Page: 97 of 216 A Att 30 dB * Ref 20 dBm Start 25 GHzStop 40 GHz1.5 GHz/ * * 3DB RBW 100 kHz VBW 1 MHz SWT 1.5 s 1 PK MAXH -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -37.47 dB m 39.563125000 GHz D1 -20.86 dBm 5190 Date: 24.AUG.2011 06:53:29 Channel 157 (5785MHz) 30MHz -40GHz-Chain A Report No. 117148R-RFUSP42V01 Page: 98 of 216 Report No. 117148R-RFUSP42V01 Page: 99 of 216 A Att 30 dB * Ref 20 dBm Start 25 GHzStop 40 GHz1.5 GHz/ * * 3DB RBW 100 kHz VBW 1 MHz SWT 1.5 s 1 PK MAXH -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -37.47 dB m 39.563125000 GHz D1 -20.86 dBm 5190 Date: 24.AUG.2011 06:53:29 Channel 165 (5825MHz) 30MHz -40GHz-Chain A Report No. 117148R-RFUSP42V01 Page: 100 of 216 Report No. 117148R-RFUSP42V01 Page: 101 of 216 A Att 30 dB * Ref 20 dBm Start 25 GHzStop 40 GHz1.5 GHz/ * * 3DB RBW 100 kHz VBW 1 MHz SWT 1.5 s 1 PK MAXH -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -37.82 dB m 39.628750000 GHz D1 -21.04 dBm 5190 Date: 24.AUG.2011 06:54:21 Channel 149 (5745MHz) 30MHz -40GHz-Chain B Report No. 117148R-RFUSP42V01 Page: 102 of 216 Report No. 117148R-RFUSP42V01 Page: 103 of 216 A Att 30 dB * Ref 20 dBm Start 25 GHzStop 40 GHz1.5 GHz/ * * 3DB RBW 100 kHz VBW 1 MHz SWT 1.5 s 1 PK MAXH -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -37.43 dB m 39.520000000 GHz D1 -20.93 dBm 5190 Date: 24.AUG.2011 07:00:42 Channel 157 (5785MHz) 30MHz -40GHz-Chain B Report No. 117148R-RFUSP42V01 Page: 104 of 216 Report No. 117148R-RFUSP42V01 Page: 105 of 216 A Att 30 dB * Ref 20 dBm Start 25 GHzStop 40 GHz1.5 GHz/ * * 3DB RBW 100 kHz VBW 1 MHz SWT 1.5 s 1 PK MAXH -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -37.90 dB m 39.628750000 GHz D1 -22.75 dBm 5190 Date: 24.AUG.2011 07:01:56 Channel 165 (5825MHz) 30MHz -40GHz-Chain B Report No. 117148R-RFUSP42V01 Page: 106 of 216 Report No. 117148R-RFUSP42V01 Page: 107 of 216 A Att 30 dB * Ref 20 dBm Start 25 GHzStop 40 GHz1.5 GHz/ * * 3DB RBW 100 kHz VBW 1 MHz SWT 1.5 s 1 PK MAXH -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -37.98 dB m 38.781250000 GHz D1 -20.62 dBm 5190 Date: 24.AUG.2011 07:02:42 Report No. 117148R-RFUSP42V01 Page: 108 of 216 Product : Plug-In PC. Test Item : RF Antenna Conducted Spurious Test Site : No.3 OATS Test Mode : Mode 7: Transmit - 802.11n-40BW_30Mbps(5G Band) Channel 151 (5755MHz) 30MHz -40GHz-Chain A

Report No. 117148R-RFUSP42V01 Page: 109 of 216 Report No. 117148R-RFUSP42V01 Page: 110 of 216 A Att 30 dB * Ref 20 dBm Start 25 GHzStop 40 GHz1.5 GHz/ * * 3DB RBW 100 kHz VBW 1 MHz SWT 1.5 s 1 PK MAXH -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -37.64 dB m 39.581875000 GHz D1 -23.24 dBm 5190 Date: 24.AUG.2011 06:55:27 Report No. 117148R-RFUSP42V01 Page: 111 of 216 Channel 159 (5795MHz) 30MHz -40GHz-Chain A Report No. 117148R-RFUSP42V01 Page: 112 of 216 A Att 30 dB * Ref 20 dBm Start 25 GHzStop 40 GHz1.5 GHz/ * * 3DB RBW 100 kHz VBW 1 MHz SWT 1.5 s 1 PK MAXH -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -37.57 dB m 39.561250000 GHz D1 -24.02 dBm 5190 Date: 24.AUG.2011 06:56:43 Report No. 117148R-RFUSP42V01 Page: 113 of 216 Channel 151 (5755MHz) 30MHz -40GHz-Chain B Report No. 117148R-RFUSP42V01 Page: 114 of 216 A Att 30 dB * Ref 20 dBm Start 25 GHzStop 40 GHz1.5 GHz/ * * 3DB RBW 100 kHz VBW 1 MHz SWT 1.5 s 1 PK MAXH -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -36.81 dB m 39.595000000 GHz D1 -23.42 dBm 5190 Date: 24.AUG.2011 07:03:32 Report No. 117148R-RFUSP42V01 Page: 115 of 216 Channel 159 (5795MHz) 30MHz -40GHz-Chain B Report No. 117148R-RFUSP42V01 Page: 116 of 216 A Att 30 dB * Ref 20 dBm Start 25 GHzStop 40 GHz1.5 GHz/ * * 3DB RBW 100 kHz VBW 1 MHz SWT 1.5 s 1 PK MAXH -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -37.75 dB m 39.578125000 GHz D1 -23.36 dBm 5190 Date: 24.AUG.2011 07:04:28 Report No. 117148R-RFUSP42V01 Page: 117 of 216 6. Band Edge 6.1. Test Equipment RF Conducted Measurement The following test equipments are used during the band edge tests: Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2011 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2011 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2011 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. RF Radiated Measurement: The following test equipments are used during the band edge tests: Test Site Equipment Manufacturer Model No./Serial No. Last Cal. Bilog Antenna Schaffner Chase CBL6112B/2673 Sep., 2010 X Horn Antenna Schwarzbeck BBHA9120D/D305 Sep., 2010 Horn Antenna Schwarzbeck BBHA9170/208 Jul., 2011 Pre-Amplifier QTK QTK-AMP-03 / 0003 May, 2011 X Pre-Amplifier QTK AP-180C / CHM_0906076 Sep., 2010 Pre-Amplifier MITEQ AMF-4D-180400-45-6P/ 925975 Mar, 2011 X Spectrum Analyzer Agilent E4407B / US39440758 May, 2011 Test Receiver R & S ESCS 30/ 825442/018 Sep., 2010 X Coaxial Cable QuieTek QTK-CABLE/ CAB5 Feb., 2011 X Controller QuieTek QTK-CONTROLLER/ CTRL3 N/A Site # 3 X Coaxial Switch Anritsu MP59B/6200265729 N/A Note: 1. All instruments are calibrated every one year. 2. The test instruments marked by “X” are used to measure the final test results. Report No. 117148R-RFUSP42V01 Page: 118 of 216 6.2. Test Setup RF Conducted Measurement RF Radiated Measurement: 6.3. Limits Emissions radiated outside of the specified frequency bands, except for harmonics, shall be attenuated by at least 20dB below the level of the fundamental or to the general radiated emission limits in paragraph 15.209, whichever is the lesser attenuation. EUT FRP Dome The height of broad band or Dipole Antenna was scanned from 1M to 4M. The distance between antenna and turn table was 3M regards to the standard ado pted. 3m 80cm To Receiver Pre- Amplifier SMA EUT Spectrum Analyzer RF Cable Report No. 117148R-RFUSP42V01 Page: 119 of 216 6.4. Test Procedure The EUT was setup according to ANSI C63.4, 2009 and tested according to DTS test procedure of Mar. 2005 KDB558074 for compliance to FCC 47CFR 15.247 requirements. The EUT is placed on a turn table which is 0.8 meter above ground. The turn table is rotated 360 degrees to determine the position of the maximum emission level. The EUT was positioned such that the distance from antenna to the EUT was 3 meters. The antenna is scanned from 1 meter to 4 meters to find out the maximum emission level. This is repeated for both horizontal and vertical polarization of the antenna. In order to find the maximum emission, all of the interface cables were manipulated according to ANSI C63.4:2009 on radiated measurement. 6.5. Uncertainty ± 3.9 dB above 1GHz ± 3.8 dB below 1GHz Report No. 117148R-RFUSP42V01 Page: 120 of 216 6.6. Test Result of Band Edge Product : Plug-In PC. Test Item : Band Edge Test Site : No.3 OATS Test Mode : Mode 1: Transmit - 802.11b 1Mbps Fundamental Filed Strength Antenna Pole Frequency [MHz] Correction Factor [dB/m] Reading Level [dBuV] Emission Level [dBuV/m] Detector Horizontal 2412 31.639 63.73 95.368 Peak Horizontal 2412 31.639 59.4 91.038 Average Vertical 2412 30.95 74.39 105.339 Peak Vertical 2412 30.95 69.76 100.709 Average Note: 1:Spectrum Analyzer setting: Peak detector: RBW=1MHz, VBW=1MHz Average detector: RBW=1MHz, VBW=10Hz Band Edge Test Data Antenna Pole Test Frequency (MHz) Fundamental (dBuV/m) Δ (dB) Band Edge Field Strength (dBuV/m) Detector Horizontal 2386.3 95.368 45.21 50.158 Peak Horizontal 2390 91.038 60.59 30.448 Average Vertical 2386.3 105.339 45.21 60.129 Peak Vertical 2390 100.709 60.59 40.119 Average Note: The Band Edge Field Strength was calculated using the Fundamental and Conducted Band Edge measurements per the Marker-Delta Method with the following formula: Band Edge field Strength = F - Δ F = Fundamental field Strength (Peak or Average) Δ = Conducted Band Edge Delta (Peak or Average) Report No. 117148R-RFUSP42V01 Page: 121 of 216 Peak Detector of conducted Band Edge Delta Average Detector of conducted Band Edge Delta Report No. 117148R-RFUSP42V01 Page: 122 of 216 Product : Plug-In PC. Test Item : Band Edge Test Site : No.3 OATS Test Mode : Mode 1: Transmit - 802.11b 1Mbps Fundamental Filed Strength Antenna Pole Frequency [MHz] Correction Factor [dB/m] Reading Level [dBuV] Emission Level […

Text truncated - open the document above for the full version.

Report No. 117148R-RFUSP42V01 Page: 141 of 216 Product : Plug-In PC. Test Item : Band Edge Test Site : No.3 OATS Test Mode : Mode 3: Transmit - 802.11a 6Mbps Test Frequency (MHz) Measurement Level Δ (dB) Limit Δ (dB) Result 5825 49.223 >20 PASS Report No. 117148R-RFUSP42V01 Page: 142 of 216 …
