FKGU12CNotebook PC

U U s s e e r r ’ ’ s s M M a a n n u u a a l l Table of Contents i Table of Contents CHAPTER 1...........................................................................................................1 INTRODUCTION..................................................................................... 1 Getting Started ........................................................................................... 2 Inventory .................................................................................................... 3 Safety and Maintenance ............................................................................. 4 Checklists ................................................................................................... 5 Features...................................................................................................... 6 Where to Look For Information ................................................................. 6 Quick Start.................................................................................................. 7 Loading Windows ....................................................................................... 8 Adjusting the Volume.................................................................................. 9 Adjusting the Brightness............................................................................. 9 Turning off Your Computer ...................................................................... 10 Making a Startup Disk.............................................................................. 10 Tips for New Owners ................................................................................ 11 CHAPTER 2.........................................................................................................13 GETTING STARTED............................................................................. 13 Hardware and Software ........................................................................... 14 Front View................................................................................................ 15 Rear View ................................................................................................. 17 Right View ................................................................................................ 17 Bottom View ............................................................................................. 18 LED Status Indicators .............................................................................. 19 Power Indicators ...................................................................................... 19 Function Keys........................................................................................... 20 Numeric Keypad ....................................................................................... 20 Touchpad.................................................................................................. 20 Connecting the Printer ............................................................................. 22 Smart Card (Integrated Circuit Card) Reader ......................................... 22 The Graphics System ................................................................................ 23 CHAPTER 3.........................................................................................................28 MAKING CONNECTIONS...................................................................... 28 Making Connections................................................................................. 29 Left Side Connectors ................................................................................ 29 Right Side Connectors (Optional) ............................................................ 30 Rear Side Connectors ............................................................................... 31 CHAPTER 4.........................................................................................................32 POWER MANAGEMENT....................................................................... 32 Table of Contents ii Power Management.................................................................................. 33 Monitoring Battery Power........................................................................ 34 Power Saving Modes ................................................................................ 35 Power Saving Tips.................................................................................... 36 When to Replace the Battery .................................................................... 37 Heat Considerations................................................................................. 37 CHAPTER 5.........................................................................................................39 USING THE BIOS SETUP UTILITYUSING THE BIOS SETUP UTILITY.39 USING THE BIOS SETUP UTILITY.................................................... 40 Main Menu ............................................................................................... 40 Advanced Menu ........................................................................................ 41 Boot Menu ................................................................................................ 42 Security Menu........................................................................................... 44 Exit Menu ................................................................................................. 45 APPENDIX A........................................................................................................46 INSTANT RECOVERY SOFTWARE........................................................ 46 APPENDIX B........................................................................................................60 FAQ & STATEMENT........................................................................... 60 Frequently Asked Questions ...................…

Text truncated - open the document above for the full version.

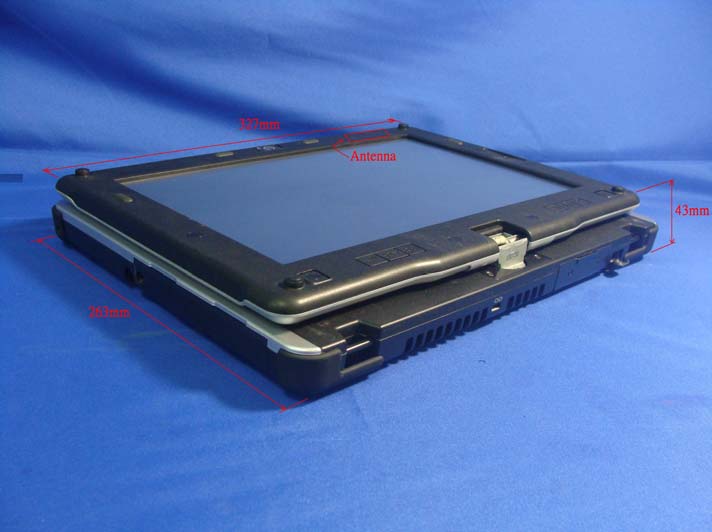

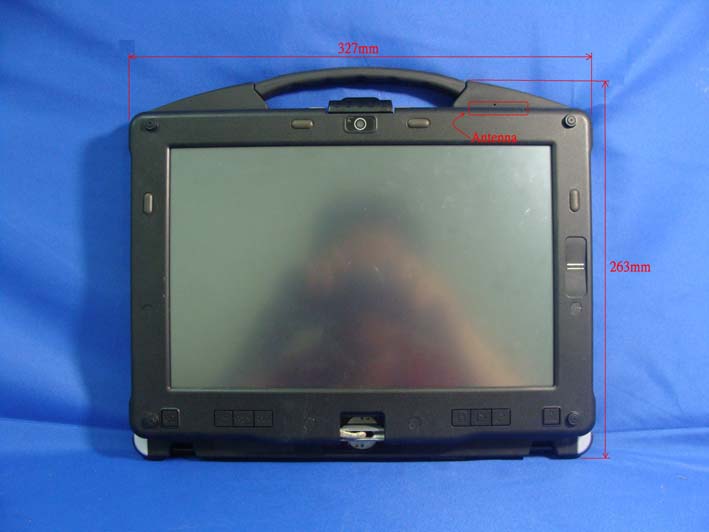

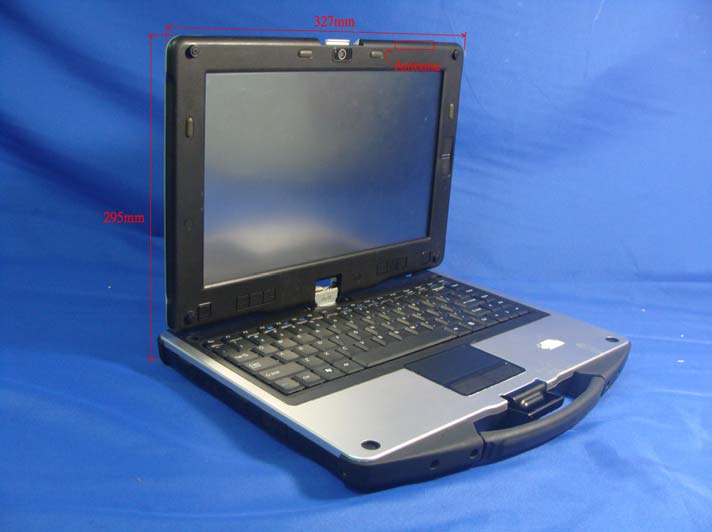

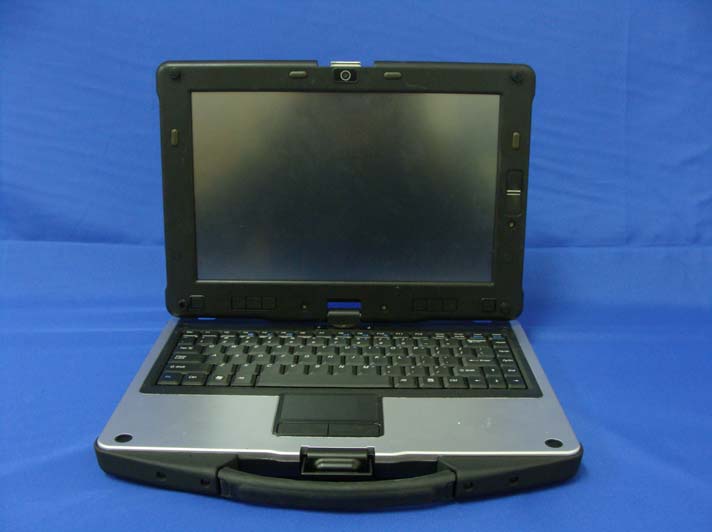

Report No：109173R-HPUSP09V01 Page: 1 of 5 Appendix D. EUT Photographs Report No：109173R-HPUSP09V01 Page: 2 of 5 Report No：109173R-HPUSP09V01 Page: 3 of 5 Report No：109173R-HPUSP09V01 Page: 5 of 5

Report No.: 109173R-RFCAP18V01 Page : 1 of 26 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 109173R-RFCAP18V01 Page : 2 of 26 (3) EUT Photo (4) EUT Photo Report No.: 109173R-RFCAP18V01 Page : 3 of 26 (5) EUT Photo (6) EUT Photo

TWINHEAD INTERNATIONAL CORP. FCC ID.: FKGU12C 10F,550 RUEIGUAN RD NEIHU,TAIPEI, Taiwan 114, ROC..Tel : 886-2-5589-9999 FCC ID Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below.

TWINHEAD INTERNATIONAL CORP. FCC ID.: FKGU12C 10F,550 RUEIGUAN RD NEIHU,TAIPEI, Taiwan 114, ROC..Tel : 886-2-5589-9999 FCC ID Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below.

Report No.: 109173R-RFUSP42V01 Page : 4 of 48 (7) EUT Photo (8) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 5 of 48 (9) EUT Photo (10) EUT Photo WLAN Module Report No.: 109173R-RFUSP42V01 Page : 6 of 48 (11) EUT Photo (12) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 7 of 48 (13) EUT Photo (14) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 8 of 48 (15) EUT Photo (16) EUT Photo GPS Module Report No.: 109173R-RFUSP42V01 Page : 9 of 48 (17) EUT Photo (18) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 10 of 48 (19) EUT Photo (20) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 11 of 48 (21) EUT Photo (22) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 12 of 48 (23) EUT Photo (24) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 13 of 48 (25) EUT Photo (26) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 14 of 48 (27) EUT Photo (28) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 15 of 48 (29) EUT Photo (30) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 16 of 48 (31) EUT Photo (32) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 17 of 48 (33) EUT Photo (34) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 18 of 48 (35) EUT Photo (36) EUT Photo Bluetooth Module Antenna Report No.: 109173R-RFUSP42V01 Page : 19 of 48 (37) EUT Photo (38) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 20 of 48 (39) EUT Photo (40) EUT Photo WLAN Antenna (Main) Report No.: 109173R-RFUSP42V01 Page : 21 of 48 (41) EUT Photo (42) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 22 of 48 (43) EUT Photo (44) EUT Photo WLAN Antenna (Aux) Report No.: 109173R-RFUSP42V01 Page : 23 of 48 (45) EUT Photo (46) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 24 of 48 (47) EUT Photo (48) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 25 of 48 (49) EUT Photo (50) EUT Photo WLAN Antenna (Aux, only RX) Bluetooth module 20mm 40mm Report No.: 109173R-RFUSP42V01 Page : 26 of 48 (51) EUT Photo (52) EUT Photo Bluetooth module WLAN Antenna (Main, TX/RX) 145mm Report No.: 109173R-RFUSP42V01 Page : 27 of 48 (53) EUT Photo (54) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 28 of 48 (55) EUT Photo (56) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 29 of 48 (57) EUT Photo (58) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 30 of 48 (59) EUT Photo (60) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 31 of 48 (61) EUT Photo (62) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 32 of 48 (63) EUT Photo (64) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 33 of 48 (65) EUT Photo (66) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 34 of 48 (67) EUT Photo (68) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 35 of 48 (69) EUT Photo (70) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 36 of 48 (71) EUT Photo (72) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 37 of 48 (73) EUT Photo (74) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 38 of 48 (75) EUT Photo (76) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 39 of 48 (77) EUT Photo (78) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 40 of 48 (79) EUT Photo (80) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 41 of 48 (81) EUT Photo (82) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 42 of 48 (83) EUT Photo (84) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 43 of 48 (85) EUT Photo (86) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 44 of 48 (87) EUT Photo (88) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 45 of 48 (89) EUT Photo (90) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 46 of 48 (91) EUT Photo (92) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 47 of 48 (93) EUT Photo (94) EUT Photo Report No.: 109173R-RFUSP42V01 Page : 48 of 48 (95) EUT Photo (96) EUT Photo

Report No：109173R-HPUSP09V01 Page: 5 of 5

Report No. 109173R-RFCAP18V01 Page: 7 of 99 1.2. Operational Description The EUT is a Notebook PC, This device provided four kinds of transmitting speed 1, 2, 5.5 and 11Mbps and the device of RF carrier is DBPSK, DQPSK and CCK (IEEE 802.11b). The device provided of eight kinds of transmitting speed 6, 9, 12, 18, 24, 36, 48 and 54Mbps the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11g). The device provided of eight kinds of transmitting speed 7.2,14.4,21.7,28.9,43.3,57.8,65 and 72.2Mbps in 802.11n(20M-BW) mode and 15,30,45,60,90,120,135 and 150 Mbps (40M-BW) the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11n), The IEEE 802.11n is Multiple In, Single Out” (MISO) technology and two antennas to support 1(Transmit) * 2(Receive) MISO technology. This Notebook PC, compliant with IEEE 802.11b and IEEE 802.11g/n, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) radio transmission, the Notebook PC Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b and IEEE 802.11g/n network. This equipment includes WLAN and Bluetooth, which can transmit signals simultaneously, the antenna distance of more than 5 cm, no assessment of collocation.

Report No：109173R-HPUSP09V01 Page: 1 of 22 SAR Test Report Product Name ：Notebook PC Model No. ：U12C Applicant ： TWINHEAD INTERNATIONAL CORP. Address ： 10F,550 RUEIGUAN RD NEIHU,TAIPEI, Taiwan 114,ROC. Date of Receipt ：2010/09/08 Issued Date ：2010/10/11 Report No. ：109173R-HPUSP09V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：109173R-HPUSP09V01 Page: 2 of 22 Test Report Certification Issued Date: 2010/10/11 Report No.: 109173R-HPUSP09V01 Product Name ： Notebook PC Applicant ： TWINHEAD INTERNATIONAL CORP. Address ： 10F,550 RUEIGUAN RD NEIHU,TAIPEI, Taiwan 114,ROC. Manufacturer ： TWINHEAD INTERNATIONAL CORP. FCC ID ： FKGU12C Model No. ： U12C Trade Name ： DURABOOK Applicable Standard ： FCC Oet65 Supplement C June 2001 RSS-102 Issue 4 March 2010 IEEE Std. 1528-2003 47CFR § 2.1093 Test Result ： Max. SAR Measurement (1g) 0.150 W/kg Application Type ： Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By ： (Adm.Assistant / Anny Chou) Tested By ： (Engineer / Jung Chang) Approved By ： (Manager / Vincent Lin) Report No：109173R-HPUSP09V01 Page: 3 of 22 TABLE OF CONTENTS Description Page 1. General Information.......................................................................................5 1.1 EUT Description ............................................................................................................5 1.2 Antenna List ................................................................................................................... 5 1.3 Test Environment ...........................................................................................................6 2. SAR Measurement System..........................................................................7 2.1 DASY5 System Description .......................................................................................... 7 2.1.1 Applications ................................................................................................................ 8 2.1.2 Area Scans................................................................................................................... 8 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 8 2.1.4 Uncertainty of Inter-/Extrapolation and Averaging .................................................... 8 2.2 DASY5 E-Field Probe ................................................................................................... 9 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ............................................... 10 2.4 DATA Acquisition Electronics (DAE) and Measurement Server ............................... 10 2.5 Robot ............................................................................................................................ 11 2.6 Light Beam Unit........................................................................................................... 11 2.7 Device Holder ..............................................................................................................12 2.8 SAM Twin Phantom .................................................................................................... 12 3. Tissue Simulating Liquid...........................................................................13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 14 4. SAR Measurement Procedure..................................................................15 4.1 SAR System Validation................................................................................................ 15 4.1.1 Validation Dipoles..................................................................................................... 15 4.1.2 Validation Result ....................................................................................................... 15 4.2 SAR Measurement Procedure ...................................................................................... 16 5. SAR Exposure Limits..................................................................................17 6. Test Equipment List.....................................................................................18 7. Measurement Uncertainty..........................................................................19 8. Peak Conducted Power Measurement................................................20 9. Test Results....................................................................................................21 9.1 SAR Test Results Summary ......................................................................................... 21 Report No：109173R-HPUSP09V01 Page: 4 of 22 Appendix Appendix A. SAR System Validation Data Appendix B. SAR measurement Data Appendix C. Test Setup Photographs Appendix D. EUT Photographs Appendix E. Probe Calibration Data Appendix F. Dipole Calibration Data Report No：109173R-HPUSP09V01 Page: 5 of 22 1. General Information 1.1 EUT Description Product Name Notebook PC Trade Name DURABOOK Model No. U12C TX Frequency 2412MHz ~ 2462MHz Number of Channel 11 Antenna Type PIFA Type of Modulation DSSS/OFDM Device Category Portable WLAN Modular MFR: Intel, M/N: 112BNHMW RF Exposure Environment Uncontrolled Max. Output Power (Conducted) 802.11b: 16.27 dBm 802.11g: 20.34 dBm 1.2 Antenna List No. Manufacturer Part No. Peak Gain 1 WGT T…

Text truncated - open the document above for the full version.

Report No. 109173R-RFUSP42V01 Page : 1 of 97 Test Report Product Name Notebook PC Model No U12C FCC ID. FKGU12C Applicant TWINHEAD INTERNATIONAL CORP. Address 10F,550 RUEIGUAN RD NEIHU,TAIPEI, Taiwan 114, ROC. Date of Receipt Sep. 09, 2010 Issue Date Oct. 07, 2010 Report No. 109173R-RFUSP42V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 109173R-RFUSP42V01 Page : 2 of 97 Test Report Certification Issue Date: Oct. 07, 2010 Report No.: 109173R-RFUSP42V01 Product Name Notebook PC Applicant TWINHEAD INTERNATIONAL CORP. Address 10F,550 RUEIGUAN RD NEIHU,TAIPEI, Taiwan 114, ROC. Manufacturer TWINHEAD INTERNATIONAL CORP. Model No. U12C FCC ID. FKGU12C EUT Rated Voltage AC 100-240V, 50-60Hz EUT Test Voltage AC 120V/60Hz Trade Name DURABOOK Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2009 ANSI C63.4: 2003 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Rita Huang ) Tested By : ( Engineer / Henk Huang ) Approved By : ( Manager / Vincent Lin ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 109173R-RFUSP42V01 Page : 3 of 97 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................9 1.6. Test Facility .................................................................................................................................10 2. Conducted Emission.................................................................................................................. 11 2.1. Test Equipment............................................................................................................................11 2.2. Test Setup ....................................................................................................................................11 2.3. Limits ..........................................................................................................................................12 2.4. Test Procedure .............................................................................................................................12 2.5. Uncertainty ..................................................................................................................................12 2.6. Test Result of Conducted Emission.............................................................................................13 3. Peak Power Output ...................................................................................................................15 3.1. Test Equipment............................................................................................................................15 3.2. Test Setup ....................................................................................................................................15 3.3. Limits ..........................................................................................................................................15 3.4. Test Procedure .............................................................................................................................15 3.5. Uncertainty ..................................................................................................................................15 3.6. Test Result of Peak Power Output...............................................................................................16 4. Radiated Emission .....................................................................................................................20 4.1. Test Equipment............................................................................................................................20 4.2. Test Setup ....................................................................................................................................21 4.3. Limits ..........................................................................................................................................22 4.4. Test Procedure .............................................................................................................................23 4.5. Uncertainty ..................................................................................................................................23 4.6. Test Result of Radiated Emission................................................................................................24 5. RF antenna conducted test........................................................................................................40 5.1. Test Equipment............................................................................................................................40 5.2. Test Setup ..............................…

Text truncated - open the document above for the full version.

Report No. 109173R-RFUSP42V01 Page: 69 of 97 7. Occupied Bandwidth 7.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2010 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2010 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2010 8-WAY Power Divider JFW 50PD-647 / 526770 0916 Apr., 2010 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 3. The power combiner is used for measure 11n mode. 7.2. Test Setup 7.3. Limits The minimum bandwidth shall be at least 500 kHz. 7.4. Test Procedure The EUT was setup according to ANSI C63.4, 2003; tested according to DTS test procedure of Mar. 2005 KDB558074 for compliance to FCC 47CFR 15.247 requirements. Set RBW = 100 kHz, Span greater than RBW. 7.5. Uncertainty ± 150Hz SMA EUT Spectrum Analyzer RF Cable Report No. 109173R-RFUSP42V01 Page: 70 of 97 7.6. Test Result of Occupied Bandwidth Product : Notebook PC Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412.00 10100 >500 Pass Figure Channel 1: Report No. 109173R-RFUSP42V01 Page: 71 of 97 Product : Notebook PC Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437.00 10150 >500 Pass Figure Channel 6: Report No. 109173R-RFUSP42V01 Page: 72 of 97 Product : Notebook PC Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462.00 10150 >500 Pass Figure Channel 11: Report No. 109173R-RFUSP42V01 Page: 73 of 97 Product : Notebook PC Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412.00 16450 >500 Pass Figure Channel 1: Report No. 109173R-RFUSP42V01 Page: 74 of 97 Product : Notebook PC Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437.00 16450 >500 Pass Figure Channel 6: Report No. 109173R-RFUSP42V01 Page: 75 of 97 Product : Notebook PC Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462.00 16450 >500 Pass Figure Channel 11: Report No. 109173R-RFUSP42V01 Page: 76 of 97 Product : Notebook PC Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412.00 17700 >500 Pass Figure Channel 1: Report No. 109173R-RFUSP42V01 Page: 77 of 97 Product : Notebook PC Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437.00 17700 >500 Pass Figure Channel 6: Report No. 109173R-RFUSP42V01 Page: 78 of 97 Product : Notebook PC Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462.00 17700 >500 Pass Figure Channel 11: Report No. 109173R-RFUSP42V01 Page: 79 of 97 Product : Notebook PC Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n MCS0 15Mbps 40M-BW) (2422MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2422.00 35450 >500 Pass Figure Channel 1: Report No. 109173R-RFUSP42V01 Page: 80 of 97 Product : Notebook PC Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n MCS0 15Mbps 40M-BW) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 4 2437.00 35450 >500 Pass Figure Channel 4: Report No. 109173R-RFUSP42V01 Page: 81 of 97 Product : Notebook PC Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n MCS0 15Mbps 40M-BW) (2452MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 7 2452.00 35450 >500 Pass Figure Channel 7: Report No. 109173R-RFUSP42V01 Page: 82 of 97 8. Power Density 8.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2010 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2010 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2010 8-WAY Power Divider JFW 50PD-647 / 526770 0916 Apr., 2010 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 3. The power combiner is used for measure 11n mode. 8.2. Test Setup 8.3. Limits The transmitted power density averaged over any 1 second interval shall not be greater +8dBm in any 3kHz bandwidth. 8.4. Test Procedure The EUT was setup according to ANSI C63.4, 2003; tested according to DTS test procedure of Mar. 2005 KDB558074 for compliance to FCC 47CFR 15.247 requirements. Set RBW= 3 kHz, VBW=10KHz, Sweep time=(SPAN/3KHz), detector=Peak detector 8.5. Uncertainty ± 1.27 dB SMA EUT Spectrum Analyzer RF Cable Report No. 109173R-RFUS…

Text truncated - open the document above for the full version.
