FKGMPCT10L1Tablet PC

T T 1 1 0 0 L L M M C C A A U U s s e e r r ’ ’ s s M M a a n n u u a a l l ii Table Of Contents CHAPTER 1 GETTING STARTED 1 Getting Started ................................................................................... 2 Inventory .............................................................................................3 Safety and Maintenance .................................................................... 4 Checklists ........................................................................................... 5 Features ..............................................................................................6 Where to Look For Information ........................................................ 8 Quick Start .......................................................................................... 8 Loading Windows ............................................................................ 10 Adjusting the Volume ...................................................................... 11 Adjusting the Brightness ................................................................ 11 Turning off Your MCA...................................................................... 12 CHAPTER 2 GETTING STARTED 13 Hardware and Software ................................................................... 14 Front View ......................................................................................... 15 Right View ......................................................................................... 16 Bottom View ..................................................................................... 17 Power Indicators .............................................................................. 18 Buttons.............................................................................................. 19 Function Keys .................................................................................. 20 Touch Pen ......................................................................................... 21 Disk Drives........................................................................................ 21 LCD Screen ....................................................................................... 23 Touch Screen ................................................................................... 24 Information about Fingerprint function ......................................... 26 Information about Barcode scanner .............................................. 27 How to use the Barcode scanner ................................................... 29 Information about RFID reader ....................................................... 30 Information about Camera function ............................................... 32 Communication Components ......................................................... 33 Information about 3G function........................................................ 34 Information about Bluetooth function ........................................... 35 iii CHAPTER 3 MAKING CONNECTIONS 36 Making Connections ........................................................................ 37 CHAPTER 4 POWER MANAGEMENT 38 Power Management ......................................................................... 39 When to Replace the Battery .......................................................... 41 Heat Considerations ........................................................................ 41 CHAPTER 5 DOCKING STATION CONNECTORS 42 Docking Station Connectors-Front & Left side............................. 43 Docking Station Connectors-Right side ........................................ 44 Docking Station Connectors-Top side........................................... 45 Mechanical Specification ................................................................ 46 APPENDIX A STATEMENTS 47 Statements ........................................................................................ 48 European Notice............................................................................... 49 Safety Compliance ........................................................................... 57 Battery Disposal ............................................................................... 57 CAUTION FOR ADAPTER................................................................ 58 BATTERY CAUTION ......................................................................... 58 REGULATORY INFORMATION(INTEL WIFI) .................................. 60 C C h h a a p p t t e e r r 1 1 I I n n t t r r o o d d u u c c t t i i o o n n 2 Getting Started Congratulations on your purchase of a MCA. The mobile clinical assistant (MCA) is a category of mobile computing platform developed by Intel® to be a new usage model that is customized for healthcare-specific use at the point of care, supporting the workflow of nurses and clinicians. This mobile clinical assistant (MCA) integrates technology from Intel® Health. With your MCA you will be able to organize and access important clinical information anywhere, anytime. In addition, you will be able to use the biometric fingerprint reader or authenticate your badge with the RFID reader. This Manual contains all the information you need to set up and use your MCA. It describes all the features of the MCA in an easy-to-read yet thorough manner. The Intel® Health brand signals the company’s specialization in healthcare and commitment to the healthcare industry while drawing on Intel’s rich heritage as a technology innovator. Intel is a trusted name associated with innovation, reliability, quality, and speed — attributes that resonate with key decision makers in the healthcare sector. Intel and the Intel logo are trademarks of Intel Corporation in the U.S. and other countries. 3 Inventory This MCA is designed for years of productive and pleasurable computing. Use this section to keep details of your purchase. This information will be required should you need to …

Text truncated - open the document above for the full version.

29 How to use the Barcode Scanner: Please click on [TwMCA-App] icon shown on Desktop. Then click it to execute Barcode scanner software. Then select [Decode ON] button on the application software to turn on built- in barcode scanner. It will be ready to read when there is a red light beam emitting from the device, and complete the reading when the light is off. To stop barcode scanner, please press [Disconnect] button.. * Through software developed by ISV to define Barcode scanner function. (button on handle) 30 Information about RFID reader The RFID reader is a compact contactless reader which supports Mifare® cards and ISO15693 (NOTE: Optional supports ISO14443A & ISO 14443B with non-healthcare standard) How to use the RFID reader: Please click on [TwMCA-App] program icon shown on Windows desktop to execute RFID reader software. Press [Connect] button on the application software to turn on built-in RFID reader, then put RFID card on the sensor area and press [Read] button. To stop RFID reader, please press [Disconnect] button. *Through software developed by ISV to define RFID function. (Button on the handle) 31 Allowable position to read the tag: Correct position Wrong position The maximum reading distances for different protocol: Protocol Distance ISO 15693 7cm ISO 14443A 6cm ISO 14443B 3cm 32 Information about Camera function The camera lens is on the back of the MCA. Features:
2 mega pixels resolution (1600 x 1200)
Support Auto Focus How to use the Camera: Click on the CAMERA button, it will pop up a preview screen, then press the CAMERA button again to save the photo. The preview screen will close after 10 sec automatically. (camera capture button ） 33 Communication Components This system includes built-in Wireless LAN, Bluetooth and 3G functions: Built-in Wireless Local Area Network The built-in Wireless Local Area Network (WLAN) interface card can provide a quick access without using cables for the connection to the network equipments. ISM electric wave frequency band as the transmission interface to set up the communications between the host computer and other computers. The way of processing communications through the WLAN interface card is the same as that through Ethernet interface card. The “Configuration Tool” is a Window application program. If users have a computer equipped with the WLAN interface card, then users can use it to set up the interface card and show the current configuration and status. Note: Contact your distributor for the information of upgrading the wireless local area network. 34 Information about 3G function Note: The system does not support 3G Voice features. The system provides 3G function (optional), please remove the SIM card cover. Then insert 3G SIM card into the slot. Attention: WLAN function will be auto turn-off when 3G function is on. Please click on [3G Watcher] program shown on Desktop to turn on 3G function. Please follow 3G Watcher Help Topics/ Wireless Data Connections/Manage profiles to create a profile first. After all settings are completed, click Connect to access Internet. User will find on Windows task bar. The indicator shows the received signal strength in dBm up to a maximum of five bars.. Please click 3G Watcher Tools/Turn Radio Off to stop connection. 35 Information about Bluetooth function A Bluetooth wireless technology is the ability to simultaneously handle both data and voice transmissions. This enables users to enjoy a variety of solutions such as hands-free headset for voice calls, printing and fax capabilities, and synchronizing PDA, laptop, and mobile phone applications. Please press hot key to turn on Bluetooth function. User could check Bluetooth connection status from indicator on Windows task bar. : Bluetooth disconnection: Bluetooth connection Double click Bluetooth indicator or on Desktop to turn on application program. C C h h a a p p t t e e r r 3 3 M M a a k k i i n n g g C C o o n n n n e e c c t t i i o o n n s s 37 Making Connections Right Side Connectors 1. DC-in Jack Connect the power plug of the AC adapter to this jack. 2. Docking Station connector The Connector is reserved for specific purpose which is used to connect to its docking station. C C h h a a p p t t e e r r 4 4 P P o o w w e e r r M M a a n n a a g g e e m m e e n n t t 39 Power Management Checking the Battery Level You can check the remaining battery power in the Windows® battery status indicator located at the lower right-hand corner of the task tray. The Battery Status icon only appears in the task tray while the unit is running on the battery power but not while the unit is running off an external power source through the AC adaptor. Battery Power Indicator Enter Monitoring Battery Power There are two ways to monitor how much power the battery has left. 1. Click Start / Settings / Control Panel / Power Options, then click Power Meter. 2. Moving the cursor to the battery icon on the taskbar is the simplest way to check on battery power status. If you do not see the battery icon, enable it in Start / Settings / Control Panel / Power Options. Choose the Advanced tab and click “Always show icon on the taskbar.” Low Battery Alarms How your MCA responds to a low battery condition is set under Start / Settings / Control Panel / Power Options / Alarms. Two different power alarms can be enabled or disabled: the Low Battery Alarm, and the Critical Battery Alarm. Warning: When battery power is low, the battery indicator will flash red, and the alarm will display a warning on your screen. Take immediate action, such as saving files or connecting to the AC adapter, or data may be lost. 40 Battery Charging When you use the AC adapter to connect your MCA to a power outlet, the internal battery will automatically begin to recharge (get charged first with battery 1, then goes to battery 2 when battery 1 is fully charged, and the MCA is powered by the AC adaptor.) While the battery is charging, the Battery Charge icon on the Indicator panel will be ac…

Text truncated - open the document above for the full version.

Twinhead International Corp. 10F, 550 Rueiguand Rd Neihu, Taipei, Taiwan 114, R.O.C. Tel: +886-2-55899999 FCC ID.: FKGMPCT10L1 10F, 550 Rueiguand Rd Neihu, Taipei, Taiwan 114, R.O.C. . Tel : 886-2-55899999 Federal Communications Commission Jun. 01, 2010 Authorization and Evaluation Division ATTESTATION FCC ID: FKGMPCT10L1 Product: Tablet PC Model: T10L We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, James Lai / Manager Twinhead International Corp.

Twinhead International Corp. 10F, 550 Rueiguand Rd Neihu, Taipei, Taiwan 114, R.O.C. TEL No: 886-2-55899999 FAX No.: 886-2-55557777 Attestation for FCC Declaration of Conformity FCC ID: FKGMPCT10L1 Data: Jun, 01, 2010 Please be notified that we, the undersigned, Twinhead International Corp., declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is (104046R-ITUSP01V02). Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,Taipei City 114,Taiwan,R.O.C. which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, James Lai / Manager Twinhead International Corp. Tel: (886) 2 5589-9999 Fax: (886) 2 5555-7777 Email: [email protected]

SabinaChen< SabinaChen<SabinaChen< SabinaChen<陳靖媛 陳靖媛陳靖媛 陳靖媛> >> > 寄件者 寄件者寄件者 寄件者: :: : oe tech@fcc su n27w.fc c.gov 寄件日期 寄件日期寄件日期 寄件日期: :: : 201 0年4月1 3日星期二 上午 4:09 收件者 收件者收件者 收件者: :: : sabina chen @quiete k.com 主旨 主旨主旨 主旨: :: : Response to Inquiry to FCC (Trackin g Numb er 979233) Page 1 of 1 2010/7/13 Inquiry: Description The tablet PC has included 13.56MHz RFID, 2.4GHz WLAN and 2.4GHz BT modules. Regarding to the RF module spec and the antenna spec, please kindly refer to the attachments. The distance of RFID antenna and WLAN antenna is less than 5 cm. The output power for three module is WLAN: 15dBm RFID: 14dBm(25mW) Bluetooth: 4dBm Question For this Tablet PC, how should we evaluate the simultaneous transmission SAR for RFID and WLAN ? Do we need to evaluate the individual transmission SAR in RFID ? Best regards, Sabina Chen Response: Do we need to evaluate the individual transmission SAR in RFID ? SAR evaluation is not required for the RFID transmitter operating at 13.56 MHz and 25 mW maximum output. How should we evaluate the simultaneous transmission SAR for RFID and WLAN ? When SAR is not required for the RFID transmitter, simultaneous transmission SAR considerations for the RFID transmitter is also not required. Follow the normal procedures in KDB 248227 to test 802.11 modes for WLAN SAR compliance. Follow the procedures in KDB 447498 to determine the SAR configurations required for tablet PC. Please check the original grants of these modules to determine possible restrictions and conditions for integrating them into the proposed tablet PC. Alternatively, the tablet PC may be approved as a standalone device with its own FCC ID. Please consult with the approving TCB for details. Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry. __________ Information from ESET NOD32 Antivirus, version of virus signature database 5023 (20100412) __________ The message was checked by ESET NOD32 Antivirus. http://www.eset.com FCC Home | Search | RSS | Updates | E-Filing | Initiatives | Consumers | Find People Office of Engineering and Technology RFID SPEC BT Spec Intel spec Antenna Position

Twinhead International Corp. 10F, 550 Rueiguand Rd Neihu, Taipei, Taiwan 114, R.O.C. Tel: +886-2-55899999 FCC ID.: FKGMPCT10L1 10F, 550 Rueiguand Rd Neihu, Taipei, Taiwan 114, R.O.C. Tel : 886-2-55899999 Twinhead International Corp. 10F, 550 Rueiguand Rd Neihu, Taipei, Taiwan 114, R.O.C. Tel : 886-2-55899999 Fax: 886-2-55557777 Federal Communications Commission Jun. 01, 2010 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics, (T10L) Schem Block Diagram, (T10L) BlkDia Turn up procedure, (T10L) Turn up procedure BOM List, (T10L) BOM List The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, James Lai / Manager Twinhead International Corp.

RF_160, Issue 01 Declaration of Authorization We Name: Twinhead International Corp Address: 10F, 550 Rueiguand Rd Neihu, Taipei, Taiwan 114, R.O.C. City: Taipei Country: Taiwan Declare that: Name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan R.O.C. is authorized to apply for Certification of the following product(s): Product description: Tablet PC Type designation: T10L Trademark: Twinhead on our behalf. Date: 2010/06/01 City: Taipei Name: James Lai / Manager Signature:

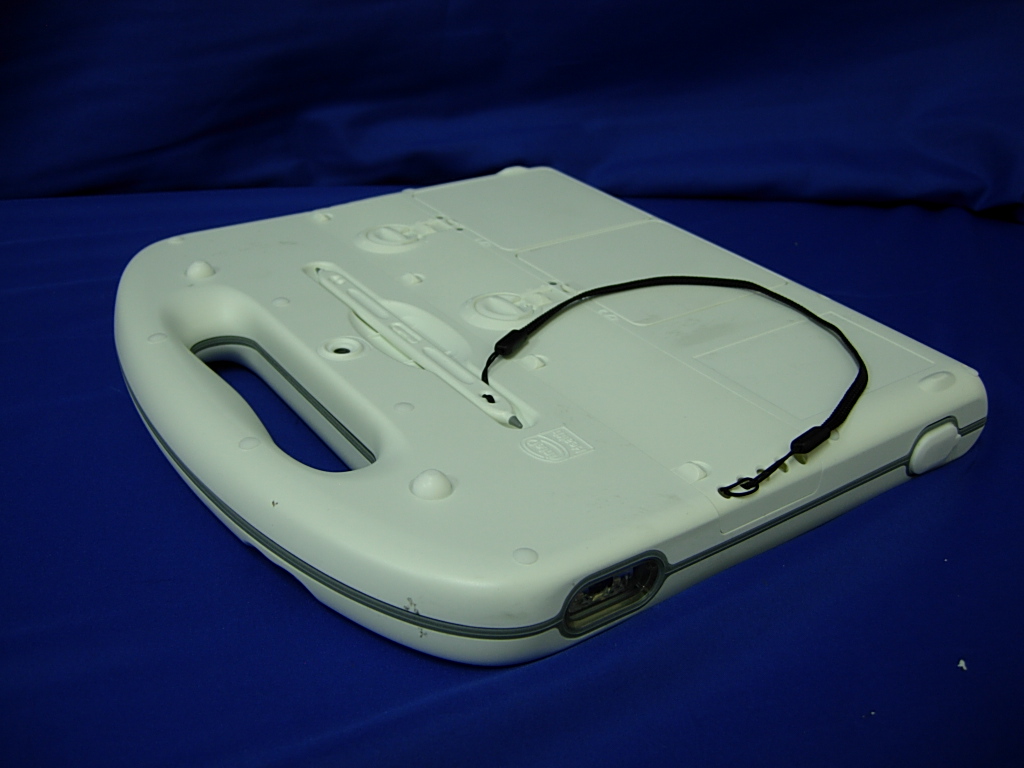

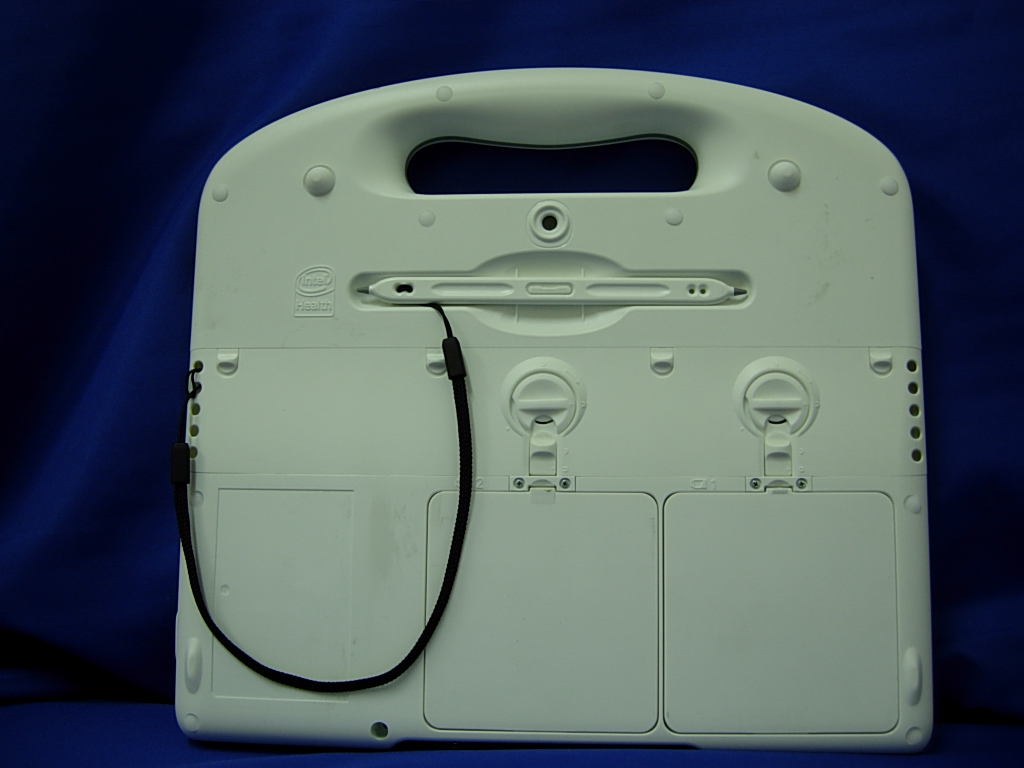

Report No：104046R-HPUSP09V01 Page: 1 of 4 Appendix D. EUT Photographs Report No：104046R-HPUSP09V01 Page: 2 of 4

Twinhead International Corp. 10F, 550 Rueiguand Rd Neihu, Taipei, Taiwan 114, R.O.C. Tel: +886-2-55899999 FCC ID.: FKGMPCT10L1 10F, 550 Rueiguand Rd Neihu, Taipei, Taiwan 114, R.O.C. . Tel : 886-2-55899999 FCC ID Label The FCC ID will be placed on the equipment as shown in the photograph below.

Twinhead International Corp. 10F, 550 Rueiguand Rd Neihu, Taipei, Taiwan 114, R.O.C. Tel: +886-2-55899999 FCC ID.: FKGMPCT10L1 10F, 550 Rueiguand Rd Neihu, Taipei, Taiwan 114, R.O.C. . Tel : 886-2-55899999 FCC ID Label The FCC ID will be placed on the equipment as shown in the photograph below.

Report No.: 104046R-RFUSP01V02 Page : 9 of 19 (17) EUT Photo (18) EUT Photo Report No.: 104046R-RFUSP01V02 Page : 10 of 19 (19) EUT Photo - (WLAN Module) (20) EUT Photo - (WLAN Module) Report No.: 104046R-RFUSP01V02 Page : 11 of 19 (21) EUT Photo - (WLAN Module) (22) EUT Photo- (WLAN Module) Report No.: 104046R-RFUSP01V02 Page : 12 of 19 (23) EUT Photo - (RFID Module) (24) EUT Photo - (RFID Module) Report No.: 104046R-RFUSP01V02 Page : 13 of 19 (25) EUT Photo – (WLAN Antenna) (26) EUT Photo – (WLAN Antenna) Report No.: 104046R-RFUSP01V02 Page : 14 of 19 (27) EUT Photo-(3G Module) (28) EUT Photo-(3G Module) Report No.: 104046R-RFUSP01V02 Page : 15 of 19 (29) EUT Photo-(3G Module) (30) EUT Photo-(3G Module) Report No.: 104046R-RFUSP01V02 Page : 16 of 19 (31) EUT Photo-(3G Module) (32) EUT Photo-(3G Module) Report No.: 104046R-RFUSP01V02 Page : 17 of 19 (33) EUT Photo-(3G Module) (34) EUT Photo - (3G Antenna) Report No.: 104046R-RFUSP01V02 Page : 18 of 19 (35) EUT Photo (36) EUT Photo Report No.: 104046R-RFUSP01V02 Page : 19 of 19 (37) EUT Photo (38) EUT Photo Bluetooth Module relative location 60mm 58mm53mm 3G Antenna WLAN AUX Antenna WLAN MAIN Antenna RFID Antenna

Report No.:104046R-HPUSP07V01 Page: 5 of 173 1.2. Antenna List 1.3. Operational Description The information contained within this report is intended to show verification of compliance of the 850/1900MHz Notebook to the requirements of 47CFR2, 22 and 24. The EUT provide all functions described as above. The EUT is tested with maximum rated TX power via the Base Station simulator. The device have co-located with WLAN card, but non-simultaneously transmit. Quie Tek has verified the construction and function in typical operation. All the test modes were carried out with the EUT in normal operation, which was shown in this test report and defined as: GSM 850 GPRS GSM 850 EGPRS PCS 1900 GPRS PCS 1900 EGPRS WCDMA BAND V WCDMA BAND V HSDPA WCDMA BAND V HSUPA WCDMA BAND II WCDMA BAND II HSDPA WCDMA BAND II HSUPA CDMA2000 1X BC0 CDMA2000 1X BC1 CDMA2000 1X EV-DO REL 0 BC CDMA2000 1X EV-DO REL 0 BC1 CDMA2000 1X EV-DO REL A BC0 Test Mode CDMA2000 1X EV-DO REL A BC1 No. MFR Antenna Type Part No. Peak Gain 1 WGT PIFA TWT10GPPI01+G 1.64 dBi

Report No：104046R-HPUSP10V01 Page: 1 of 35 SAR Test Report Product Name ：Tablet PC Model No. ：T10L Applicant ：Twinhead International Corp Address ：10F,550 Rueiguand Rd Neihu,Taipei,Taiwan 114,ROC Date of Receipt：2010/03/30 Issued Date ：2010/06/10 Report No. ：104046R-HPUSP10V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. Report No：104046R-HPUSP10V01 Page: 2 of 35 Test Report Certification Issued Date: 2010/06/10 Report No.:104046R-HPUSP10V01 Product Name ： Tablet PC Applicant ： Twinhead International Corp Address ： 10F,550 Rueiguand Rd Neihu,Taipei,Taiwan 114,ROC Manufacturer ： PROTEK (SHANGHAI) LTD FCC ID ： FKGMPCT10L1 Model No. ： T10L Trade Name ： Twinhead Applicable Standard ： FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 Test Result ： Max. SAR Measurement (1g) GSM 835MHz: 0.698W/kg PCS 1900MHz: 0.952 W/kg WCDMA Band V: 0.633 W/kg WCDMA Band II: 1.24 W/kg CDMA 835 MHz: 0.370 W/kg CDMA 1900 MHz: 1.04 W/kg The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. Documented By ： (Adm.Assistant / Anny Chou) Tested By ： (Engineer / Jung Chang) Approved By ： (Manager /Vincent Lin) Report No：104046R-HPUSP10V01 Page: 3 of 35 TABLE OF CONTENTS Description Page 1. General Information.............................................................................. 5 1.1 EUT Description ............................................................................................................5 1.2 Antenna List ................................................................................................................... 5 1.3 Test Environment ...........................................................................................................6 2. SAR Measurement System .................................................................. 7 2.1 DASY5 System Description .......................................................................................... 7 2.1.1 Applications ................................................................................................................ 8 2.1.2 Area Scans................................................................................................................... 8 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 8 2.1.4 Uncertainty of Inter-/Extrapolation and Averaging .................................................... 8 2.2 DASY5 E-Field Probe ................................................................................................... 9 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ............................................... 10 2.4 DATA Acquisition Electronics (DAE) and Measurement Server ............................... 10 2.5 Robot ............................................................................................................................ 11 2.6 Light Beam Unit........................................................................................................... 11 2.7 Device Holder ..............................................................................................................12 2.8 SAM Twin Phantom .................................................................................................... 12 3. Tissue Simulating Liquid ................................................................... 13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 14 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 15 4. SAR Measurement Procedure ........................................................... 16 4.1 SAR System Validation................................................................................................ 16 4.1.1 Validation Dipoles..................................................................................................... 16 4.1.2 Validation Result ....................................................................................................... 16 4.2 SAR Measurement Procedure ...................................................................................... 17 5. SAR Exposure Limits ......................................................................... 18 6. Test Equipment List............................................................................ 19 7. Measurement Uncertainty .................................................................. 20 8. Conducted Power Measurement ....................................................... 21 8.1 GSM Maximum Power ................................................................................................ 21 8.2 WCDMA Maximum Power ...................................................................................... 22 9. Test Results ......................................................................................... 29 Report No：104046R-HPUSP10V01 Page: 4 of 35 9.1 SAR Test Results Summary ......................................................................................... 29 Appendix ............................................................................................................................ 35 Appendix A. SAR System Validation Data Appendix B. SAR measurement Data Appendix C. Test Setup Photographs & EUT Photographs Appendix D. Probe Calibration Data Appendix E. Dipole Calibration Data Report No：104046R-HPUSP10V01 Page: 5 of 35 1. General Information 1.1 EUT Description Product Name Tablet PC M…

Text truncated - open the document above for the full version.

Report No.:104046R-HPUSP07V01 Page: 1 of 173 Test Report Product Name : Tablet PC Model No : T10L FCC ID : FKGMPCT10L1 Applicant : Twinhead International Corp Address : 10F,550 Rueiguand Rd Neihu,Taipei,Taiwan 114,ROC Date of Receipt：2010/03/30 Issued Date ：2010/06/14 Report No. ：104046R-HPUSP07V01 Report Version：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No.:104046R-HPUSP07V01 Page: 2 of 173 Test Report Certification Issued Date : 2010/06/14 Report No.: 104046R-HPUSP07V01 Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name : Tablet PC Applicant : Twinhead International Corp Address : 10F,550 Rueiguand Rd Neihu,Taipei,Taiwan 114,ROC Manufacturer : Twinhead International Corp Trade Name : Twinhead Model No. : T10L EUT Rated Voltage : AC 120V/60Hz EUT Test Voltage : AC 120V/60Hz Measurement Standard : FCC CFR Title 47 Part 2 22 24 Measurement Reference : TIA/EIA 603-C Test Result : Complied Documented By : (Adm.Assistant / Anny Chou) Tested By : (Engineer / Vorana Chen) Approved By : (Manager /Vincent Lin) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No.:104046R-HPUSP07V01 Page: 3 of 173 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION............................................................................................ 4 1.1. EUT Description ...........................................................................................................4 1.2. Antenna List.................................................................................................................. 5 1.3. Operational Description............................................................................................... 5 1.4. Configuration of tested System .................................................................................. 6 1.5. EUT Setup Procedures ................................................................................................ 6 1.6. Test Facility ................................................................................................................... 7 1.7. Type of Emission ..........................................................................................................8 1.8. Applied DC Voltages and Currents ............................................................................. 8 2. Peak Power Output ...................................................................................................... 9 2.1. Test Equipment.............................................................................................................9 2.2. Test Setup ..................................................................................................................... 9 2.3. Limits ........................................................................................................................... 10 2.4. Test Procedure ........................................................................................................... 10 2.5. Test Specification ....................................................................................................... 10 2.6. Test Result of Peak Power Output ............................................................................ 11 3. Occupi…

Text truncated - open the document above for the full version.
