FKGR15GNNOTEBOOK WITH 2.4GHz WIRELESS LAN MODULE

A A V V E E R R A A T T E E C C N N o o t t e e b b o o o o k k U U s s e e r r ’ ’ s s M M a a n n u u a a l l Table of Contents CHAPTER 1 GETTING STARTED Getting Started Inventory Safety and Maintenance Checklists Features Where to Look For Information Quick Start Adjusting the Volume Adjusting the Brightness Turning off Your Computer Tips for New Owners CHAPTER 2 GETTING STARTED Hardware and Software Front View Left View © 2003 AVERATEC, Inc. Right View Bottom View LCD Status Indicators Power Indicators Function Keys Numeric Keypad Touchpad Connecting a USB Floppy Drive Disk Drives Connecting the Printer The PC Card Slot Memory The Graphics System CHAPTER 3 MAKING CONNECTIONS Making Connections Left Side Connectors Right Side Connectors Front Side Connectors CHAPTER 4 POWER MANAGEMENT Power Management Power Saving Modes Power Saving Tips When to Replace the Battery Heat Considerations CHAPTER 5 USING THE BIOS SETUP UTILITY Using the BIOS Setup Utility Navigating and Entering Information in BIOS The Main Menu Standard CMOS Setup © 2003 AVERATEC, Inc. © 2003 AVERATEC, Inc. Standard Feature Description Advanced CMOS Setup Power Management Auto-Detect Hard Disk Change User Password Change Supervisor Password Auto Configuration with Optimal Settings Exiting and Saving APPENDIX A FREQUENTLY ASKED QUESTIONS Frequently Asked Questions APPENDIX B STATEMENTS Statements European Notice UL CAUTION Canadian Department of Communications Battery Disposal CAUTION FOR ADAPTER BATTERY CAUTION CLASS 1 LASER PRODUCT C C h h a a p p t t e e r r 1 1 I I n n t t r r o o d d u u c c t t i i o o n n Introduction — Getting Started Getting Started Congratulations on your purchase of a notebook computer! Your new notebook features the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics with sophisticated architecture to provide you with a personal computer that is compact, powerful, and easy to use. Designed for a wide range of general, business, and personal productivity applications, the notebook is an ideal choice for use in the office, at home, and on the road. For maximum expandability without compromising portability, the notebook accommodates a number of modules, including a combo DVD+CD-RW drive, one PCMCIA card and three USB devices. The high capacity hard disk drive provides you with plenty of storage space for multimedia files and applications. The notebook features an 85/87-key keyboard and a touch pad with scroll buttons. The high- resolution 12.1-inch LCD panel provides clear and crisp viewing. This Manual contains all the information you need to set up and use your new notebook. It describes all the features of the notebook in an easy-to-read yet thorough manner. Inventory This computer system is designed for years of productive and pleasurable computing. Use this section to keep details of your purchase. This information will be required should you need to make repairs to your notebook during the warranty period. Update this section when you add new options. DATE OF PURCHASE: PLACE OF PURCHASE: DEALER'S ADDRESS: TELEPHONE: E-MAIL ADDRESS/WWW: CONTACT PERSON: MODEL NUMBER: SERIAL NUMBER: © 2003 AVERATEC, Inc. Introduction — Safety and Maintenance The serial number is located on the label (with a bar code) on the bottom side of the computer and begins with “SY”. Safety and Maintenance You can use your computer under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your computer: • Follow all warnings and instructions noted in this documentation and in the Windows Help program. • The first time you use your computer, we recommend that you carefully read the Making Connections section of this manual and initialize the battery to ensure optimum battery performance. • Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use aerosols, solvents, or strong detergents. • Do not use the computer near open water or other liquids. Never spill liquid onto the computer. • Do not place the computer in an unstable location where it might slip or be knocked over. Serious damage could result from a fall. • Slots and openings in the system cabinet are for ventilation purposes. Do not block or cover these openings or the system could overheat. Do not use or store the computer near a source of heat or dust. • On the base or rear panel of this notebook, there is a label with information on the power requirements of this system. These requirements must be followed. If you are unsure of your local power supply, consult your dealer or local Power Company. • Do not step on or place anything on the power cord. • If you use the computer with an extension cord, ensure that the total ampere ratings of all the devices sharing the extension do not exceed the rating of the extension cord or the rating of the wall outlet. • Never push foreign objects into the computer through any of the slots or openings. Dangerous voltages are present, which could cause electric shock or fire, or damage sensitive components. © 2003 AVERATEC, Inc. Introduction — Checklists • For best results, use a power strip with a built-in surge protector. Do not use inferior extension cords as this may result in damage to your computer. • Set the computer on a flat, stable surface. To prevent damage to the computer’s hard disk drive, avoid using the computer where it will be exposed to strong vibration. Checklists After opening the package, carefully inspect the contents. If any of the items is missing or appear damaged, contact your dealer. The shipping carton should contain the following: STANDARD • A notebook computer • An internal battery • A combo DVD+CD-RW drive • An AC adapter with power cord • Recovery Media • Operating System Guide OPTIONS The following items are optional accessories that are available for purchase separately. Visit www.averatec.com for additional…

Text truncated - open the document above for the full version.

POWER OF ATTORNEY Date: September 10, 2003 We, the undersigned, hereby authorize Compliance Certification Services Inc. to act on our behalf in all matters relating to all processes related to FCC & IC applications and communications issue. Any and all acts carried out by Compliance Certification Services Inc. on our behalf shall have the same effects as acts of our own. If you have any questions regarding this authorization, please don’t hesitate to contact us. Thank you. Sincerely yours, _____________________________ JAMES LAI Twinhead International Corp. TWINHEAD INTERNATIONAL CORP. Address: 10F, No. 550, Rueiguang Rd., Neihu Chiu, Taipei 114, Taiwan, R.O.C. TEL: (886)2-5589-9999 FAX: (886)2-5555-7777

1 A PPROVAL SHEET MODEL R15GN DESCRIPTION R15GN Wireless PIFA Antenna wgt P/N TWR15WIPI01A C USTOMER P/N DATE 11 JUL.,2003 Manager Chief Engineer 118 51 20 Well Green Technology Co., Ltd. No. 20, Alley51 ,Lane 118,ShuangLian Sec.2,Mintzu Rd., PingJen City, TaoYuan Hsien, Taiwan, R.O.C TEL: +886-3-420-6428 ; FAX: +886-3-420-6418 Check Responser w g t For Twinhead International Com p uter , Inc. 2 3 4 802.11b and WIRELESS Antenna Testing Conditions 1. Testing set up: 0 degree clockwise LCD OPEN LCD CLOSE 600 cm HORN Standard Antenna R3767CG Network Analyzer Rotator Controller Radiation Pattern Testing - Anechoic Chamber R15GN Antenna 5 2. Mechanical dimensions A ntenna R15GN PIFA Cable φ 1.13 Wireless LAN Right up 6 Free Space 1. Return Loss Well GreenTechnology CO. , Ltd Frequency Band 2.4~2.5GHz Date 04 APR.,2003 Return Loss Antenna Center freg. @MHz BW @MHz 2.4GHz 2.45GHz 2.5GHz R15GN 2450 333 -16.80 -22.59 -14.85 P/N TWR15WIPI01A 7 2. VSWR Well GreenTechnology CO. , Ltd Frequency Band 2.4~2.5GHz Date 04 APR.,2003 VSWR Antenna Center freg. @MHz BW @MHz 2.4GHz 2.45GHz 2.5GHz R15GN 2450 333 1.32 1.15 1.43 P/N TWR15WIPI01A 8 3. Smith Chart Well GreenTechnology CO. , Ltd Frequency Band 2.4~2.5GHz Date 04 APR.,2003 P/N TWR15WIPI01A 9 Free Space 1. Radiation Pattern of XY Plane(Azimuth)-2.45GHz(open) 0 90 180 270 10 2. Radiation Pattern of XY Plane(Azimuth)-2.45GHz(close) 0 90 180 270 11 3. Peak Gain and Average Gain Gain of XY Plane(Azimuth)-open Antenna Polarization 2.45GHz Peak -0.25 V Average -5.20 Peak 0.11 H Average -5.25 Peak 2.17 R15GN H+V Average -2.21 Gain of XY Plane(Azimuth)-close Antenna Polarization 2.45GHz Peak -1.88 V Average -7.23 Peak -9.27 H Average -15.13 Peak -1.44 R15GN H+V Average -6.58 12 SPECIFICATIONS: Electrical Properties Frequency Range 2.4~2.5GHz Impedance 50Ohms nomimal VSWR 2.0 Peak Gain : -5.0dBi peak gain 3dBi Standard Connector I-PEX Connector

September 15, 2003 Federal Communications Commission Authorization and Evaluation Division FCC ID: FKGR15GN CONFIDENTIALITY REQUEST Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematic diagrams 2. Detailed operational description 3. Detailed block diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, _____________________________ JAMES LAI Twinhead International Corp. TWINHEAD INTERNATIONAL CORP. Address: 10F, No. 550, Rueiguang Rd., Neihu Chiu, Taipei 114, Taiwan, R.O.C. TEL: (886)2-5589-9999 FAX: (886)2-5555-7777

Page 1 of 4 9/29/2003 From: [email protected] [mailto:[email protected]] Sent: Sunday, September 28, 2003 7:14 PM To: Steve Cheng Cc: 'Jonson (E-mail)'; 'Lucy (E-mail)'; Mike Kuo; Steve Cheng; Scott Wang Subject: ??: RE: ??: RE: ??: RE: Re: AN03T3270TwinHead ID: FKGR15GN Dear Steve, The distance between antenna and laptop bottom in normal operation condition is 28cm around and please help to issue the grant for us asap. By the way, I still don't understand what it means for, so can you please clarify it for me? Best Regards, Lucy Hi Lucy, See below. -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Wednesday, September 24, 2003 10:14 PM To: Steve Cheng Cc: 'Jonson (E-mail)'; 'Lucy (E-mail)'; Mike Kuo; Steve Cheng; Scott Wang Subject: ??: RE: ??: RE: Re: AN03T3270 TwinHead ID: FKGR15GN Steve Cheng <[email protected]> 2003/09/27 09:14 AM ? ? ? : "'[email protected]'" <[email protected]>, Steve Cheng <[email protected]> ? ? ? ? : "'Jonson (E-mail)'" <[email protected]>, "'Lucy (E-mail)'" <[email protected]>, Mike Kuo <[email protected]>, Steve Cheng <[email protected]>, Scott Wang <[email protected]> ? ? : RE: ??: RE: ??: RE: Re: AN03T3270 TwinHead ID: FKGR15GN Dear Steve, Please refer to below for our reply. Q1, it has been revised as 15.247 and please refer to the attached revised test report. [Steve Cheng] ok. Q2, from the page 12 of the antenna spec. it shows the general spec. that the max. of the antenna gain can reach to 3dBi; yet actually the max. one measured is 0.11dBi as shows on the page of 11 and that's the one we used for test. [Steve Cheng] ok. Q3, the output power is 53.95mW which is higher than 49.24, and we have corrected it. [Steve Cheng] ok. Q4, the user manual has already stated that 20cm distance from the antenna to user should be maintained and please refer to page 60. Please check if it's enough. [Steve Cheng] Even though you already indicated the 20cm RF safe separation distance in the user manual, But you still have to consider if it is achievable for the end user in normal operation condition. Please provide the distance between antenna and laptop bottom in normal operation condition. . Thank you and Best Regards, Lucy Hi Lucy, Do you mean SAR data for "AN03T3292 COMPAL LAPTOP WITH 11BWIRELESS"? Yes I did received the Compal SAR data but still awaiting questions be answered to close up the project. Best regards, Steve -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Wednesday, September 24, 2003 6:32 PM To: Steve Cheng Cc: 'Jonson (E-mail)'; 'Lucy (E-mail)'; Mike Kuo; Scott Wang Subject: ??: RE: Re: AN03T3270 TwinHead ID: FKGR15GN Steve Cheng <[email protected]> 2003/09/25 09:47 AM ???: "'[email protected]'" <[email protected]>, Steve Cheng <[email protected]> ????: "'Jonson (E-mail)'" <[email protected]>, "'Lucy (E-mail)'" <[email protected]>, Mike Kuo <[email protected]>, Scott Wang <[email protected]> ??: RE: ??: RE: Re: AN03T3270 TwinHead ID: FKGR15GN Page 2 of 4 9/29/2003 Dear Steve, We've got this email and just tried to solve it. By the way, have you receive the SAR test reports for this project that I've emailed to you on Sept. 22? Thank you and best regards, Lucy Hi Lucy and Jonson, It has been while I got no response for theis porject, please call me if you need some clarification. Thansk, Steve > -----Original Message----- > From: Steve Cheng > Sent: Friday, September 19, 2003 6:32 PM > To: Lucy (E-mail); Jonson (E-mail) > Cc: Mike Kuo > Subject: Re: AN03T3270 TwinHead ID: FKGR15GN > > RT for project: AN03T3270 TwinHead ID: FKGR15GN > > Notice_content > > Question #1: Test report Page 5, "section 3 of test methodology", quoted > the wrong rule part, please correct 15.407 to 15.247. > > Question #2: Antenna spec page 12 shown antenna gain max. 3dBi, but EMC > report used 0.11 dBi. Please clarify. > > Question #3: Test report Page 25 stated " > The maximum output power is 17.32dBm(53.95mW) at 2412MHz, which is lower > than general population low threshold 120/F (120 /2.437=49.24mW). > > Calculation result actually is higher then low threshold. However, this > device was considering as a mobile devise and MPE evaluation is sufficient > to demonstrate the RF exposure compliance. Base on corrected antenna gain, > please re-perform MPE calculation if necessary. > > Question #4: No evidence shows EUT Tx antenna can supply 20 cm separation Steve Cheng <[email protected]> 2003/09/25 09:10 AM ???: "'Lucy (E-mail)'" <[email protected]>, "'Jonson (E-mail)'" <[email protected]> ????: Mike Kuo <[email protected]>, Scott Wang <[email protected]> ??: RE: Re: AN03T3270 TwinHead ID: FKGR15GN Page 3 of 4 9/29/2003 > distance to user. Please provide the distance between antenna and laptop > bottom in normal operation. > > > > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 60 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be > submitted. Any questions about the content of this correspondence should > be directed to the e-mail address listed below the name of the sender. > > Best Regards > > Steve Cheng > Compliance Certification Services > 561F Monterey Road > Morgan Hill, CA 95037 > Tel:(408)463-0885 x:119 > Fax:(408)463-0888 > [email protected] > http:\\www.ccsemc.com > > > Page 4 of 4 9/29/2003

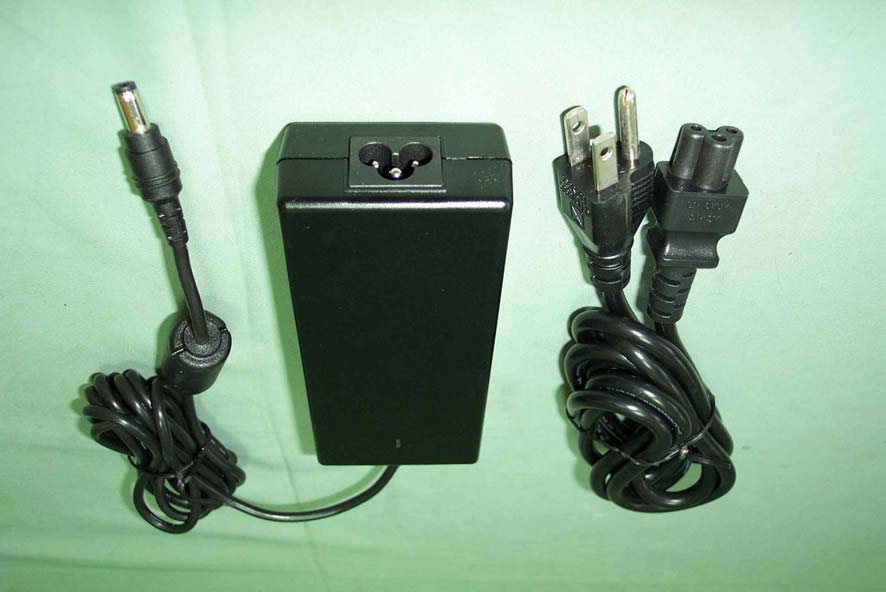

Compliance Certification Services Inc. Report No: B30829203-RP FCC ID: FKGR15GN Date of Issue: September 15, 2003 Page 46 APPENDIX 2 EXTERNAL PHOTOGRPHS OF EUT Front view of EUT Back view of EUT Compliance Certification Services Inc. Report No: B30829203-RP FCC ID: FKGR15GN Date of Issue: September 15, 2003 Page 47 Left view of EUT Right view of EUT Compliance Certification Services Inc. Report No: B30829203-RP FCC ID: FKGR15GN Date of Issue: September 15, 2003 Page 48 Open view of EUT Bottom view of EUT Compliance Certification Services Inc. Report No: B30829203-RP FCC ID: FKGR15GN Date of Issue: September 15, 2003 Page 49 Front view of Adapter Back view of Adapter

LABEL LOCATION

FCC / IC ID LABEL FORMAT Applicant: Twinhead International Corp. FCC ID: FKGR15GN TWINHEAD INTERNATIONAL CORP. FCC ID: FKGR15GN This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. “Complies with Canada RSS-210” TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE

Compliance Certification Services Inc. Report No: B30829203-RP FCC ID: FKGR15GN Date of Issue: September 15, 2003 Page 50 APPENDIX 3 INTERNAL PHOTOGRPHS OF EUT Internal of EUT --- 1 Internal of EUT --- 2 Compliance Certification Services Inc. Report No: B30829203-RP FCC ID: FKGR15GN Date of Issue: September 15, 2003 Page 51 Internal of EUT --- 3 Internal of EUT --- 4 Compliance Certification Services Inc. Report No: B30829203-RP FCC ID: FKGR15GN Date of Issue: September 15, 2003 Page 52 Internal of EUT --- 5 Internal of EUT --- 6 Antenna Position Compliance Certification Services Inc. Report No: B30829203-RP FCC ID: FKGR15GN Date of Issue: September 15, 2003 Page 53 Internal of EUT --- 7 Internal of EUT --- 8 Compliance Certification Services Inc. Report No: B30829203-RP FCC ID: FKGR15GN Date of Issue: September 15, 2003 Page 54 Internal of EUT --- 9 Internal of EUT --- 10 Compliance Certification Services Inc. Report No: B30829203-RP FCC ID: FKGR15GN Date of Issue: September 15, 2003 Page 55 Internal of EUT --- 11 Internal of EUT --- 12 Compliance Certification Services Inc. Report No: B30829203-RP FCC ID: FKGR15GN Date of Issue: September 15, 2003 Page 56 Internal of EUT --- 13 Internal of EUT --- 14 Compliance Certification Services Inc. Report No: B30829203-RP FCC ID: FKGR15GN Date of Issue: September 15, 2003 Page 57 Internal of EUT --- 15 Internal of EUT --- 16

Compliance Certification Services Inc. Report No: B30829203-RP FCC ID: FKGR15GN Date of Issue: September 15, 2003 Page 1 of 57 FCC 47 CFR PART 15 SUBPART C TEST REPORT For NOTEBOOK WITH 2.4GHz WIRELESS LAN MODULE Brand Name: Twinhead / GERICOM Model Number: R15GN (Twinhead) / GERICOM X6 Force (GERICOM) FCC ID: FKGR15GN Report No: B30829203-RP Issue Date: September 15, 2003 Prepared for TWINHEAD INTERNATIONAL CORP. 10F, No. 550, Rueiguang Rd., Neihu, Taipei, Taipei, Taiwan 114, R.O.C.. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc. Report No: B30829203-RP FCC ID: FKGR15GN Date of Issue: September 15, 2003 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION..................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION ............................................................................................................ 5 3.2 EUT EXERCISE ...............................................................................................................................5 3.3 GENERAL TEST PROCEDURES ........................................................................................................ 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ................................................... 6 3.5 DESCRIPTION OF TEST MODES ....................................................................................................... 6 4. INSTRUMENT CALIBRATION ................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 F ACILITIES .................................................................................................................................... 8 5.2 EQUIPMENT ................................................................................................................................... 8 5.3 LABORATORY ACCREDITATIONS AND LISTING ............................................................................. 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS .................................................................................. 9 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 10 6.1 SETUP CONFIGURATION OF EUT .................................................................................................. 10 6.2 SUPPORT EQUIPMENT .................................................................................................................. 10 7. FCC PART 15.247 REQUIREMENTS...................................................................................... 11 7.1. 6 DB BANDWIDTH ................................................................................................................... 11 7.2. PEAK POWER ......................................................................................................................... 14 7.3. BAND EDGES MEASUREMENT...................................................................................... 17 7.4. PEAK POWER SPECTRAL DENSITY ......................................................................................... 22 7.5. RADIO FREQUENCY EXPOSURE .............................................................................................. 25 7.6. RADIATED EMISSIONS ........................................................................................................... 28 7.7. POWERLINE CONDUCTED EMISSIONS .................................................................................... 40 Compliance Certification Services Inc. Report No: B30829203-RP FCC ID: FKGR15GN Date of Issue: September 15, 2003 Page 3 1. TEST RESULT CERTIFICATION Applicant: TWINHEAD INTERNATIONAL CORP. 10F, No. 550, Rueiguang Rd., Neihu, Taipei, Taiwan 114, R.O.C. Equipment Under Test: NOTEBOOK WITH 2.4GHz WIRELESS LAN MODULE Tr a d e Na m e : Twinhead / GERICOM Model: R15GN (Twinhead) / GERICOM X6 Force (GERICOM) Model Difference All the above Models are identical except the model designation Report Number: B30829203-RP Date of Test: September 5 ~ 6, 2003 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (1992) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jonson Lee Eric Wong Director of Linkou Laboratory Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: B30829203-RP FCC ID: FKGR15GN Date of Issue: September 15, 2003 Page 4 2. EUT DESCRIPTION Product NOTEBOOK WITH 2.4GHz WIRELESS LAN MODULE System Trade Name Twinhead / GERICOM System Model No. R15GN (Twinhead) / GERICOM X6 Force (GERICOM) Module Trade Name Airvast Mod…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: B30829203-RP FCC ID: FKGR15GN Date of Issue: September 15, 2003 Page 44 APPENDIX 1 PHOTOGRPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No: B30829203-RP FCC ID: FKGR15GN Date of Issue: September 15, 2003 Page 45 Conducted Emission Set Up Photos
