FKGT8NTablet PC

U U s s e e r r ’ ’ s s M M a a n n u u a a l l ii Table Of Contents CHAPTER 1 GETTING STARTED 1 Getting Started ................................................................................... 2 Inventory ............................................................................................. 3 Safety and Maintenance .................................................................... 4 Checklists ........................................................................................... 5 Features .............................................................................................. 6 Where to Look For Information......................................................... 6 Quick Start .......................................................................................... 7 Loading Windows .............................................................................. 8 Adjusting the Volume ........................................................................ 9 Turning off Your Computer ............................................................. 10 CHAPTER 2 GETTING STARTED 12 Hardware and Software ................................................................... 12 Front View ......................................................................................... 13 Right View ......................................................................................... 14 Top View............................................................................................ 15 Bottom View...................................................................................... 16 Power Indicators .............................................................................. 17 Front View buttons........................................................................... 18 Function Keys .................................................................................. 19 Touch Pen ......................................................................................... 19 Connecting the Floppy Disk Drive ................................................. 20 Disk Drives........................................................................................ 20 The CD-ROM, DVD-ROM, or Combo Drive..................................... 21 Connecting the Printer .................................................................... 21 The PCMCIA Card Slot..................................................................... 21 CF (Compact Flash) Card Slot ........................................................ 22 Memory.............................................................................................. 22 Communication Components ......................................................... 25 CHAPTER 3 MAKING CONNECTIONS 27 Making Connections ........................................................................ 28 Right Side Connectors .................................................................... 28 iii Top Side Connectors ....................................................................... 30 CHAPTER 4 SYSTEM SOFTWARE 33 System Software .............................................................................. 34 System Recovery ............................................................................. 34 CHAPTER 5 POWER MANAGEMENT AND USING SOFTWARE 37 Power Management......................................................................... 38 When to Replace the Battery .......................................................... 40 Heat Considerations ........................................................................ 40 Using Software ................................................................................. 41 APPENDIX A STATEMENTS 43 Statements ........................................................................................ 44 European Notice............................................................................... 46 Safety CAUTION ............................................................................... 46 Canadian Department of Communications ................................... 47 Battery Disposal............................................................................... 48 CAUTION FOR ADAPTER................................................................ 48 BATTERY CAUTION......................................................................... 48 C C h h a a p p t t e e r r 1 1 I I n n t t r r o o d d u u c c t t i i o o n n Chapter 1 — Introduction 2 Getting Started Congratulations on your purchase of a Tablet PC. The Tablet PC is a fully functional PC with built-in LAN, and wireless Connectivity. With your Tablet PC you will be able to organize and access important business and personal information. In addition, you will be able to send and receive e-mail and access the Internet. This Manual contains all the information you need to set up and use your Tablet PC. It describes all the features of the Tablet PC in an easy-to-read yet thorough manner. Introduction — Inventory 3 Inventory This Tablet PC is designed for years of productive and pleasurable computing. Use this section to keep details of your purchase. This information will be required should you need to make repairs to your Tablet PC during the warranty period. Update this section when you add new options. DATE OF PURCHASE: PLACE OF PURCHASE: DEALER'S NAME: DEALER'S ADDRESS: TELEPHONE: E-MAIL ADDRESS/WWW: CONTACT PERSON: MODEL NUMBER: SERIAL NUMBER: Chapter 1 — Introduction 4 Safety and Maintenance You can use your Tablet PC under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your Tablet PC: • Follow all warnings and instructions noted in this documentation and in the Windows Help program. • The first time you use your Tablet PC, we recommend that you carefully read the Making Connections section of this manual and initialize the battery to ensure o…

Text truncated - open the document above for the full version.

U U s s e e r r ’ ’ s s M M a a n n u u a a l l ii Table Of Contents CHAPTER 1 GETTING STARTED 1 Getting Started ................................................................................... 2 Inventory ............................................................................................. 3 Safety and Maintenance .................................................................... 4 Checklists ........................................................................................... 5 Features .............................................................................................. 6 Where to Look For Information......................................................... 6 Quick Start .......................................................................................... 7 Loading Windows .............................................................................. 8 Adjusting the Volume ........................................................................ 9 Turning off Your Computer ............................................................. 10 CHAPTER 2 GETTING STARTED 12 Hardware and Software ................................................................... 12 Front View ......................................................................................... 13 Right View ......................................................................................... 14 Top View............................................................................................ 15 Bottom View...................................................................................... 16 Power Indicators .............................................................................. 17 Front View buttons........................................................................... 18 Function Keys .................................................................................. 19 Touch Pen ......................................................................................... 19 Connecting the Floppy Disk Drive ................................................. 20 Disk Drives........................................................................................ 20 The CD-ROM, DVD-ROM, or Combo Drive..................................... 21 Connecting the Printer .................................................................... 21 The PCMCIA Card Slot..................................................................... 21 CF (Compact Flash) Card Slot ........................................................ 22 Memory.............................................................................................. 22 Communication Components ......................................................... 25 CHAPTER 3 MAKING CONNECTIONS 27 Making Connections ........................................................................ 28 Right Side Connectors .................................................................... 28 iii Top Side Connectors ....................................................................... 30 CHAPTER 4 SYSTEM SOFTWARE 33 System Software .............................................................................. 34 System Recovery ............................................................................. 34 CHAPTER 5 POWER MANAGEMENT AND USING SOFTWARE 37 Power Management......................................................................... 38 When to Replace the Battery .......................................................... 40 Heat Considerations ........................................................................ 40 Using Software ................................................................................. 41 APPENDIX A STATEMENTS 43 Statements ........................................................................................ 44 European Notice............................................................................... 46 Safety CAUTION ............................................................................... 46 Canadian Department of Communications ................................... 47 Battery Disposal............................................................................... 48 CAUTION FOR ADAPTER................................................................ 48 BATTERY CAUTION......................................................................... 48 C C h h a a p p t t e e r r 1 1 I I n n t t r r o o d d u u c c t t i i o o n n Chapter 1 — Introduction 2 Getting Started Congratulations on your purchase of a Tablet PC. The Tablet PC is a fully functional PC with built-in LAN, and wireless Connectivity. With your Tablet PC you will be able to organize and access important business and personal information. In addition, you will be able to send and receive e-mail and access the Internet. This Manual contains all the information you need to set up and use your Tablet PC. It describes all the features of the Tablet PC in an easy-to-read yet thorough manner. Introduction — Inventory 3 Inventory This Tablet PC is designed for years of productive and pleasurable computing. Use this section to keep details of your purchase. This information will be required should you need to make repairs to your Tablet PC during the warranty period. Update this section when you add new options. DATE OF PURCHASE: PLACE OF PURCHASE: DEALER'S NAME: DEALER'S ADDRESS: TELEPHONE: E-MAIL ADDRESS/WWW: CONTACT PERSON: MODEL NUMBER: SERIAL NUMBER: Chapter 1 — Introduction 4 Safety and Maintenance You can use your Tablet PC under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your Tablet PC: • Follow all warnings and instructions noted in this documentation and in the Windows Help program. • The first time you use your Tablet PC, we recommend that you carefully read the Making Connections section of this manual and initialize the battery to ensure o…

Text truncated - open the document above for the full version.

application lucy.tsai 2006/07/31 10:44 AM Generic Office of Engineering Technology <[email protected]> [email protected] Generic Office of Engineering Technology <[email protected] cc.gov> 2006/07/31 06:43 AM [email protected] To: Antony Yao, Compliance Certification Services Inc. From: Linda Elliott [email protected] FCC Application Processing Branch Re: FCC ID FKG-T8N Applicant: Twinhead International Corporation Correspondence Reference Number: 31290 731 Confirmation Number: EA350867 The FCC ID (FKG-T8N) entered on the Form 731, does not agree with the FCC ID (FKGTSN) displayed on the proposed labeling. Submit an email/letter to correct the ID on the Form 731, or a revised identification label, as appropriate. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal pursuant to Section 2.917 (c) and forfeiture of the filing fee pursuant to section 1.1108. DO NOT reply to this e-mail by using the Reply button. In order for your response to be processed expeditiously, you must upload your response via the Internet at www.fcc.gov, Electronic Filing, OET Equipment Authorization Electronic Filing. If the response is submitted through Add Attachments, a message which informs the processing staff that a new exhibit has been submitted must also be submitted via Submit Correspondence. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

TWINHEAD INTERNATIONAL CORP. POWER OF ATTORNEY Date: July 18, 2006 We, the undersigned, hereby authorize Compliance Certification Services Inc. to act on our behalf in all matters relating to all processes related to FCC applications and communications issue. Any and all acts carried out by Compliance Certification Services Inc. on our behalf shall have the same effects as acts of our own. If you have any questions regarding this authorization, please don’t hesitate to contact us. Thank you. Sincerely Yours, Felix Fu / Supervisor

TWINHEAD INTERNATIONAL CORP. July 13, 2006 Federal Communications Commission Authorization and Evaluation Division FCC ID: FKGT8N Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Felix Fu / Supervisor

FCC Home | Search | Updates | E-Filing | Initiatives | For Consumers | Find Peo Office of Engineering and Technology FCC > FCC E-filing > EAS > Submit Correspondence FCC Site Map OET Home Page Filing Options Grantee Registration Modify Grantee Information Form 731 Complete Unfinished Form 731 Add Attachments Submit Correspondence Register New Test Firm Renew Test Firm/Add Exhibits Test Firm Accrediting Body Login Return to 159 Form Reports Pending Application Status Generic Search Grantee Search Pending Grantee Search TCB Search Test Firms Test Firm Accrediting Bodies Equipment Class/Rule Part List Miscellaneous Get FRN Knowledge Database User's Manual Get Software FAQ Form 731 Confirmation Number: EA450088 Correspondence Reference Number: 31539 Enter Comments Below: * * - Indicates that this field must be completed before proceeding Dear Sir: Please see my reply as below, thank you. Q1: The user manaul had been revised on pagr 48. Q2: We had load to FCC. Q3: The user manual indicats that this device is a "Screen Rotate 90 de gree" see page 22 (Fn + 7 ) for pdf file. If have any question, please let me know. Amanda Wu Compliacne Certification Services Inc. E-Mail: [email protected] / [email protected] TEL: 886-2-2299-9720 ext.545 Submit ResponseClear Last Reviewed/Updated on 06/11/2003 第 1 頁，共 2 頁OET Equipment Authorization System Reply to OET Correspondence 2006/9/8http://gullfoss2.fcc.gov/prod/oet/cf/eas/forms/SubmitCorrespondenceEntryEA.cfm Please send any comments or suggestions for this site to OET Systems Support Federal Communications Commission 445 12th Street, SW Washington, DC 20554 More FCC Contact Information... Phone: 888-CALL-FCC (225-5322) TTY: 888-TELL-FCC (835-5322) Fax: 202-418-0232 E-mail: [email protected] - Privacy Policy - Web Policies & Notices - Customer Service Standards - Freedom of Information Act 第 2 頁，共 2 頁OET Equipment Authorization System Reply to OET Correspondence 2006/9/8http://gullfoss2.fcc.gov/prod/oet/cf/eas/forms/SubmitCorrespondenceEntryEA.cfm

TWINHEAD INTERNATIONAL CORP. Declaration Letter Date: September 19, 2006 Federal Communications Commission Authorization and Evaluation Devision 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Applicant: TWINHEAD INTERNATIONAL CORP. Dear Examiner, The device is under normal condition, the screen can rotate 90° and 270°(-90°)only. The function rotate screen to 180° is disabled. If you have any questions regarding this application, pls feel free to contact me. Sincerely Yours, Felix Fu / Supervisor

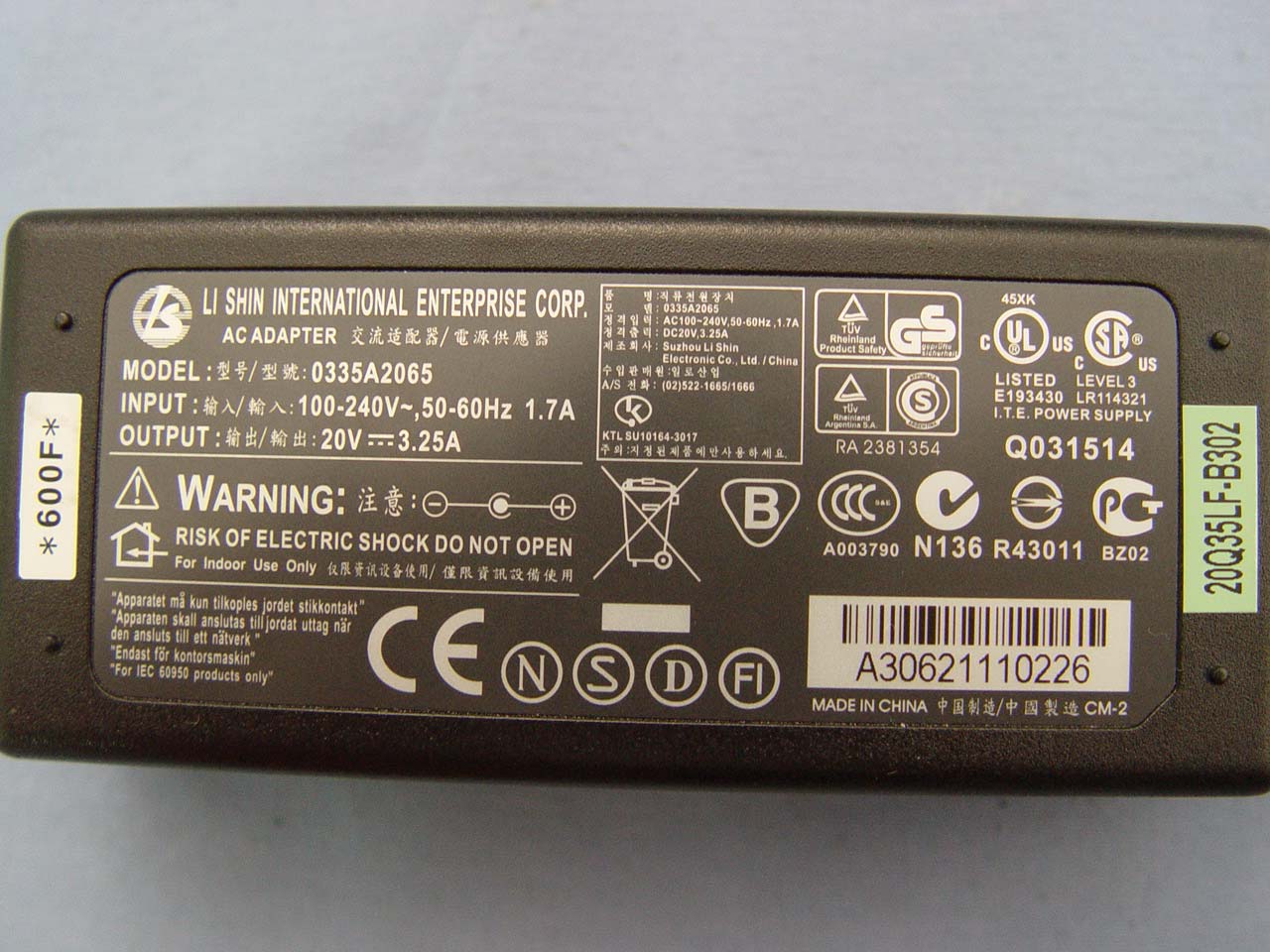

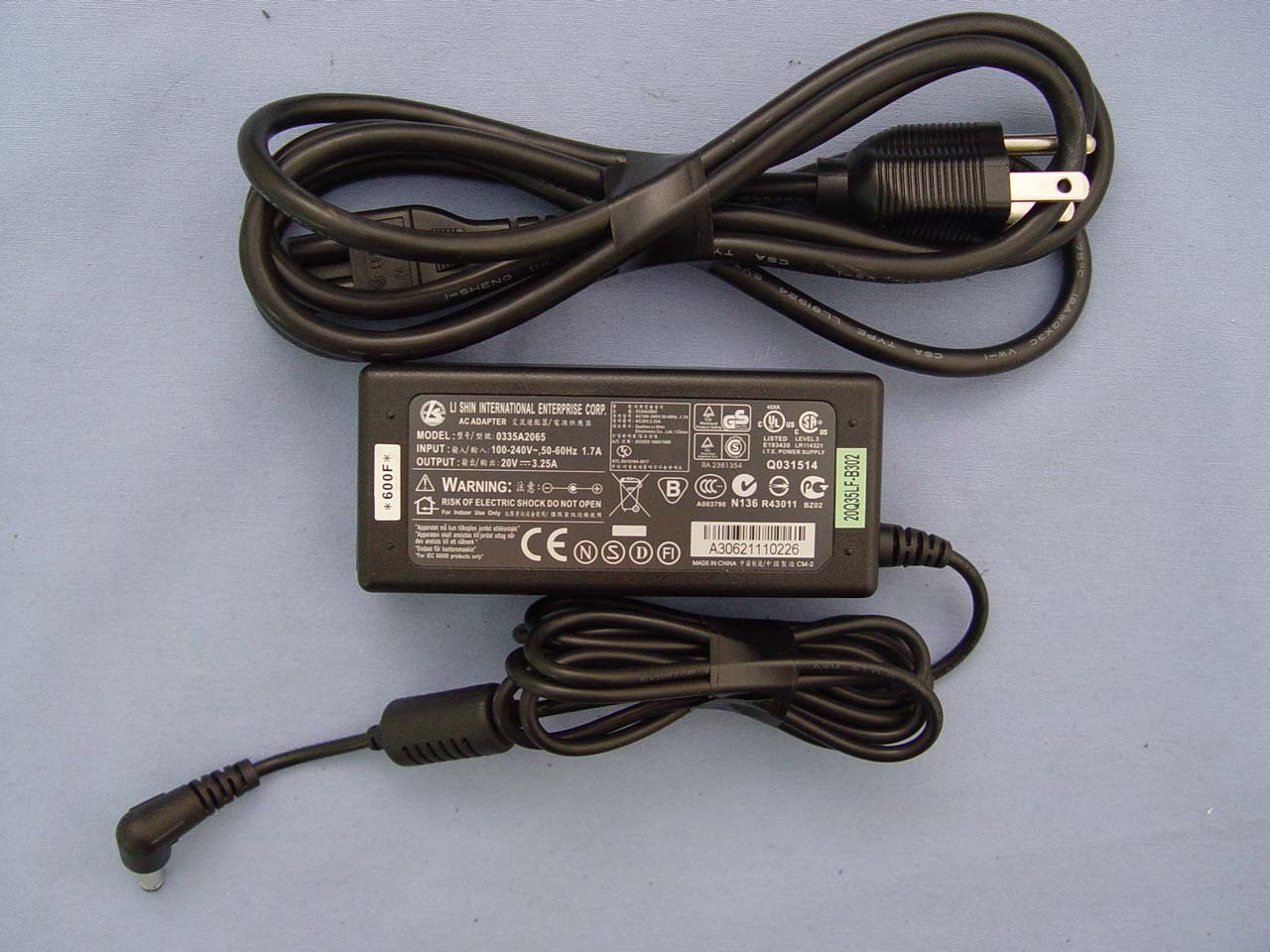

Compliance Certification Services Inc. Report No: 60706001 Date of Issue: July 18, 2006 Page 1 Total Page: 24 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 60706001 Date of Issue: July 18, 2006 Page 2 Rev.00 Compliance Certification Services Inc. Report No: 60706001 Date of Issue: July 18, 2006 Page 3 Rev.00 Compliance Certification Services Inc. Report No: 60706001 Date of Issue: July 18, 2006 Page 4 Rev.00 Compliance Certification Services Inc. Report No: 60706001 Date of Issue: July 18, 2006 Page 5 Rev.00

Compliance Certification Services Inc. Report No: 60706001 Date of Issue: July 18, 2006 Page 6 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 60706001 Date of Issue: July 18, 2006 Page 7 Rev.00 Compliance Certification Services Inc. Report No: 60706001 Date of Issue: July 18, 2006 Page 8 Rev.00 Compliance Certification Services Inc. Report No: 60706001 Date of Issue: July 18, 2006 Page 9 Rev.00 Compliance Certification Services Inc. Report No: 60706001 Date of Issue: July 18, 2006 Page 10 Rev.00 Compliance Certification Services Inc. Report No: 60706001 Date of Issue: July 18, 2006 Page 11 Rev.00

Compliance Certification Services Inc. Report No: 60706001 Date of Issue: July 18, 2006 Page 12 Rev.00 WLAN module Compliance Certification Services Inc. Report No: 60706001 Date of Issue: July 18, 2006 Page 13 Rev.00 Compliance Certification Services Inc. Report No: 60706001 Date of Issue: July 18, 2006 Page 14 Rev.00 Compliance Certification Services Inc. Report No: 60706001 Date of Issue: July 18, 2006 Page 15 Rev.00 Bluetooth module Compliance Certification Services Inc. Report No: 60706001 Date of Issue: July 18, 2006 Page 16 Rev.00 Compliance Certification Services Inc. Report No: 60706001 Date of Issue: July 18, 2006 Page 17 Rev.00 Compliance Certification Services Inc. Report No: 60706001 Date of Issue: July 18, 2006 Page 18 Rev.00 Compliance Certification Services Inc. Report No: 60706001 Date of Issue: July 18, 2006 Page 19 Rev.00 Antenna Location Compliance Certification Services Inc. Report No: 60706001 Date of Issue: July 18, 2006 Page 20 Rev.00 WLAN Antenna Compliance Certification Services Inc. Report No: 60706001 Date of Issue: July 18, 2006 Page 21 Rev.00 Compliance Certification Services Inc. Report No: 60706001 Date of Issue: July 18, 2006 Page 22 Rev.00 Compliance Certification Services Inc. Report No: 60706001 Date of Issue: July 18, 2006 Page 23 Rev.00 Bluetooth Antenna Compliance Certification Services Inc. Report No: 60706001 Date of Issue: July 18, 2006 Page 24 Rev.00

Well Green Technology Co., Ltd Data 07/12/06 RD Manager Supervisor RD engineer Sales engineer David Johnson Tim Jerry wgt No. 20, Alley51 ,Lane 118,Sh uangLian Sec.2,Mintzu Rd., PingJen City, TaoYuan Hsien, Taiwan, R.O.C TEL: (03)420-6428 FAX: (03) 420-6418 TWINHEAD T8N Antenna Test Report 1 Information Overview 1.1 Platform Information Description Comments Project Code of System Project Stage Prototype EPR PPR MP Platform Type Notebook PC Tablet PC 1.2 Antenna Information Manufacturer Well Green Technology Co., Ltd. Design Stage Handmade Machine Tooling Antenna Aux Type PIFA Model Name T8N-L Part Number TWT8NWIPI01B Antenna Location Left-up of the panel Antenna Purpose Wireless LAN 802.11abg Aux Antenna Connector Manufacturer IPEX Connector Part No. 20278-101R-32 20278-111R-32 Frequency GHz 2.4 – 2.5, 5.15 – 5.85 Impedance 50 Cable Manufacturer & PN Wonderful Double Cable Diameter mm 1.32 Cable Length Antenna Main Type PIFA Model Name T8N-R Part Number TWT8NWIPI02B Antenna Location Right-up of the panel Antenna Purpose Wireless LAN 802.11abg Main Antenna Connector Manufacturer IPEX Connector Part No. 20278-101R-32 20278-111R-32 Frequency GHz 2.4 – 2.5, 5.15 – 5.85 Impedance 50 Cable Manufacturer & PN Wonderful Double Cable Diameter mm 1.32 Cable Length Antenna Bluetooth Type PIFA Model Name T8N- Left side Part Number TWT8NBLPI01B Antenna Location Left side Antenna Purpose Bluetooth Antenna Connector Manufacturer IPEX Connector Part No. 20278-101R-32 20278-111R-32 Frequency GHz 2.4 – 2.5 Impedance 50 Cable Manufacturer & PN Wonderful Double Cable Diameter mm 1.32 Cable Length 1. Antenna placement and Photo 1.1 Antennas placement 1.2 Antenna Assembly Photo Antenna Main Right-up) Cable φ 1.32 WLAN Antenna Antenna Aux (Left-up) Cable φ 1.32 WLAN Antenna Antenna Bluetooth (Left-Side) Cable φ 1.32 Bluetooth Antenna 3. Antenna Dimension 3.1 Antenna Aux 3.2 Antenna Main 3.3 Antenna Bluetooth 457 mm 44.9 mm 6.7 mm 297 mm 53.4 mm 6.7 mm 257 mm 46.6 mm 8.7 mm 4. Voltage Standing Wave Ratio (VSWR) 4.1 VSWR 2.4 GHz ~ 2.5 GHz Antenna Aux Antenna Main VSWR VSWR Center freq. @MHz Bandwidth @MHz 2.4GHz 2.45GHz 2.5GHz Center freq. @MHz Bandwidth @MHz 2.4GHz 2.45GHz 2.5GHz 2450 148 1.63 1.10 1.59 2450 80 2.04 1.18 2.20 VSWR 2.4 GHz ~ 2.5 GHz Antenna Bluetooth VSWR Center freq. @MHz Bandwidth @MHz 2.4GHz 2.45GHz 2.5GHz 2450 1.83 1.31 1.90 4.2 VSWR 5.15 GHz ~ 5.85 GHz Antenna Aux Antenna Main VSWR VSWR Center freq. @MHz Bandwidth @MHz 5.15GHz 5.25GHz 5.35GHz Center freq. @MHz Bandwidth @MHz 5.15GHz 5.25GHz 5.35GHz 1.91 2.14 1.10 1.91 2.04 1.53 5.47GHz 5.5597GHz 5.75GHz 5.47G Hz 5.5597GHz 5.75GHz 1.24 1.80 1.91 1.27 1.27 2.06 5.785GHz 5.85GHz 5. 785GHz 5.85GHz 2.63 2.06 2.41 2.29 5. Return Loss 5.1 Return Loss 2.4GHz ~ 2.5GHz Antenna Aux Antenna Main Return Loss Return Loss Center freq. @MHz Bandwidth @MHz 2.4GHz 2.45GHz 2.5GHz Center freq. @MHz Bandwidth @MHz 2.4GHz 2.45GHz 2.5GHz 2450 148 -12.36 -27.80 -12.65 2450 80 -9.37 -21.10 -8.56 Return Loss 2.4GHz ~ 2.5GHz Antenna Bluetooth Return Loss Center freq. @MHz Bandwidth @MHz 2.4GHz 2.45GHz 2.5GHz 2450 -10.81 -17.46 -10.15 5.2 Return Loss 5.15GHz ~ 5.85GHz Antenna Aux Antenna Main Return Loss Return Loss Center freq. @MHz Bandwidth @MHz 5.15GHz 5.25GHz 5.35GHz Center freq. @MHz Bandwidth @MHz 5.15GHz 5.25GHz 5.35GHz -10.10 -8.74 -24.60 -10.17 -9.33 -13.50 5.47GHz 5.5597GH z 5.75GHz 5.47GHz 5.5597GHz 5.75GHz -18.07 -10.20 -9.66 -17.92 -18.95 -9.17 5.785GHz 5.85GHz 5.785GHz 5.85GHz -6.95 -9.44 -7.35 -8.00 6. Smith Chart Antenna Aux Antenna Main Smith Chart Antenna Bluetooth 7. Antenna Radiation Pattern Testing Set Up The radiation pattern and antenna gain shall be tested in an anechoic chamber. The an echoic chamber must be lined with absorpti ve materials. The measurements shall be made at the connecto r end of the cable for antenna assembly. The antennas must be installed in a fully po pulated platform to include a complete disp lay and display plastics. 8. Radiation Pattern of XY Plane Testing Result 8.1 2.4 GHz Antenna Aux Antenna Main Horn Antenna Polarization Gain of XY Plane (Azimuth) Horn Antenna Polarization Gain of XY Plane (Azimuth) Peak -4.60 Peak -4.53 V Average -6.94 V Average -7.12 Peak -1.30 Peak -2.05 H Average -7.74 H Average -7.28 Peak -0.54 Peak -0.63 H + V Average -4.31 H + V Average -4.19 V Gain >= -4 Area 0% V Gain >= -4 Area 0% V Gain >= -5 Area 4.25% V Gain >= -5 Area 3.41% 0 90 270 180 0 90 270 180 2.4 GHz Antenna Bluetooth Horn Antenna Polarization Gain of XY Plane (Azimuth) Peak -3.42 V Average -6.85 Peak -4.18 H Average -6.55 Peak -1.47 H + V Average -3.69 V Gain >= -4 Area 5.91% V Gain >= -5 Area 22.73% 0 90 270 180 8.2 2.45 GHz Antenna Aux Antenna Main Horn Antenna Polarization Gain of XY Plane (Azimuth) Horn Antenna Polarization Gain of XY Plane (Azimuth) Peak -3.62 Peak -3.40 V Average -6.57 V Average -6.20 Peak -1.27 Peak -1.46 H Average -7.68 H Average -6.58 Peak -0.56 Peak -0.40 H + V Average -4.08 H + V Average -3.38 V Gain >= -4 Area 3.91% V Gain >= -4 Area 4.00% V Gain >= -5 Area 11.91% V Gain >= -5 Area 16.90% 0 90 270 180 0 90 270 180 2.45 GHz Antenna Bluetooth Horn Antenna Polarization Gain of XY Plane (Azimuth) Peak -3.75 V Average -6.04 Peak -2.92 H Average -6.44 Peak -1.34 H + V Average -3.22 V Gain >= -4 Area 0.92% V Gain >= -5 Area 16.90% 0 90 270 180 8.3 2.5 GHz Antenna Aux Antenna Main Horn Antenna Polarization Gain of XY Plane (Azimuth) Horn Antenna Polarization Gain of XY Plane (Azimuth) Peak -3.89 Peak -4.09 V Average -7.05 V Average -7.58 Peak -1.92 Peak -2.26 H Average -8.02 H Average -8.15 Peak -0.90 Peak -1.73 H + V Average -4.50 H + V Average -4.85 Gain >= -4 Area 0.25% Gain >= -4 Area 0% Gain >= -5 Area 5.5% Gain >= -5 Area 4.33% 0 270 90 180 0 270 90 180 2.5 GHz Antenna Bluetooth Horn Antenna Polarization Gain of XY Plane (Azimuth) Peak -4.45 V Average -6.45 Peak -3.39 H Average -6.90 Peak -1.33 H + V Average -3.66 V Gain >= -4 Area 0% V Gain >= -5 Area 5.25% 0 90 270 180 8.4 5.075 GHz Antenna Aux Ant…

Text truncated - open the document above for the full version.

Date/Time: 7/14/2006 9:04:04 AM Test Laboratory: Compliance Certification Services Inc. D2450V2 SN-728 Body DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:728 Communication System: CW2450; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.99 mho/m; ε r = 51.8; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.2 deg C;Liquid Temperature:24.0 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.12, 6.12, 6.12); z Sensor-Surface: 2.5mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn427; Calibrated: 9/22/2005 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 14.2 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 97.5 V/m; Power Drift = 0.033 dB Peak SAR (extrapolated) = 28.4 W/kg SAR(1 g) = 13.6 mW/g; SAR(10 g) = 6.21 mW/g Maximum value of SAR (measured) = 19.3 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 19.7 mW/g Page1 Page2 Date/Time: 7/16/2006 8:38:54 PM Test Laboratory: Compliance Certification Services Inc. D5GHz V2 SN 1004 DUT: Dipole 5GHz ; Type: D5GHz V2; Serial: 1004 Communication System: CW5GHz; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5200 MHz; σ = 5.32 mho/m; ε r = 48.4; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.3 deg C;Liquid Temperature:24.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(3.99, 3.99, 3.99); z Sensor-Surface: 2.5mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn427; Calibrated: 9/22/2005 z Phantom: SAM 34; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Pin=250mW,d=10mm f=5200MHz/Area Scan (8x8x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 21.1 mW/g Pin=250mW,d=10mm f=5200MHz/Zoom Scan (8x8x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 80.2 V/m; Power Drift = -0.012 dB Peak SAR (extrapolated) = 76.2 W/kg SAR(1 g) = 18.8 mW/g; SAR(10 g) = 5.18 mW/g Maximum value of SAR (measured) = 31.9 mW/g Pin=250mW,d=10mm f=5200MHz/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Maximum value of SAR (measured) = 34.1 mW/g Page1 Page2 Date/Time: 7/16/2006 9:08:11 PM Test Laboratory: Compliance Certification Services Inc. D5GHz V2 SN 1004 DUT: Dipole 5GHz ; Type: D5GHz V2; Serial: 1004 Communication System: CW5GHz; Frequency: 5800 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5800 MHz; σ = 6.18 mho/m; ε r = 47.2; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:25.3 deg C;Liquid Temperature:24.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(3.82, 3.82, 3.82); z Sensor-Surface: 2.5mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn427; Calibrated: 9/22/2005 z Phantom: SAM 34; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Pin=250mW,d=10mm f=5800MHz/Area Scan (8x8x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 18.8 mW/g Pin=250mW,d=10mm f=5800MHz/Zoom Scan (8x8x8)/Cube 0: Measurement …

Text truncated - open the document above for the full version.
