G3O1201526Bluetooth Cassette Adapter

WIRELESS TOUCHPAD KEYBOARD COMPACT USB RECEIVER barely protrudes from your computer 2-IN-1 TOUCHPAD lets you use touch gestures to navigate through Windows 8 and other applications NUMERIC KEYPAD is activated when you press the number lock button WIRELESS TOUCHPAD KEYBOARD 1201526 User’s Guide 2345678910 We hope you enjoy your Bluetooth Cassette Adapter from RadioShack. Please read this user’s guide before using your new cassette adapter. Package Contents • Bluetooth cassette adapter • Mini-USB charging cable • User’s guide Features • Loads like a standard cassette tape • Plays music from your Bluetooth- enabled device through your home or vehicle cassette player • Provides 6-8 hours of playback time Charge Your Cassette Adapter Using the supplied charging cable, connect your cassette adapter’s mini USB charging port to your PC or a USB charger (not included) to charge the cassette adapter. • The LED lights red when charging, and turns off when fully charged. • Bluetooth is automatically deactivated when your cassette adapter is in charging status. • Charge your cassette adapter when the LED flashes red every 8 seconds. Pairing Bluetooth Devices 1. Press and hold the ON/OFF button to turn on the cassette adapter. The LED flashes blue three times to indicate the power is on. When the LED flashes blue and red, your cassette adapter is searching for Bluetooth devices. 2. Activate your device’s Bluetooth function (refer to your device’s user’s guide). When your device locates RS1201526, select it. When paired, the LED flashes blue every 2 seconds. Complies with the European Union’s “Restriction of Hazardous Substances Directive,” which protects the environment by restricting specific hazardous materials and products. Bluetooth Cassette Adapter Pure white Magnetic head Mini USB Charging Port ON/OFF Button LED Indication Pure white Pantone 286 100.4mm 63.7mm USB cable for charging：82mm Printed in China 09A13 1201526 ©2013. RadioShack Corporation. All rights reserved. RadioShack is a registered trademark used by RadioShack Corporation. The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by RadioShack is under license. Other trademarks and trade names are those of their respective owners. Pure white Magnetic head Mini USB Charging Port ON/OFF Button LED Indication Pure white Pantone 286 100.4mm 63.7mm USB cable for charging ： 82mm n Note: • If you are prompted for a PIN, enter 0000. • The cassette adapter automatically turns off if no Bluetooth devices are found in 10 minutes. Changing Bluetooth Devices You cassette adapter automatically remembers the most recently paired device. To change a device, you must first disconnect the first device. To disconnect the paired device, press and hold the ON/OFF button for 2 seconds. The cassette adapter starts searching for another Bluetooth-enabled device. n Note: You also may need to disconnect the cassette adapter using your device’s Bluetooth controls. Use Your Cassette Adapter 1. Insert the cassette adapter into your home or vehicle cassette player. 2. Turn on the audio source of your paired device. 3. Turn on your cassette player. 4. Adjust the volume of your paired device and cassette player as desired. 5. Press and hold the ON/OFF button to turn off the cassette adapter. The LED lights red for 2 seconds to indicate the power is off. n Note: • Cassette player will mute playback when answering calls, and resume playback after call ends. • If you are using an auto-reverse cassette player, set it to play Side A. • Keep the cassette adapter’s magnetic head and the cassette player’s magnetic deck clean. Reset If the cassette adapter fails to operate properly, press and hold the ON/OFF button for 5 seconds in charging mode. The LED flashes blue and red three times, your cassette adapter is reset. Specifications Input Voltage .......................................................DC 5V Battery Capacity ................................................140mA Charging Current ................................100mA ± 20mA Battery Charge Time ..........................approx. 2 hours Operation Time ...........................................6 - 8 hours Working Distance .......................approx. 16 feet (5m) Bluetooth Protocol .......................................V4.0+EDR Frequency Response ..............................20Hz – 20kHz S/N Ratio ...............................................................47dB Distortion ................................1.2% (At 50mW output) Channel Balance .....................................................3dB Seperation (1kHz) ...............................L: 36dB, R: 36dB Length of the Charging Cable .................2.6 ft. (0.8m) Specifications are subject to change and improvement without notice. Actual product may vary from the images found in this document. FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult your local RadioShack store or an experienced radio/TV technician for help. Changes o…

Text truncated - open the document above for the full version.

Act Judy Zhang

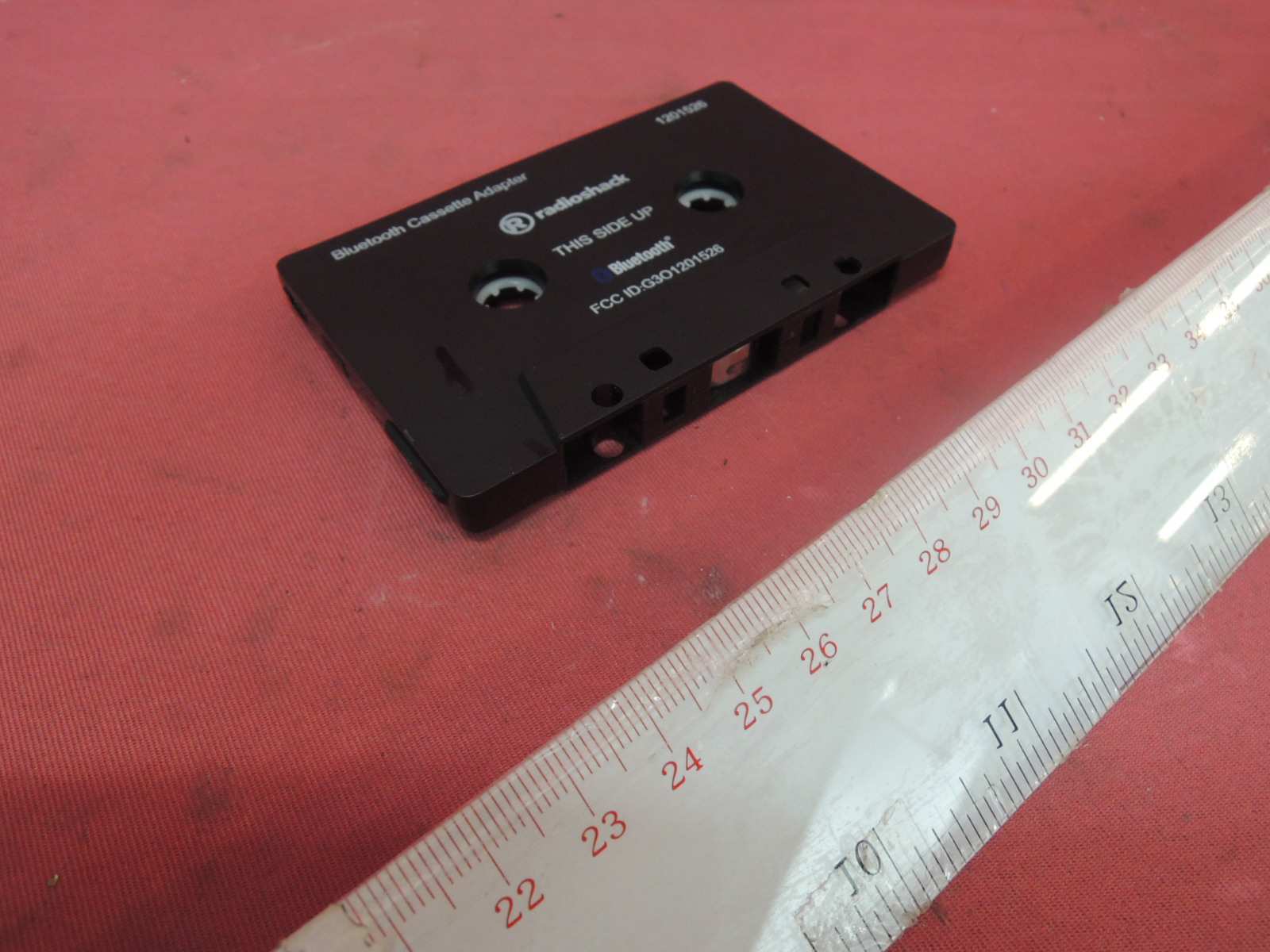

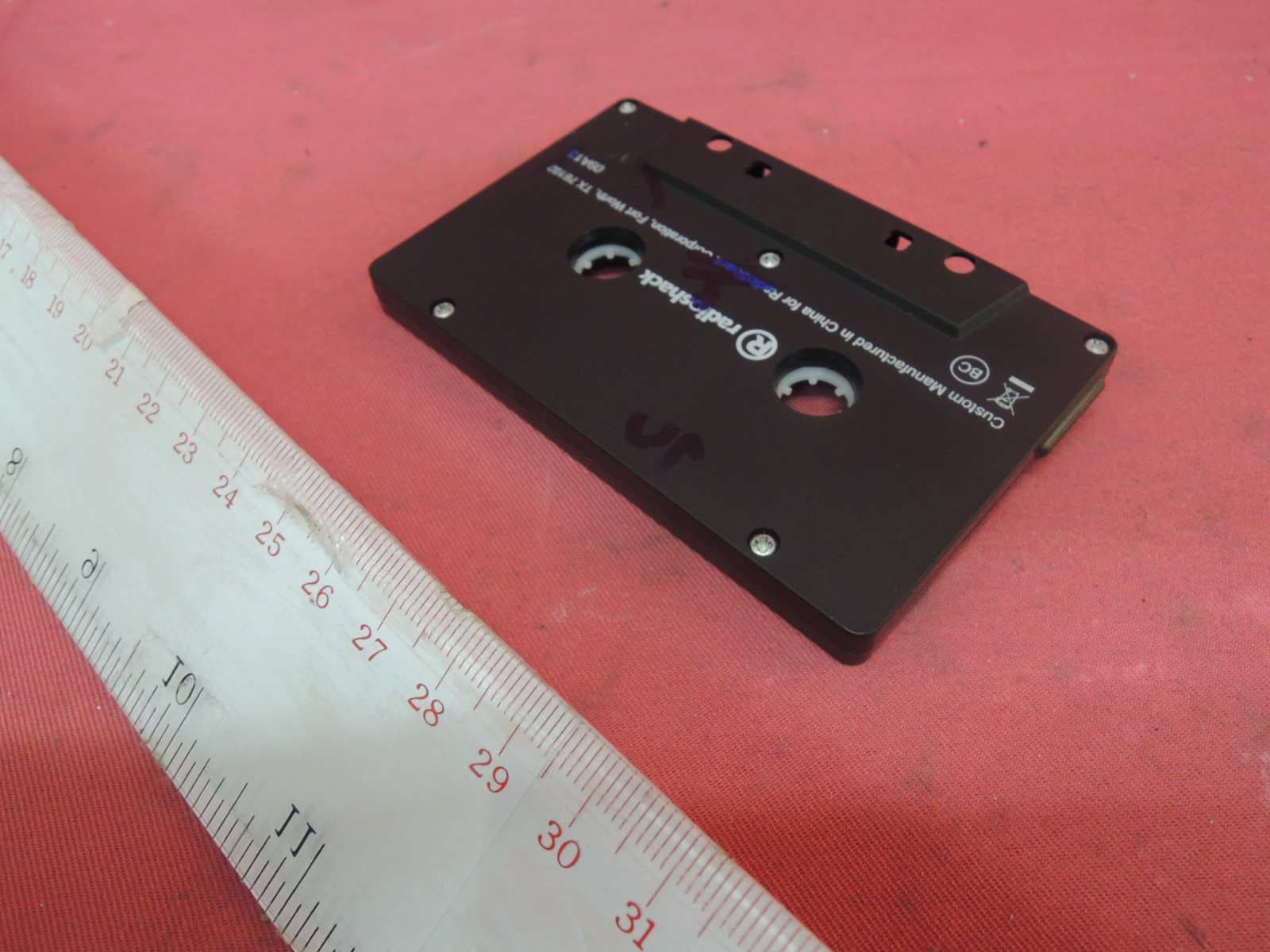

INTERTEK TESTING SERVICE Report No.: 13090108HKG-001 FCC ID: G3O1201526 Equipment Photographs Model : 1201526 (External) INTERTEK TESTING SERVICE Report No.: 13090108HKG-001 FCC ID: G3O1201526 Equipment Photographs Model : 1201526 (External)

Bluetooth Cassette Adapter Custom Manufactured in China for RadioShack Corporation, Fort Worth, TX 76102 THIS SIDE UP 1201526 09A13 FCC IDG3O1201526

INTERTEK TESTING SERVICE Report No.: 13090108HKG-001 FCC ID: G3O1201526 Equipment Photographs Model: 1201526 (Internal) INTERTEK TESTING SERVICE Report No.: 13090108HKG-001 FCC ID: G3O1201526 Equipment Photographs Model: 1201526 (Internal) INTERTEK TESTING SERVICE Report No.: 13090108HKG-001 FCC ID: G3O1201526 Equipment Photographs Model: 1201526 (Internal) INTERTEK TESTING SERVICE Report No.: 13090108HKG-001 FCC ID: G3O1201526 Equipment Photographs Model: 1201526 (Internal) INTERTEK TESTING SERVICE Report No.: 13090108HKG-001 FCC ID: G3O1201526 Equipment Photographs Model: 1201526 (Internal) INTERTEK TESTING SERVICE Report No.: 13090108HKG-001 FCC ID: G3O1201526 Equipment Photographs Model: 1201526 (Internal) INTERTEK TESTING SERVICE Report No.: 13090108HKG-001 FCC ID: G3O1201526 Equipment Photographs Model: 1201526 (Internal)

Analysis Report Report No.: 13090108HKG-001 The equipment under test (EUT) is a portable Bluetooth cassette player. The EUT equipped with a USB interface, magnetic head and contains a Bluetooth module. The Bluetooth module in the EUT complies with Bluetooth version 3.0 and 4.0 standards. It operates in 2.4GHz ISM frequency band (2400MHz – 2483.5MHz).The EUT is powered by 1 X 3.7V rechargeable battery (Li-Poly). The EUT can accept audio signal from Bluetooth enabled devices once paired. The audio signal is transferred and fed to typical cassette player via the magnetic head. The EUT is using non-adaptive frequency hopping for Bluetooth version 3.0 in the Bluetooth module as declared by the applicant. The USB interface of the EUT does not contain PC Connectivity which is for charging use only. Bluetooth Antenna Type: Internal, Integral (single antenna) Bluetooth version 3.0 2402MHz – 2480MHz, 79 channels, 1MHz spacing Bluetooth version 4.0: 2402MHz – 2480MHz, 39 channels, 2MHz spacing The Bluetooth module was tested in according with the following power output and in actual application the below limit shall not be exceeded. Operating Mode Nominal Radiated Field Strength Production Tolerance Antenna Gain Bluetooth v3.0 99.0dBμV/m at 3m ±2dB 0dBi Bluetooth v4.0 100.6dBμV/m at 3m ±2dB 0dBi According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 102.6BμV/m at 3m in frequency 2.402GHz at Bluetooth version 4.0 mode, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 5.459mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 5.459mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13090108HKG-001 i FCC ID: G3O1201526 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION ACE International Electronics Ltd. BRAND NAME: radioshack, MODEL: 1201526 BRAND NAME: OHAYO, MODEL: CA-4114 FCC ID: G3O1201526 Grantee: ACE International Electronics Ltd. Grantee Address: Unit 2308, 23th Floor, Riley House, 88 LeiMuk Road, Kwai Chung, N.T., Hong Kong. Contact Person: Judy Zhang Tel: (852) 2423 0223 Fax: (852) 2423 2818 e-mail: [email protected] Manufacturer: ACE International Electronics Ltd. Manufacturer Address: Unit 2308, 23th Floor, Riley House, 88 LeiMuk Road, Kwai Chung, N.T., Hong Kong. Brand Name: radioshack / OHAYO Model: 1201526 / CA-4114 Type of EUT: Transceiver Description of EUT: Bluetooth Cassette Adapter Serial Number: N/A FCC ID: G3O1201526 Date of Sample Submitted: September 04, 2013 Date of Test: September 30, 2013 Report No.: 13090108HKG-001 Report Date: October 04, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13090108HKG-001 ii FCC ID: G3O1201526 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT ACE International Electronics Ltd. BRAND NAME: radioshack, MODEL: 1201526 BRAND NAME: OHAYO, MODEL: CA-4114 FCC ID: G3O1201526 TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength and Bandwidth Requirement 15.249 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13090108HKG-001 iii FCC ID: G3O1201526 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Equipment Modification................................................................................. 2 2.5 Measurement Uncertainty ............................................................................. 2 2.6 Support Equipment List and Description........................................................ 2 3.0 Emission Results ........................................................................................... 3 3.1 Field Strength Calculation ............................................................................. 3 3.2 Radiated Emission Configuration Photograph ............................................... 4 3.3 Radiated Emission Data ............................................................................... 4 4.0 Equipment Photographs .............................................................................. 11 5.0 Product Labelling......................................................................................... 11 6.0 Technical Specifications.............................................................................. 11 7.0 Instruction Manual ....................................................................................... 11 8.0 Miscellaneous Information…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 13090108HKG-001 FCC ID: G3O1201526 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: 1201526 Radiated Emission 1201526 13090108HKG-001 INTERTEK TESTING SERVICE Report No: 13090108HKG-001 FCC ID: G3O1201526 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: 1201526 Radiated Emission 1201526 13090108HKG-001
