G3OCR50Wireless speaker and alarm clock with phone charger

CR50 wireless speaker and alarm clock with phone charger Sleep & Sound CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN DANGEROUS VOLTAGE: The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. ATTENTION: The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISES ET POUSSER JUSQU’AU FOND. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Compliance information: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: TO PREVENT FIRE OR SHOCK HAZARD,D O NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. SURGE PROTECTORS: It is recommended to use a surge protector for AC connection. Lightning and power surges ARE NOT covered under warranty for this product. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. SAFETY PRECAUTIONS a. Do not expose this unit or the AC/DC adaptor to dripping or splashing water. Keep liquid-filled objects such as vases, away from this unit and AC/DC adaptor. b. To ensure that this unit is completely disconnected, unplug it from the wall. c. Ensure that the AC/DC adaptor is easily accessible. d. Please note the information printed underneath the unit. e. Batteries should not be exposed to excessive heat such as direct sunshine, fire, etc. f. Do not impede the ventilation of this unit by covering the ventilation openings with items such as newspapers, table-cloths, curtains, etc. g. Keep open flames, such as lighted candles, away from this unit. h. Do not place this unit in closed bookcases, racks, or other spaces without proper ventilation. i. Use only the same or equivalent type batteries as there is a danger of explosion if the incorrect batteries are used or they are installed incorrectly. j. Dispose of batteries properly according to environmental regulations. inside the box CR50 Charge Up alarm clock radio, AC power adapter and user guide. adjusting the volume Press the VOL + or VOL – button repeatedly to increase or decrease the volume to a safe listening level. AC power source Insert the small end of the AC adaptor into the DC In Jack (located on the rear of the unit). Connect the other end to a wall outlet providing 100-240V AC, 50/60 Hz. The output of the provided AC/DC Adaptor is DC 5V 3A. note: Disconnect both ends of the power cord when not in use. Use only the supplied AC adaptor with the following specs: AC In - 100-240V AC, 50/60Hz / DC Out - 5V 3A AC outlet AC/DC adapter plug location of controls  POWER button  Volume +  SOURCE button  TUNE / SKIP – button  PAIR button  PLAY button  PRESET button  Volume – button  TUNE / SKIP + button  ALARM 1 switch  SLEEP button  TIME SET button  ALARM 2 switch  SNOOZE button       USB Charging port  DC In jack  Backup battery compartment  Line-In jack  USB Charging port
 Time display Line-In / AUX Bluetooth  Buzzer  NAP  Sleep Timer  FM Radio  Radio PRESET AM/PM Time  ALARM 2  AM/PM (ALARM 2)  ALARM 2 Set Time  Dimmer button
Day of the week  ALARM 1 Set Time  AM/PM (ALARM 1)  ALARM 1        zzzzzz PM AM AM PM FM PM AM M T W Th F Sat Sun PRESET SLEEP NAP LED Display indicators backup battery installation Two (2) ‘AAA’ size batteries can also be used to power the unit, as well as backup for the clock, alarm time, preset memories if the AC/DC adapter is disconnected or there is a power failure.  Open the battery door by pushing in on the tabs, then removing the door.  Insert two (2) ‘AAA’ batteries following the correct polarity indicated in the battery compartment.  Replace the battery door back on the compartment. notes: The batteries are used to backup the clock and alarm times when the AC adaptor is disconnected or there is a power …

Text truncated - open the document above for the full version.

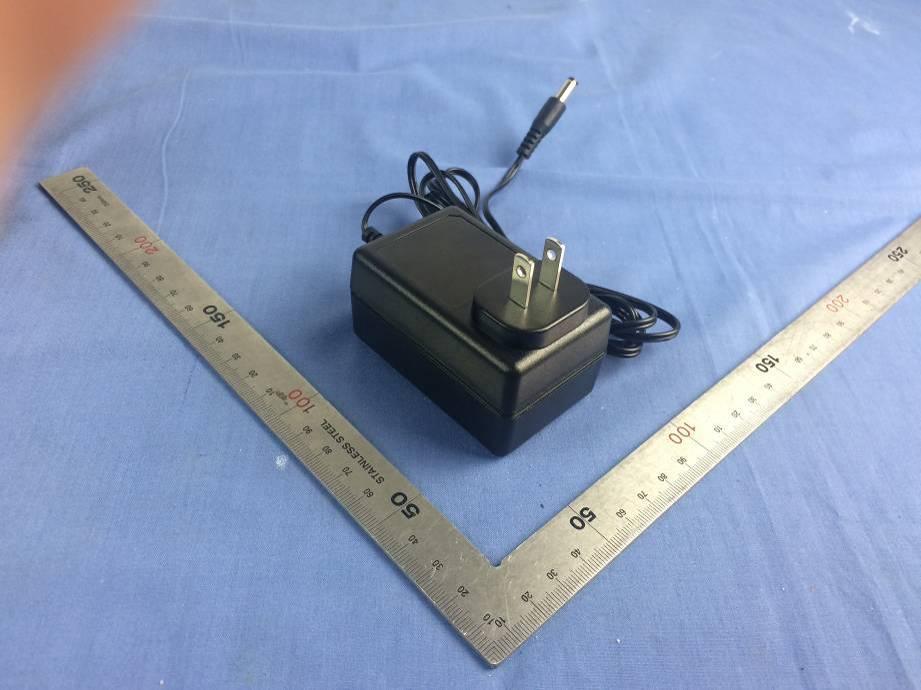

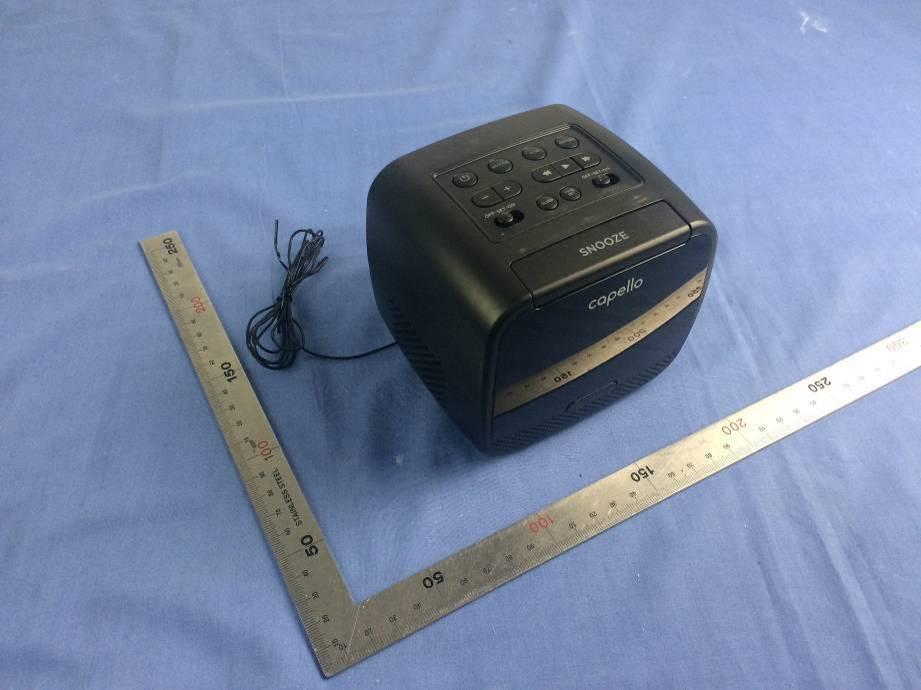

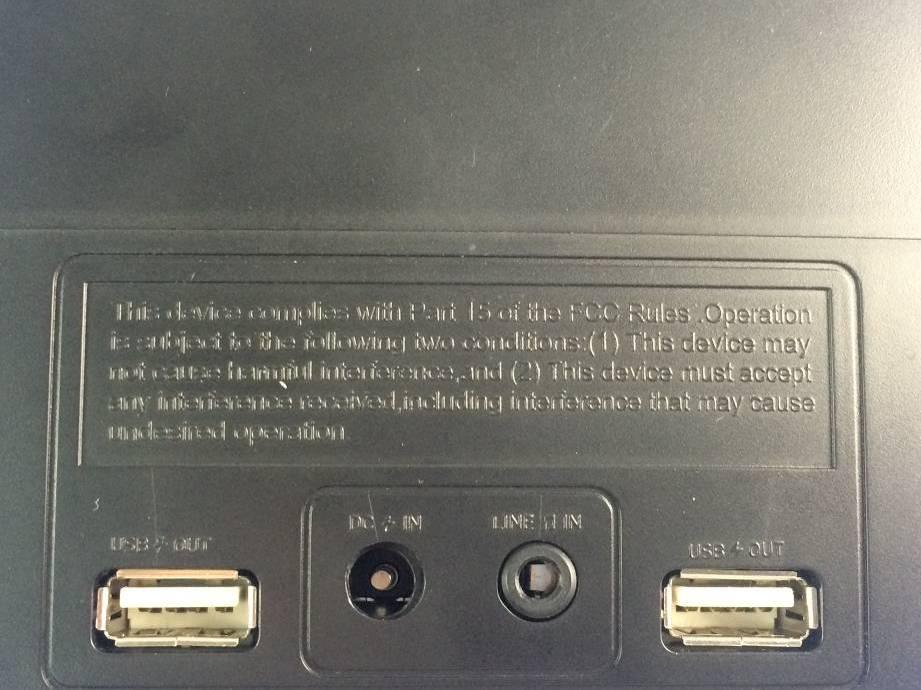

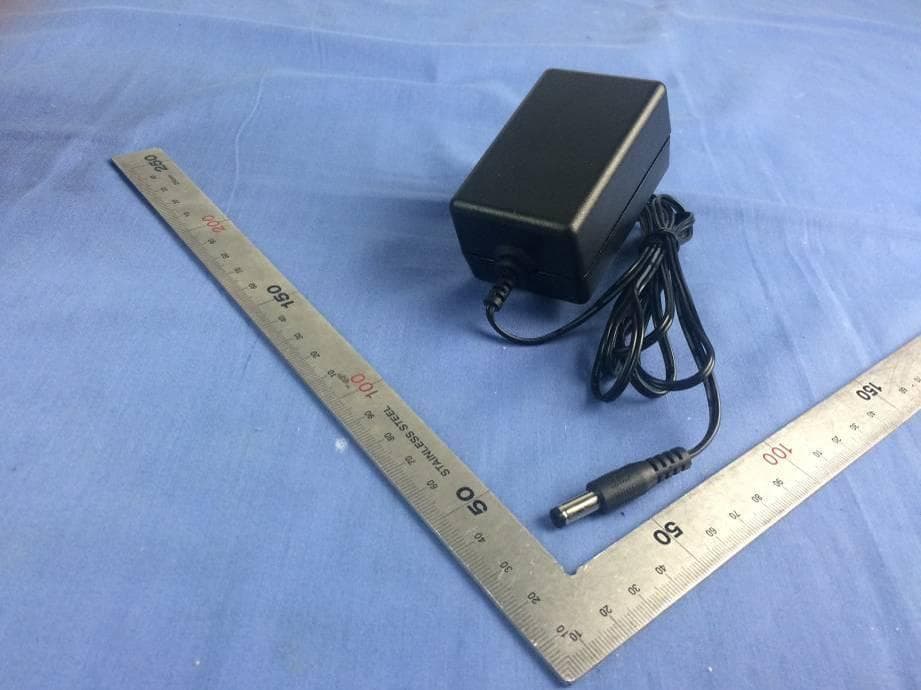

Report No: C150310Z01 Page 1 / 4 External Photos of EUT Report No: C150310Z01 Page 2 / 4 Report No: C150310Z01 Page 3 / 4 Report No: C150310Z01 Page 4 / 4

Report No: C150310Z01 Page 1 / 7 Internal Photos of EUT Report No: C150310Z01 Page 2 / 7 Report No: C150310Z01 Page 3 / 7 Report No: C150310Z01 Page 4 / 7 Antenna RF Module Report No: C150310Z01 Page 5 / 7 Report No: C150310Z01 Page 6 / 7 Report No: C150310Z01 Page 7 / 7

FCC RF Exposure FCC ID: G3OCR50 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Portable Device Refer Standard: KDB 447498 D01 General RF Exposure Guidance v05r02 FCC Part 2 §2.1093 Evaluation method According to KDB447498 D01 General RF Exposure Guidance v05r01Section 4.3.1 Standalone SAR test exclusion considerations:“ Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√ f (GHz)] ≤ 3.0 for 1-g SAR and≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. Conducted Power Results Bluetooth Mode Channel Frequency(MHz) PeakConducted Output Power (dBm) GFSK 00 2402 -4.81 39 2441 -5.01 78 2480 -6.39 8DPSK 00 2402 -3.52 39 2441 -3.47 78 2480 -4.79 π/4DQPSK 00 2402 -5.43 39 2441 -5.13 78 2480 -6.56 Manufacturing tolerance Bluetooth GFSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) -4.0 -5.0 -6.0 Tolerance ±(dB) 1.0 1.0 1.0 8DPSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) -3.0 -3.0 -4.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) -5.0 -5.0 -6.0 Tolerance ±(dB) 1.0 1.0 1.0 Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT* 2.450 0 -2.00 0.631 0.2<3.0 Yes Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v05r02. .......................End of Report.........................

Report No.: C150310Z01-RP1 FCC ID: G3OCR50 Page 1 / 61 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless speaker and alarm clock with phone charger Model: RT-4503 / CR50 Brand: OHAYO / Capello Test Report Number: C150310Z01-RP1 Prepared for ACE INTERNATIONAL ELECTRONICS LTD. Unit 2308, 23th FLOOR RILEY HOUSE 88 LEI MUK ROAD, KWAI CHUNG, N.T HONG KONG Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. No.10-1, Mingkeda Logistics Park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: March 30, 2015 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST, CNAS or any government agencies. The test result of this report relate only to the tested sample identified in this report. CNAS L4818 Report No.: C150310Z01-RP1 FCC ID: G3OCR50 Page 2 of 61 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 March 30, 2015 Initial Issue ALL Sinphy Xie Report No.: C150310Z01-RP1 FCC ID: G3OCR50 Page 3 of 61 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ..................................................................................... 4 2. EUT DESCRIPTION .......................................................................................................... 5 3. TEST METHODOLOGY .................................................................................................... 6 3.1 DESCRIPTION OF TEST MODES ................................................................................. 6 4. FACILITIES AND ACCREDITATIONS ............................................................................. 7 4.1 FACILITIES .................................................................................................................... 7 4.2 ACCREDITATIONS ....................................................................................................... 7 4.3 MEASUREMENT UNCERTAINTY ................................................................................. 7 5. SETUP OF EQUIPMENT UNDER TEST .......................................................................... 8 5.1 SETUP CONFIGURATION OF EUT .............................................................................. 8 5.2 SUPPORT EQUIPMENT .............................................................................................. 8 6. FCC PART 15.247 REQUIREMENTS .............................................................................. 9 6.1 20DB BANDWIDTH ....................................................................................................... 9 6.2 ANTENNA GAIN .......................................................................................................... 14 6.3 PEAK POWER ............................................................................................................. 15 6.4 PEAK POWER SPECTRAL DENSITY ......................................................................... 17 6.5 BAND EDGES MEASUREMENT ................................................................................. 18 6.6 FREQUENCY SEPARATION ...................................................................................... 28 6.7 NUMBER OF HOPPING FREQUENCY ....................................................................... 31 6.8 TIME OF OCCUPANCY (DWELL TIME) ...................................................................... 33 6.9 SPURIOUS EMISSIONS ............................................................................................. 40 6.10 POWERLINE CONDUCTED EMISSIONS ................................................................. 58 Report No.: C150310Z01-RP1 FCC ID: G3OCR50 Page 4 of 61 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Product: Wireless speaker and alarm clock with phone charger Model: RT-4503 / CR50 Brand: OHAYO / Capello Tested: March 10~30, 2015 Applicant: ACE INTERNATIONAL ELECTRONICS LTD. Unit 2308, 23th FLOOR RILEY HOUSE 88 LEI MUK ROAD, KWAI CHUNG, N.T HONG KONG Manufacturer: ACE INTERNATIONAL ELECTRONICS LTD. Unit 2308, 23th FLOOR RILEY HOUSE 88 LEI MUK ROAD, KWAI CHUNG, N.T HONG KONG Factory: 1. GuangZhou Lei Deng Electronics Ltd Un Building B, No.144 Li Jiang Road Shi Tou town, PanYu Distict, GuangZhou City, China. 2. GuangZhou GangJu Electronics Ltd. No.144, Lijiang Road, Shi Lou Town, PanYu Zone, GuangZhou City, GuangDong China APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4:2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Sunday Hu Supervisor of EMC Dept. Compliance Certification Service Inc. Ruby Zhang Supervisor of Report Dept. Compliance Certification Service Inc. Report No.: C150310Z01-RP1 FCC ID: G3OCR50 Page 5 of 61 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2. EUT DESCRIPTI…

Text truncated - open the document above for the full version.

Report No.: C150310Z01-RP1 FCC ID : G3OCR50 Page 1 / 2 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST Report No.: C150310Z01-RP1 FCC ID : G3OCR50 Page 2 / 2 CONDUCTED EMISSION TEST
