G3OG-50G-GRIP

PORTABLE WIRELESS SPEAKER G-GRIPG-GRIP GRP Glass-Reinforced Polymer Chassis Compact & Powerful Bass Boom Radiator Rechargeable Battery 8 Hours Play Time PACKAGE CONTENTS: • G-GRIP • AC Power Adapter • Micro USB Charging Cable • Wrist Strap • 3.5mm Line In Audio Cable • User Guide Welcome to G-PROJECT Thanks for purchasing a G-GRIP and joining the G-Project. With just the right combination of performance, durability, features, and style at the right price, our goal is to provide rugged speakers and accessories that t your modern lifestyle. We hope you agree. For more info, please visit our website at www.enterG-project.com ™ CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. NOTE: Any unapproved changes or modications will void the warranty. IMPORTANT SAFETY NOTIFICATIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN DANGEROUS VOLTAGE: The lightning ash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons. ATTENTION: The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. PORTABLE WIRELESS SPEAKER G-GRIPG-GRIP 1. Read and keep these instructions 2. Follow all instructions and heed all warnings 3. Do not use G-GRIP near water or expose it to dripping or splashing 4. Clean only with a dry cloth 5. Do not block any ventilation openings 6. Do not place near any heat sources such as radiators, heat registers, stoves, or other devices (including ampliers) that produce heat 7. Only use attachments or accessories approved by G-Project 8. Refer all servicing to qualied service personnel. Servicing may be required when: a. G-GRIP has been damaged in any way or does not operate normally b. the power supply cord or plug have been damaged c. G-GRIP has been exposed to rain, moisture, or other liquids d. objects have fallen into G-GRIP e. G-GRIP has been dropped WARNING: • Never remove the casing of G-GRIP • Never lubricate any part of G-GRIP • Never place G-GRIP on other electrical equipment IMPORTANT SAFETY INSTRUCTIONS NOTICE FOR THE USA AND CANADA This device complies with Part 15 of the FCC Rules and RSS standard of Industry Canada. Operation is subject to the following two conditions: 1. this device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesired operation. This speaker has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules and ICES-003 of Industry Canada. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This speaker generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this speaker does cause harmful interference to radio or television reception, which can be determined by turning the speaker off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Relocate the receiving antenna • Increase the separation between the speaker and the receiver • Connect the speaker into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio technician for help PORTABLE WIRELESS SPEAKER G-GRIPG-GRIP NOTICE: approved by G-Project may void the user’s authority to operate the equipment. SPECIFICATIONS Power Adapter Input ...........................................................................100 - 240V AC, 50Hz/60Hz Power Adapter Output ................................................................ 5V DC, 1300mA, Center positive Bluetooth v2.1 compliant ......................................supports Enhanced Data Rate (EDR) and A2DP Battery........................................................................... 3.7V, 800mAh, Rechargeable Lithium-ion Power Output ..................................................................................................................... 2W x 2 Output Level ............................................................................................................ 85dB at 0.5m Frequency Response ............................................................................................... 60Hz - 20kHz Speakers ........................................................1.5” x 2 acoustic drivers with Neodymium magnets Radiator................................................................................................ Rear ring passive radiator Battery Playback Time.............................................................................................. Up to 8 hours Battery Recharging Time............................................................................................... ~3.5 hours CAUTION PORTABLE WIRELESS SPEAKER G-GRIPG-GRIP LOCATION OF CONTROLS 1. Power / Charging LED 2. Charging LED / Low battery indicator LED 3. Bluetooth LED 4. 3.5mm AUX Input 5. Reset Button 6. 5V DC Power Input 7. Mode / Play Button 8. Power Button 9. Pair Button 10. Volume + Button 11. Volume – Button 7 10 8 11 9 4 6 R E S E T 5 132 INDICATORS BLUETOOTH LED Once Bluetooth has paired successfully, the Bluetooth LED will turn solid blue. If G-GRIP has not paired with another device after 30 minutes, it will stop trying to pair and turn off. POWER / CHARGING LED The red and white LEDs indicate the following statuses: Power Adapter Battery Power White LED Red…

Text truncated - open the document above for the full version.

ACE INTERNATIONAL ELEC- TRONICS LTD. Unit 2308,23th FLOOR RILEY HOUSE 88 LEI MUK ROAD, KWAI CHUNG,N.T HONG KONG FCC Authorization Letter Number: CF304 Version: V01 Date: 01-02-2010 We, (the approval holder) Company name ACE INTERNATIONAL ELECTRONICS LTD. Addresss Unit 2308,23th FLOOR RILEY HOUSE 88 LEI MUK ROAD, KWAI CHUNG,N.T HONG KONG City HONG KONG Country China declare that the following representative (agent): Name (person) Aven zhou Function Supervisor Company name Compliance Certification Services (Shenzhen) Inc. Addresss No10-1, Mingkeda Logistics Park, No.18 Huanguan South RD. Guan lan Town, Baoan District, Shenzhen China City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description G-GRIP PORTABLE WIRELESS SPEAKER Type or Model(s) IP-4919,G-50 Tradename or Brand(s) MES, We also authorize Teleconformity, Mr. M. Koop, (address: Rietven 31, 7534NH Enschede, Netherlands) to process this application. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Oxnard，United States July 20, 2012 Judy.Zhang Clerk

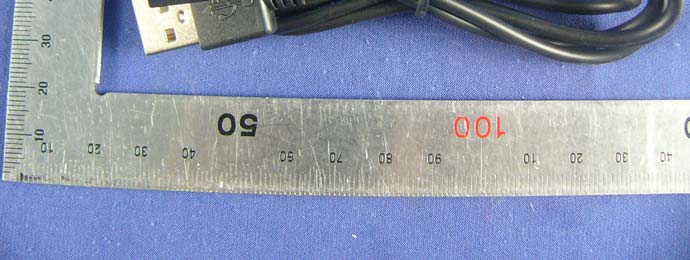

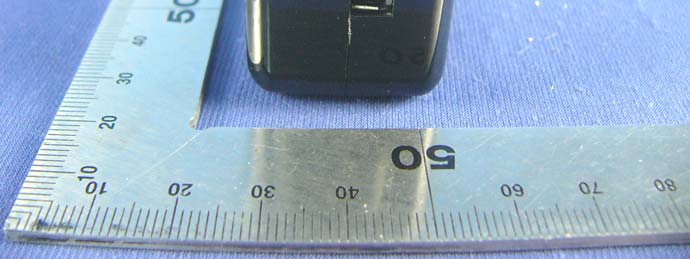

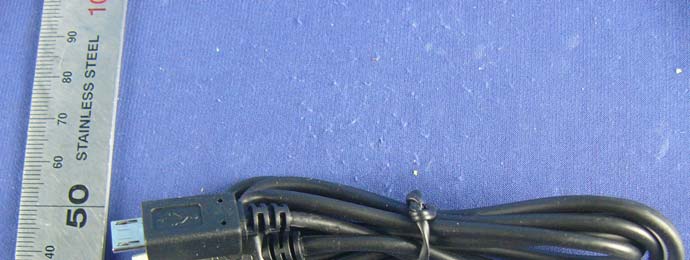

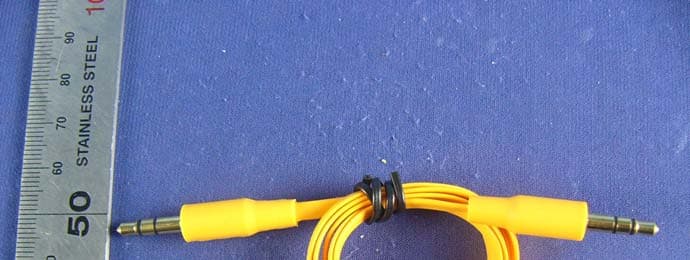

Report No: C120718Z03-RP1 Page 1 / 7 External Photos of EUT Report No: C120718Z03-RP1 Page 2 / 7 Report No: C120718Z03-RP1 Page 3 / 7 Report No: C120718Z03-RP1 Page 4 / 7 Report No: C120718Z03-RP1 Page 5 / 7 Report No: C120718Z03-RP1 Page 6 / 7 Report No: C120718Z03-RP1 Page 7 / 7

G3OG-50

Report No: C120718Z03-RP1 Page 1 / 7 Internal Photos of EUT Report No: C120718Z03-RP1 Page 2 / 7 Report No: C120718Z03-RP1 Page 3 / 7 Report No: C120718Z03-RP1 Page 4 / 7 Report No: C120718Z03-RP1 Page 5 / 7 Report No: C120718Z03-RP1 Page 6 / 7 Report No: C120718Z03-RP1 Page 7 / 7

FCC MPE Calculation FCC ID: G3OG-50 Frequency: 2402-2480 MHz (79 channels) Modulation: FHSS (GFSK,π/4-DQPSK, 8DPSK) Mid-Channel: 2.441 GHz (channel 39) Mid-Channel Peak Power, Conducted: 0.65 dBm == 1.16 mW Antenna Gain: G = 0 dBi Calculation: Limit = 60/2.441 = 24.58 mW Pradiated, max = Pconducted, dBm + GdBi = 0.65 dBm + 0 dBi == 0.65 dBm = 1.16 mW Conclusion: The emitted power appears to be (far) below the required limit, so PASS.

Report No: C120718Z03-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test result of this report relate only to the tested sample identified in this report. FCC ID: G3OG-50 Page 1 of 60 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. FCC 47 CFR PART 15 SUBPART C TEST REPORT For G-GRIP PORTABLE WIRELESS SPEAKER Model: IP-4919,G-50 Brand: IMES, Test Report Number: C120718Z03-RP Prepared for ACE INTERNATIONAL ELECTRONICS LTD. Unit 2308,23th FLOOR RILEY HOUSE 88 LEI MUK ROAD, KWAI CHUNG,N.T HONG KONG Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. No.10-1, Mingkeda Logistics Park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen, China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: July 27,2012 Report No: C120718Z03-RP1 FCC ID: G3OG-50 Page 2 of 60 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue No. Revisions Effect Page Revised By 00 C120718Z03-RP1 Initial Issue ALL Anna Liu Report No: C120718Z03-RP1 FCC ID: G3OG-50 Page 3 of 60 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .....................................................................................4 2. EUT DESCRIPTION..........................................................................................................5 3. TEST METHODOLOGY....................................................................................................6 3.1 DESCRIPTION OF TEST MODES ............................................................................................ 6 4. FACILITIES AND ACCREDITATIONS .............................................................................7 4.1 FACILITIES................................................................................................................................. 7 4.2 ACCREDITATIONS ................................................................................................................... 7 4.3 MEASUREMENT UNCERTAINTY .......................................................................................... 7 5. SETUP OF EQUIPMENT UNDER TEST ..........................................................................8 5.1 SETUP CONFIGURATION OF EUT ......................................................................................... 8 5.2 SUPPORT EQUIPMENT ..........................................................................................................8 6. FCC PART 15.247 REQUIREMENTS ..............................................................................9 6.1 20DB BANDWIDTH................................................................................................................... 9 6.2 PEAK POWER .......................................................................................................................... 14 6.3 PEAK POWER SPECTRAL DENSITY.................................................................................... 16 6.4 BAND EDGES MEASUREMENT ........................................................................................... 17 6.5 FREQUENCY SEPARATION .................................................................................................. 27 6.6 NUMBER OF HOPPING FREQUENCY.................................................................................. 30 6.7 TIME OF OCCUPANCY (DWELL TIME) .............................................................................. 33 6.8 SPURIOUS EMISSIONS........................................................................................................... 40 6.9 POWERLINE CONDUCTED EMISSIONS ............................................................................. 58 Report No: C120718Z03-RP1 FCC ID: G3OG-50 Page 4 of 60 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Product: G-GRIP PORTABLE WIRELESS SPEAKER Model: IP-4919,G-50 Brand: IMES, Tested: July 18~26,2012 Applicant ACE INTERNATIONAL ELECTRONICS LTD. Unit 2308,23th FLOOR RILEY HOUSE 88 LEI MUK ROAD, KWAI CHUNG,N.T HONG KONG Manufacturer 1#: GuangZhou Lei Deng Manufacture Ltd 35 Number Li Jiang Road Shi Tou town ,PanYu District,GuangZhou City,China Manufacturer 2#: GuangZhou GangJu Electronics Ltd. Mei Hua Gang Industrial District ,Shi Lian Road,ShiLou Town,Pan Yu Guangzhou, China. APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4:2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Tom Gan Supervisor of EMC Dept. Compliance Certification Service Inc. Aven Zhou Supervisor of Report Dept. Compliance Certification Service Inc. Report No: C120718Z03-RP1 FCC ID: G3OG-50 Page 5 of 60 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2. EUT DESCRIPTION Product G-GRIP PORTABLE WIRELESS SPEAKER Model Number IP-4919,G…

Text truncated - open the document above for the full version.

Report No.: C120718Z03-RP1 FCC ID: G3OG-50 Page 1 / 2 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: SZ111208B03-RP FCC ID: G3OG-50 Page 2 / 2 . RADIATED EMISSION TEST Below 1GHz Above 1GHz
