GKR-TP00064AUCTablet Computer

UserGuide ThinkPad10 Note:Beforeusingthisinformationandtheproductitsupports,besuretoreadandunderstandthefollowing: •Safety,Warranty,andSetupGuide •RegulatoryNotice •“Importantsafetyandhandlinginformation”onpageiii •AppendixD“Notices”onpage87 ThelatestSafety,Warranty,andSetupGuideandtheRegulatoryNoticeareavailableontheLenovoSupport Websiteathttp://www.lenovo.com/UserManuals. FirstEdition(May2014) ©CopyrightLenovo2014. LIMITEDANDRESTRICTEDRIGHTSNOTICE:IfdataorsoftwareisdeliveredpursuantaGeneralServicesAdministration “GSA”contract,use,reproduction,ordisclosureissubjecttorestrictionssetforthinContractNo.GS-35F-05925. Contents Readthisfirst.............iii Importantsafetyandhandlinginformation.....iii Chapter1.Productoverview......1 Tabletlayout................1 Frontviewandsideview..........1 Rearview................3 Accessories.................4 Features..................5 Specifications................6 Operatingenvironment............6 Lenovoprograms..............7 Chapter2.Usingyourtablet......9 Initialsetupinstructions............9 Usingthemulti-touchscreen..........9 Powermanagement............12 Chargingthebattery..........13 Extendingthebatterylifebetweencharges..13 Checkingthebatterystatus........14 UsingtheTabletDigitizerPen.........14 UsingtheOn-ScreenKeyboardorthetouch keyboardandhandwritingpanel........15 Changingthestartupbehaviortoopeneitherthe desktoportheStartscreen..........16 Downloadinggamesandapplications.....16 Usingthefingerprintreader..........16 UsingtheThinkPad10QuickshotCover....18 Usingthecameras.............20 Usingthemicro-SD-cardreader........21 Usingasmartcard.............23 UsingHDMIdevices............25 Usingsynchronizationsolutions........25 UsingtheGPSsatellitereceiver........25 Chapter3.Wirelessnetworksand devices................27 InstallingandremovingthemicroSIMcard...27 Determiningwhichmobilenetworkyouareusing.29 ConnectingtoaWi-Finetwork........29 Connectingtoamobilenetwork........30 SharingyourInternetconnection.......31 UsingBluetoothdevices...........31 UsingtheNFCconnection..........32 Chapter4.Youandyourtablet....33 Comfortandaccessibility..........33 Usingyourtabletmorecomfortably....33 Accessibilityinformation.........33 Gettingupdates..............36 Travelingwithyourtablet...........36 Traveltips...............36 Travelaccessories...........36 Careandmaintenance...........37 Chapter5.ThinkPad10options....39 ThinkPad10UltrabookKeyboard.......39 UsingtheThinkPad10UltrabookKeyboard...40 ThinkPad10TouchCase...........43 UsingtheThinkPad10TouchCase......44 ThinkPadTabletDock............46 UsingtheThinkPadTabletDock........48 Chapter6.Security..........51 Usingpasswords..............51 Passwordsandsleepmode........51 Supervisorpassword..........51 Usingthesecuritychip...........52 Usingfirewalls...............53 Protectingdataagainstviruses........53 Chapter7.Advancedconfiguration..55 Installingdevicedrivers...........55 ThinkPadTabletSetup...........55 Mainmenu..............56 Configmenu..............56 Securitymenu.............57 Startupmenu.............59 Restartmenu.............60 UpdatingyoursystemUEFIBIOS.....61 Usingsystemmanagement..........61 Systemmanagement..........61 Chapter8.Troubleshooting problems...............63 Diagnosingproblems............63 Troubleshooting..............63 Recoveringfromaseveresoftwareproblem...64 Errormessages..............65 Errorswithoutmessages...........65 Chapter9.Recoveryinformation...67 Refreshingyourtablet............67 ©CopyrightLenovo2014 i Resettingyourtablettothefactorydefault settings.................67 Usingtheadvancedstartupoptions......68 RecoveringyouroperatingsystemifWindows8.1 failstostart................68 Creatingandusingrecoverymedia......68 Chapter10.Gettingsupport.....71 Lenovotechnicalsupport..........71 Lenovouserforums.............72 FindingThinkPadoptions..........73 Purchasingadditionalservices........73 AppendixA.Regulatory information..............75 Wirelessrelatedinformation.........75 LocatingtheUltraConnect™wireless antennas...............76 Locatingwirelessregulatorynotices....76 Exportclassificationnotice..........77 Electronicemissionnotices..........77 FederalCommunicationsCommission DeclarationofConformity........77 IndustryCanadaClassBemissioncompliance statement...............77 EuropeanUnion-Compliancetothe ElectromagneticCompatibilityDirective...77 GermanClassBcompliancestatement...78 KoreaClassBcompliancestatement....78 JapaneseVCCIClassBstatement.....79 Japancompliancestatementforproducts whichconnecttothepowermainswithrated currentlessthanorequalto20Aperphase.79 Lenovoproductserviceinformationfor Taiwan................79 Eurasiancompliancemark..........79 Brazilregulatorynotice...........79 Mexicoregulatorynotice...........79 AppendixB.WEEEandrecycling information..............81 ImportantWEEEinformation.........81 RecyclinginformationforJapan........81 RecyclinginformationforBrazil........82 BatteryrecyclinginformationforTaiwan.....82 BatteryrecyclinginformationfortheUnitedStates andCanada................83 BatteryrecyclinginformationfortheEuropean Union..................83 ChinarecyclinginformationforWasteElectrical andElectronicEquipment(WEEE).......83 AppendixC.RestrictionofHazardous SubstancesDirective(RoHS).....85 EuropeanUnionRoHS...........85 ChinaRoHS................85 TurkishRoHS...............85 UkraineRoHS...............86 IndiaRoHS................86 AppendixD.Notices..........87 Trademarks................88 iiUserGuide Readthisfirst Besuretofollowtheimportanttipsgivenheretogetthemostuseandenjoymentoutofthetablet.Failureto dosomightleadtodiscomfortorinjury,orcausethetablettofail. Importantsafetyandhandlinginformation Toavoidpersonalinjury,propertydamage,oraccidentaldamagetoyourThinkPad ® 10(hereaftercalled thetablet),readalloftheinformationinthissectionbeforeusingit. Fordetailedoperatinginstructions,refertotheThinkPad10UserGuide(thispublication).Youcan accesstheThinkPad10UserGuidebyusingoneofthefollowingmethods: •Gotohttp://www.lenovo.com/UserManualan…

Text truncated - open the document above for the full version.

Compal Electronics Inc No.581, Ruiguang Rd., Neihu District, Taipei, 11492 Taiwan Tel: 886-2-8797-8588 Date: May 22, 2014 Subject: 2G/3G/LTE Declaration Compliance Letter FCC ID: GKB-TP00064AUC; IC ID: 2533B-TP00064AUC To whom it may concern, We, the undersigned, hereby certify that we responsible to comply with the FCC & IC relevant provisions. The FCC ID: GKB-TP00064AUC, model: TP00064A; IC ID: 2533B-TP00064AUC, model: TP00064AUC. 1. This application of the device is only apply and limited in 2G/3G/LTE host device approval. In the future if it has other RF function, we will apply the related certifications. 2. This device is without the WLAN/BT & NFC function. If you have any question regarding this authorization, please do not hesitate to contact us. Sincerely, ________________________________________________________ Name / Title: Miller Lee / Manager Company: Compliance Certification Services Inc E-mail: [email protected]

Compal Electronics Inc No.581, Ruiguang Rd., Neihu District, Taipei, 11492 Taiwan Tel: 886-2-8797-8588 Date: May 23, 2014 Subject: Attestation Letter (FCC ID: GKR-TP00064AUC) (IC ID: 2533B-TP00064AUC) To whom it may concern, The device incorporates an approved module (FCC ID: RYQ-NF2)(IC ID:6719C-NF2), which is unmodified and therefore the original test results contained the following test reports, Test Report No.: FG352141A (for GSM850/1900/WCDMA V/IV/II) and Test Report No.: FG352141B (for LTE Band 5/2/4/7/13/17) are representative for the TP00064AUC device and accurately represent test results under the new conditions. The device meets all EMC/RF requirements contained in Part 22H/24E/27. The test reports supplied are compliant with RSS-132/RSS-133/RSS-139. If you have any question regarding this authorization, please do not hesitate to contact us. Sincerely, ________________________________________________________ Name / Title: Miller Lee / Manager Company: Compliance Certification Services Inc E-mail: [email protected]

August 27, 2014

Compal Electronics Inc Date ： May 11, 2014 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: GKR-TP00064AUC Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Compal Electronics Inc hereby requests permanent confidential treatment of information accompanying this application as outlined below: Antenna Specification Tune up procedure Block Diagram Circuit Diagram Operational Description Compal Electronics Inc also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of (up to 180 days): Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Miller.Lee Telephone Number: +886-2-2299-9720 ext.500 Email: [email protected]

Compal Electronics Inc No.581, Ruiguang Rd., Neihu District, Taipei, 11492 Taiwan Tel: 886-2-8797-8588 Date: May 11, 2014 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: GKR-TP00064AUC To Whom It May Concern: We, Compal Electronics Inc, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, Contact Person: Miller.Lee Company: Compliance Certification Services Inc E-mail: [email protected]

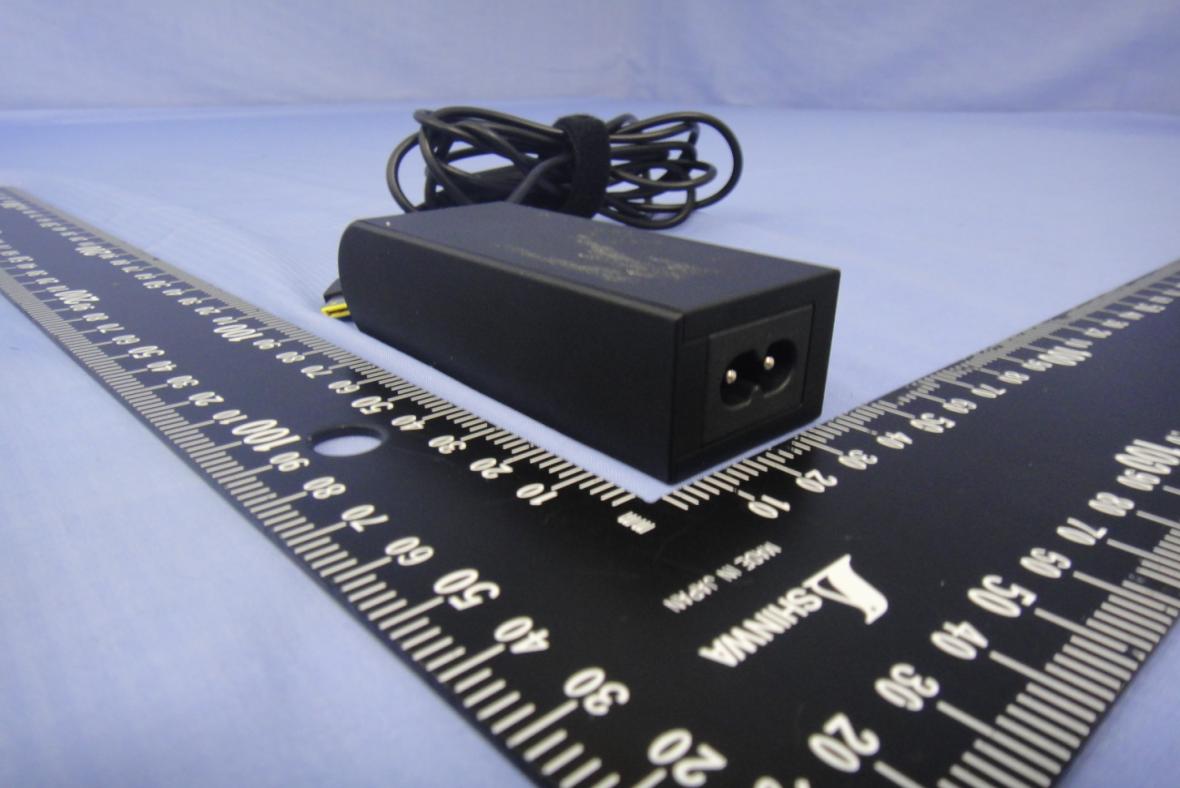

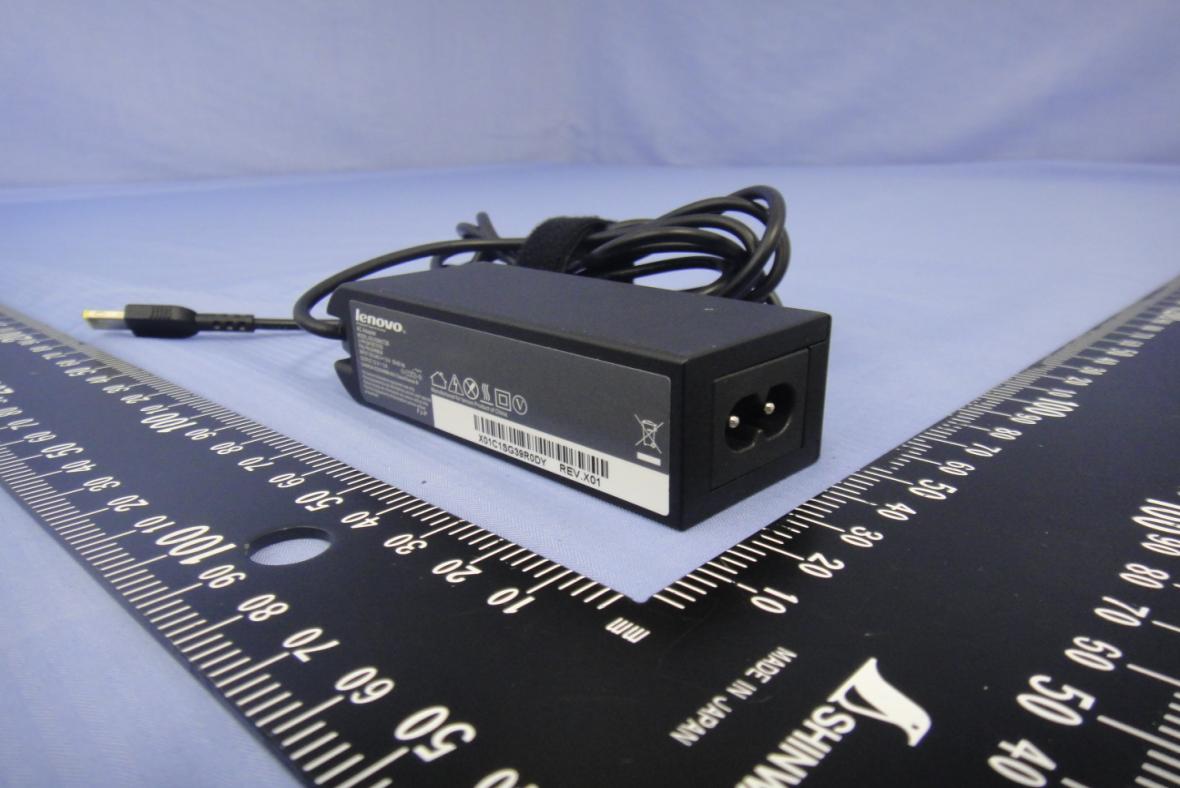

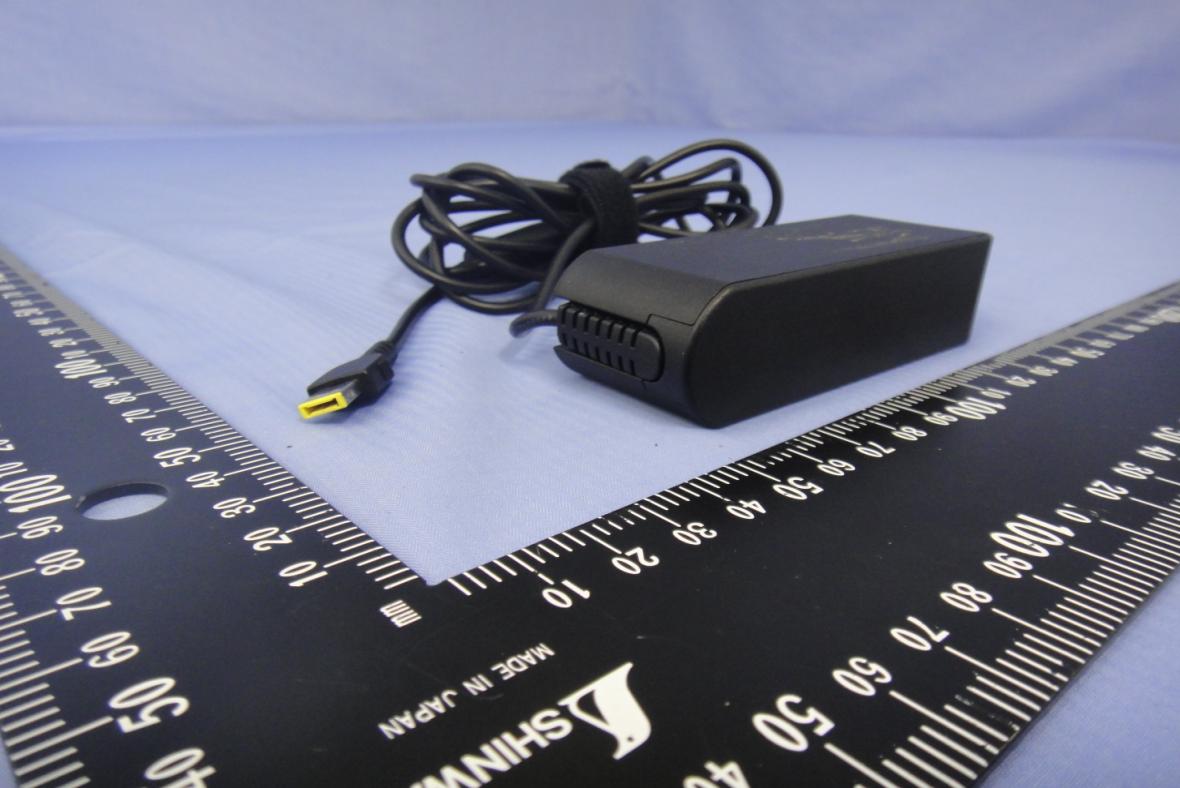

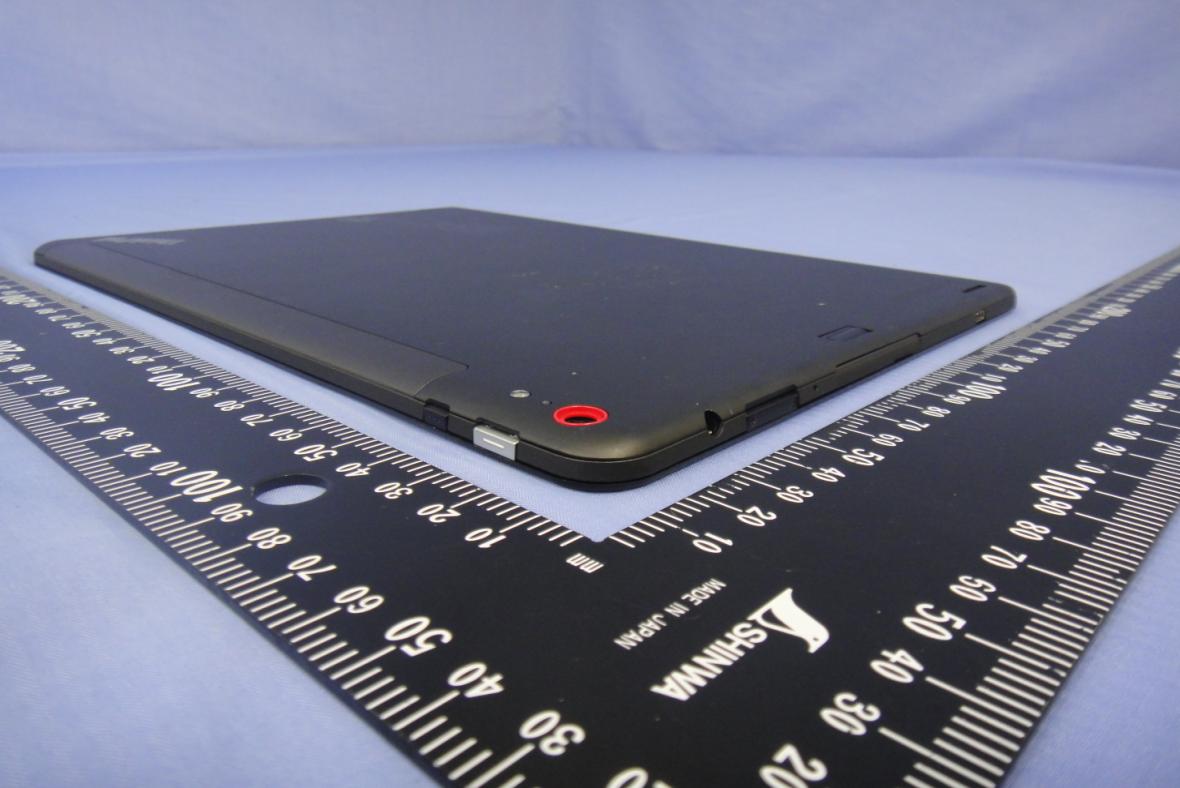

Compliance Certification Services Inc. Report No.: T140331W01 Date of Issue: April 28, 2014 A1 - 1 / 22 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T140331W01 Date of Issue: April 28, 2014 A1 - 2 / 22 Rev. 00 Compliance Certification Services Inc. Report No.: T140331W01 Date of Issue: April 28, 2014 A1 - 3 / 22 Rev. 00 Compliance Certification Services Inc. Report No.: T140331W01 Date of Issue: April 28, 2014 A1 - 4 / 22 Rev. 00 Compliance Certification Services Inc. Report No.: T140331W01 Date of Issue: April 28, 2014 A1 - 5 / 22 Rev. 00 Compliance Certification Services Inc. Report No.: T140331W01 Date of Issue: April 28, 2014 A1 - 6 / 22 Rev. 00 Compliance Certification Services Inc. Report No.: T140331W01 Date of Issue: April 28, 2014 A1 - 7 / 22 Rev. 00 Compliance Certification Services Inc. Report No.: T140331W01 Date of Issue: April 28, 2014 A1 - 8 Rev. 00

ငငငတဈ

Compliance Certification Services Inc. Report No.: T140331W01 Date of Issue: April 28, 2014 A1 - 9 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T140331W01 Date of Issue: April 28, 2014 A1 - 10 Rev. 00 Compliance Certification Services Inc. Report No.: T140331W01 Date of Issue: April 28, 2014 A1 - 11 Rev. 00 Compliance Certification Services Inc. Report No.: T140331W01 Date of Issue: April 28, 2014 A1 - 12 Rev. 00 Compliance Certification Services Inc. Report No.: T140331W01 Date of Issue: April 28, 2014 A1 - 13 Rev. 00 Compliance Certification Services Inc. Report No.: T140331W01 Date of Issue: April 28, 2014 A1 - 14 Rev. 00 Compliance Certification Services Inc. Report No.: T140331W01 Date of Issue: April 28, 2014 A1 - 15 Rev. 00 Compliance Certification Services Inc. Report No.: T140331W01 Date of Issue: April 28, 2014 A1 - 16 Rev. 00 Compliance Certification Services Inc. Report No.: T140331W01 Date of Issue: April 28, 2014 A1 - 17 Rev. 00 Module Compliance Certification Services Inc. Report No.: T140331W01 Date of Issue: April 28, 2014 A1 - 18 Rev. 00 Compliance Certification Services Inc. Report No.: T140331W01 Date of Issue: April 28, 2014 A1 - 19 Rev. 00 Antenna Compliance Certification Services Inc. Report No.: T140331W01 Date of Issue: April 28, 2014 A1 - 20 Rev. 00 Compliance Certification Services Inc. Report No.: T140331W01 Date of Issue: April 28, 2014 A1 - 21 Rev. 00 Compliance Certification Services Inc. Report No.: T140331W01 Date of Issue: April 28, 2014 A1 - 22 Rev. 00

Compliance Certification Services Inc. FCC ID: GKR-TP00064AUC Report No: T140331W01-SF Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 142 Rev. 00 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62 FCC TEST REPORT For Tablet Computer Trade Name: Lenovo Model: TP00064A Issued to COMPAL ELECTRONICS, INC. No.581, Ruiguang Rd., Neihu District, Taipei City 11492, Taiwan (R.O.C) Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: 2014/05/05 Compliance Certification Services Inc. FCC ID: GKR-TP00064AUC Report No: T140331W01-SF Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2014/05/05 Initial Issue ALL Scott Hsu Compliance Certification Services Inc. FCC ID: GKR-TP00064AUC Report No: T140331W01-SF Page 3 Rev. 00 Table Of Contents 1 Certificate of Compliance (SAR Evaluation) ............................................................... 5 2 Description of Equipment Under Test ....................................................................... 6 3 Requirements for Compliance Testing Defined .......................................................... 7 3.1 Requirements for Compliance Testing Defined by the FCC ........................................................................ 7 4 Dosimetric Assessment System ................................................................................ 8 4.1 Measurement System Diagram ....................................................................................................................... 9 4.2 System Components ........................................................................................................................................ 10 5 Evaluation Procedures ........................................................................................... 13 6 SAR Measurement Procedures ............................................................................... 15 6.1 Normal SAR Test Procedure ........................................................................................................................... 15 7 Device Under Test ................................................................................................. 17 7.1 Band Interface .................................................................................................................................................. 17 8 Summary of SAR Test Exclusion Configurations ....................................................... 18 8.1 Standalone SAR Test Exclusion Calculations ................................................................................................ 18 8.1.1 SAR Exclusion Calculations for WWAN Antenna < 50mm from the User ............................................... 19 8.1.2 SAR Exclusion Calculations for WWAN Antenna > 50mm from the User ............................................... 20 8.2 For WWAN .......................................................................................................................................................... 21 9 General LTE SAR Test and Reporting Considerations ................................................ 23 10 Power Reduction by Proximity Sensing ................................................................... 27 10.1 Procedures for determining proximity sensor triggering distances ......................................................... 27 10.2 Procedures for determining antenna and proximity sensor coverage .................................................... 28 10.3 Proximity Sensor Status Table of trigger distance ...................................................................................... 29 10.4 Tilt angle influences to proximity sensor triggering ................................................................................... 31 10.5 Power Reduction per Air-interface ............................................................................................................... 32 10.6 Proximity Sensor Coverage Area ................................................................................................................... 49 11 Measurement Uncertainty ..................................................................................... 51 12 Exposure Limit ...................................................................................................... 52 13 Tissue Dielectric Properties .................................................................................... 53 13.1 Test Liquid Confirmation ................................................................................................................................. 53 13.2 Typical Composition of Ingredients for Liquid Tissue Phantoms .............................................................. 54 13.3 Simulating Liquids Parameter Check Results ............................................................................................... 55 14 System Performance Check .................................................................................... 56 14.1 System Performance Check Results .............................................................................................................. 57 15 RF Output Power Measurement ............................................................................. 58 15.1 GPRS 850 ........................................................................................................................................................... 58 Compliance Certification Services Inc. FCC ID: GKR-TP00064AUC Report No: T140331W01-SF Page 4 Rev. 00 15.2 GPRS 1900 ..............…

Text truncated - open the document above for the full version.

Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2014/04/14 20140414_System check_Diple835v2 SN4d015 Frequency: 850 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.5C Medium parameters used (interpolated): f = 850 MHz; σ = 0.987 S/m; ε r = 57.105; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn877; Calibrated: 2014/03/26 - Probe: EX3DV4 - SN3665; ConvF(9.82, 9.82, 9.82); Calibrated: 2013/05/07; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 Body/Pin=100mW, d=15mm/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.20 W/kg Body/Pin=100mW, d=15mm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 38.342 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 1.42 W/kg SAR(1 g) = 0.958 W/kg; SAR(10 g) = 0.639 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.24 W/kg 0 dB = 1.24 W/kg = 0.93 dBW/kg Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2014/04/14 20140414_System check_Diple835v2 SN4d015 Frequency: 850 MHz; Duty Cycle: 1:1 Body/Pin=100mW, d=15mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.31 W/kg Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2014/04/16 20140416_System check_Diple835v2 SN4d015 Frequency: 850 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.5C Medium parameters used (interpolated): f = 850 MHz; σ = 0.967 S/m; ε r = 56.989; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn877; Calibrated: 2014/03/26 - Probe: EX3DV4 - SN3665; ConvF(9.82, 9.82, 9.82); Calibrated: 2013/05/07; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 Body/Pin=100mW, d=15mm/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.18 W/kg Body/Pin=100mW, d=15mm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 38.342 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 1.39 W/kg SAR(1 g) = 0.939 W/kg; SAR(10 g) = 0.626 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.22 W/kg 0 dB = 1.22 W/kg = 0.86 dBW/kg Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2014/04/16 20140416_System check_Diple835v2 SN4d015 Frequency: 850 MHz; Duty Cycle: 1:1 Body/Pin=100mW, d=15mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.26 W/kg Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2014/04/17 20140417_System Check_Diple1900v2 SN5d056 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.5C Medium parameters used (interpolated): f = 1900 MHz; σ = 1.558 S/m; ε r = 53.333; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn877; Calibrated: 2014/03/26 - Probe: EX3DV4 - SN3665; ConvF(7.75, 7.75, 7.75); Calibrated: 2013/05/07; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 Body/Pin=100mW, d=10mm/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 6.55 W/kg Body/Pin=100mW, d=10mm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 66.526 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 7.21 W/kg SAR(1 g) = 3.94 W/kg; SAR(10 g) = 2.06 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 6.05 W/kg 0 dB = 6.05 W/kg = 7.82 dBW/kg Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2014/04/17 20140417_System Check_Diple1900v2 SN5d056 Frequency: 1900 MHz; Duty Cycle: 1:1 Body/Pin=100mW, d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 6.02 W/kg Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2014/04/18 20140418_System Check_Diple1800v2 SN2d062 Frequency: 1800 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.5C Medium parameters used (interpolated): f = 1800 MHz; σ = 1.531 S/m; ε r = 52.177; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn877; Calibrated: 2014/03/26 - Probe: EX3DV4 - SN3665; ConvF(8.06, 8.06, 8.06); Calibrated: 2013/05/07; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 Body/Pin=100mW, d=10mm/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 6.05 W/kg Body/Pin=100mW, d=10mm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 65.455 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 6.87 W/kg SAR(1 g) = 3.78 W/kg; SAR(10 g) = 1.99 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 5.79 W/kg 0 dB = 5.79 W/kg = 7.63 dBW/kg Test Laboratory: Compliance Certification S…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 111 TEL : 886-3-327-3456 Report Issued Date : Jul. 23, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RYQ-NF2 FCC RF Test Report Report No. : FG352141A FCC RF Test Report APPLICANT : Foxconn International Holdings Ltd. EQUIPMENT : Data Card BRAND NAME : AMBIT MODEL NAME : NF2 MARKETING NAME : M.2 module FCC ID : RYQ-NF2 STANDARD : FCC 47 CFR Part 2, 22(H), 24(E), 27(L) CLASSIFICATION : PCS Licensed Transmitter (PCB) The product was received on May 21, 2013 and completely tested on Jun. 10, 2013. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI / TIA / EIA-603-C-2004 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Joseph Lin / Supervisor Approved by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 111 TEL : 886-3-327-3456 Report Issued Date : Jul. 23, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RYQ-NF2 FCC RF Test Report Report No. : FG352141A TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ..................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Product Specification of Equipment Under Test ............................................................................... 6 1.5 Modification of EUT ........................................................................................................................... 6 1.6 Frequency Tolerance, and Emission Designator .............................................................................. 7 1.7 Testing Site........................................................................................................................................ 7 1.8 Applied Standards ............................................................................................................................. 8 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 9 2.1 Test Mode.......................................................................................................................................... 9 2.2 Connection Diagram of Test System .............................................................................................. 11 2.3 Support Unit used in test configuration and system ........................................................................ 11 2.4 Measurement Results Explanation Example .................................................................................. 12 3 TEST RESULT ........................................................................................................................................... 13 3.1 Conducted Output Power Measurement ......................................................................................... 13 3.2 Peak-to-Average Ratio .................................................................................................................... 15 3.3 Occupied Bandwidth and 26dB Bandwidth Measurement .............................................................. 31 3.4 Band Edge Measurement ................................................................................................................ 55 3.5 Conducted Spurious Emission Measurement ................................................................................. 70 3.6 Field Strength of Spurious Radiation Measurement ....................................................................... 89 3.7 Frequency Stability Measurement ................................................................................................. 105 4 LIST OF MEASURING EQUIPMENTS.................................................................................................... 110 5 UNCERTAINTY OF EVALUATION ......................................................................................................... 111 APPENDIX A. PHOTOGRAPHS OF EUT APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL INC. Page Number : 3 of 111 TEL : 886-3-327-3456 Report Issued Date : Jul. 23, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RYQ-NF2 FCC RF Test Report Report No. : FG352141A REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FG352141A Rev. 01 Initial issue of report Jul. 23, 2013 SPORTON INTERNATIONAL INC. Page Number : 4 of 111 TEL : 886-3-327-3456 Report Issued Date : Jul. 23, 2013 FAX : 886-3-328-4…

Text truncated - open the document above for the full version.
