Compal Electronics Inc Date ： March 14, 2014 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: GKR-TP00064AWD Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Compal Electronics Inc hereby requests permanent confidential treatment of information accompanying this application as outlined below: Block Diagram Circuit Diagram Operational Description Compal Electronics Inc also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of (up to 180 days): Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Miller.Lee Telephone Number: +886-2-2299-9720 ext.500 Email: [email protected]

Compal Electronics Inc No.581, Ruiguang Rd., Neihu District, Taipei, 11492 Taiwan Tel: 886-2-8797-8588 Date: March 14, 2014 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: GKR-TP00064AWD To Whom It May Concern: We, Compal Electronics Inc, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, Contact Person: Miller.Lee Company: Compliance Certification Services Inc E-mail: [email protected]

Compal Electronics Inc (Date) March 21, 2014 (Product name) FCC ID : GKR-TP00064AWD , is seeking FCC Authorization as a Single Modular transmitter / Single Limited Modular Approval (Please check one). The EUT meets the requirements for Single Modular approval / Single Limited Modular Approval (please check one) as detailed in FCC public Notice DA00-1407. Compliance to each of the requirements is described below : Questions are: * Please provide a detailed explanation if the answer is “No.” 1.“The modular transmitter must have its own RF shielding.” Yes / No The Radio part of the module is not covered by the shielding material, therefore this is a LMA submission(The module is designed for the specific host with FCC ID:GKR-TP00064AFX) 2.“The modular transmitter must have buffered modulation/data inputs.” Yes / No The Radio part of the module is not have buffered modulation/data input(s), therefore this is a LMA submission(The module is designed for the specific host with FCC ID:GKR-TP00064AFX) 3.“The modular transmitter must have its own power supply regulation.” Yes / No 4. “The modu lar transmitter must comply with the antenna requirements of section 15.203 and 15.204(c).” Yes / No 5.“The modu lar transmitter must be tested in a stand-alone configuration.” Yes / No The Radio part of the module is tested for compliance at specific HOST, therefore this is a LMA submission(The module is designed for the specific host with FCC ID:GKR-TP00064AFX) 6.“The modular transmitter must be labeled with its own FCC ID number.” Yes / No 7.“Th e modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instruction along with the module to explain any such requirements.” Yes / No 8.“The modu lar transmitter must comply with any applicable RF exposure requirements.” Yes / No Note: (1) LMA may be granted when one or more of the requirements in the table above cannot be demonstrated. LMA will also be issued in those instances where applicants can demonstrate that they will retain control over the final installation of the device, such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module must state that the module is only approved for use when installed in devices produced by a specific manufacturer. When LMA is sought, the application for equipment certification must specifically state how control of the end product into which the module will be installed, and will be maintained, such that full compliance of the end product is always ensured. (2) Please provide Clear and specific instructions describing the conditions, limitations and procedures for third-parties to use and/or integrate the module into a host device. (3) For non-Software Defined Radio transmitter modules where software is used to ensure compliance of the device, technical description of how such control is implemented to ensure prevention of third party modification must be provided (see KDB 594280). No te 1: Compliance of a module in its final configuration is the responsibility of the applicant. A host device will not be considered certified if the instructions regarding antenna configuration provided in the original description, of one or more separately certified modules it contains, were not followed. Example: A separately certified low-power transceiver module using Bluetooth technology which is housed in a desktop computer, laptop or peripheral does not require the overall system to be recertified, if the desktop computer, laptop or peripheral, as a stand-alone unit, complies with all applicable technical standards. Clie nt’s signature : Miller.Lee Client’s name / title : Compliance Certification Services Inc / Manager Contact information / address : No.581, Ruiguang Rd., Neihu District, Taipei City 11492, Taiwan (R.O.C)

Compliance Certification Services Inc. Report No.: T140227W02 Date of Issue: March 5, 2014 A1 - 1 / 2 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T140227W02 Date of Issue: March 5, 2014 A1 - 2 Rev. 00

1/1 ID Label & Location Host PC label: Applying Digitizer Unit Bottom view Contains Transmitter Module: FCC ID: GKR-TP00064AWD IC: 2533B-TP00064AWD

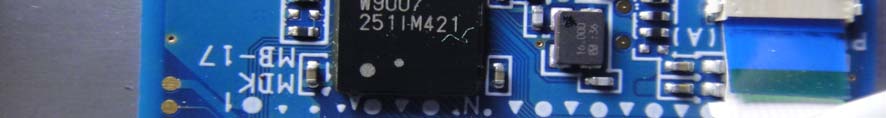

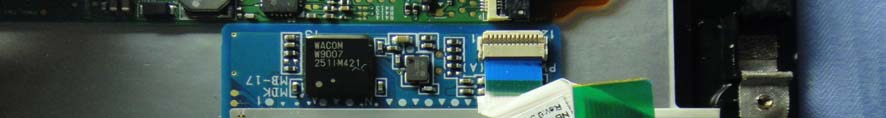

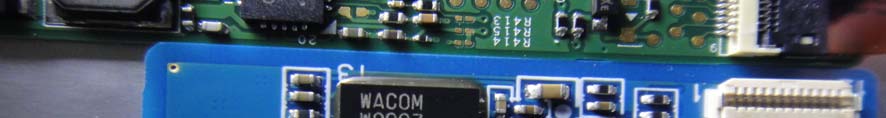

Compliance Certification Services Inc. Report No.: T140227W02 Date of Issue: March 5, 2014 A1 - 7 Rev. 00 Compliance Certification Services Inc. Report No.: T140227W02 Date of Issue: March 5, 2014 A1 - 8 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T140227W02 Date of Issue: March 5, 2014 A1 - 9 Rev. 00 Compliance Certification Services Inc. Report No.: T140227W02 Date of Issue: March 5, 2014 A1 - 10 Rev. 00 Compliance Certification Services Inc. Report No.: T140227W02 Date of Issue: March 5, 2014 A1 - 11 Rev. 00 Module Compliance Certification Services Inc. Report No.: T140227W02 Date of Issue: March 5, 2014 A1 - 12 Rev. 00 Battery Compliance Certification Services Inc. Report No.: T140227W02 Date of Issue: March 5, 2014 A1 - 13 Rev. 00

Compliance Certification Services Inc. FCC ID: GKR-TP00064AWD IC ID: 2533B-TP00064AWD Report No.: T140227W02-RP Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 39 Rev.00 FCC 47 CFR PART 15 SUBPART C & INDUSTRY CANADA RSS-210 TEST REPORT For Digitizer I/O device Model: SU8E-10W05MI-01A Trade Name: Lenovo Issued to Compal Electronics, INC. No. 581, Ruiguang RD., Neihu District, Taipei City 11492, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: March 5, 2014 Compliance Certification Services Inc. FCC ID: GKR-TP00064AWD IC ID: 2533B-TP00064AWD Report No.: T140227W02-RP Page 2 Rev.00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 March 5, 2014 Initial Issue ALL Angel Cheng Compliance Certification Services Inc. FCC ID: GKR-TP00064AWD IC ID: 2533B-TP00064AWD Report No.: T140227W02-RP Page 3 Rev.00 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ............................................................................................. 4 2 EUT DESCRIPTION .................................................................................................................... 5 3 TEST METHODOLOGY ............................................................................................................. 6 3.1. DESCRIPTION OF TEST MODES ....................................................................................... 6 4 INSTRUMENT CALIBRATION ................................................................................................. 7 4.1. MEASURING INSTRUMENT CALIBRATION .................................................................. 7 4.2. MEASUREMENT EQUIPMENT USED .............................................................................. 7 4.3. MEASUREMENT UNCERTAINTY .................................................................................... 8 5 FACILITIES AND ACCREDITATIONS ................................................................................... 9 5.1. FACILITIES ........................................................................................................................... 9 5.2. EQUIPMENT ......................................................................................................................... 9 5.3. TABLE OF ACCREDITATIONS AND LISTINGS ............................................................ 10 6 SETUP OF EQUIPMENT UNDER TEST ................................................................................ 11 6.1. SETUP CONFIGURATION OF EUT .................................................................................. 11 6.2. SUPPORT EQUIPMENT ..................................................................................................... 11 7 APPLICABLE RULES ............................................................................................................... 12 8 RSS 210 REQUIREMENTS ....................................................................................................... 21 8.1. 99% BANDWIDTH ............................................................................................................. 21 8.2. RADIATED EMISSIONS .................................................................................................... 24 8.3. POWERLINE CONDUCTED EMISSIONS ........................................................................ 33 9 APPENDIX I PHOTOGRAPHS OF TEST SETUP ................................................................. 36 Compliance Certification Services Inc. FCC ID: GKR-TP00064AWD IC ID: 2533B-TP00064AWD Report No.: T140227W02-RP Page 4 Rev.00 1 TEST RESULT CERTIFICATION Applicant: Compal Electronics, INC. No. 581, Ruiguang RD., Neihu District, Taipei City 11492, Taiwan, R.O.C. Equipment Under Test: Digitizer I/O device Tr a d e N a m e : Lenovo Model: SU8E-10W05MI-01A Date of Test: March 3 ~ 6, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C & Industry Canada RSS-210 Issue 8 December, 2010 No non-compliance noted We hereby certify that: Compliance Certification Services Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Miller Lee Section Manager Angel Cheng Section Manager Compliance Certification Services Inc. FCC ID: GKR-TP00064AWD IC ID: 2533B-TP00064AWD Report No.: T140227W02-RP Page 5 Rev.00 2 EUT DESCRIPTION Product Digitizer I/O device Trade Name Lenovo Model Number SU8E-10W05MI-01A Power Supply 1. Power from power adapter. 2. Power from battery. Operating Frequency Range 531.25kHz, 562.50kHz, 593.75KHz Antenna Specification Loop Antenna Note The application is for limited module approval. The host PC device show as following: Tablet Computer Brand: Lenovo / FCC Model Number: TP00064A IC Model Number: TP00064AWD Power Rating Component Model / Specification Manufacturer Adapter ADLX36NCT2B AC Input: 100-240V, 1.5A, 50-60Hz DC Output: 12V, 3A lenovo Battery ASM P/N 45N1726 / 3.7V 8.92Ah 33Wh lenovo Compliance Certification Services Inc. FCC ID: GKR-TP00064AWD IC ID: 2533B-TP00064AWD Report No.: T140227W02-RP Page 6 Rev.00 3 TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 (2003) and FCC CFR 47 Part 2, 15.207, 15.209. The tests documented in this report were performed in accordance with IC RSS-210, IC RSS-Gen, IC RSS-102, IC RSS-Gen Issue 3, and ANSI C63.4 (2003). This submitt…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: GKR-TP00064AWD IC ID: 2533B-TP00064AWD Report No.: T140227W02-RP Page 36 Rev.00 9 APPENDIX I PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION SETUP PHOTOS Compliance Certification Services Inc. FCC ID: GKR-TP00064AWD IC ID: 2533B-TP00064AWD Report No.: T140227W02-RP Page 37 Rev.00 Radiated Emission Set up Photos Below 30MHz Compliance Certification Services Inc. FCC ID: GKR-TP00064AWD IC ID: 2533B-TP00064AWD Report No.: T140227W02-RP Page 38 Rev.00 Above 30MHz ~ 1GHz Compliance Certification Services Inc. FCC ID: GKR-TP00064AWD IC ID: 2533B-TP00064AWD Report No.: T140227W02-RP Page 39 Rev.00 Powerline Conducted Emissions Setup Photos
