GKR-TP00078ATablet Computer

Regulatory Notice Readfirst—regulatoryinformation Readthisdocumentbeforeusingyourcomputer.Thiscomputercomplieswiththeradiofrequencyand safetystandardsofanycountryorregioninwhichithasbeenapprovedforwirelessuse.Installanduseyour computeraccordingtothefollowinginstructions. ThelatestRegulatoryNoticemanualisavailableontheLenovoWebsite.Todownloadthemanual,goto http://www.lenovo.com/supportandthenfollowtheon-screeninstructions. Veuillezlireleprésentdocumentavantd'utiliservotreordinateur.Cetordinateurestconformeauxnormes defréquenceradioetdesécuritédetouslespaysourégionsdanslesquelssonutilisationsansfilaété homologuée.Installezetutilisezl'ordinateurenrespectantlesinstructionsquisuivent. LaversionlaplusrécentedelaNoticerelativeàlaréglementationaétéchargéesurlesiteWeb.Pourla consulter,accédezàhttp://www.lenovo.com/UserManuals. USA—FederalCommunicationsCommission(FCC) FCCID ThissystemcontainsthefollowingwirelessdevicesandunderwentthecertificationprocessofFCCCFR47 Part2section1093,Part15SubpartCandSubpartE,Part27,Part22SubpartH,andPart24SubpartE undereachrespectiveFCCIDbelow.TheFCCIDisindicatedonthebottomcoverofyoursystem. •FCCID:GKR-TP00078A –WirelessLANmodulewithBluetoothfunction(model:BCM94356Z) •FCCID:GKR-TP00078ASB –WirelessLANmodulewithBluetoothfunction(model:BCM94356Z) –WirelessWANmodule(model:EM7445) •FCCID:GKR-TP00078ASI –WirelessLANmodulewithBluetoothfunction(model:8260NGW) –WirelessWANmodule(model:EM7445) Note:ThewirelessLANmodulesmarketedintheUSAandCanadadonotsupportorfunctioninthe extendedchannels(12ch,13ch). ThepreinstalledwirelessmoduleshavebeentestedandfoundtocomplywiththelimitsfortheClassB digitaldeviceregardingFCCPart15SubpartB.Referto“Electronicemissionnotices”onpage4. ThewirelessmoduleinyourcomputerispreinstalledbyLenovo ® ,andyouareprohibitedtoreplacewith otherwirelessadapternorremoveit.Ifthedevicerequiresreplacementduetosomeproblemduring warranty,itmustbeservicedbyaLenovoauthorizedservicer. 1 FCCRFexposurecompliance TheradiatedoutputpowerofyoursystemisfarbelowtheFCCradiofrequencyexposurelimits. Nevertheless,itshallbeusedinsuchamannerthatthepotentialforhumancontactduringnormaloperation isminimizedasfollows: CAUTION: ThetotalradiatedenergyfromtheantennasconnectedtotheinstalledwirelessLANmoduleconforms totheFCClimitoftheSAR(SpecificAbsorptionRate)requirement,regarding47CFRPart2section 1093,whenthecomputerwastestedineitherconventionalnotebookortabletcomputerorientations. ThetransmissionantennasforthewirelessLANmodulearelocatedintheLCDcover.See“Locatingthe UltraConnect ™ wirelessantennas”inUserGuide. SimultaneoususeofRFtransmitters YourcomputerisapprovedforsimultaneoususeofoneoftheapprovedwirelessLANmodules,theapproved wirelessWANmodule,andtheapprovedNFCmodule.Foralistofthosetransmitters,refertothefollowing: •“Aboutthismanual”onpage •“FCCID”onpage1 •ThinkPadRegulatoryNotice MakesureofthefollowingconditionswhenyouuseanyotherexternalRFoptiondevice: 1.WhenyouuseanyotherRFoptiondevice,youarerequestedtoconfirmthatthedeviceconformstothe RFSafetyrequirementandisapprovedtouseforyourcomputer. 2.YoumustfollowtheRFSafetyinstructionsoftheRFoptiondevicethatareincludedintheusermanual oftheRFoptiondevice. 3.IftheRFoptiondeviceisprohibitedtouseinconjunctionwithanothertransmitters,youmustturn offallotherwirelessfeaturesinyourcomputer. RadioFrequencyinterferencerequirements EachdevicehasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevicepursuantto FCCPart15SubpartB.Referto“Electronicemissionnotices”onpage4 . WhenyouuseawirelessLANmoduleinthe802.11a/ntransmissionmode,notethathighpowerradarsare allocatedasprimaryusersofthe5250to5350MHzand5650to5850MHzbands.Theseradarstationscan causeinterferencewithand/ordamagethisdevice. Canada—IndustryCanada(IC) ICcertificationnumber ThissystemcontainsthefollowingwirelessdevicesandtheICcertificationnumberisasbelow.TheIC certificationnumberisindicatedonthebottomcoverofyoursystem. •IC:2533B-TP00078A –WirelessLANmodulewithBluetoothfunction(model:BCM94356Z) •IC:2533B-TP00078ASB –WirelessLANmodulewithBluetoothfunction(model:BCM94356Z) –WirelessWANmodule(model:EM7445) •IC:2533B-TP00078ASI 2 –WirelessLANmodulewithBluetoothfunction(model:8260NGW) –WirelessWANmodule(model:EM7445) Note:ThewirelessLANmodulesmarketedintheUSAandCanadadonotsupportorfunctioninthe extendedchannels(12ch,13ch). ThewirelessmoduleinyourcomputerispreinstalledbyLenovo ® ,andyouareprohibitedtoreplacewith otherwirelessadapternorremoveit.Ifthedevicerequiresreplacementduetosomeproblemduring warranty,itmustbeservicedbyaLenovoauthorizedservicer. Lowpowerlicense-exemptradiocommunicationdevices(RSS-210) Operationissubjecttothefollowingtwoconditions: 1.Thisdevicemaynotcauseinterference. 2.Thisdevicemustacceptanyinterference,includinginterferencethatmaycauseundesiredoperationof thedevice. WhenyouuseawirelessLANmoduleinthe802.11a/ntransmissionmode,notethefollowing: •Thedevicesfortheband5150–5250MHzareonlyforindoorusagetoreducepotentialforharmful interferencetoco-channelMobileSatellitesystems. •Highpowerradarsareallocatedasprimaryusers(meaningtheyhavepriority)of5250–5350MHzand 5650–5850MHzandtheseradarscouldcauseinterferenceand/ordamagetoLE-LAN(Licence-Exempt LocalAreaNetwork)devices. •Themaximumantennagainpermittedfordevicesinthe5250-5350MHz,5470-5725MHz,and5725-5825 MHzbandscomplieswiththee.i.r.p.limitinsectionA9.2ofRSS-210. ExposureofhumanstoRFfields(RSS-102) ThecomputersemploylowgainintegralantennasthatdonotemitRFfieldinexcessofHealthCanada limitsforthegeneralpopulation;consultSafetyCode6,obtainablefromHealthCanada'sWebsiteat http://www.hc-sc.gc.ca/ TheradiatedenergyfromtheantennasconnectedtothewirelessmodulesconformstotheCanadaPortable RFexposurelimitregardingICRSS-102,Issue5,Section4,setforthforanuncontrolledenvironment,and aresafeforintendedoperationintheconventionalsetting.FurtherRFexposurereductioncanbeachieved iftheproductcanbekeptasfaraspossiblefromtheuserbodyorsetthedevicetoloweroutputpower ifsuchfunctionisavailable. Canada—IndustryCanada(IC) NumérodecertificationIC Votretablettecontientlesdis…

Text truncated - open the document above for the full version.

ThinkPadYoga260UserGuide Note:Beforeusingthisinformationandtheproductitsupports,besuretoreadandunderstandthefollowing: •Safety,Warranty,andSetupGuide •RegulatoryNotice •“Importantsafetyinformation”onpagevi •AppendixF“Notices”onpage155 ThelatestSafety,Warranty,andSetupGuideandtheRegulatoryNoticeareavailableontheLenovoSupport Websiteat: http://www.lenovo.com/UserManuals FirstEdition(October2015) ©CopyrightLenovo2015. LIMITEDANDRESTRICTEDRIGHTSNOTICE:IfdataorsoftwareisdeliveredpursuantaGeneralServicesAdministration “GSA”contract,use,reproduction,ordisclosureissubjecttorestrictionssetforthinContractNo.GS-35F-05925. Contents Readthisfirst..............v Importantsafetyinformation..........vi Conditionsthatrequireimmediateaction..vii Safetyguidelines............vii Chapter1.Productoverview......1 Locatingcomputercontrols,connectors,and indicators..................1 Frontview................1 Right-sideview..............2 Left-sideview..............4 Bottomview...............5 Statusindicators.............6 Locatingimportantproductinformation......7 Machinetypeandmodelinformation.....7 FCCIDandICCertificationinformation....8 LabelsfortheWindowsoperatingsystems...9 Features.................10 Specifications...............11 Operatingenvironment...........12 Lenovoprograms.............12 AccessingLenovoprograms.......12 AnintroductiontoLenovoprograms....13 Chapter2.Usingyourcomputer...17 Registeringyourcomputer..........17 Frequentlyaskedquestions.........17 Usingthespecialbuttons..........19 GettinghelpabouttheWindowsoperating system..................19 Usingthemulti-touchscreen.........19 ThinkPadPenPro.............22 Specialkeys...............23 Operatingmodes..............25 Enablingtheoperatingmodes.......26 Rotatingthecomputerdisplay.......26 Notebookmode............27 Standmode..............27 Tabletmode..............28 Tentmode..............29 Usingthekeyboard.............30 ThinkPadpointingdevice..........32 TrackPointpointingdevice........32 Trackpad...............33 Trackpadtouchgestures.........34 CustomizingtheThinkPadpointingdevice..35 Replacingthecaponthepointingstick...35 Powermanagement............36 Usingtheacpower...........36 Usingthebatterypower.........37 Power-savingmodes..........38 Managingthepowerplan........38 Connectingtothenetwork..........39 Ethernetconnections..........39 Wirelessconnections..........39 Usinganexternaldisplay..........43 Connectinganexternaldisplay......44 Choosingadisplaymode........44 Changingdisplaysettings........45 Usingaudiofeatures............45 Usingthecamera.............45 Usingasmartcard.............46 Chapter3.Enhancingyour computer...............49 FindingThinkPadoptions..........49 ThinkPadOneLink+Dock..........49 Chapter4.Youandyourcomputer..51 Accessibilityandcomfort..........51 Ergonomicinformation..........51 Comfort...............52 Accessibilityinformation.........52 Travelingwithyourcomputer.........55 Traveltips...............55 Travelaccessories...........55 Chapter5.Security..........57 Usingpasswords..............57 Typingpasswords...........57 Power-onpassword...........57 Supervisorpassword..........58 Harddiskpasswords..........59 Harddisksecurity.............61 Settingthesecuritychip...........62 Usingthefingerprintreader..........63 Noticeondeletingdatafromyourstorage devices.................66 Usingfirewalls...............66 Protectingdataagainstviruses........67 Chapter6.Advancedconfiguration..69 Installinganewoperatingsystem.......69 InstallingtheWindows7operatingsystem..69 ©CopyrightLenovo2015 i InstallingtheWindows10operatingsystem.70 Installingdevicedrivers...........71 UsingtheThinkPadSetupprogram......71 Mainmenu..............72 Configmenu..............72 DateandTimemenu..........78 Securitymenu.............78 Startupmenu.............82 Restartmenu.............84 UpdatingtheUEFIBIOS.........84 Usingsystemmanagement..........85 Settingmanagementfeatures.......86 Chapter7.Preventingproblems...87 Generaltipsforpreventingproblems......87 Makingsuredevicedriversareup-to-date....88 Takingcareofyourcomputer.........89 Cleaningthecoverofyourcomputer....90 Chapter8.Troubleshootingcomputer problems...............93 Diagnosingproblems............93 Troubleshooting..............93 Computerstopsresponding.......93 Spillsonthekeyboard..........94 Errormessages............94 Errorswithoutmessages.........96 Beeperrors..............97 Memorymoduleproblems........97 Networkingproblems..........97 Problemswiththekeyboardandotherpointing devices................99 Problemswiththedisplayandmultimedia devices................100 Fingerprintreaderproblems........105 Batteryandpowerproblems.......105 Problemswithdrivesandotherstorage devices................108 Asoftwareproblem...........108 Problemswithportsandconnectors....108 Chapter9.Recoveryoverview...111 RecoveryoverviewfortheWindows7operating system..................111 Creatingandusingrecoverymedia.....111 Performingbackupandrecovery operations..............112 UsingtheRescueandRecovery workspace..............113 Creatingandusingarescuemedium....114 Reinstallingpreinstalledprogramsanddevice drivers................114 Solvingrecoveryproblems........115 RecoveryoverviewfortheWindows10operating system..................116 Resettingyourcomputer.........116 Usingadvancedstartupoptions......116 RecoveringyouroperatingsystemifWindows 10failstostart.............116 CreatingandusingarecoveryUSBdrive..117 Chapter10.Replacingdevices...119 Staticelectricityprevention..........119 Disablingthebuilt-inbattery.........119 InstallingorreplacingthemicroSIMcard....120 InstallingorremovingthemicroSDcard....121 Replacingthebasecoverassembly......123 ReplacingtheM.2solid-statedrive......124 Replacingamemorymodule.........127 ReplacingthewirelessWANcard.......128 Replacingthecoin-cellbattery........130 Chapter11.Gettingsupport....133 BeforeyoucontactLenovo..........133 Gettinghelpandservice...........133 Usingdiagnosticprograms........134 LenovoSupportWebsite.........134 CallingLenovo.............134 P…

Text truncated - open the document above for the full version.

Compal Electronics Inc No.581, Ruiguang Rd., Neihu District, Taipei 11492, Taiwan Date: August 25, 2015 Federal Communications Commission 7435 Oakland Mills Road - Gate A Columbia, Maryland 21046 Subject: Request for Confidentiality FCC ID: GKR-TP00078A To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Operational Description  Software Operational Description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days after the Grant Date of Equipment Authorizations.  External Photos  Internal Photos  Test Setup Photos  Users Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, ________ Joyce Ting / Senior RF Regulatory Compliance Engineer Compal Electronics Inc Tel: 886-2- 8797-8599 Fax: 886-2- 2658-6080 E-mail: [email protected]

Compal Electronics Inc No.581, Ruiguang Rd., Neihu District, Taipei 11492, Taiwan July 28, 2015 DFS client device channel plan and software operational declaration We, Compal Electronics Inc, declare that the device, FCC ID: GKR-TP00078A Model Name: TP00078A, does not have “Ad Hoc on non-US frequencies” and/or “on DFS frequencies. Also, the client software and associated drivers will not initiate any transmission on DFS frequencies without initiation by a master. This includes restriction on transmissions for beacons and support for ad-hoc peer-to-peer modes. Below is the channel / frequency plan for the device Also, on DFS channels, the WLAN driver in the device operates under the control of an AP at all times, except when in ad-hoc mode, on US non-DFS channels. The device passively scans DFS frequencies until a master device is detected. The control of this functionality is not accessible to anyone under any conditions. Furthermore, the firmware is protected by special signature and CRC checksum. Signature and CRC checksum will be calculated and verified before firmware upgrade. Unauthorized modification to firmware will lead the failure of verification thus firmware upgrade is not allowed. Sincerely yours, _____________________ Joyce Ting / Senior RF Regulatory Compliance Engineer Compal Electronics Inc Tel: 886-2-8797-8599 Fax: 886-2-2658-6080 E-mail: [email protected] CH 1 2 3 4 5 6 7 8 9 10 11 Frequency (MHz) 2412 2417 2422 2427 2432 2437 2442 2447 2452 2457 2462 Scan Type Active Active Active Active Active Active Active Active Active Active Active CH 36 38 40 42 44 48 52 54 56 58 60 Frequency (MHz) 5180 5190 5200 5210 5220 5240 5260 5270 5280 5290 5300 Scan Type Active Active Active Active Active Active Passive Passive Passive Passive Passive CH 62 64 Frequency (MHz) 5310 5320 Scan Type Passive Passive CH 100 102 104 106 108 110 112 116 132 134 136 Frequency (MHz) 5500 5510 5520 5530 5540 5550 5560 5580 5660 5670 5680 Scan Type Passive Passive Passive Passive Passive Passive Passive Passive Passive Passive Passive CH 140 Frequency (MHz) 5700 Scan Type Passive CH 149 151 153 155 157 159 161 165 Frequency (MHz) 5745 5755 5765 5775 5785 5795 5805 5825 Scan Type Active Active Active Active Active Active Active Active

Compal Electronics Inc No.581, Ruiguang Rd., Neihu District, Taipei 11492, Taiwan Date: August 25, 2015 Declaration We, Compal Electronics Inc, declare that the device, FCC ID: GKR- TP00078A, Model Name: TP00078A, does not support any non-US channels in all the operational mode(s). All non-US frequencies, US 2.4G channel 12-13 and Country code selection are disabled through proprietary software and are not user changeable. Should you have any question or comment regarding this matter, please do not hesitate to contact me. Sincerely yours, _____________________ Joyce Ting / Senior RF Regulatory Compliance Engineer Compal Electronics Inc Tel: 886-2-8797-8599 Fax: 886-2-2658-6080 E-mail: [email protected]

Compal Electronics Inc No.581, Ruiguang Rd., Neihu District, Taipei 11492, Taiwan Date: August 25, 2015 Federal Communications Commission 7435 Oakland Mills Road - Gate A Columbia, Maryland 21046 SUBJECT: FCC Application for FCC ID: GKR-TP00078A To Whom It May Concern, We, Compal Electronics Inc, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, ________ Joyce Ting / Senior RF Regulatory Compliance Engineer Compal Electronics Inc Tel: 886-2-8797-8599 Fax: 886-2-2658-6080 E-mail: [email protected]

Compal Electronics Inc No.581, Ruiguang Rd., Neihu District, Taipei 11492, Taiwan Date: August 25, 2015 Power of Attorney To whom it may concern, Please be notified that I, Joyce Ting, have designated Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan on the matters relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. As defined in 47 CFR Ch. 1.2002 (b), we further certify that neither the applicant nor any party to this application is subject to a denial to Federal benefits, including FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: GKR-TP00078A If you have any acknowledgement and response, please send it to Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan directly. Should you have any question or comment regarding this matter, please have my best attention. Sincerely yours, ________ Joyce Ting / Senior RF Regulatory Compliance Engineer Compal Electronics Inc Tel: 886-2-8797-8599 Fax: 886-2-2658-6080 E-mail: [email protected]

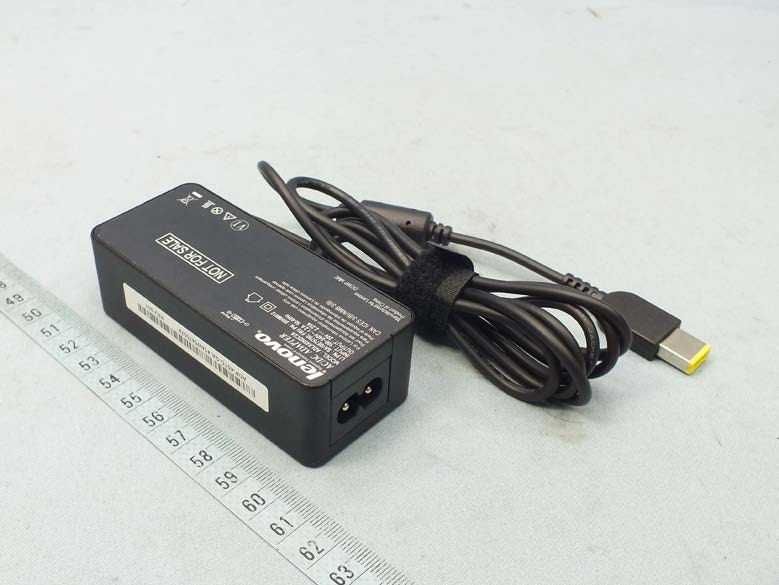

Page 1 of 10 Report No.: 150722C27 CONSTRUCTION PHOTOS OF EUT Brand Name: Lenovo / Model Name: TP00078A Page 2 of 10 Report No.: 150722C27 Page 3 of 10 Report No.: 150722C27 Page 4 of 10 Report No.: 150722C27 Page 5 of 10 Report No.: 150722C27

Compal’s F/N CoO Label 35x4mm FCC ID Label 35x4mm SN label 35x7mm CECP label 35x7mm 4mm 2mm 2mm 2mm 118.5mm GEO Label 146.32x8mm For Win7 Asset tag 50.8x25.4mmICASA Label 45x22.5mm ICASA Label 45x22.5mm Asset tag 50.8x25.4mm COA Label 44x15mm 2mm 2mm Compal’s F/N CoO Label 35x4mm FCC ID Label 35x4mm SN label 35x7mm CECP label 35x7mm 4mm 2mm 2mm 2mm 118.5mm GEO Label 146.32x8mm For Win8/Win10 Asset tag 50.8x25.4mm Asset tag 50.8x25.4mm GML Label 16.077x22.501mm 2mm 2mm

Jennie_Wu 08/03-15” Susie_Wang 08/03-15” AIZS1 GEO LABEL RATING NP 1EY GEO US SL10K57544 100% A4 00 00 2015 / 09 / 03 ITEMSSPEC. PART NO. SIZE MATERIAL THICKNESS(MM) COLOR:MATERIAL PRINTING REMARK GROSS WEIGHT (INCLUDE ADHESIVE) COATING L50XW5 XXXX (±0.1MM) (± 50%G) ADHESIVE 1. USE WATER DISSOVING INK, INK CONTAINS HEAVY METAL IS PROHIBITED. 2. PIECE BY PIECE EJ1EY000400 8B35 MATT 0.125PC NA TRANSPARENT #467 (3M) BLACK 50 5 R0.5 Label P/N: SL10K57544 Made in China Factory ID:PRC4 FCC ID: GKR-TP00078A (Non-Intel XXXXXXXXX) IC: 2533B-TP00078A M/N: TP00078A - BACKGROUND : Pantone Black (C:0 M:0 Y:0 K:100 / appearance is Matte Black) Color - LETTERS : UV printing (appearance is Glossy Black)

Jennie_Wu 08/03-15” Susie_Wang 08/03-15” AIZS1 GEO LABEL RATING NP 1EY GEO US SILVER SL10K57548 100% A4 00 00 2015 / 09 / 03 ITEMSSPEC. PART NO. SIZE MATERIAL THICKNESS(MM) COLOR:MATERIAL PRINTING REMARK GROSS WEIGHT (INCLUDE ADHESIVE) COATING L50XW5 XXXX (±0.1MM) (± 50%G) ADHESIVE 1. USE WATER DISSOVING INK, INK CONTAINS HEAVY METAL IS PROHIBITED. 2. PIECE BY PIECE EJ1EY000800 8B35 MATT 0.125PC NA #467 (3M) BLACK 50 5 R0.5 Label P/N: SL10K57548 Made in China Factory ID:PRC4 SILVER MATT FCC ID: GKR-TP00078A (Non-Intel XXXXXXXXX) IC: 2533B-TP00078A M/N: TP00078A Color - BACKGROUND : Guiness SIlver (The same as painting color for PC) - LETTERS : Pantone CoolGray 8C (C:23 M:16 Y:13 K:23)

Page 6 of 10 Report No.: 150722C27 Page 7 of 10 Report No.: 150722C27 Page 8 of 10 Report No.: 150722C27 Page 9 of 10 Report No.: 150722C27 Page 10 of 10 Report No.: 150722C27

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 43 Report No. : SA150722C27 Issued Date : Aug. 26, 2015 FCC SAR Test Report Report No. : SA150722C27 Applicant : Compal Electronics Inc Address : No.581, Ruiguang Rd., Neihu District, Taipei City, Taiwan 11492, R.O.C. Product : Tablet Computer FCC ID : GKR-TP00078A Brand : Lenovo Model No. : TP00078A Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1992 / IEEE Std 1528:2013 KDB 865664 D01 v01r04 / KDB 865664 D02 v01r01 KDB 248227 D01 v02r01/ KDB 447498 D01 v05r02 / KDB 616217 D04 v01r01 Sample Received Date : Jul. 22, 2015 Date of Testing : Aug. 17, 2015 ~ Aug. 23, 2015 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch – Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Rona Chen / Specialist Approved By : Gordon Lin / Assistant Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 43 Report No. : SA150722C27 Issued Date : Aug. 26, 2015 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ............................................................................................................... 6 3.2 SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot.................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ................................................................................................................................................... 10 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 14 3.4 SAR Measurement Procedure ................................................................................................................................... 15 3.4.1 Are a & Zoom Scan Procedure ......................................................................................................................... 15 3.4.2 Volume Scan Procedure................................................................................................................................... 15 3.4 .3 Power Drift Monitoring ...................................................................................................................................... 16 3.4.4 Spatial Peak SAR Evaluation ........................................................................................................................... 16 3.4.…

Text truncated - open the document above for the full version.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: Rev. 02 FCC RADIO TEST REPORT Applicant’s company Broadcom Corporation Applicant Address 190 Mathilda Place Sunnyvale CA 94086 U.S.A. FCC ID QDS-BRCM1085 Manufacturer’s company Broadcom Corporation Manufacturer Address 190 Mathilda Place Sunnyvale CA 94086 U.S.A. Product Name Broadcom 802.11a/b/g/n/ac WLAN + Bluetooth PCI-E NGFF 2230 Card Brand Name Broadcom Model No. BCM94356Z Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2402 ~ 2480MHz Received Date Jul. 31, 2014 Final Test Date Oct. 08, 2014 Submission Type Original Equipment Statement Test result included is only for the Bluetooth LE of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2013, 47 CFR FCC Part 15 Subpart C and KDB 558074 D01 v03r02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR473142AD Report Format Version: Rev. 02 Page No. : i of ii FCC ID: QDS-BRCM1085 Issued Date : Oct. 23, 2014 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................4 3.4. Table for Carrier Frequencies ................…

Text truncated - open the document above for the full version.
