GKRPA3274U-1ETCPDA With 802.11/b WLAN

TOSHIBA Pocket PC e750/e755 User’s Guide 2 Introduction Thank you very much for your purchase of this Toshiba Pocket PC. Please be sure to read this user’s guide before using the Toshiba Pocket PC, and ensure that you are aware of correct the handling procedures. •Please be sure to read the “Safety precautions” section in this docu- ment to learn about important safety issues. •After reading this document, keep it in a convenient place for future reference. Copyright Information © 2003 by Toshiba Corporation. All rights reserved. Under the copyright laws, this manual cannot be reproduced in any form without the prior written permission of Toshiba. No patent liability is assumed, with re- spect to the use of the information contained herein. Toshiba Pocket PC e750/e755 User’s Guide First edition March 2003 Trademarks Microsoft, ActiveSync, Outlook, Pocket Outlook, Windows, Windows CE, and the Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Microsoft products are licensed to OEMs by Microsoft Licensing, Inc., a wholly owned subsidiary of Microsoft Corporation. Safety precautions •Please carefully read “Safety precautions” before using the Toshiba Pocket PC and ensure that you are aware of correct handling proce- dures. •The precautions provide essential information for the protection of the user and others from possible injury and property damage. They also provide information on the safe handling of this product. •Please check that you fully understand the definition of the following messages (signs and graphical symbols) before reading the text, and always follow the instructions provided. 3 Safety instructions Please carefully read “Safety precautions” before using the Toshiba Pocket PC and ensure that you are aware of correct handling proce- dures. The precautions provide essential information for the protection of the user and others from possible injury and property damage. They also provide information on the safe handling of this product. Please check that you fully understand the definition of the following messages (signs and graphical symbols) before reading the text, and always follow the instructions provided. There are two categories of Safety Instructions included in this manual: Product Warnings, (i.e., what must never be done to assure avoiding those hazards that could cause bodily injury or property damage); and User Directions (i.e., what must always be done to assure the safe use of your Pocket PC). The Safety Instructions contained in this manual have been categorized in accordance with the seriousness of the potential hazards through the use of Signal Words. Those Signal Words, and their intended meanings, are as follows: Signal WordMeaning DANGERIndicates that a failure to observe the Safety Instructions could result in serious bodily in- jury. CAUTIONIndicates that a failure to observe the Safety Instructions could result in minor bodily injury or property damage. WARNINGDesignates important information that relates to the safe use of your Pocket PC. Your Pocket PC produces low levels of RF energy due to the generation of digital timing pulses by its clock oscillator circuits. Your Pocket PC has been equipped with internal shielding to minimize any stray emissions of RF energy. Airlines may nevertheless prohibit the on-board use of all portable PCs (and all other portable electronic devices that could potentially emit stray RF energy), particularly during take-offs and landings, to prevent any pos- sible interference with the reception of signals by airborne electronic navi- gational devices. WARNING Always request and obtain prior consent and approval of an authorized airline representative before using your Pocket PC aboard an aircraft. Always follow the instructions of the airline representative whenever us- ing your Pocket PC aboard an aircraft, to prevent any possible interfer- ence with airborne electronic equipment. 4 WARNING Certain locations, such as hospitals, may restrict the use of Pocket PCs and other devices that emit low-level RF energy. Always comply was posted prohibitions of the use of RF-emitting de- vices, such as in hospitals. Failure to follow such directives could result in the interference with medical equipment and/or devices. Never come closer than 16cm (6inches) to a person with a heart pace- maker implant when using this Pocket PC in combination with a mobile cellular telephone. Failure to do so could result in interference with the function of the pacemaker. WARNING Never use a Pocket PC while driving an automobile or any other moving vehicle. Always pull out of traffic and come to a stop in a legally permis- sible and safe location before using your Pocket PC. Failure to do so could result in serious bodily injury in a traffic accident. Never use your Pocket PC while walking. Usage while walking could result in bodily injury caused by inattention to automobile traffic or other pedestrian hazards. WARNING Never allow metallic objects, such as staples and paper clips, to enter inside your Pocket PC. Metallic objects, such as staples and paper clips, if allowed to enter your Pocket PC, could cause the generation of excess heat or fire. Never connect terminals (metal parts) to metallic objects (such as wires). Connecting terminals to metal objects could cause excessive heat or fire. Always immediately turn the battery switch to the “off” position and dis- connect the AC Adaptor from the power outlet in the event the Pocket PC emits an unusual odor or sound or generates smoke. WARNING Never use or store your Pocket PC in the following locations: Anywhere it may be exposed to water, such as a bathroom or sauna; In conditions of high humidity, such as in the rain or fog; Where your Pocket PC will be exposed to high temperatures, such as near a fire or equipment that emits high temperatures; In direct sunlight; or In a sealed automobile left in the sun and subject…

Text truncated - open the document above for the full version.

BA L U N LN A UP/ D OW N Q U A D RA T U RE C O N V ER TE R BY D E VI DE AM P P O WER F I LTER BA N D P A S S SW IT C H T/ R F LTER LO W P A S S AM P RX S Y NT HE S I Z E R I S L3084 VCO F I LTER LO O P CL O C K 44 MH Z PR EA M P TR A N S M I T BA SEB A N D P R O C ESSO R/ M A C I S L3871 I S L3984 T / R S W I T CH DIR E C T U P / D OW N CO N VER T E R I S L3684 TX A D C TX I TX Q BB A G C RX I RX Q DAT A CL O C K LA T C H RX RF GA I N H I GH/ L O W HOS T 1 2 8 K x 16 SR A M 24L C08 EE PRO M CRYS T AL 3 2 . 768 K H Z 3.3V 3.3V I/ O C O R E LD O DC -D C 5V to 3. 3V 1.8V 3.3V LD O LD O 3.3V 2.8V2.8V DF12(3.0)-50DP-0.5V(81) CF CONNECTOR Bypass PA TWO A N TEN N A Ma i n F I LTER LO W P A S S PA3274U-1ETC function diagram 55 44 33 22 11 D D C C B B A A Buffer JTAG PDA System Block Diagram Mic VGA OUT Earphone 802.11b & BTConnector20pin SD Slot MobileSDRAM64MB SPK PCMCIA TouchPanel IRDA IRDA USB Host JTAG W3O LED Jack GrayScale I2C LCD WM9705 USB I/F Keyboard Mobile IOC2 ACLink Keyboard HoldKey NAND FlashMemory32MB USB A W100 LCDController CF Slot A 3.8" TFTLCM System Bus Connector Microphone UART CPUXscale USB Client CradleConnector26pin Page 10 Flash ROM32MB Page 3Page 4Page 4 Page 5 Page 6 Page 6 Page 12 Page 7 Page 10 Page 6 Page 10 Page 5 Page 9 Page 8 Page 8 Page 3 Page 10Page 12 EthernetDebug port Page 1. System Block Daigram 0.5 e750,e755 Actual C 215 Tuesday, January 21, 2003 COMPAL ELECTRONICS, INC. TitleSize Document Number Rev Date: Sheet of

From: Eva Kao [[email protected]] Sent: Monday, February 10, 2003 9:56 PM To: Mike Kuo Cc: Vincent Su Subject: Re: Compal Electronics, Inc., FCC ID:GKRPA3275U-1ETC, AN03T2579 Hi Mike, Attached please find the revised Internal photos of Compal PDA built-in WLAN. Best Regards, Eva ----- Original Message ----- From: Eva Kao To: Mike Kuo Cc: Helen Zhao ; Vincent Su Sent: Friday, February 07, 2003 10:35 AM Subject: RE: Compal Electronics, Inc., FCC ID:GKRPA3275U-1ETC, AN03T2579 Hi Mike, Answer1#: It's testing. Answer2#: There didn't install two RF Modules inside one PDA. Just one RF module connector provide. Please find the attached is revised Internal Photos. Answer3#: No this issued. Answer4#: Compal decides to delete the cancel the high capacity battery in the user manual. So, just use the battery I sent to you to carry out the SAR test. Please see the attached is revised user manual. Answer5#: No any transmitter will be used on these slots. Best Regards, Eva -----Original Message----- From: Mike Kuo [mailto:[email protected]] Sent: Friday, January 31, 2003 6:39 AM To: '[email protected]' Cc: Shirley Kang; Helen Zhao Subject: FW: Compal Electronics, Inc., FCC ID:GKRPA3275U-1ETC, AN03T2579 -----Original Message----- From: CERTADM Sent: Thursday, January 30, 2003 2:36 PM To: '[email protected]' Subject: Compal Electronics, Inc., FCC ID:GKRPA3275U-1ETC, AN03T2579 Notice_content ------------- Question #1: The output power is above low threshold which require SAR evaluation as portable device. Please provide SAR test report. Question #2: It appears from the internal photos, the Bluetooth module is also installed in this PDA with WLAN module. The transmitting antennas between WLAN and Bluetooth is less 20cm away. Please provide additional test data to address co-location issue. Question #3: If this device is going to equip with WLAN and Bluetooth transmitter module, composite device filing is required due to two different product category ( FHSS and DTS ). Question #4: There two batteries mentioned in the user manual, please provide additional radiated spurious emission test data with second battery. SAR evaluation shall be done with two batteries as well. Question #5: This device is equipped with SD /CD card slot, will any transmitter will be used on these slots ? SAR review is pending upon receiving of SAR test report. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

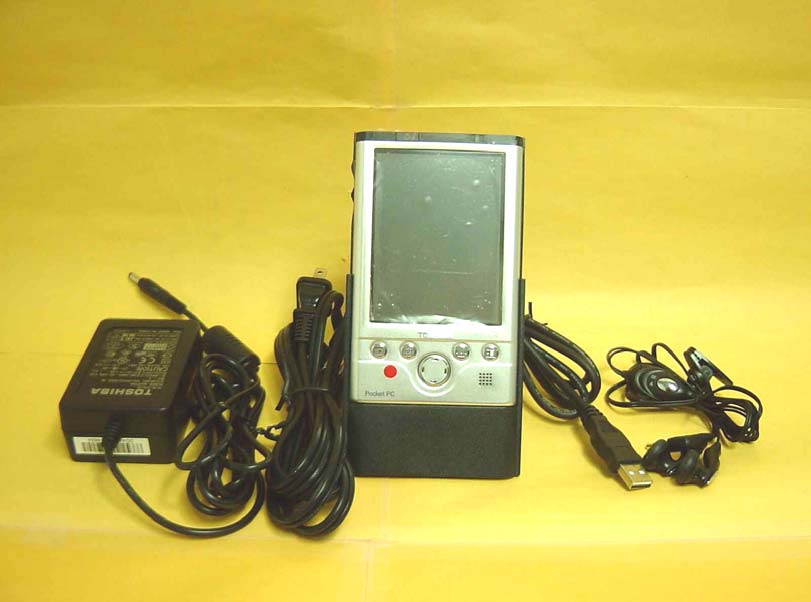

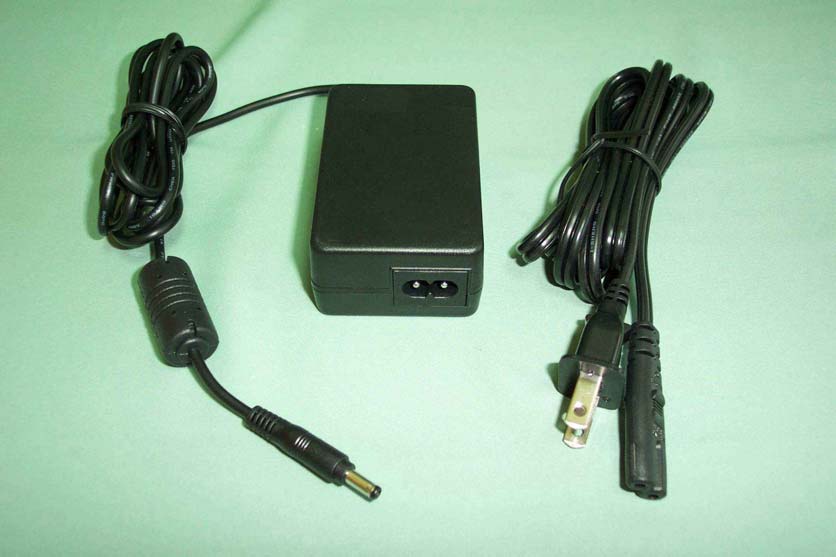

C&C Laboratory Co. Ltd. REPORT NO: 030006-RF-ID ID: GKRPA3274U-1ETC DATE: January 21, 2003 All of EUT Front View of PDA C&C Laboratory Co. Ltd. REPORT NO: 030006-RF-ID ID: GKRPA3274U-1ETC DATE: January 21, 2003 Back View of PDA Lift View of PDA C&C Laboratory Co. Ltd. REPORT NO: 030006-RF-ID ID: GKRPA3274U-1ETC DATE: January 21, 2003 Right View of PDA Top View of PDA C&C Laboratory Co. Ltd. REPORT NO: 030006-RF-ID ID: GKRPA3274U-1ETC DATE: January 21, 2003 Bottom View of PDA Front View of Docking C&C Laboratory Co. Ltd. REPORT NO: 030006-RF-ID ID: GKRPA3274U-1ETC DATE: January 21, 2003 Back View of Docking Front View of Adaptor C&C Laboratory Co. Ltd. REPORT NO: 030006-RF-ID ID: GKRPA3274U-1ETC DATE: January 21, 2003 Back View of Adaptor View of EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: Compal Electronics, Inc. FCC ID: GKRPA3274U-1ETC FCC ID: GKRPA3274U-1ETC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

C&C Laboratory Co. Ltd. REPORT NO: 030006-RF-ID ID: GKRPA3274U-1ETC DATE: January 21, 2003 Internal of PDA without WLAN module Internal of PDA with WLAN module Internal of PDA-3 C&C Laboratory Co. Ltd. REPORT NO: 030006-RF-ID ID: GKRPA3274U-1ETC DATE: January 21, 2003 Internal of PDA (Main Board) C&C Laboratory Co. Ltd. REPORT NO: 030006-RF-ID ID: GKRPA3274U-1ETC DATE: January 21, 2003 Internal of PDA (Main Board) Front of RF Module and Antenna C&C Laboratory Co. Ltd. REPORT NO: 030006-RF-ID ID: GKRPA3274U-1ETC DATE: January 21, 2003 Open of RF Module Back of RF Module C&C Laboratory Co. Ltd. REPORT NO: 030006-RF-ID ID: GKRPA3274U-1ETC DATE: January 21, 2003 Back of RF Module and Antenna Back of Docking

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for PDA Built-in 2.4 GHz Wireless Module Model: e750, e755 FCC ID: GKRPA3274U-1ETC February 13, 2003 REPORT NO: 03T1800-1 Prepared for Compal Electronics, Inc. No. 581, Juikuang Road Neihu, Taipei (114), Taiwan, R. O. C. Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 REPORT NO: 03T1800-1 DATE: February 13, 2003 FCC ID: GKRPA3274U-1ETC COMPLIANCE CERTIFICATION SERVICES Page 2 of 2 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Dates of Tests: February 12 -13, 2003 Report No: 03T1800-1 APPLICANT: Compal Electronics, Inc. No. 581, Juikuang Road Neihu, Taipei (114), Taiwan, R. O. C. MODEL: e750, e755 FCC ID: GKRPA3274U-1ETC DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: Direct Sequence Spread Spectrum Operating mode: Maximum continuous output Tx Frequency: 2412 ~ 2462 MHz Max. O/P Power: (Conducted) 17.75 dBm (2412 MHz) Max. SAR (1g): 0.565 mW/g (2412 MHz) Application type: Certification FCC Rule part(s): § 15.247 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Steve Cheng EMC Engineering Manager REPORT NO: 03T1800-1 DATE: February 13, 2003 FCC ID: GKRPA3274U-1ETC COMPLIANCE CERTIFICATION SERVICES Page 3 of 3 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. EUT DESCRIPTION........................................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC.................5 3. DOSIMETRIC ASSESSMENT SYSTEM........................................................................5 3.1. MEASUREMENT SYSTEM DIAGRAM.......................................................................................................6 3.2. SYSTEM COMPONENTS..............................................................................................................................7 4. EVALUATION PROCEDURE..........................................................................................9 5. MEASUREMENT UNCERTAINTY................................................................................12 6. EXPOSURE LIMIT.........................................................................................................13 7. MEASUREMENT RESULTS.........................................................................................14 7.1. SYSTEM VALIDATION.................................................................................................................................14 7.2. TEST LIQUID CONFIRMATION.................................................................................................................15 7.3. EUT TUNE-UP PROCEDURE....................................................................................................................16 7.4. EUT SETUP PHOTOS.................................................................................................................................17 7.5. SAR MEASUREMENT RESULTS..............................................................................................................19 8. EUT PHOTOS................................................................................................................20 9. EQUIPMENTS LIST & CALIBRATION STATUS.........................................................21 10. REFERENCES...............................................................................................................22 11. ATTACHMENT..............................................................................................................23 REPORT NO: 03T1800-1 DATE: February 13, 2003 FCC ID: GKRPA3274U-1ETC COMPLIANCE CERTIFICATION SERVICES Page 4 of 4 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. EUT DESCRIPTION APPLICANT: Compal Electronics, Inc. No. 581, Juikuang Road Neihu, Taipei (114), Taiwan, R. O. C. MODEL: e750, e755 FCC ID: GKRPA3274U-1ETC DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: Direct Sequence Spread Spectrum Operating mode: Maximum continuous output Tx Frequency: 2412 ~ 2462 MHz Max. O/P Power (Conducted): 17.75 dBm (2412 MHz) Max. SAR (1g): 0.565 mW/g (2412 MHz) Application type: Certification FCC Rule part(s): § 15.247 Wireless Module: Manufactured “Wistron NeWeb Corporation”, type “3274U-1ETC” Antenna: Manufactured “Wistron NeWeb Corporation”, type/part no. “KUC”, Gain 2.0 dBi 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless…

Text truncated - open the document above for the full version.

Date/Time: 02/12/03 13:31:36 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.565mW.da4 EUT Configuration 1 SAR in dB -23 -20.7 -18.4 -16.1 -13.8 -11.5 -9.18 -6.89 -4.59 -2.3 0 Date/Time: 02/12/03 13:31:36 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.565mW.da4 DUT: Compal Type & Serial Number: e750 Program: EUT Configuration 1; Low channel, 2412MHz Communication System: DSSS; Frequency: 2412 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 1.9736 mho/m, ε = 51.45, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1578; ConvF(4.1, 4.1, 4.1); Calibrated: 2/22/2002 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/26/2002 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 3.86 V/m Peak SAR = 1.78 mW/g SAR(1 g) = 0.565 mW/g; SAR(10 g) = 0.241 mW/g Power Drift = -0.06 dB Area Scan (11x16x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -23 -20.7 -18.4 -16.1 -13.8 -11.5 -9.18 -6.89 -4.59 -2.3 0 Date/Time: 02/12/03 14:46:10 Test Laboratory: Compliance Certification Services File Name: 2M-CH_0.518mW.da4 DUT: Compal Type & Serial Number: e750 Program: EUT Configuration 1; Middle channel, 2437MHz Communication System: DSSS; Frequency: 2437 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 1.9736 mho/m, ε = 51.45, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1578; ConvF(4.1, 4.1, 4.1); Calibrated: 2/22/2002 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/26/2002 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 3.39 V/m Peak SAR = 1.63 mW/g SAR(1 g) = 0.518 mW/g; SAR(10 g) = 0.223 mW/g Power Drift = -0.08 dB Area Scan (11x16x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -20.6 -18.3 -16 -13.7 -11.4 -9.15 -6.86 -4.57 -2.29 0 Date/Time: 02/12/03 15:24:54 Test Laboratory: Compliance Certification Services File Name: 3H-CH_0.499mW.da4 DUT: Compal Type & Serial Number: e750 Program: EUT Configuration 1; High channel, 2462MHz Communication System: DSSS; Frequency: 2462 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 1.9736 mho/m, ε = 51.45, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1578; ConvF(4.1, 4.1, 4.1); Calibrated: 2/22/2002 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/26/2002 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 3.19 V/m Peak SAR = 1.59 mW/g SAR(1 g) = 0.499 mW/g; SAR(10 g) = 0.213 mW/g Power Drift = 0.06 dB Area Scan (11x16x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -22.5 -20.2 -18 -15.7 -13.5 -11.2 -8.99 -6.74 -4.5 -2.25 0 Date/Time: 02/12/03 16:28:02 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.0231mW.da4 EUT Configuration 2 SAR in dB -24.1 -21.5 -18.8 -16.1 -13.4 -10.7 -8.05 -5.36 -2.68 0 Date/Time: 02/12/03 16:28:02 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.0231mW.da4 DUT: Compal Type & Serial Number: e750 Program: EUT Configuration 2; Low channel, 2412MHz Communication System: DSSS; Frequency: 2412 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 1.9736 mho/m, ε = 51.45, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1578; ConvF(4.1, 4.1, 4.1); Calibrated: 2/22/2002 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/26/2002 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 1.87 V/m Peak SAR = 0.0579 mW/g SAR(1 g) = 0.0231 mW/g; SAR(10 g) = 0.0115 mW/g Power Drift = 0.07 dB Area Scan (9x16x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -24.1 -21.5 -18.8 -16.1 -13.4 -10.7 -8.05 -5.36 -2.68 0 Date/Time: 02/12/03 17:05:52 Test Laboratory: Compliance Certification Services File Name: 2M-CH_0.0206mW.da4 DUT: Compal Type & Serial Number: e750 Program: EUT Configuration 2; Middle channel, 2437MHz Communication System: DSSS; Frequency: 2437 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 1.9736 mho/m, ε = 51.45, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1578; ConvF(4.1, 4.1, 4.1); Calibrated: 2/22/2002 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/26/2002 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 1.61 V/m Peak SAR = 0.0553 mW/g SAR(1 g) = 0.0206 mW/g; SAR(10 g) = 0.0102 mW/g Power Drift = -0.05 dB Area Scan (11x17x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -20.5 -18.2 -16 -13.7 -11.4 -9.12 -6.84 -4.56 -2.28 0 Date/Time: 02/12/03 17:45:08 Test Laboratory: Compliance Certification Services File Name: 3H-CH_0.0153mW.da4 DUT: Compal Type & Serial Number: e750 Program: EUT Configuration 2; High channel, 2462MHz Communication System: DSSS; Frequency: 2462 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 1.9736 mho/m, ε = 51.45, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1578; ConvF(4.1, 4.1, 4.1); Calibrated: 2/22/2002 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/26/2002 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 1.27 V/m Peak SAR = 0.0401 mW/g SAR(1 g) = 0.0153 mW/g; SAR(10 g) = 0.00768 mW/g Power Drift = -0.12 dB Area Scan (11x17x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -22.4 -19.9 -17.4 -14.9 -12.4 -9.94 -7.46 -4.97 -2.49 0 Date/Time: 02/12/03 21:03:10 Test Laboratory: Compliance Certificatio…

Text truncated - open the document above for the full version.

Date/Time: 02/12/03 09:41:08 Test Laboratory: Compliance Certification Services File Name: D2450V2_021203_14.1mW.da4 DUT: Dipole Type & Serial Number: D2450V2 SN 706 Program: System Validation Communication System: CW; Frequency: 2450 MHz; Duty Cycle: 1:1 Medium: Head 2450 MHz ( σ = 1.8768 mho/m, ε = 39.72, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1578; ConvF(4.5, 4.5, 4.5); Calibrated: 2/22/2002 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/26/2002 - Phantom: SAM 1 - TP: 1185 - Software: DASY4, V4.0 Build 51 Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 87.6 V/m Peak SAR = 38.6 mW/g SAR(1 g) = 14.1 mW/g; SAR(10 g) = 5.91 mW/g Power Drift = -0.02 dB SAR in dB -23.7 -21.3 -18.9 -16.6 -14.2 -11.8 -9.46 -7.1 -4.73 -2.37 0

C&C Laboratory Co. Ltd. REPORT NO: 030006-RF-ID ID: GKRPA3274U-1ETC DATE: January 21, 2003 Page 1 of 59 Rev. 00 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF PDA built-in 2.4GHz Wireless module MODEL No.: e750, e755 FCC ID: GKRPA3274U-1ETC REPORT NO: 030006-RF-ID ISSUE DATE: Jan. 21, 2003 Prepared for Compal Electronics, Inc. NO. 581, Juikuang Rd., Neihu, Taipei (114) Taiwan, R.O.C Prepared by C&C LABORATORY, CO., LTD. #B1, 1 st Fl., Universal Center, No. 183, Sec. 1, Tatung Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. TEL: (02)8642-2071~3 FAX: (02)8642-2256 C&C Laboratory Co. Ltd. REPORT NO: 030006-RF-ID ID: GKRPA3274U-1ETC DATE: January 21, 2003 Page 2 Rev. 00 VERIFICATION OF COMPLIANCE Applicant: Compal Electronics, Inc. NO. 581, Juikuang Rd., Neihu, Taipei (114)Taiwan, R.O.C Product Description: PDA built-in 2.4GHz Wireless module Model No.: e750, e755 Model Difference The models are same except the model designed Serial Number: N/A File Number: 030006-RF-ID Date of test: January 15, 2003 ~January 21, 2003 We hereby certify that: The above equipment was tested by C&C Laboratory Co., Ltd. The test data , data evaluation , test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (1992) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247 The test results of this report relate only to the tested sample identified in this report. Approved By Vincent Su / Vice Manager C&C Laboratory Co., Ltd.. C&C Laboratory Co. Ltd. REPORT NO: 030006-RF-ID ID: GKRPA3274U-1ETC DATE: January 21, 2003 Page 3 Rev. 00 Table of Contents 1. GENERAL INFORMATION ........................................................................................... 5 1.1 P RODUCT D ESCRIPTION .....................................................................................................................5 1.2 RELATED SUBMITTAL(S) / GRANT (S) ...............................................................................................5 1.3 T EST M ETHODOLOGY ........................................................................................................................5 1.4 T EST F ACILITY ...................................................................................................................................5 1.5 S PECIAL A CCESSORIES ......................................................................................................................5 1.6 E QUIPMENT M ODIFICATIONS .............................................................................................................5 2. SYSTEM TEST CONFIGURATION .............................................................................. 6 2.1 EUT C ONFIGURATION .......................................................................................................................6 2.2 EUT EXERCISE..................................................................................................................................6 2.3 T EST P ROCEDURE ..............................................................................................................................6 2.4 C ONFIGURATION OF T ESTED S YSTEM ...............................................................................................7 3. SUMMARY OF TEST RESULTS ................................................................................... 8 4. DESCRIPTION OF TEST MODES ................................................................................ 8 5. SPURIOUS EMISSION TEST ......................................................................................... 9 5.1 S TANDARD A PPLICABLE ....................................................................................................................9 5.2 EUT SETUP........................................................................................................................................9 5.3 M EASUREMENT P ROCEDURE .............................................................................................................9 5.4 T EST SET-UP (B LOCK D IAGRAM OF C ONFIGURATION ) .................................................................10 5.5 M EASUREMENT E QUIPMENT U SED :.................................................................................................11 5.6 M EASUREMENT R ESULT ..................................................................................................................11 6. AC POWER LINE CONDUCTED EMISSION TEST ................................................ 42 6.1 S TANDARD A PPLICABLE ...............................................................................................................…
