GKRPPCE830WPocket PC With 802.11b and Bluetooth Transmitters

TOSHIBA Pocket PC e830 TOSHIBA Pocket PC e830 User's Manual Pocket PC e830 UG.book Page i Monday, September 22, 2003 10:57 AM iiUser’s Manual Pocket PC e830 UG.book Page ii Monday, September 22, 2003 10:57 AM User’s Manualiii Safety instructions All safety instructions must be read carefully and must be fully understood, before attempting to use your Toshiba Pocket PC. This manual contains the safety instructions that must be observed in order to avoid potential hazards that could result in personal injuries or could damage your computer. The safety instructions have been classified according to the seriousness of the Risk, as follows: WARNING Always request and obtain prior consent and approval of an authorized airline representative before using your Pocket PC aboard an aircraft. Always follow the instructions of the airline representative whenever using your Pocket PC aboard an aircraft, to prevent any possible interference with airborne electronic equipment. Your Pocket PC produces low levels of RF energy due to the generation of digital timing pulses by its clock oscillator circuits. Your Pocket PC has been equipped with internal shielding to minimize any stray emissions of RF energy. Airlines may nevertheless prohibit the on-board use of all portable PCs (and all other portable electronic devices that could potentially emit stray RF energy), particularly during take-offs and landings, to prevent any possible interference with the reception of signals by airborne electronic navigational devices. WARNING Certain locations, such as hospitals, may restrict the use of Pocket PCs and other devices that emit low-level RF energy. Always comply was posted prohibitions of the use of RF-emitting devices, such as in hospitals. Failure to follow such directives could result in the interference with medical equipment and/or devices. Signal WordMeaning DANGERIndicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNINGIndicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTIONindicates a hazardous situation, which will or can cause minor personal injury or property damage if the safety instruction is ignored. NOTEProvides you with important but not hazard- related information. Pocket PC e830 UG.book Page iii Monday, September 22, 2003 10:57 AM ivUser’s Manual Never come closer than 16 cm (6 inches) to a person with a heart pacemaker implant when using this Pocket PC in combination with a mobile cellular telephone. Failure to do so could result in interference with the function of the pacemaker. WARNING Never use a Pocket PC while driving an automobile or any other moving vehicle. Always pull out of traffic and come to a stop in a legally permissible and safe location before using your Pocket PC. Failure to do so could result in serious bodily injury in a traffic accident. Never use your Pocket PC while walking. Usage while walking could result in bodily injury caused by inattention to automobile traffic or other pedestrian hazards. WARNING Never allow metallic objects, such as staples and paper clips, to enter inside your Pocket PC. Metallic objects, such as staples and paper clips, if allowed to enter your Pocket PC, could cause the generation of excess heat or fire. Never connect terminals (metal parts) to metallic objects (such as wires). Connecting terminals to metal objects could cause excessive heat or fire. Always immediately turn the battery switch to the “off” position and disconnect the AC Adaptor from the power outlet in the event the Pocket PC emits an unusual odor or sound or generates smoke. WARNING Never use or store your Pocket PC in the following locations: Anywhere it may be exposed to water, such as a bathroom or sauna; In conditions of high humidity, such as in the rain or fog; Where your Pocket PC will be exposed to high temperatures, such as near a fire or equipment that emits high temperatures; In direct sunlight; or In a sealed automobile left in the sun and subject to high temperatures. Never drop your Pocket PC or subject it to severe shock. Dropping your Pocket PC or subjecting it to severe shock could cause the battery to leak, ignite and/or rupture. Always immediately remove your Pocket PC a from the vicinity of any open flame in the event the battery leaks liquid or emits an unusual odor. Continued use of your Pocket PC under either of these conditions could cause ignition (i.e., fire) of the leaked battery liquid, or rupture. Never touch any fluid that might leak from the battery. Such liquid when in contact with the eyes or skin, could cause injury to the skin or eyes. Should the liquid come into contact with the eyes, irrigate the eyes thoroughly with clean water and immediately seek medical attention. In the event the liquid comes into contact with the skin or clothing, wash it away immediately with clean water. Pocket PC e830 UG.book Page iv Monday, September 22, 2003 10:57 AM User’s Manualv Never attempt to disassemble, repair or make any modification to your Pocket PC. Disassembly, modification or any attempt at repair could cause bodily injury or property damage, as well as damage to the Pocket PC itself. Failure to follow the above directions concerning use and storage could result in damage to your Pocket PC or bodily injury and property damage due to battery liquid leakage, fire, or rupture. CAUTION Never raise the sound volume level to high when using your Pocket PC with earphones. An excessive sound volume level could cause damage to your hearing. Never touch the liquid that might leak from a broken liquid crystal display. Contact with this liquid could cause a skin rash. If the crystal display liquid should come into contact with the skin or clothing, wash it immediately with clean water. Never allow infants or small children within reach of your Pocket PC. Infants or small children could injure themselves if allowed access to your Pocket PC. WAR…

Text truncated - open the document above for the full version.

2-16User’s Manual Basic Skills 3. Insert the card with its contact surface (metal contact surface) facing the back of the Toshiba Pocket PC e830. 4. Press down on the card until it clicks into place. To remove a card: 1. Turn off the power. 2. Lightly press down the card until a clicking sound is heard. The card will pop out slightly from the slot. 3. Pull the card straight up to remove. Pocket PC e830 UG.book Page 16 Monday, September 22, 2003 10:57 AM User’s Manual2-17 Basic Skills Connecting to a Computer Before connecting your Toshiba Pocket PC e830 to a computer, check the following. ■ActiveSync has been installed on your computer. (See Chapter 3.) ■The position of connecting port on the computer may differ according to the computer type. To Connect Using the Supplied Cradle: 1. Connect the USB cradle to your computer as shown below. 2. Insert the Pocket PC into the cradle. Pocket PC e830 UG.book Page 17 Monday, September 22, 2003 10:57 AM 2-18User’s Manual Basic Skills To connect directly using a connection cable: Connect the Toshiba Pocket PC e830 directly to your computer using an optional Serial Client cable. When the Toshiba Pocket PC e830 is connected to another device via a USB Sync Cable, do not plug the AC adapter directly into the Pocket PC as this may lead to interference. Instead, plug the AC adapter into the port on the USB Client cable connector. Pocket PC e830 UG.book Page 18 Monday, September 22, 2003 10:57 AM User’s Manual2-19 Basic Skills The following are some of the status icons you may see. Program You can switch from one program to another by selecting it from the menu. (You can customize which programs you see on this menu. For information, see “Adjusting Settings” later in this chapter.) To access some programs, you’ll need to tap , Programs, and then the program name. You can also switch to some programs by pressing a program button. Your device has one or more program buttons located on the front or side of the device. The icons on the buttons identify the programs they switch to. Status IconMeaning Turns all sounds on and off Main battery is charging Main battery is low Main battery is very low Main battery is full Connection is active Connection is inactive Synchronization is occurring Notification that one or more instant messages were received Notification that one or more email messages were received Traffic Monitoring Utility (W-LAN model only) If more notification icons need to be displayed than there is room to display them, the Notification icon, , will display. Tap the icon to view all notification icons. Some programs have abbreviated labels for check boxes and drop-down menus. To see the full spelling of an abbreviated label, tap and hold the stylus on the label. Drag the stylus off the label so that the command is not carried out. Pocket PC e830 UG.book Page 19 Monday, September 22, 2003 10:57 AM 2-20User’s Manual Basic Skills The following table contains a partial list of programs that are on your device. Look on the Toshiba Pocket PC Companion CD for additional programs that you can install onto your device. Customize Your Toshiba Pocket PC You can customize your device by adjusting device settings and installing additional software. IconProgramDescription ActiveSyncSynchronize information between your device and computer. CalendarKeep track of your appointments and create meeting requests. ContactsKeep track of your friends and colleagues. InboxSend and receive email messages. Pocket Internet Explorer Browse Web and WAP sites, and download new programs and files from the Internet. NotesCreate handwritten or typed notes, drawings, and recordings. TasksKeep track of your tasks. Pocket Excel Create new workbooks or view and edit Excel workbooks created on your computer. MSN MessengerSend and receive instant messages with your MSN Messenger contacts. Pocket Word Create new documents or view and edit Word documents created on your computer. A next to a file name indicates the file is saved on a storage card. You can move files in File Explorer by tapping and holding the item you want to move, and then tapping Cut or Copy and Paste on the pop-up menu. Pocket PC e830 UG.book Page 20 Monday, September 22, 2003 10:57 AM User’s Manual2-21 Basic Skills Adjusting Settings You can adjust device settings to suit the way you work. To see available options, tap , Settings, then the Personal or System tab located at the bottom of the screen. You might want to adjust the following: ■Clock, to change the time or to set alarms ■Menus, to customize what appears on the menu, and to enable a pop-up menu from New ■Owner Information, to enter your contact information ■Password, to limit access to your device ■Power, to maximize battery life ■Today, to customize the look and the information that is displayed on the Today screen Adding or Removing Programs Programs added to your device at the factory are stored in ROM (read-only memory). You cannot remove this software, and you’ll never accidentally lose ROM contents. ROM programs can be updated using special installation programs with a *.xip extension. All other programs and data files added to your device after factory installation are stored in RAM (random access memory). You can install any program created for your device, as long as your device has enough memory. The most popular place to find software for your device is on the Pocket PC Web site (http://www.microsoft.com/mobile/ pocketpc). To add programs using ActiveSync You’ll need to install the appropriate software for your device on your desktop computer before installing it on your device. 1. Determine your device and processor type so that you know which version of the software to install. Tap and then Settings. On the System tab, tap About. In the Version tab, make a note of the information in Processor. 2. Download the program to your computer (or insert the CD or disk that contains the program into your computer). You may see a single *.xip, *.exe, or…

Text truncated - open the document above for the full version.

COMPAL ELECTRONIC, INC. ADDESS: 581, JUIKUANG ROAD, NEIHU, TAIPEI, (114) TAIWAN, R. O.C CABLE ADDRESS: “CALCOMP” TAIPEI TEL: +886-2-8797-8588 FAX: +886-2-2658-4117 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: GKRPPCE830W To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until September 15, 2004. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Name: Jerry Chien Position: Design Manager Compal Electronics, Inc. 2004/7/1

Mike Kuo 7/28/2004 Hi Mike, Please refer to the following for our replies. Thank you for your advice. Moreover, I confirm the following 1. Issue date: July 28, 2004 2. Short-term confidentiality: until Sept. 15, 2004 Best regards, Ting ----- Âà§eªÌ ting/ccsemc ©ó 2004/07/21 01:30 PM ----- Hi Ting : Please confirm in writing when this grant can be issued ? You have requested for short-term confidential till Sept. 15, 2004. I acknowledged this date for short term confidential. Best Regards Mike Kuo -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Thursday, July 15, 2004 3:52 PM To: [email protected] Subject: Compal Electronics, Inc., FCC ID: GKRPPCE830W, Assessment NO.: AN04T4037, Notice#1 SAR : Question #1: Based upon EMC test report and theory of operation, the WLAN portion is for 802.11b radio only. However, in the page 2 of test report, it indicates 802.11 b/g radio. Ans #1: This is a typo and Page 2 of the test report is corrected. Please refer to the attached. Question #2: Page 18 of SAR test report, during BT and WLAN colocation tests, the WLAN was tuned to mid- channel which is not the highest SAR for dominant transmitter. Based FCC co-located RF exposure evaluation guideline, then there are multiple transmitter co-located in one device, the co-location tests shall be done by activating the dominant transmitter to the highest SAR value and turn on the non-dominant transmitter ( BT ) . Please submit SAR test plots with WLAN tuned to low channel with BT tuned to middle channel and activated both transmitters. Ans #2: Correction is made. Please refer to the revised test report as attached. Mike Kuo <[email protected]> 2004/07/16 07:12 AM ¦¬¥ó¤H¡G "CCS-Taiwan, Wklo (E-mail)" <[email protected]>, "CCS-Taiwan, Ting (E-mail)" <[email protected]> °Æ¥»§Û°e¡G "Lai, Harris (E-mail)" <[email protected]> ¥D¦®¡G FW: Compal Electronics, Inc., FCC ID: GKRPPCE830W, Assessment NO .: AN04T4037, Notice#1 Question #3: Page 2-10 of user manual mentioned optional high capacity battery pack which was not investigated during SAR evaluation for body worn operation. Please provide additional body worn SAR evaluation at the highest measured configuration with high capacity battery. Ans #3: We did perform a pre-liminary test and found the main battery to be the worst case. A note is added to Page 4 of the test report. Please refer to it. Question #4: Based upon 4-1 of user manual, the manual indicates that this PDA can be equipped with Bluetooth only. Please confirm that the FCC ID:GKRPPCE830W can only be affixed on PDA with WLAN and Bluetooth . PDA with Bluetooth only can not use this FCC ID number. Ans #4: Yes, the FCC ID:GKRPPCE830W is affixed only for PDA with WLAN and Bluetooth. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 7/28/2004

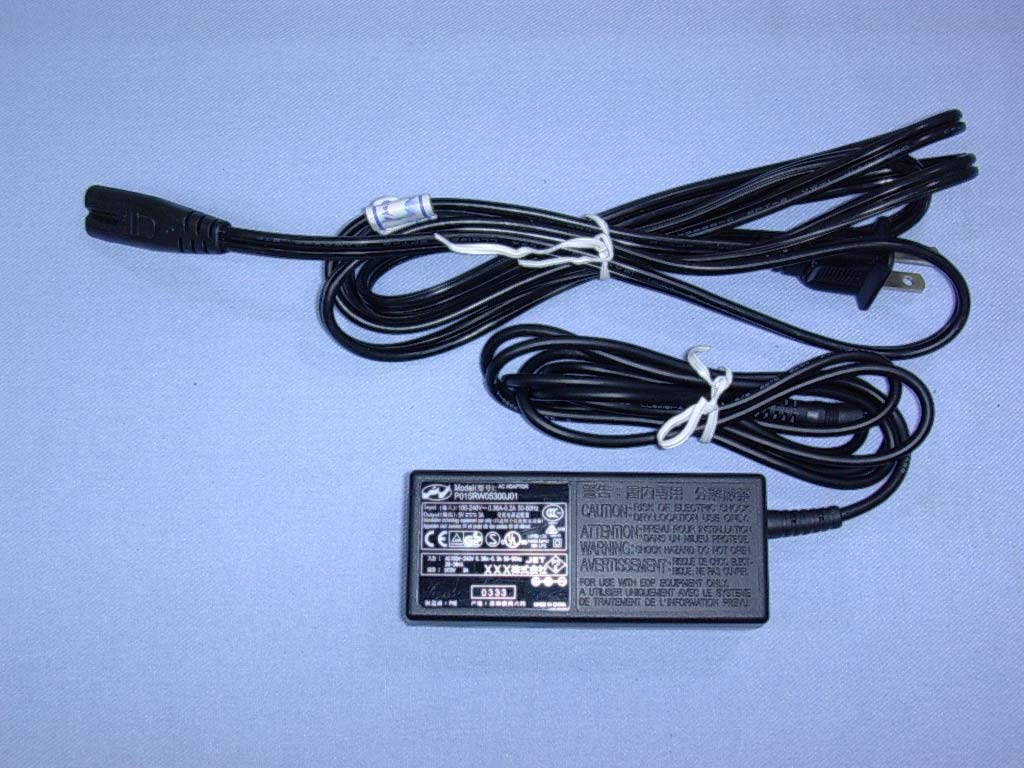

Compliance Certification Services Inc. Report No: 40604205 Date of Issue: June 30, 2004 Page 1 of 11 EXTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: 40604205 Date of Issue: June 30, 2004 Page 2 Compliance Certification Services Inc. Report No: 40604205 Date of Issue: June 30, 2004 Page 3 Compliance Certification Services Inc. Report No: 40604205 Date of Issue: June 30, 2004 Page 4

8 8 7 7 6 6 5 5 4 4 3 3 2 2 1 1 EE DD C C BB AA REVISIONS REV DESCRIPTION SIGNATURE AND DATE CHKENGR SHEET OF REMARK Compal Electronics, Inc. TITLE DATE DRN BY. CHK BY. PRJ ENGP ENGR APPO SIZE SCALE MATERIAL: FINISH: TOL. UNIT 1 PLC2 PLCANGLE REV DRAWING NO. SIGNATURE ± THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL AND TRADE SECRET INFORMATION.THIS SHEET MAY NOT BE TRANSFERRED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN OF COMPAL ELECTRONICS, INC. mm Anita_Chen MODEL : P12LD0TZ PART NO. EJ42Dxxxxxx A4 P12L-EJ42Dxxxxxx P12L RATING LABEL_Jan 0603.04" 1 1 : 1 DL/DM 00 FCC ID : GKRPPCE830W PAxxxxx-xxxx EJ42Dxxxxxx 53.8mm+/-0.2 5mm+/-0.2 5mm+/-0.2 NOTE: 1. MATERIAL: 2. COLOR: BACKGROUND: BLACK CHARACTER: WHITE 3. ADHESIVE: ACRYLIC ADHESIVE 4. MATERIAL NO.:EJ42D0T0000 5. THICKNESS : ( 0.025M/M+0.021M/M / 0.025M/M+0.025M/M ) +/-10% 6. USE WATER DISSOLVING INK 7. INK CINTAINS HEAVY METAL IS PROHIBTED R1.0(*3) 03NYDA0109 IC : 2533B-PAPCE830 0984 Pocket PC e830 Logo Dimension A= 1 mm

Compliance Certification Services Inc. Report No: 40604205 Date of Issue: June 30, 2004 Page 5 INTERNAL PHOTOGRPHS OF EUT WLAN Ant. position Compliance Certification Services Inc. Report No: 40604205 Date of Issue: June 30, 2004 Page 6 Compliance Certification Services Inc. Report No: 40604205 Date of Issue: June 30, 2004 Page 7 Compliance Certification Services Inc. Report No: 40604205 Date of Issue: June 30, 2004 Page 8 Compliance Certification Services Inc. Report No: 40604205 Date of Issue: June 30, 2004 Page 9 BT Ant. position Compliance Certification Services Inc. Report No: 40604205 Date of Issue: June 30, 2004 Page 10 Compliance Certification Services Inc. Report No: 40604205 Date of Issue: June 30, 2004 Page 11

2004.5.27 Chip Multilayer Antenna for Bluetooth No.02 Multilayer Components Department Murata Manufacturing Co., Ltd. 1 Recommendation of layout Antenna Area No GND Area The screw is not connectedto the GND. No GND Area (Ideal condition) Removed Metal Area 4mm Top loading This component shoud be removed or shifted 2 3mm Throught Hole 2 Original layout (X-Y Plane) (Z-X Plane) (Y-Z Plane) 180 deg 0 deg 270 deg 90 deg 180 deg 0 deg 270 deg 90 deg 180 deg 0 deg 270 deg 90 deg Max Ave. Max Ave. Max Ave. X-Y vertical -13.2 -17.3 X-Y vertical -13.5 -17.0 X-Y vertical -14.5 -17.8 X-Y horizontal -15.7 -21.8 X-Y horizont al -15.8 -19.5 X-Y horizontal -15.0 -19.2 Z-X vertical -9.9 -13.5 Z-X vertical -9.6 -13.6 Z-X vertical -9.8 -13.9 Z-X horizontal -12.5 -17.3 Z-X horizont al -12.7 -16.8 Z-X horizontal -12.5 -16.6 Y-Z vertical -14.0 -19.8 Y-Z vertical -12.7 -18.8 Y-Z vertical -12.5 -18.4 Y-Z horizontal -12.2 -16.4 Y-Z horizont al -11.3 -16.6 Y-Z horizontal -11.3 -16.6 -14.0 -13.1 -13.4 -11.2 -10.7 -11.0 Efficiency (XY,YZ) Efficiency (ZX,YZ) Efficiency (XY,YZ) Efficiency (XY,YZ) Efficiency (ZX,YZ) Efficiency (ZX,YZ) Plane polalization Gain [dBd] Total Average Gain [dBi] -11.6 (2400MHz) (2442MHz) (2484MHz) Total Average Gain [dBi] polalization Plane -11.8 Total Average Gain [dBi] Plane polalization Gain [dBd] Gain [dBd] -11.5 -40-35-30-25-20-15-10 -5 0 30 60 90 120 150 180 210 240 270 300 330 verticalhorizontal -40-35-30-25-20-15-10 -5 0 30 60 90 120 150 180 210 240 270 300 330 verticalhorizontal -40-35-30-25-20-15-10 -5 0 30 60 90 120 150 180 210 240 270 300 330 verticalhorizontal -40-35-30-25-20-15-10 -5 0 30 60 90 120 150 180 210 240 270 300 330 verticalhorizontal -40-35-30-25-20-15-10 -5 0 30 60 90 120 150 180 210 240 270 300 330 verticalhorizontal -40-35-30-25-20-15-10 -5 0 30 60 90 120 150 180 210 240 270 300 330 verticalhorizontal -40-35-30-25-20-15-10 -5 0 30 60 90 120 150 180 210 240 270 300 330 verticalhorizontal -40-35-30-25-20-15-10 -5 0 30 60 90 120 150 180 210 240 270 300 330 verticalhorizontal -40-35-30-25-20-15-10 -5 0 30 60 90 120 150 180 210 240 270 300 330 verticalhorizontal 3030MHz 0ohm 0ohm 3.3nH

Project:Date: Supplier:PIC: Sample dimension picture 2.4GH2.45GH 2.50 1.361.31 2.5GH Peak Gain (dBi) -4-4-4WLAN b. VSWR 2 from 2.4 to 2.5 2.4GH2.45GHFrequency 2004/6/15 Wistron NeWeb coporationTommy cheng 2.402.45 Sample 1: 1. Antenna type: IFA 2. Antenna dimension: L= 17.7mm, W= 6.0mm, H= 11.84mm 3. Cable: diameter=0.81mm, 4. Test setup: in P12L PDA Antenna VSWR a. Average gain and peak gain 2.5GH Average Gain (dBi) in P12L PDA1.62 P12L PDA report example Config. Sample 1 Antenna spec Spring degree for 30° Cut off to meet VSWR spec Project:Date: Supplier:PIC: 2004/6/15 Wistron NeWeb coporationTommy cheng P12L PDA report example Sample 1 in P12 PDA 2.9 GHz 1 U/ 1 U 11 U CH11 U/REF 1 U START2 GHzSTOP3 GHz100 MHz/ CPL SWRLIN FIL 1k1k FIL 1k1k CAL S11 1 2 3 1: 1.622 U 2.4 GHz 2: 1.316 U 2.45 GHz 3: 1.365 U 2.5 GHz 〈 1U Date: 15.JUN.04 13:37:15 Project:Date: Supplier:PIC: 2004/6/15 Wistron NeWeb coporationTommy cheng P12L PDA report example 2.50 0.15 2.45 1.28 -2.99 -2.47 0 degree Peak Gain Average Gain Average Gain Peak Gain 1.89 -2.53 2.76 -1.73 @GHz 45 degree 90 degree Peak Gain Average Gain -2.27 1.761.96 2.40 Antenna Gain with cable loss Sample 1 -2.11-2.20 1.44 1.05 -2.49-1.99 1.39 45 degree @ 2.45 GHz -35 -30 -25 -20 -15 -10 -5 0 5 H-pole (dBi) V-pole (dBi) H pol.+V pol. (dBi) 90 0 270 180 90 degree @ 2.45 GHz -35 -30 -25 -20 -15 -10 -5 0 5 H-pole (dBi) V-pole (dBi) H pol.+V pol. (dBi) 0 270 180 90 0 180 270PD A azimuth phi 90 0 90 180 270 PDA azimuth 00 degree @ 2.45 GHz -35 -30 -25 -20 -15 -10 -5 0 5 H-pole (dBi) V-pole (dBi) H pol.+V pol. (dBi) 0 90 180 270 0 90 180 270 PDA azimuth phi

Compliance Certification Services Inc. Report No: 406042025-SF FCC ID: GKRPPCE830W Date of Issue: June 24, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page1 of 23 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC TEST REPORT For Compal Electronics, Inc. TOSHIBA Pocket PC Model: TOSHIBA Pocket PC e830 Trade Name: TOSHIBA Prepared for Compal Electronics, Inc. 7F, No. 500, Juikuang Rd., Neihu, Taipei, 114 Taiwan, R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: 40604205-SF Date of Issue: June 24, 2004 Page 3 TABLE OF CONTENTS 1. EUT DESCRIPTION ..................................................................................................... 4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC .... 5 3. DOSIMETRIC ASSESSMENT SYSTEM ................................................................... 5 3.1 MEASUREMENT SYSTEM DIAGRAM .........................................................................6 3.2 SYSTEM COMPONENTS.................................................................................................7 4. EVALUATION PROCEDURES .................................................................................. 9 5. MEASUREMENT UNCERTAINTY ......................................................................... 13 6. EXPOSURE LIMIT ..................................................................................................... 14 7. TYPICAL COMPOSITION OF INGREDIENTS FOR LIQUID TISSUE PHANTOMS14 8. MEASUREMENT RESULTS ..................................................................................... 15 8.1 SYSTEM PERFORMANCE CHECK..............................................................................15 8.2 TEST LIQUID CONFIRMATION ..................................................................................16 8.3 EUT TUNE-UP PROCEDURES......................................................................................17 8.4 SAR MEASUREMENTS RESULTS...............................................................................18 9. EUT PHOTOS .............................................................................................................. 20 10. EQUIPMENT LIST & CALIBRATION STATUS................................................... 21 11. FACILITIES ................................................................................................................. 22 12. REFERENCES ............................................................................................................. 22 13. ATTACHMENTS......................................................................................................... 23 Compliance Certification Services Inc. Report No: 40604205-SF Date of Issue: June 24, 2004 Page 4 1. EUT DESCRIPTION Applicant: Compal Electronics, Inc. 7F, No. 500, Juikuang Rd., Neihu, Taipei, 114 Taiwan, R.O.C. Model Number / Trade Name: TOSHIBA Pocket PC e830 / TOSHIBA Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: 802.11b Direct Sequence Spread Spectrum Tx Frequency: 2412 ~ 2462 MHz Max. O/P Power: (Conducted/Peak) 19.01dBm Max. SAR (1g): 0.691 mW/kg Application Type: Certification FCC Rule Part(s): 15C Antennas: PIFA Ant. Note: The EUT comes with a main battery and an optional high capacity battery. The main battery is found to be the worst case after preliminary test. Compliance Certification Services Inc. Report No: 40604205-SF Date of Issue: June 24, 2004 Page 5 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996 [1]. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recommended by the ANSI/IEEE standard C95.1-1992 [6]. According to the Supplement C of OET Bulletin 65 “Evaluating Compliance with FCC Guide-lines for Human Exposure to Radio frequency Electromagnetic Fields", released on Jun 29, 2001 by the FCC, the device should be evaluated at maximum output power (radiated from the antenna) under “worst-case” conditions for normal or intended use, incorporating normal antenna operating positions, device peak performance frequencies and positions for maximum RF energy coupling. 3. DOSIMETRIC ASSESSMENT SYSTEM These measurements were performed with the automated near-field scanning system DASY4 from Schmid & Partner Engineering AG (SPEAG). The system is based on a high precision robot (working range greater than 0.9 m) which positions the probes with a positional repeatability of better than ± 0.02 mm. Special E- and H-field probes have been developed for measurements close to material discontinuity, the sensors of which are directly loaded with a Schottky diode and connected via highly resistive lines to the data acquisition unit. The SAR measurements were conducted with the dosimetric probe ES3DV2-SN: 3023 (manufactured by SPEAG), designed in the classical triangular configuration and optimized for dosimetric evaluation. The probe has been calibrated according to the procedure with accuracy of better than ±10%. The spherical isotropy was evaluated with the procedure and found to be better than …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 40604205-RP FCC ID: GKRPPCE830W Date of Issue: June 30, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Page 1 of 82 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Compal Electronics, Inc. TOSHIBA Pocket PC Model: TOSHIBA Pocket PC e830 Trade Name: TOSHIBA Prepared for Compal Electronics, Inc. 7F, No. 500, Juikuang Rd., Neihu, Taipei, 114 Taiwan, R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan…
