GKRVC-5Dual-Mode AMPS/CDMA Cellular Phone

FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations. To comply with FCC RF exposure requirements, a minimum separation distance of 0.4 inches (1cm) must be maintained between the user’s body and the handset, including the antenna. Third- party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with FCC RF exposure requirements and should be avoided. For more information about RF exposure, please visit the FCC website at www.fcc.gov Read this information before using your handset

No.581,Jui-Kuang Rd. Neihu, Taipei, Taiwan 114 Phone : +886-2-8797 8588 Fax : +886-2-2658 5001 COMPAL SEP. 25, 2000 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern, We, the undersigned, hereby authorize Celltech Research Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by Celltech Research Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21U.S.C. 853(a). Sincerely, Eric Liu Manager of Management Division COMPAL ELECTRONICS, INC. No.581,Jui-Kuang Rd. Neihu, Taipei, Taiwan 114 Phone : +886-2-8797 8588 Fax : +886-2-2658 5001 COMPAL AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Handheld Portable Cellular Telephone (FCC ID: GKRVC-5) is so designed that it complies with all the requirements for ESN protection specified in Section 22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. C) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, Eric Liu Manager of Management Division COMPAL ELECTRONICS, INC. No.581,Jui-Kuang Rd. Neihu, Taipei, Taiwan 114 Phone : +886-2-8797 8588 Fax : +886-2-2658 5001 COMPAL April 3, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Compal Electronics Inc. FCC ID: GKRVC-5 FCC E911 Requirements Per §22.921 Gentlemen: Compal Electronics Inc. hereby certifies that the analog cellular telephone (FCC ID: GKRVC-5), using the Automatic A/B Roaming – Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. Eric Liu Manager of Management Division COMPAL ELECTRONICS, INC. No.581,Jui-Kuang Rd. Neihu, Taipei, Taiwan 114 Phone : +886-2-8797 8588 Fax : +886-2-2658 5001 COMPAL April 4, 2001 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re : COMPAL ELECTRONICS INC. FCC ID: GKRVC-5 FCC Part 22 Certification Gentlemen, We hereby confirm that there is no belt-clip available at this time for our handset model VC-5. We also confirm that the only battery option is the standard battery, which was used during the testing for this filing. If additional accessories become available in the future that require FCC testing and approval then we will proceed accordingly. If you have any questions regarding this matter, please do not hesitate to contact me. Sincerely, Eric Liu Manager of Management Division COMPAL ELECTRONICS, INC.

No.581,Jui-Kuang Rd. Neihu, Taipei, Taiwan 114 Phone : +886-2-8797 8588 Fax : +886-2-2658 5001 April 10, 2001 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re : COMPAL ELECTRONICS INC. FCC ID: GKRVC-5 FCC Part 22 Certification Gentlemen, We hereby confirm the method for maintaining the different conducted power output settings across the AMPS frequency band in order to maintain compliance. The transmit frequency band is divided into 16 sectors (see attached file). For this particular device, once the conducted power is established for SAR compliance the AMPS mode power level 0 AGC algorithm is set in such a way that the lowest transmit channel corresponding to the first sector is set to the maximum conducted power of 26.0dBm. In order to ensure SAR compliance for all other transmit frequencies, the remaining sectors are set to a maximum conducted power of 25.5dBm. The AGC levels are then written into non-volatile memory for power level 0 setting. If you have any questions regarding this matter, please do not hesitate to contact me. Sincerely, Eric Liu Manager of Management Division COMPAL ELECTRONICS, INC. C.C : CDMA Project Team / COMPAL Attachment : AMPS mode power level 0 calibration algorithm No.581,Jui-Kuang Rd. Neihu, Taipei, Taiwan 114 Phone : +886-2-8797 8588 Fax : +886-2-2658 5001 * AMPS mode power level 0 calibration algorithm Calibration flow of Tx_Pwr_VS_Freq. Using the calibration item related to Tx_Pwr_VS_Freq. we compensate the DFM_Tx power level 0 over frequency band which is divided to 16 sectors. First we find AGC_PDM_Level of power level 0 at reference frequency of each sectors, and the compensation the power level 0 according to the each frequency sectors. Finally we make compensated data of each frequency sectors, and then write that compensated data to non-volatile memory. Setting the HP E8285A Setting Mobile_Phone (Freq., Pwr_level_0, Carrier on) Calculate Tx_AGC_PDM_Power_level_0 Compensate Tx_AGC_PDM_Power_level_0 each 16 frequency sectors Make compensated data each 16 frequency sectors Write compensated data to N.V memory

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C Canada V1Y 9L3 Tel. 250-860-3130 •• Fax. 250-860-3110 •• email: [email protected] www.globuswireless.com April 6, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: COMPAL ELECTRONICS INC. FCC ID: GKRVC-5 Part 22 Certification Gentlemen: On behalf of COMPAL ELECTRONICS INC. we hereby submit an application for Part 22 & SAR Certification of the Compal Electronics Dual-Mode AMPS/CDMA Cellular Phone as follows: FCC ID: GKRVC-5 Model(s): VC-5 Equipment Class: Licensed Non-Broadcast Transmitter Held to Ear (TNE) Equipment Type: Dual-Mode AMPS/CDMA Cellular Phone Tx Freq. Range: 824.04 - 848.97 MHz (AMPS) 824.70 - 848.31 MHz (CDMA) Rx Freq. Range: 869.04 - 893.97 MHz (AMPS) 869.70 - 893.31 MHz (CDMA) Max. RF Output Power: 0.302 Watts ERP (AMPS) 0.214 Watts ERP (CDMA) Emission Designator(s): 40K0F8W, 40K0F1D, 1M25F9W Attached is the Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 Attestation, Part 22 measurement report data and test plots, RF exposure measurement report data & photographs, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams and description (confidential), antenna specifications (confidential), parts list & tune-up procedure (confidential), and the user's manual with RF exposure warning statement. If you have any questions or comments concerning the above, please do not hesitate to contact me. Sincerely, Shawn McMillen General Manager Celltech Research Inc. Testing & Engineering Lab cc: COMPAL ELECTRONICS INC. No.581,Jui-Kuang Rd. Neihu, Taipei, Taiwan 114 Phone : +886-2-8797 8588 Fax : +886-2-2658 5001 COMPAL April 3, 2001 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Compal Electronics Inc. FCC ID: GKRVC-5 FCC Part 22 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, Compal Electronics Inc. hereby requests confidentiality of the Block Diagram, Circuit Diagrams, Circuit Description, Parts List, Tune- up Procedure, and Antenna Specifications attachments for the subject application. These documents contain detailed system and equipment description and related information about the product in which Compal Electronics Inc. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Compal Electronics Inc. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Eric Liu Manager of Management Division COMPAL ELECTRONICS, INC.

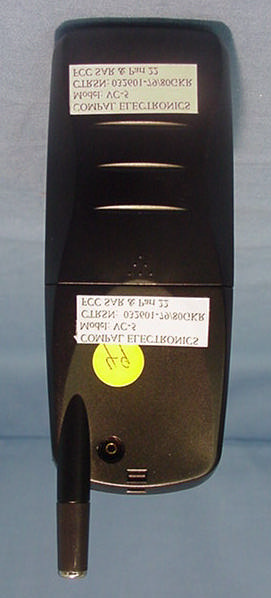

CELLTECH RESEARCH INC. Test Report S/N: 032601-79GKR 1955 Moss Court, Kelowna Date of Tests: March 26-29, 2001 B.C. CANADA V1Y 9L3 © 2001 Celltech Research Inc. COMPAL ELECTRONICS INC. FCC ID: GKRVC-5 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 032601-79GKR 1955 Moss Court, Kelowna Date of Tests: March 26-29, 2001 B.C. CANADA V1Y 9L3 © 2001 Celltech Research Inc. COMPAL ELECTRONICS INC. FCC ID: GKRVC-5 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 032601-79GKR 1955 Moss Court, Kelowna Date of Tests: March 26-29, 2001 B.C. CANADA V1Y 9L3 © 2001 Celltech Research Inc. COMPAL ELECTRONICS INC. FCC ID: GKRVC-5 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 032601-79GKR 1955 Moss Court, Kelowna Date of Tests: March 26-29, 2001 B.C. CANADA V1Y 9L3 © 2001 Celltech Research Inc. COMPAL ELECTRONICS INC. FCC ID: GKRVC-5 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) EXTERNAL EUT PHOTOGRAPHS

CELLTECH RESEARCH INC. Test Report S/N: 032601-79GKR 1955 Moss Court, Kelowna Dates of Tests: March 26-29, 2001 B.C. CANADA V1Y 9L3 © 2001 Celltech Research Inc. COMPAL ELECTRONICS INC. FCC ID: GKRVC-5 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) FCC ID LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. AMPS/CDMA PHONE MODEL: VC-5 FCC ID: GKRVC-5 SERIAL NO.: MADE IN KOREA

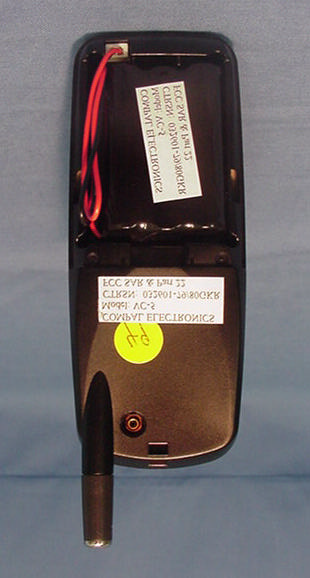

CELLTECH RESEARCH INC. Test Report S/N: 032601-79GKR 1955 Moss Court, Kelowna Date of Tests: March 26-29, 2001 B.C. CANADA V1Y 9L3 © 2001 Celltech Research Inc. COMPAL ELECTRONICS INC. FCC ID: GKRVC-5 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 032601-79GKR 1955 Moss Court, Kelowna Date of Tests: March 26-29, 2001 B.C. CANADA V1Y 9L3 © 2001 Celltech Research Inc. COMPAL ELECTRONICS INC. FCC ID: GKRVC-5 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 032601-79GKR 1955 Moss Court, Kelowna Date of Tests: March 26-29, 2001 B.C. CANADA V1Y 9L3 © 2001 Celltech Research Inc. COMPAL ELECTRONICS INC. FCC ID: GKRVC-5 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 032601-79GKR 1955 Moss Court, Kelowna Date of Tests: March 26-29, 2001 B.C. CANADA V1Y 9L3 © 2001 Celltech Research Inc. COMPAL ELECTRONICS INC. FCC ID: GKRVC-5 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) INTERNAL EUT PHOTOGRAPHS

CELLTECH RESEARCH INC. Test Report S/N: 032601-80GKR 1955 Moss Court, Kelowna, Dates of Tests: March 26-29, 2001 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. CERTIFICATE OF COMPLIANCE SAR EVALUATION This wireless mobile and/or portable device has been shown to be compliant for localized Specific Absorption Rate (SAR) for uncontrolled environment / general exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1999. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Celltech Research Inc. certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Shawn McMillen General Manager Celltech Research Inc. Test Lab: CELLTECH RESEARCH INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250 - 860-3130 Fax: 250 - 860-3110 Toll Free: 1-877-545-6287 e-mail: [email protected] web site: www.globuswireless.com Applicant Information: COMPAL ELECTRONICS INC. No. 581, Jui-Kuang Rd., Neihu, Taipei, Taiwan 114 Attn: Mr. Eric Liu Manager of Management Division FCC ID: GKRVC-5 Model(s): VC-5 Equipment Type: Dual-Mode AMPS/CDMA Cellular Phone FCC Classification: Licensed Non-Broadcast Transmitter Held to Ear (TNE) FCC Rule Part(s): 2.1093; ET Docket 96.326 Tx Frequency Range: 824.04 - 848.97 MHz (AMPS) 824.70 - 848.31 MHz (CDMA) Rx Frequency Range: 869.04 - 893.97 MHz (AMPS) 869.70 - 893.31 MHz (CDMA) Max. RF Output Power: 0.302 Watts ERP (AMPS) 0.214 Watts ERP (CDMA) CELLTECH RESEARCH INC. Test Report S/N: 032601-80GKR 1955 Moss Court, Kelowna, Dates of Tests: March 26-29, 2001 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. TABLE OF CONTENTS 1.0 INTRODUCTION.................................................................. 1 2.0 DESCRIPTION OF EUT.......................................................... 1 3.0 SAR MEASUREMENT SYSTEM ............................................. 2 4.0 SAR MEASUREMENT SUMMARY......................................... 3-6 5.0 SAR LIMITS........................................................................ 7 6.0 DETAILS OF SAR EVALUATION........................................... 7 7.0 EVALUATION PROCEDURES................................................. 8 8.0 SYSTEM VALIDATION.......................................................... 8 9.0 SIMULATED EQUIVALENT TISSUES...................................... 9 10.0 TISSUE PARAMETERS......................................................... 9 11.0 SYSTEM SPECIFICATIONS.................................................... 10 12.0 TEST EQUIPMENT LIST........................................................ 11 13.0 MEASUREMENT UNCERTAINTIES........................................ 12 14.0 REFERENCES...................................................................... 13 APPENDIX A - SAR MEASUREMENT DATA 14 APPENDIX B - DIPOLE VALIDATION 15 APPENDIX C - PROBE CALIBRATION 16 APPENDIX D - SAR TEST SETUP PHOTOGRAPHS 17 APPENDIX E - RF EXPOSURE MANUAL WARNING STATEMENT 18 CELLTECH RESEARCH INC. Test Report S/N: 032601-80GKR 1955 Moss Court, Kelowna, Dates of Tests: March 26-29, 2001 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. COMPAL ELECTRONICS INC. FCC ID: GKRVC-5 1 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) 1.0 INTRODUCTION This measurement report shows compliance of the COMPAL ELECTRONICS INC. Model: VC- 5 Dual-Mode AMPS/CDMA Cellular Phone FCC ID: GKRVC-5 with FCC Part 2.1093, ET Docket 96-326 Rules for mobile and portable devices. The test procedures, as described in American National Standards Institute C95.1-1992 (1), FCC OET Bulletin 65-1997 were employed. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION of Equipment Under Test (EUT) Front of EUT Left Side of EUT Right Side of EUT Rear of EUT EUT Type Dual-Mode Cellular Phone FCC ID GKRVC-5 FCC Equipment Class Licensed Non-Broadcast Transmitter Held to Ear (TNE) Model No.(s) VC-5 FCC Rule Part(s) § 2.1093, Docket 96-326 Application Type Part 22 Certification Tx Frequency Range (MHz) 824.04 - 848.97 (AMPS) 824.70 - 848.31 (CDMA) S/N No. Pre-production Rx Frequency Range (MHz) 869.04 - 893.97 (AMPS) 869.70 - 893.31 (CDMA) Max. RF Output Power 0.302 W ERP (AMPS) 0.214 W ERP (CDMA) Modulation(s) AMPS / CDMA Battery Type(s) Ni-Metal Hybrid 3.6V Standard Battery Pack Antenna Type Fixed Stubby Antenna Length 32 mm CELLTECH RESEARCH INC. Test Report S/N: 032601-80GKR 1955 Moss Court, Kelowna, Dates of Tests: March 26-29, 2001 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. COMPAL ELECTRONICS INC. FCC ID: GKRVC-5 2 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) 3.0 SAR MEASUREMENT SYSTEM Celltech Research SAR measurement facility utilizes the Dosimetric Assessment System (DASY™) manufactured by Schmid & Partner Engineering AG (SPEAG™) of Zurich, Switzerland. The DASY system is comprised of the robot controller, computer, near-field probe, probe alignment sensor, and the generic twin phantom containing brain or muscle equivalent material. The robot is a six-axis industrial robot per…

Text truncated - open the document above for the full version.

COMPAL ELECTRONICS FCC ID: GKRVC-5 Generic Twin Phantom; Left Hand Section; Position: (80°,65°) Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0 835MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7: SAR (1g): 1.34 mW/g, SAR (10g): 0.969 mW/g Head SAR Fixed Antenna Model: VC-5 Unmodulated Carrier Channel 991 [824.04MHz] Conducted Power 26.0 dBm Date Tested: March 27, 2001 SAR Tot [mW/g] 1.39E-1 5.56E-1 9.73E-1 1.39E+0 Celltech Research Inc. Celltech Research Inc. COMPAL ELECTRONICS FCC ID: GKRVC-5 Generic Twin Phantom; Left Hand Section; Position: (80°,65°) Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0 835MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7: SAR (1g): 1.15 mW/g, SAR (10g): 0.848 mW/g Head SAR Fixed Antenna Model: VC-5 Unmodulated Carrier Channel 383 [836.49MHz] Conducted Power 26.0 dBm Date Tested: March 27, 2001 SAR Tot [mW/g] 1.22E-1 4.87E-1 8.52E-1 1.22E+0 Celltech Research Inc. Celltech Research Inc. COMPAL ELECTRONICS FCC ID: GKRVC-5 Generic Twin Phantom; Left Hand Section; Position: (80°,65°) Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0 835MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7: SAR (1g): 1.32 mW/g, SAR (10g): 0.955 mW/g Head SAR Fixed Antenna Model: VC-5 Unmodulated Carrier Channel 799 [848.97MHz] Conducted Power 25.5 dBm Date Tested: March 27, 2001 SAR Tot [mW/g] 1.32E-1 5.30E-1 9.27E-1 1.32E+0 Celltech Research Inc. Celltech Research Inc. COMPAL ELECTRONICS FCC ID: GKRVC-5 Generic Twin Phantom; Left Hand Section; Position: (80°,65°) Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0 835MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7: SAR (1g): 0.881 mW/g, SAR (10g): 0.648 mW/g Head SAR Fixed Anttena Model: VC-5 CDMA Mode Channel 1013 [824.70MHz] Conducted Power 24.0 dBm Date Tested: March 27, 2001 SAR Tot [mW/g] 9.22E-2 3.69E-1 6.45E-1 9.22E-1 Celltech Research Inc. Celltech Research Inc. COMPAL ELECTRONICS FCC ID: GKRVC-5 Generic Twin Phantom; Left Hand Section; Position: (80°,65°) Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0 835MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7: SAR (1g): 0.858 mW/g, SAR (10g): 0.619 mW/g Head SAR Fixed Antenna Model: VC-5 CDMA Mode Channel 363 [835.89MHz] Conducted Power 24.0 dBm Date Tested: March 27, 2001 SAR Tot [mW/g] 8.98E-2 3.59E-1 6.29E-1 8.98E-1 Celltech Research Inc. Celltech Research Inc. COMPAL ELECTRONICS FCC ID: GKRVC-5 Generic Twin Phantom; Left Hand Section; Position: (80°,65°) Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0 835MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7: SAR (1g): 1.11 mW/g, SAR (10g): 0.807 mW/g Head SAR Fixed Antenna Model: VC-5 CDMA Mode Channel 777 [848.31MHz] Conducted Power 24.0 dBm Date Tested: March 27, 2001 SAR Tot [mW/g] 1.12E-1 4.50E-1 7.87E-1 1.12E+0 Celltech Research Inc. Celltech Research Inc. COMPAL ELECTRONICS FCC ID: GKRVC-5 Generic Twin Phantom; Flat Section; Position: (270°,270°) Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0 Muscle 835 MHz: σ = 0.95 mho/m ε r = 56.1 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7: SAR (1g): 1.25 mW/g, SAR (10g): 0.861 mW/g Body SAR at 1.0cm Separation Distance Fixed Antenna Model: VC-5 Unmodulated Carrier Channel 991 [824.04MHz] Conducted Power 26.0 dBm Date Tested: March 28, 2001 SAR Tot [mW/g] 1.25E-1 5.02E-1 8.78E-1 1.25E+0 Celltech Research Inc. Celltech Research Inc. COMPAL ELECTRONICS FCC ID: GKRVC-5 Generic Twin Phantom; Flat Section; Position: (270°,270°) Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0 Muscle 835 MHz: σ = 0.95 mho/m ε r = 56.1 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7: SAR (1g): 1.21 mW/g, SAR (10g): 0.823 mW/g Body SAR at 1.0cm Separation Distance Fixed Anttena Model: VC-5 Unmodulated Carrier Channel 383 [836.49MHz] Conducted Power 26.0 dBm Date Tested: March 28, 2001 SAR Tot [mW/g] 1.20E-1 4.79E-1 8.38E-1 1.20E+0 Celltech Research Inc. Celltech Research Inc. COMPAL ELECTRONICS FCC ID: GKRVC-5 Generic Twin Phantom; Flat Section; Position: (270°,270°) Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0 Muscle 835 MHz: σ = 0.95 mho/m ε r = 56.1 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7: SAR (1g): 1.37 mW/g, SAR (10g): 0.933 mW/g Body SAR at 1.0cm Separation Distance Fixed Anttena Model: VC-5 Unmodulated Carrier Channel 799 [848.97MHz] Conducted Power 25.5 dBm Date Tested: March 28, 2001 SAR Tot [mW/g] 1.34E-1 5.35E-1 9.36E-1 1.34E+0 Celltech Research Inc. Celltech Research Inc. COMPAL ELECTRONICS FCC ID: GKRVC-5 Generic Twin Phantom; Flat Section; Position: (270°,270°) Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0 Muscle 835 MHz: σ = 0.95 mho/m ε r = 56.1 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7: SAR (1g): 0.874 mW/g, SAR (10g): 0.592 mW/g Body SAR at 1.0cm Separation Distance Fixed Antenna Model: VC-5 CDMA Mode Channel 1013 [824.70MHz] Conducted Power 24.0 dBm Date Tested: March 28, 2001 SAR Tot [mW/g] 8.54E-2 3.42E-1 5.98E-1 8.54E-1 Celltech Research Inc. Celltech Research Inc. COMPAL ELECTRONICS FCC ID: GKRVC-5 Generic Twin Phantom; Flat Section; Position: (270°,270°) Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0 Muscle 835 MHz: σ = 0.95 mho/m ε r = 56.1 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7: SAR (1g): 0.798 mW/g, SAR (10g): 0.552 mW/g Body SAR at 1.0cm Separation Distance Fixed Antenna Model: VC-5 CDMA Mode Channel 363 [835.89MHz] Conducted Power 24.0 dBm Date Tested: March 28, 2001 SAR Tot [mW/g] 7.89E-2 3.16E-1 5.52E-1 7.89E-1 Celltech Research Inc. Celltech Research In…

Text truncated - open the document above for the full version.

FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations. To comply with FCC RF exposure requirements, a minimum separation distance of 0.4 inches (1cm) must be maintained between the user’s body and the handset, including the antenna. Third- party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with FCC RF exposure requirements and should be avoided. For more information about RF exposure, please visit the FCC website at www.fcc.gov Read this information before using your handset

CELLTECH RESEARCH INC. Test Report S/N: 032601-79GKR 1955 Moss Court, Kelowna Dates of Tests: March 26-29, 2001 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________________ © 2001 Celltech Research Inc. CERTIFICATE OF COMPLIANCE FCC PART 22 CERTIFICATION This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Celltech Research Inc. certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Shawn McMillen General Manager Celltech Research Inc. Test Lab: CELLTECH RESEARCH INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250 - 860-3130 Fax: 250 - 860-3110 Toll Free: 1-877-545-6287 e-mail: [email protected] web site: www.globuswireless.com Applicant: COMPAL ELECTRONICS INC. No. 581, Jui-Kuang Rd., Neihu, Taipei, Taiwan 114 Attn: Mr. Eric Liu Manager of Management Division FCC Classification: Licensed Non-Broadcast Transmitter Held to Ear (TNE) FCC Rule Part(s): §22(H), §22.901(d), §2 FCC ID: GKRVC-5 Model(s): VC-5 Equipment Type: Dual-Mode AMPS/CDMA Cellular Phone Tx Frequency Range: 824.04 - 848.97 MHz (AMPS) 824.70 - 848.31 MHz (CDMA) Rx Frequency Range: 869.04 - 893.97 MHz (AMPS) 869.70 - 893.31 MHz (CDMA) Max. RF Output Power: 0.302 Watts ERP (AMPS) 0.214 Watts ERP (CDMA) Frequency Tolerance: 2.5 PPM Emission Designator(s): 40K0F8W, 40K0F1D, 1M25F9W CELLTECH RESEARCH INC. Test Report S/N: 032601-79GKR 1955 Moss Court, Kelowna Dates of Tests: March 26-29, 2001 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. TABLE OF CONTENTS 1.1 GENERAL INFORMATION 1 2.1 MEASUREMENT PROCEDURES 2 Transmitter Audio Frequency Response (2.1047) 2 Audio Low Pass Filter Frequency Response (22.915) 2 Modulation Limiting (2.1047, 22.915) 2 Occupied Bandwidth (2.1049) 3 Spurious/Harmonic Emissions at Antenna Terminal (2.1051) 3 Radiated Spurious & Harmonic Emissions (2.1053) 3 Frequency Stability/Temperature Variation (2.1055) 4 3.1 TEST DATA 5 Modulation Characteristics 5-7 Effective Radiated Power Output 8-9 Field Strength of Spurious Radiation 10-15 Frequency Stability 16-17 4.1 LIST OF TEST EQUIPMENT 18 5.1 CONCLUSION 19 ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL & LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL EUT PHOTOGRAPHS ATTACHMENT H: INTERNAL EUT PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: CIRCUIT DIAGRAMS / DESCRIPTION ATTACHMENT K: PARTS LIST / TUNE UP PROCEDURE ATTACHMENT L: ANTENNA SPECIFICATIONS ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT CELLTECH RESEARCH INC. Test Report S/N: 032…
