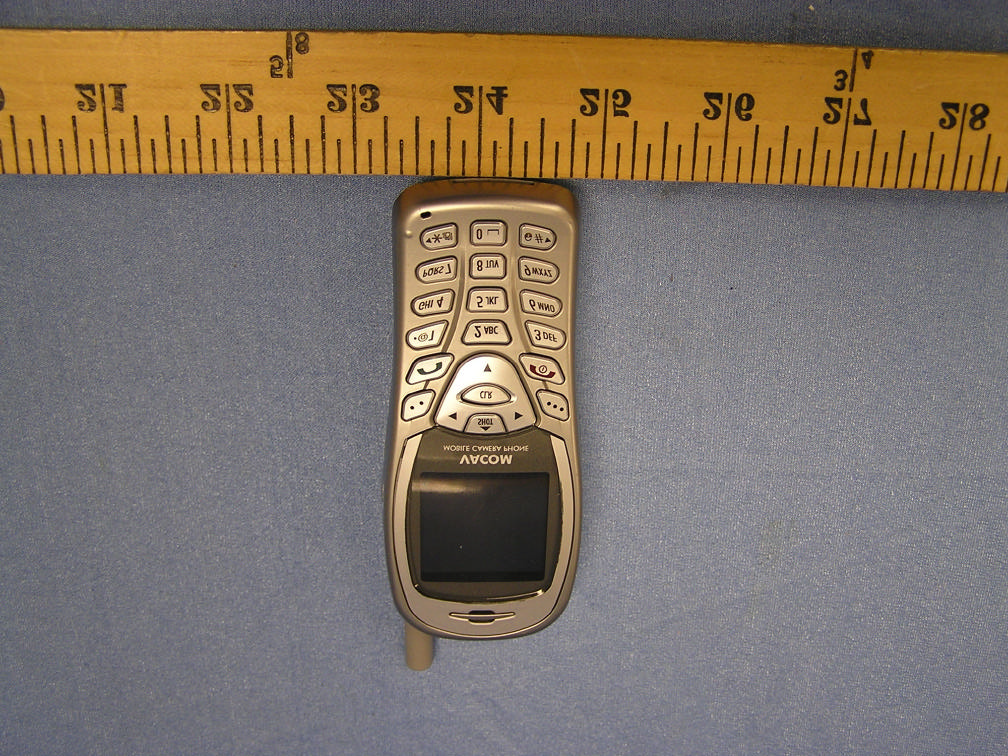

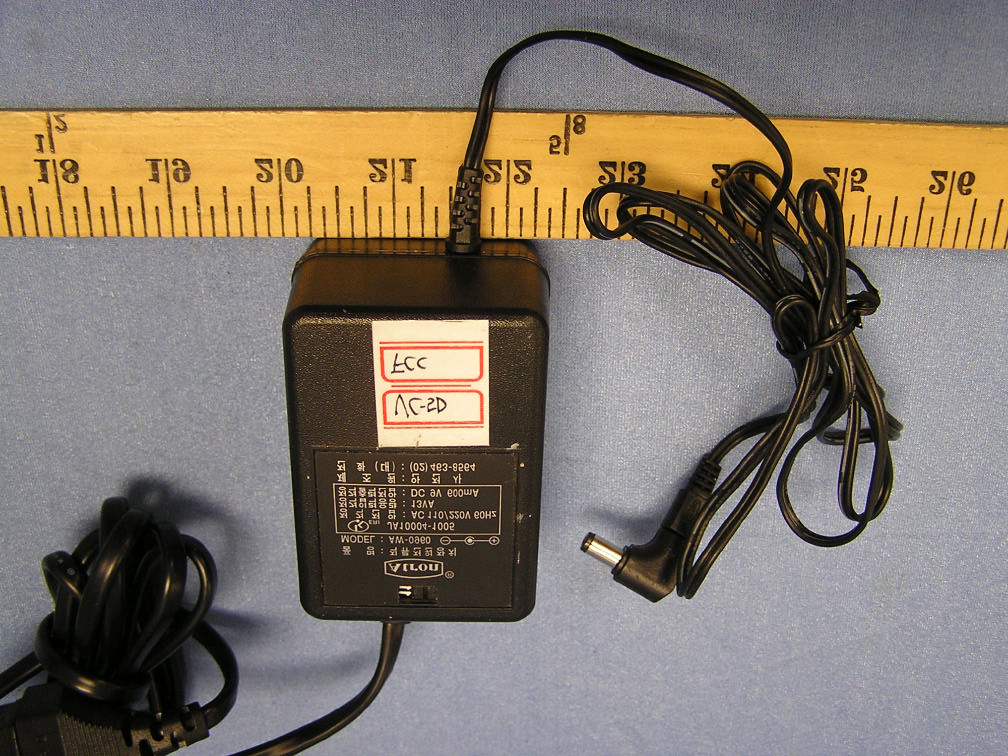

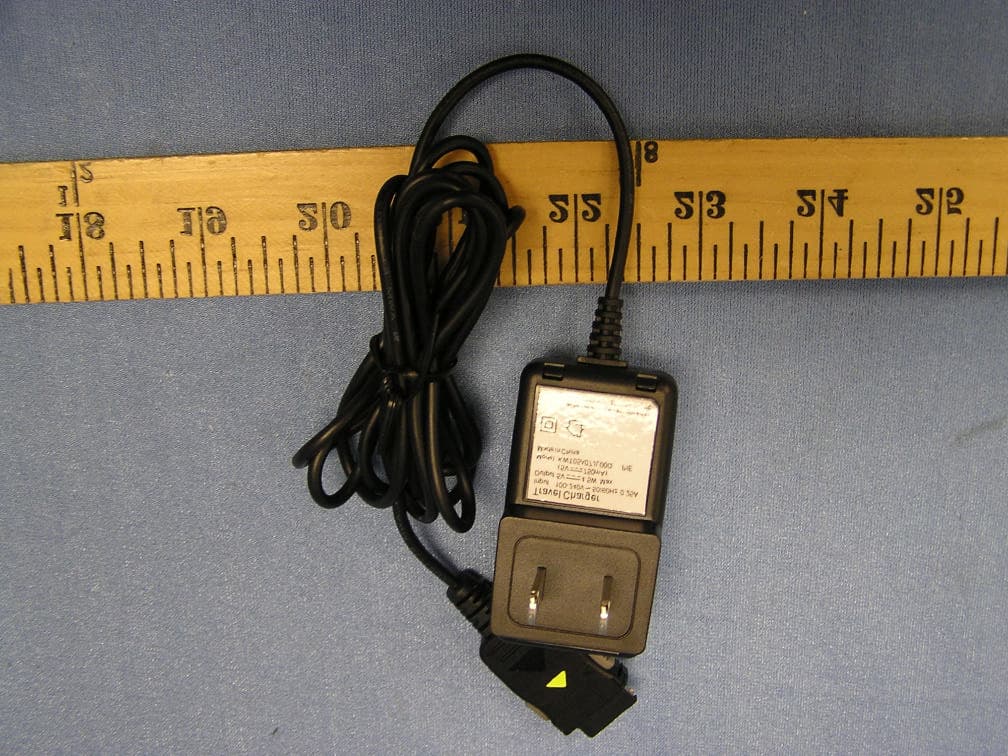

GKRVC-5DDual Mode AMPS/CDMA Cellular Phone

1 USER MANUAL VC-5D Version 0.1 VACOM WIRELESS, INC. 2 CONTENTS IMPORTANT SAFETY INFORMATION GETTING TO KNOW YOUR PHONE DISPLAY INDICATORS BATTERY INFORMATION BASIC FUNCTIONS 1. Making Calls 2. Ending Calls 3. Answering Calls 4. Correcting Entry Errors 5. Storing Phone Numbers 6. Adjusting In-Call Mic Volume 7. Volume 8. Redialing Last Dialed, Received, or Missed Number 9. Speed Dial 10. Using Caller ID 11. Etiquette Mode 12. Camera 13. Shortcut MENUS I. INTERACTIVO 1. WAP 2. BREW 3. MMS 4. SMS II. PHONEBOOK 1. Adding Entries in the Phonebook 3 2. Phonebook Search 3. Call List 4. Editing Groups 5. Memory Check 6. My Number III. VOLUME & ALERT 1. Bell Select 2. Ring Type 3. Volume 4. Alert Settings 5. Beep Length 6. Roam Ringer IV. PERSONAL INFORMATION MANAGEMENT 1. Alarm 2. Schedule 3. Memo 4. Calculator 5. World Time View 6. Calendar View V. PHONE SETTINGS MENU 1. Wallpaper 2. Greeting Edit 3. Backlight 4. LCD Contrast 5. Languages 6. Auto Keylock 7. Power Saving 8. Current Time Setting VI. CALL INFORMATION 1. Call Function - Auto Answer - Auto Redial 2. Call Restrict 4 3. Call Answer 4. Call Time 5. Voice Privacy VII. SECURITY FUNCTIONS 1. Lock Mode 2. New Password 3. Memory Clear 4. Initialize 5. Privacy Information 6. Network Changes VIII. VALUE ADDED SERVICE (VAS) 1. Data Service 2. Games - Black Jack - Othello - Lottery 3. Memory Manager USING MENU DURING CALLS 1. Phonebook Search 2. Mute 3. DTMF Mute 4. Mic Volume 5. Voice Privacy 6. Beep Length ENTERING LETTERS & NUMBERS 1. Prediction Text Input 2. ABC/123 Mode 3. Inserting Punctuations & Special Characters 5 IMPORTANT SAFETY INFORMATION Some of the following information may not apply specifically to your phone. However, as with any electronic product, these safety precautions should be observed when using this product. ◈ Please keep this manual in a safe place, for it contains important safety information and operating instructions. ◈ Please follow and adhere to all warning, safety, and operating instructions indicated on both the phone and in this manual before use. ◈ Do Not expose the phone to water or moisture. ◈ Do Not expose the phone to extreme heat or cold. ◈ Do Not expose the phone to open flame. ◈ Do Not allow objects to fall or liquids to spill on the product. ◈ Use Original Accessories only. Any damage incurred from the use of non-approved accessories will void the warranty. ◈ Use approved chargers only and connect to a power source designated on the product. ◈ To reduce the risk of injury, remove the electrical cord from an outlet by pulling on the charger, rather than the cord. ◈ Ensure that the electrical cord is positioned accordingly so that it will not be vulnerable to damage. ◈ To reduce the risk of electrical shock, unplug the phone from the power source before cleaning. Once unplugged, use a soft cloth dampened with water to clean. ◈ DANGER: Do Not modify the cord or the plug. If the plug does not fit into an outlet, have a proper outlet installed by a qualified electrician. Improper connection can result in electrical shock. ◈ Do Not attempt to disassemble the product – doing so will void the warranty. This product does not contain consumer-serviceable components. Service should be performed only by authorized service centers. ◈ Do Not remove the antenna. A detached antenna can be a choking hazard for children. ◈ Do Not place the battery inside the mouth. The battery contains toxic electrolytes that are harmful for your health. 6 GETTING TO KNOW YOUR PHONE Volume/Scroll Key These keys are used to set volume levels, to shot a camera and to help you navigate through menus and the Phonebook. Use the volume keys to: - Access the Etiquette mode, then press the ▲ key while the folder is closed. - Press ▼ to enlarge characters on Sub-LCD display. - Adjust call volume. - Adjust key tone volume. - Answer incoming calls. - Scroll through menu options. - Scroll through the Phonebook. Color LCD Display The LCD screen is divided into two sections: - The top line displays your phone status indicators. - The lower portion displays currently in-use information, such as Caller ID (if available), Mute, Call Waiting, etc. Menus are also displayed in the lower portion. Menu Keys ( /) These keys perform several useful functions: - Use these keys to answer incoming calls. - Use these keys from Standby mode to briefly access Main and Select menus. - Use these keys to select a highlighted selection when navigating through a menu. SMS Key ( /) From Standby mode, press this key to access a text message menu items. - Press this key to answer incoming calls. Navigation Keys These keys allow you to navigate the phone’s various features and useful shortcuts including a camera, BREW, WAP, phone number list, etc. Camera ( ) Key From Standby mode, press this key to access a camera. Then you can take a phone with your phone. Microphone Your typical conversational microphone. Mute the microphone during conversation by pressing “MENU” “2”. Accessory Port Connect your charger here. 7 CLR Key This key is used to erase incorrect numeric or character entries or to return to a previous screen. - To erase a single character from the screen, briefly press the CLR key once. - To erase the entire entry field, hold down the CLR key for one second. - To back up one menu level, press the CLR key once. - To return to standby, hold the CLR key for one second. - During a call, press the CLR key to adjust the earpiece volume. (END) Key Press this key to end calls or to return to Standby mode from any menu. Press and hold to turn the phone On or Off. (SEND) Key This key performs several useful functions: - Press the Send key to dial an entered number. - Press the Send key once to redial the last outgoing number. Numeric Keypad These keys are used to input numbers and characters. ◀* This key performs several useful functions: - Toggle between ring and vibrate. - Use as a navigation key. #▶ This key performs several useful functions: - Use to lock the keypad. To…

Text truncated - open the document above for the full version.

No.581,Jui-Kuang Rd. Neihu, Taipei, Taiwan 114 Phone : +886-2-8797 8588 Fax : +886-2-2658 5001 COMPAL AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Handheld Portable Cellular Telephone (FCC ID: GKRVC-5D) is so designed that it complies with all the requirements for ESN protection specified in Section 22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. C) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, Eric Liu Manager of Management Division COMPAL ELECTRONICS, INC. No.581,Jui-Kuang Rd. Neihu, Taipei, Taiwan 114 Phone : +886-2-8797 8588 Fax : +886-2-2658 5001 COMPAL April 2, 2004 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Compal Electronics Inc. FCC ID: GKRVC-5D FCC E911 Requirements Per §22.921 Gentlemen: Compal Electronics Inc. hereby certifies that the analog cellular telephone (FCC ID: GKRVC-5D), using the Automatic A/B Roaming – Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. Eric Liu Manager of Management Division COMPAL ELECTRONICS, INC.

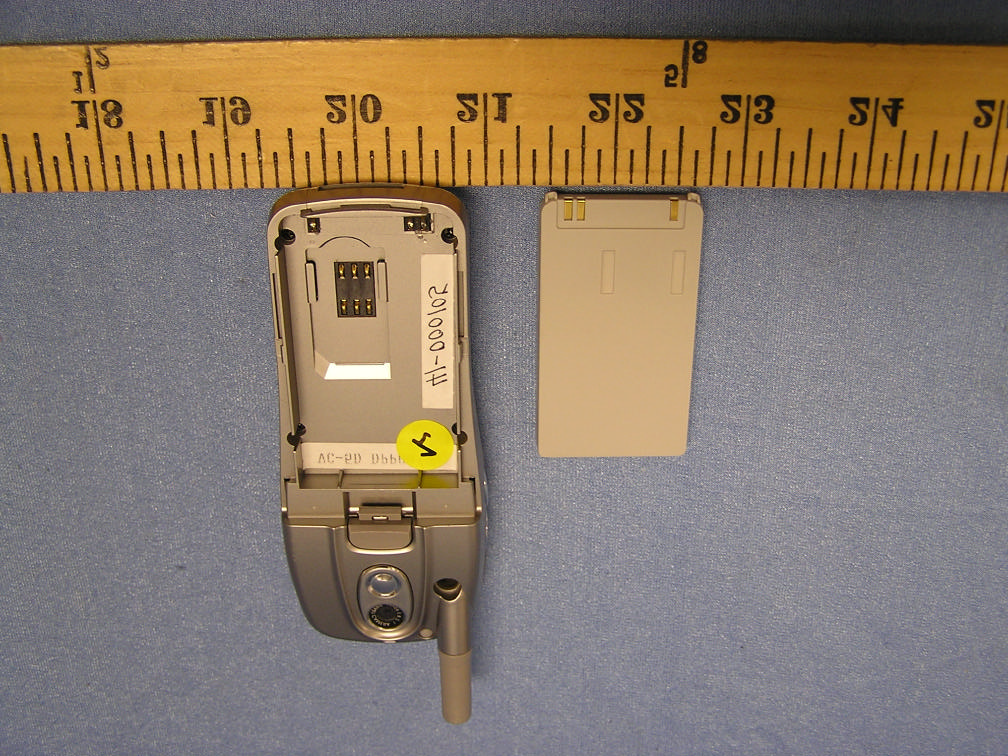

PROPOSED FCC ID LABEL AND LOCATION Compal Electronics, Inc. This device complies with Part 22 of the FCC Rules. FCC ID: GKRVC-5D FCC ID LABEL LOCATION

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for Dual Mode AMPS/CDMA Cellular Camera Phone MODEL: VC-5D FCC ID: GKRVC-5D April 1, 2003 REPORT NO: 04I2555-2 Prepared for Compal Electronics Inc No. 581, Jui-Kuang Rd. Neihu, Taipei, 114, Taiwan, R.O.C. Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 REPORT NO: 04I2555-2 DATE: April 1, 2004 FCC ID: GKRVC-5D COMPLIANCE CERTIFICATION SERVICES Page: 2 of 33 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) DATES OF TEST: March 31 & April 1, 2004 APPLICANT: Compal Electronics Inc No. 581, Jui-Kuang Rd Neihu, Taipei, 114, Taiwan R.O.C. MODEL: VC-5D FCC ID: GKRVC-5D DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: AMPS/CDMA Tx Frequency: 824.04 to 848.97 MHz for AMPS mode 824.70 to 848.31 MHz for CDMA mode Max. O/P Power: (Conducted/Average) 26.06 dBm for AMPS 24.10 dBm for CDMA Max. SAR (1g): AMPS Mode: 1.47 mW/g at Right head touched position 0.859 mW/g at Body worn CDMA Mode: 0.958 mW/g at Right head touched position) 0.509 mW/g at Body worn Application Type: Certification FCC Rule Part(s): 22H This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hsin-Fu Shih (Sunny Shih) Senior Engineer REPORT NO: 04I2555-2 DATE: April 1, 2004 FCC ID: GKRVC-5D COMPLIANCE CERTIFICATION SERVICES Page: 3 of 33 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. EQUIPMENT UNDER TEST (EUT) DESCRIPTION..........................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC..........................................4 3. DOSIMETRIC ASSESSMENT SETUP.............................................................................................4 3.1. MEASUREMENT SYSTEM DIAGRAM...............................................................................................................................5 3.2. SYSTEM COMPONENTS..................................................................................................................................................6 4. EVALUATION PROCEDURES.......................................................................................................8 5. MEASUREMENT UNCERTAINTY................................................................................................12 6. EXPOSURE LIMIT.....................................................................................................................13 7. EUT ARRANGEMENT...............................................................................................................14 8. MEASUREMENT RESULTS........................................................................................................17 8.1. SIMULATING LIQUIDS PARAMETER CHECK.................................................................................................................17 8.2. SYSTEM PERFORMANCE CHECK.................................................................................................................................21 8.3. PROCEDURES USED TO ESTABLISH TEST SIGNAL.....................................................................................................23 8.4. SAR MEASUREMENT RESULTS...................................................................................................................................24 9. EUT PHOTOS..........................................................................................................................29 10. EQUIPMENT LIST & CALIBRATION STATUS..............................................................................31 11. REFERENCES..........................................................................................................................32 12. ATTACHMENTS.......................................................................................................................33 REPORT NO: 04I2555-2 DATE: April 1, 2004 FCC ID: GKRVC-5D COMPLIANCE CERTIFICATION SERVICES Page: 4 of 33 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. EQUIPMENT UNDER TEST (EUT) DESCRIPTION The following is the information provided by the applicant. Type of EUT: Dual Mode AMPS/CDMA Cellular Camera Phone Type/Model No.: VC-5D Modulation Type: AMPS/CDMA TX Frequency: 824.04 to 848.97 MHz for AMPS mode 824.70 to 848.31 MHz for CDMA mode Duty Cycle: 100% Battery: Only one model with EUT 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in…

Text truncated - open the document above for the full version.

Date/Time: 03/31/04 09:37:58 Test Laboratory: The name of your organization D835V2SN4d002_033104 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Ambient temperature = 23.0 deg. C; Liquid temperature = 22.0 deg. C Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.917 mho/m; ε r = 42; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ES3DV2 - SN3021; ConvF(6.5, 6.5, 6.5); Calibrated: 7/29/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.2 Build 37; Postprocessing SW: SEMCAD, V1.8 Build 109 d=15mm, Pin=250mW/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 55.5 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 2.75 mW/g d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 55.5 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 2.74 mW/g Peak SAR (extrapolated) = 3.85 W/kg SAR(1 g) = 2.55 mW/g; SAR(10 g) = 1.65 mW/g 0 dB = 2.74mW/g Date/Time: 03/31/04 09:37:58 Test Laboratory: The name of your organization D835V2SN4d002_033104 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 DASY4 Configuration: z Probe: ES3DV2 - SN3021; ConvF(6.5, 6.5, 6.5); Calibrated: 7/29/2003 z Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.2 Build 37; Postprocessing SW: SEMCAD, V1.8 Build 109 d=15mm, Pin=250mW/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 55.5 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 2.3 mW/g Date/Time: 04/01/04 09:31:27 Test Laboratory: The name of your organization D835V2SN4d002_040104 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Ambient temperature = 23.0 deg. C; Liquid temperature = 22.0 deg. C Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.912 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ES3DV2 - SN3021; ConvF(6.5, 6.5, 6.5); Calibrated: 7/29/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.2 Build 37; Postprocessing SW: SEMCAD, V1.8 Build 109 d=15mm, Pin=250mW/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 55.1 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 2.73 mW/g d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 55.1 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 2.72 mW/g Peak SAR (extrapolated) = 3.8 W/kg SAR(1 g) = 2.5 mW/g; SAR(10 g) = 1.62 mW/g 0 dB = 2.72mW/g Date/Time: 04/01/04 09:31:27 Test Laboratory: The name of your organization D835V2SN4d002_040104 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 DASY4 Configuration: z Probe: ES3DV2 - SN3021; ConvF(6.5, 6.5, 6.5); Calibrated: 7/29/2003 z Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.2 Build 37; Postprocessing SW: SEMCAD, V1.8 Build 109 d=15mm, Pin=250mW/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 55.1 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 2.27 mW/g

Date/Time: 03/31/04 18:10:19 Test Laboratory: The name of your organization 1_Left Head Touch DUT: Compal Electronics, Inc.; Type: VC-5D; Serial: N/A Ambient temperature = 23.0 deg. C; Liquid temperature = 22.0 deg. C Communication System: AMPS 835; Frequency: 824.04 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 824.04 MHz; σ = 0.907 mho/m; ε r = 42.1; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ES3DV2 - SN3021; ConvF(6.5, 6.5, 6.5); Calibrated: 7/29/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.2 Build 37; Postprocessing SW: SEMCAD, V1.8 Build 109 Low Ch./Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 36.1 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 1.38 mW/g Low Ch./Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 36.1 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 1.39 mW/g Peak SAR (extrapolated) = 1.69 W/kg SAR(1 g) = 1.33 mW/g; SAR(10 g) = 0.975 mW/g Date/Time: 03/31/04 18:10:19 Test Laboratory: The name of your organization 1_Left Head Touch DUT: Compal Electronics, Inc.; Type: VC-5D; Serial: N/A DASY4 Configuration: z Probe: ES3DV2 - SN3021; ConvF(6.5, 6.5, 6.5); Calibrated: 7/29/2003 z Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.2 Build 37; Postprocessing SW: SEMCAD, V1.8 Build 109 Low Ch./Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 36.1 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 1.25 mW/g Date/Time: 03/31/04 18:10:19 Test Laboratory: The name of your organization 1_Left Head Touch DUT: Compal Electronics, Inc.; Type: VC-5D; Serial: N/A Ambient temperature = 23.0 deg. C; Liquid temperature = 22.0 deg. C Communication System: AMPS 835; Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.49 MHz; σ = 0.921 mho/m; ε r = 41.9; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ES3DV2 - SN3021; ConvF(6.5, 6.5, 6.5); Calibrated: 7/29/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.2 Build 37; Postprocessing SW: SEMCAD, V1.8 Build 109 Middle Ch./Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 33 V/m; Power Drift = 0.1 dB Maximum value of SAR (measured) = 1.18 mW/g Middle Ch./Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 33 V/m; Power Drift = 0.1 dB Maximum value of SAR (measured) = 1.17 mW/g Peak SAR (extrapolated) = 1.41 W/kg SAR(1 g) = 1.11 mW/g; SAR(10 g) = 0.819 mW/g Date/Time: 03/31/04 18:10:19 Test Laboratory: The name of your organization 1_Left Head Touch DUT: Compal Electronics, Inc.; Type: VC-5D; Serial: N/A Ambient temperature = 23.0 deg. C; Liquid temperature = 22.0 deg. C Communication System: AMPS 835; Frequency: 848.97 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 848.97 MHz; σ = 0.93 mho/m; ε r = 41.8; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ES3DV2 - SN3021; ConvF(6.5, 6.5, 6.5); Calibrated: 7/29/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.2 Build 37; Postprocessing SW: SEMCAD, V1.8 Build 109 High Ch./Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 32 V/m; Power Drift = 0.1 dB Maximum value of SAR (measured) = 1.12 mW/g High Ch./Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 32 V/m; Power Drift = 0.1 dB Maximum value of SAR (measured) = 1.17 mW/g Peak SAR (extrapolated) = 1.43 W/kg SAR(1 g) = 1.11 mW/g; SAR(10 g) = 0.812 mW/g Date/Time: 03/31/04 16:25:37 Test Laboratory: The name of your organization 2_Left Head Tilt DUT: Compal Electronics, Inc.; Type: VC-5D; Serial: N/A Ambient temperature = 23.0 deg. C; Liquid temperature = 22.0 deg. C Communication System: AMPS 835; Frequency: 824.04 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 824.04 MHz; σ = 0.907 mho/m; ε r = 42.1; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ES3DV2 - SN3021; ConvF(6.5, 6.5, 6.5); Calibrated: 7/29/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.2 Build 37; Postprocessing SW: SEMCAD, V1.8 Build 109 Low Ch./Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 34.3 V/m; Power Drift = -0.0007 dB Maximum value of SAR (measured) = 1.12 mW/g Low Ch./Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 34.3 V/m; Power Drift = -0.0007 dB Maximum value of SAR (measured) = 1.15 mW/g Peak SAR (extrapolated) = 1.59 W/kg SAR(1 g) = 1.06 mW/g; SAR(10 g) = 0.704 mW/g Date/Time: 03/31/04 16:25:37 Test Laboratory: The name of your organization 2_Left Head Tilt DUT: Compal Electronics, Inc.; Type: VC-5D; Serial: N/A DASY4 Configuration: z Probe: ES3DV2 - SN3021; ConvF(6.5, 6.5, 6.5); Calibrated: 7/29/2003 z Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.2 Build 37; Postprocessing SW: SEMCAD, V1.8 Build 109 Low Ch./Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 34.3 V/m; Power Drift = 0.0…

Text truncated - open the document above for the full version.

FCC CFR47 CERTIFICATION PART 22H TEST REPORT FOR 800MHZ DUAL MODE AMPS/CDMA CELLULAR CAMERA PHONE MODEL NUMBER: VC-5D FCC ID: GKRVC-5D REPORT NUMBER: 04I2555-1 ISSUE DATE: MARCH 30, 2004 Prepared for COMPAL ELECTRONICS, INC. 7F, NO. 500, JUIKUANG ROAD NEIHU, TAIPEI TAIWAN ROC 114 Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, ROUTE 2 MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 04I2555-1 DATE: March 30, 2004 FCC ID: GKRVC-5D EUT: Single Band 800MHz Dual mode AMPS/CDMA cellular Camera Phone Page 2 of 65 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. TEST RESULT CERTIFICATION.................................................................................................. 3 2. EUT DESCRIPTION.......................................................................................................................... 4 3. TEST METHODOLOGY .................................................................................................................. 4 4. TEST FACILITY................................................................................................................................ 4 5. ACCREDITATION AND LISTING ................................................................................................. 4 6. MEASURING INSTRUMENT CALIBRATION ............................................................................ 4 7. TEST SETUP, PROCEDURE AND RESULT................................................................................. 5 7.1. SECTION 2.1046: RF POWER OUTPUT ................................................................................... 5 7.2. SECTION 2.1047: MODULATION CHARACTERISTICS ..................................................... 13 7.3. SECTION 2.1049: OCCUPIED BANDWIDTH ........................................................................ 19 7.3.1. Un-modulated Signal .......................................................................................................... 24 7.3.2. Voice ................................................................................................................................... 25 7.3.3. Signaling Tone (ST) + Supervisory Audio Tone (SAT) ....................................................... 28 7.3.4. Wide Band Data (WBD)...................................................................................................... 29 7.3.5. Voice + Supervisory Audio Tone (SAT) .............................................................................. 30 7.3.6. DTMF + Supervisory Audio Tone (SAT) ............................................................................ 31 7.4. SECTION 2.1051: SPURIOUS EMISSION AT ANTENNA TERMINAL .............................. 32 7.5. SECTION 2.1053: FIELD STRENGTH OF SPURIOUS RADIATION ................................... 43 7.6. SECTION 2.1055: FREQUENCY STABILITY ........................................................................ 48 7.7. RADIATED EMISSION ............................................................................................................ 52 7.8. POWERLINE CONDUCTED EMISSION ................................................................................ 57 8. APENDIX .......................................................................................................................................... 62 8.1. EXTERNAL & INTERNAL PHOTOS ...................................................................................... 62 8.2. SCHEMATICS ........................................................................................................................... 65 8.3. BLOCK DIAGRAM ...................................................................................................................65 8.4. USER MANUAL ........................................................................................................................ 65 REPORT NO: 04I2555-1 DATE: March 30, 2004 FCC ID: GKRVC-5D EUT: Single Band 800MHz Dual mode AMPS/CDMA cellular Camera Phone Page 3 of 65 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: COMPAL ELECTRONICS INC. 8F, NO. 500, JUI-KUANG RD. NEIHU, TAIPEI 114 TAIWAN EUT DESCRIPTION: DUAL-MODE AMPS / CDMA CELLULAR PHONE MODEL NUMBER: VC-5D DATE TESTED: MARCH 17, 2004 – MARCH 19, 2004 TYPE OF EQUIPMENT INTENTIONAL RADIATOR MEASUREMENT PROCEDURE ANSI 63.4 / 2001, TIA/EIA 603 PROCEDURE CERTIFICATION FCC RULE CFR 47 PART 22 Subpart H Compliance Certification Services, Inc. tested the above equipment for compliance with the requirement set forth in CFR 47, PART 22 Subpart H-Cellular Radiotelephone Service. The equipment in the configuration described in this report, shows the measured emission levels emanating from the equipment do not exceed the specified limit. Note : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Tested By: Released For CCS By: WILLIAM ZHUANG THU CHAN EMC ENGINEER EMC SUPE…

Text truncated - open the document above for the full version.

REPORT NO: 04I2555-1 DATE: M…
