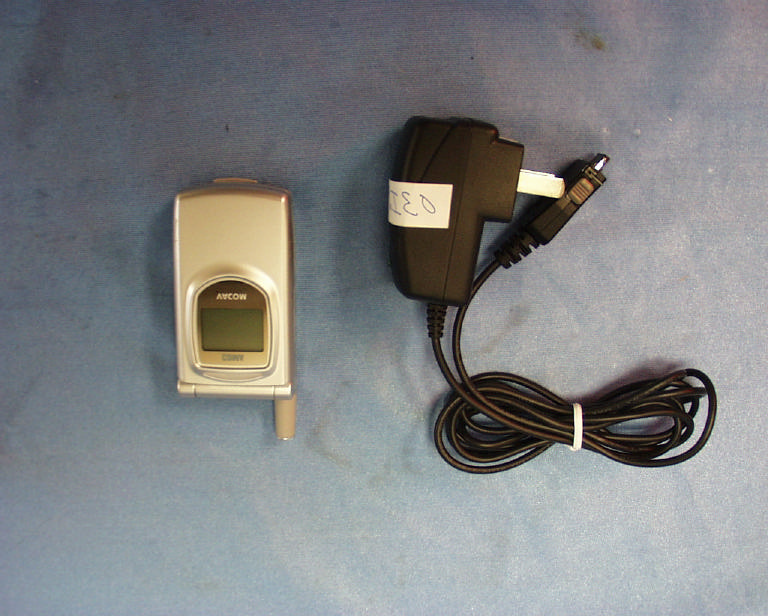

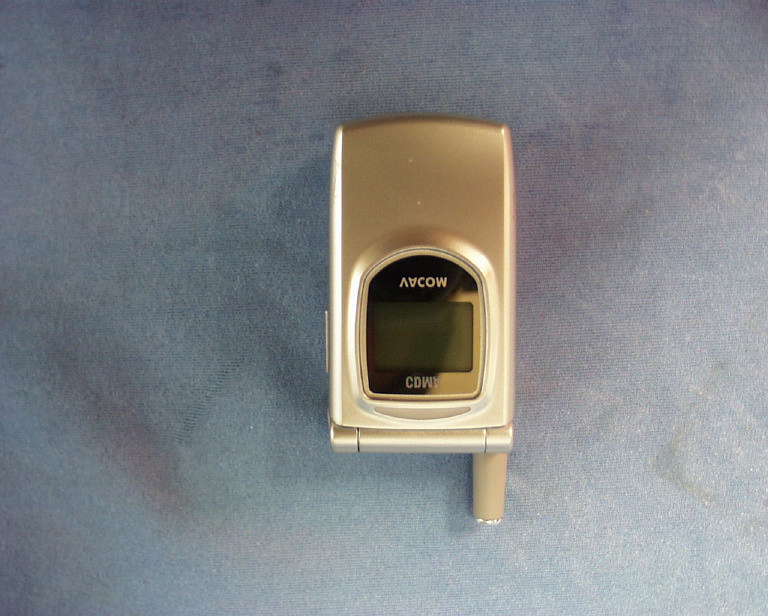

GKRVC-7CSingle Band Dual Mode AMPS/CDMA Cellular Phone

1 OPERATING MANUAL (VC-7C) Revision : 0.1 VACOM WIRELESS, INC 2 CONTENTS IMPORTANT SAFETY INFORMATION GETTING TO KNOW YOUR PHONE DISPLAY INDICATOR BATTERY INFORMATION BASIC FUNCTIONS 1. Turning Your Phone On 2. Making a Call 3. Ending a Call 4. Answering a Call 5. Correcting Dialing Mistakes 6. Storing Phone Numbers 7. Adjusting Earpiece Volume During a Call 8. Adjusting Voice Volume 9. Redialing Last Number, Received # & Missed call 10. Speed Dialing 11. Using Caller ID 12. Etiquette Mode MENUS I. Phonebook 1. How to add Phonebook 2. Phonebook Search 3. Call List 4. Group Editing 5. Phonebook Information II. VOLUME & ALERT 3 1. Bell Type 2. Ring Type 3. Volume 4. Alert Setting 5. Beep Length 6. Keypad Tone III. Personal Information Management 1. Alarm 2. Schedule 3. Memo 4. Calculator 5. World Time View IV. PHONE SETTING MENU 1. Wallpaper 2. Greeting Edit 3. Backlight 4. LCD Contrast 5. Set IP Phone 6. Languages V. Call Manage 1. Call Forward - Always - Busy - Unreachable - Disable 2. Call Function - Auto Answer - Call Waiting - Caller ID 3. Call Restrict - Send - International - Answering a call 4. Call Answer 4 - Anykey Answer - Folder Open 5. Cal Time 6. SECURITY FUNCTION 1. Phone Lock 2. Changing Password 3. Memory Clear 4. Initialization 5. Privacy Information 6. PIN Control 7. VAS 1. Games - Black Jack - Othello 2. UTK 3. Haier Service MESSAGE SERVICES I. TEXT MESSAGE SERVICES (SMS) 1. Read Text Messages 2. Sending Text Messages II. VOICE MAIL SERVICE III. SMS Setting 1. Delivery ACK 2. MSG Alert 3. Group Edit 4. MSG Save 5. Priority 6. Direct view IV. Delete Messages 5 USING MENU During a Call 1. Phone Book Search 2. Mute 3. DTMF Mute 4. Mic Volume ENTERING LETTERS & NUMBERS 1. Chinese Text Input B. Text Input by PinYin C. Text Input by Stroke 2. English Text Input D. Prediction Text Input E. ABC/123 Mode 3. Inserting Punctuation Symbols & Special Characters FCC RF EXPOSURE INFORMATION 6 IMPORTANT SAFETY INFORMATON Some of the following information may not apply to your particular product. However, as with any electronic product, you should observe safety precautions when you use this product. Save this manual : it contains important safety information and operating instructions. Before using this product, please follow and adhere to all warnings, safety, and operating instructions located on the product and in this User’s Manual. Do Not expose the product to water or moisture. Do Not expose the product to extreme hot or cold temperatures. Do Not expose the product to open flames. Do Not allow objects to fall on, or liquids to spill on the product. Use only Original Accessories. Damage from the use of non-approved accessories will void your phone warranty. Connect the approved charger only to designed power sources as marked on the product. To reduce the risk of damage, remove the electrical cord from an outlet by pulling the charger rather than the cord. Make sure the electric cord is located accordingly, so that it will not be subjected to damage. To reduce the risk of electric shock, unplug the product from the power source before attempting any cleaning. Once unplugged, use a soft cloth dampened with water. DANGER : Never alter the cord or plug. If the plug does not fit into the outlet, have a proper outlet installed by a qualified electrician. Improper connection can result electric shock. 7 Do Not attempt to disassemble the product – doing so will void the warranty. This product does not contain consumer-serviceable components. Service should be performed only by Authorized Service Centers. Do Not remove the antenna. A detached antenna may be a choking hazard for children. Do Not allow battery to be placed inside the mouth. Electrolytes could be released and may be toxic if swallowed. 8 GETTING TO KNOW YOUR PHONE Active Folder : Just open the folder to answer an incoming call, and close the folder to hang up. LED Indicator : Flashes to indicate an incoming call or message. It also lights up (flashes) when you turn on the phone. Volume/Scroll Keys : This keys are used to set volume levels, a etiquette mode and help you navigate through Menus and the phone book. Press the volume keys to : - Go to Etiquette mode to press “” key while flip closed. - Adjust voice volume during conversation. - Adjust key tone volume in Standby mode. - Answer the incoming call. - Scroll through menu options. - Scroll through your Internal Phone Book. Backlit LCD Screen : The LCD screen contains two areas; - The top line displays indications about your phone’s operating mode. - The lower area displays in-use information such as the other party’s number of the other party (if available), Mute, Call Waiting, etc. Your menus also display in the lower area. Menu Keys ( / ) : This key performs several useful functions. - During incoming calls, press it to answer the incoming call. - In Standby mode, press it briefly to access Main Menu and Select Menu. - When navigating a menu, press it to select the highlighted selection. SMS Key () : When in Standby Mode, press this key to access Message Menu items. - During incoming calls, press it to answer the incoming call. - From Standby Mode, press it briefly to access Message Services. Navigation Keys : This key is similar to the volume key. Press “ ” key to scroll 9 “up”, and press “” key to scroll “down”. And use it to scan menu options. View calendar by pressing the left key. Game by pressing the right key. UTK function by pressing the bottom key (“”). Microphone : Your typical voice microphone for conversation and you can also mute the microphone during conversation by pressing “MENU” “4”. Accessories Connector : The location where you connect your charging device. CLR Key : This key is used to erase numbers or characters you may have entered incorrectly, or to return to a previous screen. - To erase one character from the display screen, briefly press it once. - To erase all of them, hold it for one second. - To back up one menu level, press it once. - To …

Text truncated - open the document above for the full version.

No.581,Jui-Kuang Rd. Neihu, Taipei, Taiwan 114 Phone : +886-2-8797 8588 Fax : +886-2-2658 5001 COMPAL AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Handheld Portable Cellular Telephone (FCC ID: GKRVC-7C) is so designed that it complies with all the requirements for ESN protection specified in Section 22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. C) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, Eric Liu Manager of Management Division COMPAL ELECTRONICS, INC. No.581,Jui-Kuang Rd. Neihu, Taipei, Taiwan 114 Phone : +886-2-8797 8588 Fax : +886-2-2658 5001 COMPAL July 9, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Compal Electronics Inc. FCC ID: GKRVC-7C FCC E911 Requirements Per §22.921 Gentlemen: Compal Electronics Inc. hereby certifies that the analog cellular telephone (FCC ID: GKRVC-7C), using the Automatic A/B Roaming – Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. Eric Liu Manager of Management Division COMPAL ELECTRONICS, INC.

No.581,Jui-Kuang Rd. Neihu, Taipei, Taiwan 114 Phone : +886-2-8797 8588 Fax : +886-2-2658 5001 COMPAL July 9, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Compal Electronics Inc. FCC ID: GKRVC-7C Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, Compal Electronics Inc. hereby requests confidentiality of Schematics, Block Diagrams, Parts List, Theory of Operation, Tune-Up Procedure, Antenna Specification, and Technical Specification for the subject application. These documents contain detailed system and equipment description and related information about the product that we consider to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors, and that disclosure of the information in these documents would give competitors an unfair advantage in the market. Eric Liu Manager of Management Division COMPAL ELECTRONICS, INC.

PROPOSED FCC ID LABEL AND LOCATION Compal Electronics, Inc. This device complies with Part 22 of the FCC Rules. FCC ID: GKRVC-7C FCC ID LABEL LOCATION

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for Dual-ModeAMPS/CDMA CellularPhone MODEL: VC-7C FCC ID: GKRVC-7C July 3, 2003 REPORT NO: 03I2069-2 Prepared for COMPAL ELECTRONICS, INC. 8F, No. 500, JUI-KUANG ROAD NEIHU, TAIPEI 114 TAIWAN, R.O.C. Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 REPORT NO:03I2069-2DATE:July 3, 2003FCC ID: GKRVC-7C COMPLIANCE CERTIFICATION SERVICESPage: 2 of 24 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) DATES OF TEST:July 2 & 3, 2003 APPLICANT:COMPAL ELECTRONICS, INC. 8F, No. 500, JUI-KUANG ROAD NEIHU, TAIPEI 114 TAIWAN, R.O.C. MODEL:VC-7C FCC ID:GKRVC-7C DEVICE CATEGORY:PORTABLE DEVICES EXPOSURE CATEGORY:GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a:Production unit Modulation type:AMPS & CDMA Operating Mode:Maximum continuous output Tx Frequency:AMPS = 824.04 ~ 848.97 MHz CDMA = 824.70 ~ 848.31 MHz Max. O/P Power: (Conducted) AMPS = 26.19dBm CDMA = 24.18dBm Max. SAR (1g):AMPS - 1.03W/Kg (Right head-touchedposition) 0.412W/Kg (Body worn) CDMA - 0.762W/Kg (Right head-touchedposition) 0.301W/Kg (Body worn) Application Type:Certification FCC Rule Part(s):§ 22 (H) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std.C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Steve Cheng EMC Engineering Manager REPORT NO:03I2069-2DATE:July 3, 2003FCC ID: GKRVC-7C COMPLIANCE CERTIFICATION SERVICESPage: 3 of 24 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1.EUT DESCRIPTIONS............................................................................................................... 4 2.R EQUIREMENTSFORCOMPLIANCETESTINGDEFINEDBYTHEFCC .................................. 5 3.DOSIMETRICASSESSMENTSETUP......................................................................................... 5 3.1.MEASUREMENTSYSTEMDIAGRAM...............................................................................................................................6 3.2.S YSTEMCOMPONENTS..................................................................................................................................................7 4.EVALUATIONPROCEDURES.................................................................................................... 9 5.MEASUREMENTUNCERTAINTY.............................................................................................11 6.EXPOSURELIMIT...................................................................................................................12 7.EUT A RRANGEMENT............................................................................................................13 8.M EASUREMENTRESULTS.....................................................................................................14 8.1.SYSTEMPERFORMANCECHECK.................................................................................................................................14 8.2.TESTLIQUIDSCONFIRMATION.....................................................................................................................................15 8.3.EUT T UNE-UPPROCEDURE S......................................................................................................................................16 8.4.EUT S ETUPPHOTOS...................................................................................................................................................17 8.5.SAR MEASUREMENT RESULTS..............................................................................................................................18 9.EUTPHOTOS........................................................................................................................21 10. EQUIPMENTLIST& CALIBRATIONSTATUS..........................................................................22 11. REFERENCES........................................................................................................................23 12. ATTACHMENTS......................................................................................................................24 REPORT NO:03I2069-2DATE:July 3, 2003FCC ID: GKRVC-7C COMPLIANCE CERTIFICATION SERVICESPage: 4 of 24 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. EUT DESCRIPTIONS APPLICANT:COMPAL ELECTRONICS, INC. 8F, No. 500, JUI-KUANG ROAD NEIHU, TAIPEI 114 TAIWAN, R.O.C. MODEL:VC-7C FCC ID:GKRVC-7C DEVICE CATEGORY:PORTABLE DEVICES EXPOSURE CATEGORY:GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a:Production unit Modulation type:AMPS & CDMA Operating Mode:Maximum continuous output Tx Frequency:AMPS = 824.04 ~ 848.97 MHz CDMA = 824.70 ~ 848.31 MHz Max. O/P Power: (Conducted) AMPS = 26.19dBm CDMA = 24.18 dBm Max…

Text truncated - open the document above for the full version.

Date/Time: 07/02/03 10:28:52 Test Laboratory: Compliance Certification Services File Name: D900V2_108.da4 DUT: Dipole 900 MHz; Type: D900V2; Serial: D900V2 - SN:xxx Program: System Performance Check at 900 MHz Ambient Temperature: 24.5 deg C; Liquid Temperature: 23 deg C Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Head 900 MHz (σ = 0.96401 mho/m, ε r = 41.1443, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(7.1, 7.1, 7.1); Calibrated: 2/7/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 1; Type: SAM 1; Serial: 1185 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 d=15mm, Pin=250mW/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 3.99 W/kg SAR(1 g) = 2.71 mW/g ; SAR(10 g) = 1.73 mW/g Reference Value = 56.9 V/m Power Drift = -0.02 dB Maximum value of SAR = 2.86 mW/g Date/Time: 07/02/03 10:28:52 Test Laboratory: Compliance Certification Services File Name: D900V2_108.da4 DUT: Dipole 900 MHz; Type: D900V2; Serial: D900V2 - SN:xxx Program: System Performance Check at 900 MHz Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Head 900 MHz (σ = 0.96401 mho/m, ε r = 41.1443, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(7.1, 7.1, 7.1); Calibrated: 2/7/2003 z Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 1; Type: SAM 1; Serial: 1185 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 d=15mm, Pin=250mW/Z Scan (1x1x61): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 56.9 V/m Power Drift = - 0.01 dB Maximum value of SAR = 1.73 mW/g Date/Time: 07/03/03 10:58:28 Test Laboratory: Compliance Certification Services File Name: D900V2_108.da4 DUT: Dipole 900 MHz; Type: D900V2; Serial: D900V2 - SN:xxx Program: System Performance Check at 900 MHz Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Head 900 MHz (σ = 0.9766 mho/m, ε r = 41.1693, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(7.1, 7.1, 7.1); Calibrated: 2/7/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 1; Type: SAM 1; Serial: 1185 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 d=15mm, Pin=250mW/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm d=15mm, Pin=250mW/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 4.16 W/kg SAR(1 g) = 2.83 mW/g ; SAR(10 g) = 1.81 mW/g Reference Value = 58.4 V/m Power Drift = -0.03 dB Maximum value of SAR = 3.03 mW/g Date/Time: 07/03/03 10:58:28 Test Laboratory: Compliance Certification Services File Name: D900V2_108.da4 DUT: Dipole 900 MHz; Type: D900V2; Serial: D900V2 - SN:xxx Program: System Performance Check at 900 MHz Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Head 900 MHz (σ = 0.9766 mho/m, ε r = 41.1693, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(7.1, 7.1, 7.1); Calibrated: 2/7/2003 z Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 1; Type: SAM 1; Serial: 1185 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 d=15mm, Pin=250mW/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 58.4 V/m Power Drift = -0.04 dB Maximum value of SAR = 1.67 mW/g

Date/Time: 07/02/03 13:42:22 Test Laboratory: Compliance Certification Services File Name: VC-7C-Touch_LeftHandSide-AMPS.da4 DUT: Compal Electronics, Inc.; Type: VC-7C; Serial: N/A Program: Left-Hand Side_AMPS Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: AMPS; Frequency: 824.04 MHz;Duty Cycle: 1:1 Medium: Head 835 MHz (σ = 0.8953 mho/m, ε r = 42.4749, ρ = 1000 kg/m 3 ) Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(7.1, 7.1, 7.1); Calibrated: 2/7/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Touch position - Low/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Touch position - Low/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 1.06 W/kg SAR(1 g) = 0.751 mW/g ; SAR(10 g) = 0.495 mW/g Reference Value = 7.97 V/m Power Drift = -0.13 dB Maximum value of SAR = 0.812 mW/g Date/Time: 07/02/03 13:42:22 Test Laboratory: Compliance Certification Services File Name: VC-7C-Touch_LeftHandSide-AMPS.da4 DUT: Compal Electronics, Inc.; Type: VC-7C; Serial: N/A Program: Left-Hand Side_AMPS Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: AMPS; Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium: Head 835 MHz (σ = 0.8953 mho/m, ε r = 42.4749, ρ = 1000 kg/m 3 ) Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(7.1, 7.1, 7.1); Calibrated: 2/7/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Touch position - Middle/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 8.4 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.912 mW/g Touch position - Middle/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 1.38 W/kg SAR(1 g) = 0.964 mW/g ; SAR(10 g) = 0.628 mW/g Reference Value = 8.4 V/m Power Drift = -0.1 dB Maximum value of SAR = 1.04 mW/g Date/Time: 07/02/03 13:42:22 Test Laboratory: Compliance Certification Services File Name: VC-7C-Touch_LeftHandSide-AMPS.da4 DUT: Compal Electronics, Inc.; Type: VC-7C; Serial: N/A Program: Left-Hand Side_AMPS Communication System: AMPS; Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium: Head 835 MHz (σ = 0.8953 mho/m, ε r = 42.4749, ρ = 1000 kg/m 3 ) Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(7.1, 7.1, 7.1); Calibrated: 2/7/2003 z Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Touch position - Middle/Z Scan (1x1x53): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 8.4 V/m Power Drift = -0.13 dB Maximum value of SAR = 0.544 mW/g Date/Time: 07/02/03 15:19:36 Test Laboratory: Compliance Certification Services File Name: VC-7C-Touch_LeftHandSide-AMPS.da4 DUT: Compal Electronics, Inc.; Type: VC-7C; Serial: N/A Program: Left-Hand Side_AMPS Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: AMPS; Frequency: 848.97 MHz;Duty Cycle: 1:1 Medium: Head 835 MHz (σ = 0.8953 mho/m, ε r = 42.4749, ρ = 1000 kg/m 3 ) Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(7.1, 7.1, 7.1); Calibrated: 2/7/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Touch position - High/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Touch position - High/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 1.27 W/kg SAR(1 g) = 0.887 mW/g ; SAR(10 g) = 0.575 mW/g Reference Value = 8.89 V/m Power Drift = -0.17 dB Maximum value of SAR = 0.956 mW/g 0 dB = 0.956mW/g Date/Time: 07/02/03 15:09:14 Test Laboratory: Compliance Certification Services File Name: VC-7C-Tilt_LeftHandSide-AMPS.da4 DUT: Compal Electronics, Inc.; Type: VC-7C; Serial: N/A Program: Left-Hand Side-Tilt_AMPS Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: AMPS; Frequency: 824.04 MHz;Duty Cycle: 1:1 Medium: Head 835 MHz (σ = 0.8953 mho/m, ε r = 42.4749, ρ = 1000 kg/m 3 ) Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(7.1, 7.1, 7.1); Calibrated: 2/7/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Tilt position - Low/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Tilt position - Low/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.252 W/kg SAR(1 g) = 0.202 mW/g ; SAR(10 g) = 0.149 mW/g Reference Value = 9.92 V/m Power Drift = -0.04 dB Maximum value of SAR = 0.214 mW/g 0 dB = 0.214mW/g Date/Time: 07/02/03 14:30:42 Test Laboratory: Compliance Certification Services File Name: VC-7C-Tilt_LeftHandSide-AMPS.da4 DUT: Compal Electronics, Inc.; Type: VC-7C; Serial: N/A Program: Left-Hand Side-Tilt_AMPS Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: AMPS; Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium: Head 835 MHz (σ = 0.8953 mho/m, ε r = 42.4749, ρ = 1000 kg/m 3 ) Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(7.1, 7.1, 7.1); Calibrated: 2/7/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; C…

Text truncated - open the document above for the full version.

Date/Time: 07/03/03 11:48:52 Test Laboratory: Compliance Certification Services File Name: VC-7C-Touch_LeftHandSide-CDMA.da4 DUT: Compal Electronics, Inc.; Type: VC-7C; Serial: N/A Program: Left-Hand Side_CDMA Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: CDMA; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: Head 835 MHz (σ = 0.8971 mho/m, ε r = 42.2229, ρ = 1000 kg/m 3 ) Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(7.1, 7.1, 7.1); Calibrated: 2/7/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Touch position - Low/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Touch position - Low/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.686 W/kg SAR(1 g) = 0.471 mW/g ; SAR(10 g) = 0.305 mW/g Reference Value = 5.43 V/m Power Drift = -0.0004 dB Maximum value of SAR = 0.509 mW/g 0 dB = 0.509mW/g Date/Time: 07/03/03 12:14:28 Test Laboratory: Compliance Certification Services File Name: VC-7C-Touch_LeftHandSide-CDMA.da4 DUT: Compal Electronics, Inc.; Type: VC-7C; Serial: N/A Program: Left-Hand Side_CDMA Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: Head 835 MHz (σ = 0.8971 mho/m, ε r = 42.2229, ρ = 1000 kg/m 3 ) Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(7.1, 7.1, 7.1); Calibrated: 2/7/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Touch position - Middle/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Touch position - Middle/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.889 W/kg SAR(1 g) = 0.618 mW/g ; SAR(10 g) = 0.401 mW/g Reference Value = 5.73 V/m Power Drift = 0.1 dB Maximum value of SAR = 0.664 mW/g 0 dB = 0.664mW/g Date/Time: 07/03/03 13:04:48 Test Laboratory: Compliance Certification Services File Name: VC-7C-Touch_LeftHandSide-CDMA.da4 DUT: Compal Electronics, Inc.; Type: VC-7C; Serial: N/A Program: Left-Hand Side_CDMA Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: CDMA; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: Head 835 MHz (σ = 0.8971 mho/m, ε r = 42.2229, ρ = 1000 kg/m 3 ) Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(7.1, 7.1, 7.1); Calibrated: 2/7/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Touch position - High/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Touch position - High/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 1.08 W/kg SAR(1 g) = 0.749 mW/g ; SAR(10 g) = 0.483 mW/g Reference Value = 6.67 V/m Power Drift = -0.13 dB Maximum value of SAR = 0.807 mW/g 0 dB = 0.807mW/g Date/Time: 07/03/03 13:04:48 Test Laboratory: Compliance Certification Services File Name: VC-7C-Touch_LeftHandSide-CDMA.da4 DUT: Compal Electronics, Inc.; Type: VC-7C; Serial: N/A Program: Left-Hand Side_CDMA Communication System: CDMA; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: Head 835 MHz (σ = 0.8971 mho/m, ε r = 42.2229, ρ = 1000 kg/m 3 ) Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(7.1, 7.1, 7.1); Calibrated: 2/7/2003 z Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Touch position - High/Z Scan (1x1x53): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 6.67 V/m Power Drift = -0.13 dB Maximum value of SAR = 0.401 mW/g Date/Time: 07/03/03 13:53:22 Test Laboratory: Compliance Certification Services File Name: VC-7C-Tilt_LeftHandSide-CDMA.da4 DUT: Compal Electronics, Inc.; Type: VC-7C; Serial: N/A Program: Left-Hand Side_CDMA Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: CDMA; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: Head 835 MHz (σ = 0.8971 mho/m, ε r = 42.2229, ρ = 1000 kg/m 3 ) Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(7.1, 7.1, 7.1); Calibrated: 2/7/2003 z Sensor-…

Text truncated - open the document above for the full version.
