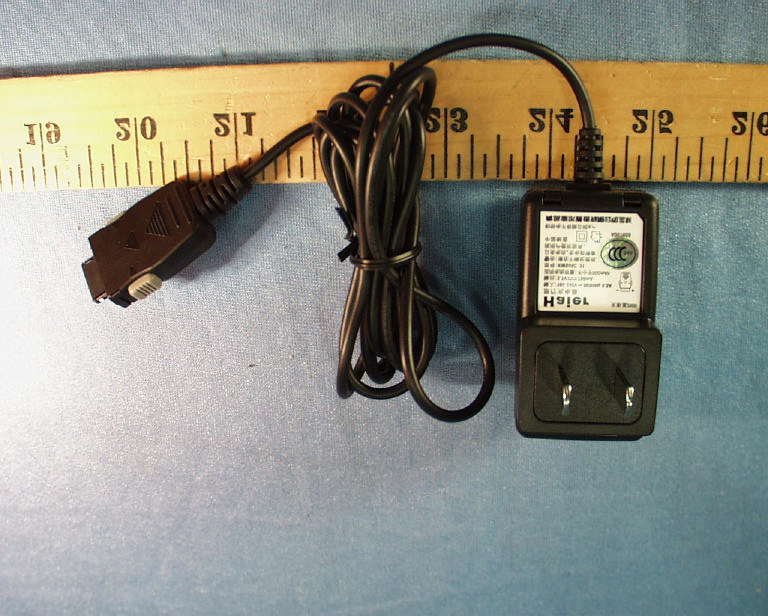

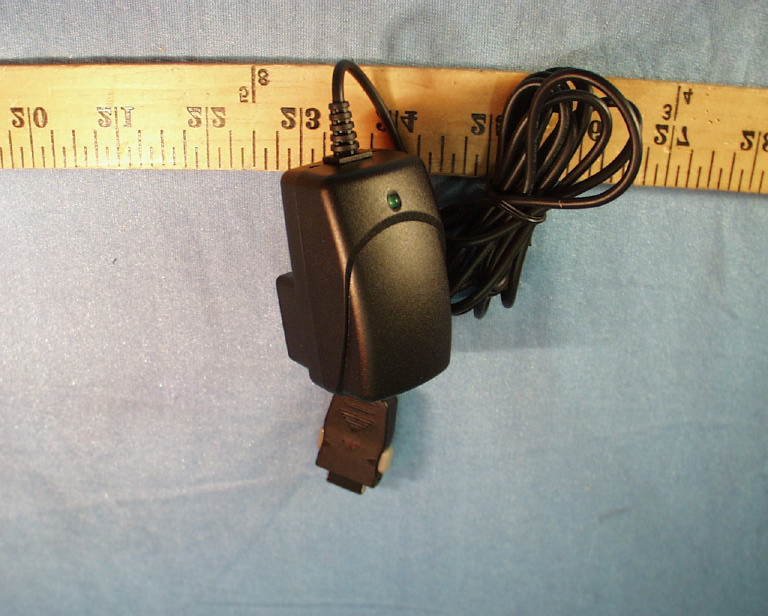

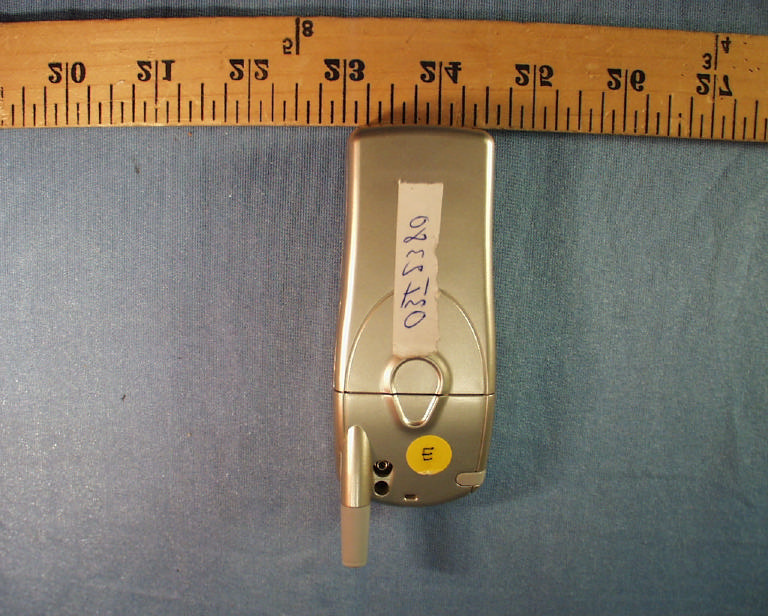

GKRVP-5U1900MHZ CDMA Cellular Phone

1 OPERATING MANUAL (VP-5U) Revision : 0.1 Page# Modification Remark VACOM WIRELESS, INC 2 IMPORTANT SAFETY INFORMATION GETTING TO KNOW YOUR PHONE DISPLAY INDICATOR BATTERY INFORMATION BASIC FUNCTIONS 1. Making a Call 2. Ending a Call 3. Answering a Call 4. Correcting Dialing Mistakes 5. Storing Phone Numbers 6. Adjusting Earpiece Volume During a Call 7. Using Caller ID 8. Speed Dialing 9. Short Cut a. Keypad Lock b. Phone Lock c. Etiquette Mode d. Phone Number Search e. Calendar f. Alarm 10. Current Time Setting MENUS I. Phone Book 1. Call List (missed call / incoming call / outgoing call) 2. Phone Book Search (by name / by location / by phone number / by group) 3. Storing Phone Numbers 4. Call Time View 5. My Phone Number 6. Delete Phone Book 3 II. MESSAGE SERVICE 1. SMS (Short Message Service) a. Read Text Messages b. Send Text Message Send New Message Send from Message Box Send Message That You Already Sent Out Group Edit c. Message Box d. SMS Setting Message Alert Direct View Delivery Ack 2. Voice Mail Service 3. Message Delete III. PHONE SETTING 1. Wallpaper 2. Language 3. Backlight 4. LCD Contrast 5. Auto Answer 6. Any Key Answer 7. Auto Redial 8. DTMF Tone 9. Auto Keypad Lock IV. SOUND MENU 1. Incoming Calls 2. Ring Type 4 3. Roam Ringer 4. Volume Control 5. Alert V. SECURITY FUNCTION 1. Phone Lock 2. Changing Password 3. Restrict Sending Calls 4. Voice Privacy 5. Network Change 6. Initialization VI. PIM (Personal Information Management) 1. Alarm 2. Schedule 3. Calendar 4. Calculator 5. Memo 6. World Time View VII. CALL FUNCTION 1. Call Forward 2. Call Waiting 3. Caller Identification 4. Service Access Number Edit Using Menu During a Call 1. Phone Book 2. Message 3. Phone Setting 4. Sounds (Earpiece / Mic / Key Tone / Alert / Mic Mute / Key Tone Mute / Alert Setting) ENTERING LETTERS & NUMBERS FCC RF EXPOSURE INFORMATION 5 IMPORTANT SAFETY INFORMATION Some of the following information may not apply to your particular product. However, as with any electronic product, you should observe safety precautions when you use this product. Save this manual : it contains important safety information and operating instructions. Before using this product, please follow and adhere to all warnings, safety, and operating instructions located on the product and in this User’s Manual. Do Not expose the product to water or moisture. Do Not expose the product to extreme hot or cold temperatures. Do Not expose the product to open flames. Do Not allow objects to fall on, or liquids to spill on the product. Use only Original Accessories. Damage from the use of non-approved accessories will void your phone warranty. Connect the approved charger only to designed power sources as marked on the product. To reduce the risk of damage, remove the electrical cord from an outlet by pulling the charger rather than the cord. Make sure the electric cord is located accordingly, so that it will not be subjected to damage. To reduce the risk of electric shock, unplug the product from the power source before attempting any cleaning. Once unplugged, use a soft cloth dampened with water. DANGER : Never alter the cord or plug. If the plug does not fit into the outlet, have a proper outlet installed by a qualified electrician. Improper connection can result electric shock. 6 Do Not attempt to disassemble the product – doing so will void the warranty. This product does not contain consumer-serviceable components. Service should be performed only by Authorized Service Centers. Do Not remove the antenna. A detached antenna may be a choking hazard for children. Do Not allow battery to be placed inside the mouth. Electrolytes could be released and may be toxic if swallowed. 7 GETTING TO KNOW YOUR PHONE LED Indicator : Flashes to indicate an incoming call or message. It also lights up (flashes) when you turn on the phone. Backlit LCD Screen : The LCD screen contains three areas; - The top line displays indication about your phone’s operating mode. - Two lines in the middle are the display areas for numbers and characters. - The bottom line displays menus. Menu Keys ( / ) : This key performs several useful functions. - During incoming calls, press it to answer the incoming call. - In Standby mode, press it briefly to access Main Menu and Select Menu. - When navigating a menu, press it to select the highlighted selection. SMS Key () : When in Standby Mode, press this key to access Message Menu items. Navigation Key () : This key allows you to navigate the phone’s variable functionality and useful shortcut. Microphone : Your typical voice microphone for conversation and you can also mute the microphone during conversation by pressing “MENU” “4” “5”. Accessories Connector : The location where you connect your charging device. It can also be used to connect wireless data device or hands-free car kit. CLR Key : This key is used to erase numbers or characters you may have entered incorrectly, or to return to a previous screen. - To erase one character from the display screen, briefly press it once. - To erase all of them, hold it for one second. - To back up one menu level, press it once. - To return to Standby Mode, hold it for one second. 8 - During a call, press it to control earpiece volume. END/ Key : Press this key to disconnect a call or to return to Standby Mode from any menu. Press and hold this key to turn the phone On or Off. SEND Key : This key performs several useful functions. - Dial a number and press it to connect. - Press it once to redial the last outgoing number. Numeric Keys : These keys are to dial and to input numbers and characters. * : This key performs several useful functions. - Change bells to vibration - Use as navigation key. # : This key performs several useful functions. - Use as instance phone lock. - Use as navigation key. Antenna 9 DISPLAY INDICATORS Display indicators appear across the bottom of your phone’s LCD screen. These display indicators (or icons) will vary based on your phone’s operating mode…

Text truncated - open the document above for the full version.

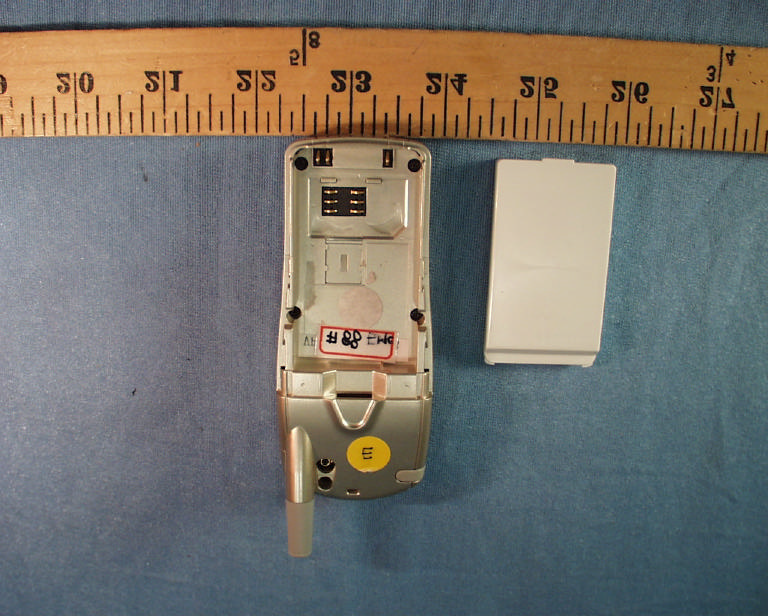

PROPOSED FCC ID LABEL AND LOCATION Compal Electronics, Inc. This device complies with Part 24 of the FCC Rules. FCC ID: GKRVP-5U FCC ID LABEL LOCATION

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for Single-Mode PCS CDMA Phone MODEL: VP-5U FCC ID: GKRVP-5U December 11, 2003 REPORT NO: 03T2380-2 Prepared for Compal Electronics Inc No. 581, Jui-Kuang Rd. Neihu, Taipei, 114, Taiwan, R.O.C. Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 REPORT NO: 03I2380-2 DATE: December 11, 2003 FCC ID: GKRVP-5U COMPLIANCE CERTIFICATION SERVICES Page: 2 of 30 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) DATES OF TEST: December 11, 2003 APPLICANT: Compal Electronics Inc No. 581, Jui-Kuang Rd Neihu, Taipei, 114, Taiwan R.O.C. MODEL: VP-5U FCC ID: GKRVP-5U DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: CDMA Operating Mode: Maximum continuous output Tx Frequency: 1851.25 MHz to 1908.75 MHz Max. O/P Power: (Conducted/Average) 23.8 dBm Max. SAR (1g): 0.927 mW/g (Left head tilted position) 0.709 mW/g (Body worn) Application Type: Certification FCC Rule Part(s): § 24E This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Steve Cheng EMC Engineering Manager REPORT NO: 03I2380-2 DATE: December 11, 2003 FCC ID: GKRVP-5U COMPLIANCE CERTIFICATION SERVICES Page: 3 of 30 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. EQUIPMENT UNDER TEST (EUT) DESCRIPTION....................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC..................................4 3. DOSIMETRIC ASSESSMENT SETUP.........................................................................................4 3.1. MEASUREMENT SYSTEM DIAGRAM...............................................................................................................................5 3.2. SYSTEM COMPONENTS..................................................................................................................................................6 4. EVALUATION PROCEDURES....................................................................................................8 5. MEASUREMENT UNCERTAINTY.............................................................................................12 6. EXPOSURE LIMIT...................................................................................................................13 7. EUT ARRANGEMENT............................................................................................................14 8. MEASUREMENT RESULTS.....................................................................................................17 8.1. SIMULATING LIQUIDS PARAMETER CHECK.................................................................................................................17 8.2. SYSTEM PERFORMANCE CHECK.................................................................................................................................19 8.3. EUT TUNE-UP PROCEDURES......................................................................................................................................20 8.4. SAR MEASUREMENT RESULTS...................................................................................................................................21 9. EUT PHOTOS........................................................................................................................26 10. EQUIPMENT LIST & CALIBRATION STATUS..........................................................................28 11. REFERENCES........................................................................................................................29 12. ATTACHMENTS......................................................................................................................30 REPORT NO: 03I2380-2 DATE: December 11, 2003 FCC ID: GKRVP-5U COMPLIANCE CERTIFICATION SERVICES Page: 4 of 30 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. EQUIPMENT UNDER TEST (EUT) DESCRIPTION The following is the information provided by the applicant. Type of EUT: Single-Mode PCS CDMA Phone Type/Model No.: VP-5U Modulation Type: CDMA TX Frequency: 1851.25 MHz to 1908.75 MHz Duty Cycle: 100% Battery: Only one model with EUT 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontroll…

Text truncated - open the document above for the full version.

Date/Time: 12/11/03 10:08:48 Test Laboratory: Compliance Certification Services D1800V2 SN294_121103 DUT: Dipole 1800 MHz; Type: D1800V2; Serial: 294 Program Name: System Performance Check at 1800 MHz Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: Head 1800 MHz (σ = 1.4419 mho/m, ε r = 40.1245, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ES3DV2 - SN3021; ConvF(5.1, 5.1, 5.1); Calibrated: 7/29/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.8 Build 62 d=10mm; Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 89.5 V/m Power Drift = -0.0 dB Maximum value of SAR = 11 mW/g d=10mm; Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 17.4 W/kg SAR(1 g) = 9.67 mW/g; SAR(10 g) = 5.05 mW/g Reference Value = 89.5 V/m Power Drift = -0.0 dB Maximum value of SAR = 11 mW/g 0 dB = 11mW/g Date/Time: 12/11/03 10:08:48 Test Laboratory: Compliance Certification Services D1800V2 SN294_121103 DUT: Dipole 1800 MHz; Type: D1800V2; Serial: 294 DASY4 Configuration: z Probe: ES3DV2 - SN3021; ConvF(5.1, 5.1, 5.1); Calibrated: 7/29/2003 z Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.8 Build 62 d=10mm; Pin=250mW/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 89.5 V/m Power Drift = -0.0 dB Maximum value of SAR = 11.3 mW/g

Date/Time: 12/11/03 14:11:54 Test Laboratory: Compliance Certification Services 1_Left Touch DUT: Compal; Type: VP-5U; Serial: N/A Program Name: Left-Hand Side Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: PCS CDMA; Frequency: 1851.25 MHz;Duty Cycle: 1:1 Medium: Head 1900MHz (σ = 1.4692 mho/m, ε r = 40.5269, ρ = 1000 kg/m 3 ) Phantom section: Left Section DASY4 Configuration: z Probe: ES3DV2 - SN3021; ConvF(5.1, 5.1, 5.1); Calibrated: 7/29/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 1; Type: SAM 1; Serial: 1185 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.8 Build 62 Touch position - Low/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Touch position - Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.721 W/kg SAR(1 g) = 0.440 mW/g; SAR(10 g) = 0.255 mW/g Reference Value = 16.6 V/m Power Drift = 0.1 dB Maximum value of SAR = 0.491 mW/g Touch position - Low/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.502 W/kg SAR(1 g) = 0.319 mW/g; SAR(10 g) = 0.207 mW/g Reference Value = 16.6 V/m Power Drift = 0.1 dB Maximum value of SAR = 0.382 mW/g Date/Time: 12/11/03 14:11:54 Test Laboratory: Compliance Certification Services 1_Left Touch DUT: Compal; Type: VP-5U; Serial: N/A Program Name: Left-Hand Side Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: PCS CDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: Head 1900MHz (σ = 1.4692 mho/m, ε r = 40.5269, ρ = 1000 kg/m 3 ) Phantom section: Left Section DASY4 Configuration: z Probe: ES3DV2 - SN3021; ConvF(5.1, 5.1, 5.1); Calibrated: 7/29/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 1; Type: SAM 1; Serial: 1185 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.8 Build 62 Touch position - Middle/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Touch position - Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.929 W/kg SAR(1 g) = 0.558 mW/g; SAR(10 g) = 0.322 mW/g Reference Value = 18 V/m Power Drift = 0.0 dB Maximum value of SAR = 0.606 mW/g Touch position - Middle/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.656 W/kg SAR(1 g) = 0.367 mW/g; SAR(10 g) = 0.243 mW/g Reference Value = 18 V/m Power Drift = 0.0 dB Maximum value of SAR = 0.491 mW/g Date/Time: 12/11/03 14:46:12 Test Laboratory: Compliance Certification Services 1_Left Touch DUT: Compal; Type: VP-5U; Serial: N/A Program Name: Left-Hand Side Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: PCS CDMA; Frequency: 1908.75 MHz;Duty Cycle: 1:1 Medium: Head 1900MHz (σ = 1.4692 mho/m, ε r = 40.5269, ρ = 1000 kg/m 3 ) Phantom section: Left Section DASY4 Configuration: z Probe: ES3DV2 - SN3021; ConvF(5.1, 5.1, 5.1); Calibrated: 7/29/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 1; Type: SAM 1; Serial: 1185 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.8 Build 62 Touch position - High/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Touch position - High/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 1.01 W/kg SAR(1 g) = 0.597 mW/g; SAR(10 g) = 0.339 mW/g Reference Value = 18.5 V/m Power Drift = -0.0 dB Maximum value of SAR = 0.665 mW/g Touch position - High/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.642 W/kg SAR(1 g) = 0.397 mW/g; SAR(10 g) = 0.259 mW/g Reference Value = 18.5 V/m Power Drift = -0.0 dB Maximum value of SAR = 0.489 mW/g Date/Time: 12/11/03 14:46:12 Test Laboratory: Compliance Certification Services 1_Left Touch DUT: Compal; Type: VP-5U; Serial: N/A DASY4 Configuration: z Probe: ES3DV2 - SN3021; ConvF(5.1, 5.1, 5.1); Calibrated: 7/29/2003 z Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 1; Type: SAM 1; Serial: 1185 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.8 Build 62 Touch position - High/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 18.5 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.565 mW/g Date/Time: 12/11/03 15:30:10 Test Laboratory: Compliance Certification Services 2_Left Tilt DUT: Compal; Type: VP-5U; Serial: N/A Program Name: Left-Hand Side Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: PCS CDMA; Frequency: 1851.25 MHz;Duty Cycle: 1:1 Medium: Head 1900MHz (σ = 1.4692 mho/m, ε r = 40.5269, ρ = 1000 kg/m 3 ) Phantom section: Left Section DASY4 Configuration: z Probe: ES3DV2 - SN3021; ConvF(5.1, 5.1, 5.1); Calibrated: 7/29/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 1; Type: SAM 1; Serial: 1185 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.8 Build 62 Tilt position - Low/Area Scan (6x7x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 19.6 V/m Power Drift = -0.0 dB Maximum value of SAR = 0.697 mW/g Tilt position - Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 1.13 W/kg SAR(1 g) = 0.689 mW/g; SAR(10 g) = 0.391 mW/g Reference Value = 19.6 V/m Power Drift = -0.0 dB Maximum value of SAR = 0.759 mW/g Date/Time: 12/11/03 15:11:08 Test Laboratory: Compliance Certification Services 2_Left Tilt DUT: Compal; Type: VP-5U; Serial: N/A Program Name: Left-Hand Side Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: PCS CDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: Head 1900MHz (σ = 1.4692 mho/m, ε r = 40.5269, ρ = 1000 kg/m…

Text truncated - open the document above for the full version.

FCC CFR47 CERTIFICATION PART 24E TEST REPORT FOR 1900MHz CDMA CELLULAR PHONE HANDSET MODEL: VP-5U FCC ID: GKRVP-5U REPORT NUMBER: 03I2380-1 ISSUE DATE: DECEMBER 08, 2003 Prepared for COMPAL ELECTRONICS, INC. 7F, NO. 500, JUIKUANG ROAD NEIHU, TAIPEI TAIWAN ROC 114 Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, ROUTE 2 MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 03I2380-1 DATE: DECEMBER 08, 2003 EUT: 1900MHx CDMA CELLULAR PHONE HANDSET FCC ID: GKRVP-5U Page 2 of 36 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. TEST RESULT CERTIFICATION..........................................................................................3 2. EUT DESCRIPTION...............................................................................................................4 3. TEST METHODOLOGY.........................................................................................................4 4. TEST FACILITY.....................................................................................................................4 5. ACCREDITATION AND LISTING.........................................................................................4 6. MEASURING INSTRUMENT CALIBRATION......................................................................4 7. TEST SETUP, PROCEDURE AND RESULT..........................................................................5 7.1. SECTION 2.1046: RF POWER OUTPUT.............................................................................5 7.2. SECTION 2.1047: MODULATION CHARACTERISTICS.................................................11 7.3. SECTION 2.1049: OCCUPIED BANDWIDTH...................................................................11 7.4. SECTION 2.1051: SPURIOUS EMISSION AT ANTENNA TERMINAL............................16 7.5. SECTION 2.1053: FIELD STRENGTH OF SPURIOUS RADIATION................................22 7.6. SECTION 2.1055: FREQUENCY STABILITY...................................................................27 8. APENDIX...............................................................................................................................31 8.1. EXTERNAL & INTERNAL PHOTOS...............................................................................31 8.2. SCHEMATICS..................................................................................................................36 8.3. BLOCK DIAGRAM..........................................................................................................36 8.4. USER MANUAL..............................................................................................................36 REPORT NO: 03I2380-1 DATE: DECEMBER 08, 2003 EUT: 1900MHx CDMA CELLULAR PHONE HANDSET FCC ID: GKRVP-5U Page 3 of 36 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: COMPAL ELECTRONICS, INC. 7F, NO. 500, JUIKUANG ROAD NEIHU, TAIPEI TAIWAN ROC 114 EUT DESCRIPTION: 1900MHz CDMA CELLULAR PHONE HANDSET MODEM NAME: VP-5U DATE TESTED: DECEMBER 08, 2003 TYPE OF EQUIPMENT INTENTIONAL RADIATOR EQUIPMENT TYPE LICENSED TX MODULE IN MOBILE APPLICATION MEASUREMENT PROCEDURE ANSI 63.4 / 2001, TIA/EIA 603 PROCEDURE CERTIFICATION FCC RULE CFR 47 PART 24 subpart E Compliance Certification Services, Inc. tested the above equipment for compliance with the requirement set forth in CFR 47, PART 2 Subpart E-Cellular Radiotelephone Service. The equipment in the 4configuration described in this report, shows the measured emission levels emanating from the equipment do not exceed the specified limit. Note: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Tested By: Released For CCS By: VIEN TRAN THU CHAN EMC ENGINEER EMC SUPERVISOR COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 03I2380-1 DATE: DECEMBER 08, 2003 EUT: 1900MHx CDMA CELLULAR PHONE HANDSET FCC ID: GKRVP-5U Page 4 of 36 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. EUT DESCRIPTION The 1900MHz CDMA Cellular Phone has an output power 29.7dBm / 933.25mW (CDMA, EIRP). It has a fixed type antenna, and 1.7dBi gain which is designed for the Cellular band transmitting of frequency range 1851.25-1908.75NHz. 3. TEST METHODOLOGY Both conducted and radiated testing were performed according to the procedures documented on chapter 13 of ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055 and 2.1057. 4. TEST FACILITY The test sites and measurement facilities used to collect the radiated data are located at 561F Monterey Road, Morgan Hill, California, USA. The sites are constructed in confo…

Text truncated - open the document above for the full version.

REPORT NO: 03I2380-1 DATE: DECEMBER 08, 2003 EUT: 1900MHx CDMA CELLULAR PHONE HANDSET FCC ID: GKRVP-5U Page 10 of 36 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. EMISSON SETUP REPORT NO: 03I2380-1 DATE: DECEMBER 08, 2003 EUT: 1900MHx CDMA CELLULAR PHONE HANDSET FCC ID: GKRVP-5U Page 11 of 36 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 7.2. SECTION 2.1047: MODULATION CHARACTERISTICS Not applicable, the EUT is single mode CDMA only. 7.3. SECTION 2.1049: OCCUPIED BANDWIDTH SETUP CONFIGURATION EUT 10 dB Att. or Ant. Coupler Spectrum Analyzer REPORT NO: 03I2380-1 DATE: DECEMBER 08, 2003 EUT: 1900MHx CDMA CELLULAR PHONE HANDSET FCC ID: GKRVP-5U Page 25 of 36 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. REPORT NO: 03I2380-1 DATE: DECEMBER 08, 2003 EUT: 1900MHx CDMA CELLULAR PHONE HANDSET FCC ID: GKRVP-5U Page 28 of 36 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document.
