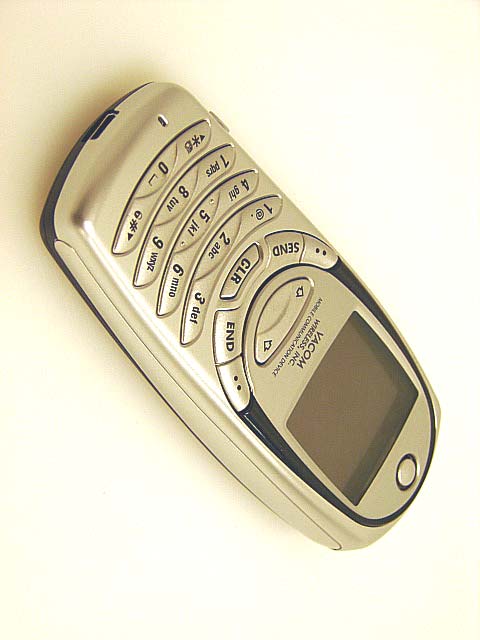

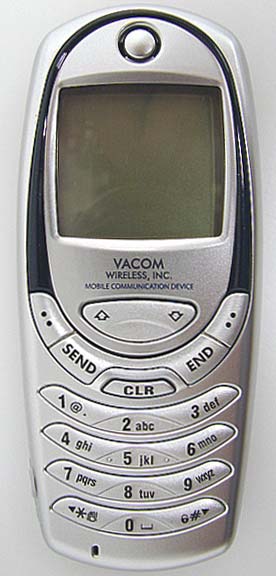

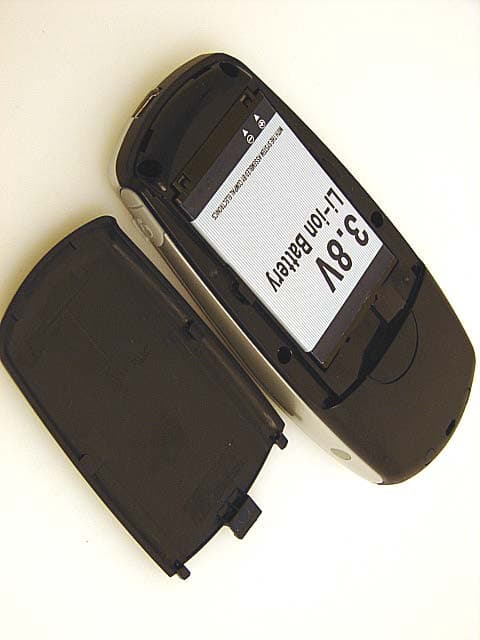

GKRVS500Single Band CDMA Cellular Phone

1 USER MANUAL VS500 Version 0.3 VACOM WIRELESS, INC. 2 CONTENTS IMPORTANT SAFETY INFORMATION GETTING TO KNOW YOUR PHONE DISPLAY INDICATORS BATTERY INFORMATION BASIC FUNCTIONS 1. Making Calls 2. Ending Calls 3. Answering Calls 4. Correcting Entry Errors 5. Storing Phone Numbers 6. Adjusting In-Call Mic Volume 7. Volume 8. Using Caller ID 9. Redialing Last Dialed, Received, or Missed Number 10. Speed Dial 11. Keypad Lock 12. Etiquette Mode 13. Silence Mode 14. Shortcut MENUS I. PHONE BOOK 1. Phone Book Search 2. Phone Number Addition 3. Call List 4. My Number 5. Delete Phone Book 3 II. PHONE SETTINGS MENU 1. Wallpaper 2. Languages 3. Selecting Font 4. Backlight 5. LCD Contrast 6. Screen Saver 7. Auto Keylock III. VOLUME & ALERT 1. Ring Type 2. Selecting Bell 3. Roam Ringer 4. Volume 5. Alert Setting 6. Beep Length IV. PERSONAL INFORMATION MANAGEMENT 1. Alarm 2. Schedule 3. Calendar View 4. Calculator 5. Memo 6. World Time View V. SECURITY FUNCTIONS 1. Phone Lock 2. Changing Password 3. Restricting 4. Privacy Information 5. Initialization VI. CALL INFORMATION 1. Auto Answer 2. Call Answer 3. Auto Redial 4. Call Time 4 VII. GAMES 1. Black Jack 2. Othello 3. Game Sound MESSAGE SERVICES I. TEXT MESSAGE SERVICES (SMS) 1. Reading Text Messages 2. Sending Text Messages II. VOICE MAIL SERVICE III. SMS Settings 1. Alert 2. Save Message 3. Direct View 4. Delivery ACK 5. Priority 6. Delete All USING MENU DURING CALLS 1. Phone Book Search 2. Mute 3. DTMF Mute 4. Volume 5. Mic Volume 6. Voice Privacy 7. Beep Length 5 IMPORTANT SAFETY INFORMATION Some of the following information may not apply specifically to your phone. However, as with any electronic product, these safety precautions should be observed when using this product. ◈ Please keep this manual in a safe place, for it contains important safety information and operating instructions. ◈ Please follow and adhere to all warning, safety, and operating instructions indicated on both the phone and in this manual before use. ◈ Do Not expose the phone to water or moisture. ◈ Do Not expose the phone to extreme heat or cold. ◈ Do Not expose the phone to open flame. ◈ Do Not allow objects to fall or liquids to spill on the product. ◈ Use Original Accessories only. Any damage incurred from the use of non-approved accessories will void the warranty. ◈ Use approved chargers only and connect to a power source designated on the product. ◈ To reduce the risk of injury, remove the electrical cord from an outlet by pulling on the charger, rather than the cord. ◈ Ensure that the electrical cord is positioned accordingly so that it will not be vulnerable to damage. ◈ To reduce the risk of electrical shock, unplug the phone from the power source before cleaning. Once unplugged, use a soft cloth dampened with water to clean. ◈ DANGER: Do Not modify the cord or the plug. If the plug does not fit into an outlet, have a proper outlet installed by a qualified electrician. Improper connection can result in electrical shock. ◈ Do Not attempt to disassemble the product – doing so will void the warranty. This product does not contain consumer-serviceable components. Service should be performed only by authorized service centers. ◈ Do Not remove the antenna. A detached antenna can be a choking hazard for children. ◈ Do Not place the battery inside the mouth. The battery contains toxic electrolytes that are harmful for your health. 6 GETTING TO KNOW YOUR PHONE Backlit LCD Screen : The LCD screen contains three areas; - The top line displays indication about your phone’s operating mode. - Three lines in the middle are the display areas for numbers and characters. - The bottom line displays menus. Menu Keys ( /) : This key performs several useful functions. - During incoming calls, press it to answer the incoming call. - In Standby mode, press it briefly to access Main Menu and Select Menu. - When navigating a menu, press it to select the highlighted selection. SMS Key ( ) : When in Standby Mode, press this key to access Message Menu items. Navigation Key (▲▼) : This key allows you to navigate the phone’s variable functionality and useful shortcut. During a call, press it to control earpiece volume. Microphone : Your typical voice microphone for conversation and you can also mute the microphone during conversation by pressing “MENU” “2”. Mini USB Charging Port : The location where you connect your charging device. CLR Key : This key is used to erase numbers or characters you may have entered incorrectly, or to return to a previous screen. - To erase one character from the display screen, briefly press it once. - To erase all of them, hold it for one second. - To back up one menu level, press it once. - To return to Standby Mode, hold it for one second. END Key : Press this key to disconnect a call or to return to Standby Mode from any menu. Press and hold this key to turn the phone On or Off. 7 SEND Key : This key performs several useful functions. - Dial a number and press it to connect. - Press it once to redial the last outgoing number. Numeric Keys : These keys are to dial and to input numbers and characters. ◀* : This key performs several useful functions. - Set or release Etiquette mode. - Use as navigation key. # ▶ : This key performs several useful functions. - Use as instance keypad lock. - Use as navigation key. Internal Antenna 8 DISPLAY INDICATORS Display indicators appear across the bottom of your phone’s LCD screen. These display indicators (or icons) will vary based on your phone’s operating modes. Signal strength : This icon shows your current signal strength. More lines indicate more signal strength. Five lines indicate maximum strength, and one line indicates least strength. No service indicator : This icon indicates your phone cannot find a signal because you’re outside a service area. When this is displayed, you cannot make or receive calls. Wait a little while for a signal or move into an open area. Roaming : This icon indicates you are “roaming” on to other…

Text truncated - open the document above for the full version.

VS500 USER MANUAL Confidential & Proprietary of VACOM 1/13 Page Date : 05-08-08, Rev No : 1.0 Control No.: MSD351A0VS500 Originated by Hard Ware 3 Team V V S S 5 5 0 0 0 0 U U s s e e r r m m a a n n u u a a l l o o f f T T e e c c h h n n i i c c a a l l p p a a r r t t Rev 1.0 Index Ch 1. General Description 1.1 Introduction Ch 2. Specification 2.1 Basic Specification 2.2 Electrical Specification Ch 3. Circuit Description 3.1 General 3.2 Logic part 3.3 Receiver part 3.4 Transmit part July 8, 2005 H/W 3 Team , R&D Center VACOM WIRELESS INC. VS500 USER MANUAL Confidential & Proprietary of VACOM 2/13 Page Date : 05-08-08, Rev No : 1.0 Control No.: MSD351A0VS500 Originated by Hard Ware 3 Team Ch 1. General Description 1.1 Introduction This equipment is a Single mode (CDMA only) portable mobile station of which frequency range is 824 ∼ 894MHz. It uses 3G CDMA 1x-RTT solution, the MSM6000 Mobile Station Modem Chipset and Software are designed to the IS-2000 Rel.0 Standard and enables up to a doubling of overall IS-95A/B voice capacity and production of cost-optimized voice only handset. CDMA network consists of MSO (Mobile Switching Office), BSC (Base Station Controller), BTS (Base station Transmission System) and MS (Mobile station). And the standard of Mobile station is as below. - IS-95A/B, IS-2000 Release 0 (Common Air Interface): Protocol provisions between handset and base station. - IS-96A (Vocoder): Code of voice signal which is applied to mobile station and system. Provision relating to compression (Used 8Kbps EVRC) - TIA/EIA-98-D (Minimum performance standard for handset): Minimum performance standard relating to handset’s H/W. - TIA/EIA-126 (Service Option 2,9): Voice Loop back Service Options. - IS-637 (Additional service): SMS (Short Message Service) 1.1.1 Basic parts a. Handset b. Charger (Travel Charger) c. Standard Battery (950mA/H) 1.1.2 Handset a. Transmitter part b. Receiver part c. Audio/Logic part d. Others 1.1.3 Charger a. Power code b. Power supply parts c. Others VS500 USER MANUAL Confidential & Proprietary of VACOM 3/13 Page Date : 05-08-08, Rev No : 1.0 Control No.: MSD351A0VS500 Originated by Hard Ware 3 Team Ch 2. SPECIFICATION 2.1 BASIC SPECICATION a. Size(Max`) : 105mm * 45.1mm * 19.9mm b. Weight : 74.5 g (with Standard Battery) c. Supply Voltage : DC 3.8V ( ± 10%) d. Operating Temp. : -30°C ~ 60°C e. Battery : 950mAh Li-Ion (Standard) - Talk time( CDMA mode) : 194 min (-92dBm/Half Rate/ 970mAh/E8285A) - Antenna Type : internal PIFA 2.2 ELECTRICAL SPECIFICATION 2.2.1 CDMA TRANSMITTER a. Frequency Range : 824 ~ 849MHz b. Bandwidth : 1.23MHz c. ERP at Max. Output Power : 200mW ~ 1W d. Modulation Type : OQPSK e. Frequency Stability : ± 2.5ppm f. Occupied Bandwidth : 1.32MHz g. Conducted Spurious Emission : - - 42dBc/30KHz (±900KHz) - - 54dBc/30KHz ( ± 1.98MHz) - 2.2.2 CDMA RECEIVER a. Frequency Range : 869 ~ 894MHz b. Bandwidth : 1.23MHz c. Sensitivity : -104dBm d. Single Tone Desensitization : -101dBm (offset : ±900KHz, -30dBm) e. Intermodulation spurious Response Attenuation : - - 101dBm (offset : ±900KHz, ±1700KHz ,–43dBm) - - 90dBm (offset : ± 900KHz, ± 1700KHz ,–32dBm) - - 79Bm (offset : ± 900KHz, ± 1700KHz ,–21dBm) f. Conducted Spurious Emission : VS500 USER MANUAL Confidential & Proprietary of VACOM 4/13 Page Date : 05-08-08, Rev No : 1.0 Control No.: MSD351A0VS500 Originated by Hard Ware 3 Team - Receiver Band : -81dBm/1MHz - Transmitter Band : -61dBm/1MHz - Other Band : -47dBm/30KHz Ch 3. CIRCUIT DESCRIPTION 3.1 GENERAL - RF (Radio frequency) Block & Base band Block - Audio/Logic Part, Receiver Part, Transmitting Part, - Audio/Logic Part : Power Management, Base band Signal Processor, Audio, User Interface, PC Interface, Clock, RX/TX Control - TX Part : Transmitter part converts the frequency of signal to transmit into radio frequency, amplifies the signal and transmits signals to Base Station through Duplexer and Antenna. - RX Part : Receiver part amplifies received signal through LNA (Low Noise Amplifier) and converts it into base band frequency. 3.2 AUDIO/LOGIC PART a. Mobile Station Modem: U1 (MSM6000) b. Memory: U4 (PH28F160C3BD70) - 16Mbit Flash ROM U2 (K6F4016U6G-AF70) - 4Mbit Static RAM U5 (CAT24FC256WI) - 256Kbit EEPROM c. Power Management: U3 (PM6610-2) d. Audio Amplifier & Audio Interface: U10 (TPA751DGN) e. KEY PAD / LCD MODULE f. Mini USB Type Connector(Support only RS232C) VS500 USER MANUAL Confidential & Proprietary of VACOM 5/13 Page Date : 05-08-08, Rev No : 1.0 Control No.: MSD351A0VS500 Originated by Hard Ware 3 Team - SYSTEM BLOCK DIAGRAM VS500 USER MANUAL Confidential & Proprietary of VACOM 6/13 Page Date : 05-08-08, Rev No : 1.0 Control No.: MSD351A0VS500 Originated by Hard Ware 3 Team 3.2.1 CIRCUIT DESCRIPTION a. MSM6000: MSM6000 is a chipset responsible for User Interface, RF Interface, Digital Interface and especially for base-band digital signal processing of CDMA/FM. b. FLASH MEMORY / SRAM: FLASH MEMORY & SRAM is for storing operation program, system parameters and additional parameters to manage handset. And it is a temporally place to preserve all system parameters and data related with Base Station. c. Power Management : Basically it supplies controllable regulated powers to each parts for handset operation and offers charging control function for battery in the meaning of power management And it also conducts functions such as clock buffer, driver circuit for UI, sensor of initial power ignition. d. Audio amplifier / Audio Interface: Audio signal for indicating notice of incoming calls needs to be amplified by audio AMP for noticeable sounds. Voice or key sounds are inputted directly to speaker from audio AMP output of MSM. e. KEY PAD / LCD MODULE: These are interface parts between user and the handset like sensing of key pressing and displaying of handset states. f. IO Connector : It offers physical connectivity for data communication and Diagnostic Monitor using RS232C protocol, and external power from charger or Level Tran…

Text truncated - open the document above for the full version.

Sincerely, Andy Suen Senior Director COMPAL ELECTRONICS, INC. Tel : +886-2-8797 8599 Fax : +886-2-8751 3808 Email: [email protected]

1 Chris Harvey From:Claire Hoque [[email protected]] Sent:Wednesday, August 24, 2005 5:32 PM To: Chris Harvey Cc:Thu Chan; Kathy Yao Subject:answer: COMPAL ELECTRONICS, INC., FCC ID: GKRVS500, Assessment NO.: AN05T5075, Notice#1 VS500 Confidential Request Let... Agent Auth. Letter.pdf (380 KB... FCC ID LABEL(revised).pdf (55 ... Hi Chris, Here are the answers. 1. The Label location exhibit shows the placement of the FCC ID label on the battery. The FCC ID label must not be located on a removable part of the product. The label is allowed to be located inside the battery compartment as long as it is located on a permanent part of the device. Please provide an updated label location exhibit. <answer>pls see revised label. 2. The Grantee for this application is Compal Electronics, Inc. (Grantee Code GKR), however the exhibits for Confidentiality and Agent Authorization for this application is for Vacom Wireless, Inc. <answer>pls see revised letters as attached. 3. Although not required for the Pt. 22 portion of this device, the User's Manual should contain the required information for the Receiver and digital portions of this handset in accordance with FCC 15.21, 15.19 and 15.105. As a TCB we are asked to ensure that this information is provided to the user. <answer>since EUT is a cellphone. We don't think it is necessary to put the statemet of FCC 15.21, 15.19 and 15.105 in the user manual. Thanks, Claire

PROPOSED FCC ID LABEL AND LOCATION COMPAL ELECTRONICS, INC. This device complies with Part 22 of the FCC Rules. FCC ID: GKRVS500 FCC ID LABEL LOCATION

Date/Time: 8/8/2005 11:29:31 AMDate/Time: 8/8/2005 11:35:17 AM Test Laboratory: Compliance Certification Services 1_System Performance Check @ 835 MHz DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.917 mho/m; ε r = 40.8; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23 deg. C; Liquid Temperature: 22 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552 ; ConvF(9.75, 9.75, 9.75); Calibrated: 3/19/2005 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/7/2005 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 d=15mm, Pin=250mW/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 3.02 mW/g d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 58.1 V/m; Power Drift = -0.014 dB Peak SAR (extrapolated) = 3.75 W/kg SAR(1 g) = 2.48 mW/g; SAR(10 g) = 1.62 mW/g Maximum value of SAR (measured) = 3.03 mW/g 0 dB = 3.03mW/g Date/Time: 8/8/2005 11:41:27 AM Test Laboratory: Compliance Certification Services 1_System Performance Check @ 835MHz DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 d=15mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 3.02 mW/g

Date/Time: 8/8/2005 5:42:23 PMDate/Time: 8/8/2005 5:49:11 PM Test Laboratory: Compliance Certification Services 1_Left Hand Side DUT: Compal Electronics, Inc.; Type: VS500; Serial: 672558E1 Communication System: CDMA; Frequency: 824.76 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 824.76 MHz; σ = 0.907 mho/m; ε r = 40.9; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 23 deg. C; Liquid Temperature: 22 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552 ; ConvF(9.75, 9.75, 9.75); Calibrated: 3/19/2005 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/7/2005 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Touch -L-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 1.15 mW/g Touch -L-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 28.4 V/m; Power Drift = -0.015 dB Peak SAR (extrapolated) = 1.40 W/kg SAR(1 g) = 1.01 mW/g; SAR(10 g) = 0.691 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 1.19 mW/g 0 dB = 1.19mW/g Date/Time: 8/8/2005 5:25:16 PMDate/Time: 8/8/2005 5:32:10 PM Test Laboratory: Compliance Certification Services 1_Left Hand Side DUT: Compal Electronics, Inc.; Type: VS500; Serial: 672558E1 Communication System: CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.918 mho/m; ε r = 40.8; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 23 deg. C; Liquid Temperature: 22 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552 ; ConvF(9.75, 9.75, 9.75); Calibrated: 3/19/2005 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/7/2005 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Touch - M-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 1.38 mW/g Touch - M-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 31.2 V/m; Power Drift = -0.114 dB Peak SAR (extrapolated) = 1.62 W/kg SAR(1 g) = 1.2 mW/g; SAR(10 g) = 0.823 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 1.39 mW/g 0 dB = 1.39mW/g Date/Time: 8/8/2005 5:39:10 PM Test Laboratory: Compliance Certification Services 1_Left Hand Side DUT: Compal Electronics, Inc.; Type: VS500; Serial: 672558E1 Communication System: CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Touch - M-ch/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 1.01 mW/g Date/Time: 8/8/2005 5:58:32 PMDate/Time: 8/8/2005 6:05:24 PM Test Laboratory: Compliance Certification Services 1_Left Hand Side DUT: Compal Electronics, Inc.; Type: VS500; Serial: 672558E1 Communication System: CDMA; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 848.31 MHz; σ = 0.928 mho/m; ε r = 40.7; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 23 deg. C; Liquid Temperature: 22 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552 ; ConvF(9.75, 9.75, 9.75); Calibrated: 3/19/2005 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/7/2005 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Touch -H-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 1.11 mW/g Touch -H-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 26.9 V/m; Power Drift = -0.022 dB Peak SAR (extrapolated) = 1.31 W/kg SAR(1 g) = 0.944 mW/g; SAR(10 g) = 0.642 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 1.10 mW/g 0 dB = 1.10mW/g Date/Time: 8/8/2005 6:16:10 PMDate/Time: 8/8/2005 6:23:15 PM Test Laboratory: Compliance Certification Services 1_Left Hand Side DUT: Compal Electronics, Inc.; Type: VS500; Serial: 672558E1 Communication System: CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.918 mho/m; ε r = 40.8; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 23 deg. C; Liquid Temperature: 22 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552 ; ConvF(9.75, 9.75, 9.75); Calibrated: 3/19/2005 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/7/2005 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Tilt - M-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.799 mW/g Tilt - M-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 27.2 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 0.955 W/kg SAR(1 g) = 0.687 mW/g; SAR(10 g) = 0.479 mW/g Info: Interpolated medium parameters used for SAR evaluation! 0 dB = 0.799mW/g Date/Time: 8/8/2005 7:13:27 PMDate/Time: …
