GKRVT-5DDual Band Tri Mode PCS/AMPS/CDMA Cellular Phone

Compal Electronics Inc
Dual Band Tri Mode PCS/AMPS/CDMA Cellular Phone - FCC ID GKRVT-5D - Compal Electronics Inc
Click to zoom

Application Details

Equipment Class
PCE - PCS Licensed Transmitter held to ear
Date of Grant
Aug 26, 2004
Application Purpose
Original Equipment
Date of Application
Aug 26, 2004
Equipment Note
Dual Band Tri Mode PCS/AMPS/CDMA Cellular Phone
Frequency Range
824.04000000 - 848.97000000
Company
Compal Electronics Inc
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

β†—

Cover Letter(s)

β†—
β†—
β†—

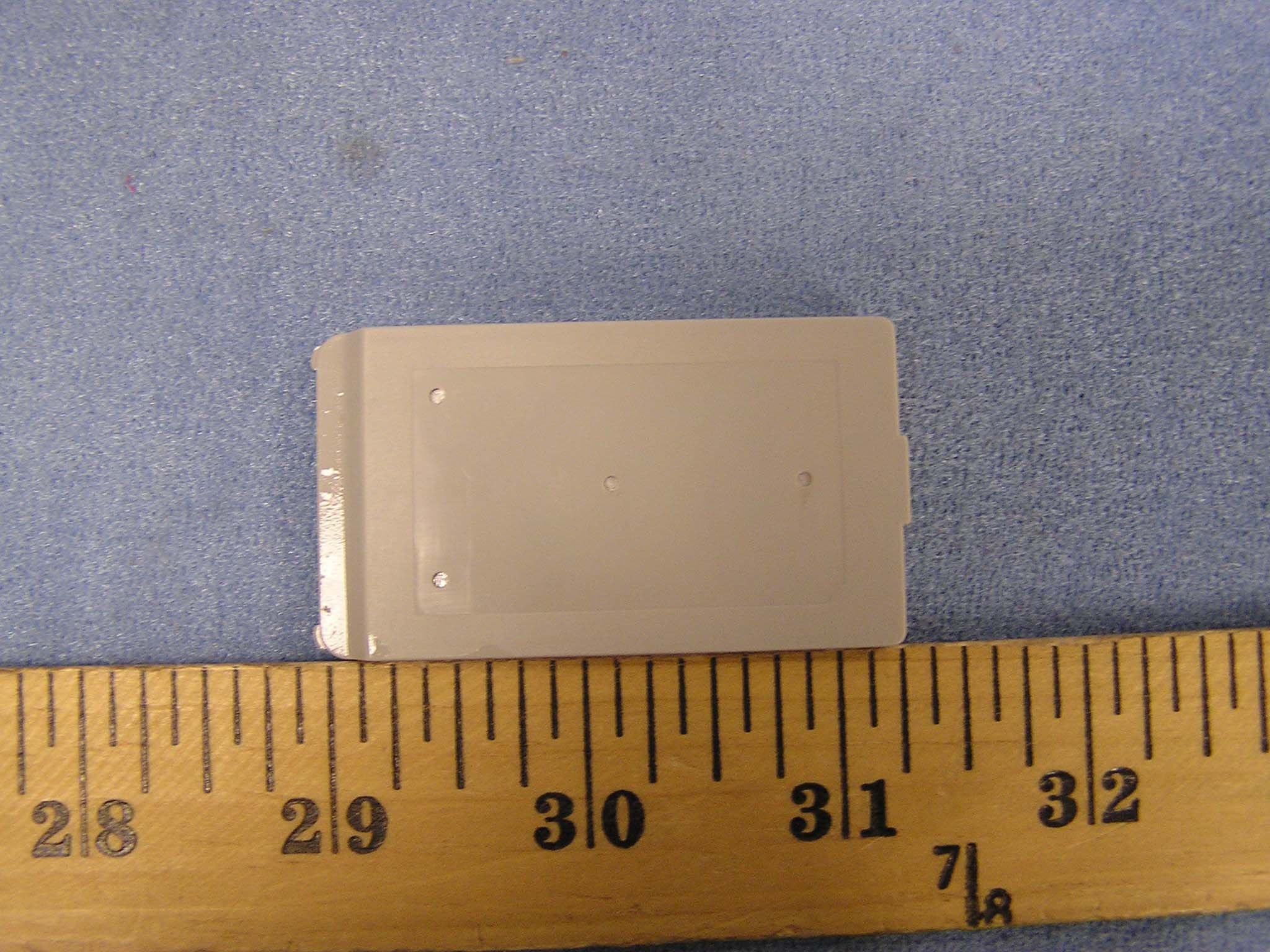

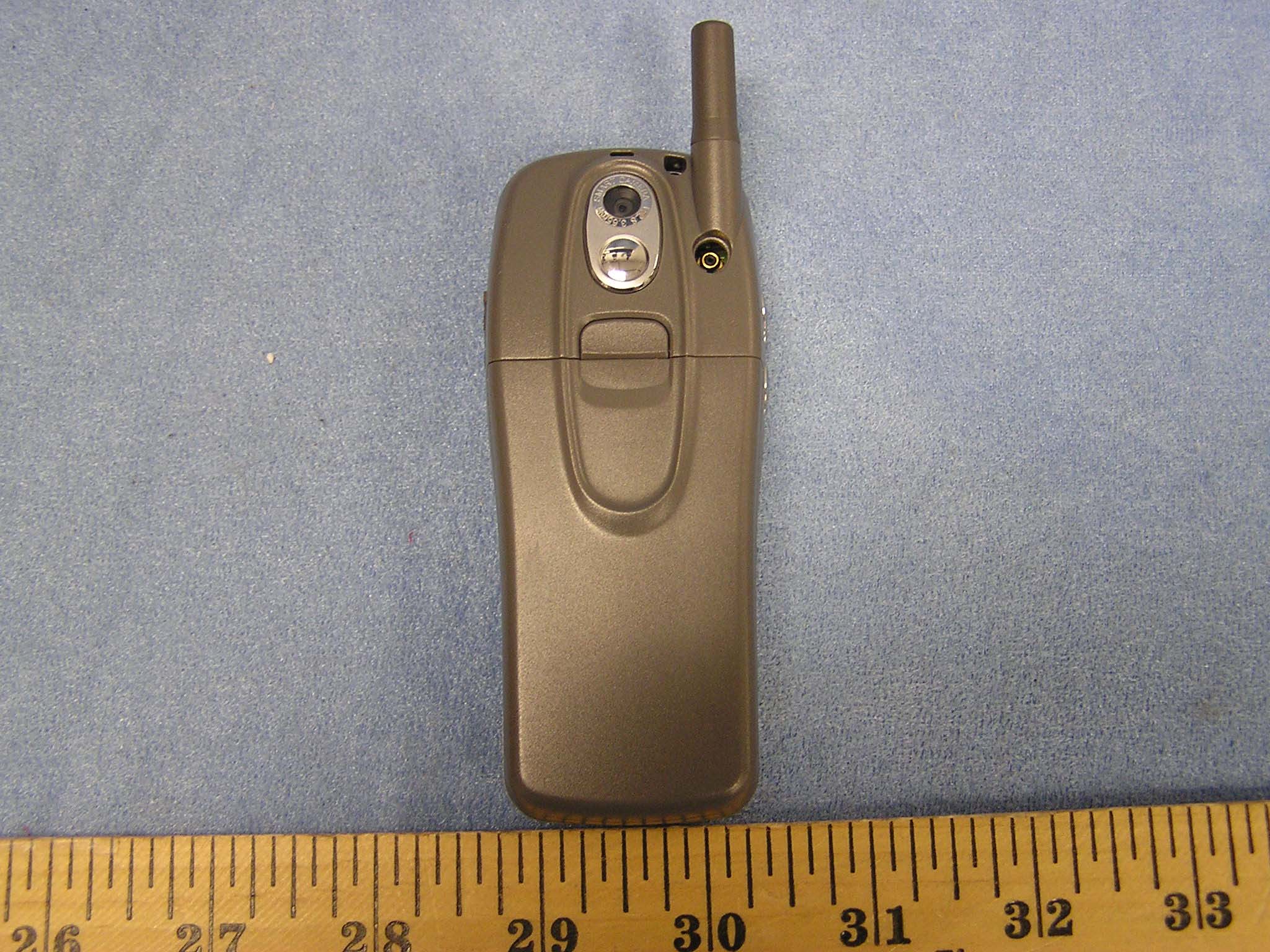

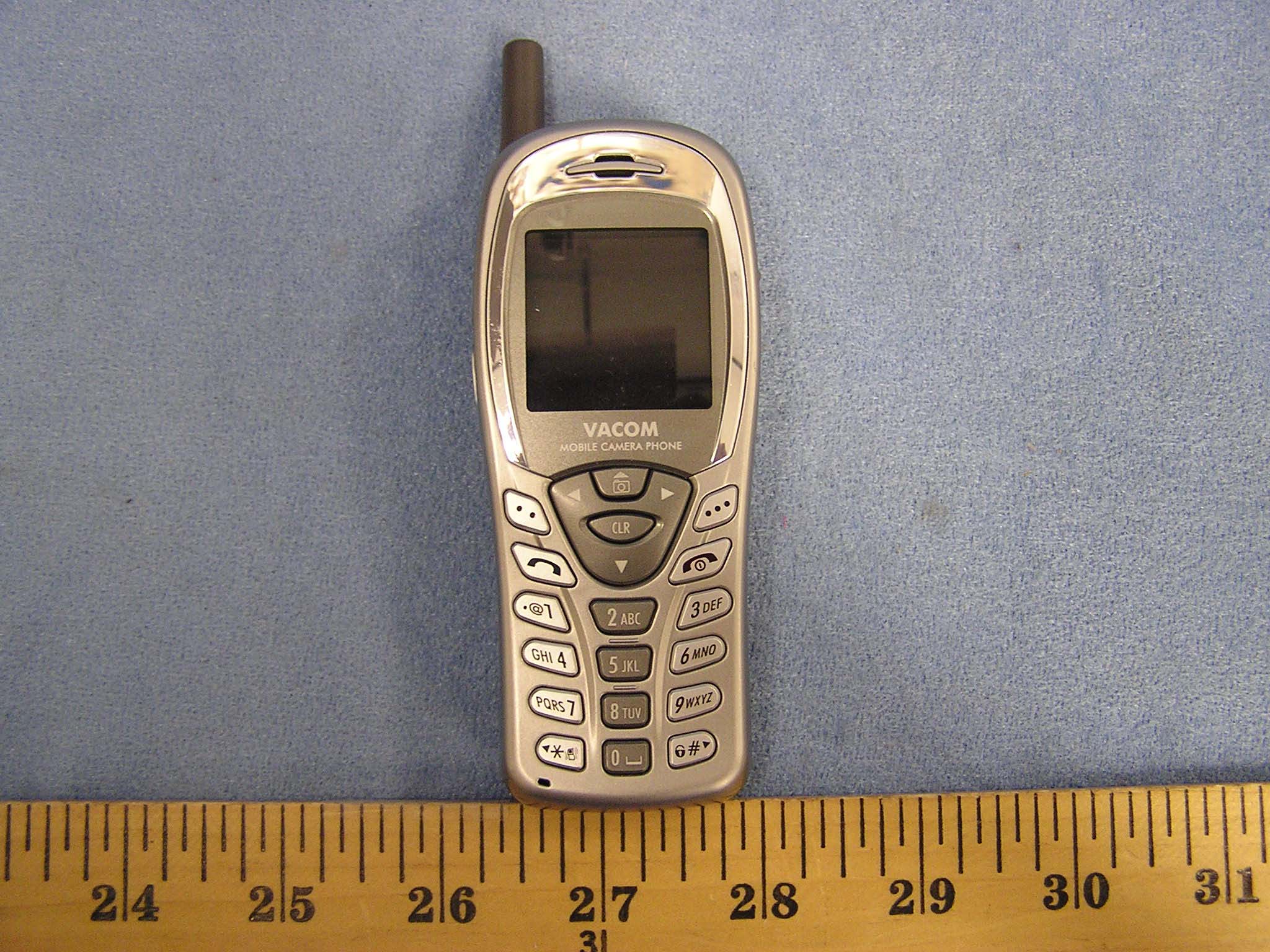

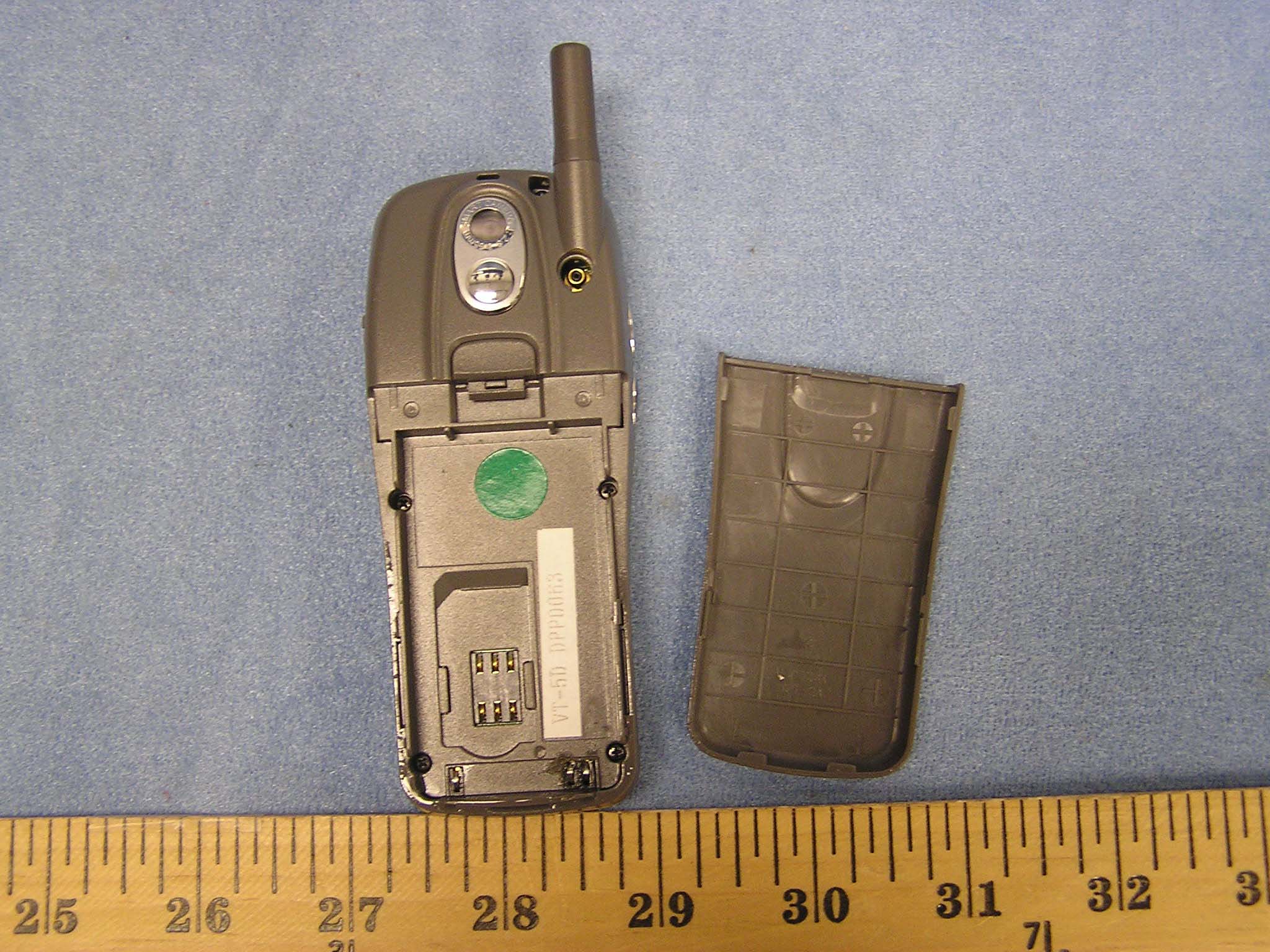

External Photos

β†—
β†—

ID Label/Location Info

β†—

Internal Photos

β†—

RF Exposure Info

β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—

Test Report

β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 USER MANUAL VC-5D & VT-5D Version 0.4 VACOM WIRELESS, INC. 2 CONTENTS IMPORTANT SAFETY INFORMATION GETTING TO KNOW YOUR PHONE DISPLAY INDICATORS BATTERY INFORMATION BASIC FUNCTIONS 1. Making Calls 2. Ending Calls 3. Answering Calls 4. Correcting Entry Errors 5. Storing Phone Numbers 6. Volume 7. Redialing Last Dialed, Received, or Missed Number 8. Speed Dial 9. Using Caller ID 10. Etiquette Mode 11. Camera 12. Keypad Lock 13. Silence Mode 14. Shortcut MENUS I. INTERACTIVO 1. WAP a. Searching for a Web site b. Bookmarking a Web site c. Menu Options d. Shortcuts 2. BREW 3 a. Application Download b. Remove an application c. Application properties d. System Information 3. MMS a. Notifybox, Inbox, Outbox and Draftbox b. Writing and sending Multimedia message c. MMS setting 4. SMS a. Text Messages b. Voice Mail Service c. SMS Setting II. PHONEBOOK 1. Adding Entries in the Phonebook 2. Phonebook Search 3. Call List 4. Editing Groups 5. Memory Check 6. My Number III. VOLUME & ALERT 1. Bell Select 2. Ring Type 3. Volume 4. Alert Settings 5. Beep Length 6. Roam Ringer IV. PERSONAL INFORMATION MANAGEMENT 1. Alarm 2. Schedule 3. Memo 4. Calculator 5. World Time View 6. Calendar View 4 V. PHONE SETTINGS MENU 1. Wallpaper 2. Greeting Edit 3. Backlight 4. LCD Contrast 5. Languages 6. Auto Keylock 7. Power Saving 8. Current Time Setting VI. CALL INFORMATION 1. Call Function - Auto Answer - Auto Redial 2. Call Restrict 3. Call Answer 4. Call Time 5. Voice Privacy VII. SECURITY 1. Lock Mode 2. Changing Password 3. Memory Clear 4. Initialize 5. Privacy Information 6. Network Set VIII. VALUE ADDED SERVICE (VAS) 1. Data Service 2. Games 3. Memory View CAMERA 1. Snap Shot 2. Photo Album 3. Photo Mail 5 4. Camera Set USING MENU DURING CALLS 1. Phonebook Search 2. Voice Mute 3. DTMF Mute 4. Voice Privacy 5. Beep Length 6. SMS messages ENTERING LETTERS & NUMBERS 1. Prediction Text Input 2. ABC/123 Mode 3. Inserting Punctuations & Special Characters FCC RF EXPOSURE INFORMATION 6 IMPORTANT SAFETY INFORMATION Some of the following information may not apply specifically to your phone. However, as with any electronic product, these safety precautions should be observed when using this product. β—ˆ Please keep this manual in a safe place, for it contains important safety information and operating instructions. β—ˆ Please follow and adhere to all warning, safety, and operating instructions indicated on both the phone and in this manual before use. β—ˆ Do Not expose the phone to water or moisture. β—ˆ Do Not expose the phone to extreme heat or cold. β—ˆ Do Not expose the phone to open flame. β—ˆ Do Not allow objects to fall or liquids to spill on the product. β—ˆ Use Original Accessories only. Any damage incurred from the use of non-approved accessories will void the warranty. β—ˆ Use approved chargers only and connect to a power source designated on the product. β—ˆ To reduce the risk of injury, remove the electrical cord from an outlet by pulling on the charger, rather than the cord. β—ˆ Ensure that the electrical cord is positioned accordingly so that it will not be vulnerable to damage. β—ˆ To reduce the risk of electrical shock, unplug the phone from the power source before cleaning. Once unplugged, use a soft cloth dampened with water to clean. β—ˆ DANGER: Do Not modify the cord or the plug. If the plug does not fit into an outlet, have a proper outlet installed by a qualified electrician. Improper connection can result in electrical shock. β—ˆ Do Not attempt to disassemble the product – doing so will void the warranty. This product does not contain consumer-serviceable components. Service should be performed only by authorized service centers. β—ˆ Do Not remove the antenna. A detached antenna can be a choking hazard for children. β—ˆ Do Not place the battery inside the mouth. The battery contains toxic electrolytes that are harmful for your health. User Guide Proprietary Notice CDMA Technology is licensed by QUALCOMM Incorporated under one of more of the 7 following patents: 4,901,307 5,109,390 5,267,262 5,416,797 5,506,865 5,544,196 5,657,420 5,101,501 5,267,261 5,414,796 5,504,773 5,535,239 5,600,754 5,778,338 5,228,054 5,337,338 5,710,784 5,056,109 5,568,483 5,659,569 5,490,165 5,511,073 8 GETTING TO KNOW YOUR PHONE Volume/Scroll Key These keys are used to set volume levels, to shot a camera and to help you navigate through menus and the Phonebook. Use the volume keys to: - Adjust call volume. - Adjust key tone volume. - Answer incoming calls. - Scroll through menu options. - Scroll through the Phonebook. Color LCD Display The LCD screen is divided into two sections: - The top line displays your phone status indicators. - The lower portion displays currently in-use information, such as Caller ID (if available), Mute, Call Waiting, etc. Menus are also displayed in the lower portion. Menu Keys ( /) These keys perform several useful functions: - Use these keys to answer incoming calls. - Use these keys from Standby mode to briefly access Main and Select menus. - Use these keys to select a highlighted selection when navigating through a menu. SMS Key ( ) From Standby mode, press this key to access a text message menu items. - Press this key to answer incoming calls. Navigation Keys These keys allow you to navigate the phone’s various features and useful shortcuts including a camera, BREW, WAP, phone number list, etc. Camera ( ) Key From Standby mode, press this key to access a camera. Then you can take a phone with your phone. Microphone Your typical conversational microphone. Mute the microphone during conversation by pressing β€œMENU” β€œ2”. Accessory Port Connect your charger here. CLR Key This key is used to erase incorrect numeric or character entries or to return to a previous screen. - To erase a single character from the screen, briefly press the CLR key 9 once. - To erase the entire entry field, hold down the CLR key for one second. - To back up one menu level, press the CLR key once. - To return to standby, hold the CLR key for one sec…

Text truncated - open the document above for the full version.

Cover Letter(s)

Sincerely, Andy Suen Senior Director COMPAL ELECTRONICS, INC. Tel : +886-2-8797 8599 Fax : +886-2-8751 3808 Email: [email protected] Sincerely, Andy Suen Senior Director COMPAL ELECTRONICS, INC. Tel : +886-2-8797 8599 Fax : +886-2-8751 3808 Email: [email protected]

Cover Letter(s)

-----Original Message----- From: Claire Hoque [mailto:[email protected]] Sent: Monday, August 09, 2004 2:56 PM To: Chris Harvey -TCB Cc: Helen Zhao; Thu Chan; Chris Harvey; Sunny Shih Subject: RE: Additional Information needed for AN04T4089 Compal FCC ID: GKRVT-5D Thank you, Chris. -----Original Message----- From: Chris Harvey EMC [mailto:[email protected]] Sent: Monday, August 09, 2004 10:51 AM To: Claire Hoque; Chris Harvey Cc: Helen Zhao; Thu Chan; Chris Harvey; Sunny Shih Subject: Re: Additional Information needed for AN04T4089 Compal FCC ID: GKRVT-5D Claire, Thank you for directing me to the next column of data in the RF report. I can now see the comparrison and see that there is not an issue with the power. I will complete this review once I have full Internet access. -----Original Message----- From: Claire Hoque <[email protected]> Date: Mon, 9 Aug 2004 11:30:07 To:Chris Harvey -TCB <[email protected]> Cc:Helen Zhao <[email protected]>, Thu Chan <[email protected]>, Chris Harvey <[email protected]>, Sunny Shih <[email protected]> Subject: RE: Additional Information needed for AN04T4089 Compal FCC ID: GK RVT-5D Hi Chris, Pls note the output power indicated in SAR report is average output power, not peak output power. If you compare the average output power in RF report and SAR report, then we don't think there should be any issue. Pls let me know if you have other questions or not. Thanks, Claire -----Original Message----- From: Chris Harvey [mailto:[email protected]] Sent: Monday, August 09, 2004 9:30 AM To: 'Claire Hoque' Cc: 'Helen Zhao'; 'Thu Chan'; 'Chris Harvey' Subject: RE: Additional Information needed for AN04T4089 Compal FCC ID: GKRVT-5D Claire, I have had a chance to review the revised SAR report submitted and still find that the RF power measurements are significantly different between the RF and SAR reports. The RF report contains a conducted RF Power measurement for the CDMA (Pt. 22) of 28.38dBm and for the PCS of 28.73dBm. The SAR report contains a conducted RF Power measurement for the CDMA (Pt. 22) of 23.7dBm and for the PCS of 23.7dBm. The RF Power in the SAR report should be equal (or possibly slightly higher) than the power in the RF report to ensure that SAR measurements are measured in the worst case operating mode. Please explain this difference in the power measurements and ensure that SAR testing is performed in the worst case highest power modes. Please contact me if there are any questions. Best regards, Chris Harvey 443-622-3300 [Chris Harvey] ------ Hi Chris, Here is Thu's answer for Q3, hope it is sufficient. <answer>There are 39K3F1D & 39K3F3E designators for AMPS mode. Thanks, Claire -----Original Message----- From: Claire Hoque [mailto:[email protected]] Sent: Thursday, August 05, 2004 8:19 PM To: Chris Harvey -TCB Cc: Helen Zhao; Thu Chan; Chris Harvey Subject: RE: Additional Information needed for AN04T4089 Compal FCC ID: GKRVT-5D Thanks, Chris. Thu will contact you for Q3 issue. -----Original Message----- From: Chris Harvey [mailto:[email protected]] Sent: Thursday, August 05, 2004 2:36 PM To: 'Claire Hoque' Cc: 'Mike Kuo'; 'Helen Zhao'; 'Thu Chan'; 'Sunny Shih'; 'Chris Harvey' Subject: RE: Additional Information needed for AN04T4089 Compal FCC ID: GKRVT-5D Claire, I have not yet reviewed the attached SAR report, but wanted to comment on the reply to question #3. Please provide an exhibit that indicates the Carson's Rule (2M + 2D) for the AMPS mode Cellular operation (the 40K0FID 40K0F3E designators). Thanks, Chirs -----Original Message----- From: Claire Hoque [mailto:[email protected]] Sent: Thursday, August 05, 2004 6:15 PM To: Chris Harvey -TCB Cc: Mike Kuo; Helen Zhao; Thu Chan; Sunny Shih; Chris Harvey Subject: RE: Additional Information needed for AN04T4089 Compal FCC ID: GKRVT-5D Hi Chris, Here are the answers. 1) You have supplied an exhibit labeled 'Internal Photos(Translator).pdf' which appears to be photographs of a device that is not part of the EUT. These photographs will not be uploaded to the FCC with the application unless you notify me that this is part of the EUT. <answer>we agree to remove 'Internal Photos(Translator).pdf' from the application. 2) The form 731 indicated that the Emission Designator of the PCS mode was 1M27GXW, however for CDMA it should probably be 1M27F9W. Please confirm this. Additionally, the Wideband Data equipment parameters need to be added to the Form 731 so that these can get onto the TCB Grant: BC 22 824.04 - 848.97 0.3388W 2.5 PPM 40K0F1D <answer>731 form has been revised per your suggestion. 3) Please provide justification and Carson's Rule calculation of the Necessary Bandwidth and Emission Designator. <answer>731 form has been revised per your suggestion. 4) The Conducted RF Power listed RF report is significantly higher than the Conducted (Average Power) listed in the SAR report. The RF Power in the SAR report should be equal (or possibly slightly higher) than the power in the RF report to ensure that SAR measurements are measured in the worst case operating mode. Please explain this difference in the power measurements and ensure that SAR testing is performed in the worst case highest power modes. <answer>It is a typo, SAR report is revised as attached. Thanks, Claire Best Regards, Chris Harvey [email protected]

ID Label/Location Info

PROPOSED FCC ID LABEL AND LOCATION Compal Electronics, Inc. This device complies with Part 22 of the FCC Rules. FCC ID: GKRVT-5D FCC ID LABEL LOCATION

RF Exposure Info

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for Dual Band Tri Mode PCS/AMPS/CDMA Cellular Camera Phone MODEL: VT-5D FCC ID: GKRVT-5D July 21, 2004 REPORT NO: 04I2820-2 Prepared for Compal Electronics Inc No. 581, Jui-Kuang Rd. Neihu, Taipei, 114, Taiwan, R.O.C. Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 REPORT NO: 04I2820-2 DATE: July 21, 2004 FCC ID: GKRVT-5D COMPLIANCE CERTIFICATION SERVICES Page: 2 of 35 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) DATES OF TEST: July 19, 20 & 21, 2004 APPLICANT: Compal Electronics Inc. No. 581, Jui-Kuang Rd Neihu, Taipei, 114, Taiwan R.O.C. MODEL: VT-5D FCC ID: GKRVT-5D DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: AMPS/CDMA Tx Frequency: 824.04 to 848.97 MHz for AMPS mode 824.70 to 848.31 MHz for CDMA Cellular band 1851.25 to 1908.75 MHz for CDMA PCS band Max. O/P Power: (Conducted/Average) 26.1 dBm for AMPS 23.7 dBm for CDMA Cellular band 23.7 dBm for CDMA PCS band Max. SAR (1g): AMPS Mode: 1.09 mW/g at Right head touch position 1.23 mW/g at Body worn CDMA Cellular Band: 0.665 mW/g at Right head touch position) 0.726 mW/g at Body worn CDMA PCS Band: 0.869 mW/g at Right head tilt position) 0.417 mW/g at Body worn Application Type: Certification FCC Rule Part(s): 22H/24E This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hsin-Fu Shih (Sunny Shih) Senior Engineer REPORT NO: 04I2820-2 DATE: July 21, 2004 FCC ID: GKRVT-5D COMPLIANCE CERTIFICATION SERVICES Page: 3 of 35 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. EQUIPMENT UNDER TEST (EUT) DESCRIPTION................................................................. 4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC..................................... 4 3. DOSIMETRIC ASSESSMENT SETUP................................................................................... 4 3.1. MEASUREMENT SYSTEM DIAGRAM..................................................................................................................5 3.2. SYSTEM COMPONENTS...................................................................................................................................6 4. EVALUATION PROCEDURES............................................................................................ 8 5. MEASUREMENT UNCERTAINTY...................................................................................... 12 6. EXPOSURE LIMIT........................................................................................................ 13 7. EUT ARRANGEMENT................................................................................................... 14 8. MEASUREMENT RESULTS............................................................................................ 17 8.1. SIMULATING LIQUIDS PARAMETER CHECK.....................................................................................................17 8.2. SYSTEM PERFORMANCE CHECK...................................................................................................................23 8.3. PROCEDURES USED TO ESTABLISH TEST SIGNAL..........................................................................................25 8.4. SAR MEASUREMENT RESULTS.....................................................................................................................26 9. EUT PHOTOS............................................................................................................. 31 10. EQUIPMENT LIST & CALIBRATION STATUS..................................................................... 33 11. REFERENCES............................................................................................................ 34 12. ATTACHMENTS.......................................................................................................... 35 REPORT NO: 04I2820-2 DATE: July 21, 2004 FCC ID: GKRVT-5D COMPLIANCE CERTIFICATION SERVICES Page: 4 of 35 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. E QUIPMENT UNDER TEST (EUT) DESCRIPTION The following is the information provided by the applicant. Type of EUT: Dual Band Tri Mode AMPS/CDMA Cellular/PCS Camera Phone Type/Model No.: VT-5D Modulation Type: AMPS/CDMA TX Frequency: 824.04 to 848.97 MHz for AMPS mode 824.70 to 848.31 MHz for CDMA Cellular band 1851.25 to 1908.75 MHz for CDMA PCS band Duty Cycle: 100% Battery: Only one model with EUT 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order β€œGuidelines for Evaluating the Environm…

Text truncated - open the document above for the full version.

RF Exposure Info

Date/Time: 07/19/04 10:25:06 Test Laboratory: Compliance Certification Services File Name: D835V2SN4d002_071904.da4 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Program Name: System Performance Check at 835 MHz Ambient Temp.: 25 deg. C; Liquid Temp.: 24 deg. C Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; Οƒ = 0.924 mho/m; Ξ΅ r = 42.3; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3023; ConvF(6, 6, 6); Calibrated: 9/23/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 d=15mm, Pin=250mW/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 54 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 2.62 mW/g d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 54 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 2.63 mW/g Peak SAR (extrapolated) = 3.52 W/kg SAR(1 g) = 2.42 mW/g; SAR(10 g) = 1.58 mW/g 0 dB = 2.63mW/g Date/Time: 07/19/04 10:25:06 Test Laboratory: Compliance Certification Services File Name: D835V2SN4d002_071904.da4 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Program Name: System Performance Check at 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; Οƒ = 0.924 mho/m; Ξ΅ r = 42.3; ρ = 1000 kg/m 3 Phantom section: Flat Section d=15mm, Pin=250mW/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 54 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 2.26 mW/g Date/Time: 07/20/04 10:46:05 Test Laboratory: Compliance Certification Services File Name: D835V2SN4d002_072004.da4 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Program Name: System Performance Check at 835 MHz Ambient Temp.: 25 deg. C; Liquid Temp.: 24 deg. C Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; Οƒ = 0.924 mho/m; Ξ΅ r = 42.3; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3023; ConvF(6, 6, 6); Calibrated: 9/23/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 d=15mm, Pin=250mW/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 54.1 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 2.61 mW/g d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 54.1 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 2.58 mW/g Peak SAR (extrapolated) = 3.46 W/kg SAR(1 g) = 2.38 mW/g; SAR(10 g) = 1.57 mW/g 0 dB = 2.58mW/g Date/Time: 07/20/04 10:46:05 Test Laboratory: Compliance Certification Services File Name: D835V2SN4d002_072004.da4 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Program Name: System Performance Check at 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; Οƒ = 0.924 mho/m; Ξ΅ r = 42.3; ρ = 1000 kg/m 3 Phantom section: Flat Section d=15mm, Pin=250mW/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 54.1 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 2.21 mW/g Date/Time: 07/21/04 10:51:02 Test Laboratory: Compliance Certification Services File Name: D1900V2 SN5d043_072104.da4 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d043 Program Name: System Performance Check at 1900 MHz Ambient Temp.: 24 deg. C; Liquid Temp.: 23 deg. C Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; Οƒ = 1.41 mho/m; Ξ΅ r = 40.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3023; ConvF(4.9, 4.9, 4.9); Calibrated: 9/23/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 d=10mm; Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 88.6 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 10.6 mW/g d=10mm; Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 88.6 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 10.5 mW/g Peak SAR (extrapolated) = 16.6 W/kg SAR(1 g) = 9.41 mW/g; SAR(10 g) = 4.94 mW/g 0 dB = 10.5mW/g Date/Time: 07/21/04 10:51:02 Test Laboratory: Compliance Certification Services File Name: D1900V2 SN5d043_072104.da4 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d043 Program Name: System Performance Check at 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; Οƒ = 1.41 mho/m; Ξ΅ r = 40.1; ρ = 1000 kg/m 3 Phantom section: Flat Section d=10mm; Pin=250mW/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 88.6 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 8.51 mW/g

RF Exposure Info

Date/Time: 07/19/04 11:25:26 Test Laboratory: Compliance Certification Services File Name: 1_Left Head Touch.da4 DUT: Compal; Type: VT-5D; Serial: N/A Program Name: 1_Left Head Touch Ambient Temp.: 25.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: AMPS 835; Frequency: 824.04 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 824.04 MHz; Οƒ = 0.912 mho/m; Ξ΅ r = 42.5; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ES3DV2 - SN3023; ConvF(6, 6, 6); Calibrated: 9/23/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 L-ch/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 32.7 V/m; Power Drift = -0.13 dB Maximum value of SAR (measured) = 0.950 mW/g Info: Interpolated medium parameters used for SAR evaluation! L-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 32.7 V/m; Power Drift = -0.13 dB Maximum value of SAR (measured) = 0.932 mW/g Peak SAR (extrapolated) = 1.16 W/kg SAR(1 g) = 0.885 mW/g; SAR(10 g) = 0.648 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 07/19/04 11:25:26 Test Laboratory: Compliance Certification Services File Name: 1_Left Head Touch.da4 DUT: Compal; Type: VT-5D; Serial: N/A Program Name: 1_Left Head Touch Ambient Temp.: 25.0 deg. C; Liquid Temp.: 24.0 deg. C Communication System: AMPS 835; Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.49 MHz; Οƒ = 0.926 mho/m; Ξ΅ r = 42.3; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ES3DV2 - SN3023; ConvF(6, 6, 6); Calibrated: 9/23/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 M-ch/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 33 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 1.01 mW/g Info: Interpolated medium parameters used for SAR evaluation! M-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 33 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 1.04 mW/g Peak SAR (extrapolated) = 1.31 W/kg SAR(1 g) = 0.982 mW/g; SAR(10 g) = 0.708 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 07/19/04 11:25:26 Test Laboratory: Compliance Certification Services File Name: 1_Left Head Touch.da4 DUT: Compal; Type: VT-5D; Serial: N/A Program Name: 1_Left Head Touch Ambient Temp.: 25.0 deg. C; Liquid Temp.: 24.0 deg. C Communication System: AMPS 835; Frequency: 848.97 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 848.97 MHz; Οƒ = 0.936 mho/m; Ξ΅ r = 42.2; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ES3DV2 - SN3023; ConvF(6, 6, 6); Calibrated: 9/23/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 H-ch/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 34.8 V/m; Power Drift = -0.14 dB Maximum value of SAR (measured) = 1.08 mW/g Info: Interpolated medium parameters used for SAR evaluation! H-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 34.8 V/m; Power Drift = -0.14 dB Maximum value of SAR (measured) = 1.04 mW/g Peak SAR (extrapolated) = 1.33 W/kg SAR(1 g) = 0.986 mW/g; SAR(10 g) = 0.712 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 07/19/04 11:25:26 Test Laboratory: Compliance Certification Services File Name: 1_Left Head Touch.da4 DUT: Compal; Type: VT-5D; Serial: N/A Program Name: 1_Left Head Touch Communication System: AMPS 835; Frequency: 848.97 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 848.97 MHz; Οƒ = 0.936 mho/m; Ξ΅ r = 42.2; ρ = 1000 kg/m 3 Phantom section: Left Section H-ch/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 34.8 V/m; Power Drift = -0.14 dB Maximum value of SAR (measured) = 0.877 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 07/19/04 13:22:06 Test Laboratory: Compliance Certification Services File Name: 2_Left Head Tilt.da4 DUT: Compal; Type: VT-5D; Serial: N/A Program Name: 2_Left Head Tilt Ambient Temp.: 25.0 deg. C; Liquid Temp.: 24.0 deg. C Communication System: AMPS 835; Frequency: 824.04 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 824.04 MHz; Οƒ = 0.912 mho/m; Ξ΅ r = 42.5; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ES3DV2 - SN3023; ConvF(6, 6, 6); Calibrated: 9/23/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 L-ch/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 28 V/m; Power Drift = 0.0 dB Maximum value of SAR (measured) = 0.682 mW/g Info: Interpolated medium parameters used for SAR evaluation! L-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 28 V/m; Power Drift = 0.0 dB Maximum value of SAR (measured) = 0.830 mW/g Peak SAR (extrapolated) = 1.13 W/kg SAR(1 g) = 0.745 mW/g; SAR(10 g) = 0.476 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 07/19/04 13:22:06 Test Laboratory: Compliance Certification Services File Name: 2_Left Head Tilt.da4 DUT: Compal; Type: VT-5D; Serial: N/A Program Name: 2_Left Head Tilt Ambient Temp.: 25.0 deg. C; Liquid Temp.: 24.0 deg. C Communication System: AMPS 835; Frequenc…

Text truncated - open the document above for the full version.

RF Exposure Info

Date/Time: 07/20/04 11:47:55 Test Laboratory: Compliance Certification Services File Name: 1_Left Head Touch.da4 DUT: Compal; Type: VT-5D; Serial: N/A Program Name: 1_Left Head Touch Ambient Temp.: 25.0 deg. C; Liquid Temp.: 24.0 deg. C Communication System: CDMA; Frequency: 835.89 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 835.89 MHz; Οƒ = 0.928 mho/m; Ξ΅ r = 42.3; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ES3DV2 - SN3023; ConvF(6, 6, 6); Calibrated: 9/23/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 M-ch/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 25.4 V/m; Power Drift = -0.0 dB Maximum value of SAR (measu…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Joyce Ting(Senior RF Regulatory Compliance Engineer)
[email protected]886-2-8797-8599Fax: 886-2-2658-6080

Test Firm

Compliance Certification Services IncSteve Cheng
[email protected]408-463-0885Fax: 408-463-0888

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
422H824.04 MHz - 848.97 MHz338.80 mW39K3F1D2.5 ppm
Confidentiality
Long Term
Grant Notes
Output is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configurations is limited to the specific configuration tested for this filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 1.5 cm separation between the device, including its antenna and the user body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR values are: AMPS Part 22 οΏ½V Head: 1.09W/kg; Body-worn: 1.23W/kg; CDMA Part 22 - Head: 0.665 W/kg; Body-worn: 0.726 W/kg; PCS Part 24 - Head: 0.869 W/kg; Body-worn: 0.417 W/kg.
