GKRVT-7UDual Band Tri-Mode AMPS/CDMA/PCS Cellular Phone

1 OPERATING MANUAL VT-7U Version 1.0 VACOM WIRELESS, INC. 2 CONTENTS IMPORTANT SAFETY INFORMATION GETTING TO KNOW YOUR PHONE DISPLAY INDICATORS BATTERY INFORMATION BASIC FUNCTIONS 1. Making Calls 2. Ending Calls 3. Answering Calls 4. Correcting Entry Errors 5. Storing Phone Numbers 6. Volume 7. Redialing Last Dialed, Received, or Missed Number 8. Speed Dial 9. Etiquette Mode 10. Silence Mode 11. Shortcut 12. Call LED MENUS I. PHONEBOOK 1. Adding Entries in the Phonebook 2. Phonebook Search 3. Call List 4. Editing Groups 5. Memory Check 6. My Number II. VOLUME & ALERT 3 1. Bell Select 2. Ring Type 3. Volume 4. Alert Settings 5. Beep Length 6. Roam Ringer III. PERSONAL INFORMATION MANAGEMENT 1. Alarm 2. Schedule 3. Memo 4. Calculator 5. World Time View 6. Calendar View IV. PHONE SETTINGS MENU 1. Wallpaper 2. Greeting Edit 3. Backlight 4. Contrast 5. Languages 6. Time Set V. CALL INFORMATION 1. Call Function - Auto Answer - Auto Redial 2. Call Restrict 3. Call Answer 4. Call Time 5. Voice Privacy VI. SECURITY 1. Lock Mode 2. New Password 3. Memory Clear 4. Initialize 4 5. Privacy Information VII. VALUE ADDED SERVICE (VAS) 1. Data Service 2. Games 3. Memory View WAP CONTENT DOWNLOAD MESSAGE SERVICE USING MENU DURING CALLS 1. Phonebook Search 2. Voice Mute 3. DTMF Mute 4. Voice Privacy 5. Beep Length 6. Speaker Phone ENTERING LETTERS & NUMBERS 1. Prediction Text Input 2. ABC/123 Mode 3. Inserting Punctuations & Special Characters FCC RF EXPOSURE INFORMATION 5 IMPORTANT SAFETY INFORMATION Some of the following information may not apply specifically to your phone. However, as with any electronic product, these safety precautions should be observed when using this product. ? Please keep this manual in a safe place, for it contains important safety information and operating instructions. ? Please follow and adhere to all warning, safety, and operating instructions indicated on both the phone and in this manual before use. ? Do Not expose the phone to water or moisture. ? Do Not expose the phone to extreme heat or cold. ? Do Not expose the phone to open flame. ? Do Not allow objects to fall or liquids to spill on the product. ? Use Original Accessories only. Any damage incurred from the use of non-approved accessories will void the warranty. ? Use approved chargers only and connect to a power source designated on the product. ? To reduce the risk of injury, remove the electrical cord from an outlet by pulling on the charger, rather than the cord. ? Ensure that the electrical cord is positioned accordingly so that it will not be vulnerable to damage. ? To reduce the risk of electrical shock, unplug the phone from the power source before cleaning. Once unplugged, use a soft cloth dampened with water to clean. ? DANGER: Do Not modify the cord or the plug. If the plug does not fit into an outlet, have a proper outlet installed by a qualified electrician. Improper connection can result in electrical shock. ? Do Not attempt to disassemble the product – doing so will void the warranty. This product does not contain consumer-serviceable components. Service should be performed only by authorized service centers. ? Do Not remove the antenna. A detached antenna can be a choking hazard for children. ? Do Not place the battery inside the mouth. The battery contains toxic electrolytes that are harmful for your health. User Guide Proprietary Notice CDMA Technology is licensed by QUALCOMM Incorporated under one of more of the 6 following patents: 4,901,307 5,109,390 5,267,262 5,416,797 5,506,865 5,544,196 5,657,420 5,101,501 5,267,261 5,414,796 5,504,773 5,535,239 5,600,754 5,778,338 5,228,054 5,337,338 5,710,784 5,056,109 5,568,483 5,659,569 5,490,165 5,511,073 7 GETTING TO KNOW YOUR PHONE Volume/Scroll Key These keys are used to set volume levels, and to help you navigate through menus and the Phonebook. Use the volume keys to: - Adjust call volume. - Adjust key tone volume. - Answer incoming calls. - Scroll through menu options. - Scroll through the Phonebook. Color LCD Display The LCD screen is divided into two sections: - The top line displays your phone status indicators. - The lower portion displays currently in-use information, such as Caller ID (if available), Mute, Call Waiting, etc. Menus are also displayed in the lower portion. Menu Keys (/) These keys perform several useful functions: - Use these keys to answer incoming calls. - Use these keys from Standby mode to briefly access Main and Select menus. - Use these keys to select a highlighted selection when navigating through a menu. SMS Key From Standby mode, press this key to access a text message menu items. Navigation Keys These keys allow you to navigate the phone’s various features and useful shortcuts including melody, Speaker phone, WAP, phone number list, etc. WAP ( ? i) Key From Standby mode, press and hold this key to access WAP. Then you can access Internet with your phone. Microphone Your typical conversational microphone. Mute the microphone during conversation by pressing “MENU” “2”. Accessory Port Connect your charger here. CLR Key This key is used to erase incorrect numeric or character entries or to return to a previous screen. - To erase a single character from the screen, briefly press the CLR key once. 8 - To erase the entire entry field, hold down the CLR key for one second. - To back up one menu level, press the CLR key once. - To return to standby, hold the CLR key for one second. END Key Press this key to end calls or to return to Standby mode from any menu. Press and hold to turn the phone On or Off. SEND Key This key performs several useful functions: - Press the Send key to dial an entered number. - Press the Send key once to redial the last outgoing number. Numeric Keypad These keys are used to input numbers and characters. ?* This key performs several useful functions: - Toggle between ring and vibrate. - Use as a navigation key. #? This key performs several useful functions: - Use to lock . To unlock, press any key and e…

Text truncated - open the document above for the full version.

1 Mike Kuo From: Claire Hoque Sent: November032004Wednesday 2:55 PM To: Mike Kuo Cc: Helen Zhao; Thu Chan Subject: RE: COMPAL ELECTRONICS, INC., FCC ID: GKRVT-7U, Assessment NO.: AN04T4282, Notice#1 FCC22&24 04I2845-1 Report(revi... FCC ID LABEL(revised).pdf VT-7U User Manual Revised.pdf Internal Photos(2) revised.pdf... Hi Mike, Here are the answers. Question #1: By reviewing the EUT photos and test setup photos, the photos contained in the Section 8 of Part 22/24 test report do not agree those photos in test setup photos and ext/int photos. Please explain the actual device tested during the Part 22/24 tests. <answer>Test report is revised. Question #2: Proposed FCC ID label format mentioned that this device complies with Part 22 rule part only. Please note such statement is not required per FCC labeling requirements. However, any statement included must agree with product tested. This device is subject to Part 22 and 24 requirements. <answer>FCC Label is revised. Question #3: Please remove Vacom translator photos from internal photos. This translator is testing accessories which is not part of EUT. <answer>Internal photos are revised. Question #4: Based upon the description contains in the user manual, this phone can also be used as data modem by connecting to Personal computer and would be classified as PC peripheral device. Please provide the status of compliance in this portion. If FCC DoC portion is used, the FCC ID label format and user manual must also mentioned and comply with applicable section in FCC DoC procedures. <answer>User's manual and FCC label are revised. Thanks, Claire

Sincerely, Andy Suen Senior Director COMPAL ELECTRONICS, INC. Tel : +886-2-8797 8599 Fax : +886-2-8751 3808 Email: [email protected] Sincerely, Andy Suen Senior Director COMPAL ELECTRONICS, INC. Tel : +886-2-8797 8599 Fax : +886-2-8751 3808 Email: [email protected]

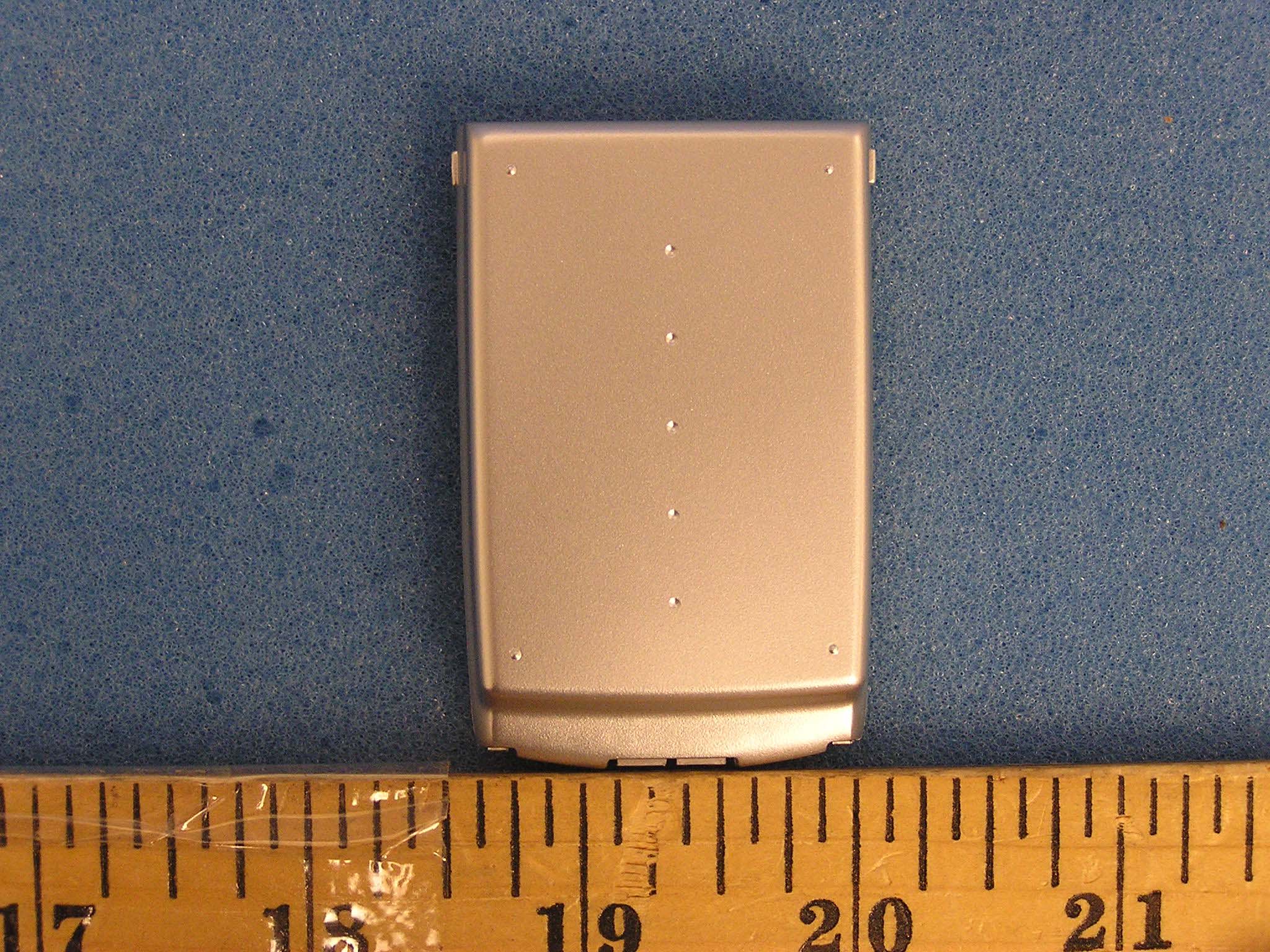

PROPOSED FCC ID LABEL AND LOCATION Compal Electronics, Inc. This device complies with Part 22 and Part 24 of the FCC Rules. FCC ID: GKRVT-7U FCC ID LABEL LOCATION

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for Dual Band Tri Mode PCS/AMPS/CDMA Cellular Phone MODEL: VT-7U FCC ID: GKRVT-7U October 20, 2004 REPORT NO: 04I2845-2 Prepared for Compal Electronics Inc No. 581, Jui-Kuang Rd. Neihu, Taipei, 114, Taiwan, R.O.C. Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 REPORT NO: 04I2845-2 DATE: October 20, 2004 FCC ID: GKRVT-7U COMPLIANCE CERTIFICATION SERVICES Page: 2 of 36 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) DATES OF TEST: October 18-20, 2004 APPLICANT: Compal Electronics Inc. No. 581, Jui-Kuang Rd Neihu, Taipei, 114, Taiwan R.O.C. FCC ID: GKRVT-7U MODEL: VT-7U DEVICE CATEGORY: Portable Device EXPOSURE CATEGORY: General Population/Uncontrolled Explosure Dual Band Tri Mode PCS/AMPS/CDMA Cellular Phone Test Sample is a: Production unit Modulation type: AMPS/CDMA FCC Rule Parts Frequency Range [MHz] The Highest SAR Values [1g_mW/g] Max. Power Output [dBm] Head: 0.907 22H (AMPS) 824.04 – 848.97 Body: 0.348 26.65 Head: 0.460 22H (CDMA Cell) 824.76 – 848.25 Body: 0.265 24.20 Head: 1.090 24E (CDMA PCS) 1851.25 – 1908.75 Body: 0.184 23.65 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Explosure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (Edition 01-01). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Released For CCS By: Hsin-Fu Shih (Sunny Shih) COMPLIANCE CERTIFICATION SERVICES REPORT NO: 04I2845-2 DATE: October 20, 2004 FCC ID: GKRVT-7U COMPLIANCE CERTIFICATION SERVICES Page: 3 of 36 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1 EQUIPMENT UNDER TEST (EUT) DESCRIPTION............................................................................ 4 2 SYSTEM DESCRIPTION ..................................................................................................................... 5 3 SYSTEM COMPONENTS .................................................................................................................... 6 3.1 DASY4 MEASUREMENT SERVER.............................................................................................. 6 3.2 DATA ACQUISITION ELECTRONICS (DAE)............................................................................... 6 3.3 EX3DV3 ISOTROPIC E-FIELD PROBE FOR DOSIMETRIC MEASUREMENTS ....................... 6 3.4 LIGHT BEAM UNIT ....................................................................................................................... 7 3.5 SAM PHANTOM (V4.0)................................................................................................................. 7 3.6 DEVICE HOLDER FOR SAM TWIN PHANTOM .......................................................................... 8 3.7 SYSTEM VALIDATION KITS ........................................................................................................ 8 3.8 COMPOSITION OF INGREDIENTS FOR TISSUE SIMULATING LIQUID .................................. 8 4 TEST POSITIONS FOR DEVICES OPERATING NEXT TO A PERSON’S EAR................................ 9 4.1 CHEEK/TOUCH POSITION........................................................................................................ 10 4.2 EAR/TILT POSITION .................................................................................................................. 11 5 TEST POSITIONS FOR BODY-WORN AND OTHER SIMILAR CONFIGURATIONS ..................... 12 6 SIMULATING LIQUID PARAMETERS CHECK ................................................................................. 13 6.1 SIMULATING LIQUID PARAMETER CHECK RESULT............................................................. 14 7 SYSTEM PERFORMANCE CHECK .................................................................................................. 20 7.1 SYSTEM PERFORMANCE CHECK RESULTS ......................................................................... 20 8 SAR MEASUREMENT PROCEDURES............................................................................................. 22 9 PROCEDURES USED TO ESTABLISH TEST SIGNAL.................................................................... 24 10 SAR MEASUREMENT RESULTS .....................................................................................................25 10.1 LEFT HEAD TOUCH POSITION ................................................................................................ 25 10.2 LEFT HEAD TILT POSITION...................................................................................................... 26 10.3 RIGHT HEAD TOUCH POSITION .............................................................................................. 27 10.4 RIGHT HEAD TILT POSITION ................................................................................................... 28 10.5 BODY POSITION ........................................................................................................................ 29 11 EUT PHOTOS ..................................................................................................…

Text truncated - open the document above for the full version.

Date/Time: 10/18/04 10:00:29 Test Laboratory: Compliance Certification Services 5_System Performance Check @ 1900MHz DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d043 Phantom section: Flat Section Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.43 mho/m; ε r = 40.7; ρ = 1000 kg/m 3 Measurement Standard: DASY4 (High Precision Assessment) z Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C z Area Scan setting - Find Secondary Maximum Within: 3.0 dB and with a peak SAR value greater than 0.3 W/kg z Probe: EX3DV3 - SN3531; ConvF(8.98, 8.98, 8.98); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.3 Build 22; Postprocessing SW: SEMCAD, V1.8 Build 127 d=10mm; Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 13.1 mW/g d=10mm; Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 292.8 V/m; Power Drift = 0.0008 dB Peak SAR (extrapolated) = 17.6 W/kg SAR(1 g) = 9.73 mW/g; SAR(10 g) = 5.04 mW/g 0 dB = 13.1mW/g Date/Time: 10/18/04 10:00:29 Test Laboratory: Compliance Certification Services 5_System Performance Check @ 1900MHz DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d043 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) d=10mm; Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 12.7 mW/g Date/Time: 10/19/04 10:54:07 Test Laboratory: Compliance Certification Services 5_System Performance Check @ 1900MHz DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d043 Phantom section: Flat Section Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.43 mho/m; ε r = 40.1; ρ = 1000 kg/m 3 Measurement Standard: DASY4 (High Precision Assessment) z Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C z Area Scan setting - Find Secondary Maximum Within: 3.0 dB and with a peak SAR value greater than 0.3 W/kg z Probe: EX3DV3 - SN3531; ConvF(8.98, 8.98, 8.98); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.3 Build 22; Postprocessing SW: SEMCAD, V1.8 Build 127 d=10mm; Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 13.5 mW/g d=10mm; Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 295.8 V/m; Power Drift = -0.0 dB Peak SAR (extrapolated) = 17.9 W/kg SAR(1 g) = 9.88 mW/g; SAR(10 g) = 5.12 mW/g Maximum value of SAR (measured) = 13.3 mW/g 0 dB = 13.3mW/g Date/Time: 10/19/04 10:54:07 Test Laboratory: Compliance Certification Services 5_System Performance Check @ 1900MHz DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d043 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) d=10mm; Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 12.8 mW/g Date/Time: 10/19/04 13:36:39 Test Laboratory: Compliance Certification Services System Performance Check @ 835MHz DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Phantom section: Flat Section Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.885 mho/m; ε r = 40.3; ρ = 1000 kg/m 3 Measurement Standard: DASY4 (High Precision Assessment) z Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C z Area Scan setting - Find Secondary Maximum Within: 3.0 dB and with a peak SAR value greater than 0.3 W/kg z Probe: EX3DV3 - SN3531; ConvF(10.7, 10.7, 10.7); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.3 Build 22; Postprocessing SW: SEMCAD, V1.8 Build 127 d=15mm, Pin=250mW/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.89 mW/g d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 190.3 V/m; Power Drift = -0.1 dB Peak SAR (extrapolated) = 3.49 W/kg SAR(1 g) = 2.35 mW/g; SAR(10 g) = 1.54 mW/g Maximum value of SAR (measured) = 2.86 mW/g 0 dB = 2.86mW/g Date/Time: 10/19/04 13:36:39 Test Laboratory: Compliance Certification Services System Performance Check @ 835MHz DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) d=15mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 2.78 mW/g Date/Time: 10/20/04 09:39:53 Test Laboratory: Compliance Certification Services System Performance Check @ 835MHz DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Phantom section: Flat Section Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.892 mho/m; ε r = 40.5; ρ = 1000 kg/m 3 Measurement Standard: DASY4 (High Precision Assessment) z Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C z Area Scan setting - Find Secondary Maximum Within: 3.0 dB and with a peak SAR value greater than 0.3 W/kg z Probe: EX3DV3 - SN3531; ConvF(10.7, 10.7, 10.7); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.3 Build 22; Postprocessing SW: SEMCAD, V1.8 Build 127 d=15mm, Pin=250mW/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.94 mW/g d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 191.4 V/m; Power Drift = -0.0 dB Peak SAR (extrapolated) = 3.6 W/kg SAR(1 g) = 2.4 mW/…

Text truncated - open the document above for the full version.

Date/Time: 10/19/04 15:17:07 Test Laboratory: Compliance Certification Services Left Hand Side DUT: Compal; Type: VT-7U; Serial: N/A Phantom section: Left Section Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.49 MHz; σ = 0.888 mho/m; ε r = 40.2; ρ = 1000 kg/m 3 Measurement Standard: DASY4 (High Precision Assessment) z Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C z Area Scan setting - Find Secondary Maximum Within: 3.0 dB and with a peak SAR value greater than 0.3 W/kg z Probe: EX3DV3 - SN3531; ConvF(10.7, 10.7, 10.7); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.3 Build 22; Postprocessing SW: SEMCAD, V1.8 Build 127 Touch M-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.747 mW/g Touch M-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 24.9 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 0.899 W/kg SAR(1 g) = 0.623 mW/g; SAR(10 g) = 0.416 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.739 mW/g 0 dB = 0.739mW/g Date/Time: 10/19/04 15:17:07 Test Laboratory: Compliance Certification Services Left Hand Side DUT: Compal; Type: VT-7U; Serial: N/A Phantom section: Left Section Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.49 MHz; σ = 0.888 mho/m; ε r = 40.2; ρ = 1000 kg/m 3 Measurement Standard: DASY4 (High Precision Assessment) z Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C z Area Scan setting - Find Secondary Maximum Within: 3.0 dB and with a peak SAR value greater than 0.3 W/kg z Probe: EX3DV3 - SN3531; ConvF(10.7, 10.7, 10.7); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.3 Build 22; Postprocessing SW: SEMCAD, V1.8 Build 127 Tilt position_M-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.223 mW/g Tilt position_M-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 32.3 V/m; Power Drift = -0.1 dB Peak SAR (extrapolated) = 0.261 W/kg SAR(1 g) = 0.198 mW/g; SAR(10 g) = 0.144 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.228 mW/g 0 dB = 0.228mW/g Date/Time: 10/19/04 16:22:25 Test Laboratory: Compliance Certification Services Right Hand Side DUT: Compal; Type: VT-7U; Serial: N/A Phantom section: Right Section Frequency: 824.04 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 824.04 MHz; σ = 0.875 mho/m; ε r = 40.4; ρ = 1000 kg/m 3 Measurement Standard: DASY4 (High Precision Assessment) z Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C z Area Scan setting - Find Secondary Maximum Within: 3.0 dB and with a peak SAR value greater than 0.3 W/kg z Probe: EX3DV3 - SN3531; ConvF(10.7, 10.7, 10.7); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.3 Build 22; Postprocessing SW: SEMCAD, V1.8 Build 127 Touch position_L-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.597 mW/g Touch position_L-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 21.7 V/m; Power Drift = -0.0 dB Peak SAR (extrapolated) = 0.794 W/kg SAR(1 g) = 0.538 mW/g; SAR(10 g) = 0.353 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.647 mW/g 0 dB = 0.647mW/g Date/Time: 10/19/04 16:22:25 Test Laboratory: Compliance Certification Services Right Hand Side DUT: Compal; Type: VT-7U; Serial: N/A Phantom section: Right Section Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.49 MHz; σ = 0.888 mho/m; ε r = 40.2; ρ = 1000 kg/m 3 Measurement Standard: DASY4 (High Precision Assessment) z Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C z Area Scan setting - Find Secondary Maximum Within: 3.0 dB and with a peak SAR value greater than 0.3 W/kg z Probe: EX3DV3 - SN3531; ConvF(10.7, 10.7, 10.7); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.3 Build 22; Postprocessing SW: SEMCAD, V1.8 Build 127 Touch position_M-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.704 mW/g Touch position_M-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 25.7 V/m; Power Drift = -0.13dB Peak SAR (extrapolated) = 0.947 W/kg SAR(1 g) = 0.646 mW/g; SAR(10 g) = 0.425 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.777 mW/g 0 dB = 0.777mW/g Date/Time: 10/19/04 16:22:25 Test Laboratory: Compliance Certification Services Right Hand Side DUT: Compal; Type: VT-7U; Serial: N/A Phantom section: Right Section Frequency: 848.97 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 848.97 MHz; σ = 0.899 mho/m; ε r = 40.1; ρ = 1000 kg/m 3 Measurement Standard: DASY4 (High Precision Assessment) z Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C z Area Scan setting - Find Secondary Maximum Within: 3.0 dB and with a peak SAR value greater than 0.3 W/kg z Probe: EX3DV3 - SN3531; ConvF(10.7, 10.7, 10.7); z Sensor-Surface: 2.5mm …

Text truncated - open the document above for the full version.

Date/Time: 10/20/04 14:17:31 Test Laboratory: Compliance Certification Services Left Hand Side DUT: Compal; Type: VT-7U; Serial: N/A Phantom section: Left Section Frequency: 835.89 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 835.89 MHz; σ = 0.895 mho/m; ε r = 40.4; ρ = 1000 kg/m 3 Measurement Standard: DASY4 (High Precision Assessment) z Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C z Area Scan setting - Find Secondary Maximum Within: 3.0 dB and with a peak SAR value greater than 0.3 W/kg z Probe: EX3DV3 - SN3531; ConvF(10.7, 10.7, 10.7); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.3 Build 22; Postprocessing SW: SEMCAD, V1.8 Build 127 Touch position_M-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.453 mW/g Touch position_M-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 18.5 V/m; Power Drift = 0.1 dB Peak SAR (extrapolated) = 0.569 W/kg SAR(1 g) = 0.393 mW/g; SAR(10 g) = 0.262 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.468 mW/g 0 dB = 0.468mW/g Date/Time: 10/20/04 14:17:31 Test Laboratory: Compliance Certification Services Left Hand Side DUT: Compal; Type: VT-7U; Serial: N/A Phantom section: Left Section Frequency: 835.89 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 835.89 MHz; σ = 0.895 mho/m; ε r = 40.4; ρ = 1000 kg/m 3 Measurement Standard: DASY4 (High Precision Assessment) z Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C z Area Scan setting - Find Secondary Maximum Within: 3.0 dB and with a peak SAR value greater than 0.3 W/kg z Probe: EX3DV3 - SN3531; ConvF(10.7, 10.7, 10.7); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.3 Build 22; Postprocessing SW: SEMCAD, V1.8 Build 127 Tilt position_M-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.138 mW/g Tilt position_M-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 25.6 V/m; Power Drift = -0.0 dB Peak SAR (extrapolated) = 0.160 W/kg SAR(1 g) = 0.122 mW/g; SAR(10 g) = 0.089 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.141 mW/g 0 dB = 0.141mW/g Date/Time: 10/20/04 15:15:54 Test Laboratory: Compliance Certification Services Right Hand Side DUT: Compal; Type: VT-7U; Serial: N/A Phantom section: Right Section Frequency: 824.76 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 824.76 MHz; σ = 0.881 mho/m; ε r = 40.6; ρ = 1000 kg/m 3 Measurement Standard: DASY4 (High Precision Assessment) z Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C z Area Scan setting - Find Secondary Maximum Within: 3.0 dB and with a peak SAR value greater than 0.3 W/kg z Probe: EX3DV3 - SN3531; ConvF(10.7, 10.7, 10.7); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.3 Build 22; Postprocessing SW: SEMCAD, V1.8 Build 127 Touch position_L-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.355 mW/g Touch position_L-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 17.4 V/m; Power Drift = -0.0 dB Peak SAR (extrapolated) = 0.466 W/kg SAR(1 g) = 0.327 mW/g; SAR(10 g) = 0.217 mW/g Info: Interpolated medium …

Text truncated - open the document above for the full version.
