GKRWM3B2100Notebook Computer With 802.11b WLAN module

CL50 User Manual Safety Instructions Use the following safety guidelines to help protect yourself and your computer. When Using Your Computer CAUTION: Do not operate your portable computer for an extended period of time with the base resting directly on your body. With extended operation, heat can potentially build up in the base. Allowing sustained contact with the skin could cause discomfort or, eventually, a burn. l Do not attempt to service the computer yourself. Always follow installation instructions closely. l Do not carry a battery in your pocket, purse, or other container where metal objects (such as car keys) could short-circuit the battery terminals. The resulting excessive current flow can cause extremely high temperatures and may result in damage from burns. l Be sure that nothing rests on your AC adapter’s power cable and that the cable is not located where it can be tripped over or stepped on. l Place the AC adapter in a ventilated area, such as a desktop or on the floor, when you use it to run the computer or to charge the battery. Do not cover the AC adapter with papers or other items that will reduce cooling; also, do not use the AC adapter while it is inside a carrying case. l Do not push objects into air vents or openings of your computer. Doing so can cause fire or electric shock by shorting out interior components. l Use only the AC adapter and batteries that are approved for use with this computer. Use of another type of battery or AC adapter may risk fire or explosion. l Danger of explosion if battery is incorrectly replaced. l Replace only with the same or equivalent type battery recommended by the manufacturer. l Dispose of used batteries according to the manufacturer’s instructions. l Before you connect the computer to a power source, ensure that the voltage rating of the AC adapter matches that of the available power source. - 115 V/60 Hz in most of North and South America and some Far Eastern countries such as South Korea and Taiwan. - 100 V/50 Hz in eastern Japan and 100 V/60Hz in western Japan. - 230 V/50 Hz in most of Europe, the Middle East, and the Far East. l If you use an extension cable with your AC adapter, ensure that the total ampere rating of the products plugged in to the extension cable does not exceed the ampere rating of the extension cable. l To remove power from the computer, turn it off, remove the battery, and disconnect the AC adapter from the electrical outlet. l To help avoid the potential hazard of electric shock, do not connect or disconnect any cables or perform maintenance or reconfiguration of this product during an electrical storm. l Do not dispose of batteries in a fire. They may explode. Check with local authorities for disposal instructions. l When setting up the computer for work, place it on a level surface. l When traveling, do not check the computer as baggage. You can put your computer through an X-ray security machine, but never put your computer through a metal detector. If you have the computer checked by hand, be sure to have a charged battery available in case you are asked to turn on the computer. l When traveling with the hard drive removed from the computer, wrap the drive in a non-conducting material, such as cloth or paper. If you have the drive checked by hand, be ready to install the drive in the computer. Your can put the hard drive through an X-ray security machine, but never put the drive through a metal detector. l When traveling, do not place the computer in overhead storage compartments where it could slide around. Do not drop your computer or subject it to other mechanical shocks. l Protect your computer, battery, and hard drive from environmental hazards such as dirt, dust, food, liquids, temperature extremes, and overexposure to sunlight. l When you move your computer between environments with very different temperature and/or humidity ranges, condensation may form on or within the computer. To avoid damaging the computer, allow sufficient time for the moisture to evaporate before using the computer. Ë NOTICE: When taking the computer from low-temperature conditions into a warmer environment or from high-temperature conditions into a cooler environment, allow the computer to acclimate to room temperature before turning on power. l When you disconnect a cable, pull on its connector or on its strain relief loop, not on the cable itself. As you pull out the connector, keep it evenly aligned to avoid bending any connector pins. Also, before you connect a cable make sure both connectors are correctly oriented and aligned. l Before you clean your computer, turn it off, unplug it from its power source, and remove the battery. l Handle components with care. Hold a component such as a memory module by its edges, not its pins. CAUTION: When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: l Do not use this product near water, for example, near a bathtub, washing bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. l Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. l Do not use the telephone to report a gas leak in the vicinity of the leak. l Use only the power cord indicated in this manual. Regulatory Notices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Any changes or modifications made to this equipment may void the user's authority to operate this equipment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there i…

Text truncated - open the document above for the full version.

A A B B C C D D E E 11 22 33 44 PCI BUS LPC BUS Clock Generator USB conn uFCBGA/uFCPGA CPU Odem MULTIO HD#(0..63)HA#(3..31) Compal confidential Model Name :BCL50 page 4,5 page 18 page 12 page 6,7,8 File Name : LA-1671 Rev:0.1 Mobile Banias Block Diagram Power Circuit DC/DC page 35,36,37,38,39,40,41,42 page 33 DC/DC Interface Suspend HDD page 16 NS PC87591L page 28 Power On/Off Reset & RTC page 30 System Bus ICH4-M BIOSInt.KBD Touch Pad SIO LPC47N227 page 17 EC I/O Buffer LPC to X-BUS & KBC AGP4X(1.5V) Memory BUS(DDR) 400MHz 3.3V 33MHz 2.5V 200MHz 3.3V 48MHz 3.3V 24.576MHz 3.3V ATA100 3.3V 33MHz AGP Conn page 17 page 13,14,15 DDR-SO-DIMM X2 BANK 0, 1, 2, 3 page 9,10,11 VGA Board Thermal Sensor MAX6654 page 4 Fan Control page 30 AC-LINK CRT Connector page 29 SERIALPARALLEL FDDFIR Legacy I/O Option USBx3 USB port 0, 1, 2 page 32 AMP& Phone Jack page 31 ALC202 AC97 Codec USB port 3USB port 4 Winbond W83L518D BlueTooth I/F SD/MS Slot CDROM RTL 8100L VIA VT6307S page 21 CardBus LAN 1394 Connector 1394 Controller page 19 ENE CB1410 RJ45 page 22 Slot 0 page 20 page 21 MINI PCI I/F LED INDICATE BGA-421 uFCBGA-593 pin 478pin Ext. Board page 16 page 22page 23 page 25 page 25 page 24 page 25 page 24 MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC. THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D page 26 page 29page 17 SPR Conn page 34 BCL50 LA1671 0.1 Block Diagram 243Tuesday, October 01, 2002 Compal Electronics, Inc. Title SizeDocument NumberRev Date:Sheetof

Compal Electronics, Inc. March 7,2003 Federal Communications Commission Authorization and Evaluation Division FCC ID: GKRWM3B2100 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, (Signer Name) / (Title) Compal Electronics, Inc

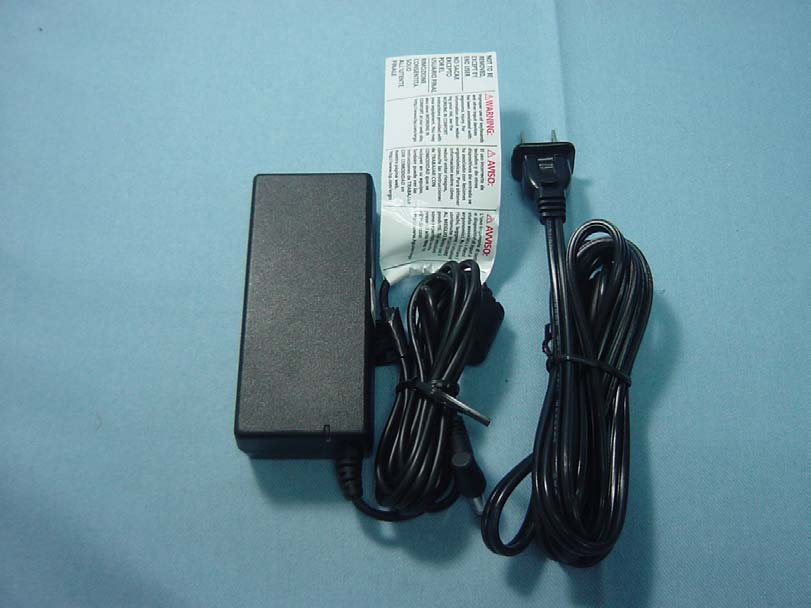

C&C Laboratory Co. Ltd. REPORT NO: 030018-RF-ID ID: GKRWM3B2100 DATE: March 4 2003 APPENDIX 2 EXTERNAL PHOTOGRPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: 030018-RF-ID ID: GKRWM3B2100 DATE: March 4 2003 All of EUT Front View of Notebook C&C Laboratory Co. Ltd. REPORT NO: 030018-RF-ID ID: GKRWM3B2100 DATE: March 4 2003 Lift View of Notebook Right View of Notebook C&C Laboratory Co. Ltd. REPORT NO: 030018-RF-ID ID: GKRWM3B2100 DATE: March 4 2003 Top View of Notebook Bottom View of Notebook C&C Laboratory Co. Ltd. REPORT NO: 030018-RF-ID ID: GKRWM3B2100 DATE: March 4 2003 Front View of Adaptor Back View of Adaptor

FCC ID LABEL FORMAT AND LOCATION Applicant: Compal Electronics, Inc. FCC ID: GKRWM3B2100 FCC ID: GKRWM3B2100 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

C&C Laboratory Co. Ltd. REPORT NO: 030018-RF-ID ID: GKRWM3B2100 DATE: March 4 2003 Page 48 Rev. 00 APPENDIX 3 INTERNAL PHOTOGRPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: 030018-RF-ID ID: GKRWM3B2100 DATE: March 4 2003 Page 49 Rev. 00 Internal of Notebook -1 Internal of Notebook -1 Antenna C&C Laboratory Co. Ltd. REPORT NO: 030018-RF-ID ID: GKRWM3B2100 DATE: March 4 2003 Page 50 Rev. 00 .Internal of Notebook -2 antenna Internal of Notebook –3 RF Module C&C Laboratory Co. Ltd. REPORT NO: 030018-RF-ID ID: GKRWM3B2100 DATE: March 4 2003 Page 51 Rev. 00 Antenna 1 Antenna 2 C&C Laboratory Co. Ltd. REPORT NO: 030018-RF-ID ID: GKRWM3B2100 DATE: March 4 2003 Page 52 Rev. 00 Front of RF Module and Antenna Open of RF Module C&C Laboratory Co. Ltd. REPORT NO: 030018-RF-ID ID: GKRWM3B2100 DATE: March 4 2003 Page 53 Rev. 00 Back of RF Module Back of RF Module and Antenna C&C Laboratory Co. Ltd. REPORT NO: 030018-RF-ID ID: GKRWM3B2100 DATE: March 4 2003 Page 54 Rev. 00 Main Board of Notebook 4 Main Board of Notebook -5 C&C Laboratory Co. Ltd. REPORT NO: 030018-RF-ID ID: GKRWM3B2100 DATE: March 4 2003 Page 55 Rev. 00 Main Board of Notebook -6 Internal of Notebook -7 C&C Laboratory Co. Ltd. REPORT NO: 030018-RF-ID ID: GKRWM3B2100 DATE: March 4 2003 Page 56 Rev. 00 Internal of Notebook-8 8

C&C Laboratory Co. Ltd. REPORT NO: 030018-RF-ID ID: GKRWM3B2100 DATE: March 4 2003 Page 49 Rev. 00 Internal of Notebook -1 .Internal of Notebook -2 antenna

Prepared: Allen Lin Checked: Approved: Hans JONG Date: Jan. 28, 2003 DCN: RA-TR000-030003 Version: B Page: 1 of 6 COMPAL BCL50 Antenna Test Report Prepared: Allen Lin Checked: Approved: Hans JONG Date: Jan. 28, 2003 DCN: RA-TR000-030003 Version: B Page: 2 of 6 General 1. Test condition (1) Temperature : 15 to 35C (2) Humidity : : 25 to 85 (3) Atmospheric : 86kPa to 106kPa3. Instrument : (1). Network Analyzer : Agilent E8357A Prepared: Allen Lin Checked: Approved: Hans JONG Date: Jan. 28, 2003 DCN: RA-TR000-030003 Version: B Page: 3 of 6 CONCLUSION (a)Electric Specification W/L RIGHT ANTENNA W/L LIFT ANTENNA PHOTO Antenna Type PIFA PIFA Stuff METAL PCB Prepared: Allen Lin Checked: Approved: Hans JONG Date: Jan. 28, 2003 DCN: RA-TR000-030003 Version: B Page: 4 of 6 V. S . W. R W/L RIGHT ANTENNA W/L LIFT ANTENNA V. S . W. R V. S . W. R W/L RIGHT ANTENNA W/L LIFT ANTENNA 2.4GHz 1.60 1.52 2.45GHz 1.72 1.75 2.5GHz 1.60 1.86 5.15GHz 1.65 1.87 5.35GHz 1.57 1.52 Prepared: Allen Lin Checked: Approved: Hans JONG Date: Jan. 28, 2003 DCN: RA-TR000-030003 Version: B Page: 5 of 6 (b)Gain & Pattern E – Plane H-Plane W/L RIGHT ANTENNA W/L LIFT ANTENNA 2.45GHz 5.25GHz Prepared: Allen Lin Checked: Approved: Hans JONG Date: Jan. 28, 2003 DCN: RA-TR000-030003 Version: B Page: 6 of 6 Average Gain & Peak Gain W/L RIGHT ANTENNA W/L LIFT ANTENNA Peak Gain (dBi) Average Gain (dBi) Peak Gain (dBi) Average Gain (dBi) 2.45GHz 1.28 -3.55 1.04 -3.68 5.25GHz -1.41 -4.36 -1.25 -4.61 z Customer Drawing z Cable – Hitachi z Cable – HannStar Messrs Standard Unit Awg p,c Material()--- Conductor Filler () --- Construction() No./mm Stranded diameter() mm Material() --- Insulation Nom. Thickness() mm Diameter() mm Color() --- Material() --- Over Lapping() % Material() --- Construction() No./mm Material() --- Coverage() % Material() --- Nom. Thickness() mm O.D() mm Color() --- Marking Configuration: () 1 , 2 90 Braid ----- 7/0.08 Drain Wire ----- Silver Plated Copper Specification() Nature ---- 0.235 0.71+-0.05 Nature DONGGUAN HANNSTAR ELECTRONICS CO , LTD CABLE SPECIFICATION() HNS DGHNS-8-1 RG-178 #32X1C Item () Awg() Tape ---- FEP No.of conductor() #32 1C Silver Plated Copper ------ ----- Jacket FEP 1.13+0.08-0.04 : B-2-RNE-004-0400:RNE Messrs Standard Electric Characters: () RATIFYDESIGN 2 , 2 2 6 4 5 3 APPROVED Insulation resistance >=1000M/Km Frequency(GHZ) dB/M 1 HNS DGHNS-8-1 RG-178 #32X1C DONGGUAN HANNSTAR ELECTRONICS CO , LTD CABLE SPECIFICATION() Testing item() Conductor resistance() A.C 500V/ Impedance()+4-0 : B-2-RNE-004-0400:RNE 2002.10.09 ----- Attenuation(maximum) PENG10/09 z Cable – AXON SPECIFICATION OF COAX 50 Ohms AWG32 D=1.13 mm AXON’CABLE S.A.S. CABLE & INTERCONNECT ROUTE DE CHALONS-SUR-MARNE 51210 MONTMIRAIL-FRANCE Jorjin Technologies Inc. 9F-4,NO.160,Sec.6,Min Chuan E. Rd.,Taipei, Taiwan, R.O.C. Te l :886-2-27953660 Fax :886-2-27954006 e-mail :[email protected] This document is the property of AXON’CABLE SA, and is issued on the condition that it is not copied or disclosed to any third party without prior written consent from AXON’CABLE SA I – Scope This specification presents a FEP jacketed COAXIAL cable AWG32, 1.13 mm O.D.for internal wiring of electronic equipment, such as Computer / Notebook with wireless communication systems. II – Construction Item Unit Details Material - Silver Plated Copper Composition No./mm AWG32 or 7 x 0.079 1-Inner Conductor Nom. O.D. mm 0.237 Material - Extruded PTFE Nom. O.D. mm 0.68 2-Dielectric Color - Natural Material - Silver Plated Copper Composition - Braided Shield AWG44 3-Outer Conductor Approx. O.D. mm 0.90 Material - Extruded FEP O.D. (mm) mm 1.13±0.05 5-Outer Jacket Color - Light Grey III – Characteristics Item Unit Nom. Value Inner Conductor resistance @20°C Ω/km 525 Characteristic Impedance Ω 50±2 Capacitance PF/m 98 @ 1.0 GHz 1.8 @ 2.45 GHz 3.0 @ 5.2 GHz 4.6 Max. Attenuation (dB/m) @ 5.8 GHz 5.0 Temperature Rating °C 150 Approx. Weight g/m 3.15 z I-PEX Connector z Sponge

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for Wireless LAN Module Build-in Notebook PC Model: CL50, CL51 FCC ID: GKRWM3B2100 March 24, 2003 REPORT NO: 03T1885-1 Prepared for Compal Electronics, Inc. No. 581, Juikuang Road Neihu, Taipei (114), Taiwan, R. O. C. Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 REPORT NO: 03T1885-1 DATE: March 24, 2003 FCC ID: GKRWM3B2100 COMPLIANCE CERTIFICATION SERVICES Page 2 of 22 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Dates of Tests: March 24, 2003 Report No: 03T1885-1 APPLICANT: Compal Electronics, Inc. No. 581, Juikuang Road Neihu, Taipei (114), Taiwan, R. O. C. MODEL: CL50, CL51 FCC ID: GKRWM3B2100 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: Direct Sequence Spread Spectrum (DSSS) Operating mode: Maximum continuous output Tx Frequency: 2412 ~ 2462 MHz Max. O/P Power: 16.68 dBm (Conducted) Max. SAR (1g): 0.0945 mW/g Application type: Certification FCC Rule part(s): § 15.247 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Steve Cheng EMC Engineering Manager REPORT NO: 03T1885-1 DATE: March 24, 2003 FCC ID: GKRWM3B2100 COMPLIANCE CERTIFICATION SERVICES Page 3 of 22 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. EUT DESCRIPTION........................................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC.................5 3. DOSIMETRIC ASSESSMENT SYSTEM........................................................................5 3.1. MEASUREMENT SYSTEM DIAGRAM.......................................................................................................6 3.2. SYSTEM COMPONENTS..............................................................................................................................7 4. EVALUATION PROCEDURE..........................................................................................9 5. MEASUREMENT UNCERTAINTY................................................................................12 6. EXPOSURE LIMIT.........................................................................................................13 7. MEASUREMENT RESULTS.........................................................................................14 7.1. SYSTEM VALIDATION.................................................................................................................................14 7.2. TEST LIQUID CONFIRMATION.................................................................................................................15 7.3. EUT TUNE-UP PROCEDURES..................................................................................................................15 7.4. EUT SETUP PHOTOS.................................................................................................................................16 7.5. SAR MEASUREMENT RESULTS..............................................................................................................17 8. EUT PHOTOS................................................................................................................18 9. EQUIPMENTS LIST & CALIBRATION STATUS.........................................................20 10. REFERENCES...............................................................................................................21 11. ATTACHMENTS............................................................................................................22 REPORT NO: 03T1885-1 DATE: March 24, 2003 FCC ID: GKRWM3B2100 COMPLIANCE CERTIFICATION SERVICES Page 4 of 22 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. EUT DESCRIPTION APPLICANT: Compal Electronics, Inc. No. 581, Juikuang Road Neihu, Taipei (114), Taiwan, R. O. C. MODEL: CL50, CL51 FCC ID: GKRWM3B2100 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: Direct Sequence Spread Spectrum (DSSS) Operating mode: Maximum continuous output Tx Frequency: 2412 ~ 2462 MHz Max. O/P Power: 16.68 dBm (Conducted) Max. SAR (1g): 0.0945 mW/g Application type: Certification FCC Rule part(s): § 15.247 Wireless Module: LAN Mini-PCI Type 3B Adapter Manufactured by Intel, model Intel® PRO/Wireless 2100 Antenna (s): TX Antenna (Right side) - Metal Antenna, +1.28dBi 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to…

Text truncated - open the document above for the full version.

Date/Time: 03/24/03 13:22:54 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.0829 mW.da4 EUT Setup Configuration 1 SAR in dB -16.8 -15.1 -13.4 -11.7 -10.1 -8.39 -6.71 -5.03 -3.36 -1.68 0 Date/Time: 03/24/03 13:22:54 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.0829 mW.da4 DUT: Compal Type & Serial Number: CL50 Program: EUT Setup Configuration 1; Air temp 25 deg C & Liquid temp 22.8 deg C Communication System: DSSS; Frequency: 2412 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 1.9286 mho/m, ε = 50.22, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 6.03 V/m Peak SAR = 0.176 mW/g SAR(1 g) = 0.0829 mW/g; SAR(10 g) = 0.0424 mW/g Power Drift = -0.12 dB Area Scan (13x29x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -16.8 -15.1 -13.4 -11.7 -10.1 -8.39 -6.71 -5.03 -3.36 -1.68 0 Date/Time: 03/24/03 13:22:54 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.0498 mW.da4 DUT: Compal Type & Serial Number: CL50 Program: EUT Setup Configuration 1; Air temp 25 deg C & Liquid temp 22.8 deg C Communication System: DSSS; Frequency: 2412 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 1.9286 mho/m, ε = 50.22, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 6.03 V/m Peak SAR = 0.112 mW/g SAR(1 g) = 0.0498 mW/g; SAR(10 g) = 0.0252 mW/g Power Drift = -0.09 dB Area Scan (13x29x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -16.3 -14.6 -13 -11.4 -9.76 -8.13 -6.5 -4.88 -3.25 -1.63 0 Date/Time: 03/24/03 14:25:28 Test Laboratory: Compliance Certification Services File Name: 2M-CH_0.0648 mW.da4 DUT: Compal Type & Serial Number: CL50 Program: EUT Setup Configuration 1; Air temp 25 deg C & Liquid temp 22.8 deg C Communication System: DSSS; Frequency: 2437 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 1.9286 mho/m, ε = 50.22, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 4.35 V/m Peak SAR = 0.145 mW/g SAR(1 g) = 0.0648 mW/g; SAR(10 g) = 0.0329 mW/g Power Drift = -0.02 dB Area Scan (13x29x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -16.8 -15.1 -13.5 -11.8 -10.1 -8.41 -6.73 -5.05 -3.37 -1.68 0 Date/Time: 03/24/03 14:25:28 Test Laboratory: Compliance Certification Services File Name: 2M-CH_0.0405 mW.da4 DUT: Compal Type & Serial Number: CL50 Program: EUT Setup Configuration 1; Air temp 25 deg C & Liquid temp 22.8 deg C Communication System: DSSS; Frequency: 2437 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 1.9286 mho/m, ε = 50.22, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 4.35 V/m Peak SAR = 0.0946 mW/g SAR(1 g) = 0.0405 mW/g; SAR(10 g) = 0.0202 mW/g Power Drift = -0.02 dB Area Scan (13x29x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -14.3 -12.9 -11.5 -10 -8.59 -7.16 -5.73 -4.3 -2.86 -1.43 0 Date/Time: 03/24/03 15:27:30 Test Laboratory: Compliance Certification Services File Name: 3H-CH_0.583 mW.da4 DUT: Compal Type & Serial Number: CL50 Program: EUT Setup Configuration 1; Air temp 25 deg C & Liquid temp 22.8 deg C Communication System: DSSS; Frequency: 2462 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 1.9286 mho/m, ε = 50.22, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 4.91 V/m Peak SAR = 0.13 mW/g SAR(1 g) = 0.0583 mW/g; SAR(10 g) = 0.0295 mW/g Power Drift = 0.07 dB Area Scan (13x29x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -17.6 -15.9 -14.1 -12.4 -10.6 -8.82 -7.06 -5.29 -3.53 -1.76 0 Date/Time: 03/24/03 15:27:30 Test Laboratory: Compliance Certification Services File Name: 3H-CH_0.0336 mW.da4 DUT: Compal Type & Serial Number: CL50 Program: EUT Setup Configuration 1; Air temp 25 deg C & Liquid temp 22.8 deg C Communication System: DSSS; Frequency: 2462 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 1.9286 mho/m, ε = 50.22, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 4.91 V/m Peak SAR = 0.0814 mW/g SAR(1 g) = 0.0336 mW/g; SAR(10 g) = 0.0167 mW/g Power Drift = 0.09 dB Area Scan (13x29x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -15 -13.5 -12 -10.5 -9.02 -7.52 -6.02 -4.51 -3.01 -1.5 0 Date/Time: 03/24/03 16:59:54 Test Laboratory: Compliance Certificati…

Text truncated - open the document above for the full version.

C&C Laboratory Co. Ltd. REPORT NO: 030018-RF-ID ID GKRWM3B2100 DATE: March 04, 2003 Page 1 of 39 Rev. 00 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Wireless LAN module build in Notebook PC MODEL No.: CL50, CL51 FCC ID: GKRWM3B2100 REPORT NO: 030018-RF-ID ISSUE DATE: March 4 2003 Prepared for Compal Electronics, Inc. NO. 581, Juikuang Rd., Neihu, Taipei (114) Taiwan, R.O.C Prepared by C&C LABORATORY, CO., LTD. #B1, 1 st Fl., Universal Center, No. 183, Sec. 1, Tatung Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. TEL: (02)8642-2071~3 FAX: (02)8642-2256 C&C Laboratory Co. Ltd. REPORT NO: 030018-RF-ID ID GKRWM3B2100 DATE: March 04, 2003 Page 2 Rev. 00 VERIFICATION OF COMPLIANCE Applicant: Compal Electronics, Inc. NO. 581, Juikuang Rd., Neihu, Taipei (114) Taiwan, R.O.C Product Description: Wireless LAN module build in Notebook PC Model No.: CL50, CL51 Model Difference All the above models are same except the model designation Serial Number: N/A File Number: 030018-RF-ID Date of test: February 15, 2003 ~March 4, 2003 We hereby certify that: The above equipment was tested by C&C Laboratory Co., Ltd. The test data , data evaluation , test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (1992) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247 The test results of this report relate only to the tested sample identified in this report. Approved By Vincent Su / Vice Manager C&C Laboratory Co., Ltd.. C&C Laboratory Co. Ltd. REPORT NO: 030018-RF-ID ID: GKRWM3B2100 DATE: March 4 2003 Page 3 Rev. 00 Table of Contents 1. GENERAL INFORMATION ........................................................................................... 5 1.1 P RODUCT D ESCRIPTION .....................................................................................................................5 1.2 RELATED SUBMITTAL(S) / GRANT (S) ...............................................................................................5 1.3 T EST M ETHODOLOGY ........................................................................................................................5 1.4 T EST F ACILITY ...................................................................................................................................5 1.5 S PECIAL A CCESSORIES ......................................................................................................................5 1.6 E QUIPMENT M ODIFICATIONS .............................................................................................................5 2. SYSTEM TEST CONFIGURATION .............................................................................. 6…

Text truncated - open the document above for the full version.
