GKRWM3BAB32Wireless LAN module built in Notebook PC

Compal Electronics Inc

Click to zoom

Application Details

Equipment Class: NII - Unlicensed National Information Infrastructure TX
Date of Grant: Dec 09, 2003
Application Purpose: Original Equipment
Date of Application: Oct 14, 2003
Equipment Note: Wireless LAN module built in Notebook PC
Frequency Range: 5150.00000000 - 5350.00000000
Company: Compal Electronics Inc
Country: Taiwan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

CL32 User Manual Safety Instructions Use the following safety guidelines to help protect yourself and your computer. When Using Your Computer CAUTION: Do not operate your portable computer for an extended period of time with the base resting directly on your body. With extended operation, heat can potentially build up in the base. Allowing sustained contact with the skin could cause discomfort or, eventually, a burn. l Do not attempt to service the computer yourself. Always follow installation instructions closely. l Do not carry a battery in your pocket, purse, or other container where metal objects (such as car keys) could short-circuit the battery terminals. The resulting excessive current flow can cause extremely high temperatures and may result in damage from burns. l Be sure that nothing rests on your AC adapter’s power cable and that the cable is not located where it can be tripped over or stepped on. l Place the AC adapter in a ventilated area, such as a desktop or on the floor, when you use it to run the computer or to charge the battery. Do not cover the AC adapter with papers or other items that will reduce cooling; also, do not use the AC adapter while it is inside a carrying case. l Do not push objects into air vents or openings of your computer. Doing so can cause fire or electric shock by shorting out interior components. l Use only the AC adapter and batteries that are approved for use with this computer. Use of another type of battery or AC adapter may risk fire or explosion. l Danger of explosion if battery is incorrectly replaced. l Replace only with the same or equivalent type battery recommended by the manufacturer. l Dispose of used batteries according to the manufacturer’s instructions. l Before you connect the computer to a power source, ensure that the voltage rating of the AC adapter matches that of the available power source. - 115 V/60 Hz in most of North and South America and some Far Eastern countries such as South Korea and Taiwan. - 100 V/50 Hz in eastern Japan and 100 V/60Hz in western Japan. - 230 V/50 Hz in most of Europe, the Middle East, and the Far East. l If you use an extension cable with your AC adapter, ensure that the total ampere rating of the products plugged in to the extension cable does not exceed the ampere rating of the extension cable. l To remove power from the computer, turn it off, remove the battery, and disconnect the AC adapter from the electrical outlet. l To help avoid the potential hazard of electric shock, do not connect or disconnect any cables or perform maintenance or reconfiguration of this product during an electrical storm. l Do not dispose of batteries in a fire. They may explode. Check with local authorities for disposal instructions. l When setting up the computer for work, place it on a level surface. l When traveling, do not check the computer as baggage. You can put your computer through an X-ray security machine, but never put your computer through a metal detector. If you have the computer checked by hand, be sure to have a charged battery available in case you are asked to turn on the computer. l When traveling with the hard drive removed from the computer, wrap the drive in a non-conducting material, such as cloth or paper. If you have the drive checked by hand, be ready to install the drive in the computer. Your can put the hard drive through an X-ray security machine, but never put the drive through a metal detector. l When traveling, do not place the computer in overhead storage compartments where it could slide around. Do not drop your computer or subject it to other mechanical shocks. l Protect your computer, battery, and hard drive from environmental hazards such as dirt, dust, food, liquids, temperature extremes, and overexposure to sunlight. l When you move your computer between environments with very different temperature and/or humidity ranges, condensation may form on or within the computer. To avoid damaging the computer, allow sufficient time for the moisture to evaporate before using the computer. Ë NOTICE: When taking the computer from low-temperature conditions into a warmer environment or from high-temperature conditions into a cooler environment, allow the computer to acclimate to room temperature before turning on power. l When you disconnect a cable, pull on its connector or on its strain relief loop, not on the cable itself. As you pull out the connector, keep it evenly aligned to avoid bending any connector pins. Also, before you connect a cable make sure both connectors are correctly oriented and aligned. l Before you clean your computer, turn it off, unplug it from its power source, and remove the battery. l Handle components with care. Hold a component such as a memory module by its edges, not its pins. CAUTION: When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: l Do not use this product near water, for example, near a bathtub, washing bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. l Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. l Do not use the telephone to report a gas leak in the vicinity of the leak. l Use only the power cord indicated in this manual. Regulatory Notices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Any changes or modifications made to this equipment may void the user's authority to operate this equipment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there i…

Text truncated - open the document above for the full version.

Users Manual

Text truncated - open the document above for the full version.

Block Diagram

AA BB CC DD EE 1 1 2 2 3 3 4 4 TitleSize Document Number Rev Date: Sheet of LA-1991 0.1 Block Diagram 245 , 20, 2003 Compal Electronics, Inc. Power On/Off CKT. File Name : LA-1991 Touch Pad ATA-100 page 28 CRT & TV-OUT Conn. LPC BUS page 23 Compal confidential uFCBGA-593 page 18 H_A#(3..31) CardBus Controller IDSEL:AD20(PIRQA#,GNT#2,REQ#2) H_D#(0..63) page 26 page 19 VGA Board Connector ENE CB1410 page 14 MDC & BT Conn page 24 page 27 Int.KBD page 20 page 30 AGP BUS BANK 0, 1, 2, 3 USB conn 400MHz ALC202 Hub-Link SMsC LPC47N227 page 22 page34,35,36,37 ,38,39,40,41 page 21 DC/DC Interface CKT. PARALLEL Mobile Banias/Dothan page 30 Mini PCIsocket USB2.0 PSB CDROM Connector RJ45/11 CONN IDSEL:AD18,AD22(PIRQC/D#,GNT#3/4,REQ#3/4) Clock Generator page 26 ICS 950810 page 29 RTL 8101L EC I/O Buffer Fan Control Power Circuit DC/DC HDD Connector PCI BUS Mini-PCI slot uFCBGA-479/uFCPGA-478 CPU IEEE 1394TSB43AB21 3.3V 33 MHz page 25 IDSEL:AD17(PIRQB#,GNT#1,REQ#1) page 31 DDR-SO-DIMM X2 IDSEL:AD16(PIRQA#,GNT#0,REQ#0) Second ary IDE page 33 Intel ODEM RevBMCH-M ATA-100 page 21 LAN Slot 0 BIOS page 4 2.5V DDR- 200/266/333 page 4,5 page 28 RTC CKT. Audio CKT page 12 Memory BUS(DDR) page 13 BGA-421 page 32 AC-LINK page 4 page 18 page 6,7,8 Intel ICH4-M Thermal Sensor ADM1032AR page 9,10,11 page 1 5,16,17 page 28 Super I/O page 19 FIR Primary IDE EC NS87591L page 25 AMP & Audio Jack Power OK CKT. page 16 THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC. AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&DDEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS Ch.Center Freq Ch VCO Freq5180 36 3453.3335200 40 3466.6665220 44 34805240 48 3493.3335260 52 3506.6665280 56 35205300 60 3533.3335320 64 3546.666 Ant2Ant1 Dual-Band Diversity Switch PA LNA BPF BPF Balun Balun BPF BPF Ramon LPF BPF PA LNA Balun Filter Philips SA2400 Ardon+ 1.5 MAC BB OFDM Host Voltage Regulator EEPROM 22MHz Clock Delaware BB CCK 144 pin UBGA Ext VCO PCI Bus 33MH z Baseband Control HBus 40MHz Clock

Cover Letter(s)

September 10, 2003 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, _____________________________ George Chou / Manager Compal Electronics, Inc.

Cover Letter(s)

POWER OF ATTORNEY Date: September 10, 2003 We, the undersigned, hereby authorize C&C Laboratory Co., Ltd. to act on our behalf in all matters relating to all processes related to FCC & IC applications and communications issue. Any and all acts carried out by C&C Laboratory Co., Ltd on our behalf shall have the same effects as acts of our own. If you have any questions regarding this authorization, please don’t hesitate to contact us. Thank you. Sincerely yours, _____________________________ GEORGE CHOU / MANAGER Compal Electronics, Inc.

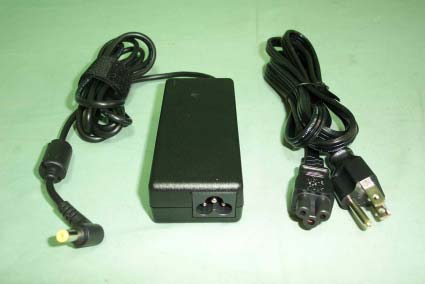

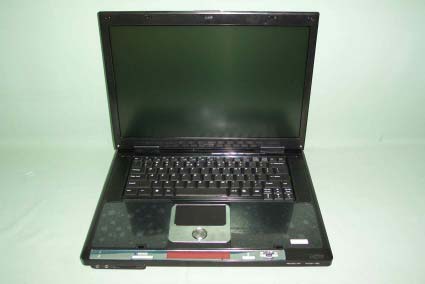

External Photos

Compliance Certification Services Inc. Report No: B30827206-RP FCC ID: GKRWM3BAB32 Date of Issue: September 8, 2003 Page 1 Total Page: 2 Rev. 00 PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: B30827206-RP FCC ID: GKRWM3BAB32 Date of Issue: September 8, 2003 Page Rev. 00 Compliance Certification Services Inc. Report No: B30827206-RP FCC ID: GKRWM3BAB32 Date of Issue: September 8, 2003 Page Rev. 00 Compliance Certification Services Inc. Report No: B30827206-RP FCC ID: GKRWM3BAB32 Date of Issue: September 8, 2003 Page Rev. 00

ID Label/Location Info

FCC ID / IC LABEL FORMAT AND LOCATION Applicant: Compal Electronics Inc. FCC ID: GKRWM3BAB32 IC: 2533B-WM3BAB32 FCC ID: GKRWM3BAB32 IC: 2533B-WM3BAB32 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. “Complies with Canada RSS-210” LABEL AREA

ID Label/Location Info

LABEL LOCATION

Internal Photos

Compliance Certification Services Inc. Report No: B30827206-RP FCC ID: GKRWM3BAB32 Date of Issue: September 8, 2003 Page Rev. 00 Compliance Certification Services Inc. Report No: B30827206-RP FCC ID: GKRWM3BAB32 Date of Issue: September 8, 2003 Page Rev. 00 Compliance Certification Services Inc. Report No: B30827206-RP FCC ID: GKRWM3BAB32 Date of Issue: September 8, 2003 Page Rev. 00 Compliance Certification Services Inc. Report No: B30827206-RP FCC ID: GKRWM3BAB32 Date of Issue: September 8, 2003 Page Rev. 00 Compliance Certification Services Inc. Report No: B30827206-RP FCC ID: GKRWM3BAB32 Date of Issue: September 8, 2003 Page Rev. 00 Compliance Certification Services Inc. Report No: B30827206-RP FCC ID: GKRWM3BAB32 Date of Issue: September 8, 2003 Page Rev. 00

Operational Description

OEM Name or other identification Document Number: XXXX Rev: XX Drongo Antenna Information Wistron NeWeb Corporation Intel Regulatory Antenna Information Example Rev. 4 1/28 OEM Name or other identification Document Number: XXXX Rev: XX Drongo Antenna Information I. Antenna Assembly Specifications Antenna assembly overview: Peak Gain including cable loss. Designator Manufacture Antenna type Cable Assembly Info. Peak Gain W/ Cable loss (dBi) 2400-2500MHz -0.2 dBi (peak) 5150-5350MHz 2.81 dBi (peak) 5470-5825MHz 1.93 dBi (peak) Main antenna (P/N:81.EBF15.001) WNC Metal PIFA 1.(1)Cable P/N:J12B1394-2,50ohm cable,length:323mm,diameter 1.13mm. (2)connector P/N:20278-101R-13, I-PEX or WNC connector . 2400-2500MHz 2.48 dBi (peak) 5150-5350MHz 2.25 dBi (peak) 5470-5825MHz 2.88 dBi (peak) Auxiliary antenna (P/N:81.EBF15.002) WNC Metal PIFA 1.(1)Cable P/N:J12B1394-1,50ohm cable,length:460mm,diameter 1.13mm. (2)connector P/N:20278-101R-13 ,I-PEX or WNC connector. Antenna overview: Peak Gain not including cable loss. Antenna Designator Manufacture Antenna type Peak Gain w/o Cable Loss (dBi) 2400-2500MHz 0.8 dBi (peak) 5150-5350MHz 4.31 dBi (peak) 5470-5825MHz 3.53 dBi (peak) Main antenna (P/N:81.EBF15.001) WNC Metal PIFA ) 2400-2500MHz 3.88 dBi (peak) 5150-5350MHz 4.45 dBi (peak) 5470-5825MHz 5.18 dBi (peak) Auxiliary antenna (P/N:81.EBF15.002) WNC Metal PIFA Intel Regulatory Antenna Information Example Rev. 4 2/28 OEM Name or other identification Document Number: XXXX Rev: XX Cable assembly overview: Cable loss (including connector). Designator Manufacture Cable type and length VSWR Cable Loss (dBi) 2400-2500MHz 1.59 max 2400-2500MHz 1 dBi (peak) 5150-5350MHz 1.53 max 5150-5350MHz 1.5dBi (peak) 5470-5825MHz 1.84 max 5470-5825MHz 1.6 dBi (peak) 1. P/N: 50.CAB02.011 2. P/N:50.EBF03.001 For use with the Main antenna WNC 1.(1)Cable P/N:J12B1394-2 coaxil cable,length:323mm,di a 1.13mm. (2)connector P/N:20278-1 0 I-PEX. 2.(1)Cable P/N: 2400-2500MHz 1.46 max 2400-2500MHz 1.4 dBi (peak) 5150-5350MHz 1.95 max 5150-5350MHz 2.2 dBi (peak) 5470-5825MHz 2.05 max 5470-5825MHz 2.3 dBi (peak) 1. P/N: 50.EBF01.001 2. P/N:50.EBF02.001 For use with the Auxiliary antenna WNC 1.(1)Cable P/N:J12B1394-1 coaxil cable,length:460mm,di a 1.13mm. (2)connector P/N:20278-1 0 ,I-PEX. 2. NOTE: For Japan, Korea, and China the antenna data is the same as what this document requests: Intel Regulatory Antenna Information Example Rev. 4 3/28 OEM Name or other identification Document Number: XXXX Rev: XX • Main antenna dimensioned drawing 48mm 17mm AUX antenna dimensioned drawing 10 ~20 mm 54 mm 7m Intel Regulatory Antenna Information Example Rev. 4 4/28 OEM Name or other identification Document Number: XXXX Rev: XX Radiation characteristic of antennaeLoaded (In Host System)Radiation characteristic of antennaeLoaded (In Host System) 2400-2500MHz radiation characteristic Center Frquency 2400MHz Horizontal (dBi) Peak -0.35 Vertical (dBi) Peak -1.05 Horz + Vert (dBi) Peak -0.34 Intel Regulatory Antenna Information Example Rev. 4 5/28 OEM Name or other identification Document Number: XXXX Rev: XX Center Frquency 2450MHz Horizontal (dBi) Peak -0.561 Vertical (dBi) Peak -0.21 Horz + Vert (dBi) Peak -0.31 Intel Regulatory Antenna Information Example Rev. 4 6/28 OEM Name or other identification Document Number: XXXX Rev: XX Center Frquency 2500MHz Horizontal (dBi) Peak 0.86 Vertical (dBi) Peak -1.67 Horz + Vert (dBi) Peak -0.2 Intel Regulatory Antenna Information Example Rev. 4 7/28 OEM Name or other identification Document Number: XXXX Rev: XX Center Frquency 2400MHz Horizontal (dBi) Peak -0.23 Vertical (dBi) Peak 0.12 Horz + Vert (dBi) Peak 2.01 Intel Regulatory Antenna Information Example Rev. 4 8/28 OEM Name or other identification Document Number: XXXX Rev: XX Center Frquency 2450MHz Horizontal (dBi) Peak -0.83 Vertical (dBi) Peak 1.31 Horz + Vert (dBi) Peak 1.52 Intel Regulatory Antenna Information Example Rev. 4 9/28 OEM Name or other identification Document Number: XXXX Rev: XX Center Frquency 2500MHz Horizontal (dBi) Peak 0.01 Vertical (dBi) Peak 2.43 Horz + Vert (dBi) Peak 2.48 Intel Regulatory Antenna Information Example Rev. 4 10/28 OEM Name or other identification Document Number: XXXX Rev: XX 5150-5135 MHz radiation characteristic Center Frequency 5150 MHz Horizontal (dBi) peak -0.89 Vertical (dBi) peak 2 Horz+Vert (dBi) peak 1.3 Intel Regulatory Antenna Information Example Rev. 4 11/28 OEM Name or other identification Document Number: XXXX Rev: XX Center Frequency 5250 MHz Horizontal (dBi) peak 0.19 Vertical (dBi) peak 2.43 Horz+Vert (dBi) peak 1.71 Intel Regulatory Antenna Information Example Rev. 4 12/28 OEM Name or other identification Document Number: XXXX Rev: XX Center Frequency 5350 MHz Horizontal (dBi) peak 0.67 Vertical (dBi) peak 3.89 Horz+Vert (dBi) peak 2.81 Intel Regulatory Antenna Information Example Rev. 4 13/28 OEM Name or other identification Document Number: XXXX Rev: XX Center Frequency 5150 MHz Horizontal (dBi) peak -1.11 Vertical (dBi) peak 0.375 Horz+Vert (dBi) peak 1.32 Intel Regulatory Antenna Information Example Rev. 4 14/28

Operational Description

OEM Name or other identification Document Number: XXXX Rev: XX Center Frequency 5250 MHz Horizontal (dBi) peak -0.86 Vertical (dBi) peak 0.54 Horz+Vert (dBi) peak 2.12 Intel Regulatory Antenna Information Example Rev. 4 15/28 OEM Name or other identification Document Number: XXXX Rev: XX Center Frequency 5350 MHz Horizontal (dBi) peak 0.48 Vertical (dBi) peak 1.13 Horz+Vert (dBi) peak 2.25 Intel Regulatory Antenna Information Example Rev. 4 16/28 OEM Name or other identification Document Number: XXXX Rev: XX 5470-5725MHz radiation characteristic Center Frequency 5470 MHz Horizontal (dBi) peak 2.1 Vertical (dBi) peak 0.91 Horz+Vert (dBi) peak 1.93 Intel Regulatory Antenna Information Example Rev. 4 17/28 OEM Name or other identification Document Number: XXXX Rev: XX Center Frequency 5647.5 MHz Horizontal (dBi) peak 3 Vertical (dBi) peak 1.07 Horz+Vert (dBi) peak 1.91 Intel Regulatory Antenna Information Example Rev. 4 18/28 OEM Name or other identification Document Number: XXXX Rev: XX Center Frequency 5825 MHz Horizontal (dBi) peak 0.84 Vertical (dBi) peak -1.11 Horz+Vert (dBi) peak 1.73 Intel Regulatory Antenna Information Example Rev. 4 19/28 OEM Name or other identification Document Number: XXXX Rev: XX Center Frequency 5470 MHz Horizontal (dBi) peak -0.64 Vertical (dBi) peak 0.67 Horz+Vert (dBi) peak 2.01 Intel Regulatory Antenna Information Example Rev. 4 20/28 OEM Name or other identification Document Number: XXXX Rev: XX Center Frequency 5647.5MHz Horizontal (dBi) peak 1.23 Vertical (dBi) peak 0.27 Horz+Vert (dBi) peak 1.51 Intel Regulatory Antenna Information Example Rev. 4 21/28 OEM Name or other identification Document Number: XXXX Rev: XX Center Frequency 5825 MHz Horizontal (dBi) peak 2.95 Vertical (dBi) peak -1.43 Horz+Vert (dBi) peak 2.88 Intel Regulatory Antenna Information Example Rev. 4 22/28 OEM Name or other identification Document Number: XXXX Rev: XX Host PC Information Host model: Intel Regulatory Antenna Information Example Rev. 4 23/28 OEM Name or other identification Document Number: XXXX Rev: XX Intel Regulatory Antenna Information Example Rev. 4 24/28 OEM Name or other identification Document Number: XXXX Rev: XX Diagram Example of Co-Location Antenna Separation Should indicate distance between WLAN module antennas and Bluetooth antenna element. (Note: Due to the evolving rules regarding co-location each platform and/or system will need to be reviewed on a case by case basis) XX.0 mm XX.0 mm XX.0 mm XX.0 mm XX.0 mm XX.0 mm XX.0 mm OTHER ANTENNA (BLUETOOTH) XX.0 mm XX.0 mm OTHER MODULE (BLUETOOTH) WLAN MODULE Intel Regulatory Antenna Information Example Rev. 4 25/28 OEM Name or other identification Document Number: XXXX Rev: XX 360mm 260m m 43mm WLAN MODULE 17mm 343mm Intel Regulatory Antenna Information Example Rev. 4 26/28 OEM Name or other identification Document Number: XXXX Rev: XX APPENDIX I Intel’s Antenna review process: 1. Regulatory Program Manager receives OEM antenna information. 2. Regulatory Program Manager will arrange an, Antenna information review. Provide feedback and request information not provided. 3. Then assign the OEMs a time line. 4. Check for the following below: • VSWR • Main & Aux antenna (Peak Gain W/ cable loss) • Main & Aux antenna (Peak Gain only) • Main & Aux antenna (Cable loss W/ connector) • Mechanical Drawings of Main & Aux. antenna • Radiation Characteristic of antenna Loaded (In a host system) • Max allowable input power • Manufacturer Name • Manufacturer Type The information above is what this document is! Intel Regulatory Antenna Information Example Rev. 4 27/28 OEM Name or other identification Document Number: XXXX Rev: XX Intel Regulatory Antenna Information Example Rev. 4 28/28 INTEL OEM / ODM, ANTENNA REGULATORY INFORMATION CHECKLIST Description of Information Received Received Date VSWR of cable including connector Main & Aux antenna (Peak Gain W/ cable loss) Main & Aux antenna (Peak Gain only) Main & Aux antenna (Cable loss W/ connector) Mechanical Drawings of Main & Aux. antenna Radiation Characteristic of antenna Loaded (In a host system) Max allowable input power Designator / Part number of antenna assembly Designator for Antenna only Manufacturer Name Manufacturer Type

RF Exposure Info

Date/Time: 10/14/03 10:00:06 Test Laboratory: Compliance Certification Services D5GHzV2_M5200_101403 DUT: Dipole 5200-5800MHz; Type: D5GHzV2; Serial: 1003 Program Name: System Performance Check at Body 5200 MHz Ambient Temperature: 25.0 deg C; Liquid Temperature: 23.5 deg C Communication System: CW 5200MHz; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: M5200MHz (σ = 5.515 mho/m, ε r = 50.5109, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ES3DV2 - SN3021; ConvF(1.4, 1.4, 1.4); Calibrated: 7/29/2003 z Sensor-Surface: 3.1mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.8 Build 62 d=10mm, Pin=250mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 91.6 V/m Power Drift = -0.0 dB Maximum value of SAR = 37.2 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Peak SAR (extrapolated) = 87.2 W/kg SAR(1 g) = 23.8 mW/g; SAR(10 g) = 6.68 mW/g Reference Value = 91.6 V/m Power Drift = -0.0 dB Maximum value of SAR = 34.6 mW/g 0 dB = 34.5mW/g Date/Time: 10/14/03 10:00:06 Test Laboratory: Compliance Certification Services D5GHzV2_M5200_101403 DUT: Dipole 5200-5800MHz; Type: D5GHzV2; Serial: 1003 DASY4 Configuration: z Probe: ES3DV2 - SN3021; ConvF(1.4, 1.4, 1.4); Calibrated: 7/29/2003 z Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.8 Build 62 d=10mm, Pin=250mW/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 91.6 V/m Power Drift = -0.0 dB Maximum value of SAR = 15.2 mW/g

RF Exposure Info

Date/Time: 10/14/03 14:59:28 Test Laboratory: Compliance Certification Services EUT Setup Configuration 1_Antenna 1 DUT: Compal Electronics, Inc.; Type: CL32; Serial: N/A Program Name: EUT Setup Configuration 1 Ambient Temperature: 25.0 deg C; Liquid Temperature: 23.5 deg C Communication System: IEEE802.11a; Frequency: 5180 MHz;Duty Cycle: 1:1 Medium: M5200MHz (σ = 5.515 mho/m, ε r = 50.5109, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ES3DV2 - SN3021; ConvF(1.4, 1.4, 1.4); Calibrated: 7/29/2003 z Sensor-Surface: 3.1mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.8 Build 62 5180MHz/Area Scan (10x19x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 2.98 V/m Power Drift = 0.11 dB Maximum value of SAR = 0.495 mW/g 5180MHz/Zoom Scan (7x7x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Peak SAR (extrapolated) = 1.21 W/kg SAR(1 g) = 0.403 mW/g; SAR(10 g) = 0.186 mW/g Reference Value = 2.98 V/m Power Drift = 0.11 dB Maximum value of SAR = 0.516 mW/g 0 dB = 0.516mW/g Date/Time: 10/14/03 15:41:34 Test Laboratory: Compliance Certification Services EUT Setup Configuration 1_Antenna 1 DUT: Compal Electronics, Inc.; Type: CL32; Serial: N/A Program Name: EUT Setup Configuration 1 Ambient Temperature: 25.…
