GKRWM3BBG50Notebook Computer W/802.11 b/g WLAN Card

CL50 User Manual Safety Instructions Use the following safety guidelines to help protect yourself and your computer. When Using Your Computer CAUTION: Do not operate your portable computer for an extended period of time with the base resting directly on your body. With extended operation, heat can potentially build up in the base. Allowing sustained contact with the skin could cause discomfort or, eventually, a burn. z Do not attempt to service the computer yourself. Always follow installation instructions closely. z Do not carry a battery in your pocket, purse, or other container where metal objects (such as car keys) could short-circuit the battery terminals. The resulting excessive current flow can cause extremely high temperatures and may result in damage from burns. z Be sure that nothing rests on your AC adapter’s power cable and that the cable is not located where it can be tripped over or stepped on. z Place the AC adapter in a ventilated area, such as a desktop or on the floor, when you use it to run the computer or to charge the battery. Do not cover the AC adapter with papers or other items that will reduce cooling; also, do not use the AC adapter while it is inside a carrying case. z Do not push objects into air vents or openings of your computer. Doing so can cause fire or electric shock by shorting out interior components. z Use only the AC adapter and batteries that are approved for use with this computer. Use of another type of battery or AC adapter may risk fire or explosion. z Danger of explosion if battery is incorrectly replaced. z Replace only with the same or equivalent type battery recommended by the manufacturer. z Dispose of used batteries according to the manufacturer’s instructions. z Before you connect the computer to a power source, ensure that the voltage rating of the AC adapter matches that of the available power source. - 115 V/60 Hz in most of North and South America and some Far Eastern countries such as South Korea and Taiwan. - 100 V/50 Hz in eastern Japan and 100 V/60Hz in western Japan. - 230 V/50 Hz in most of Europe, the Middle East, and the Far East. z If you use an extension cable with your AC adapter, ensure that the total ampere rating of the products plugged in to the extension cable does not exceed the ampere rating of the extension cable. z To remove power from the computer, turn it off, remove the battery, and disconnect the AC adapter from the electrical outlet. z To help avoid the potential hazard of electric shock, do not connect or disconnect any cables or perform maintenance or reconfiguration of this product during an electrical storm. z Do not dispose of batteries in a fire. They may explode. Check with local authorities for disposal instructions. z When setting up the computer for work, place it on a level surface. z When traveling, do not check the computer as baggage. You can put your computer through an X-ray security machine, but never put your computer through a metal detector. If you have the computer checked by hand, be sure to have a charged battery available in case you are asked to turn on the computer. z When traveling with the hard drive removed from the computer, wrap the drive in a non-conducting material, such as cloth or paper. If you have the drive checked by hand, be ready to install the drive in the computer. Your can put the hard drive through an X-ray security machine, but never put the drive through a metal detector. z When traveling, do not place the computer in overhead storage compartments where it could slide around. Do not drop your computer or subject it to other mechanical shocks. z Protect your computer, battery, and hard drive from environmental hazards such as dirt, dust, food, liquids, temperature extremes, and overexposure to sunlight. z When you move your computer between environments with very different temperature and/or humidity ranges, condensation may form on or within the computer. To avoid damaging the computer, allow sufficient time for the moisture to evaporate before using the computer. Î NOTICE: When taking the computer from low-temperature conditions into a warmer environment or from high-temperature conditions into a cooler environment, allow the computer to acclimate to room temperature before turning on power. z When you disconnect a cable, pull on its connector or on its strain relief loop, not on the cable itself. As you pull out the connector, keep it evenly aligned to avoid bending any connector pins. Also, before you connect a cable make sure both connectors are correctly oriented and aligned. z Before you clean your computer, turn it off, unplug it from its power source, and remove the battery. z Handle components with care. Hold a component such as a memory module by its edges, not its pins. CAUTION: When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: z Do not use this product near water, for example, near a bathtub, washing bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. z Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. z Do not use the telephone to report a gas leak in the vicinity of the leak. z Use only the power cord indicated in this manual. Regulatory Notices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Any changes or modifications made to this equipment may void the user's authority to operate this equipment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there i…

Text truncated - open the document above for the full version.

Mike Kuo Subject: RE: 6/28/2004 -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Monday, June 28, 2004 11:01 AM To: [email protected] Cc: [email protected]; [email protected]; [email protected] Subject: RE: Compal Electronics, Inc., FCC ID: GKRWM3BBG50, Assessment NO .: AN04T3971 Hi Mike: Question #3: During restricted band edge measurement, the offset values used in 802.11b mode is different than 802.11g mode. Please provide all the elements in offset value for 802.11 b (-5.08)and 802.11 g mode(-4.72). Ans #3: During band edge test measurement,the offset values used in 802.11b mode and 802.11g mode low chaanel is -5.08 dB and the offset value used in 802.11b and 802.11g mode high channel is -4.72dB(Please see the test report page 22 to 29). The low channel offset value (-5.08dB) is added to cable loss(1.15dB),antenna factor(28.42dB/m) and amp. gain(-34.65dB). The high channel offset value (-4.72dB) is added to cable loss(1.18dB),antenna factor(28.57dB/m) and amp. gain(-34.47dB). Thanks Best Regard. ----- ting/ccsemc 2004/06/28 03:06 PM ----- Hi Ting : Question #3: During restricted band edge measurement, the offset values used in 802.11b mode is different than 802.11g mode. Please provide all the elements in offset value for 802.11 b (-5.08)and 802.11 g mode(-4.72). Ans #3: Please be aware that an offset of -5.08 is adopted for Channel Low and an offset of -4.72 for Channel High are adopted wheteher the measurement is taken for 802.11b or 802.11g. Your reply to Question #3 did not fully address the question, please provide all the elements in the offset value for - 5.08dB and -4.72 dB for b/g mode. The elements may include cable lost, antenna factor or amp gain. M.Kuo -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Sunday, June 27, 2004 8:41 PM To: Mike Kuo Cc: [email protected]; [email protected] Subject: FW: Compal Electronics, Inc., FCC ID: GKRWM3BBG50, Assessment NO .: AN04T3971 -----Original Message----- From: Sent: None Subject: Hi Mike, Question #1: Functional block diagram include 3 options to design the device, please indicate which option is Mike Kuo <[email protected]> 2004/06/28 01:47 PM "'[email protected]'" <[email protected]>, Mike Kuo <[email protected]> [email protected], [email protected] applicable to this device and delete not applicable options. Ans #1: Please refer to the revised block diagram. Question #2: User manual does not contain WLAN portion of information. Please provide it. Ans #2: The User manual has been modifed as attached. Question #3: During restricted band edge measurement, the offset values used in 802.11b mode is different than 802.11g mode. Please provide all the elements in offset value for 802.11 b (-5.08)and 802.11 g mode(-4.72). Ans #3: Please be aware that an offset of -5.08 is adopted for Channel Low and an offset of -4.72 for Channel High are adopted wheteher the measurement is taken for 802.11b or 802.11g. Question #4: As indicated in 6dB bandwidth plots for 802.11g mode, the device is transmitting with applied duty cycle. Please explain. Ans #4: Revision is made to "Test Procedure" on Page 11. The wordings of "Trace = Max Hold" are added in Step 3 in order to provide a specific description of the measurement. Please refer to the revised test report below. Question #5: Please provide SAR test data for aux antenna tuned to mid channel at 802.11g mode. Ans #5: SAR test data for aux. antenna tuned to mid channel is provided. Please refer to the revised SAR test report. Question #6: Please provide second peak value on page 38 of test report per OET65 supplement C requirement. Ans #6: Please refer to the revised SAR test report. Best regards, Ting ----- ting/ccsemc 2004/06/28 09:07 AM ----- -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Wednesday, June 16, 2004 12:56 AM To: [email protected] Subject: Compal Electronics, Inc., FCC ID: GKRWM3BBG50, Assessment NO.: AN04T3971 Question #1: Functional block diagram include 3 options to design the device, please indicate which option is applicable to this device and delete not applicable options. Question #2:User manual does not contain WLAN portion of information. Please provide it. Question #3:During restricted band edge measurement, the offset values used in 802.11b mode is different than 802.11g mode. Please provide all the elements in offset value for 802.11 b (-5.08)and 802.11 g mode(-4.72). Question #4: As indicated in 6dB bandwidth plots for 802.11g mode, the device is transmitting with applied duty cycle. Please explain. Mike Kuo <[email protected]> 2004/06/16 04:13 PM "CCS-Taiwan, Ting (E-mail)" <[email protected]>, "CCS-Taiwan, Wklo (E-mail)" <[email protected]> 6/28/2004 Question #5: Please provide SAR test data for aux antenna tuned to mid channel at 802.11g mode. Question #6: Please provide second peak value on page 38 of test report per OET65 supplement C requirement. Best Regards The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 6/28/2004

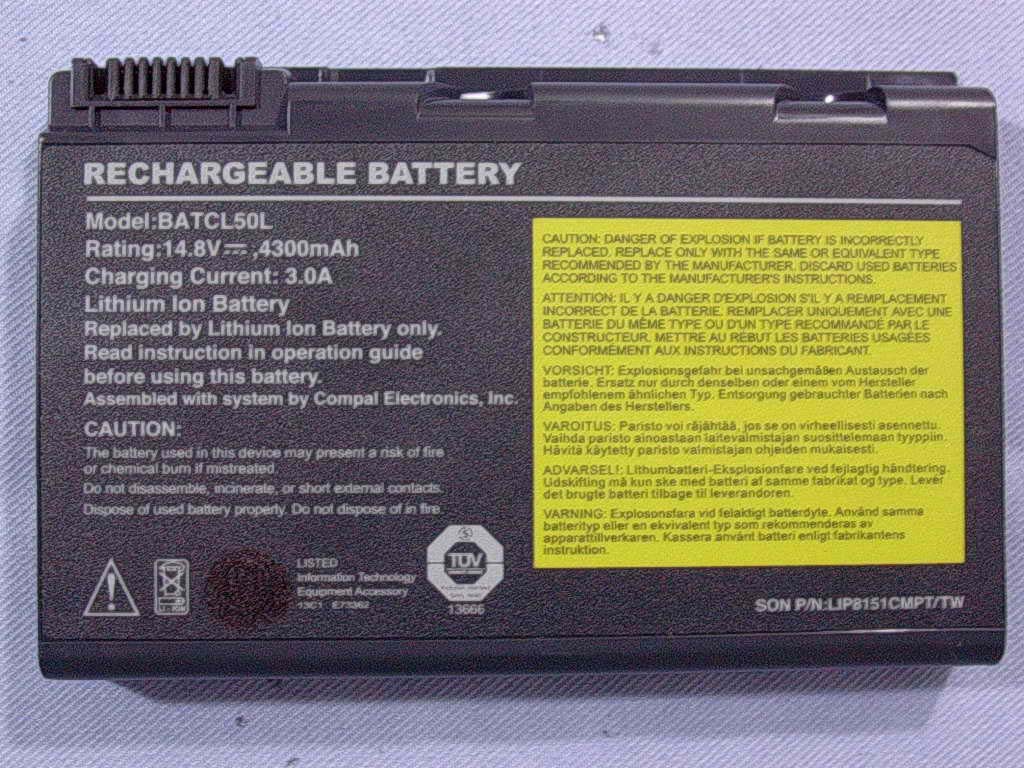

Compliance Certification Services Inc. Report No: B31113205 Date of Issue: December 2, 2003 Page 1 of 12 EXTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: 40517205 Date of Issue: June 4, 2004 Page 2 Compliance Certification Services Inc. Report No: 40517205 Date of Issue: June 4, 2004 Page 3

FCC ID LABEL FORMAT AND LOCATION Applicant: Compal Electronics, Inc. FCC ID: GKRWM3BBG50 FCC ID: GKRWM3BBG50 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

Compliance Certification Services Inc. Report No: 40517205 Date of Issue: June 4, 2004 Page 4 INTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: 40517205 Date of Issue: June 4, 2004 Page 5 Compliance Certification Services Inc. Report No: 40517205 Date of Issue: June 4, 2004 Page 6 Ant. Location Compliance Certification Services Inc. Report No: 40517205 Date of Issue: June 4, 2004 Page 7 Compliance Certification Services Inc. Report No: 40517205 Date of Issue: June 4, 2004 Page 8 Compliance Certification Services Inc. Report No: 40517205 Date of Issue: June 4, 2004 Page 9 Compliance Certification Services Inc. Report No: 40517205 Date of Issue: June 4, 2004 Page 10 Compliance Certification Services Inc. Report No: 40517205 Date of Issue: June 4, 2004 Page 11 Compliance Certification Services Inc. Report No: 40517205 Date of Issue: June 4, 2004 Page 12 Compliance Certification Services Inc. Report No: 40517205 Date of Issue: June 4, 2004 Page 13

Prepared: Allen Lin Checked: Approved: Hans JONG Date: Jan. 28, 2003 DCN: RA-TR000-030003 Version: B Page: 1 of 6 COMPAL BCL50 Antenna Test Report Prepared: Allen Lin Checked: Approved: Hans JONG Date: Jan. 28, 2003 DCN: RA-TR000-030003 Version: B Page: 2 of 6 General 1. Test condition (1) Temperature : 15 to 35C (2) Humidity : : 25 to 85 (3) Atmospheric : 86kPa to 106kPa3. Instrument : (1). Network Analyzer : Agilent E8357A Prepared: Allen Lin Checked: Approved: Hans JONG Date: Jan. 28, 2003 DCN: RA-TR000-030003 Version: B Page: 3 of 6 CONCLUSION (a)Electric Specification W/L RIGHT ANTENNA W/L LIFT ANTENNA PHOTO Antenna Type PIFA PIFA Stuff METAL PCB Prepared: Allen Lin Checked: Approved: Hans JONG Date: Jan. 28, 2003 DCN: RA-TR000-030003 Version: B Page: 4 of 6 V. S . W. R W/L RIGHT ANTENNA W/L LIFT ANTENNA V. S . W. R V. S . W. R W/L RIGHT ANTENNA W/L LIFT ANTENNA 2.4GHz 1.60 1.52 2.45GHz 1.72 1.75 2.5GHz 1.60 1.86 5.15GHz 1.65 1.87 5.35GHz 1.57 1.52 Prepared: Allen Lin Checked: Approved: Hans JONG Date: Jan. 28, 2003 DCN: RA-TR000-030003 Version: B Page: 5 of 6 (b)Gain & Pattern E – Plane H-Plane W/L RIGHT ANTENNA W/L LIFT ANTENNA 2.45GHz 5.25GHz Prepared: Allen Lin Checked: Approved: Hans JONG Date: Jan. 28, 2003 DCN: RA-TR000-030003 Version: B Page: 6 of 6 Average Gain & Peak Gain W/L RIGHT ANTENNA W/L LIFT ANTENNA Peak Gain (dBi) Average Gain (dBi) Peak Gain (dBi) Average Gain (dBi) 2.45GHz 1.28 -3.55 1.04 -3.68 5.25GHz -1.41 -4.36 -1.25 -4.61 z Customer Drawing z Cable – Hitachi z Cable – HannStar Messrs Standard Unit Awg p,c Material()--- Conductor Filler () --- Construction() No./mm Stranded diameter() mm Material() --- Insulation Nom. Thickness() mm Diameter() mm Color() --- Material() --- Over Lapping() % Material() --- Construction() No./mm Material() --- Coverage() % Material() --- Nom. Thickness() mm O.D() mm Color() --- Marking Configuration: () 1 , 2 90 Braid ----- 7/0.08 Drain Wire ----- Silver Plated Copper Specification() Nature ---- 0.235 0.71+-0.05 Nature DONGGUAN HANNSTAR ELECTRONICS CO , LTD CABLE SPECIFICATION() HNS DGHNS-8-1 RG-178 #32X1C Item () Awg() Tape ---- FEP No.of conductor() #32 1C Silver Plated Copper ------ ----- Jacket FEP 1.13+0.08-0.04 : B-2-RNE-004-0400:RNE Messrs Standard Electric Characters: () RATIFYDESIGN 2 , 2 2 6 4 5 3 APPROVED Insulation resistance >=1000M/Km Frequency(GHZ) dB/M 1 HNS DGHNS-8-1 RG-178 #32X1C DONGGUAN HANNSTAR ELECTRONICS CO , LTD CABLE SPECIFICATION() Testing item() Conductor resistance() A.C 500V/ Impedance()+4-0 : B-2-RNE-004-0400:RNE 2002.10.09 ----- Attenuation(maximum) PENG10/09 z Cable – AXON SPECIFICATION OF COAX 50 Ohms AWG32 D=1.13 mm AXON’CABLE S.A.S. CABLE & INTERCONNECT ROUTE DE CHALONS-SUR-MARNE 51210 MONTMIRAIL-FRANCE Jorjin Technologies Inc. 9F-4,NO.160,Sec.6,Min Chuan E. Rd.,Taipei, Taiwan, R.O.C. Te l :886-2-27953660 Fax :886-2-27954006 e-mail :[email protected] This document is the property of AXON’CABLE SA, and is issued on the condition that it is not copied or disclosed to any third party without prior written consent from AXON’CABLE SA I – Scope This specification presents a FEP jacketed COAXIAL cable AWG32, 1.13 mm O.D.for internal wiring of electronic equipment, such as Computer / Notebook with wireless communication systems. II – Construction Item Unit Details Material - Silver Plated Copper Composition No./mm AWG32 or 7 x 0.079 1-Inner Conductor Nom. O.D. mm 0.237 Material - Extruded PTFE Nom. O.D. mm 0.68 2-Dielectric Color - Natural Material - Silver Plated Copper Composition - Braided Shield AWG44 3-Outer Conductor Approx. O.D. mm 0.90 Material - Extruded FEP O.D. (mm) mm 1.13±0.05 5-Outer Jacket Color - Light Grey III – Characteristics Item Unit Nom. Value Inner Conductor resistance @20°C Ω/km 525 Characteristic Impedance Ω 50±2 Capacitance PF/m 98 @ 1.0 GHz 1.8 @ 2.45 GHz 3.0 @ 5.2 GHz 4.6 Max. Attenuation (dB/m) @ 5.8 GHz 5.0 Temperature Rating °C 150 Approx. Weight g/m 3.15 z I-PEX Connector z Sponge

Compliance Certification Services Inc. Report No: 40517205-SF FCC ID: GKRWM3BBG50 Date of Issue: June 3, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page1 of 25 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC TEST REPORT For COMPAL ELECTRONICS, INC. Notebook PC built in Intel 802.11 b/g WLAN Card Trade Name: Compal Model: CL50 Prepared for COMPAL ELECTRONICS, INC. No. 581, Juikuang Rd., Neihu, Taipei, 114 Taiwan, R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: 40517205-SF Date of Issue: June 3, 2004 Page 3 TABLE OF CONTENTS 1. EUT DESCRIPTION ..................................................................................................... 4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC .... 5 3. DOSIMETRIC ASSESSMENT SYSTEM ................................................................... 5 3.1 MEASUREMENT SYSTEM DIAGRAM .........................................................................6 3.2 SYSTEM COMPONENTS.................................................................................................7 4. EVALUATION PROCEDURES................................................................................... 9 5. MEASUREMENT UNCERTAINTY ......................................................................... 12 6. EXPOSURE LIMIT ..................................................................................................... 13 7. MEASUREMENT RESULTS ..................................................................................... 14 7.1 SYSTEM PERFORMANCE CHECK..............................................................................14 7.2 TEST LIQUID CONFIRMATION ..................................................................................16 7.3 EUT TUNE-UP PROCEDURES......................................................................................17 7.4 SAR MEASUREMENTS RESULTS...............................................................................18 8. EUT PHOTOS .............................................................................................................. 21 9. EQUIPMENT LIST & CALIBRATION STATUS ................................................... 23 10. FACILITIES ................................................................................................................. 24 11. REFERENCES ............................................................................................................. 24 12. ATTACHMENTS ......................................................................................................... 25 Compliance Certification Services Inc. Report No: 40517205-SF Date of Issue: June 3, 2004 Page 4 1. EUT DESCRIPTION Applicant: COMPAL ELECTRONICS, INC. No. 581, Juikuang Rd., Neihu, Taipei, 114 Taiwan, R.O.C. Model Number / Trade Name: CL50 / Compal Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: 802.11b Direct Sequence Spread Spectrum 802.11g Orthogonal Frequency Division Multiplexing (OFDM) Tx Frequency: 2412 ~ 2462 MHz Max. O/P Power: (Conducted/Peak) 19.1dBm Max. SAR (1g): 0.162W/kg Application Type: Certification FCC Rule Part(s): 15C Antennas: PIFA Ant. Compliance Certification Services Inc. Report No: 40517205-SF Date of Issue: June 3, 2004 Page 5 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996 [1]. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recommended by the ANSI/IEEE standard C95.1-1992 [6]. According to the Supplement C of OET Bulletin 65 “Evaluating Compliance with FCC Guide-lines for Human Exposure to Radio frequency Electromagnetic Fields", released on Jun 29, 2001 by the FCC, the device should be evaluated at maximum output power (radiated from the antenna) under “worst-case” conditions for normal or intended use, incorporating normal antenna operating positions, device peak performance frequencies and positions for maximum RF energy coupling. 3. DOSIMETRIC ASSESSMENT SYSTEM These measurements were performed with the automated near-field scanning system DASY4 from Schmid & Partner Engineering AG (SPEAG). The system is based on a high precision robot (working range greater than 0.9 m) which positions the probes with a positional repeatability of better than ± 0.02 mm. Special E- and H-field probes have been developed for measurements close to material discontinuity, the sensors of which are directly loaded with a Schottky diode and connected via highly resistive lines to the data acquisition unit. The SAR measurements were conducted with the dosimetric probe ES3DV2-SN: 3023 (manufactured by SPEAG), designed in the classical triangular configuration and optimized for dosimetric evaluation. The probe has been calibrated according to the procedure with accuracy of better than ±10%. The spherical isotropy was evaluated with the procedure and found to be better than ±0.25 dB. The phantom used was the SAM Twin Phantom as described in FCC supplement C, IEEE P1528 and EN50361. Compliance Certification Services Inc. Report No: 40517205-SF Date of Is…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 40513205-RP FCC ID: GKRWM3BBG50 Date of Issue: May 24, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 62 FCC 47 CFR PART 15 SUBPART C TEST REPORT For COMPAL ELECTRONICS, INC. Notebook PC built in Intel 802.11 b/g WLAN Card Model: CL50 Trade Name: Compal Prepared for COMPAL ELECTRONICS, INC. No. 581, Juikuang Rd., Neihu, Taipei, 114 Taiwan, R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: 40513205-RP FCC ID: GKRWM3BBG50 Date of Issue: May 24, 2004 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION........................................................................................................3 2. EUT DESCRIPTION..............................................................................................................................4 3. TEST METHODOLOGY.......................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................6 4. INSTRUMENT CALIBRATION...........................................................................................................7 5. FACILITIES AND ACCREDITATIONS ..............................................................................................8 5.1 FACILITIES....................................................................................................................................... 8 5.2 EQUIPMENT........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST...........................................................................................10 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................10 6.2 SUPPORT EQUIPMENT ...............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS ................................................................................................11 7.1 6DB BANDWIDTH.............................................................................................................................11 7.2 PEAK POWER....................................................................................................................................16 7.3 BAND EDGES MEASUREMENT ................................................................................................21 7.4 PEAK POWER SPECTRAL DENSITY....................................................................................................22 7.5 RADIO FREQUENCY EXPOSURE........................................................................................................32 7.6 SPURIOUS EMISSIONS ................................................................................................................36 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................58 APPENDIX 1 PHOTOGRPHS OF TEST SETUP......................................................................................61 Compliance Certification Services Inc. Report No: 40513205-RP FCC ID: GKRWM3BBG50 Date of Issue: May 24, 2004 Page 4 2. EUT DESCRIPTION Product Notebook PC built in Intel 802.11 b/g WLAN Card Trade Name Compal Model Number CL50 Model Discrepancy N/A Power Supply Powered from the host device Frequency Range IEEE 802.11b,g: 2412 ~ 2462 MHz Transmit Power IEEE 802.11b: 17.78 dBm IEEE 802.11g: 19.06 dBm Modulation Technique IEEE 802.11b: DSSS (CCK; DQPSK; DBPSK) IEEE 802.11g: OFDM Antenna Gain 1.28 dBi (Max) Antenna Designation PIFA Antenna Note: This submittal(s) (test report) is intended for FCC ID: GKRWM3BBG50 filing to comply with Section 15.207, 15.209 and 15.247 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No: 40513205-RP FCC ID: GKRWM3BBG50 Date of Issue: May 24, 2004 Page 5 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.247. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.207, …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 40513205-RP FCC ID: GKRWM3BBG50 Date of Issue: May 24, 2004 Page 61 APPENDIX 1 PHOTOGRPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No: 40513205-RP FCC ID: GKRWM3BBG50 Date of Issue: May 24, 2004 Page 62 Conducted Emission Set Up Photos
