GLE136039T49 MHz Wireless R/C Toys - TX

Owner's Manual Your RadioShack Rocking PT Cruiser is built to handle the road with style, whether the road is the hallway in your house or the sidewalk outside. Built to 11/12 scale, your car can reach speeds of up to 650 feet per minute. You can cruise the sidewalks of your neighborhood speeding forward or backward, rocking from side to side, bouncing, the rear of the car up and down, and turning sharp corners. You need the following items (not supplied) to power your car: ̇one 9V battery for the transmitter ̇at least one 9.6 volt rechargeable battery pack for the car ̇one battery pack charger THE FCC WANTS YOU TO KNOW NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. INSTALLING BATTERIES In the Transmitter The transmitter requires one 9-volt battery. For the best performance and longest life, we recommend a alkaline battery. 1. Slide ON/OFF on the transmitter to OFF. 2. Press the tab on the battery compartment cover and open the cover. 3. Place a battery in the battery compartment according to the polarity symbols (+ and -) marked inside. 4. Close the cover. Note: When the transmitter's range decreases, replace its battery. In The Car The car requires one 9.6-volt rechargeable battery pack for power. You must charge a rechargeable battery pack before you can use it to power your car. To charge it, follow the battery charger's instructions. 1. Slide ON/OFF on the bottom of the car to OFF. 2. Use a coin to turn the battery compartment cover's latches clockwise until they stop. Then lift off the cover. 3. Put the battery pack in the compartment with the battery pack's connector on the same side as the car's matching connector. 4. Attach the battery pack's white connector to the car's matching connector. Do not force them! They only fit together one way. 5. Replace the cover and turn the latches counterclockwise until they stop. Be sure the connectors and wires do not touch the car's moving parts. If the car loses power or does not respond to the transmitter, recharge the battery pack. Note: Occasionally, let the battery pack fully discharge before recharging it. Otherwise the battery pack may lose ability to fully charge. DRIVING THE ROCKING PT CRUISER Right Control Lever Push left to move left. Push right to move right. Release to go straight. Left Control Lever Push forward to move forward. Push back to move backward. Release to stop Press one time to get a music ,blink lights on the back view of the car and also with the vibrates motion, if you press again then you will get another music. The car provides two music for you to choose. Press one time for star the music, blinking lights and vibrate motion. Press again then will stop all the function.

BLOCK DIAGRAM CODER OSC. AND MOD. TRANSMITTER RF. AMP. DECODER AUDIO AMP. AND DETECTOR DRIVER STEERING MOTOR DRIVER DRIVING MOTOR DRIVER VIBRATING MOTOR RECEIVER

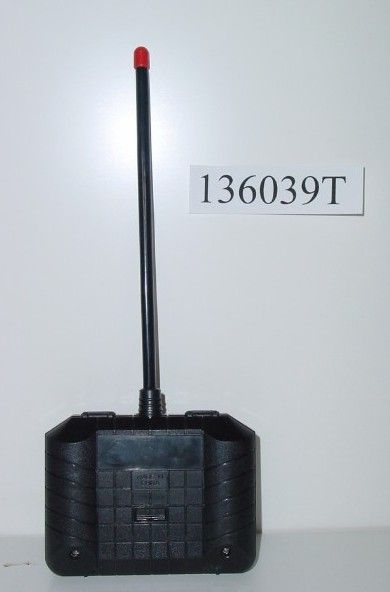

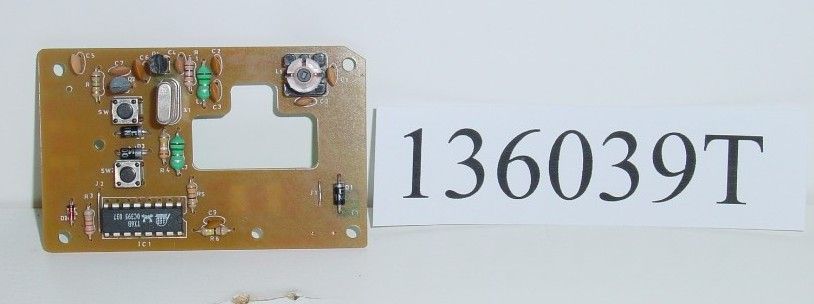

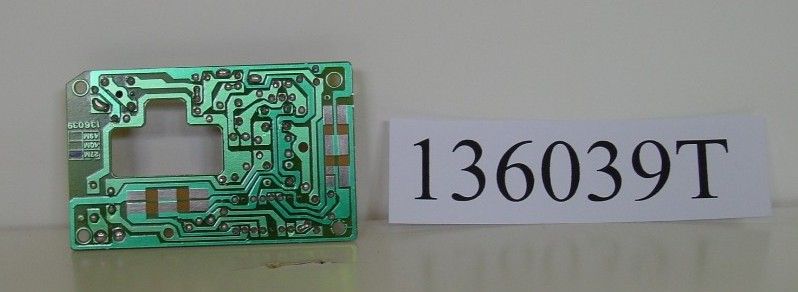

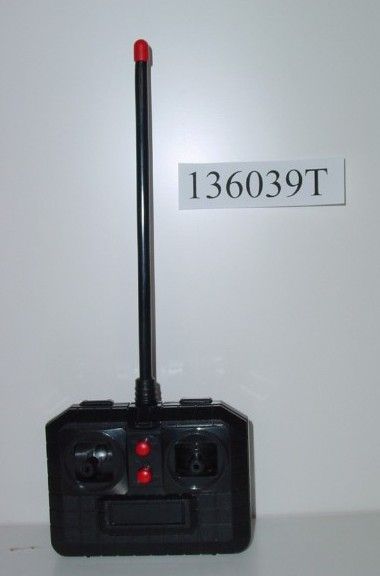

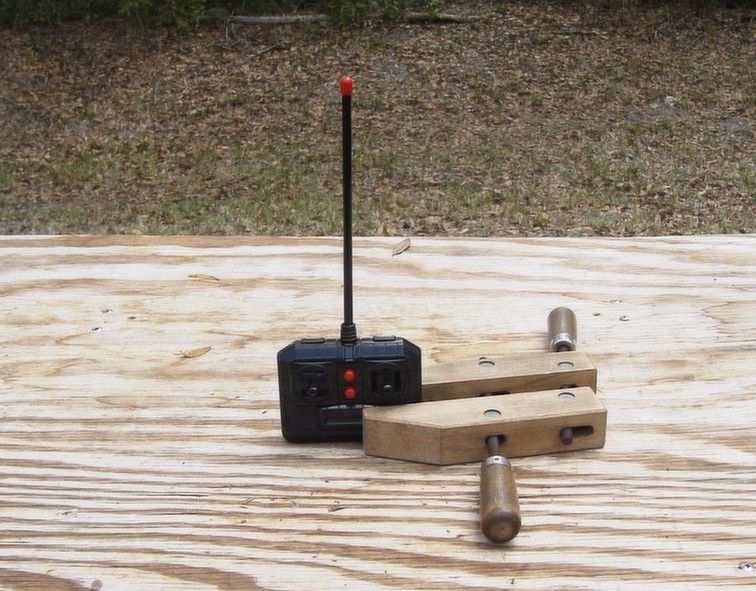

APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE136039T REPORT #: S\SUNCONGLE\207HT2\207H2TESTREPORT.DOC PAGE #: TABLE OF CONTENTS LIST TABLE OF CONTENTS LIST APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE136039T TEST REPORT CONTAINING: PAGE 1......TEST EQUIPMENT LIST AND TEST PROCEDURE PAGE 2......TEST PROCEDURE CONTD. PAGE 3......RADIATION INTERFERENCE TEST DATA PAGE 4......OCCUPIED BANDWIDTH TEST DATA PAGE 5......OCCUPIED BANDWIDTH PLOT EXHIBITS CONTAINING: EXHIBIT 1............BLOCK DIAGRAM EXHIBIT 2............SCHEMATIC EXHIBIT 3............INSTRUCTION MANUAL EXHIBIT 4............SAMPLE OF FCC ID LABEL EXHIBIT 5............LOCATION OF FCC ID LABEL EXHIBIT 6............EXTERNAL PHOTO - FRONT SIDE EXHIBIT 7............EXTERNAL PHOTO - BACK SIDE EXHIBIT 8............INTERNAL PHOTO - COMPONENT SIDE EXHIBIT 9............INTERNAL PHOTO - COPPER SIDE EXHIBIT 10...........CIRCUIT DESCRIPTION EXHIBIT 11...........TEST SET UP PHOTO APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE136039T REPORT #: S\SUNCONGLE\207HT2\207H2TESTREPORT.DOC PAGE #: 1 OF 5 APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE136039T TEST EQUIPMENT LIST 1._X_Spectrum Analyzer: HP 8566B-Opt 462, S/N 3138A07786, w/ preselector HP 85685A, S/N 3221A01400, Quasi-Peak Adapter HP 8565OA, S/N 3303A01690 & Preamplifier HP 8449B-OPT H02, S/N 3008A00372 Cal. 8/31/01 Due 8/31/02 2._X_ Biconnical Antenna: Eaton Model 94455-1, S/N 1096, Cal. 10/1/01 Due 10/1/02 3.__ Biconnical Antenna: Electro-Metrics Model BIA-25, S/N 1171 Cal. 4/26/01 Due 4/26/03 4.__ Log-Periodic Antenna: Electro-Metrics Model EM-6950, S/N 632 Char. 10/15/01 Due 10/15/02 5.__ Log-Periodic Antenna: Electro-Metrics Model LPA-30, S/N 409 Char. 10/16/01 Due 10/16/02 6._X_ Log-Periodic Antenna: Electro-Metrics Model LPA-25, S/N 1122 Char. 2/10/01 Due 3/10/02 7.__ Double-Ridged Horn Antenna: Electro-Metrics Model RGA-180, 1-18 GHz, S/N 2319 Cal. 12/19/01 Due 12/19/02 8.__ 18-26.3GHz Systron Donner Standard Gain Horn #DBE-520-20 No Cal Required 9.__ Horn 40-60GHz: ATM Part #19-443-6R No Cal Required 10.__ Line Impedance Stabilization Network: Electro-Metrics Model EM-7820, w/NEMA Adapter S/N 2682 Cal. 3/16/01 Due 3/16/02 11.__ Temperature Chamber: Tenney Engineering Model TTRC, S/N 11717-7 Char. 1/22/02 Due 1/22/03 12.__ Frequency Counter: HP Model 5385A, S/N 3242A07460 Char. 12/11/01 Due 12/11/02 13.__ Peak Power Meter: HP Model 8900C, S/N 2131A00545 Char. 1/26/01 Due 1/26/02 14._X_Open Area Test Site #1-3meters Cal. 12/22/99 Due 12/22/02 15.__ Signal Generator: HP 8640B, S/N 2308A21464 Cal. 11/15/01 Due 11/15/02 16.__ Passive Loop Antenna: EMCO Model 6512, 9KHz to 30MHz, S/N 9706-1211 Char. 7/10/01 Due 7/10/02 17.__ Dipole Antenna Kit: Electro-Metrics Model TDA-30/1-4, S/N 152 Cal. 3/21/01 Due 3/21/02 18.__ AC Voltmeter: HP Model 400FL, S/N 2213A14499 Cal. 10/9/01 Due 10/09/02 19._X_Digital Multimeter: Fluke Model 77, S/N 35053830 Char. 1/8/02 Due 1/8/03 20.__ Oscilloscope: Tektronix Model 2230, S/N 300572 Char. 2/1/01 Due 2/1/02 APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE136039T REPORT #: S\SUNCONGLE\207HT2\207H2TESTREPORT.DOC PAGE #: 2 OF 5 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 80°C with a humidity of 37%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab- lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup- plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1 m to 4 m. The antenna was placed in both the horizontal and vertical planes. APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE136039T REPORT #: S\SUNCONGLE\207HT2\207H2TESTREPORT.DOC PAGE #: 3 OF 5 APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE136039T NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.235 REQUIREMENTS: CARRIER FREQUENCY WILL NOT EXCEED 80 dBuV/m AT 3M. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED: 30 - 88 MHz 40.0 dBuV/M MEASURED AT 3 METERS 88 - 216 MHz 43.5 dBuV/M 216 - 960 MHz 46.0 dBuV/M ABOVE 960 MHz 54.0 dBuV/M TEST DATA: Emission Frequency MHz Meter Reading dBuv Ant. Polarity Coax Loss dB Correction Factor Db Field Strength dBuv/m Margin dB 49.86 45.0 H 0.80 11.83 57.63 22.37 49.86 60.6 V 0.80 11.83 73.23 6.77 249.30 9.1 V 2.00 12.07 23.17 22.83 299.10 6.1 V 2.20 13.68 21.98 24.02 349.00 8.0 V 2.49 14.42 24.91 21.09 SAMPLE CALCULATION: FSdBuV/m = MR(dBuV) + ACFdB. TEST PROCEDURE: The procedure used was ANSI STANDARD C63.4-1992. The spectrum was scanned from 30 MHz to 1000 MHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and the worse case emissions were reported. The UUT was tested in 3 orthogonal planes. TEST RESULTS: THE UNIT DOES MEET THE FCC REQUIREMENTS. PERFORMED BY: JOSEPH SCOGLIO DATE: MARCH 15, 20002 APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE136039T REPORT #: S\SUNCONGLE\207HT2\207H2TEST…
