GLE136121A27 MHz Wireless Remote Control Toy Transmitter

Owner's Manual Please read before using this equipment Note: You need the following items (not supplied) to power your Truck: 1. At least one 9.6V rechargeable battery pack for the Truck 2. One 9V battery for the transmitter 3. One battery pack charger Preparation Installing Batteries Note: Any batteries purchased for use in this toy may pose a hazard to children. Please check safety notice supplied with batteries before use. In the Truck You need a 9.6V rechargeable battery pack for the truck. Before you use the battery pack, you must charge it using a special battery-pack charger. 1. Set OFF/ON on the side of the boat to OFF. 2. Use a coin to turn the battery compartment latches then lift the cover up. 3. Put the battery pack in the compartment with the battery pack's connector on the same side as the boat's matching connector. 4. Attach the battery pack's connector to the truck's matching connector. Do not force them! They fit only one way. 5. Close the cover, then turn the latches to secure the battery compartment. In the transmitter The transmitter requires one 9V battery. For the best performance and longest life we recommend using an alkaline battery and to never use a rechargeable battery. 1. Press down on the battery compartment cover and slide it in the direction of the arrow. 2. Place a battery in the compartment according to the polarity symbols (+ and -) marked inside. 3. Snap the cover shut. When the transmitter's range decreases, replace its battery. Cautions: . Use only afresh battery of the required size and recommended type. . Never leave a dead or weak battery in the transmitter. Operation 1. Slide OFF/ON on the truck to ON. 2. Use the transmitter's speed control trigger and steering lever to drive and steer the truck. a. Push the left hand side’s lever to move the truck forward b. Pull the left hand side’s lever to move the truck backward. c. Turn the wheel counterclockwise to move left. d. Turn the wheel clockwise to move right. e. Release the wheel to go straight. NOTE : The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment, such modifications could void the user's authority to operate the equipment. 3. When you fish driving the boat, slide OFF/ON on the boat to OFF.

Rating label for transmitter FCC ID: GLE136121A This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Applicant: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE136121A Circuit Description Q2 the 27.145 MHz crystal oscillator drives the base of Q1 the final/buffer amplifier. Summed into the same base (Q1) is the modulation provided by IC1. the output of Q1 has the matching network consisting of L1, L2, C1 and C2 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 45cm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt primary storage cell.

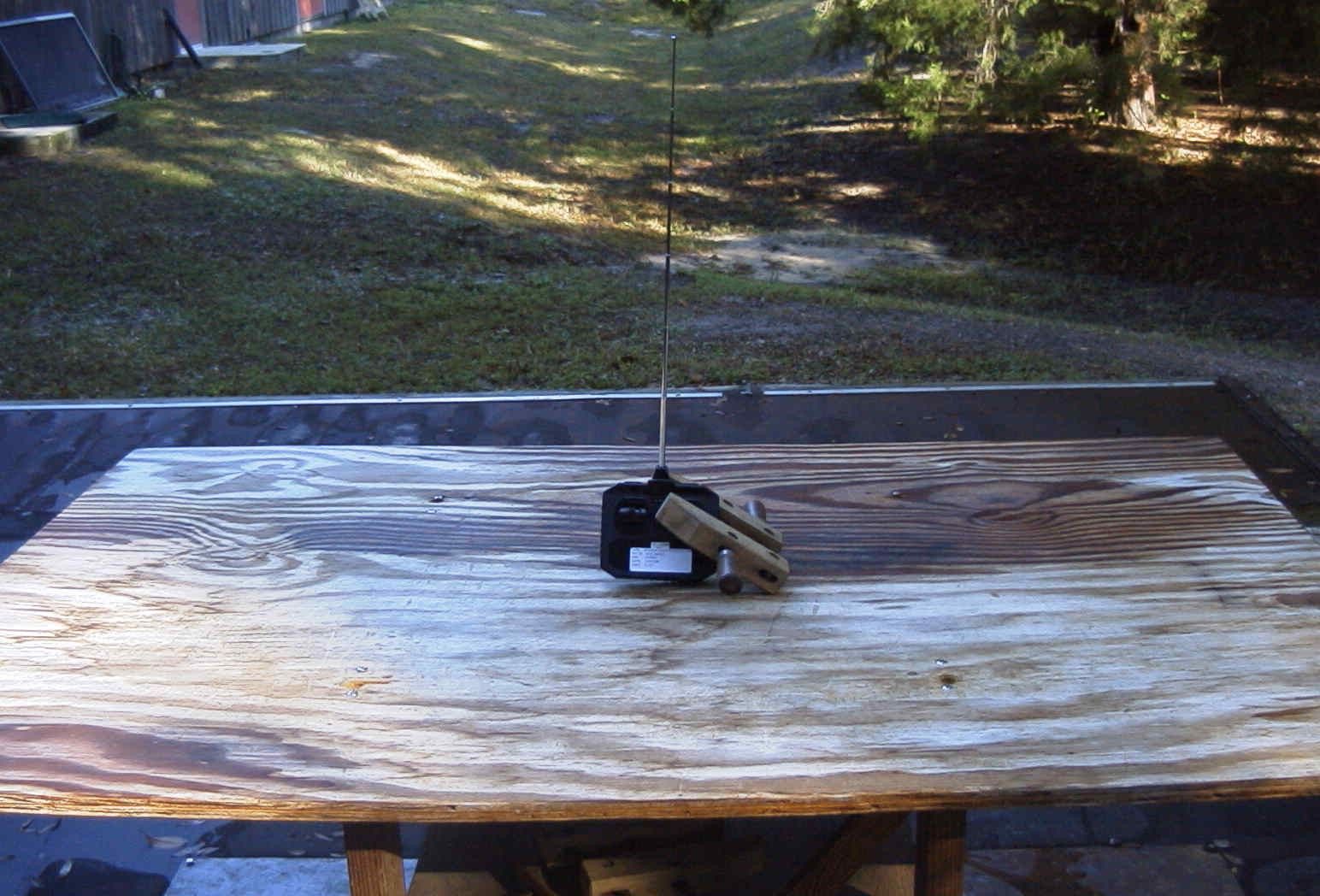

TIMCOTIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE136121A REPORT #: S\SUNCONGLE\1119HT2\1119HT2TestReport.doc COVER SHEET Test Report Product Name: 27 MHz WIRELESS REMOTE/CONTROL TOY - TRANSMITTER FCC ID: GLE136121A Applicant: SUNCON TOYS INDUSTRY LTD. 11/F, KAI TAK FACTORY BUILDING 99 KING FUK STREET SANPOKONG, KOWLOON, HONG KONG Date Receipt: NOVEMBER 5, 2002 Date Tested: NOVEMBER 13, 2002 TIMCOTIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE136121A REPORT #: S\SUNCONGLE\1119HT2\1119HT2TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE136121A TEST REPORT CONTAINING: PAGE 1-3....TEST EQUIPMENT LIST PAGE 4......TEST PROCEDURE PAGE 5......RADIATION INTERFERENCE TEST DATA PAGE 6......OCCUPIED BANDWIDTH PAGE 7......OCCUPIED BANDWIDTH PLOT EXHIBITS CONTAINING: EXHIBIT 1............BLOCK DIAGRAM EXHIBIT 2............SCHEMATIC EXHIBIT 3............INSTRUCTION MANUAL EXHIBIT 4............SAMPLE OF FCC ID LABEL EXHIBIT 5............LOCATION OF FCC ID LABEL EXHIBIT 6............EXTERNAL PHOTOGRAPHS EXHIBIT 7............INTERNAL PHOTOGRAPHS EXHIBIT 8............CIRCUIT DESCRIPTION EXHIBIT 9............TEST SET-UP PHOTOGRAPH TIMCOTIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE136121A REPORT #: S\SUNCONGLE\1119HT2\1119HT2TestReport.doc Page 1 of 7 EMC Equipment List DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS X 3-Meter OATS TEI N/A N/A Listed 12/22/99 12/22/02 3/10-Meter OATS TEI N/A N/A Listed 3/26/01 3/26/04 Receiver, Beige Tower Spectrum Analyzer (Tan) HP 8566B Opt 462 3138A07786 3144A20661 CAL 8/31/01 8/31/03 RF Preselector (Tan) HP 85685A 3221A01400 CAL 8/31/01 8/31/03 Quasi-Peak Adapter (Tan) HP 85650A 3303A01690 CAL 8/31/01 8/31/03 X Receiver, Blue Tower X Spectrum Analyzer (Blue) HP 8568B 2928A04729 2848A18049 CHAR 10/22/01 10/22/03 X RF Preselector (Blue) HP 85685A 2926A00983 CHAR 10/22/01 10/22/03 X Quasi-Peak Adapter (Blue) HP 85650A 2811A01279 CHAR 10/22/01 10/22/03 X Biconnical Antenna Electro-Metrics BIA-25 1171 CAL 4/26/01 4/26/03 Biconnical Antenna Eaton 94455-1 1096 CAL 10/1/01 10/1/03 Biconnical Antenna Eaton 94455-1 1057 CHAR 3/15/00 3/15/02 BiconiLog Antenna EMCO 3143 9409-1043 X Log-Periodic Antenna Electro-Metrics LPA-25 1122 CAL 10/2/01 10/2/03 Log-Periodic Antenna Electro-Metrics EM-6950 632 CHAR 10/15/01 10/15/03 Log-Periodic Antenna Electro-Metrics LPA-30 409 CHAR 10/16/01 10/16/03 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 152 CAL 3/21/01 3/21/04 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 153 CHAR 11/24/00 11/24/03 Double-Ridged Horn Antenna Electro-Metrics RGA-180 2319 CAL 12/19/01 12/19/03 Horn Antenna Electro-Metrics EM-6961 6246 CAL 3/21/01 3/21/03 TIMCOTIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE136121A REPORT #: S\SUNCONGLE\1119HT2\1119HT2TestReport.doc Page 2 of 7 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS Horn Antenna ATM 19-443-6R None No Cal Required Passive Loop Antenna EMC Test Systems EMCO 6512 9706-1211 CHAR 7/10/01 7/10/03 Line Impedance Stabilization . . . Electro-Metrics ANS-25/2 2604 CAL 10/9/01 10/9/03 Line Impedance Stabilization . . . Electro-Metrics EM-7820 2682 CAL 3/16/01 3/16/03 Termaline Wattmeter Bird Electronic Corporation 611 16405 CAL 5/25/99 5/25/01 Termaline Wattmeter Bird Electronic Corporation 6104 1926 CAL 12/12/01 12/12/03 Oscilloscope Tektronix 2230 300572 CHAR 2/1/01 2/1/03 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 1/22/02 1/22/04 AC Voltmeter HP 400FL 2213A14499 CAL 10/9/01 10/9/03 AC Voltmeter HP 400FL 2213A14261 CHAR 10/15/01 10/15/03 AC Voltmeter HP 400FL 2213A14728 CHAR 10/15/01 10/15/03 X Digital Multimeter Fluke 77 35053830 CHAR 1/8/02 1/8/04 Digital Multimeter Fluke 77 43850817 CHAR 1/8/02 1/8/04 Digital Multimeter HP E2377A 2927J05849 CHAR 1/8/02 1/8/04 Multimeter Fluke FLUKE-77-3 79510405 CAL 9/26/01 9/26/03 Peak Power Meter HP 8900C 2131A00545 CHAR 1/26/01 1/26/03 Digital Thermometer Fluke 2166A 42032 CAL 1/16/02 1/16/04 Thermometer Traulsen SK-128 CHAR 1/22/02 1/22/04 X Temp/Humidity gauge EXTech 44577F E000901 CHAR 1/22/02 1/22/04 Frequency Counter HP 5352B 2632A00165 CAL 11/28/01 11/28/03 Power Sensor Agilent Technologies 84811A 2551A02705 CAL 1/26/01 1/26/03 TIMCOTIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE136121A REPORT #: S\SUNCONGLE\1119HT2\1119HT2TestReport.doc Page 3 of 7 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS Service Monitor IFR FM/AM 500A 5182 CAL 11/22/00 11/22/02 Comm. Serv. Monitor IFR FM/AM 1200S 6593 CAL 5/12/02 5/12/04 Signal Generator HP 8640B 2308A21464 CAL 11/15/01 11/15/03 Modulation Analyzer HP 8901A 3435A06868 CAL 9/5/01 9/5/03 Near Field Probe HP HP11940A 2650A02748 CHAR 2/1/01 2/1/03 BandReject Filter Lorch Microwave 5BR4-2400/ 60-N Z1 CHAR 3/2/01 3/2/03 BandReject Filter Lorch Microwave 6BR6-2442/ 300-N Z1 CHAR 3/2/01 3/2/03 BandReject Filter Lorch Microwave 5BR4-10525/ 900-S Z1 CHAR 3/2/01 3/2/03 High Pas Filter Microlab HA-10N CHAR 10/4/01 10/4/03 Audio Oscillator HP 653A 832-00260 CHAR 3/1/01 3/1/03 Frequency Counter HP 5382A 1620A03535 CHAR 3/2/01 3/2/03 Frequency Counter HP 5385A 3242A07460 CHAR 12/11/01 12/11/03 Preamplifier HP 8449B-H02 3008A00372 CHAR 3/4/01 3/4/03 Amplifier HP 11975A 2738A01969 CHAR 3/1/01 3/1/03 Egg Timer Unk CHAR 8/31/01 8/31/…
