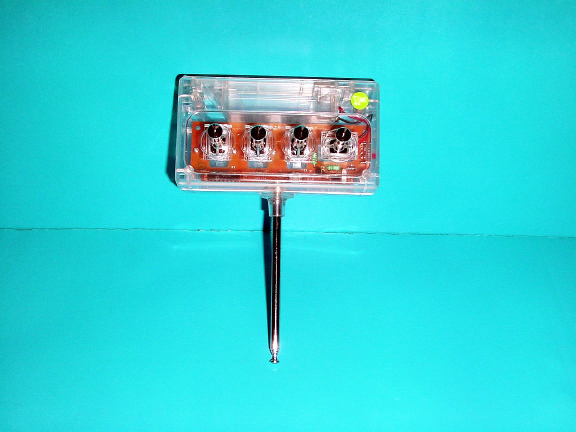

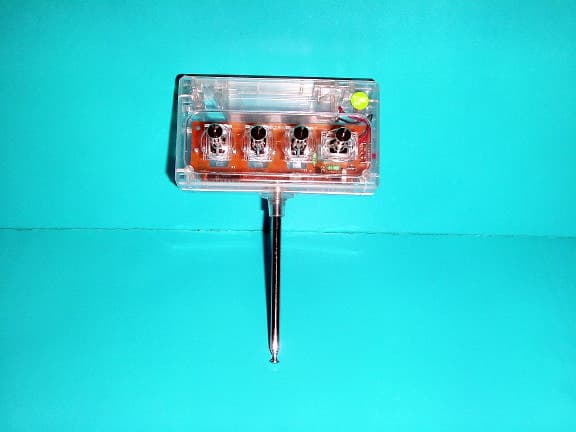

GLE13613827 MHz Wireless Remote Control Transmitter

Cat. No. 60-4351 OWNER’S MANUAL – Please read before using this equipment. ’58 Chevrolet Impala Lowrider Your RadioShack Impala Lowrider is built to handle the road with style, whether the road is the hallway in your house or the sidewalk outside. Built to 1/12 scale, your Impala Lowrider can reach speeds of up to 650 feet per minute. You can cruise the sidewalks of your neighborhood speeding forward or backward, rocking from side to side, bouncing the rear of the car up and down. Your Impala Lowrider will be the primo ride on your block! You need the following items (not supplied) to power your Impala Lowrider: . one 9V battery for the transmitter . at least one 9.6 volt rechargeable battery pack for the car . one battery pack charger [FCC DOC wordings here.] Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. INSTALLING BATTERIES Cautions: Use only a fresh battery/battery pack of the required size and recommended type. If you will not be using the car for a week or more, remove the battery from the transmitter and the battery pack from the car. Batteries can leak chemicals that can damage electronic parts. Never leave dead or weak batteries in the car or the transmitter. Warning: Dispose of old batteries promptly and properly. Do not burn or bury them. In the Transmitter The transmitter requires one 9-volt battery. For the best performance and longest life, we recommend a RadioShack alkaline battery. 1. Slide ON/OFF on the transmitter to OFF. 2. Press the tab on the battery compartment cover and open the cover. 3. Place a battery in the battery compartment according to the polarity symbols (+ and -) marked inside. 4. Close the cover. Note: When the transmitter’s range decreases, replace its battery. In The Car The car requires one 9.6-volt rechargeable battery pack for power. You must charge a rechargeable battery pack before you can use it to power your car. To charge it, follow the battery charger’s instructions. 1. Slide ON/OFF on the bottom of the car to OFF. 2. Use a coin to turn the battery compartment cover’s latches clockwise until they stop. Then lift off the cover. 3. Put the battery pack in the compartment with the battery pack’s connector on the same side as the car’s matching connector. 4. Attach the battery pack’s white connector to the car’s matching connector. Do not force them! They only fit together one way. 5. Replace the cover and turn the latches counterclockwise until they stop. Be sure the connectors and wires do not touch the car’s moving parts. If the car loses power or does not respond to the transmitter, recharge the battery pack. Note : Occasionally, let the battery pack fully discharge before recharging it. Otherwise the battery pack may lose its ability to fully charge. DRIVING THE IMPALA LOWRIDER Warning: This car can reach much higher speeds than many other radio-controlled cars. Be careful to avoid high-speed collisions with people and objects. Note: To perform the coolest stunts, your Impala Lowrider needs to be running at high speed. 1. Slide ON/OFF on the car and transmitter to ON. 2. Use the transmitter’s lever to drive and steer the Impala Lowrider, and also use the transmitter’s lever to up and down for car hood and real hood. Caution: If the Impala Lowrider gets stuck under an object, immediately release the transmitter’s control levers and retrieve the car. 3. When you finish playing with the car, slide ON/OFF on the car and the transmitter to OFF. ADJUSTING WHEEL ALIGNMENT If the Impala Lowrider does not drive in a straight line when you release the right control lever, adjust the wheel alignment control (between the front wheels, underneath the car). Slide the control toward L (left) if the car is pulling to the right, or toward R (right) if the car is pulling to the left.

Cat. No. 60-4351 BLOCK DIAGRAM CODER OSC. AND MOD. TRANSMITTER 49.860 MHz RF. AMP. DECODER AUDIO AMP. AND DETECTOR DRIVER STEERING MOTOR DRIVER DRIVING MOTOR DRIVER DRIVING MOTOR DRIVER DRIVING MOTOR RECEIVER

27MHZ TRANSMITTER FCC ID: GLE136138 RadioShack  This device complies with Part 15 of CAT. NO. 60-4351 the FCC rules. Operation is subject Power: " 9.6V " battery pack for vehicle, to the following two conditions: " 9V " battery for transmitter 22mm (1) This device may not cause Custom Manufactured in China harmful interference, and for RadioShack Corporation, (2) This device must accept any Fort Worth, Texas 76102 interference received, including interference that may cause undesired operation. 47mm

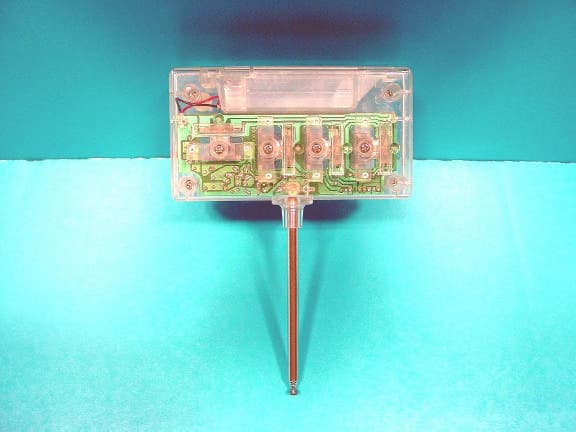

Applicant : Suncon Toys Industry Ltd. Circuit Description Q2 the 27.145 Mhz crystal oscillator drives the base of Q1 the final/buffer amplifier. Summed into the same base(Q1) is the modulation provided by IC1. The output of Q1 has the matching network consisting of L1,L2, C1, that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground, and Power Source The antenna consists of a 45cm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of print circuit board. Electric current is supplied by a 9 Volt primary storage cell.

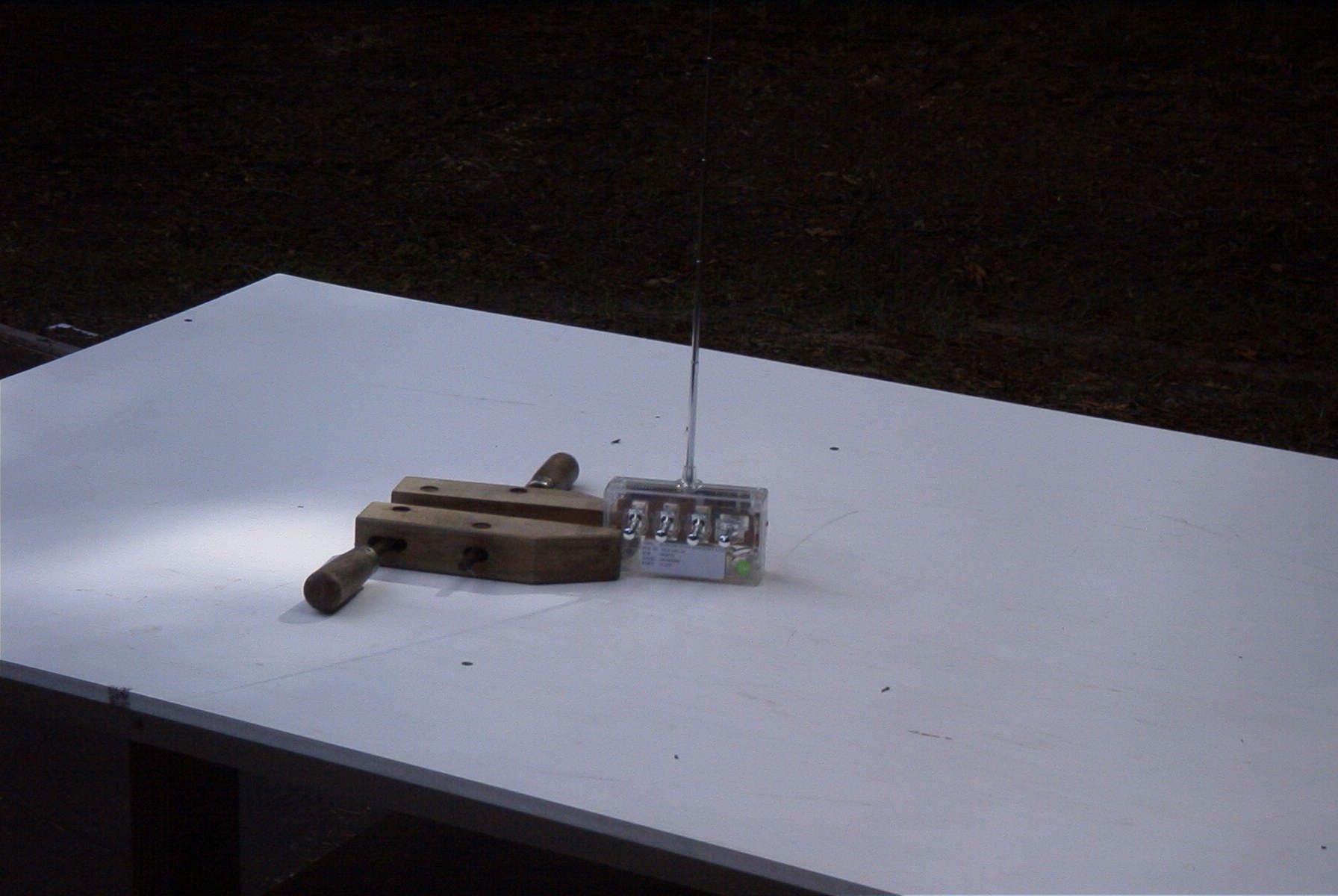

TIMCO TIMCOTIMCO TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE136138 REPORT #: S\SUNCONGLE\596HT3\596HT3TestReport.doc COVER SHEET Test Report Product Name: 27 MHz WIRELESS R/C TOY - TX FCC ID: GLE136138 Applicant: SUNCON TOYS INDUSTRY LTD. 11/F, KAI TAK FACTORY BUILDING 99 KING FUK STREET, SANPOKONG, KOWLOON, HONG KONG Date Receipt: APRIL 30, 2003 Date Tested: MAY 13, 2003 TIMCO TIMCOTIMCO TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE136138 REPORT #: S\SUNCONGLE\596HT3\596HT3TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE136138 TEST REPORT CONTAINING: PAGE 1-4.............TEST EQUIPMENT LIST PAGE 5...............TEST PROCEDURE PAGE 6...............RADIATION INTERFERENCE TEST DATA PAGE 7...............OCCUPIED BANDWIDTH PAGE 8...............OCCUPIED BANDWIDTH PLOT EXHIBITS CONTAINING: EXHIBIT 1............BLOCK DIAGRAM EXHIBIT 2............SCHEMATIC EXHIBIT 3............PARTS LIST EXHIBIT 4............INSTRUCTION MANUAL EXHIBIT 5............SAMPLE OF FCC ID LABEL EXHIBIT 6............LOCATION OF FCC ID LABEL EXHIBIT 7............EXTERNAL PHOTOGRAPHS EXHIBIT 8............INTERNAL PHOTOGRAPHS EXHIBIT 9............CIRCUIT DESCRIPTION EXHIBIT 10...........TEST SET UP PHOTOGRAPH TIMCO TIMCOTIMCO TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE136138 REPORT #: S\SUNCONGLE\596HT3\596HT3TestReport.doc Page 1 of 8 EMC Equipment List DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS X 3-Meter OATS TEI N/A N/A Listed 1/13/03 1/13/06 3/10-Meter OATS TEI N/A N/A Listed 3/26/01 3/26/04 Receiver, Beige Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 8/31/01 8/31/03 RF Preselector HP 85685A 3221A01400 CAL 8/31/01 8/31/03 Quasi-Peak Adapter HP 85650A 3303A01690 CAL 8/31/01 8/31/03 X Receiver, Blue Tower X Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/15/03 4/15/05 X RF Preselector HP 85685A 2926A00983 CAL 4/15/03 4/15/05 X Quasi-Peak Adapter HP 85650A 2811A01279 CAL 4/15/03 4/15/05 Receiver, Silver/Grey Tower Spectrum Analyzer HP 8566B Opt 462 3552A22064 3638A08608 CAL 10/14/02 10/14/04 RF Preselector HP 85685A 2620A00294 CAL 10/14/02 10/14/04 Quasi-Peak Adapter HP 85650A 3303A01844 CAL 10/14/02 10/14/04 Preamplifier HP 8449B 3008A01075 CHAR 1/28/02 1/28/04 X Biconnical Antenna Electro-Metrics BIA-25 1171 CAL 4/26/01 4/26/03 Biconnical Antenna Eaton 94455-1 1096 CAL 10/1/01 10/1/03 Biconnical Antenna Eaton 94455-1 1057 CAL 3/18/03 3/18/05 BiconiLog Antenna EMCO 3143 9409-1043 X Log-Periodic Antenna Electro-Metrics LPA-25 1122 CAL 10/2/01 10/2/03 Log-Periodic Antenna Electro-Metrics EM-6950 632 CHAR 10/15/01 10/15/03 Log-Periodic Antenna Electro-Metrics LPA-30 409 CAL 3/4/03 3/4/05 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 152 CAL 3/21/01 3/21/04 TIMCO TIMCOTIMCO TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE136138 REPORT #: S\SUNCONGLE\596HT3\596HT3TestReport.doc Page 2 of 8 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS Dipole Antenna Kit Electro-Metrics TDA-30/1-4 153 CAL 9/26/02 9/26/05 Double-Ridged Horn Antenna Electro-Metrics RGA-180 2319 CAL 2/17/03 2/17/05 Horn Antenna Electro-Metrics EM-6961 6246 CAL 3/31/03 3/31/05 Horn Antenna ATM 19-443-6R None No Cal Required Passive Loop Antenna EMC Test Systems EMCO 6512 9706-1211 CHAR 7/10/01 7/10/03 Line Impedance Stabilization . . . Electro-Metrics ANS-25/2 2604 CAL 10/9/01 10/9/03 Line Impedance Stabilization . . . Electro-Metrics EM-7820 2682 CAL 3/12/03 3/12/05 Termaline Wattmeter Bird Electronic Corporation 611 16405 CAL 5/25/99 5/25/01 Termaline Wattmeter Bird Electronic Corporation 6104 1926 CHAR 12/12/01 12/12/03 Oscilloscope Tektronix 2230 300572 CHAR 2/1/01 2/1/03 System One Audio Precision System One SYS1-45868 CHAR 4/25/02 4/25/04 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 1/22/02 1/22/04 AC Voltmeter HP 400FL 2213A14499 CAL 10/9/01 10/9/03 AC Voltmeter HP 400FL 2213A14261 CHAR 10/15/01 10/15/03 AC Voltmeter HP 400FL 2213A14728 CHAR 10/15/01 10/15/03 X Digital Multimeter Fluke 77 35053830 CHAR 1/8/02 1/8/04 Digital Multimeter Fluke 77 43850817 CHAR 1/8/02 1/8/04 Digital Multimeter HP E2377A 2927J05849 CHAR 1/8/02 1/8/04 Multimeter Fluke FLUKE-77-3 79510405 CHAR 9/26/01 9/26/03 Peak Power Meter HP 8900C 2131A00545 CHAR 1/26/01 1/26/03 Power Meter HP 432A 1141A07655 CAL 4/15/03 4/15/05 Power Meter And Sensor Bird 4421-107 4022 0166 0218 CAL 4/16/03 4/16/05 TIMCO TIMCOTIMCO TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE136138 REPORT #: S\SUNCONGLE\596HT3\596HT3TestReport.doc Page 3 of 8 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS Power Sensor HP 478A 72129 CAL 4/15/03 4/15/05 Digital Thermometer Fluke 2166A 42032 CAL 1/16/02 1/16/04 Thermometer Traulsen SK-128 CHAR 1/22/02 1/22/04 Thermometer Extech 4028 14871-2 CAL 3/7/03 3/7/05 X Hygro-Thermometer Extech 445703 0602 CAL 10/4/02 10/4/04 Frequency Counter HP 5352B 2632A00165 CAL 11/28/01 11/28/03 Frequency Counter HP 5385A 2730A03025 CAL 3/7/03 3/7/05 Power Sensor Agilent Technologies 84811A 2551A02705 CHAR 1/26/01 1/26/03 Service Monitor IFR FM/AM 500A 5182 CAL 11/22/00 11/22/02 Comm. Serv. Monitor IFR FM/AM 1200S 6593 CAL 5/12/02 5/12/04 Signal Generator HP 8640B 2308A21464 CAL 2/15/02 2/15/04 Sweep Generator Wiltron 6648 101009 CAL 4/15…
