GLE136143T49MHz Remote Control - TX

Owner's Manual Please read before using this equipment Note: You need the following batteries to power your boat: 1. At least one 9.6V rechargeable battery pack for the boat 2. One 9V battery for the transmitter 3. One battery pack charger Preparation Installing Batteries Note: Any batteries purchased for use in this toy may pose a hazard to children. Please check safety notice supplied with batteries before use. In the Boat You need a 9.6V rechargeable battery pack for the boat. Before you use the battery pack, you must charge it using a special battery-pack charger. 1. Set OFF/ON on the side of the boat to OFF. 2. Use a coin to turn the battery compartment latches then lift the cover up. 3. Put the battery pack in the compartment with the battery pack's connector on the same side as the boat's matching connector. 4. Attach the battery pack's connector to the boat's matching connector. Do not force them! They fit only one way. 5. Close the cover, then turn the latches to secure the battery compartment. In the transmitter The transmitter requires one 9V battery. For the best performance and longest life we recommend using an alkaline battery and to never use a rechargeable battery. 1. Press down on the battery compartment cover and slide it in the direction of the arrow. 2. Place a battery in the compartment according to the polarity symbols (+ and -) marked inside. 3. Snap the cover shut. When the transmitter's range decreases, replace its battery. Cautions: . Use only afresh battery of the required size and recommended type. . Never leave a dead or weak battery in the transmitter. INSTALLING THE TRANSMITTER'S ANTENNA Insert the telescoping antenna into the slot on top of the transmitter, then turn the antenna fully clockwise to secure it firmly in place. Operation Warnings: A. Do not use your boat in strong currents, in salt water, or in any body of water with large waves. B. Never touch the propeller while it is spinning, and never put your fingers near the propeller when the boat's ON/OFF switch is turned to ON. C. Never play outside during thunder-storms D. Never play with your boat in strong winds. E. When the boat goes outside the transmitter's control range, it stops. Hold the transmitter as high as possible with the antenna vertical to try to reestablish contact. If you cannot, you must move closer to the boat to control it again, but be careful not to wade into deep water or strong currents. 1. Pull out and fully extend the transmitter's antenna. 2. Slide OFF/ON on the boat to ON. 3. Use the transmitter's speed control trigger and steering wheel to drive and steer the boat. a. Pull the trigger to the left to move forward. b. Pull the trigger to the right to move backward. c. Turn the wheel counterclockwise to move left. d. Turn the wheel clockwise to move right. e. Release the wheel to go straight. NOTE : The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment, such modifications could void the user's authority to operate the equipment. 4. When you fish driving the boat, slide OFF/ON on the boat to OFF. Cautions: . Do not leave your boat in the water when you finish playing. Water might seep into the hull and damage electronic parts.

FCC ID Label: FCCID: GLE136143T This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

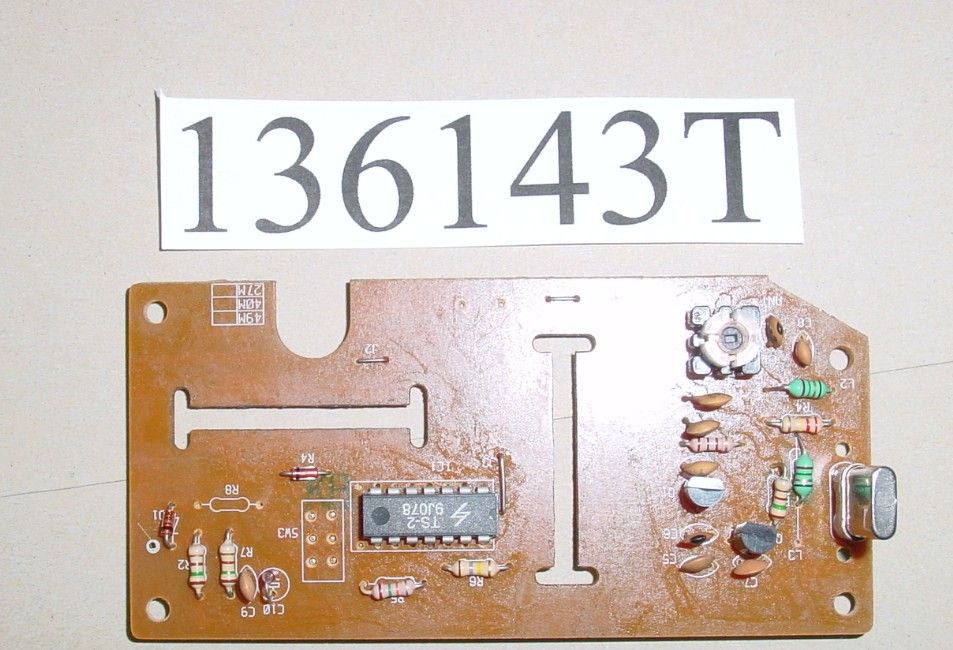

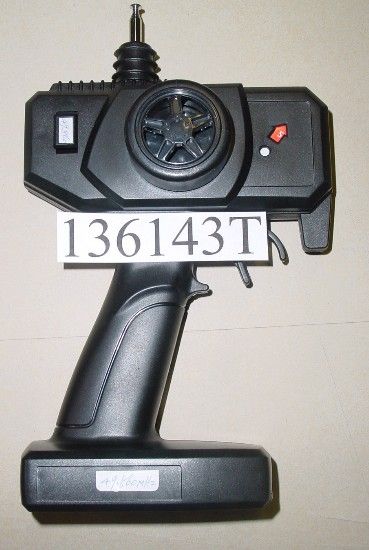

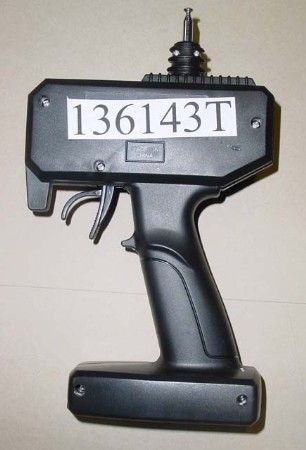

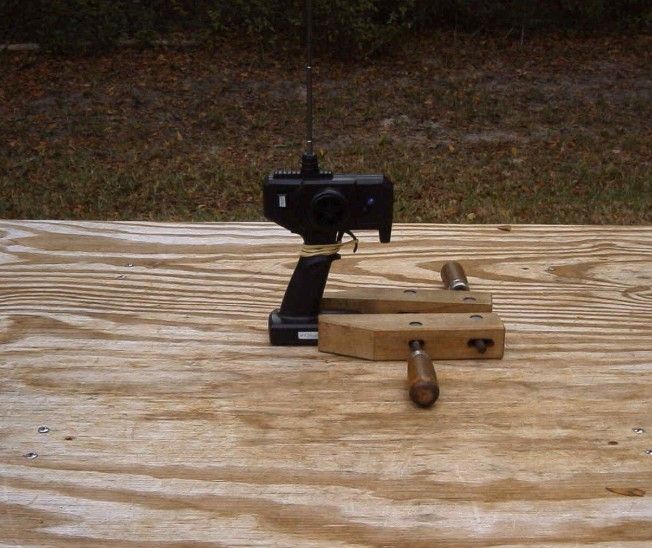

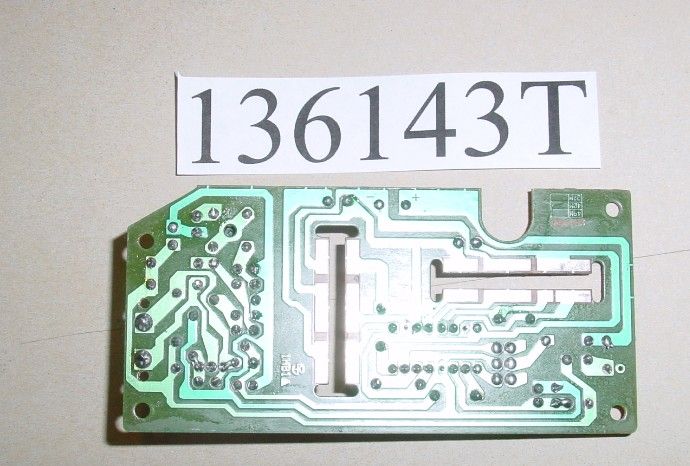

Applicant: Suncon Toys Industry Ltd. FCC ID: GLE136143T Report #: S\SUNCON\1156H1\1156H1TestReport.doc Page #: Table of Contents TABLE OF CONTENTS LIST APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE136143T TEST REPORT CONTAINING: PAGE 1......TEST EQUIPMENT LIST PAGE 2......TEST PROCEDURES PAGE 3......RADIATION INTERFERENCE TEST DATA PAGE 4......OCCUPIED BANDWIDTH TEST DATA PAGE 5......OCCUPIED BANDWIDTH PLOT EXHIBITS CONTAINING: EXHIBIT 1............BLOCK DIAGRAM EXHIBIT 2............SCHEMATIC EXHIBIT 3............INSTRUCTION MANUAL EXHIBIT 4............SAMPLE OF FCC ID LABEL EXHIBIT 5............LOCATION OF FCC ID LABEL EXHIBIT 6............EXTERNAL PHOTO - FRONT SIDE EXHIBIT 7............EXTERNAL PHOTO - BACK SIDE EXHIBIT 8............INTERNAL PHOTO - COMPONENT SIDE EXHIBIT 9............INTERNAL PHOTO - COPPER SIDE EXHIBIT 10...........CIRCUIT DESCRIPTION EXHIBIT 11...........TEST SET UP PHOTO Applicant: Suncon Toys Industry Ltd. FCC ID: GLE136143T Report #: S\SUNCON\1156H1\1156H1TestReport.doc Page #: 1 of 5 APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE136143T TEST EQUIPMENT LIST 1._X_Spectrum Analyzer: HP 8566B-Opt 462, S/N 3138A07786, w/ preselector HP 85685A, S/N 3221A01400, Quasi-Peak Adapter HP 8565OA, S/N 3303A01690 & Preamplifier HP 8449B-OPT H02, S/N 3008A00372 Cal. 8/31/01 Due 8/31/02 2._X_ Biconnical Antenna: Eaton Model 94455-1, S/N 1057, Cal. 10/1/01 Due 10/1/02 3.__ Biconnical Antenna: Electro-Metrics Model BIA-25, S/N 1171 Cal. 4/26/01 Due 4/26/03 4.__ Log-Periodic Antenna: Electro-Metrics Model EM-6950, S/N 632 Char. 3/15/00 Due 3/15/01 5._X_ Log-Periodic Antenna: Electro-Metrics Model LPA-30, S/N 409 Char. 3/15/00 Due 3/15/01 6.__ Double-Ridged Horn Antenna: Electro-Metrics Model RGA-180, 1-18 GHz, S/N 2319 Cal. 4/27/99 Due 4/27/00 7.__ 18-26.3GHz Systron Donner Standard Gain Horn #DBE-520-20 No Cal Required 8.__ Horn 40-60GHz: ATM Part #19-443-6R No Cal Required 9.__ Line Impedance Stabilization Network: Electro-Metrics Model EM-7820, w/NEMA Adapter S/N 2682 Cal. 3/16/01 Due 3/16/02 10.__ Temperature Chamber: Tenney Engineering Model TTRC, S/N 11717-7 Char. 1/27/01 Due 1/27/02 11.__ Frequency Counter: HP Model 5385A, S/N 3242A07460 Char. 11/20/00 Due 11/20/01 12.__ Peak Power Meter: HP Model 8900C, S/N 2131A00545 Char. 1/26/01 Due 1/26/02 13._X_Open Area Test Site #1-3meters Cal. 12/22/99 14.__ Signal Generator: HP 8640B, S/N 2308A21464 Cal. 11/15/01 Due 11/15/02 15.__ Passive Loop Antenna: EMCO Model 6512, 9KHz to 30MHz, S/N 9706-1211 Char. 6/10/00 Due 6/10/01 16.__ Dipole Antenna Kit: Electro-Metrics Model TDA-30/1-4, S/N 153 Char. 11/24/00 Due 11/24/01 17.__ AC Voltmeter: HP Model 400FL, S/N 2213A14499 Cal. 10/9/01 Due 10/09/02 18._X_Digital Multimeter: Fluke Model 77, S/N 43850817 Cal. 11/16/00 Due 11/16/01 19.__ Oscilloscope: Tektronix Model 2230, S/N 300572 Char. 2/1/01 Due 2/1/02 Applicant: Suncon Toys Industry Ltd. FCC ID: GLE136143T Report #: S\SUNCON\1156H1\1156H1TestReport.doc Page #: 2 of 5 APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE136143T TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz. The ambient temperature of the UUT was 60°C with a humidity of 77%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab- lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup- plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. Applicant: Suncon Toys Industry Ltd. FCC ID: GLE136143T Report #: S\SUNCON\1156H1\1156H1TestReport.doc Page #: 3 of 5 APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE136143T NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.235 REQUIREMENTS: CARRIER FREQUENCY WILL NOT EXCEED 80 dBuV/m AT 3M. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED: 30 - 88 MHz 40.0 dBuV/M MEASURED AT 3 METERS 88 - 216 MHz 43.5 dBuV/M 216 - 960 MHz 46.0 dBuV/M ABOVE 960 MHz 54.0 dBuV/M TEST DATA: Emission Frequency MHz Meter Reading dBuv Ant. Polarity Coax Loss dB Correction Factor dB Field Strength dBuv/m Margin dB 49.70 65.5 V 0.80 11.87 78.17 1.83 49.70 51.7 H 0.80 11.87 64.37 15.63 99.70 20.6 V 1.20 11.48 33.28 10.22 99.70 12.8 H 1.20 11.48 25.48 18.02 149.60 15.3 V 1.40 16.46 33.16 10.34 149.60 11.0 H 1.40 16.46 28.86 14.64 199.50 16.2 V 1.80 17.24 35.24 8.26 199.50 12.1 H 1.80 17.24 31.14 12.36 249.40 10.5 H 2.00 14.35 26.85 19.15 249.40 20.3 V 2.00 14.35 36.65 9.35 299.20 18.3 V 2.20 16.17 36.67 9.33 299.20 6.7 H 2.20 16.17 25.07 20.93 349.00 18.8 V 2.49 16.89 38.18 7.82 349.00 7.5 H 2.49 16.89 26.88 19.12 398.90 9.4 V 2.79 16.39 28.58 17.42 SAMPLE CALCULATION: FSdBuV/m = MR(dBuV) + ACFdB. TEST PROCEDURE: The procedure used was ANSI STANDARD C63.4-1992. The spectrum was scanned from 30 MHz to 1000 MHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and the worse c…
