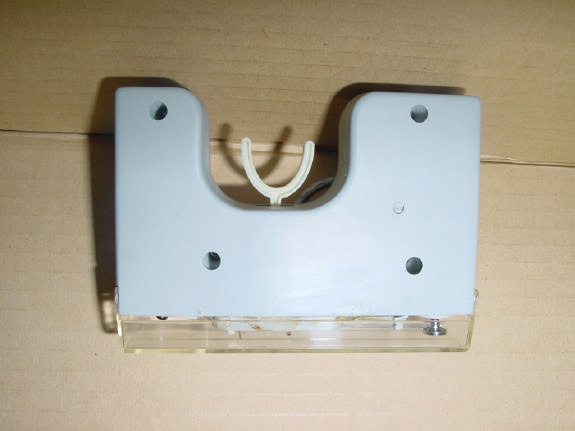

GLE20008027 MHz Wireless R/C Toy Transmitter

It’s the ultimate radio control experience! Your Starter Kit comes with a radio controller and a full set of factory parts to assemble your car. With a quick charge about 60 seconds, your ZipZaps micro RC will be revving in no time. Your ZipZaps micro RC provides totally 6 selectable channels. You can enjoy racing with 6 cars a time. Your ZipZaps micro RC comes with a built-in Ni-MH rechargeable battery to power the car, and it requires four AAA batteries (not supplied) for the controller/charger. Built to 1:64 scale, your tunable ZipZaps micro RC is small enough to carry in your pocket. ZipZaps are perfect for anyone ages 8 and up. To really rev up the fun factor, you can customize your ZipZaps micro RC with optional performance upgrade kits, available at the ZipZaps Showroom at www.zipzaps.com (Please confirm this) and your local RadioShack. Just follow these steps to get your car up to speed and ready to race. 1 Starter Kit Includes Your ZipZaps micro RC Starter Kit includes everything you see here: Factory parts.eps here 2Attach the WRIST STRAP Attach the WRIST STRAP as shown below to prevent dropping your CONTROLLER. Thread the string through the hole on the left side of the CONTROLLER as show, and then thread the strap through the ring of the string. Attach strap.eps here. 3 Powers Up Your Controller The CONTROLLER charges your micro RC and controls its steering and speed. You’ll need to install four AAA batteries. For the best performance and longest life, the ZipZaps factory recommends RadioShack Enercell Plus alkaline batteries. RELEASE ON OFF ON OFF ON OFF ON OFF OPEN OPEN 1) Set ON/OFF on the CONTROLLER to OFF. 2) Slide the battery compartment cover in the direction of the arrow to remove the cover. 3) Insert four AAA batteries in the compartment according to the polarity symbols (+ and -) marked inside. 4) Replace the cover and snap shut. If you notice the LED of your CONTROLLER dimming, it is time to replace the batteries. Installing batterys.eps here. Installing Batteries Cautions: Use only fresh batteries of the required size and recommended type. Do not mix old and new batteries, different types of batteries (standard, alkaline, or rechargeable), or rechargeable batteries of different capacities. If you do not plan to use the micro RC for a week or more, remove all the batteries from the CONTROLLER. Batteries can leak chemicals that can destroy electronic parts. Never leave dead or weak batteries in the CONTROLLER. Dispose of dead batteries promptly and properly; do not burn or bury them. 4Zip Your Car Together 1) Mount the HUBCAPS to the front axle wheels, and then press the TIRES over the HUBCAPS as shown. Mount front axle wheels.eps 2) Install the STOCK MOTOR WITH DRIVE GEAR in the groove on the back of the CHASSIS. 3) Carefully snap the MOTOR CLIP WITH SET SCREW into the groove closest to the MOTOR as shown. Install motor1.eps 4) Rotate the MOTOR CLIP WITH SET SCREW as shown below to set the MOTOR in position. Install motor2.eps, 5) Secure the MOTOR CLIP WITH SET SCREW with the SCREWDRIVER which is stored at the bottom of the CONTROLLER. 6) Plug the TRANSFER GEAR into the axle as shown. Be sure the TRANSFER GEAR meshes with the DRIVE GEAR on the STOCK MOTOR. installs motor3.eps Caution: Do not over tighten the SET SCREW until the MOTOR CLIP WITH SET SCREW becomes slanted. It should be horizontal. Caution.eps 7) Plug the HUBCAPS into the REAR AXLE GEAR, and then press the TIRES over the HUBCAPS. Next, secure the REAR AXLE GEAR assembly into the CHASSIS as shown. Be sure the REAR AXLE GEAR meshes with TRANSFER GEAR. Mount rear axle wheel.eps 8) Plug the LED connector of the car top onto the car chassis circuit board male connector as shown. Connect body top-antenna.eps 9) Thread the ANTENNA through the hold in the BODY TOP. Snap the BODY TOP to the back of the CHASSIS, and then secure the front by gently pushing the BODY TOP onto the CHASSIS as shown. 5Charging and Programming Channels 1) Set ON/OFF to ON to turn on the CONTROLLER. The indicator lights steady green. 2) Slide ON/OFF at the bottom of the micro RC to ON. 3) Open the cover on the top of the CONTROLLER. Align the metal contact points on the car’s chassis with the metal contact points on top of the CONTROLLER. Place the micro RC in direction as shown below and snap it into position – it will lock automatically. The indicator blinks in red to indicate frequency channel programming in progress. It takes about 10 seconds for programming. 4) If programming is successful, the indicator lights steady red and Charging starts with 60 seconds duration. If programming is failed, the indicator turns amber but battery charging still continues for 60 seconds. In this case, you must detach the car to clear the programming fail state. Be sure you turned the micro RC on. 5) The indicator turns green after the micro RC has been well charged. Press RELEASE to unlock the micro RC. Charging car.eps 1 2 Neutral trimmer on transmitter If the micro RC does not stop during natural position of transmitter, adjust trimmer as shown until the wheel stops. Neutral Trimmer.eps Caution: Always use RELEASE when removing the car from the charger. You can change the operation channel even during charging. The channel programming sequence starts with indicator blinking in RED if charging is still not completed, or in GREEN if charging has been already completed. 6Zoom Away! For optimum racing conditions use a smooth, flat surface. Avoid rugs, carpet and family pets! Warning: Do not run your micro RC in the street. Open the removable cover on the top the CONTROLLER. Fully extend the antenna. Set ON/OFF on the CONTROLLER to ON. The ON/OFF indicator lights green. Antenna.eps 1 2 OPEN OPEN OPEN Trigger control: You can change the left/right movement of the trigger with L/R on the top of the CONTROLLER. Set it to R and the micro RC moves forward as you pull the trigger to left, moves backward as you pull the trigger to right. Setting the switch to …

Text truncated - open the document above for the full version.

Rating label for transmitter FCC ID: GLE200080 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

T646-A26-A2RC CAR, TX ASS'Y T646 TX PARTLIST LvASSYPart NumberOperDescription 311200080490A00AATX PCB XPC T1.0 94HB 311STTC1623L601AATRANSISTOR 2SC1623(L6) RefQ 201 Q 204 311STTC1623L601ACTRANSISTOR 2SC1623(L6) RefQ 203 311STKT10----01ADTRANSISTOR KST10 RefQ 205 Q 206 311SDVC80026001AEVARICAP DIODE BB149A RefD 201 311SI010021DC01AFMASKED MCU WX81578 RefU 203 311SIEX221---01AGTXIC , DICE WY81221 RefU 201 311SIGA3.0T8901AHIC GM6250-3.0ST89 RefU 202 311SDSI90064-01AJSI DIODE 1N4148 RefD 203 311CJNEK102K*02AACERAMIC CAPACI 0603 X7R 102K50 RefC 223 C 224 C 203 311CBNAK100DM02ACCERAMIC CAPACI GRM39COG100D50 RefC 225 311CBNAK121J*02ADCERAMIC CAPACI 0603 121J50 RefC 205 311CJNPE105Z*02AFCERAMIC CAPACI 0603 Y5V 105Z10 RefC 208 311CBNAK151J*02AGCERAMIC CAPACI 1608 CH 50V 151J RefC 209 C 210 311CBNAK300J*02AHCERAMIC CAPACI 0603 300J50 RefC 206 311CBNAK330J*02AICERAMIC CAPACI 1608 CH 50V 330J RefC 204 311CBNAK561J*02AJCERAMIC CAPACI 0603 561J50 RefC 211 311CBNAK200J*02AKCERAMIC CAPACI 0603 200J50 RefC 228 311CJNPG104Z*02ALCERAMIC CAPACI 0603 Y5V 104Z16 RefC 214 C 220 C 234 C 226 311CJNPG104Z*02AMCERAMIC CAPACI 0603 Y5V 104Z16 RefC 229 C 230 C 231 C 232 311CJNPG104Z*02ANCERAMIC CAPACI 0603 Y5V 104Z16 RefC 233 C 207 C 238 311CBNAK331J*02AOCERAMIC CAPACI 1608 CH 50V 331J RefC 215 311CBNAK101J*02APCERAMIC CAPACI 1608 CH 50V 101J RefC 237 311RG0SN100J*03AAM-GLAZE RESIST RK 1/16C 10 ohmJ RefR 204 311RG0SN104J*03ABM-GLAZE RESIST RK1/16C 100 KohmJ RefR 202 R 250 R 251 R 253 311RG0SN103J*03ACM-GLAZE RESIST RK1/16C 10 KohmJ RefR 241 R 235 R 237 311RG0SN222J*03ADM-GLAZE RESIST RK1/16C 2R2 KohmJ RefR 238 311RG0SN203J*03AEM-GLAZE RESIST RK 1/16C 20KohmJ RefR 234 311RG0SN224J*03AFM-GLAZE RESIST RK1/16C 220 KohmJ RefR 239 311RG0SN512J*03AGM-GLAZE RESIST RK1/16C 5R1 KohmJ RefR 231 R 228 311RG0SN563J*03AHM-GLAZE RESIST RK1/16C 56 KohmJ RefR 227 R 206 311RG0SN100J*03AIM-GLAZE RESIST RK 1/16C 10 ohmJ RefR 214 R 215 R 216 R 217 311RG0SN100J*03AJM-GLAZE RESIST RK 1/16C 10 ohmJ RefR 218 R 245 R 246 R 247 311RG0SN100J*03AKM-GLAZE RESIST RK 1/16C 10 ohmJ RefR 248 R 249 311RG0SN202J*03ALM-GLAZE RESIST RK1/16C 2 KohmJ RefR 230 311RG0SN362J*03AMM-GLAZE RESIST RK 1/16C 3R6KohmJ RefR 201 311RG0SN103J*04AAM-GLAZE RESIST RK1/16C 10 KohmJ RefR 236 311RG0SN154J*04ABM-GLAZE RESIST RK 1/16C 150KohmJ RefR 211 311RG0SN102J*04ACM-GLAZE RESIST RK1/16C 1 KohmJ RefR 210 R 212 R 221 311RG0SN103J*04ADM-GLAZE RESIST RK1/16C 10 KohmJ RefR 244 R 243 311RG0SN301J*04AEM-GLAZE RESIST RK 1/16C 300OHMJ RefR 222 311RG0SN393J*04AFM-GLAZE RESIST RK1/16C 39 KohmJ RefR 209 311RG0SN473J*04AGM-GLAZE RESIST RK1/16C 47 KohmJ RefR 208 311RG0SN513J*04AHM-GLAZE RESIST RK 1/16C 51KohmJ RefR 233 311RG0SN563J*04AIM-GLAZE RESIST RK1/16C 56 KohmJ RefR 205 R 206 R 227 R 252 311RG0SN202J*04AJM-GLAZE RESIST RK1/16C 2 KohmJ RefR 240 311RG0SN301J*04AKM-GLAZE RESIST RK 1/16C 300OHMJ RefR 219 311RG0SN471J*04ALM-GLAZE RESIST RK1/16C 470 ohmJ RefR 213 311142581770A05AACHIP INDUCTOR LCSFI1608AR27KT RefL 203 311142581780A05ACCHIP INDUCTOR LCSFI1608AR56KT RefL 201 221183280250A01AASLIDE SW SS012F47-G 4 RefSW201 221172989370A01ACROTARY VR R801B-1-B5K RefVR203 221183280260A01ADSLIDE SW SK-12D10-G 2 E NS RefSW206 221SL0080090001AELED L-3WEGW-CA RefD 202 221177390110A01AFSEMI FIXED VR KVSF637A 5KB RefVR204 221142089960A01AGINDUCTOR 4.7UH RefL 202 221STMP8550--01AHTRANSISTOR MPS8550 RefQ 202 Q 207 Q 208 221STMP8050--01AITRANSISTOR MPS8050 RefQ 209 221CEZCD107M*02ABELECTRO CAPACI 4x7 6.3V 100uF RefC 213 221CEACG106M*02ACELECTRO CAPACI CE04C 16V 10uFM RefC 202 C 212 221143480030A02ADCOIL 20T RefL 204 221391082130A03AA4MHZ CRYSTAL H AEI-040-16-4-AGM RefX 201 221391082180A03ABCRYSTAL (NO CO) 4MHZ 221CBNAK560J*03ACCERAMIC CAPACI 0603 50V 560J RefC 227 221391082190A03AGCRYSTAL (RED) 4MHZ 221CBNAK101J*03AHCERAMIC CAPACI 1608 CH 50V 101J RefC 227 221391082200A03ALCRYSTAL(BLUE) 4MHZ 221RG0SN000J*03AMM-GLAZE RESIST RK 1/16C 000 ohmJ RefC 227 138AA0295AAA101AAPAD 1 CORRUGATED BOARD 138AA0296AAA101ABPAD 2 CORRUGATED BOARD 138AA0298AAA101ACPAD 4 CORRUGATED BOARD 138AM0402AAA101AD MASTER CARTON CORRUGATED BOARD

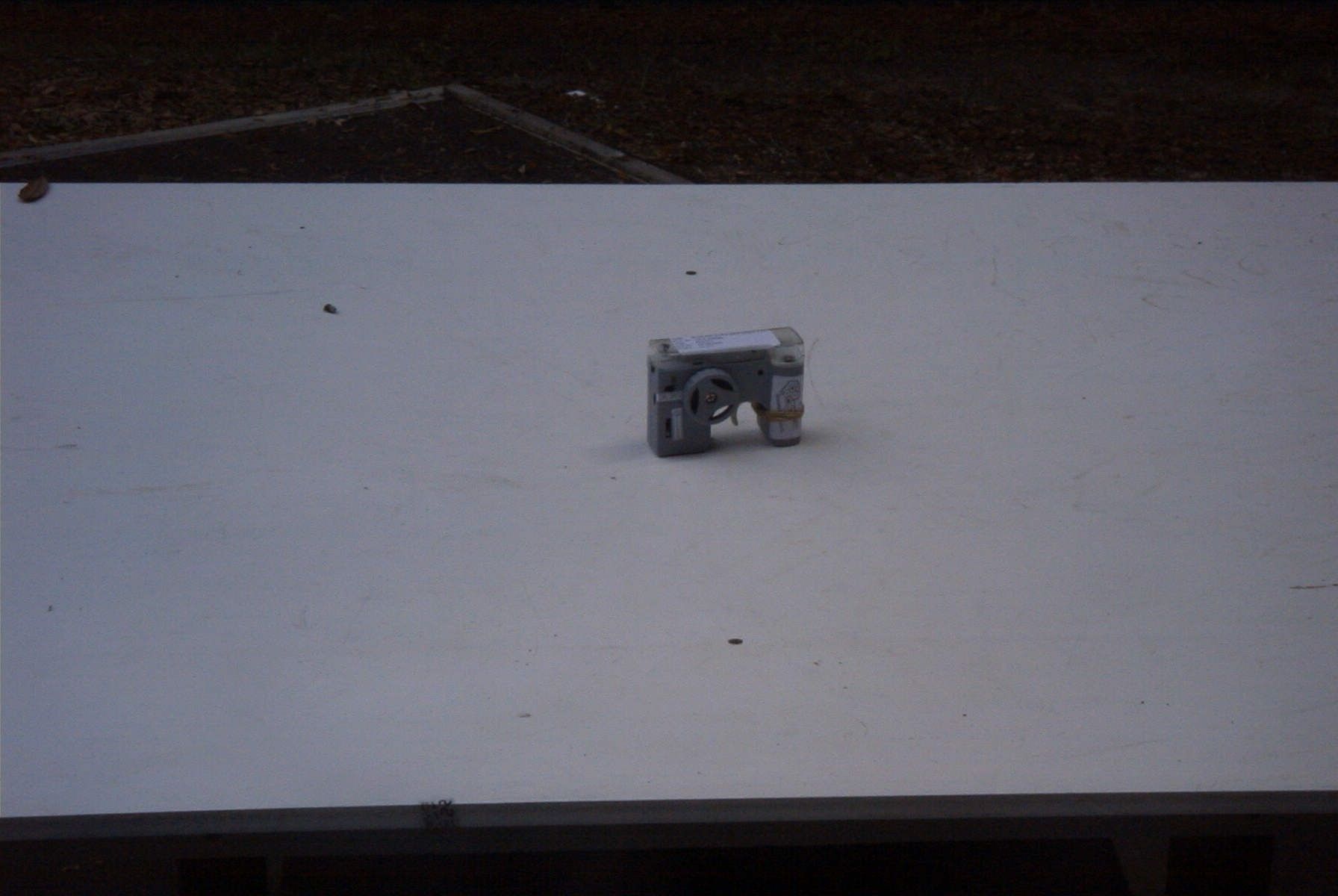

TIMCO TIMCOTIMCO TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE200080 REPORT #: S\SUNCONGLE\581HT3\581HT3TestReport.doc COVER SHEET Test Report Product Name: 27MHz WIRELESS R/C TOY FCC ID: GLE200080 Applicant: SUNCON TOYS INDUSTRY LTD. 11/F, KAI TAK FACTORY BUILDING 99 KING FUK STREET SANPOKONG, KOWLOON HONG KONG Date Receipt: APRIL 28, 2003 Date Tested: APRIL 30, 2003 TIMCO TIMCOTIMCO TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE200080 REPORT #: S\SUNCONGLE\581HT3\581HT3TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE200080 TEST REPORT CONTAINING: PAGE 1-4.............TEST EQUIPMENT LIST PAGE 5...............TEST PROCEDURE PAGE 6...............RADIATION INTERFERENCE TEST DATA PAGE 7...............OCCUPIED BANDWIDTH PAGE 8...............OCCUPIED BANDWIDTH PLOT EXHIBITS CONTAINING: EXHIBIT 1............BLOCK DIAGRAM EXHIBIT 2............SCHEMATIC EXHIBIT 3............PARTS LIST EXHIBIT 4............INSTRUCTION MANUAL EXHIBIT 5............SAMPLE OF FCC ID LABEL EXHIBIT 6............LOCATION OF FCC ID LABEL EXHIBIT 7............EXTERNAL PHOTOGRAPHS EXHIBIT 8............INTERNAL PHOTOGRAPHS EXHIBIT 9............CIRCUIT DESCRIPTION EXHIBIT 10...........TEST SET UP PHOTOGRAPH TIMCO TIMCOTIMCO TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE200080 REPORT #: S\SUNCONGLE\581HT3\581HT3TestReport.doc Page 1 of 8 EMC Equipment List DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS X 3-Meter OATS TEI N/A N/A Listed 1/13/03 1/13/06 3/10-Meter OATS TEI N/A N/A Listed 3/26/01 3/26/04 Receiver, Beige Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 8/31/01 8/31/03 RF Preselector HP 85685A 3221A01400 CAL 8/31/01 8/31/03 Quasi-Peak Adapter HP 85650A 3303A01690 CAL 8/31/01 8/31/03 X Receiver, Blue Tower X Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/15/03 4/15/05 X RF Preselector HP 85685A 2926A00983 CAL 4/15/03 4/15/05 X Quasi-Peak Adapter HP 85650A 2811A01279 CAL 4/15/03 4/15/05 Receiver, Silver/Grey Tower Spectrum Analyzer HP 8566B Opt 462 3552A22064 3638A08608 CAL 10/14/02 10/14/04 RF Preselector HP 85685A 2620A00294 CAL 10/14/02 10/14/04 Quasi-Peak Adapter HP 85650A 3303A01844 CAL 10/14/02 10/14/04 Preamplifier HP 8449B 3008A01075 CHAR 1/28/02 1/28/04 X Biconnical Antenna Electro-Metrics BIA-25 1171 CAL 4/26/01 4/26/03 Biconnical Antenna Eaton 94455-1 1096 CAL 10/1/01 10/1/03 Biconnical Antenna Eaton 94455-1 1057 CAL 3/18/03 3/18/05 BiconiLog Antenna EMCO 3143 9409-1043 X Log-Periodic Antenna Electro-Metrics LPA-25 1122 CAL 10/2/01 10/2/03 Log-Periodic Antenna Electro-Metrics EM-6950 632 CHAR 10/15/01 10/15/03 Log-Periodic Antenna Electro-Metrics LPA-30 409 CAL 3/4/03 3/4/05 TIMCO TIMCOTIMCO TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE200080 REPORT #: S\SUNCONGLE\581HT3\581HT3TestReport.doc Page 2 of 8 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS Dipole Antenna Kit Electro-Metrics TDA-30/1-4 152 CAL 3/21/01 3/21/04 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 153 CAL 9/26/02 9/26/05 Double-Ridged Horn Antenna Electro-Metrics RGA-180 2319 CAL 2/17/03 2/17/05 Horn Antenna Electro-Metrics EM-6961 6246 CAL 3/31/03 3/31/05 Horn Antenna ATM 19-443-6R None No Cal Required Passive Loop Antenna EMC Test Systems EMCO 6512 9706-1211 CHAR 7/10/01 7/10/03 Line Impedance Stabilization . . . Electro-Metrics ANS-25/2 2604 CAL 10/9/01 10/9/03 Line Impedance Stabilization . . . Electro-Metrics EM-7820 2682 CAL 3/12/03 3/12/05 Termaline Wattmeter Bird Electronic Corporation 611 16405 CAL 5/25/99 5/25/01 Termaline Wattmeter Bird Electronic Corporation 6104 1926 CHAR 12/12/01 12/12/03 Oscilloscope Tektronix 2230 300572 CHAR 2/1/01 2/1/03 System One Audio Precision System One SYS1-45868 CHAR 4/25/02 4/25/04 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 1/22/02 1/22/04 AC Voltmeter HP 400FL 2213A14499 CAL 10/9/01 10/9/03 AC Voltmeter HP 400FL 2213A14261 CHAR 10/15/01 10/15/03 AC Voltmeter HP 400FL 2213A14728 CHAR 10/15/01 10/15/03 X Digital Multimeter Fluke 77 35053830 CHAR 1/8/02 1/8/04 Digital Multimeter Fluke 77 43850817 CHAR 1/8/02 1/8/04 Digital Multimeter HP E2377A 2927J05849 CHAR 1/8/02 1/8/04 Multimeter Fluke FLUKE-77-3 79510405 CHAR 9/26/01 9/26/03 Peak Power Meter HP 8900C 2131A00545 CHAR 1/26/01 1/26/03 Power Meter HP 432A 1141A07655 CAL 4/15/03 4/15/05 TIMCO TIMCOTIMCO TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE200080 REPORT #: S\SUNCONGLE\581HT3\581HT3TestReport.doc Page 3 of 8 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS Power Meter And Sensor Bird 4421-107 4022 0166 0218 CAL 4/16/03 4/16/05 Power Sensor HP 478A 72129 CAL 4/15/03 4/15/05 Digital Thermometer Fluke 2166A 42032 CAL 1/16/02 1/16/04 Thermometer Traulsen SK-128 CHAR 1/22/02 1/22/04 Thermometer Extech 4028 14871-2 CAL 3/7/03 3/7/05 X Hygro-Thermometer Extech 445703 0602 CAL 10/4/02 10/4/04 Frequency Counter HP 5352B 2632A00165 CAL 11/28/01 11/28/03 Frequency Counter HP 5385A 2730A03025 CAL 3/7/03 3/7/05 Power Sensor Agilent Technologies 84811A 2551A02705 CHAR 1/26/01 1/26/03 Service Monitor IFR FM/AM 500A 5182 CAL 11/22/00 11/22/02 Comm. Serv. Monitor IFR FM/AM 1200S 6593 CAL 5/12/02 5/12/04 Signal Generator HP 8640B 2308A21464 CAL 2/15/02 2/15/04 Sweep Generator Wiltron 6648 101009 CAL 4/15/03 4/…

Text truncated - open the document above for the full version.
