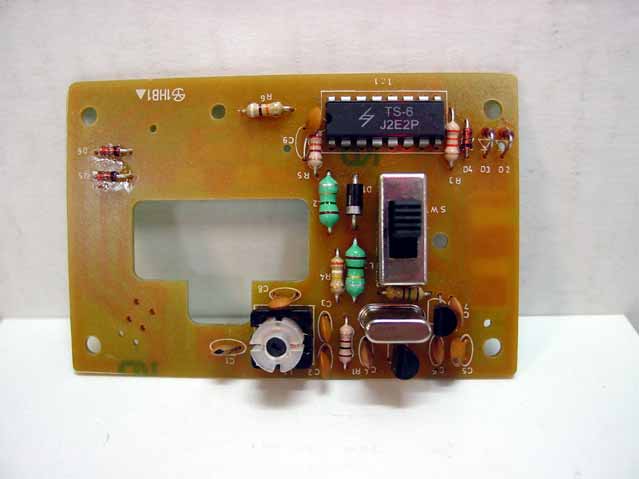

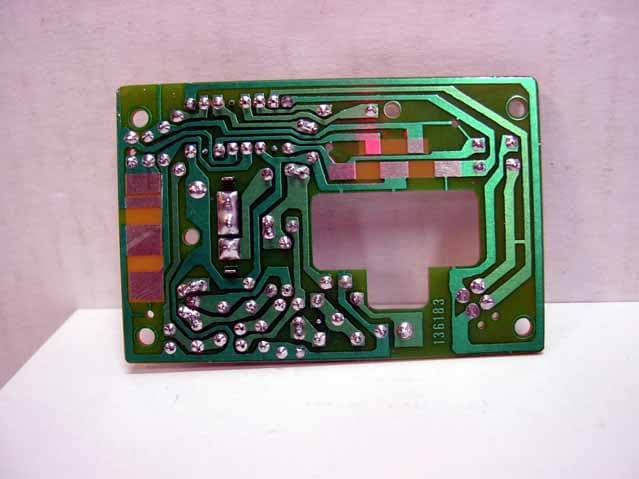

GLE604385T49.82 - 49.90 MHz Wireless R/C Toy - TX

Hummer truck transmitter user’s guide what’s included in the Hummer 1. Remove the battery compartment cover. 2. Insert one 7.2V battery pack and attach the battery pack’s connector to the Hummer’s connector. 3. Replace the cover. Charge the battery pack with a battery charger (not supplied), available at RadioShack. in the transmitter 1. Remove the battery compartment cover. 2. Insert one 9V battery in the compartment. 3. Replace the cover. 1. Fully extend the transmitter’s antenna. 2. Turn on the transmitter and the Hummer. The Hummer’s headlights turn on. 3. Use the transmitter’s controls to drive your truck. 4. If the Hummer does not drive straight, adjust its wheel alignment toward L if the Hummer pulls right, and toward R if it pulls left. 5. Slide the switch on the back of the Hummer to select two or four wheel steering. 6. When finished, turn off the transmitter and Hummer. installing batteries 60-4385 Hummer H2 driving your hummer • Dispose of old batteries promptly and properly. • Do not burn or bury batteries. • Do not mix old and new batteries, or batteries with different capacities or different chemistries. • If you do not plan to use the Hummer for a week or more, remove the batteries. Batteries can leak chemicals that can damage electronic parts. • Be sure the battery pack’s connectors and wires do not touch any of the Hummer‘s moving parts. • Use only batteries of the recommended size and type, and the recommended battery pack. • After charging the battery pack, disconnect it from the charger. Overcharging the battery pack might damage it. • When you disconnect the battery pack from the charger, do not pull on the connector’s wires. You might damage the battery pack. battery information FCC Declaration of Conformity This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Product: Hummer H2 Model: 60-4385 Responsible Party: RadioShack 100 Throckmorton Fort Worth, TX 76102 Phone: 817-415-3200 The FCC Wants You to Know This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult your local RadioShack store or an experienced radio/TV technician for help. • If you cannot eliminate the interference, the FCC requires that you stop using your Hummer. Changes or modifications not expressly approved by RadioShack may cause interference and void the user’s authority to operate the equipment. FCC Information This product is warranted by RadioShack against manufacturing defects in material and workmanship under normal use for ninety (90) days from the date of purchase from RadioShack company-owned stores and authorized RadioShack franchisees and dealers. For complete warranty details and exclusions, check with your local RadioShack store. RadioShack Customer Relations 200 Taylor Street, 6th Floor, Fort Worth, TX 76102 04/04 limited 90-day warranty Keep the Hummer dry; if it gets wet, wipe it dry immediately. Use and store the Hummer only in room temperature environments. Handle the Hummer carefully; do not drop it. Keep the Hummer away from dust and dirt, and wipe it with a damp cloth occasionally to keep it looking new. service and repair If your Hummer is not performing as it should, take it to your local RadioShack store for assistance. To locate your nearest RadioShack, use the store locator feature on RadioShack’s website (www.radioshack.com), or call 1-800-The Shack (843-7422) and follow the menu options. Modifying or tampering with the Hummer’s internal components can cause a malfunction and might invalidate its warranty and void your FCC authorization to operate it. care • Driving your Hummer for long periods of time can generate high heat levels and cause wear and tear on the motor. To help keep heat levels down, when battery power dies, let the Hummer cool for 10 minutes before installing batteries. • Do not touch the motor immediately after using the Hummer, as it may become hot during use. • If the motor runs, but does not respond to the transmitter, move closer and try again. • If someone uses a CB nearby, it might interfere with the control of your Hummer. If this happens, move away from the CB. • You cannot operate your Hummer near devices with transmitters that use the same frequency (27 MHz or 49 MHz). Check the box to see which frequency you have. • The Hummer might make a popping or grinding noise when you change gears. This is normal. hints ©2004. RadioShack Corporation. All rights reserved. RadioShack and RadioShack.com are trademarks used by RadioShack Corporation. 60-4385 07A04 Printed in China Thank you for purchasing your Hummer H2 from RadioShack . Be the first on your block to get behind the wheel of this big truck. It has double-spring suspension for a smooth ride, working headlights, and reaches speeds of up to 950 feet per minute. The Hummer H2 is appropriate for ages 8 and up. Push left to steer left. Push…

Text truncated - open the document above for the full version.

THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE604385T REPORT #: THRU-407008 COVER SHEET Test Report Product Name: 49.82-49.90 MHz Wireless R/C Toy - TX FCC ID: GLE604385T Applicant: SUNCON TOYS INDUSTRY LTD. 11/F, KAI TAK FACTORY BUILDING 99 KING FUK STREET SANPOKONG, KOWLOON, HONG KONG Date Receipt:07/05/2004 Date Tested: 07/05/2004 THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE604385T REPORT #: THRU-407008 TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE604385T TEST REPORT CONTAINING: PAGE 1.............TEST EQUIPMENT LIST PAGE 2.............TEST PROCEDURE PAGE 3-5...........RADIATION INTERFERENCE TEST DATA PAGE 6.............OCCUPIED BANDWIDTH PAGE 7.............OCCUPIED BANDWIDTH PLOT EXHIBITS CONTAINING: EXHIBIT 1............BLOCK DIAGRAM EXHIBIT 2............SCHEMATIC EXHIBIT 3............INSTRUCTION MANUAL EXHIBIT 4............SAMPLE OF FCC ID LABEL EXHIBIT 5............LOCATION OF FCC ID LABEL EXHIBIT 6............EXTERNAL PHOTO - FRONT SIDE EXHIBIT 7............EXTERNAL PHOTO - BACK SIDE EXHIBIT 8............INTERNAL PHOTO - COMPONENT SIDE EXHIBIT 9............INTERNAL PHOTO - COPPER SIDE EXHIBIT 10...........CIRCUIT DESCRIPTION EXHIBIT 11...........TEST SET UP PHOTO N THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE604385T REPORT #: THRU-407008 1 of 7 Test Equipment List DEVICE MODEL MFGR SERNO DUE.CAL EMI Test Receiver ESVS 10 Rohde & Schwarz 830489/001 2005.04.07. Spectrum Analyzer 8566B Hewlett Packard 2311A02394 2005.04.07. Spectrum Display 85662A Hewlett Packard 2542A12429 2005.04.07. Quasi-Peak Adapter 85650A Hewlett Packard 2521A00887 2005.04.07. RF Preselector 85685A Hewlett Packard 2648A00504 2005.04.07. Pre-Amplifier 8449B Hewlett Packard 3008A00375 2005.04.07. Pre-Amplifier 8447F Hewlett Packard 3113A05367 2005.04.07. Spectrum Monitor EZM Rohde & Schwarz 862304/007 2005.04.07. Bico-Antenna 94455-1 Eaton 977 2005.03.17. Log-Periodic Antenna 3146 EMCO 2051 2005.03.17. Dipole Antenna TDA25/1/2 Electro Metrics 176/200/200 2005.03.17. Horn Antenna SAS-571 A.H Systems 414 2005.03.17. Spectrum Analyzer R3261C Advantest 71720189 2005.04.07. LISN KNW-242 Kyoritsu 8-923-2 2004.07.17. LISN 8012-50-R- 24 Solar 8379121 2004.07.17. Loop Ant 6507 EMCO 1435 2004.10.06. Signal Generator SMS Rohde & Schwarz 872165/100 2005.04.07. Modulation Analyzer 8901B Hewlett Packard 3438A05094 2005.04.07. Frequency Counter CMC251 Tektronic CMC-251TW52489 2005.04.07. THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE604385T REPORT #: THRU-407008 2 of 7 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of THRULab & ENGINEERING. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 27ºC with a humidity of 58%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-1992 with the EUT 40 cm from the vertical ground wall. Not Applicable, battery operated. THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE604385T REPORT #: THRU-407008 3 of 7 APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE604385T NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.235 REQUIREMENTS: CARRIER FREQUENCY SHALL NOT EXCEEDS 10,000 microvolts/meter AT 3M. Frequency (MHz) Reading Receiver dBuv/m PK Reading Receiver dBuv/m AV Polar Ant Height m Antenna Factor dB Cable Loss dB Result dBuv PK Result dBuv AV Limit dBuv/m PK Limit dBuv/m AV Margin dBuv/m PK Margin dBuv/m AV 49.8576 56.9 50.6 H 2.0 10.9 1.0 68.8 62.5 100 80 -31.2 -17.5 49.8576 69.7 63.4 V 1.5 10.9 1.0 81.6 75.3 100 80 -18.4 -4.7 SAMPLE CALCULATION: FSdBuV/m = MR (dBuV) + ACFdB. TEST PROCEDURE : The procedure used was ANSI STANDARD C63.4-1992. The spectrum was scanned from 30 MHz to 1000 MHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and the worse case emissions were reported. The UUT was tested in 3 orthogonal planes. TEST RESULTS: THE UNI…

Text truncated - open the document above for the full version.

THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE604385T REPORT #: THRU-407008 THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE604385T REPORT #: THRU-407008 THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE604385T REPORT #: THRU-407008
