GOH-PCGEN2Car Alarm Transmitter

CODE ALARM 950 WITHCOMB AVENUE MADISON HEIGHTS, MI 48071 U.S.A. TEL: 248-583-9620 FAX: 248-585-4799 1-800-321-3209 To: Federal Communications Commission FCC ID: GOH-PC2000 Dear Sir, This is to confirm and explain the modification of our product submitted to apply for FCC Class II Permissive Change. Due to the request of our client, we just changed the antenna portion on circuit board. And after we re-investigated the all requirements of FCC rules, we found the result was still complying with the limitation. Please kindly accept this Class II permissive Change. If you have any further questions about this modification, please contact us. Thank you in advance. Best regards, By: By: TOM CHEN (Signature) (Printed) Title :R&D MANAGER Applicant : CODE ALARM Address : 950 WITHCOMB AVENUE MADISON HEIGHTS, MI 48071 U.S.A. Tel : 248-583-9620 Fax: 248-585-4799

From: etcemi [[email protected]] Sent: Tuesday, April 09, 2002 1:27 AM To: Mike Kuo Subject: Re: FOR FCC ID. GOH-PC2000 ( Code Alarm, new FCC ID:GOH-PCGEN2, AN02T1810) Dear Mike, Attached please find the information for duty factor and the calculation is as follows: 20log(1*40+1.444*10)/99.333= -5.2(dB) And TIN is 3624-03811. If you have any further questions, please kindly let me know. Best regards, K. C. Chen ETC/EMC Department II ----- Original Message ----- From: Mike Kuo To: 'etcemi' Sent: Tuesday, April 09, 2002 8:40 AM Subject: RE: FOR FCC ID. GOH-PC2000 ( Code Alarm, new FCC ID:GOH-PCGEN2, AN02T1810) Hi Jill and K.C.: On Feb. 22, I sent an e-mail with the following technical questions, please address each question: Question #1 and Question #3 are satisfied due to the application is changed from Class II permissive change to new application with new FCC ID number. However, Question#2 and Question #4 are still not addressed. Best Regards Mike Kuo / TCB Certifier -----Original Message----- From: CERTADM Sent: Friday, February 22, 2002 5:35 PM To: '[email protected]' Subject: Code Alarm FCC ID:GOH-PC2000, AN02T1810 Class II permissive change Notice_content ------------- Question #1: The explanation in Class II permissive change letter does not provide detail information about the changes. Question #2: There is no FRN for Code Alarm. Since the applicant is an US corporation. TAX ID number from Code Alarm is required to apply FRN. Question #3: In the original certification, this transmitter was certified under 15.231(e) section by another TCB. As review the test report submitted under the original application, I believe this device should be certified under 15.231(b) of rules. However, because the original certification was issued to 15.231(e) technical standard and the test data presented in your test report are tested in accordance with 15.231(b) technical requirements. FCC Class II permissive change can not be made because two different technical sections. Question #4: In the page 8 of test report, peak and average reading are reported. For pulse emission, the average reading =peak+duty factor as indicated in your test report. However, there is no duty cycle measurement made. Please provide additional test data for justify the correction factor used for average readings. Best Regards Mike Kuo / TCB Certifier The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. -----Original Message----- From: etcemi [mailto:[email protected]] Sent: Monday, April 08, 2002 6:14 AM To: [email protected]; [email protected] Subject: FOR FCC ID. GOH-PC2000 Dear Mike, Please update the application for FCC ID. GOH-PC2000. The new ID is GOH- PCGNE2. Thank your for your kindly. Best regards, Jill Shiau ETC/EMC Dept.

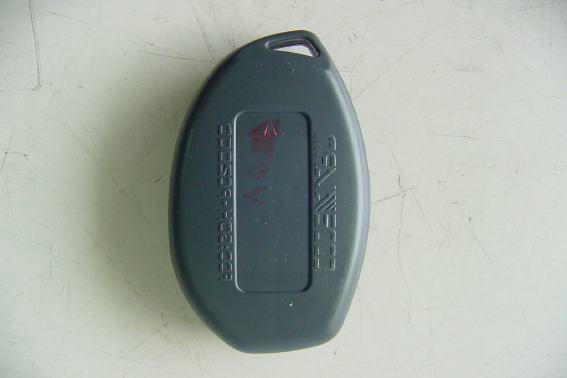

ETC Report No.:ET91R-01-017 FCC ID.: GOH-PCGEN2 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Front View of EUT 2. Rear View of EUT

ETC Report No.:ET91R-01-017 FCC ID.: GOH-PCGEN2 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Internal View of EUT 2. Component View of Main PCB ETC Report No.:ET91R-01-017 FCC ID.: GOH-PCGEN2 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Solder View of Main PCB

Openin any door or entrance protected by the security system triggers the alarm’s 125db siren (or vehicle horn) and flashes the vehicle parking lights. This device protects your vehicle from theft by disabling the starter when the system is armed.

Rev. No 1.0 FCC PART 15 SUPBART C EMI TEST REPORT of E.U.T. : CODE ALARM FCC ID. : GOH-PCGEN2 MODEL : TV-701 Working Frequency : 433.999 MHz for APPLICANT : CODE ALRAM ADDRESS : 950 WHITCOMB AVENUE MADISON HEIGHTS, MI 48071, U.S.A. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIWAN, R.O.C. Tel:(02)226023052, 26023054 Fax:(02)26010910 Report Number : ET91R-01-017 ETC Report No.:ET91R-01-017 FCC ID.: GOH-PCGEN2 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : CODE ALRAM 950 WHITCOMB AVENUE MADISON HEIGHTS, MI 48071, U.S.A. Manufacturer : CODE ALRAM 950 WHITCOMB AVENUE MADISON HEIGHTS, MI 48071, U.S.A. Description of EUT : a) Type of EUT : Transmitter b) Trade Name : CODE ALRAM c) Model No. : TV-701 d) FCC ID : GOH-PCGEN2 e) Working Frequency : 433.999 MHz f) Power Supply : DC 3V Battery Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2001) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Issued Date : Feb. 02, 2002 Test Engineer : ( S. S. Liou ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET91R-01-017 FCC ID.: GOH-PCGEN2 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION.....................................................................................................................................................1 1.1 PRODUCT DESCRIPTION...........................................................................................................................................................1 1.2 CHARACTERISTICS OF DEVICE:...............................................................................................................................................1 1.3 TEST METHODOLOGY..............................................................................................................................................................1 1.4 TEST FACILITY..........................................................................................................................................................................1 2. DEFINITION AND LIMITS.......................................................................................................................................................2 2.1 DEFINITION................................................................................................................................................................................2 2.2 RESTRICTED BANDS OF OPERATION.....................................................................................................................................2 2.3 LIMITATION...............................................................................................................................................................................2 2.4 LABELING REQUIREMENT.......................................................................................................................................................4 2.5 USER INFORMATION.................................................................................................................................................................4 3 SYSTEM TEST CONFIGURATION.........................................................................................................................................5 3.1 JUSTIFICATION..........................................................................................................................................................................5 3.2 DEVICES FOR TESTED SYSTEM...............................................................................................................................................5 4. RADIATED EMISSION MEASUREMENT.............................................................................................................................6 4.1 APPLICABLE STANDARD.........................................................................................................................................................6 4.2 MEASUREMENT PROCEDURE..................................................................................................................................................6 4.3 TEST DATA.................................................................................................................................................................................8 4.4 FIELD STRENGTH CALCULATION..........................................................................................................................................9 4.5 ACTIVATE TIME........................................................................................................................................................................9 4.6 RADIATED TEST EQUIPMENT.................................................................................................................................................9 4.7 MEASURING INSTRUMENT SETUP.........................................................................................................................................9 4.8 RADIATED MEASUREMENT PHOTOS...................................................................................................................................10 5. BANDWIDTH OF EMISSION...............................................................................................................................................11 5.1 APPLICABLE STANDARD PLOT GRAPHIC OF BANDWIDTH.......................................................................…

Text truncated - open the document above for the full version.

ETC Report No.:ET91R-01-017 FCC ID.: GOH-PCGEN2 Rev. No 1.0 Radiated Measurement Photos
